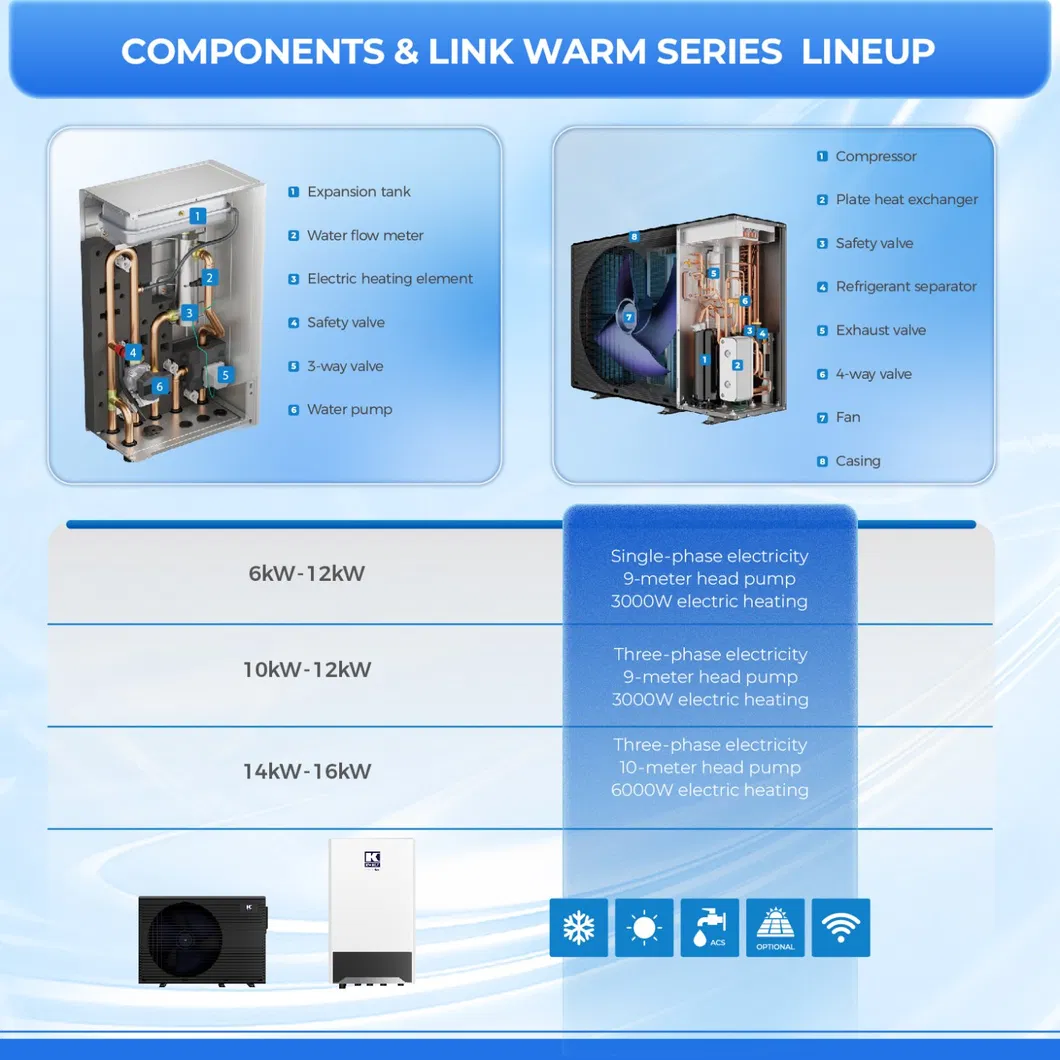

| Indoor Unit Specifications | |||
|---|---|---|---|
| Model | KAWM06(12)-ND2-WW1(GN) | KAWM10(12)-TND2-WW1(GN) | KAWM14(16)-TND2-WW1(GN) |
| Power Source | 220V / 50Hz | 380V / 50Hz | 380V / 50Hz |
| Expansion Tank | 8 L | 8 L | 8 L |
| Electric Heating | 3 kW | 6 kW | 6 kW |
| Max Pump Head | 9 m | 9 m | 10 m |
| Outdoor Unit Technical Data | ||||
|---|---|---|---|---|
| Rated Output | 6 kW | 8 kW | 12 kW | 16 kW |
| Efficiency Class | A+++ (at 35°C and 55°C) | |||
| Refrigerant | R290 | |||
| Heating Ambient | -30°C to 35°C | |||
| Water Temp Range | Heating: 25-85°C | Cooling: 5-25°C | |||
The R290 refrigerant has a very low Global Warming Potential (GWP), making it one of the most sustainable and efficient choices for modern heating systems.
Our EVI DC Inverter technology allows the system to achieve up to 85°C water temperature, even in extreme cold climates as low as -30°C.

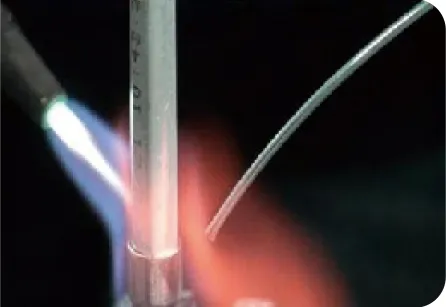

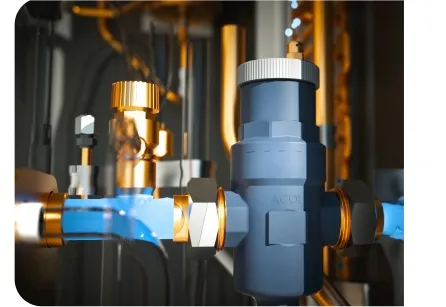

To safely handle R290 refrigerant, we utilize silver brazing welding technology. This ensures high-strength joints and prevents any potential leakage.
Equipped with a refrigerant separator to quickly discharge gas in case of leakage, preventing it from entering indoor spaces. A fully sealed control cabinet eliminates fire hazards.
