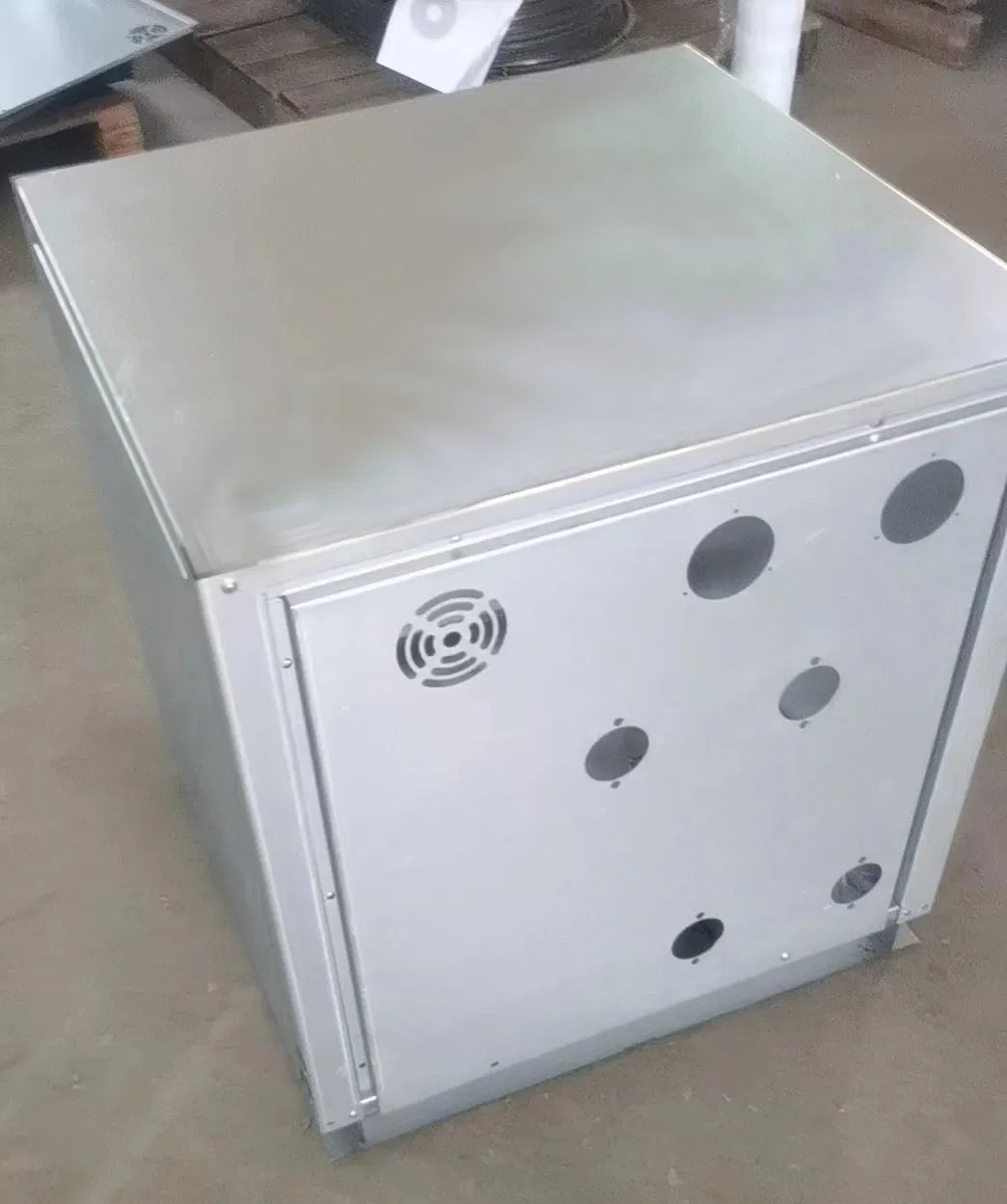

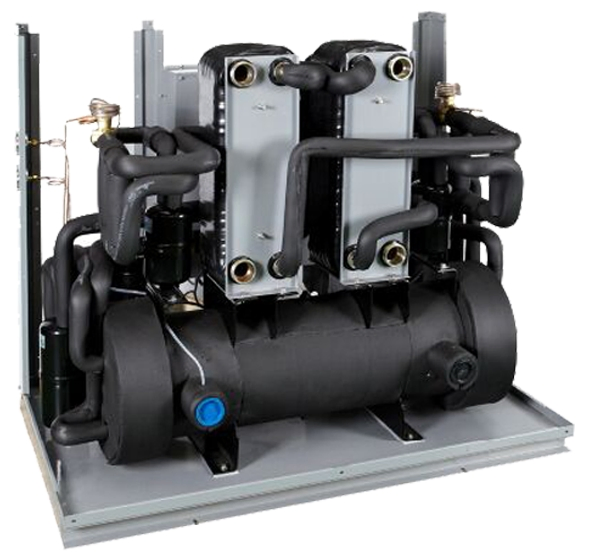

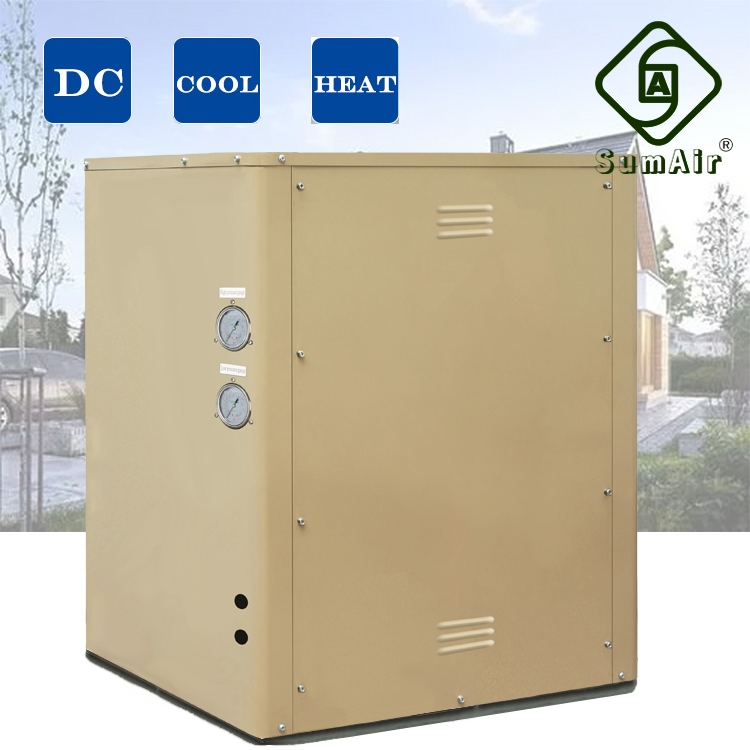

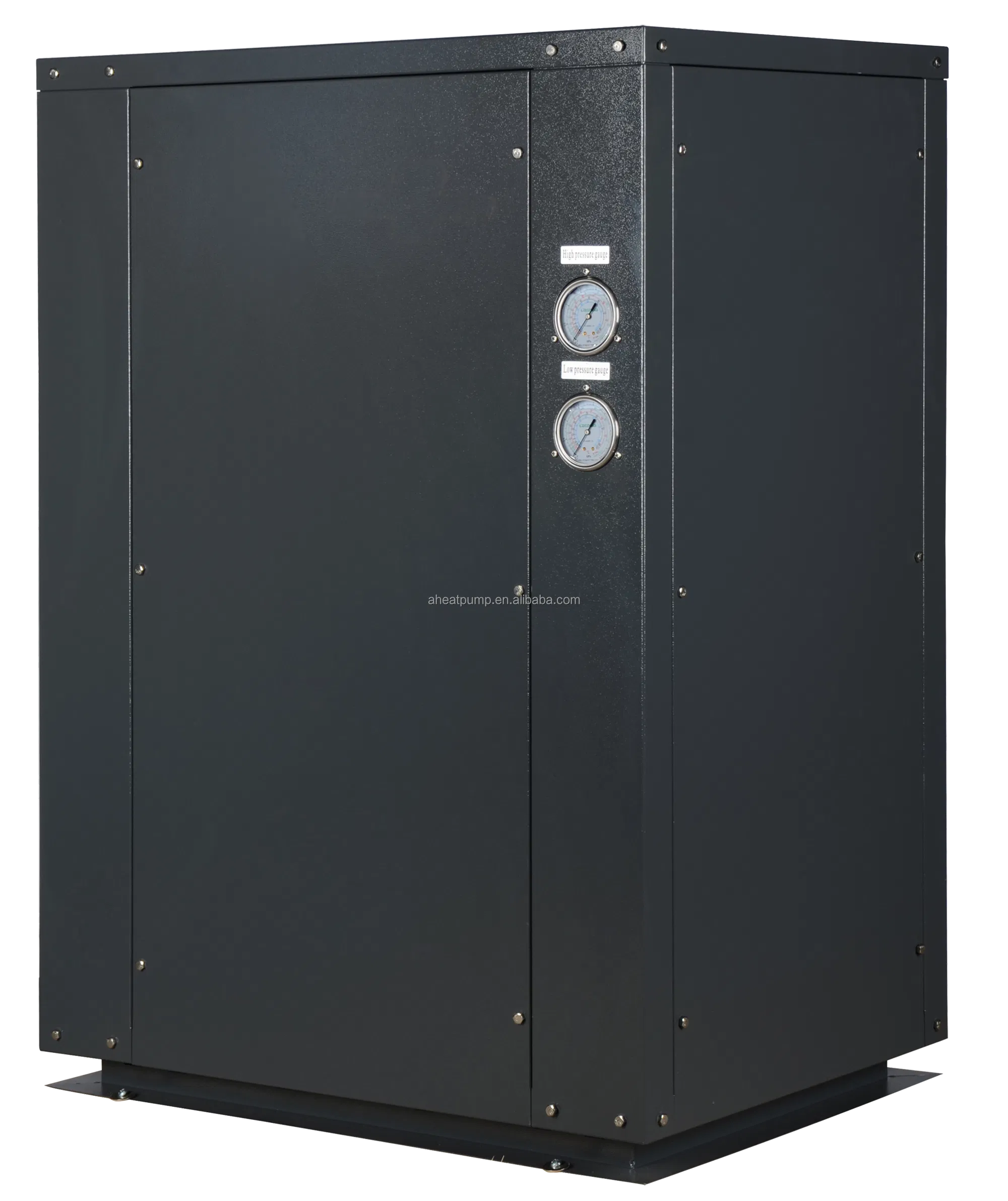

High Efficient Low Noise 12KW R290 R32 R454B House Heating Cooling Geothermal Ground Water Source DHW DC Inverter Heat Pump WATER HEATER Boiler
Saves homeowners between 30-60% on heating costs and 20-50% on cooling costs compared to traditional systems.
Higher initial efficiency ensures overall cost savings are realized within only a couple of years of operation.
One of the greenest ways to generate heat. Lowers carbon footprint and reduces air pollution significantly.
No annoying mechanical noise when turning on or off, ensuring a peaceful home environment.
No combustive materials used, eliminating risks associated with gas or oil-based heating systems.
Indoor components last up to 25 years, while ground loop systems can last up to 50 years.
| Item No. | ADC-10HCG | ADC-20HCG | ADC-40HCG | ADC-80HCG | ADC-120HCG | ADC-240HCG |
|---|---|---|---|---|---|---|
| Cooling Outlet (kW) | 3.8-11 | 6.4-17.5 | 13.5-41 | 23-66 | 35-98 | 69-197 |
| Heating Outlet (kW) | 4.0-12.6 | 6.8-21.7 | 16.0-49 | 26.7-81 | 42-123 | 84.6-246 |
| COP | 4.65 | 4.63 | 4.72 | 4.73 | 4.73 | 4.73 |
| Power Supply | 220V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Expansion Valve | SANHUA EEV | |||||
| Refrigerant | R32 / R290 / R454B | |||||

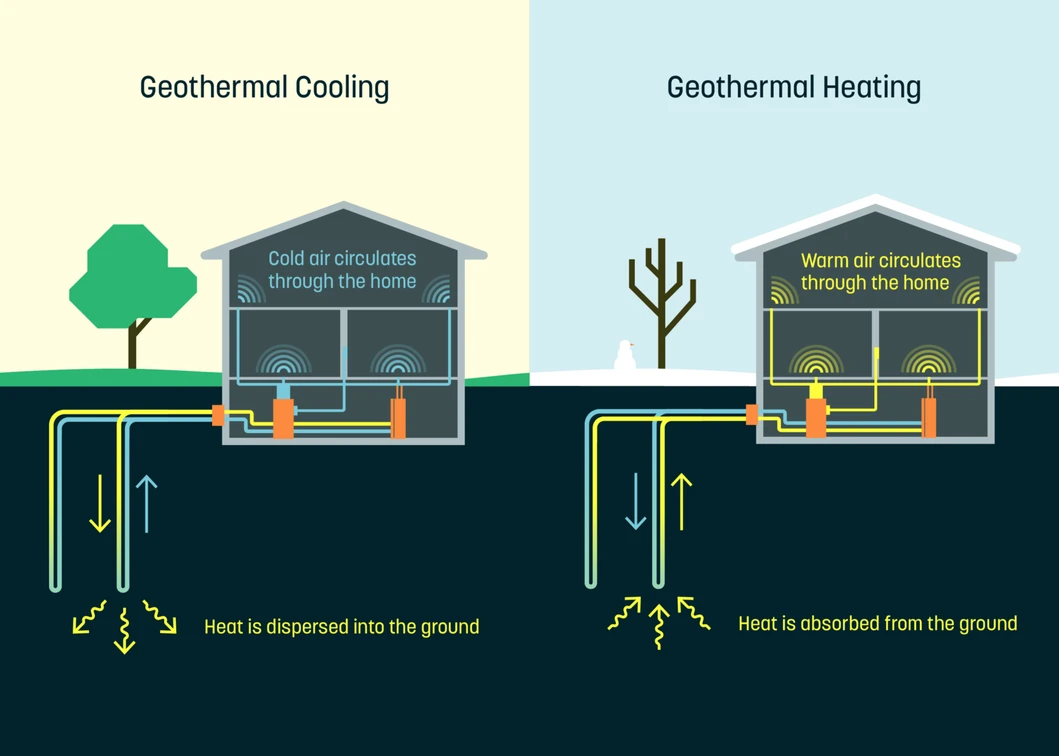

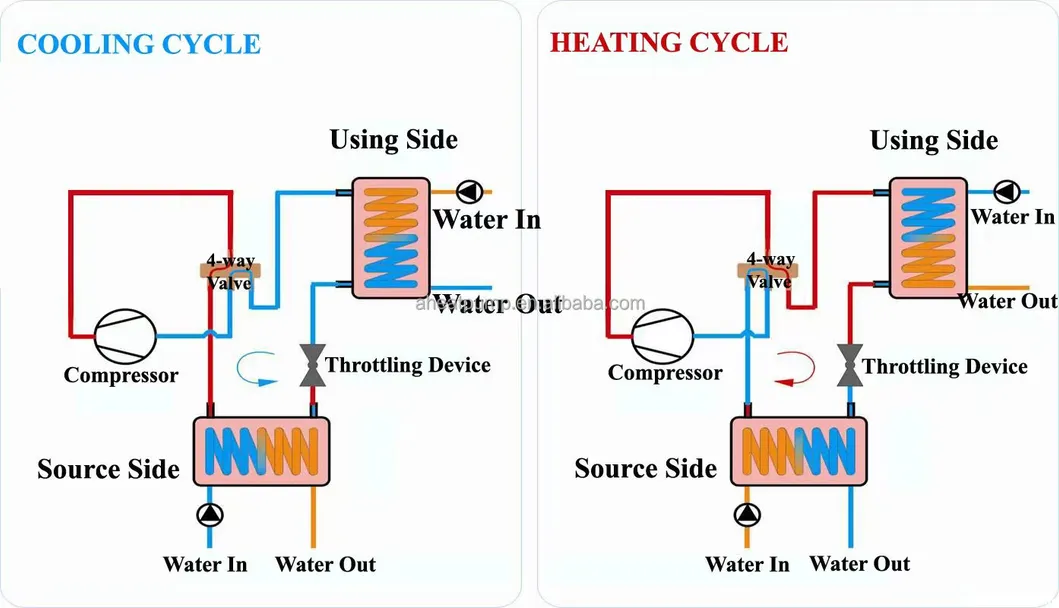

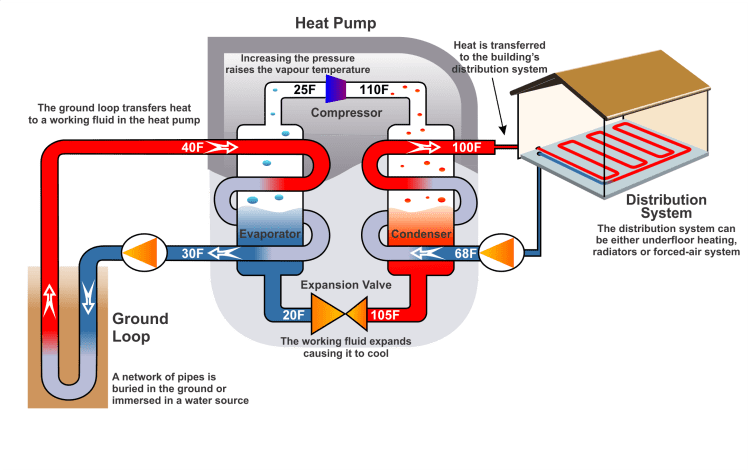

Geothermal heat pumps absorb heat from the earth loop and concentrate it to high temperatures for building use. It utilizes a closed-loop system where refrigerant fluid is vaporized by ground heat, compressed to raise temperature, and then transmitted to the indoor space via a condenser.
