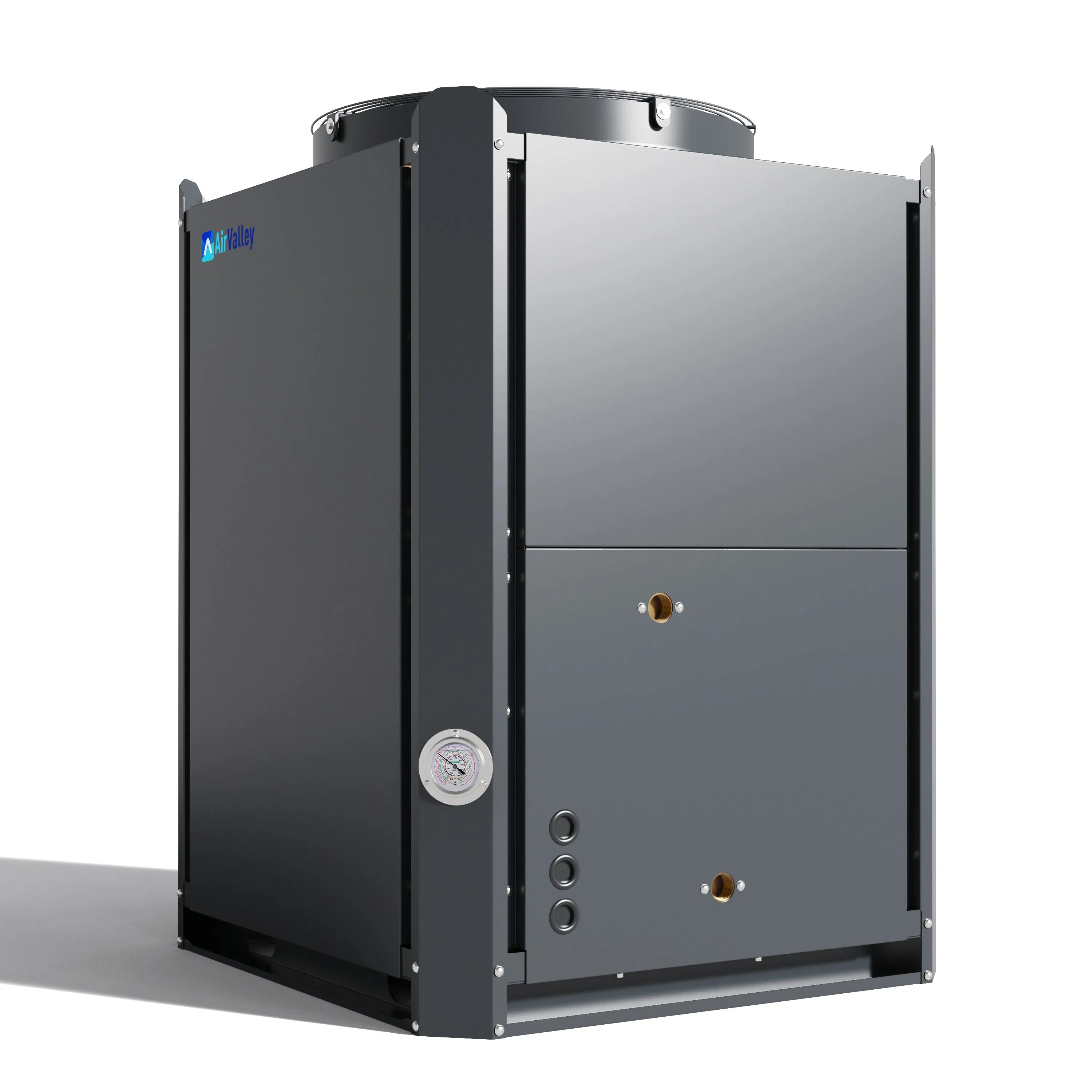

PeakWay Pump
1 / 5

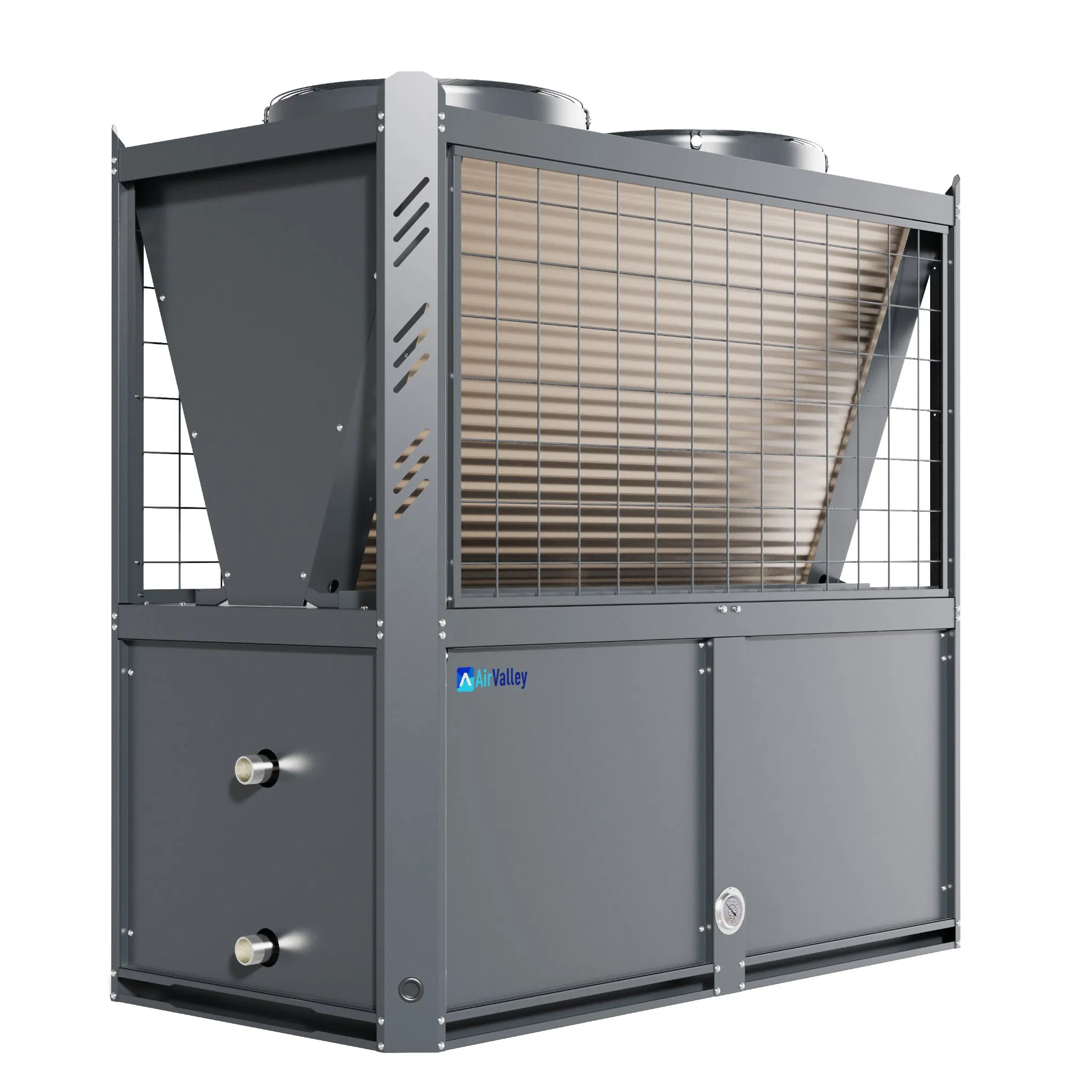

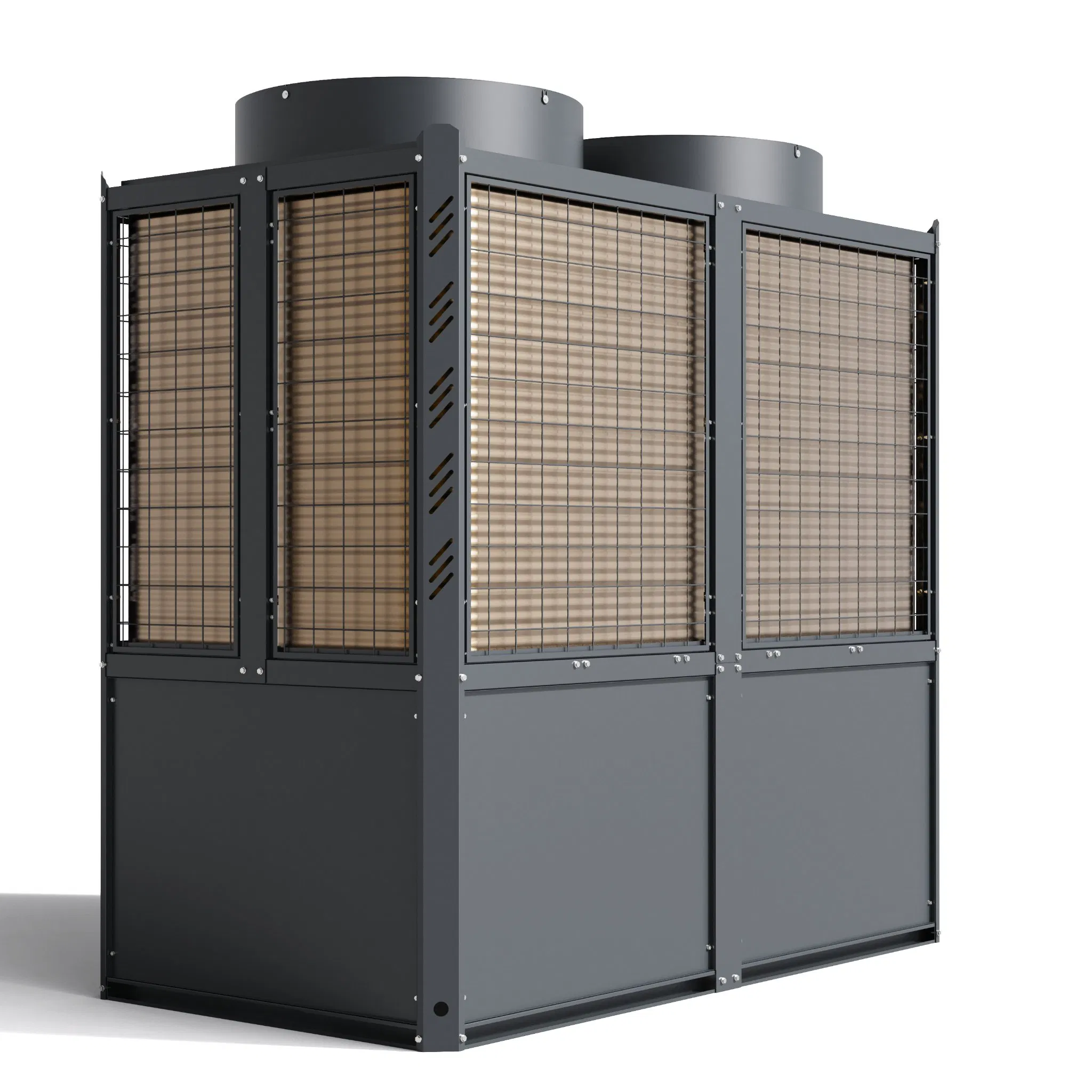

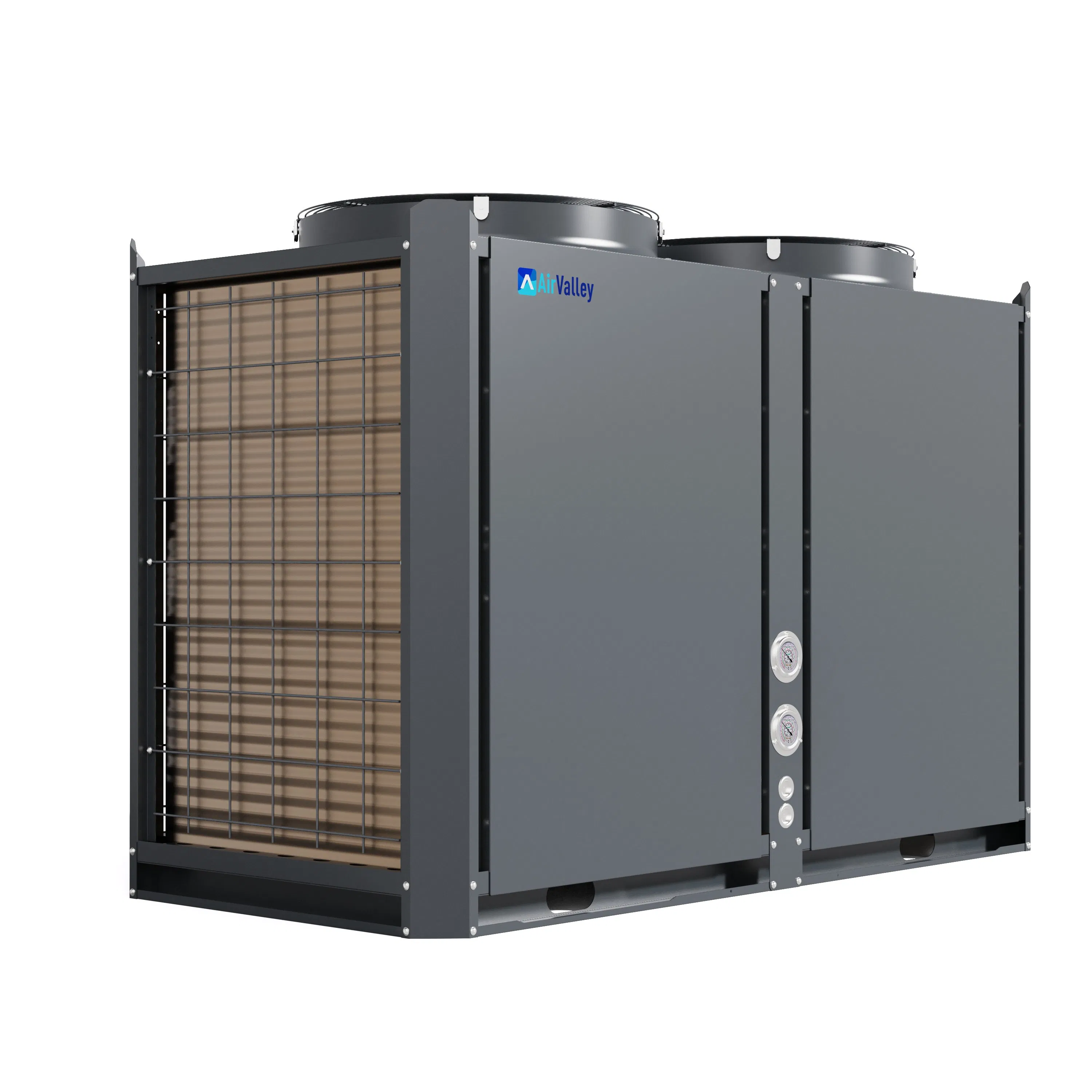

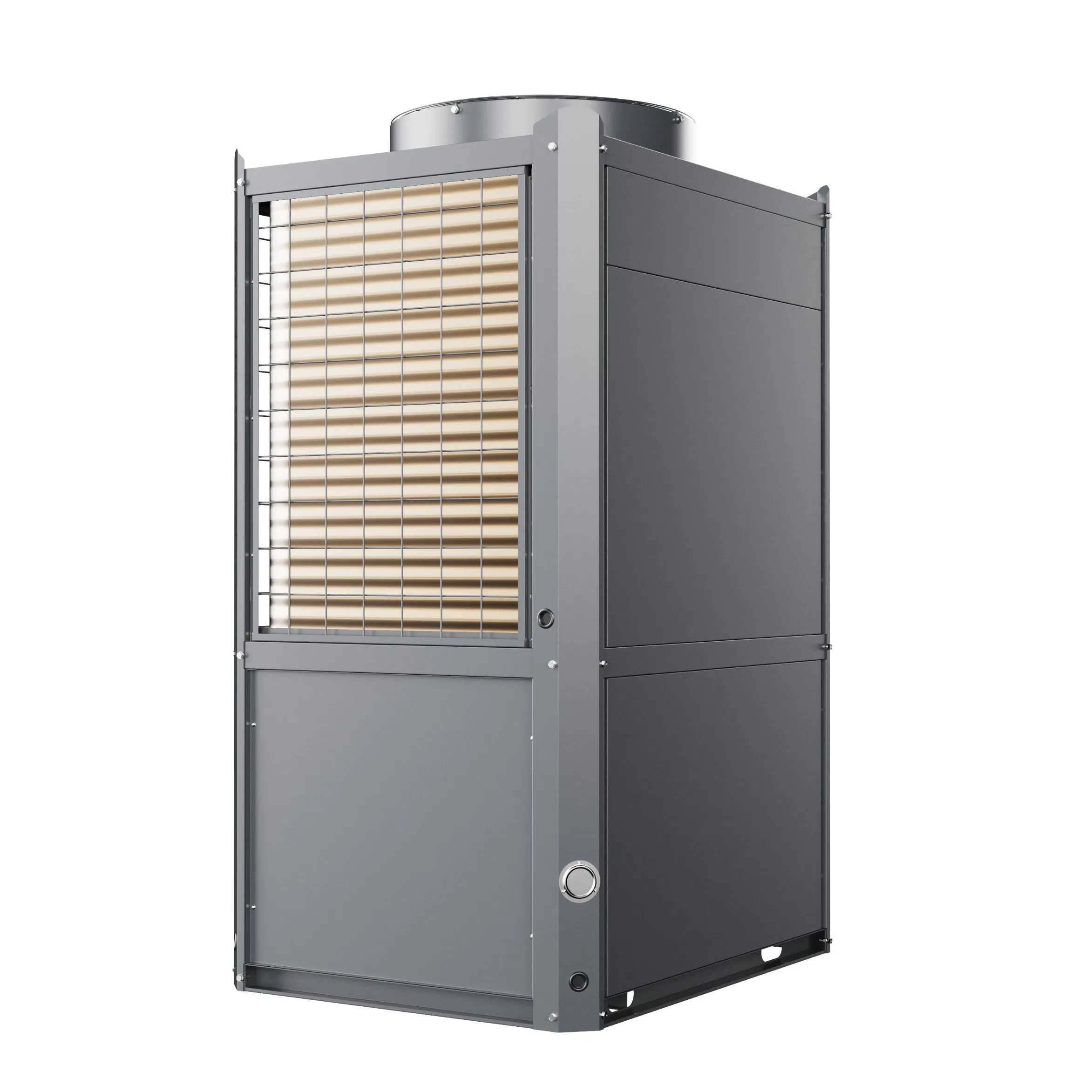

High-Performance DC Inverter Compressor

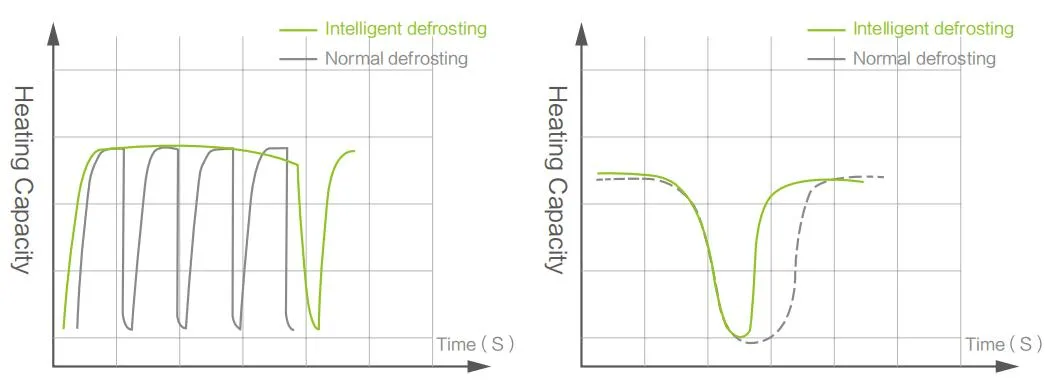

Intelligent Defrosting Technology
Units are equipped to accurately judge defrosting timing based on heating operation parameters and load changes. This achieves efficient heating without frost interference and allows for manual defrosting if necessary.

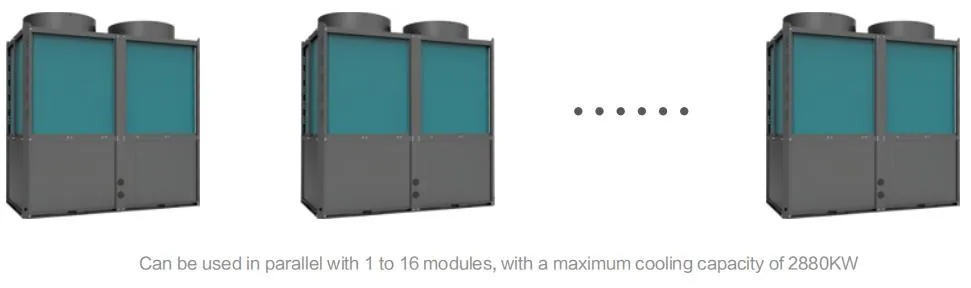

Modular Design & Installation

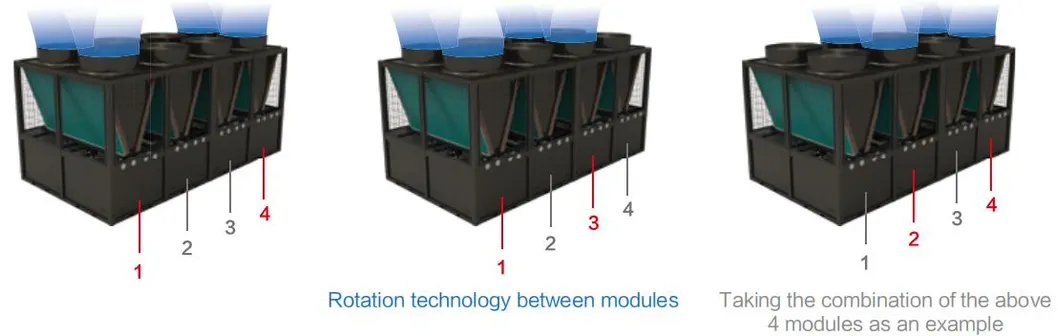

Modules of different capacities can be combined freely. A maximum of 16 units can be connected in parallel, reaching a cooling capacity of up to 2080kW. The system uses modular rotation to balance running time, extending the service life.
Intelligent Control & Safety

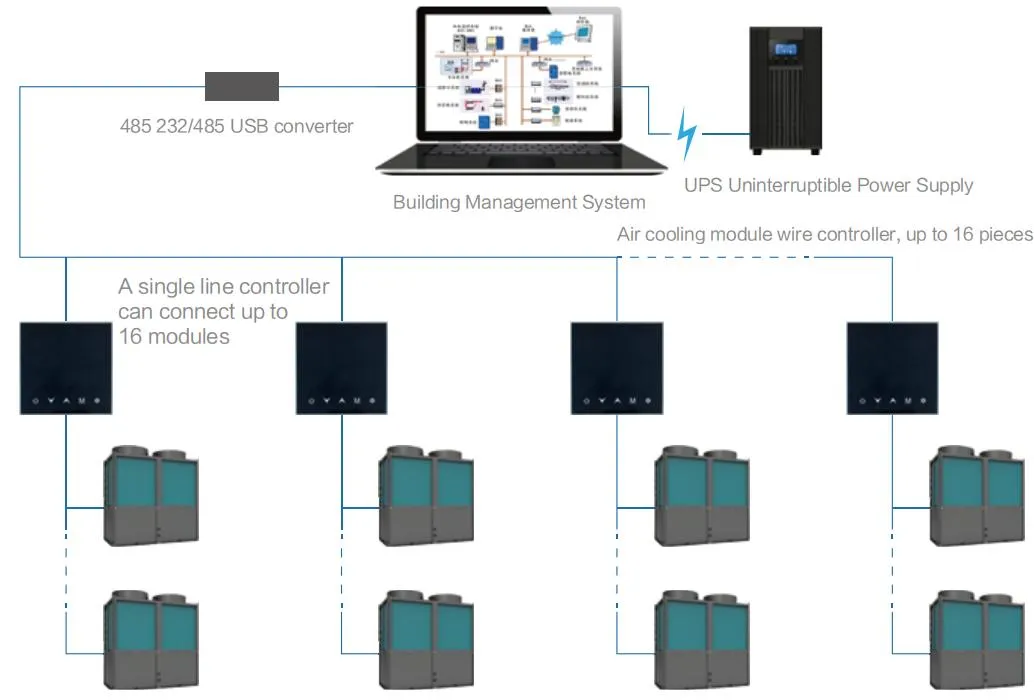

Supports Modbus protocol for BMS building control integration. Features multiple protection functions including high/low pressure switches, antifreeze protection, and water flow switches.

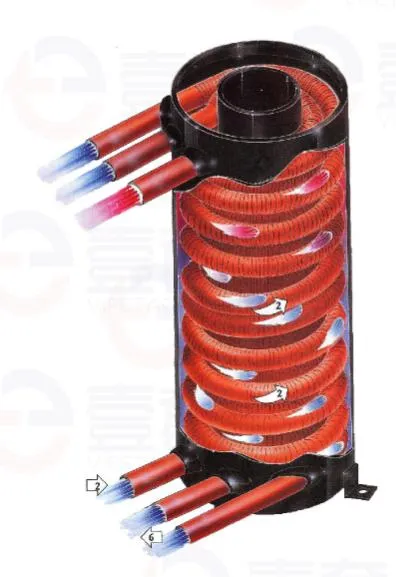

Premium Components
Our technical team possesses over 10 years of experience in the heat pump industry. We operate professional laboratories and maintain strategic technical cooperation with global component leaders to ensure ultra-high performance and stability.
Advanced Laboratory Testing
Testing capabilities range from -40°C to 55°C, with performance labs supporting units up to 300kW. Data monitoring centers ensure every unit meets stringent quality standards.
| Model Specification | DFC45II/BP | DFC60II/BP | DFC80II/BP | DFC160II/BP | DFC180II/BP | |
|---|---|---|---|---|---|---|
| Rated Heating (A7 W45) | Capacity (kW) | 45.00 | 60.00 | 80.00 | 160.00 | 180.00 |
| COP (W/W) | 3.64 | 3.64 | 3.65 | 3.64 | 3.58 | |
| Floor Heating (A-12 W35) | Capacity (kW) | 33.00 | 44.50 | 56.00 | 102.00 | 135.00 |
| COP (W/W) | 3.30 | 3.30 | 3.30 | 3.29 | 3.28 | |
| Cooling (A35 W7) | Capacity (kW) | 33.00 | 43.00 | 65.00 | 130.00 | 140.00 |
| EER (W/W) | 2.81 | 2.81 | 2.80 | 2.79 | 2.70 | |
| Ambient Temp Range | Heating: -35~48°C / Cooling: -10~48°C | |||||
| Power Supply | 380V 3N ~ 50Hz | |||||
