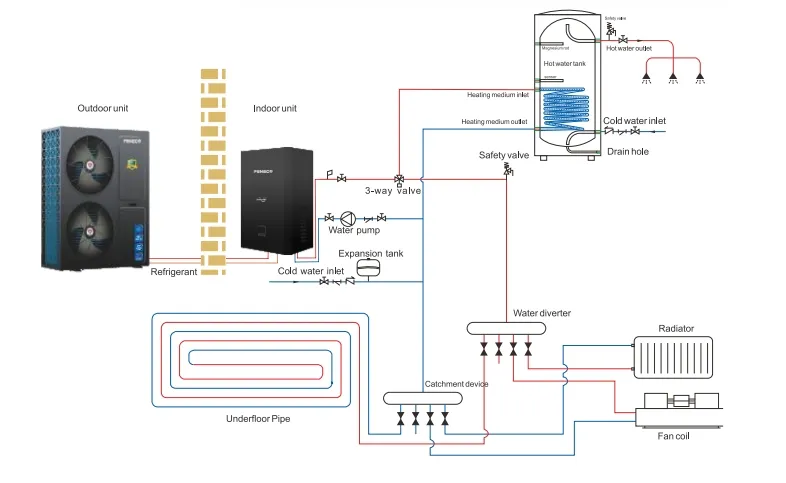

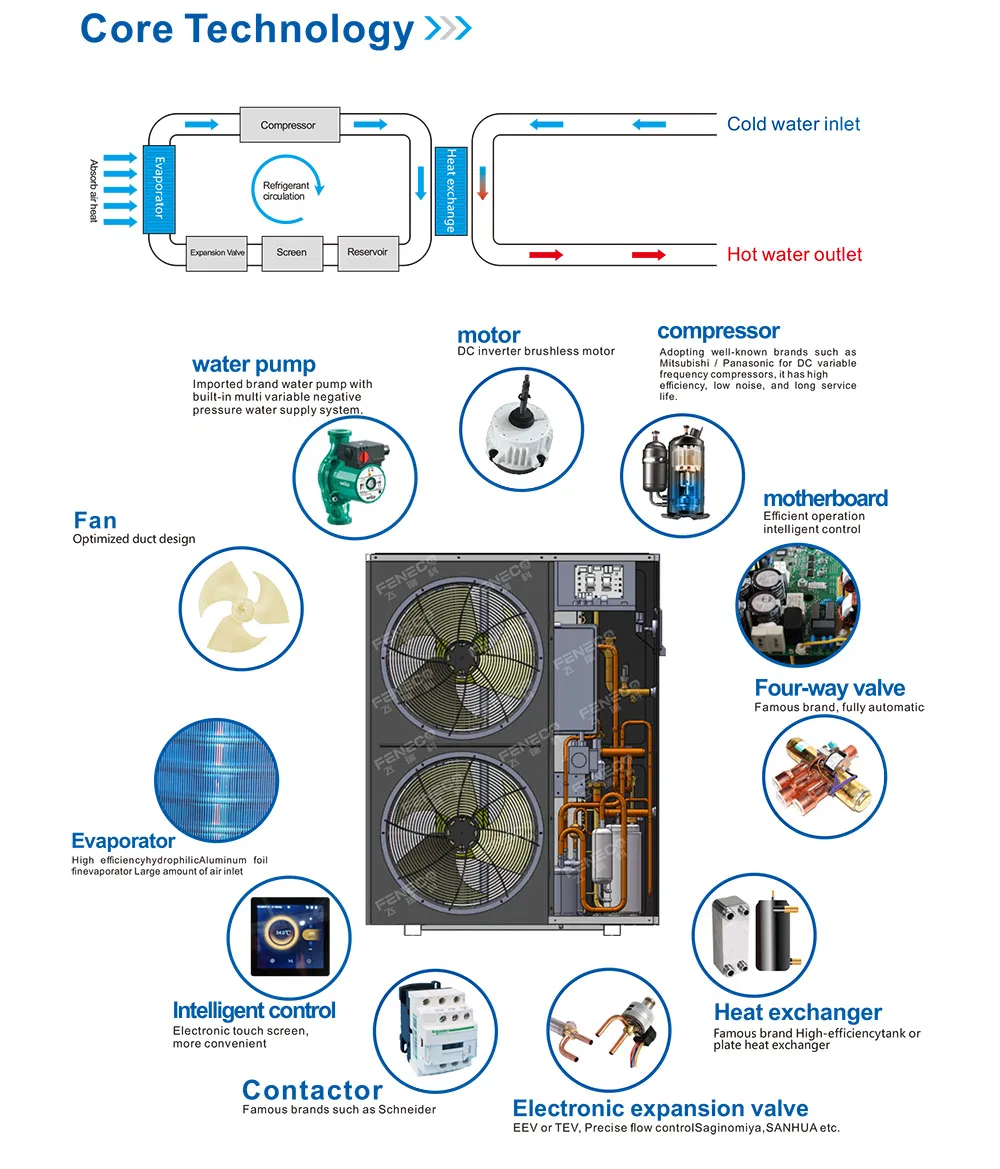

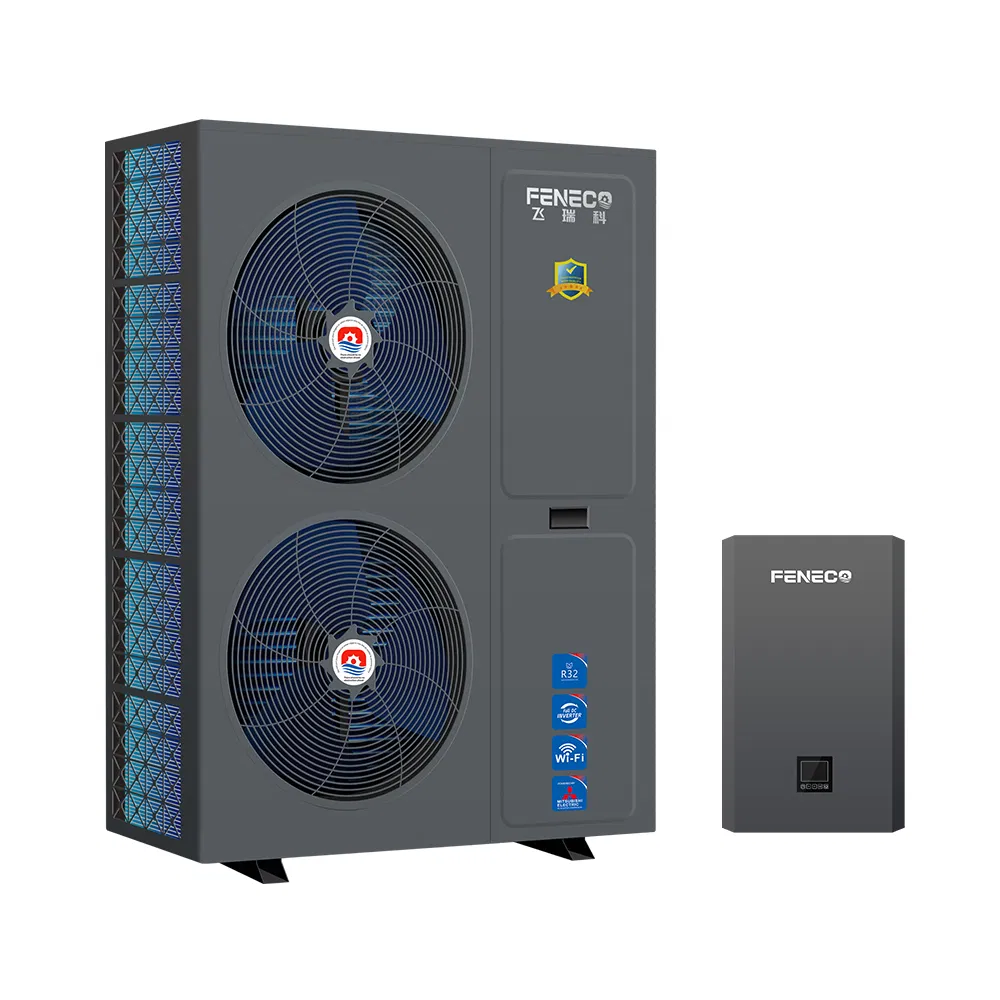

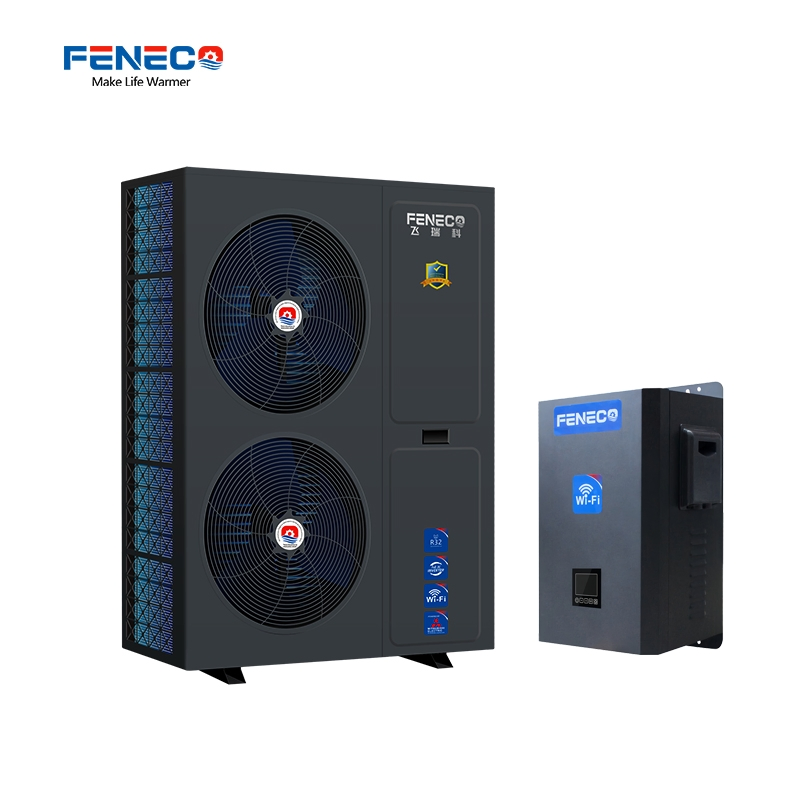

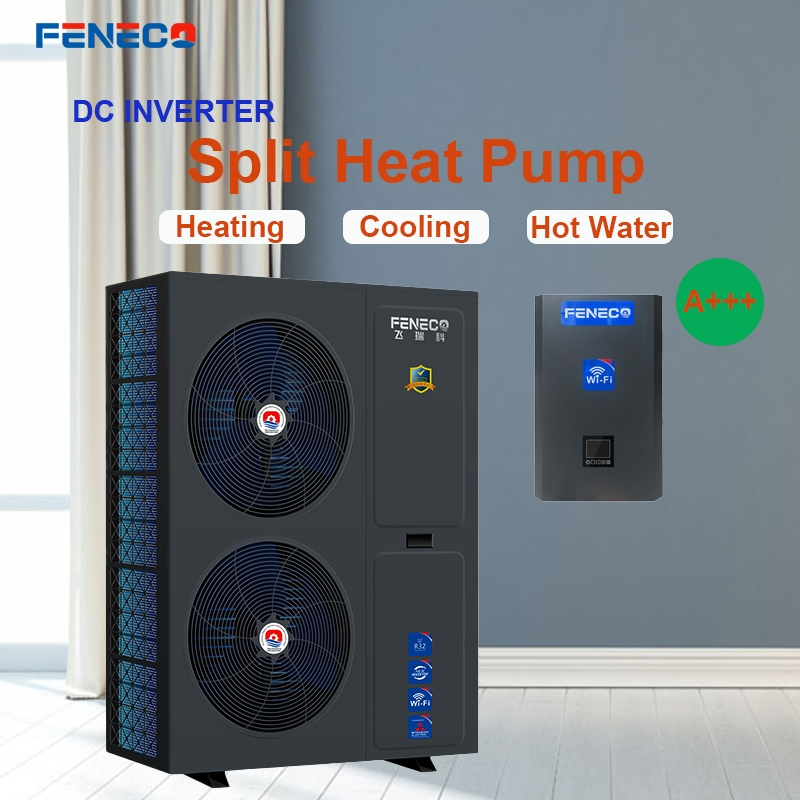

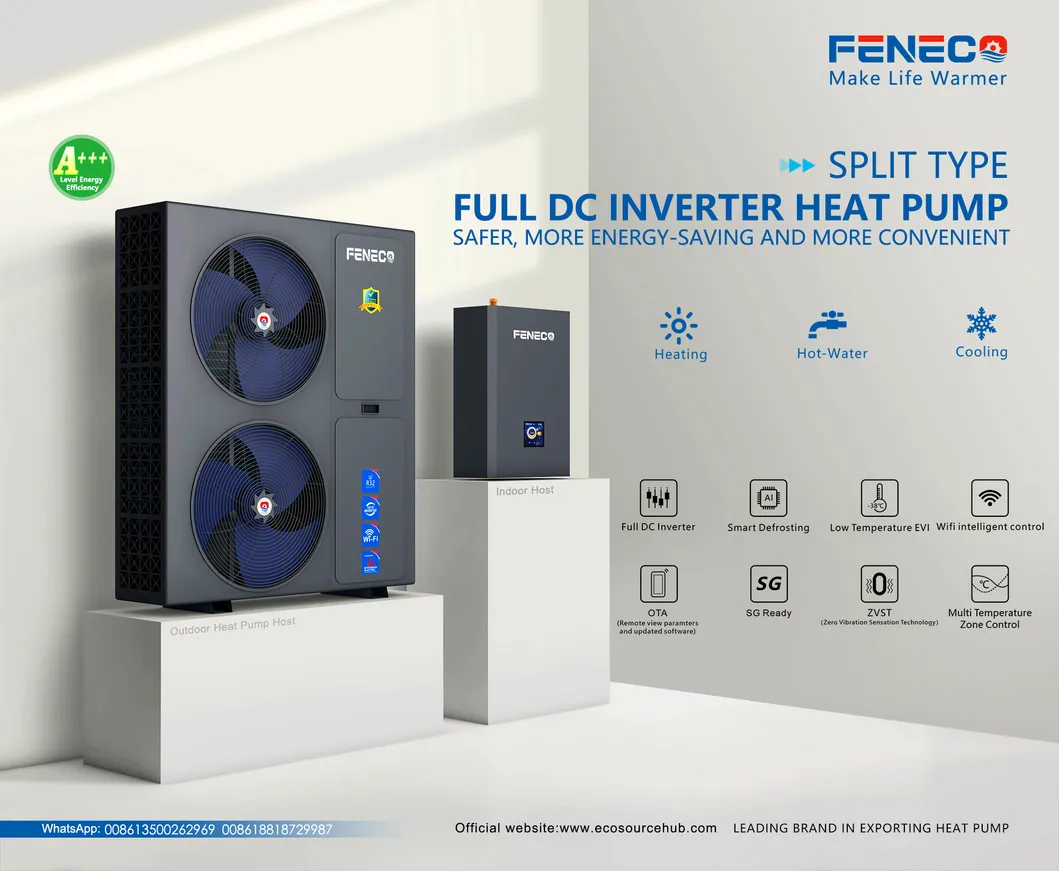

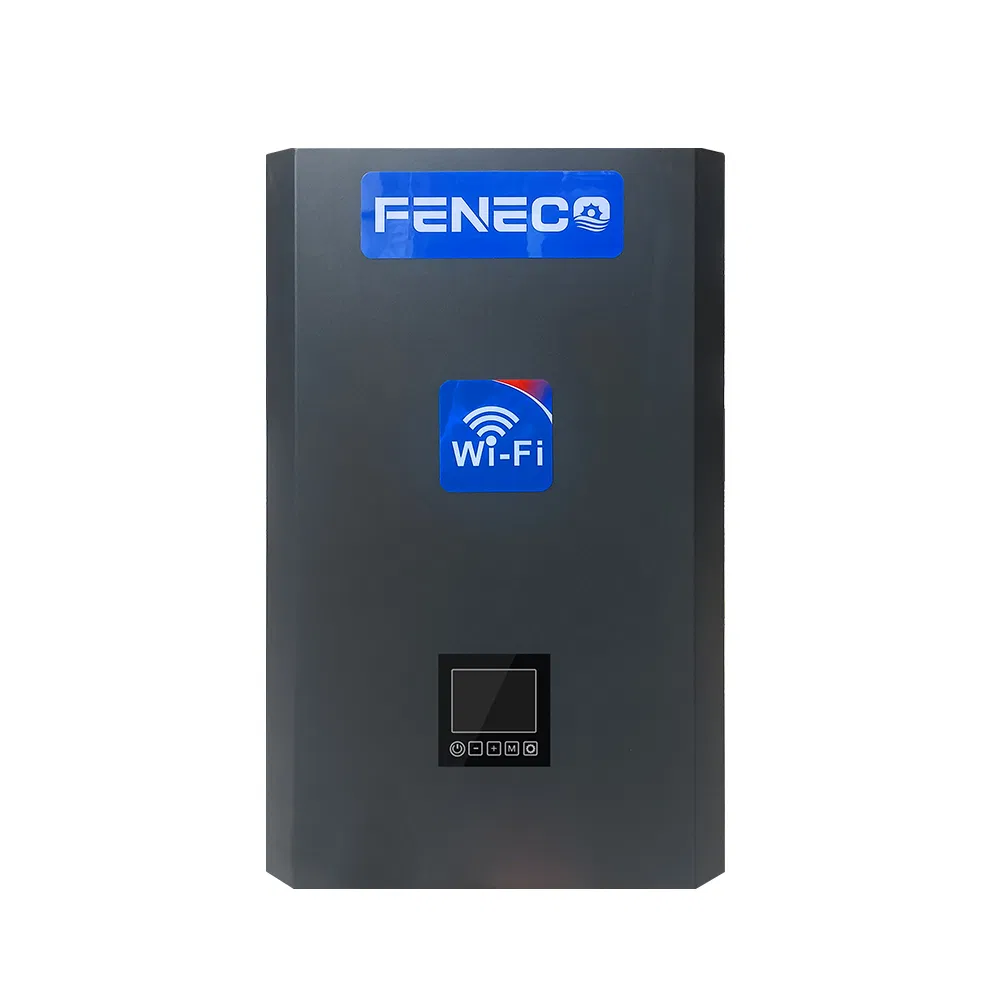

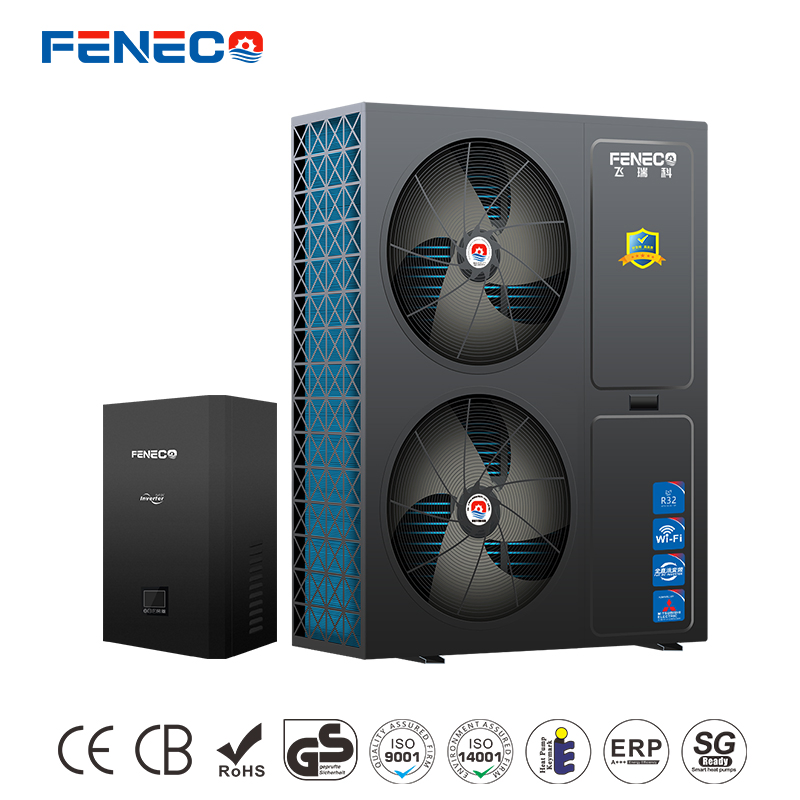

This series features a new design Polaris split DC inverter heat pump with multi-function capabilities such as room heating, cooling, and sanitary hot water. It can connect with fan coils, floor heating systems, and radiators. These heat pumps adopt advanced DC inverter and EVI technology. Double heat exchangers and double EEV are installed, which can save up to 80% in heating costs compared to traditional heating devices like gas/fuel boilers and electrical heaters. The DC inverter water pump, expansion vessel, air vent valve, and safety valve are built into the indoor unit, ensuring the water system is protected from freezing.
| MODEL | XD-03BSPM | XD-04BSPM | XD-05BSPM | XD-06BSPM | XD-08BSPM |
|---|---|---|---|---|---|
| Working Temp Range | -30~43ºC | ||||
| Power Supply | 220-240V/1N~50Hz | 380-415V/3N~50Hz | |||
| Heating Capacity (A7W35) | 8(2-9) kW | 12(2-13) kW | 15(3-17) kW | 18(3-20) kW | 18(3-20) kW |
| COP (A7W35) | 4.1 | 4.2 | 3.96 | 4.1 | 4.15 |
| Cooling Capacity | 6.2 kW | 10.8 kW | 11 kW | 14 kW | 14 kW |
| Refrigerant | R32/1.25kg | R32/1.4kg | R32/1.7kg | R32/1.9kg | R32/2.2kg |
| Noise Level | ≤52 dB(A) | ≤55 dB(A) | ≤60 dB(A) | ≤60 dB(A) | ≤65 dB(A) |
The manufacturer is a professional enterprise with more than 20 years of experience in the refrigeration and heating industry. Since 1999, the focus has been on heat pump projects, producing a full range of products including air-to-water heat pumps, water-to-water heat pumps, heat pump dryers, and industrial water-cooled chillers.
All products are strictly designed and tested to ensure the best efficiency and quality for the international market. The company operates under ISO9001 quality control and ISO14001 environmental systems. Most products carry CE and CB certificates issued by TUV, serving markets across Europe, South America, Africa, the Middle East, and Southeast Asia.
