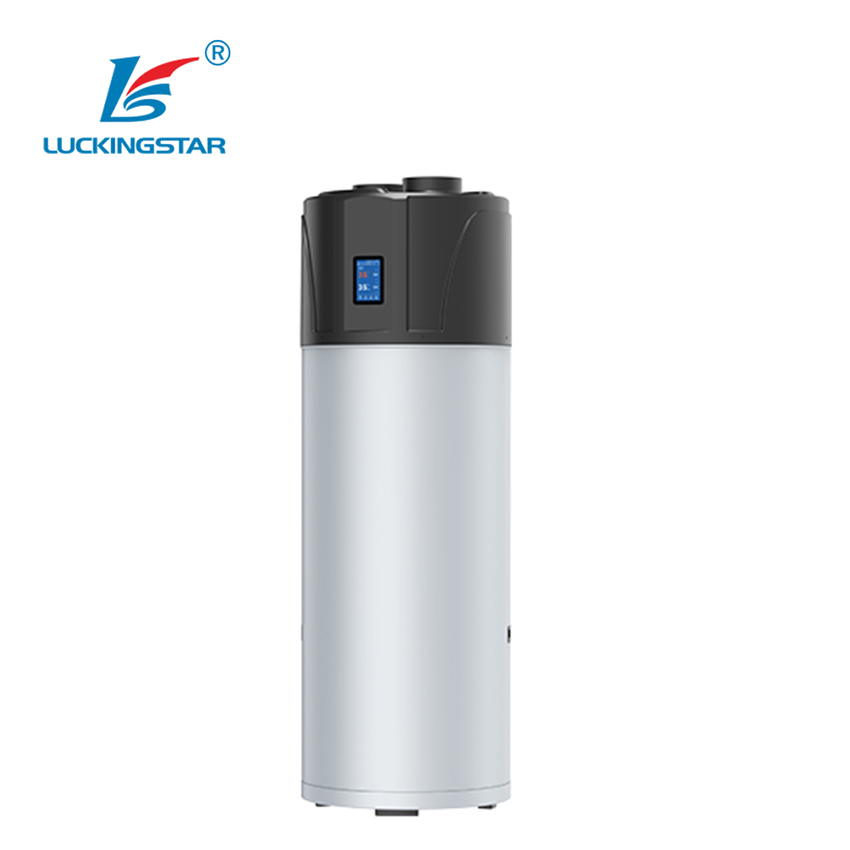

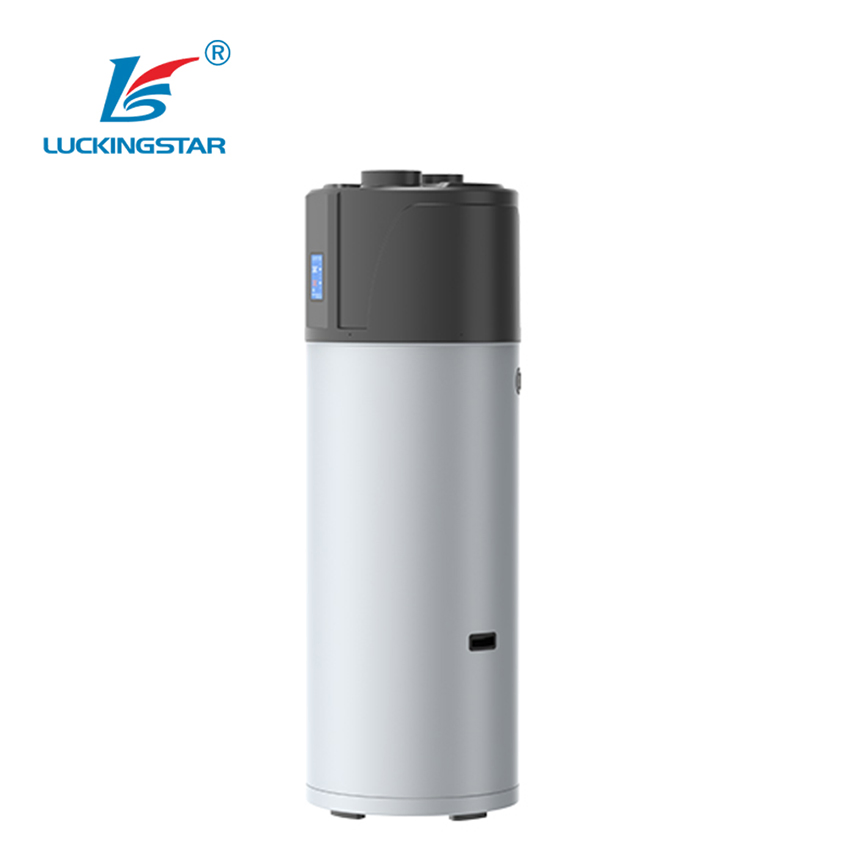

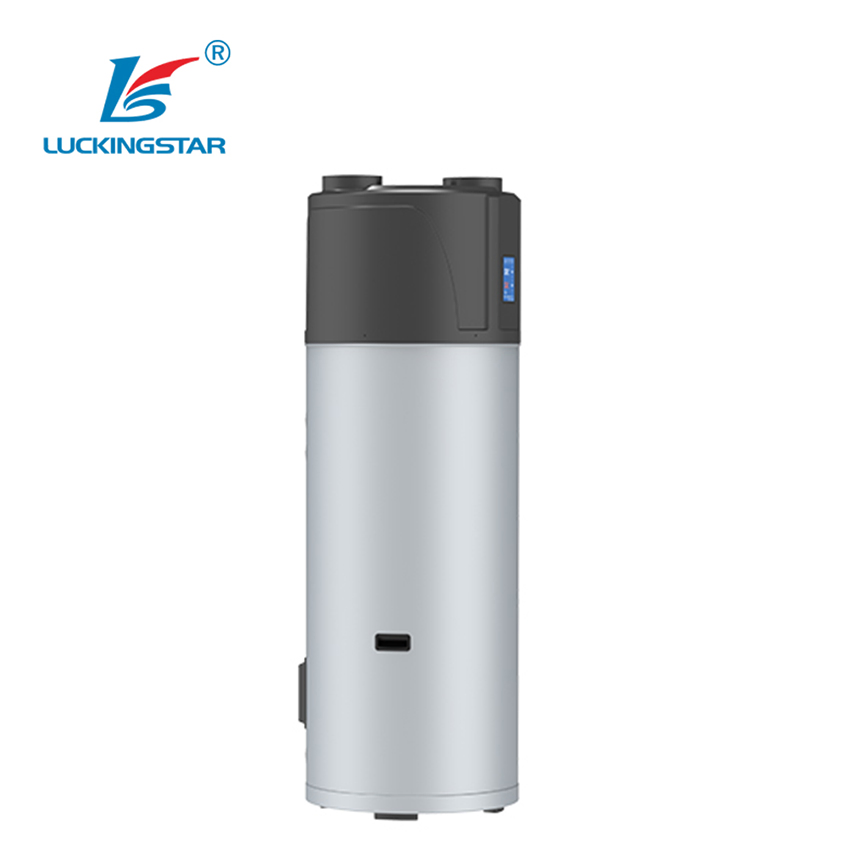

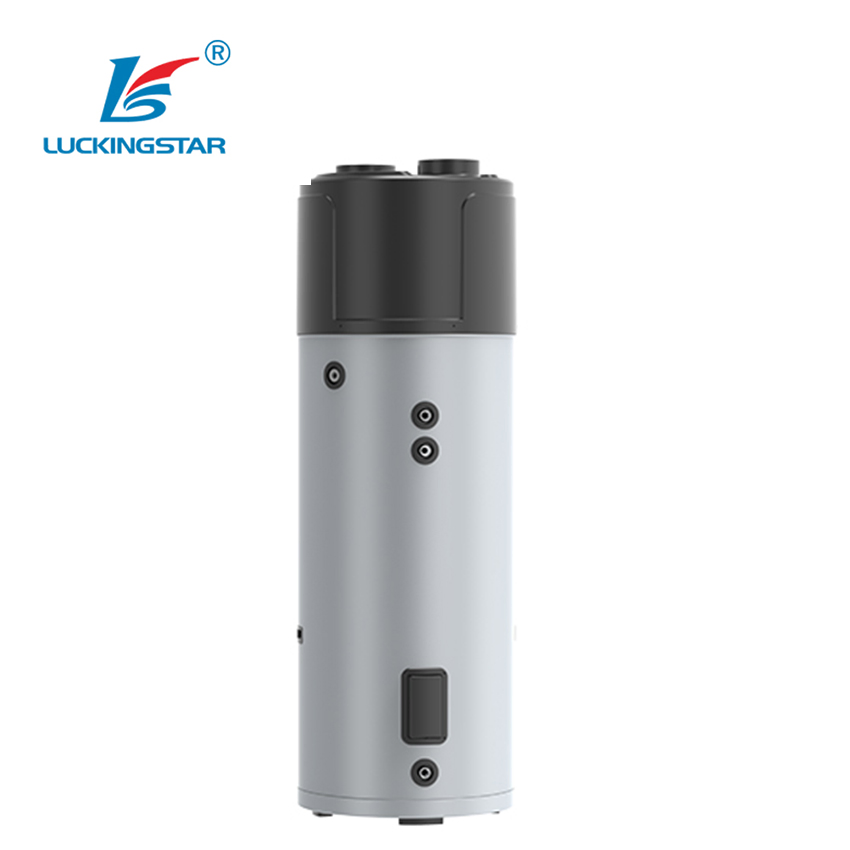

Supply 200L 300L Hot Water Heater R290 Domestic All-in-One Heat Pump

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications

Work Environment
-5℃~43℃
Heat Source
Air-source
Heating Type
Circulating Heat
Application
Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons
Heating Capacity
1500W
Power Supply
220-240/1/50 (V/pH/Hz)/380-415/3/50(V/pH/Hz))
Function
Domestic Hot Water
Refrigerant
R290
Origin
China
Production Capacity
5000 Sets Per Month

Packaging & Delivery

Package Size
76.00cm * 76.00cm * 200.00cm
Package Gross Weight
70.000kg

All In One Hot Water Heat Pump

All in one hot water heat pump

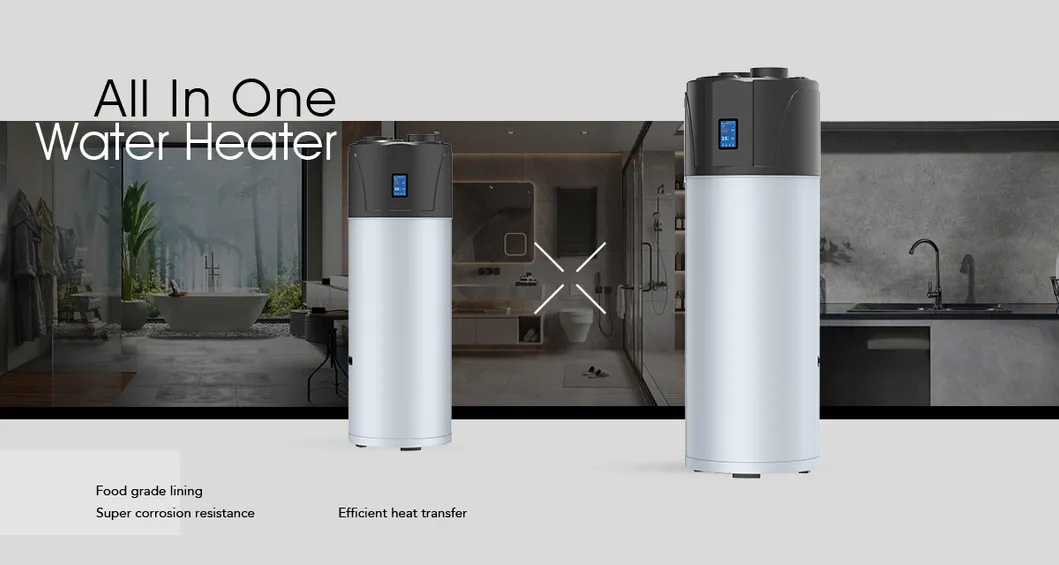

Heat Pump Overview

All in one Heat Pump Water Heater makes the most of all the features and technology of air to water heat pump to produce domestic hot water. Only 25% of the system's energy demand comes from electricity. It can make full use of the heat energy in the air and minimize energy consumption, greatly saving household electricity costs. At the same time, it adopts low-noise and high-efficiency refrigeration technology, which ensures stable operation and will not cause any interference with people's normal lives.

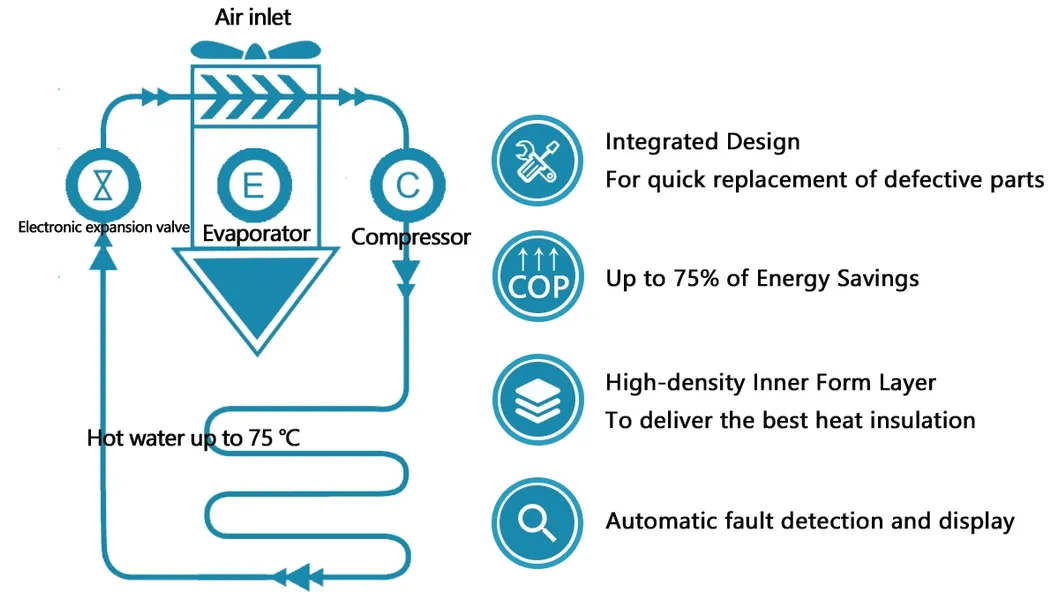

How It Works

1
A fan draws in air containing heat energy, across the evaporator.
2
The evaporator turns the liquid refrigerant into a gas.
3
The compressor pressurizes the refrigerant into a hot gas.
4
The hot gas inside the microchannel heat exchanger heats the water inside the tank.
5
The refrigerant reverts back to a liquid after heating the water and continues to the evaporator for the process to start again.
6
The cycle continues until the set target temperature is achieved.
Working Principle

Top Reasons to Choose Our Solution

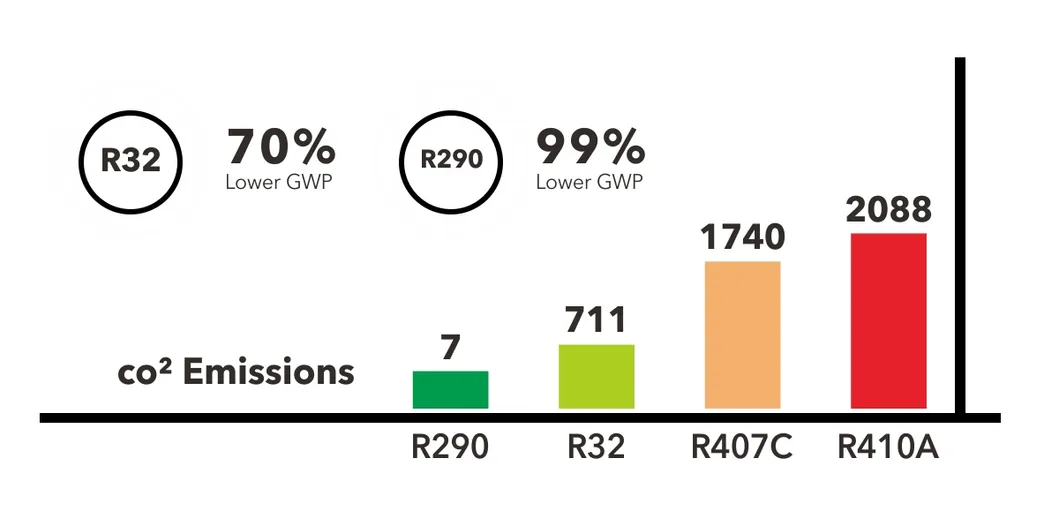

1. R290 Refrigerant

A zero ODP value and an extremely low GWP value mean no negative impact on the ozone layer. Propane is an environmentally friendly refrigerant that maintains high performance.

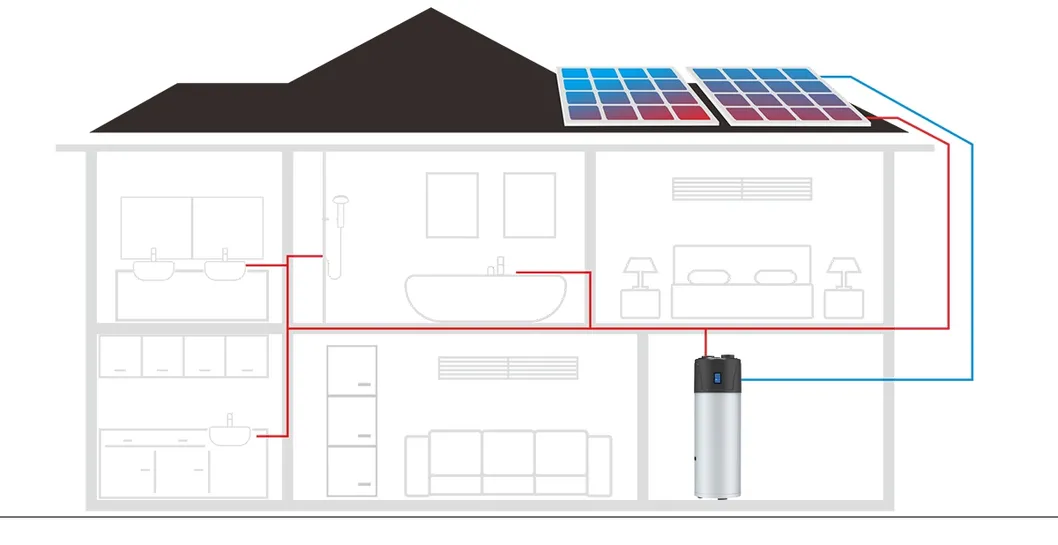

2. PV Ready

Compatible with solar panels, solar PV, and other heat sources. Green energy utilization reduces costs further.

3. 4X Efficiency

Class 1 Energy Rating with COP of 3.8 or higher. Excellent energy savings of up to 75% compared to electric heaters.

4. 75°C High Temperature

Water output up to 75ºC prevents up to 90% of bacterial growth. Duplex Stainless Steels 2205 available for corrosion resistance.

5. Electrical Impressed Anode

Eliminating energy loss, preventing corrosion, neutralizing odors, and requiring no long-term maintenance.

6. Power Consumption Module

Direct access to daily and long-term electricity consumption data to empower customers to track energy efficiency.

R290 Feature PV Ready Feature
7. MODBUS Function

Enables integration with home management systems to monitor and modify operating modes, flow, and room temperature.

8. Easy To Install

A smart and simple replacement for gas heaters with minimal clearance requirements and a standard footprint.

9. Low Noise Operation

Operates as low as 48dB, making it suitable for quiet residential environments.

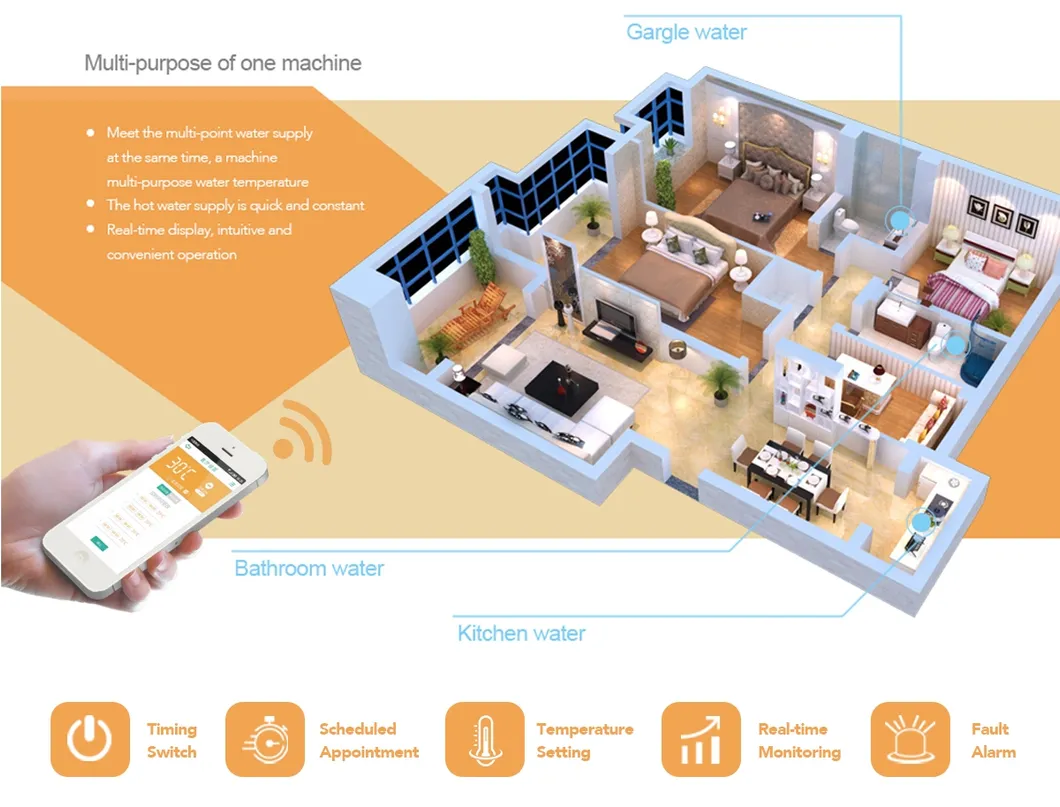

10. Efficient IoT Solution

Connect with WIFI or DUT to realize remote monitoring and data recording via your device.

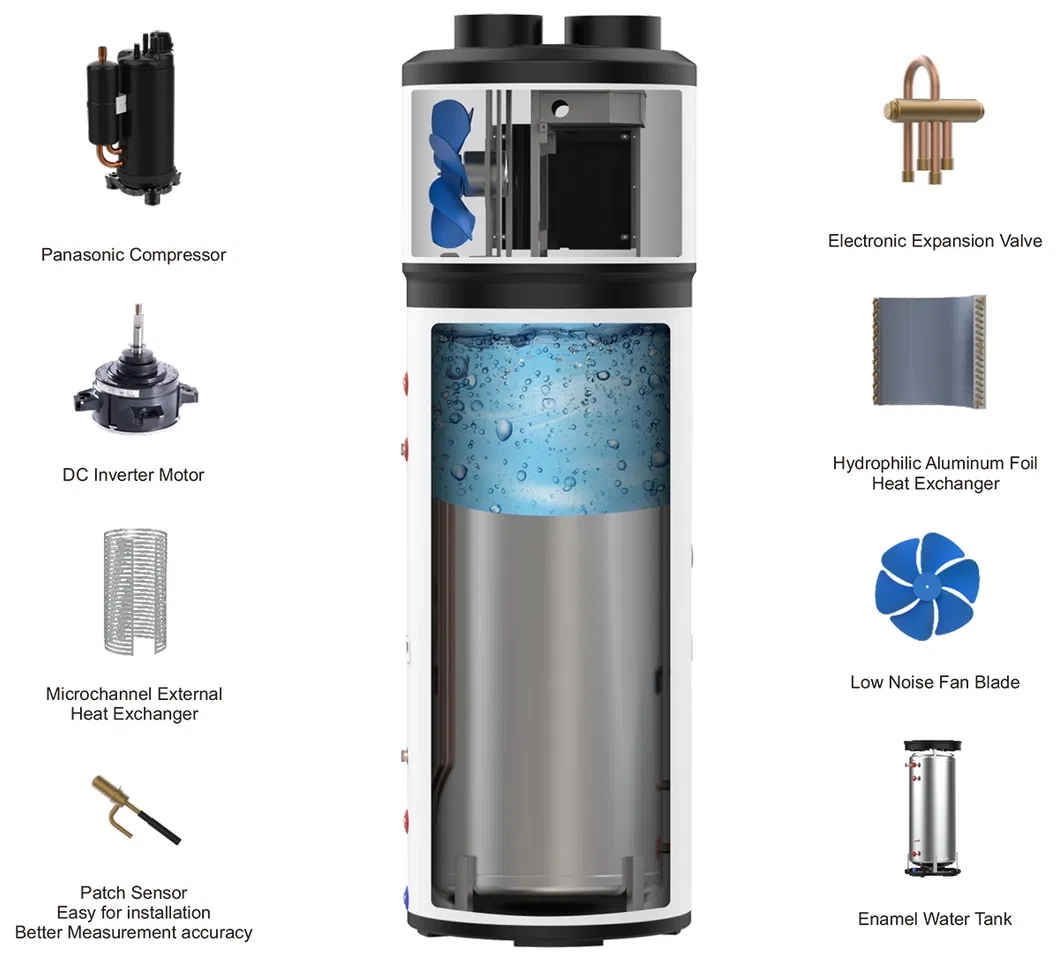

Efficiency Chart IoT Control

Installation & Applications

Where can it be installed?

The ALL IN ONE Heat Pump Water Heater can be installed in any room, including non-heated ones like garages and laundry rooms. It requires no special work except for air intake and exhaust pipe holes.

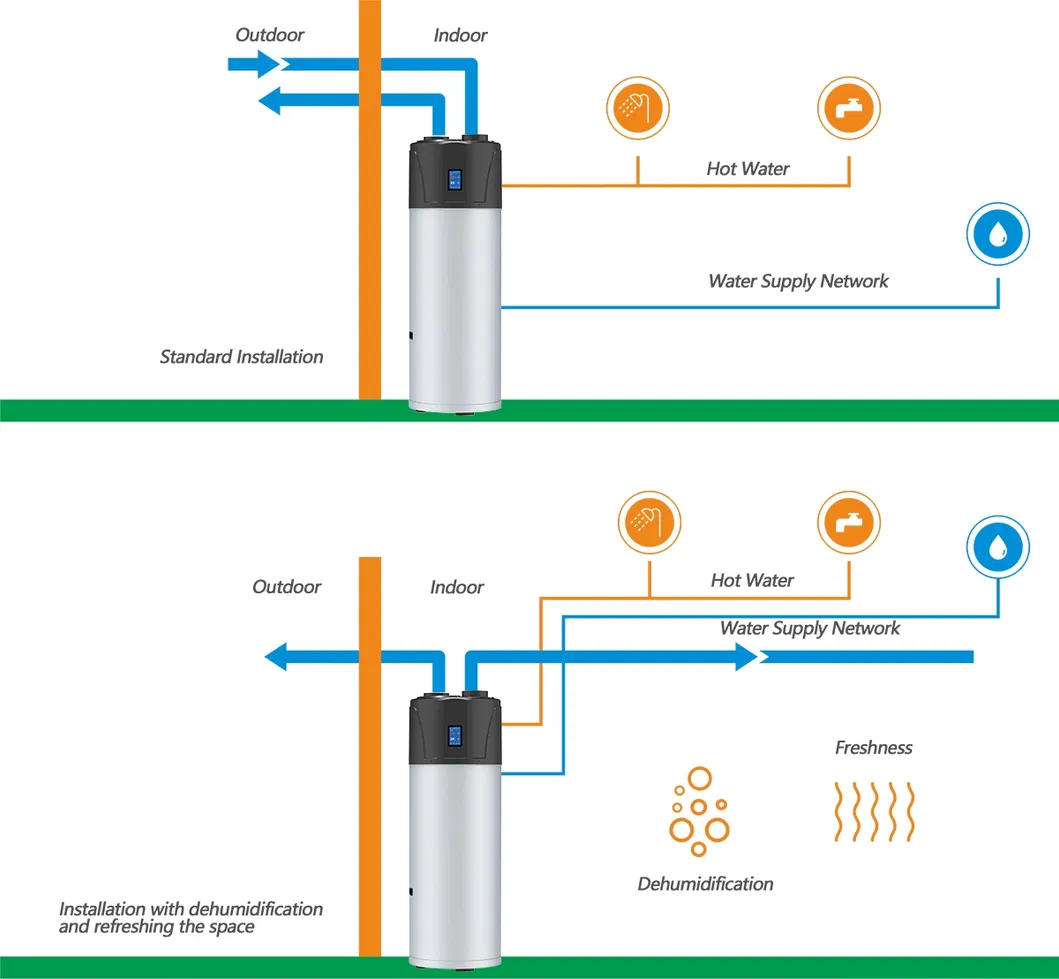

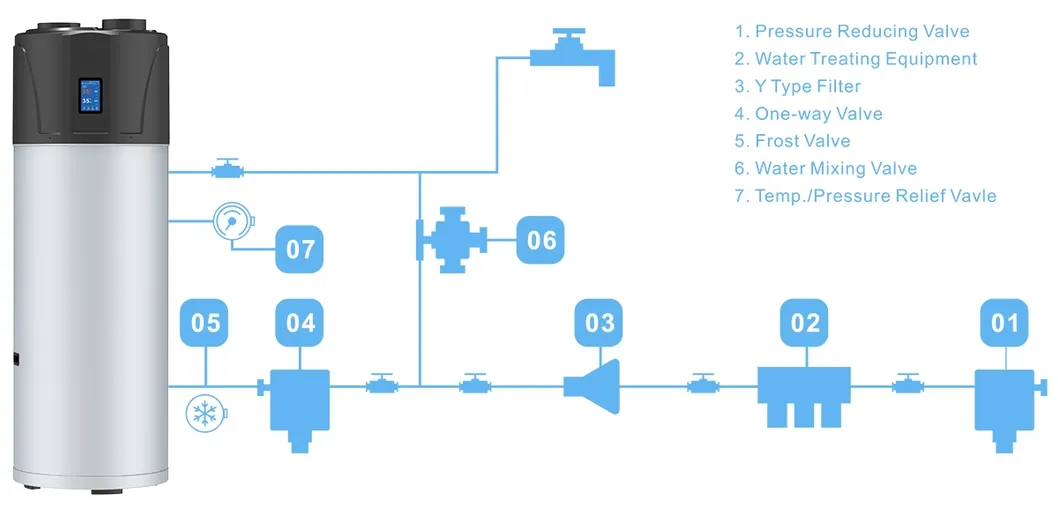

Installation Diagram Installation Method

It is essential to guarantee suitable ventilation in the room. The ejected air is dehumidified and colder, which can be conveyed back into the home to cool specific areas in summer.

Ventilation System
Production Line Testing Lab Quality Control

Frequently Asked Questions

Q: Who are we?

A: We are a professional heat pump manufacturer with a dedicated R&D team and large-scale production facilities.

Q: Can you do OEM/ODM/OBM?

A: Yes, we provide full OEM, ODM, and OBM services based on your specific requirements and market needs.

Q: What is the typical lead time for orders?

A: Sample orders take 10-20 days. For mass production, the standard lead time is 30-35 days, subject to discussion.

Q: What are your payment terms?

A: Standard terms are T/T. For mass orders, a 30% down payment is required, with the balance paid before shipment.

Q: What is your monthly production capacity?

A: Our capacity ranges from 100 to 300 units per production line per day, covering swimming pool, space heating, and domestic hot water pumps.

Q: How long is the product warranty?

A: We offer 24 months for complete units and 36 months for main components like compressors and heat exchangers. Extended warranties are available.
