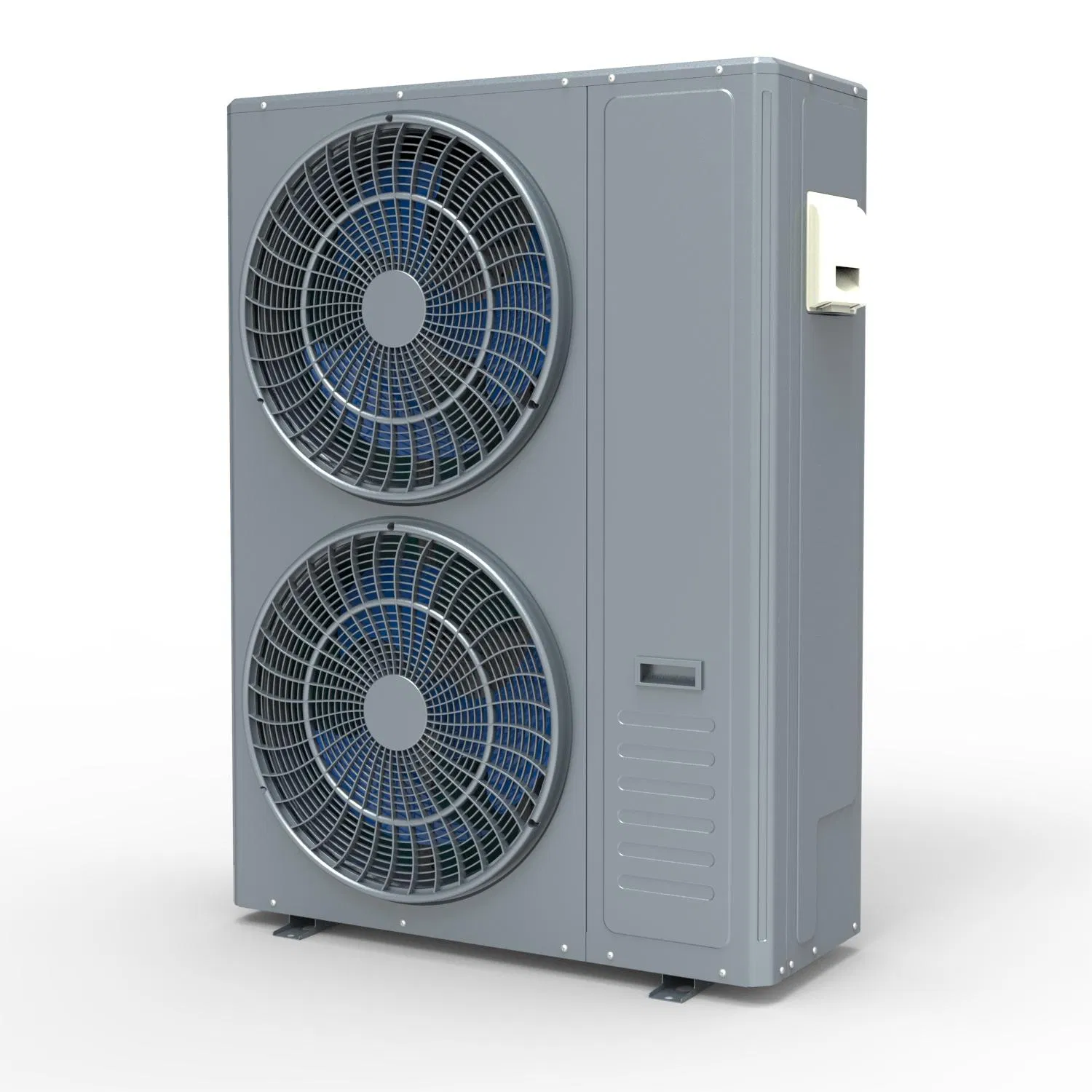

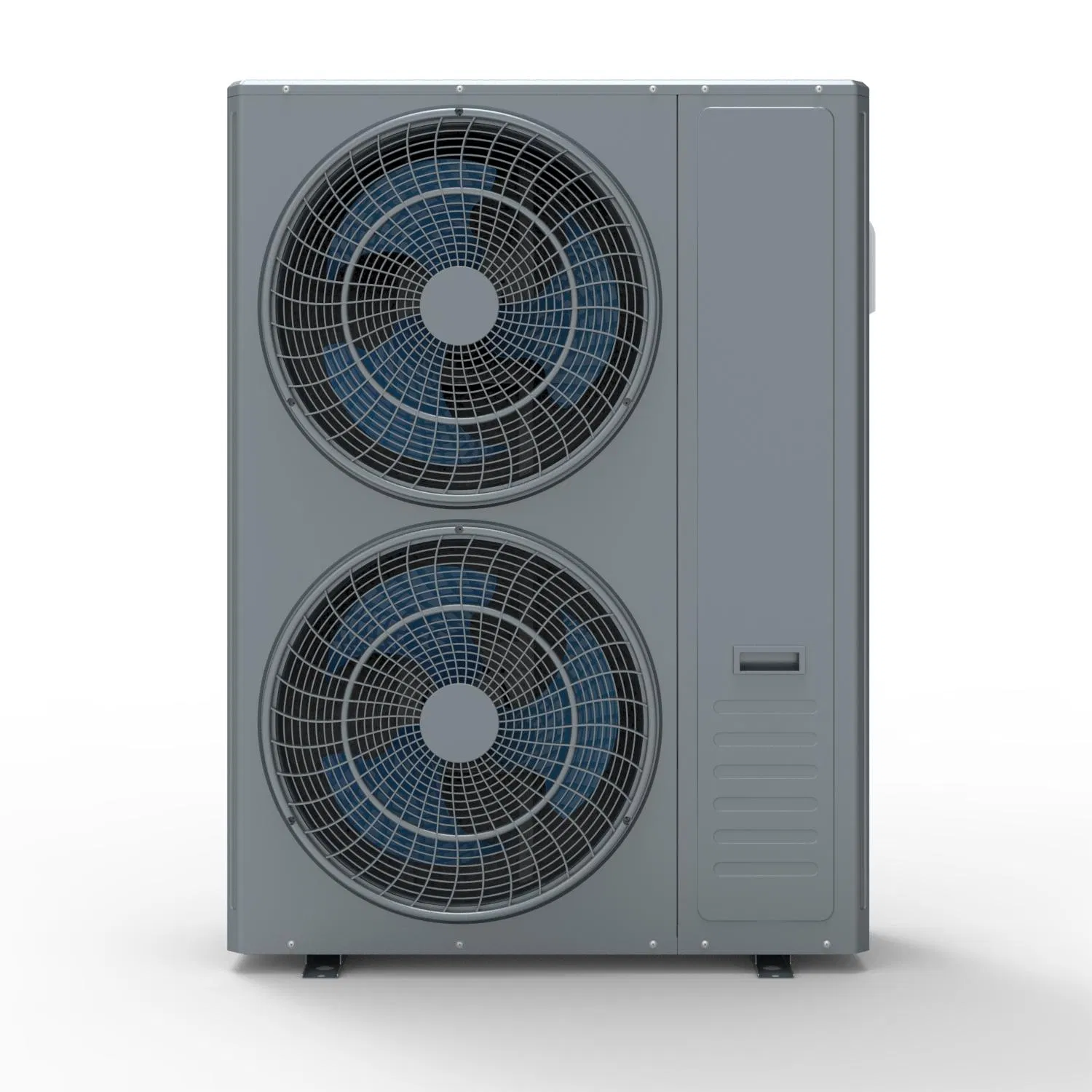

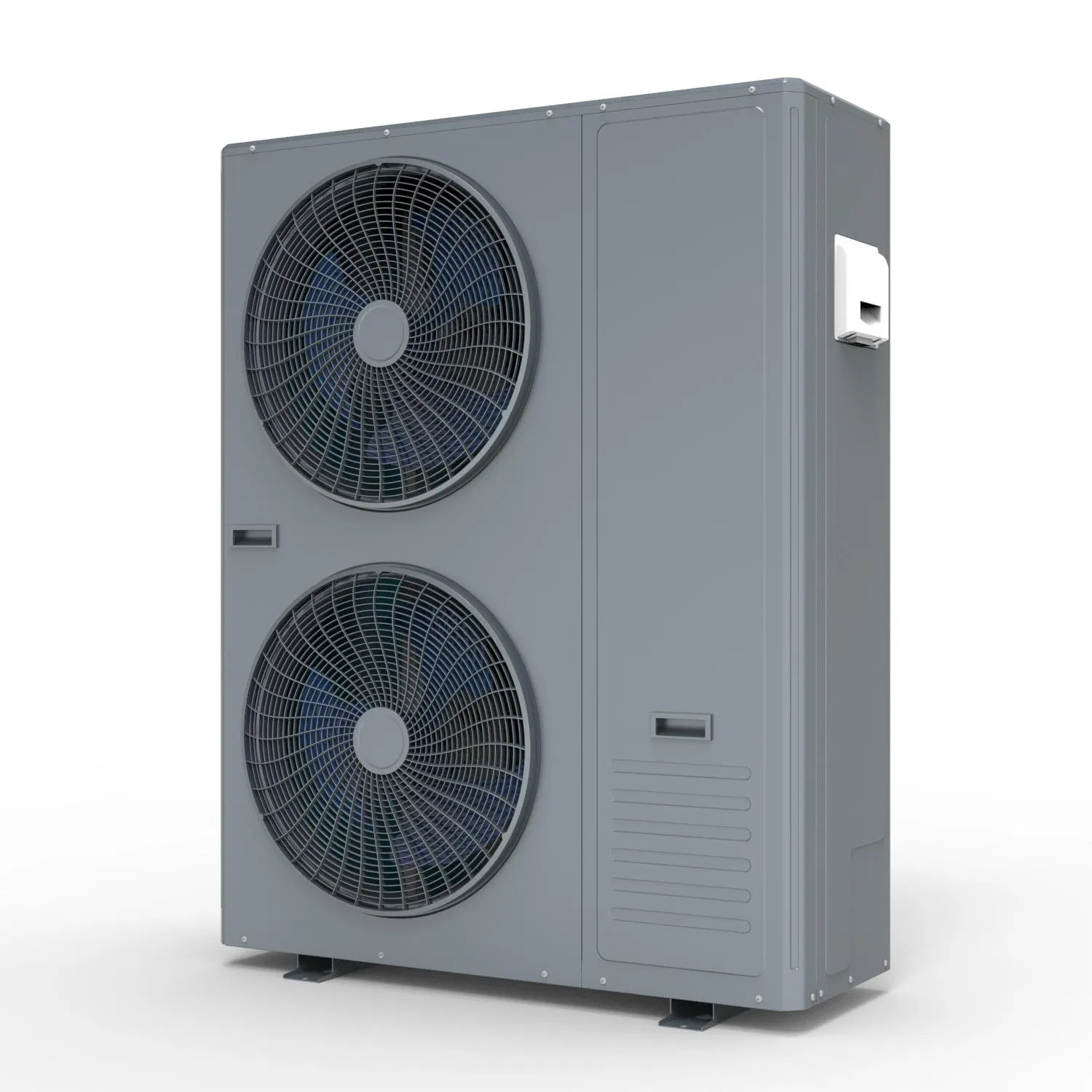

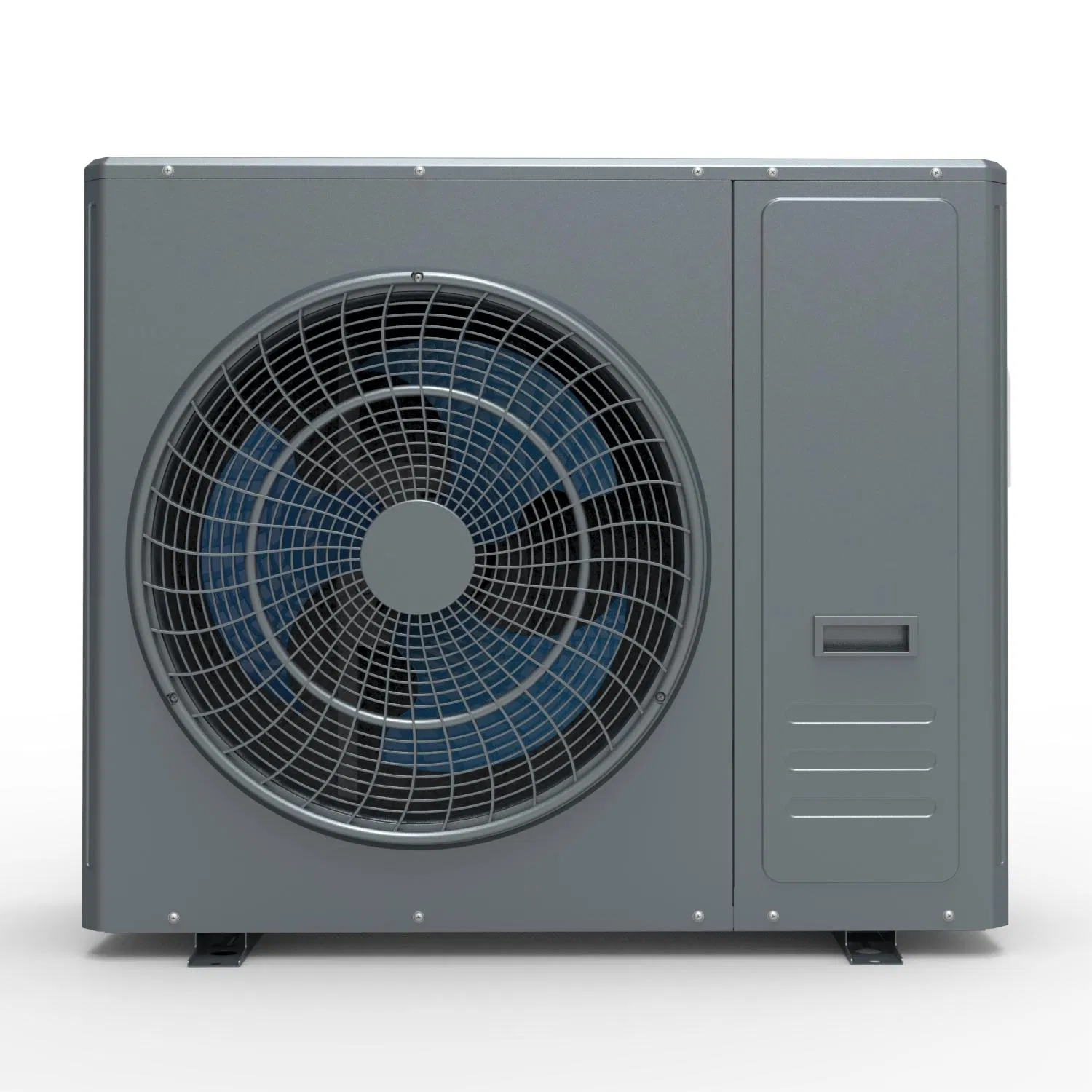

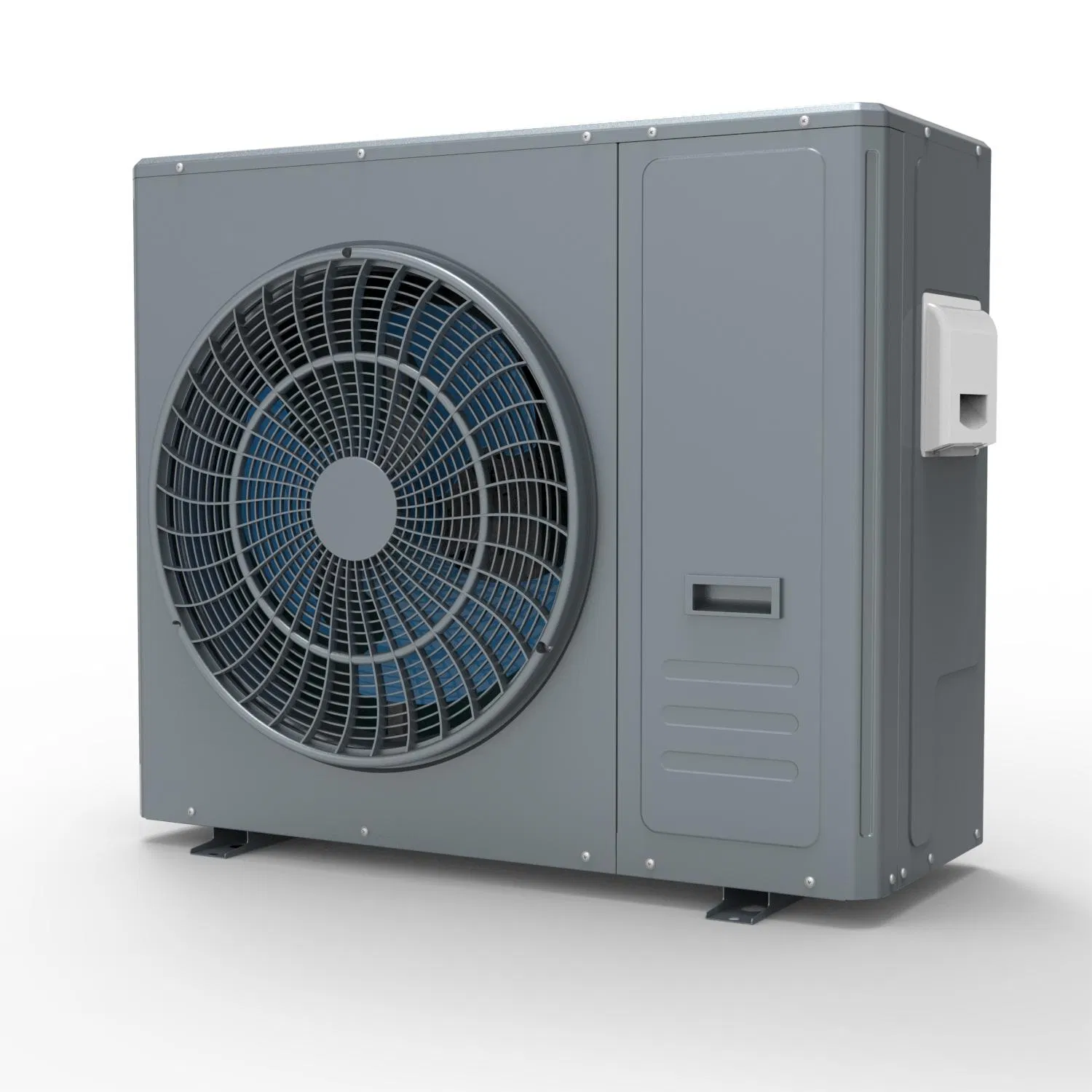

Residential Monoblock DC Inverter EVI Air to water heat pump for heating + cooling + hot water
Mitsubishi/GMCC DC Inverter compressor & R32 refrigerant
Lowest working ambient temperature -35 deg C

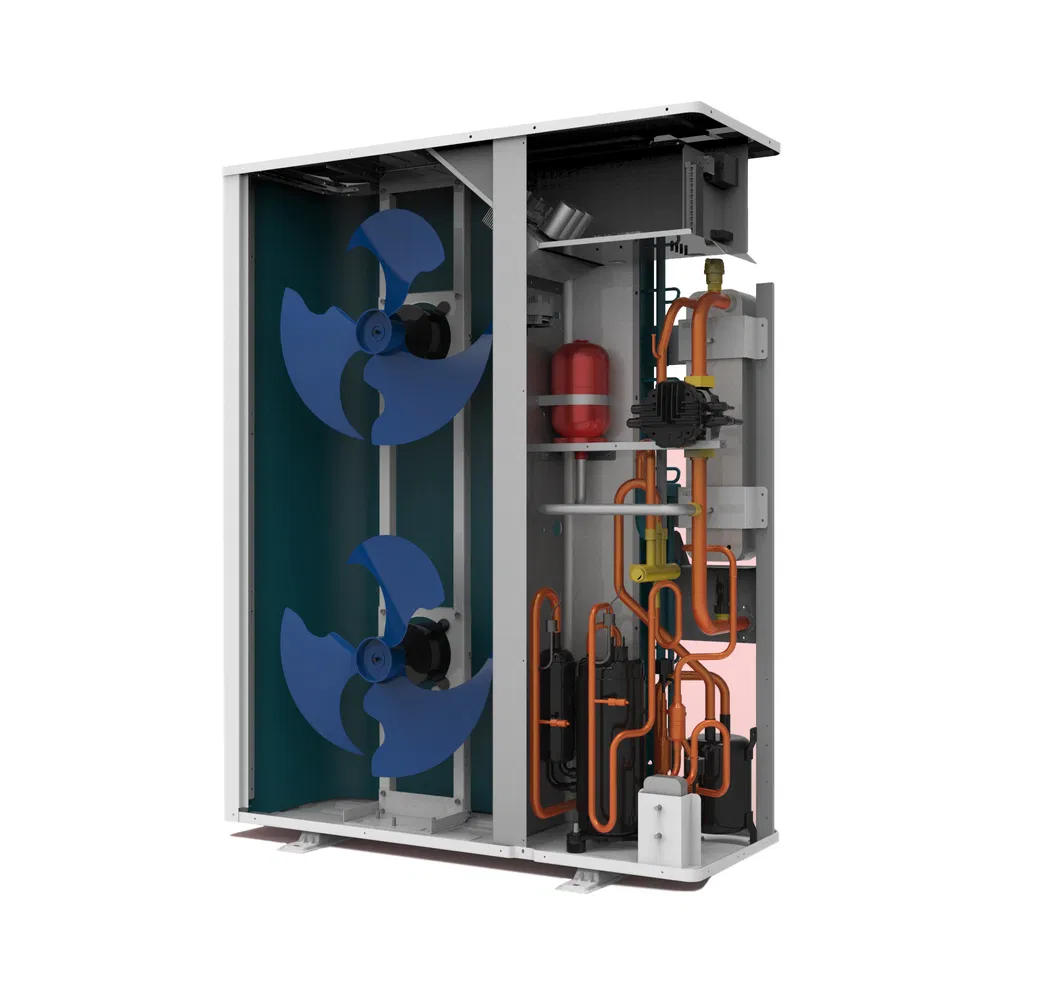

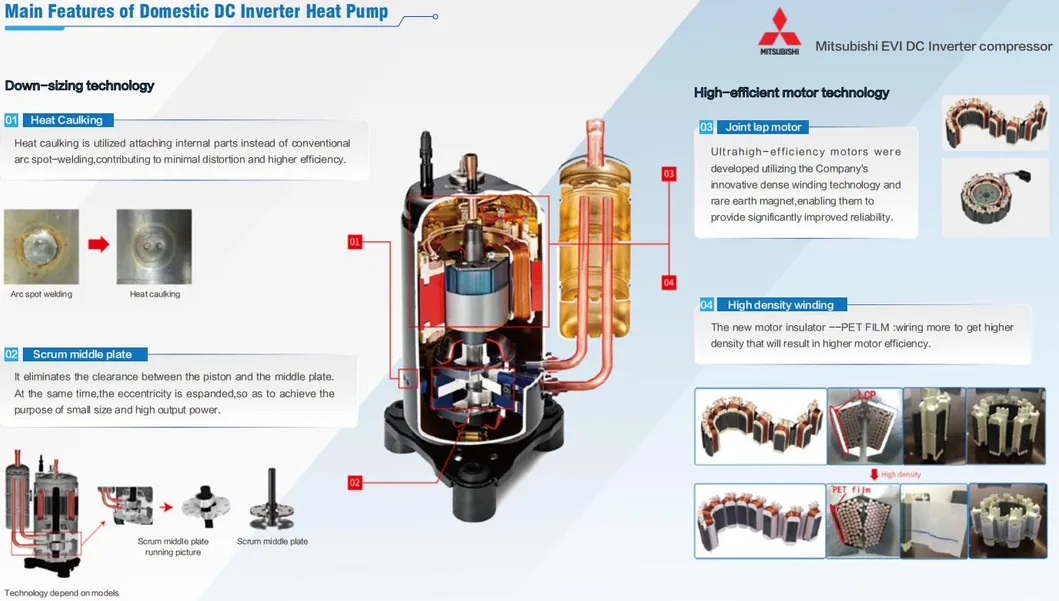

Details of Mitsubishi DC Inverter compressor
FULL DC INVERTER
Compressor + Fan + Pump
5 OPERATING MODES
Heating, Cooling, DHW
A+++ ENERGY LEVEL
High Efficiency

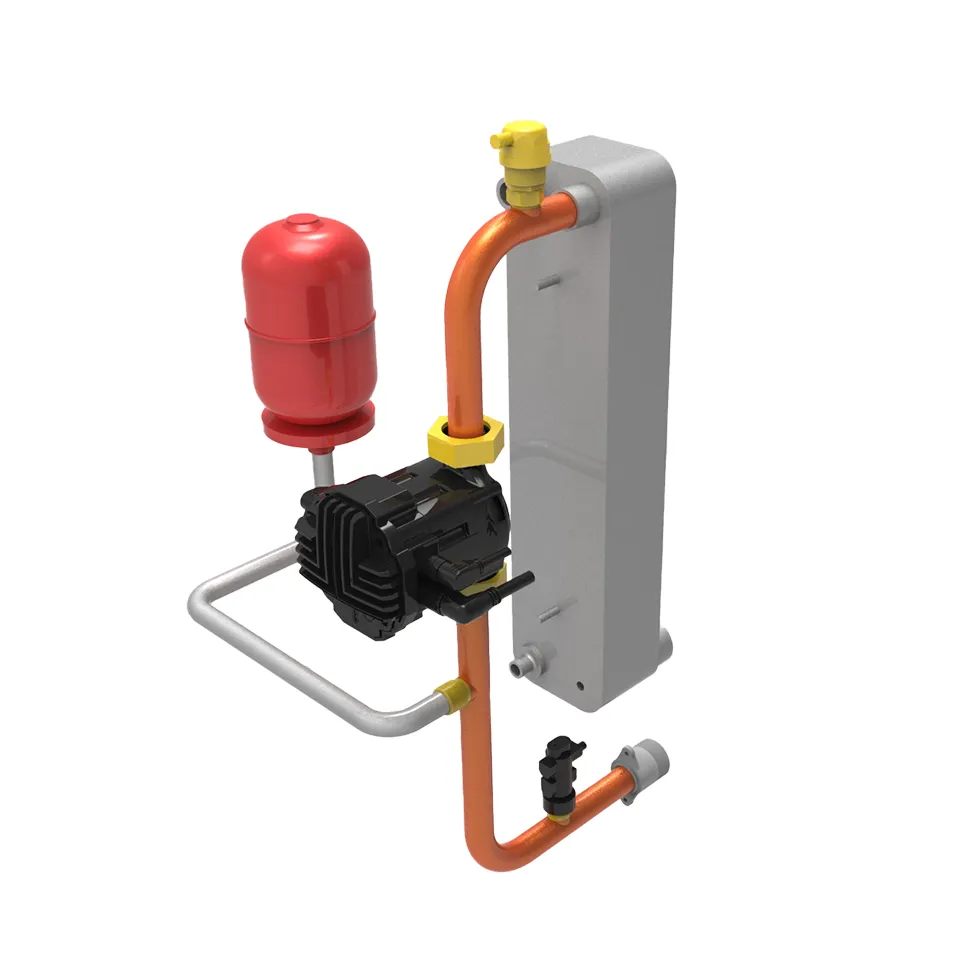

Built-in Hydraulic Module

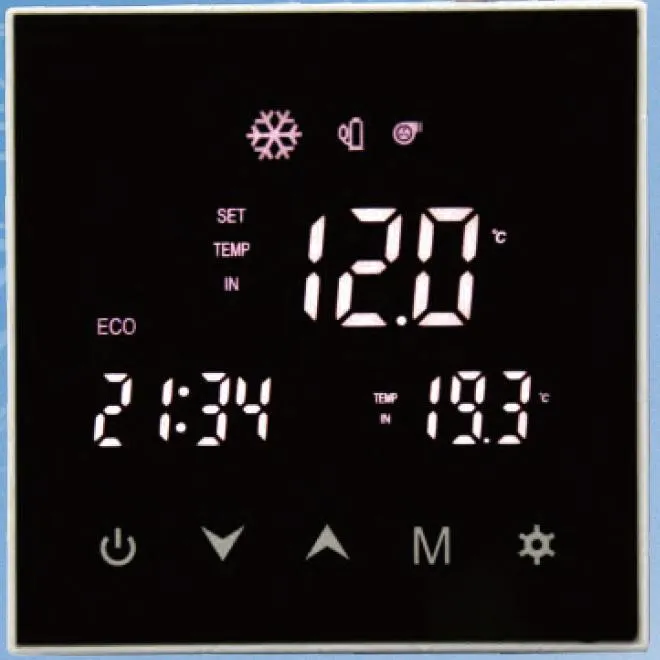

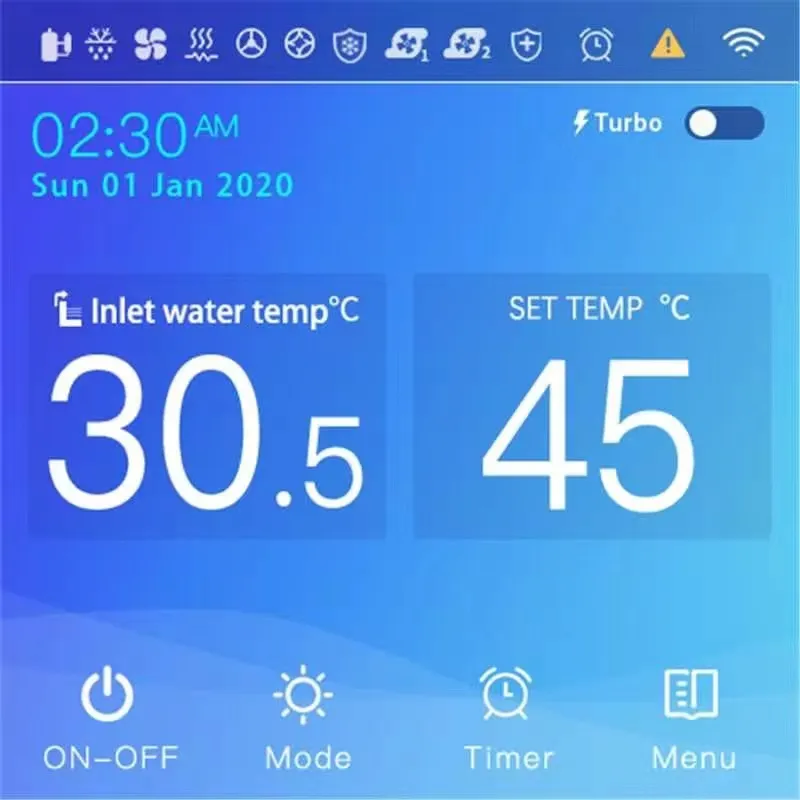

User-friendly Controller
Smart Control
Equipped with EVI Technology
Stable operation at ambient temperature -35ºC. Wide running range from -35ºC to 43ºC.
Wifi Function
Control your heat pump via smartphone anywhere, anytime.

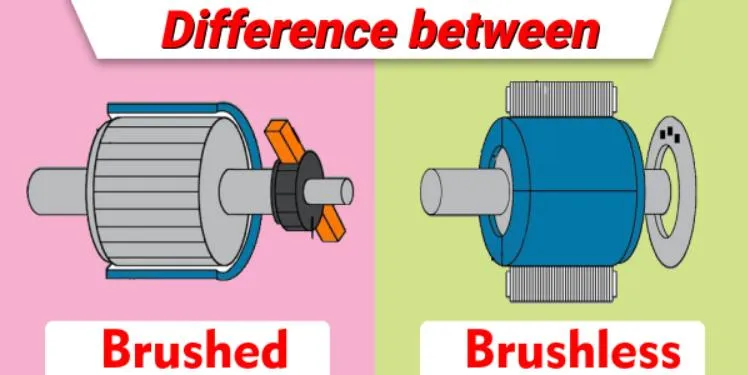

DC Brushless Motor
Low Noise Design
We focus on OEM and ODM with excellent R&D engineers and cooperate with top-tier component manufacturers to provide cost-effective and customized products. Our engineers have over 10 years of industry experience.

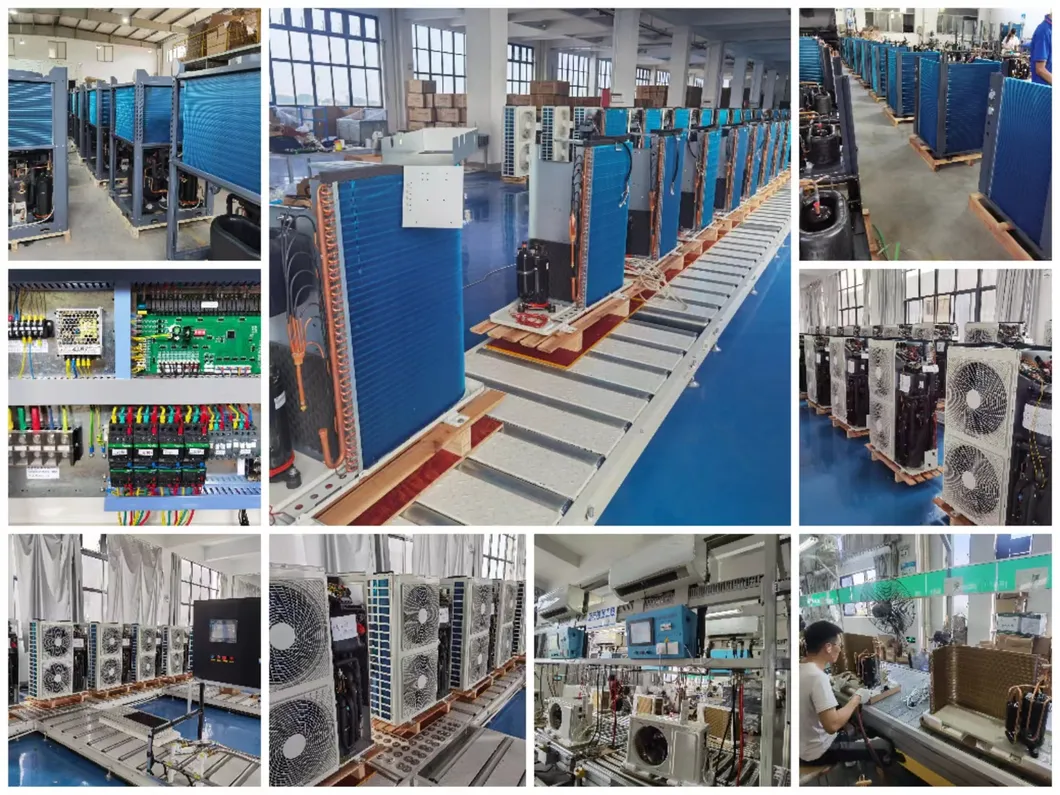

Production Line

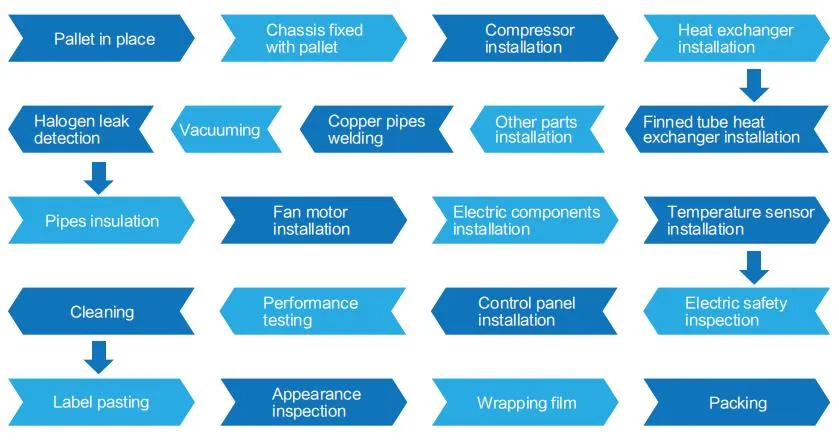

Work Flow

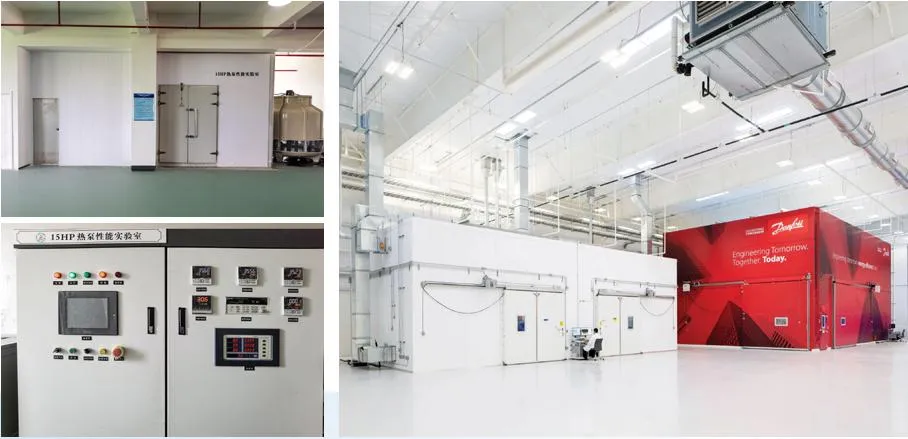

Advanced Laboratory (-40ºC ~ 55ºC Testing)
| Model | DFC10I/BPS | DFC15I/BPS | DFC20I/BPS | DFC32II/BPS | DFC45II/BPS | ||
|---|---|---|---|---|---|---|---|
| Rated Heating (A7 W45) | Capacity | kW | 10.00 | 15.00 | 20.00 | 32.00 | 45.00 |
| COP | W/W | 3.56 | 3.55 | 3.51 | 3.51 | 3.50 | |
| Nominal Heating (A-12 W41) | Capacity | kW | 8.00 | 10.00 | 14.50 | 22.50 | 30.00 |
| COP | W/W | 2.30 | 2.23 | 2.41 | 2.41 | 2.41 | |
| Power Supply | V/Ph/Hz | 220V/1/50Hz | 380V/3/50Hz | ||||
| Refrigerant | Type | R32 | |||||
| Net Weight | kg | 95 | 100 | 155 | 195 | 260 | |
