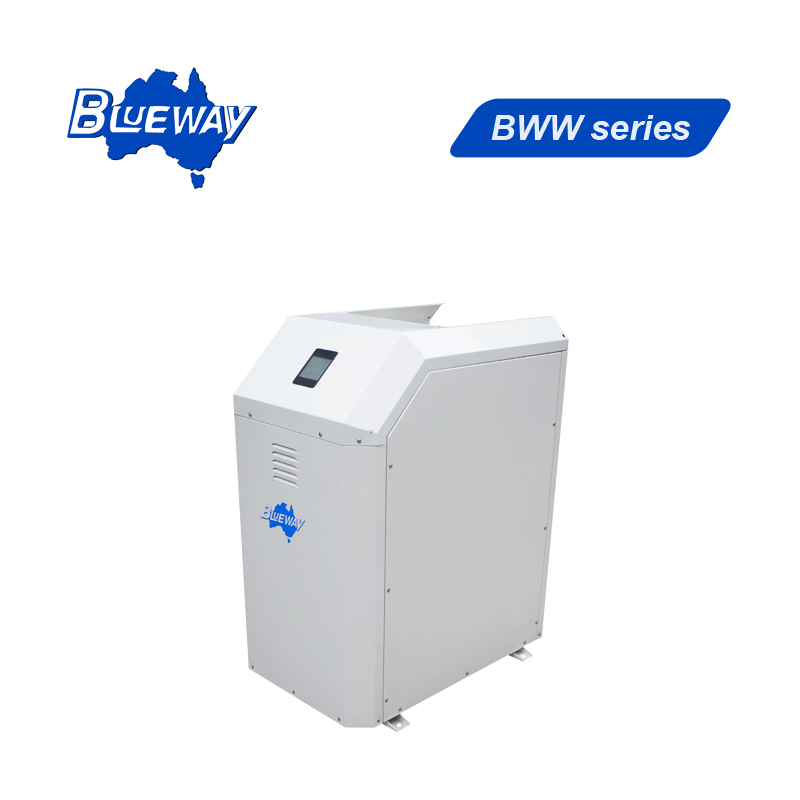

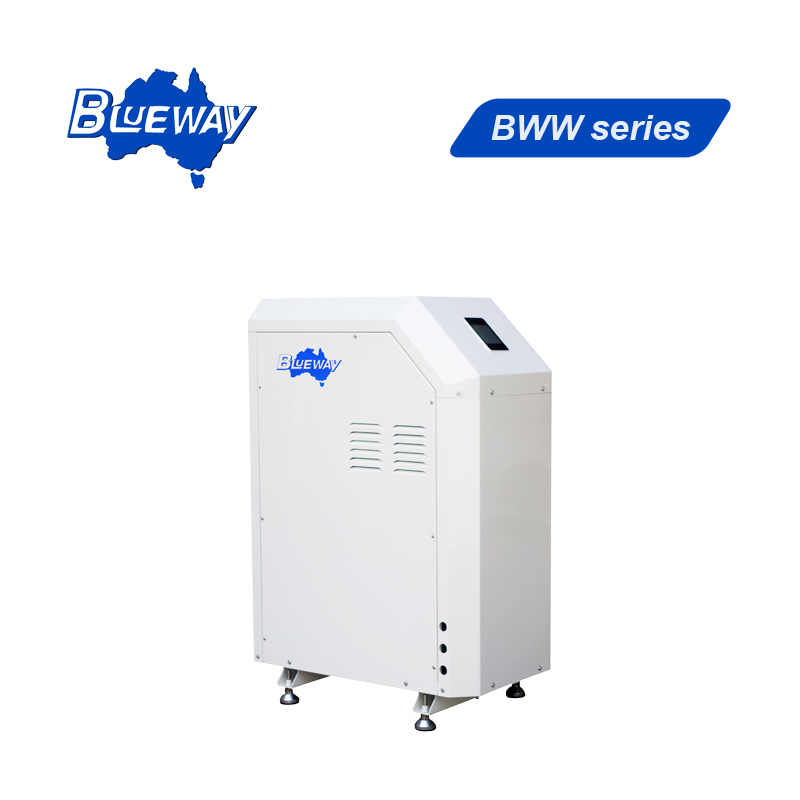

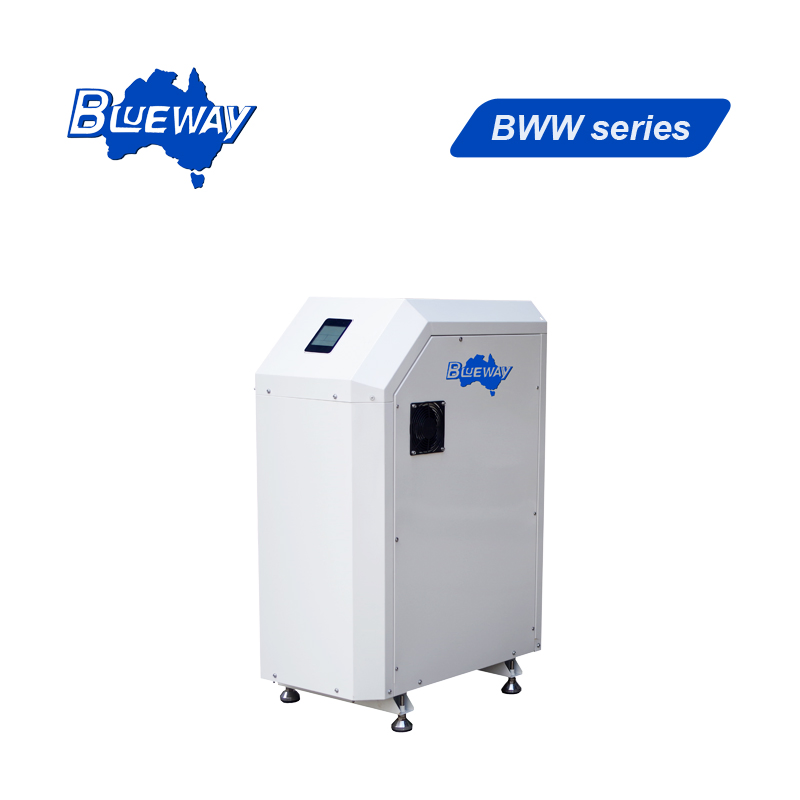

23kw Heating System Geothermal Water to Water Heat Pump R410A

Customization:	Available
Certification:	RoHS, CB, CCC, ISO9001, CE
Working Medium:	R407c/R410A

i

Basic Specifications

Model NO.BWW-20 (6HP)

Heat SourceWater Source Heat Pump

ColourGrey/White

ServiceOEM/ODM

ControlWiFi/RS485

Heating Capacity23.4kw

Cooling Capacity20kw

DHW Capacity20.6kw

ExchangerPlate Heat Exchanger

OriginGuangdong, China

P

Product Description

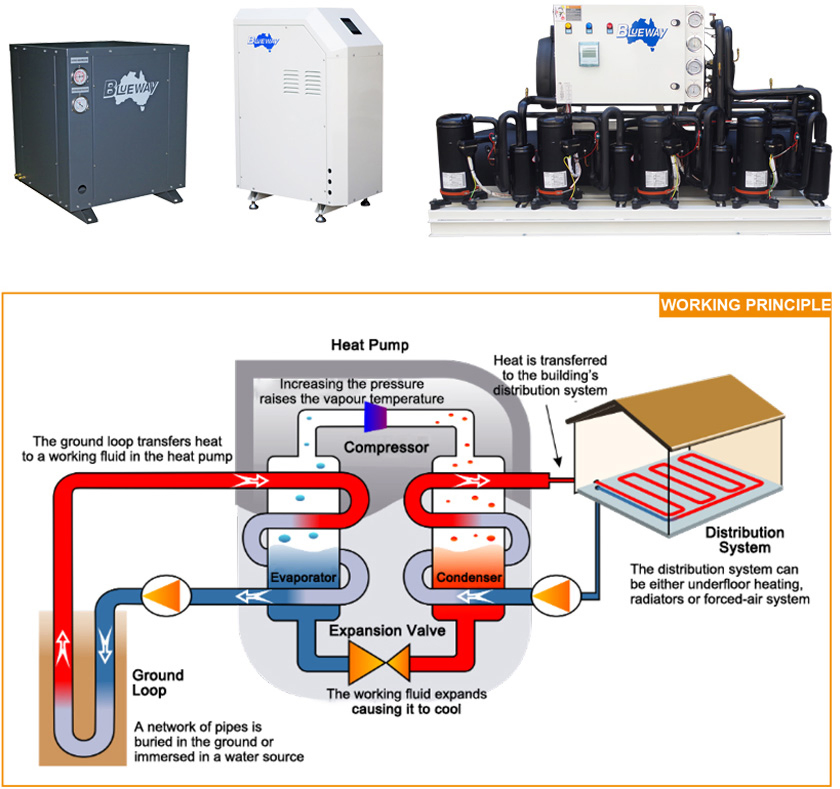

With around 30 years of experience in manufacturing and designing Water to Water Heat Pump systems. The units are covered with a durable and high-quality galvanized steel powder coating, providing an efficient and environmentally sustainable method of heating and cooling water for various applications.

This system offers a wide range of installation options including snow/ice melt, spa, pool water heating, and domestic hot water. It operates at roughly 2/3 capacity with significantly higher efficiencies than conventional products, ensuring maximum comfort with reduced energy consumption.

K

Key Features

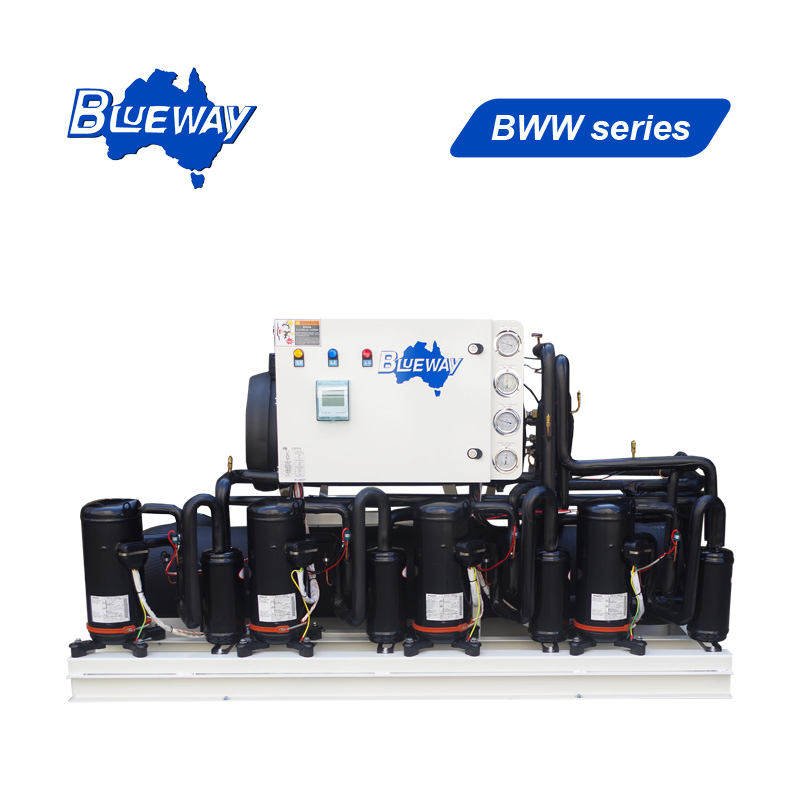

High Efficiency Rotary or Scroll Compressor

• Tropical resistance capacity
• High efficiency and energy saving
• Quiet operation with fewer moving parts
• Renowned brand components

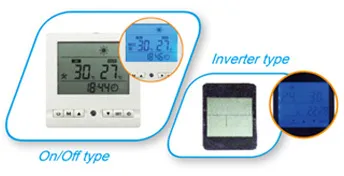

Intelligent Control System

Micro-processor based digital controller with LCD display. Factory programmed for maximum system protection and accurate temperature management.

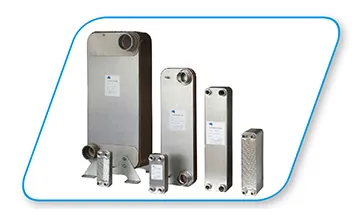

SWEP Plate Heat Exchanger

• High corrosion resistance
• Exceptional thermal efficiency
• High working temperature tolerance

3-way-valve interface for versatile use
Heating, Cooling & DHW functions
Water outlet temperature range: 7~55ºC
Saving over 2/3 energy vs conventional equipment
Low noise operation and easy maintenance

T

Technical Specifications

Model		BWW-06	BWW-08	BWW-10	BWW-13	BWW-16	BWW-20	BWW-30
HP		2	2.5	3	4	5	6	8
Heating	Capacity (kW)	7.2	9.55	10.74	14.3	17.5	23.4	33.2
Heating	COP	5.08	5.03	4.97	5.2	5.18	5.25	5.2
Cooling	Capacity (kW)	6.5	7.55	8.45	12.7	16.7	20	30.4
Cooling	EER	4.12	4.01	3.91	4.26	4.20	4.30	4.28
Net Dimension (mm)		630580645	630580645	630580645	630580645	982606634	982606634	982606634

*Notes: Data based on Water source inlet 10°C; User side 30°C/35°C for heating. Specifications subject to modification for improvement.

M

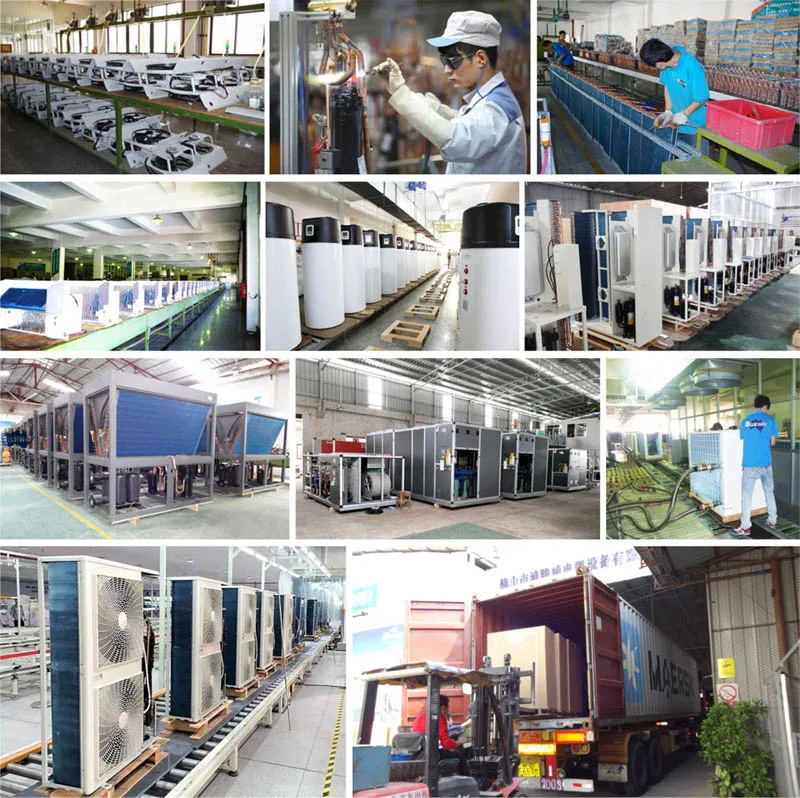

Manufacturing & Shipment

A

Market Advantages

1. Rich Industry Experience: Over 30 years of HVAC manufacturing expertise.
2. Strong R&D: Over 1000 original products developed, supporting OEM/OBM/ODM services.
3. Proven Track Record: Successfully provided over 10,000 engineering solutions globally.
4. Constant Support: Online technical services available twenty-four hours a day.
5. Advanced Tech: Intelligent control systems with remote monitoring and precise timing.

?

Frequently Asked Questions

Q1: Is the cabinet customizable?

Generally, the water source heat pump is an open type, but we can provide customized cabinet designs based on specific requirements.

Q2: In which markets is this product popular?

This series is highly popular across Asia, Europe, South America, and other global regions.

Q3: What types of refrigerant are used?

We typically use R410a for outlet temperatures up to 55ºC and R134a for systems requiring higher outlet water temperatures.

Q4: What is the Minimum Order Quantity (MOQ)?

We accept sample orders starting from 1 set.

Q5: Which water heat exchangers are available?

Depending on usage conditions, titanium, nickel-copper, or stainless steel 316 heat exchangers are optional.

Q6: Are there different color options?

Standard colors for fast production are white, grey, or black. Other colors may be available upon request.
