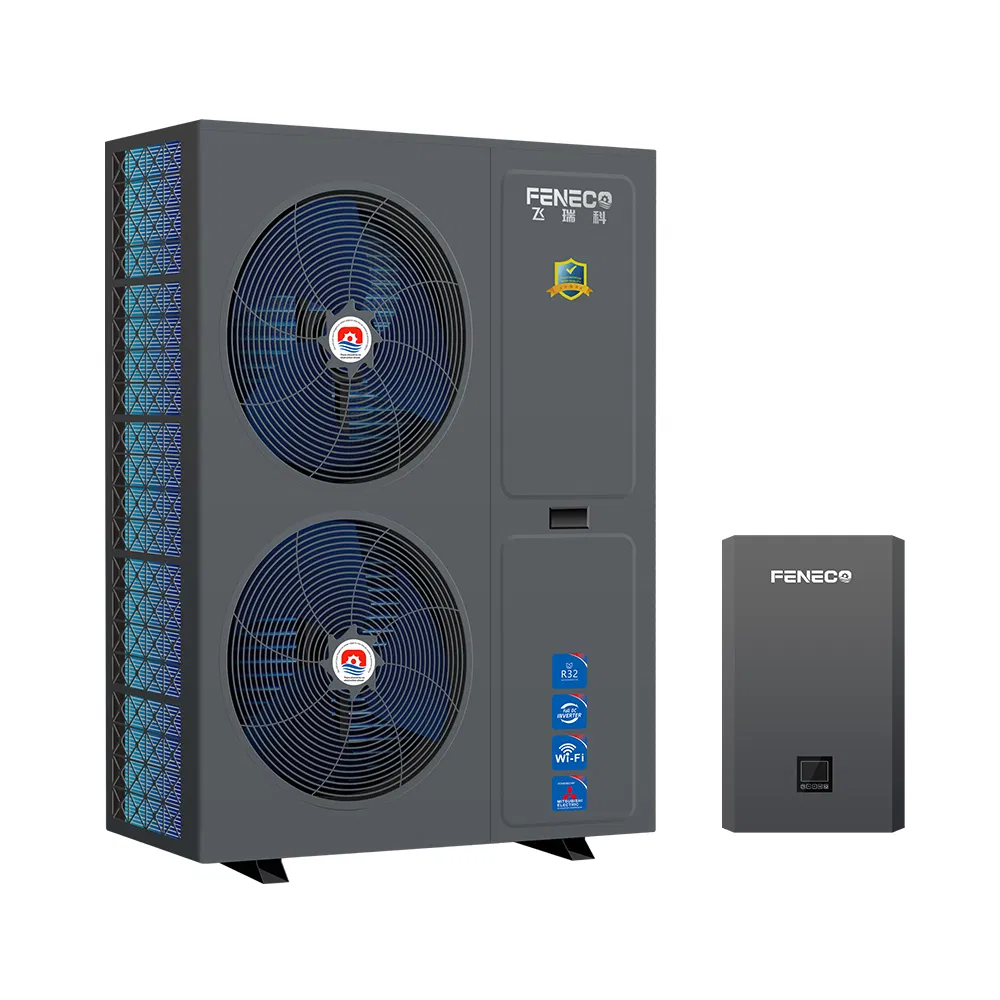

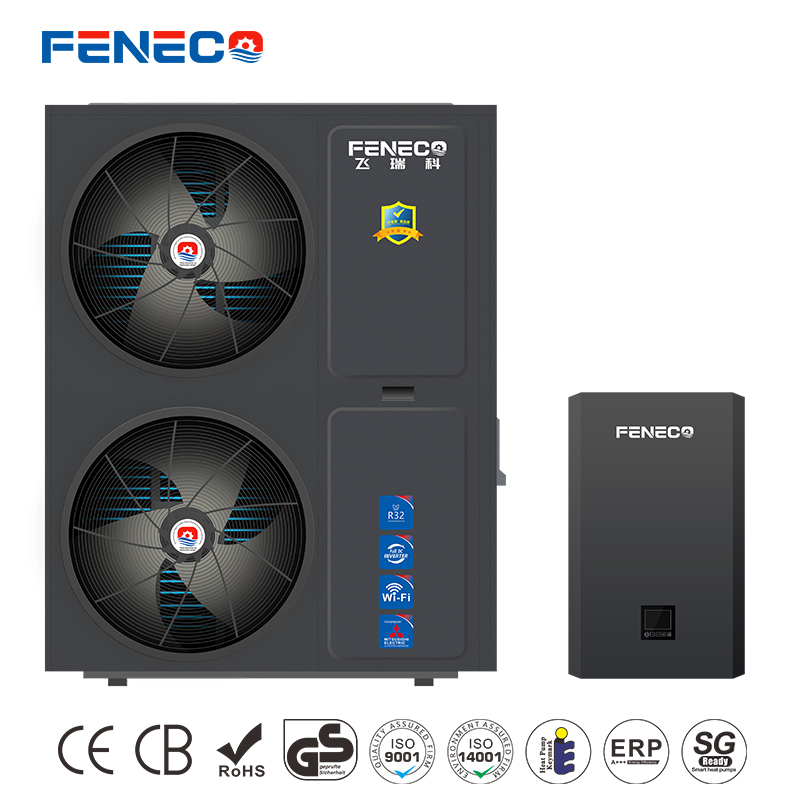

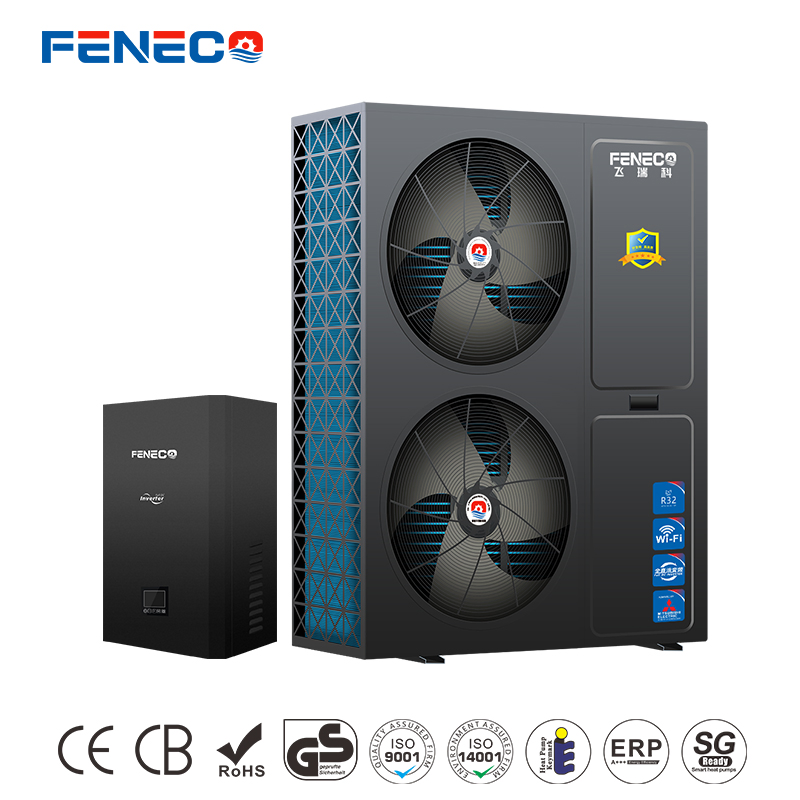

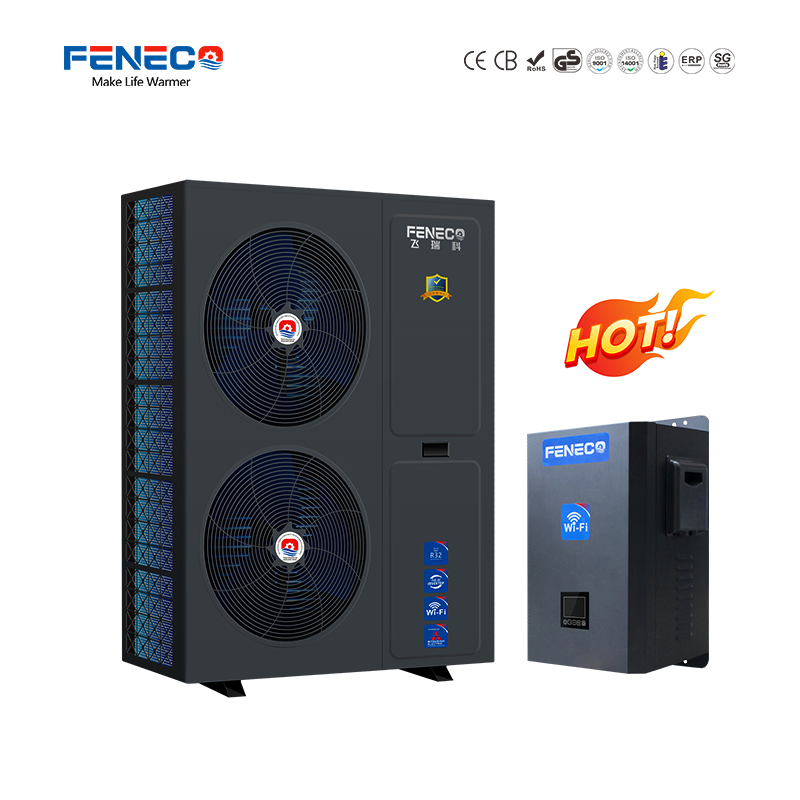

24kw DC Inverter Air Source All in One Split Heat Pump for Heating Cooling and Constant Hot Water Supply

Customization: Available
Certification: CB, ISO9001, CE
Working Medium: R32

Product Description

📊 Basic Information
Model NO.
XD-08BSPM
Heat Source Type
Air Source Heat Pump
Compressor
Panasonic DC Inverter Compressor
Motor
DC Inverter Brushless Motor
Throttling Device
Electronic Expansion Valve
Defrosting
Automatic Defrosting
Condensor
Ss 316 Brazed Plate Heat Exchanger
EVI Module
Yes
Specification
24kW
Production Capacity
30,000 Pieces/Year
🔥 Product Description
DC inverter EVI Split Heat pump adopts advanced EVI and DC inverter heat pump technology to achieve high efficiency. It provides you a convenient way to control units by the intelligent WIFI control system. Besides, the heat pump run outside with split design, brings you quiet and comfortable home life. Suitable for villa, school, hotel, family, and office, etc.
Split Heat Pump Unit
  • Multi-function: Heating, Cooling, and Hot Water functions.
  • Durable Build: Thickened frosted sheet metal process, beautiful and durable.
  • Extreme Weather: Low temperature EVI design, providing powerful heating under -38ºC.
  • Full DC Inverter: Adopts Panasonic/Mitsubishi DC inverter compressor and brushless motor.
  • Smart Management: SG ready, Smart grid management, and Preset temperature curve.
  • User Experience: Zero vibration experience and regular sterilization.
  • Intelligent Control: Smart WiFi control and Smart defrosting.
📋 Technical Parameters
MODEL XD-03BSPM XD-04BSPM XD-05BSPM XD-06BSPM XD-08BSPM
Working Temp Range -30~43ºC
Heating Capacity (A7W35) 8(2-9)/4.1 12(2-13)/4.2 15(3-17)/3.96 18(3-20)/4.1 18(3-20)/4.15
Cooling Capacity (A35W7) 6.2/2.5-5.8 10.8/2.6-5.8 11/2.6-5.7 14/2.5-5.7 14/2.4-5.8
Noise (dB(A)) ≤52 ≤55 ≤60 ≤60 ≤65
Refrigerant R32/1.25kg R32/1.4kg R32/1.7kg R32/1.9kg R32/2.2kg
🛠️ Installation Instructions

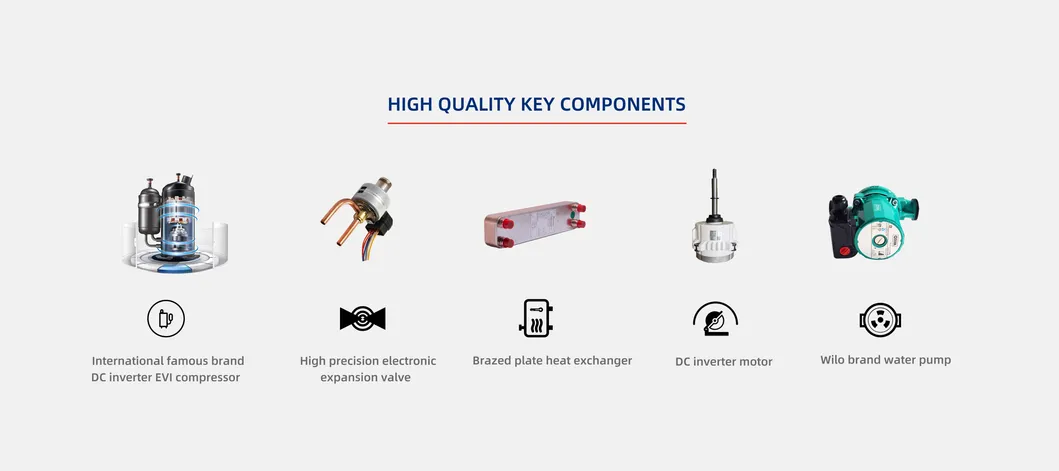

Installation Diagram 1

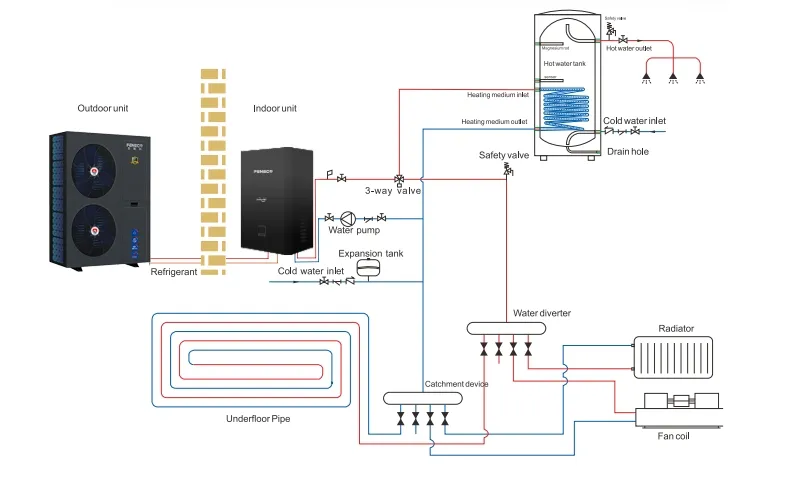

Installation Diagram 2
Installation Diagram 3

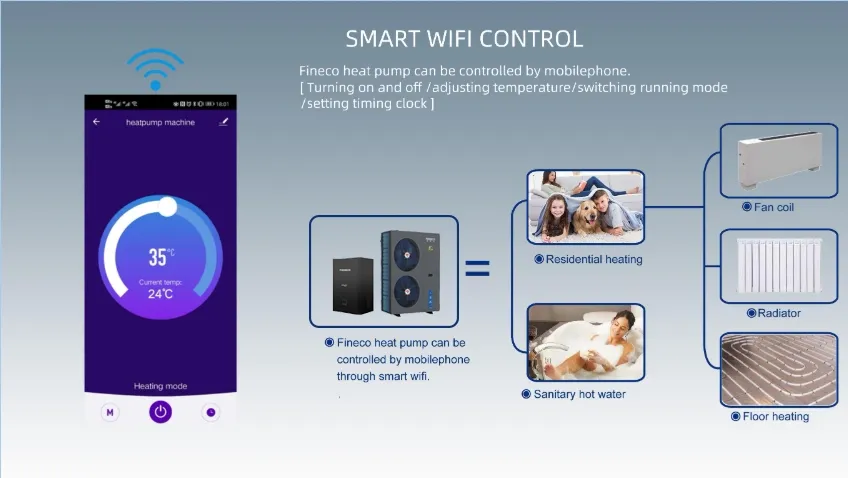

Installation Diagram 4
🏢 Professional Manufacturer
As a professional manufacturer with over 20 years of experience in the refrigeration and heating industry, we maintain long-term technical cooperation with world-famous enterprises such as Panasonic, Emerson, Schneider, Wilo, SWEP, and Danfoss. We focus on heat pump projects, producing a full range of products including air-to-water heat pumps, water-to-water heat pumps, heat pump dryers, and industrial water-cooled chillers. Our products are strictly designed and tested to international standards, carrying CE and CB certificates.
📦 Packaging & Shipping

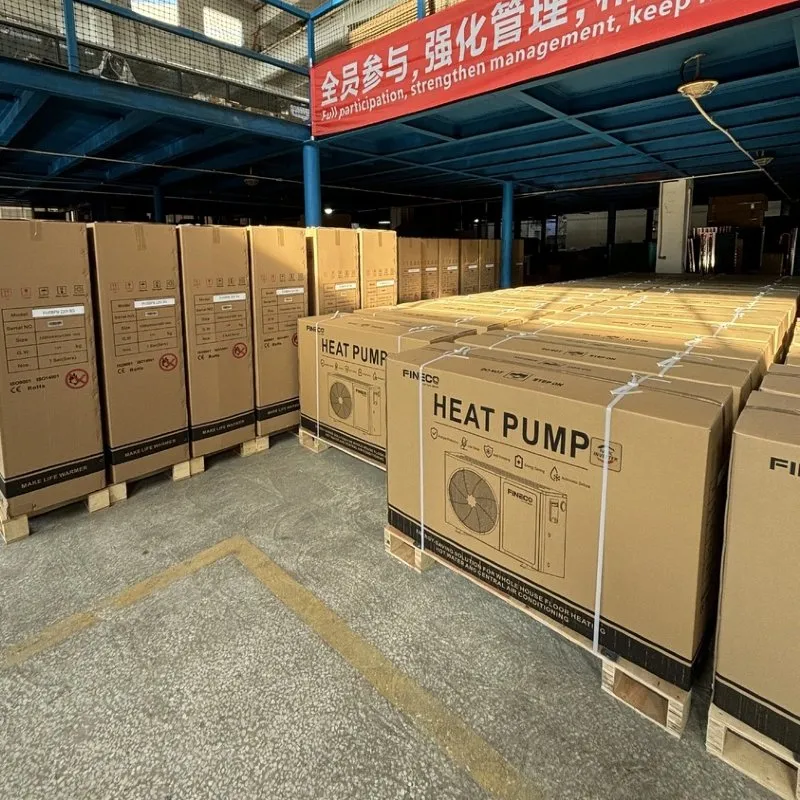

Packaging 1

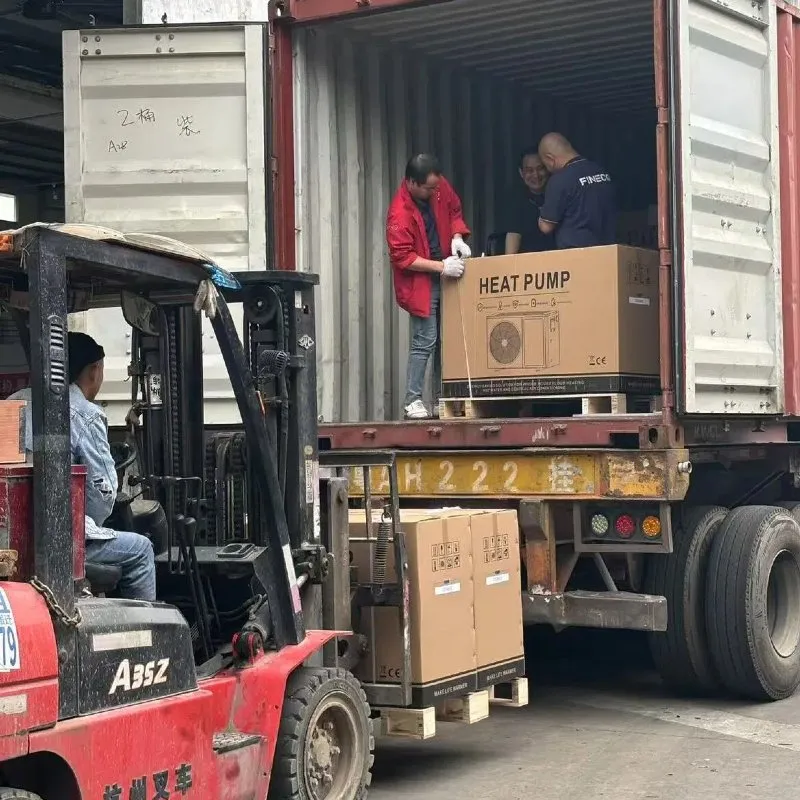

Packaging 2

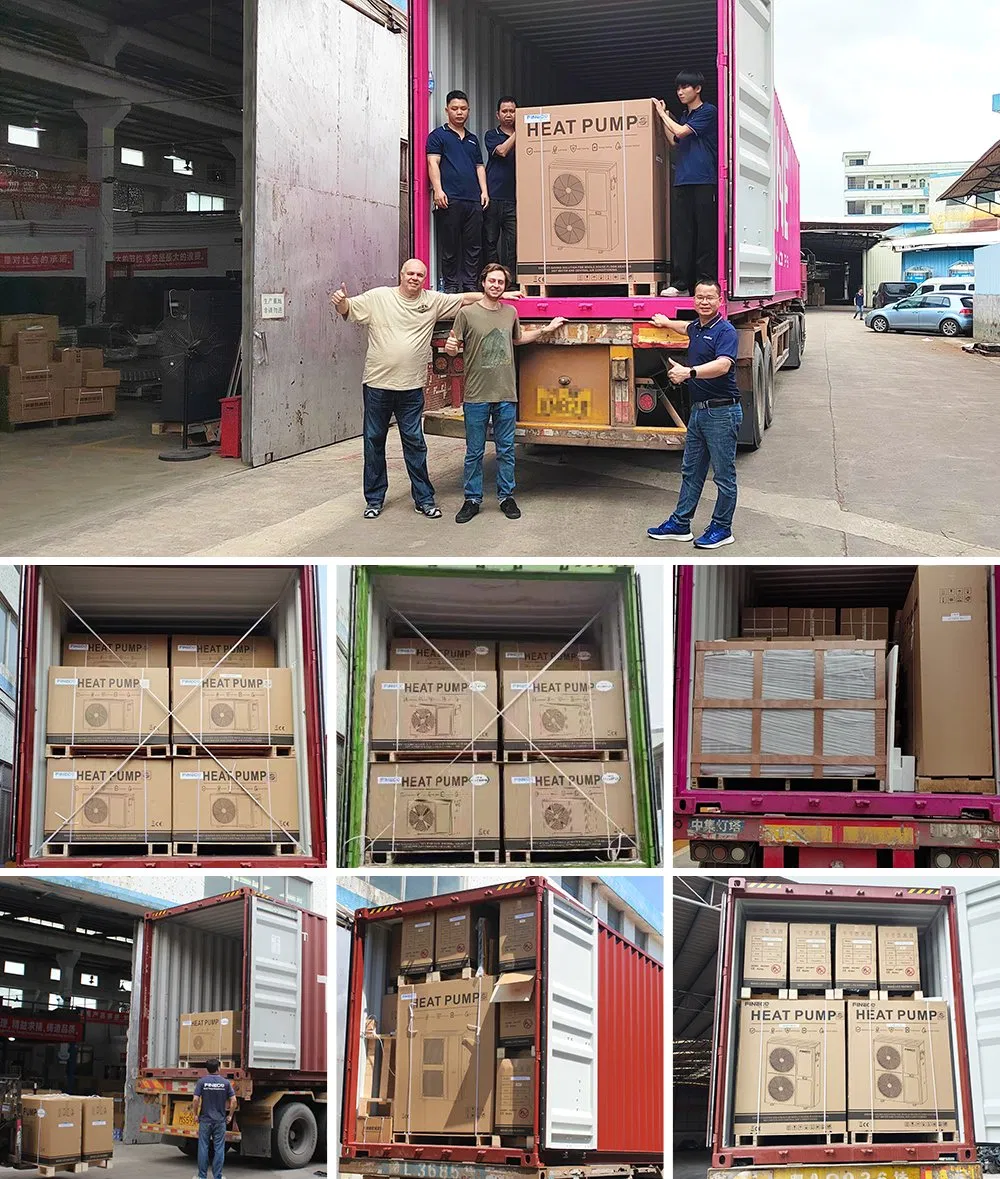

Packaging 3
🏠 Project Cases

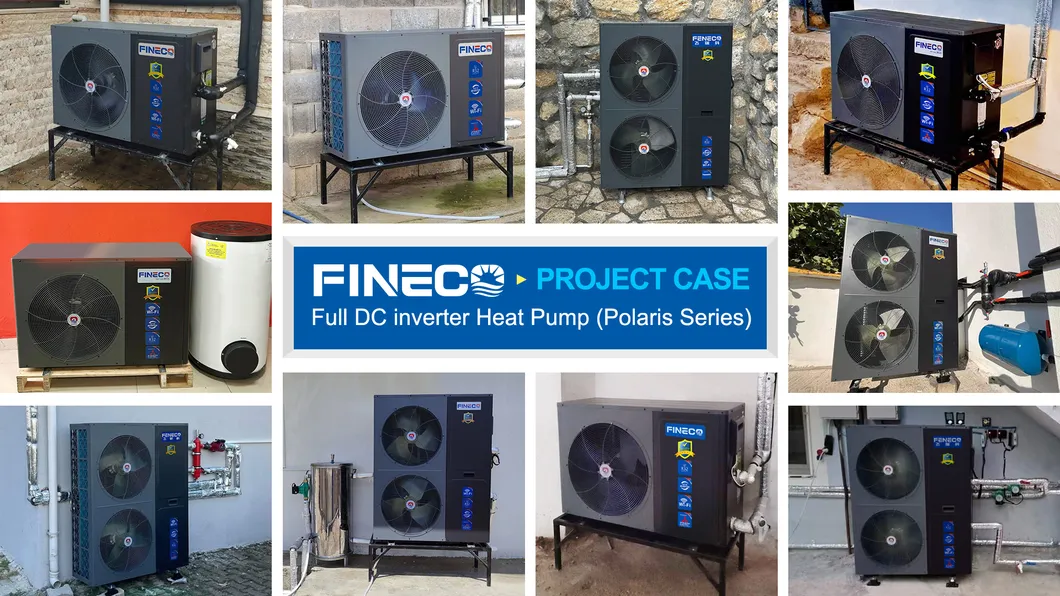

Project Case Study
Frequently Asked Questions
What types of heat pump products do you manufacture?
We produce a full range of heat pump products, including air-to-water heat pumps, water-to-water heat pumps, heat pump dryers, industrial water-cooled chillers, and swimming pool heat pumps.
What is the typical delivery time for orders?
Samples typically require 12 days. For mass production and container orders, the delivery time is approximately 2-3 weeks.
Can I purchase a single sample for quality testing?
Yes, we welcome sample orders for testing and quality verification. Mixed samples are also acceptable.
What certifications do your products hold?
Our products are certified with CE, RoHS, SGS, ISO9001, ISO14001, and CB. We also hold various technology patents and national lab inspection reports.
What is the warranty period for your heat pumps?
We provide a 3-year warranty for main components and include 1% free spare parts with mass orders.
Do you support OEM branding?
Yes, legal OEM brand manufacturing is accepted. Please provide your logo and brand authorization prior to production.
