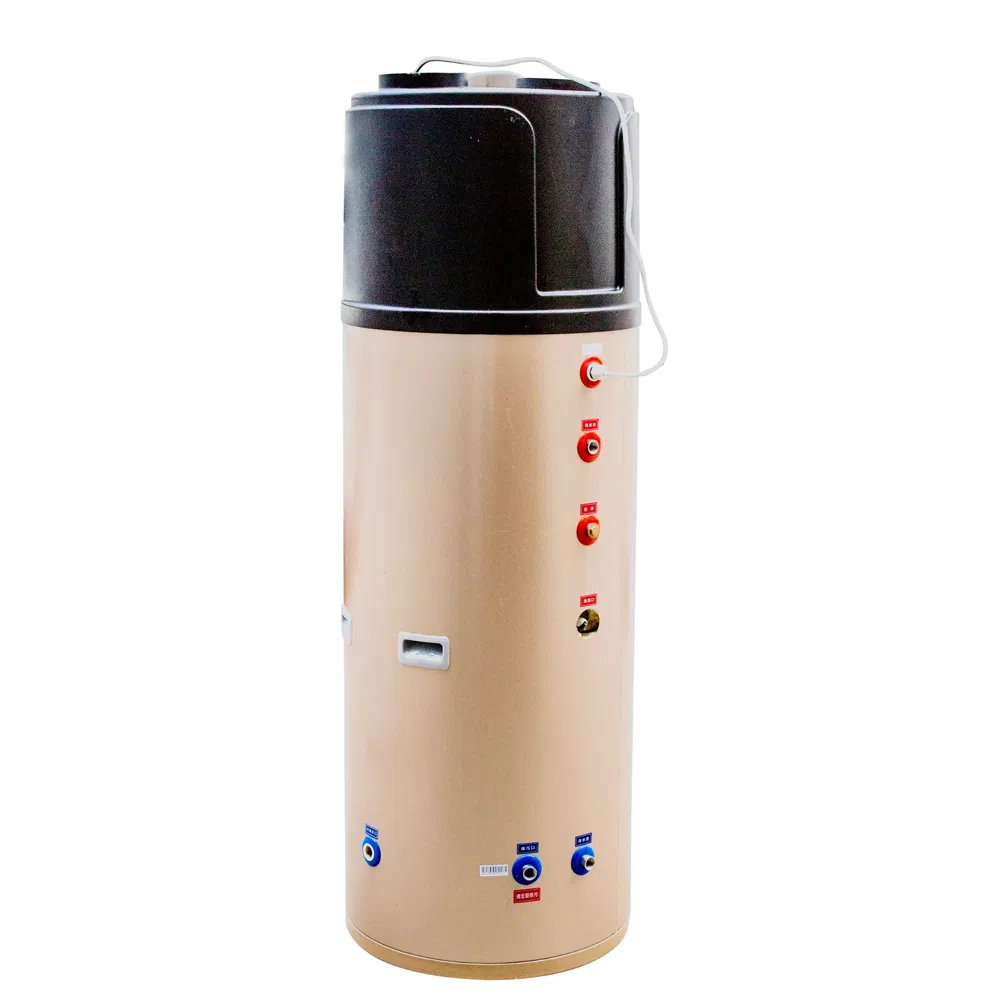

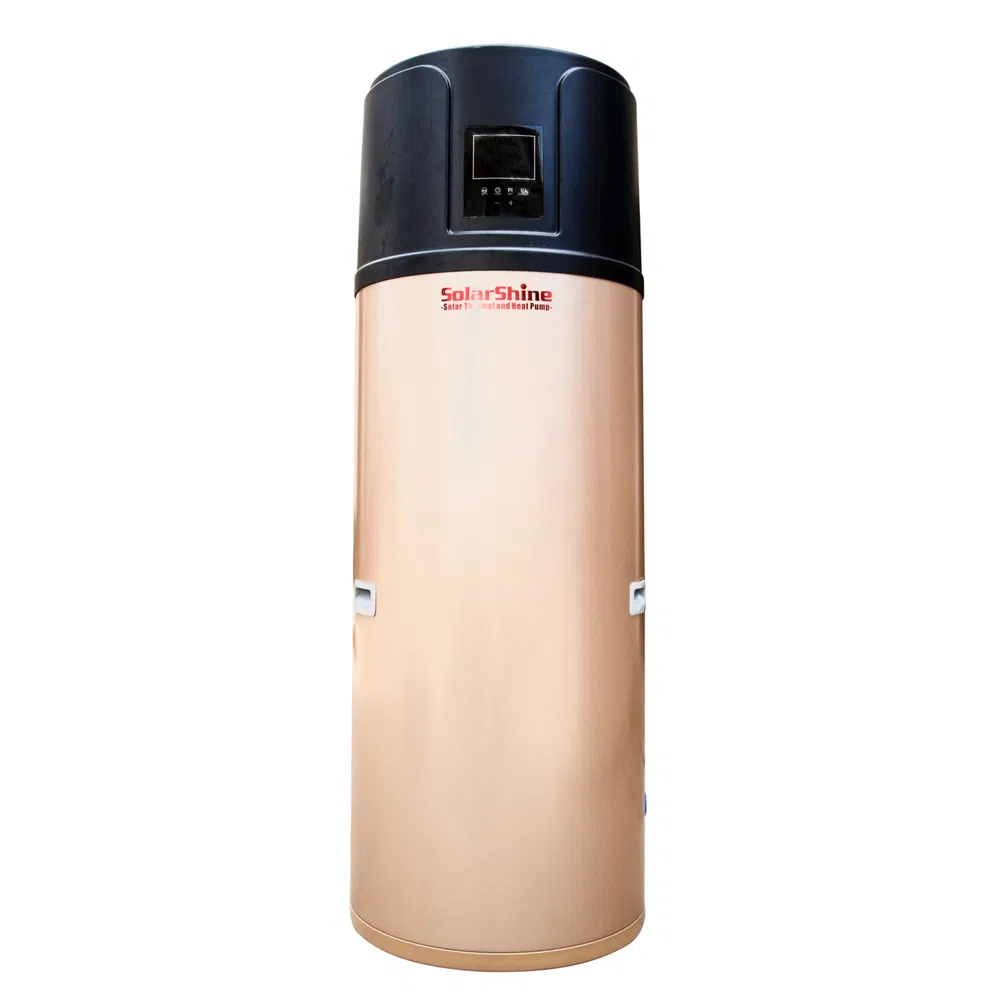

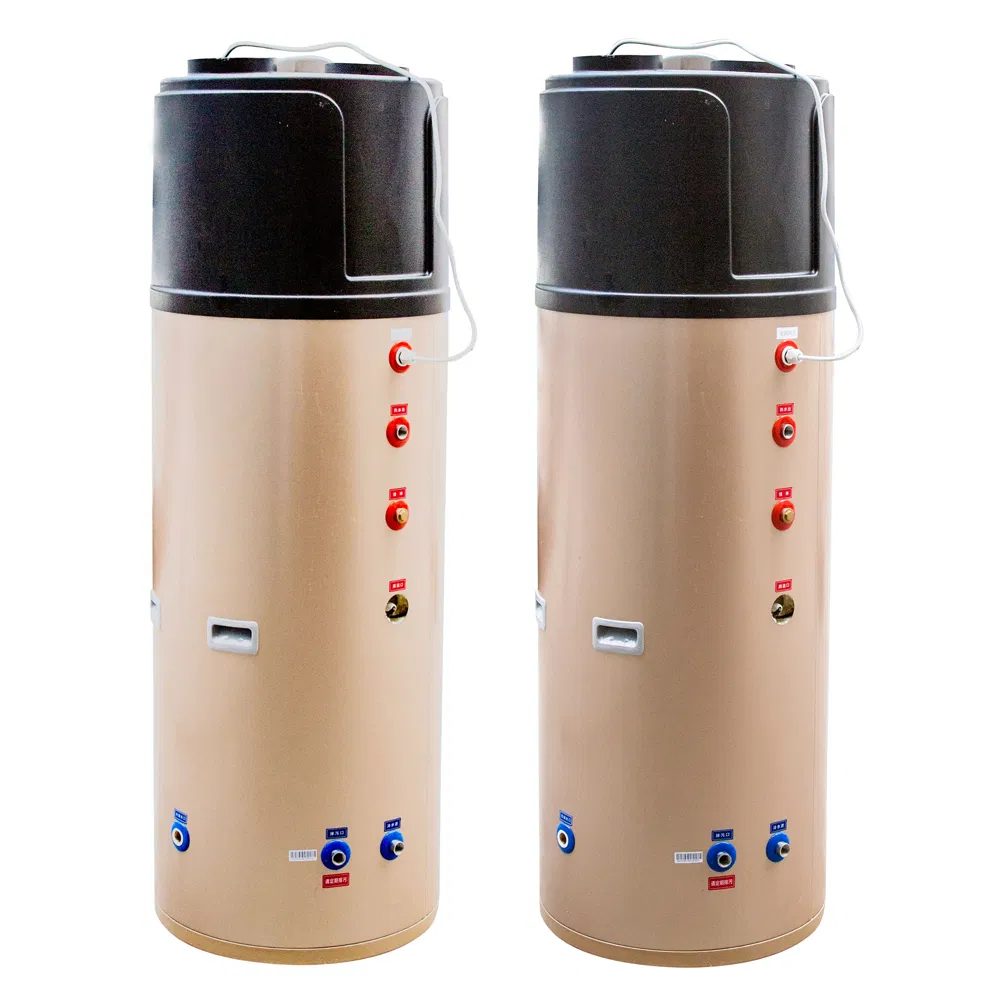

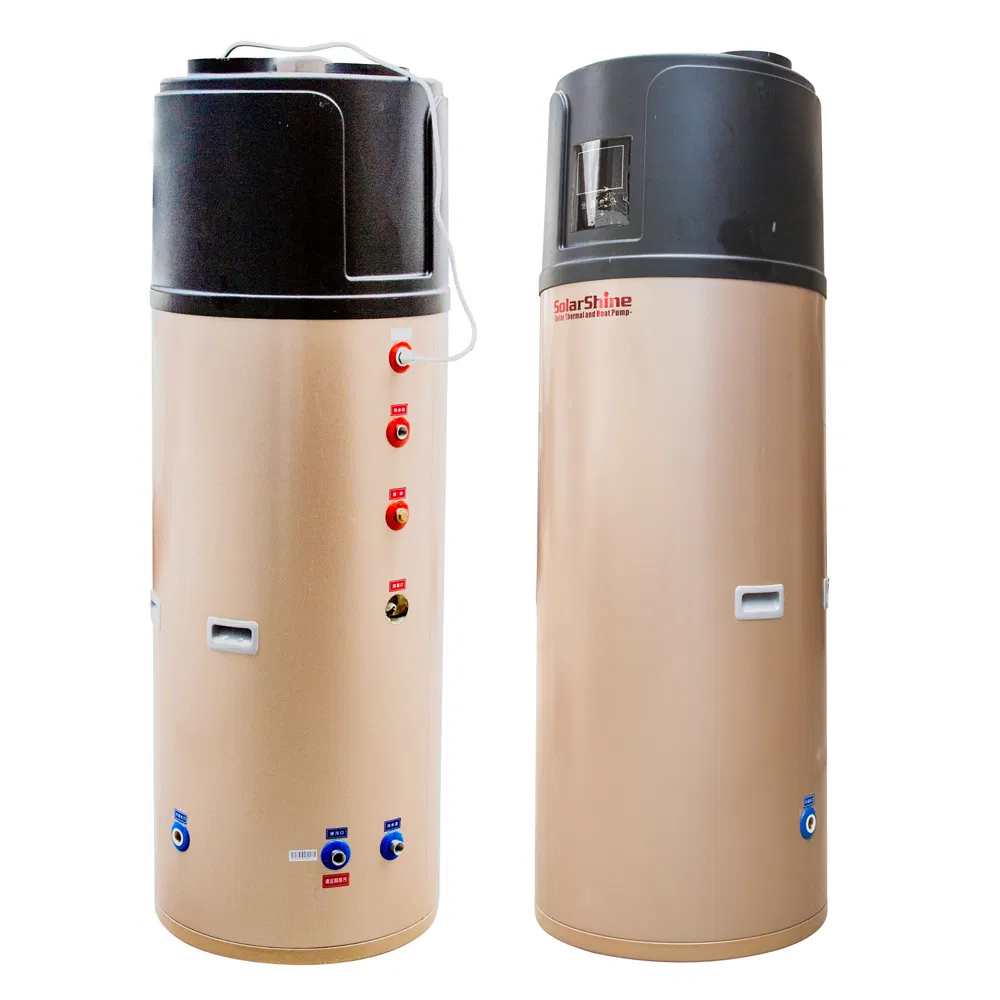

100L to 300L Air Source All in One Heat Pump Water Heater with Smart WiFi Control OEM ODM Customization

1 / 5

100L to 300L Air Source All in One Heat Pump Water Heater with Smart WiFi Control OEM ODM Customization

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.

KFAL

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons, Apartment

Certification

ISO9001, CCC, CB, RoHS

Refrigerant

R410

Heating Capacity

5kw

Compressor

Panasonic

Function

Domestic Hot Water

Inner Tank

SUS304 Stainless Steel

Packaging

Wood Packing

Specification

180-250 Liters

Origin

China

Product Description

FAST-HEATING ALL IN ONE heat pump water heater

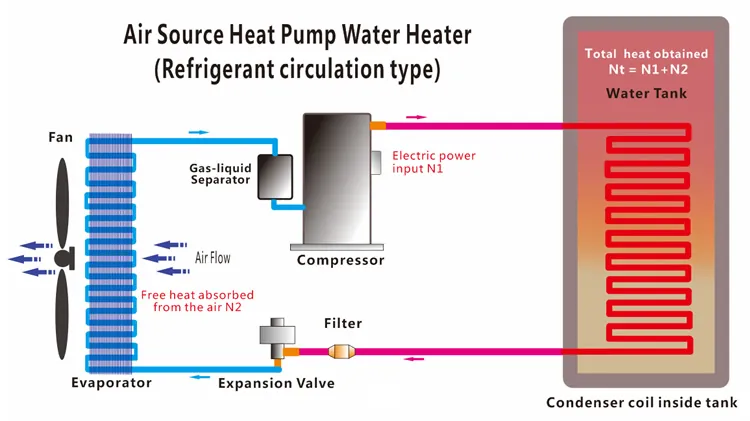

This all in one heat pump water heater is equipped with high standard and high quality components, which assures high COP output and long-term service life. It is specially designed for domestic heat pump water heater systems, with a heating capacity range from 180L to 250L, powered by a 1.5HP compressor, requiring no additional electric heater.

💰

Economical & Efficient

Save about 70% heating cost compared to traditional electric heaters.

🛠️

Fast Installation

Simple 3-step installation: connect water inlet/outlet and power cable.

🔇

Quiet Running

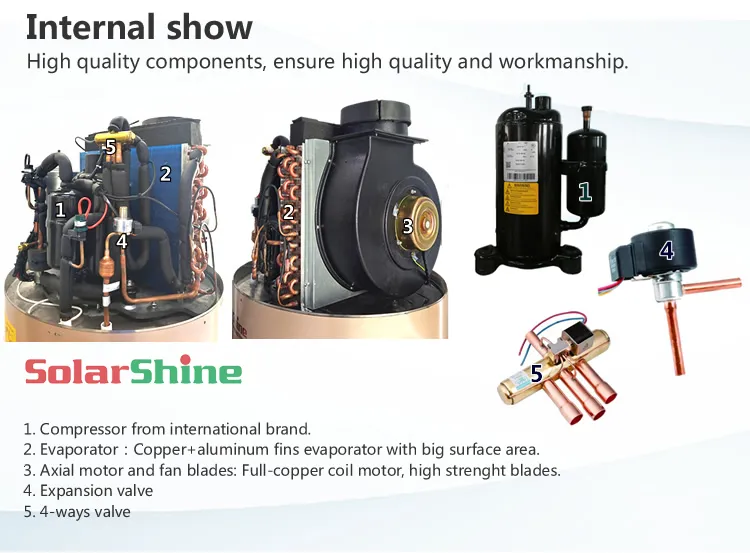

Equipped with a low-noise rotary compressor and fan for silent operation.

📱

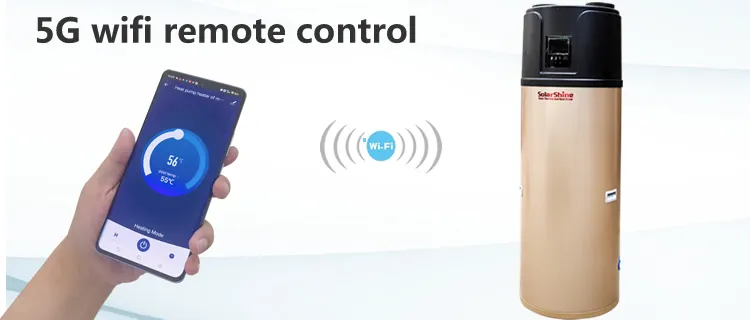

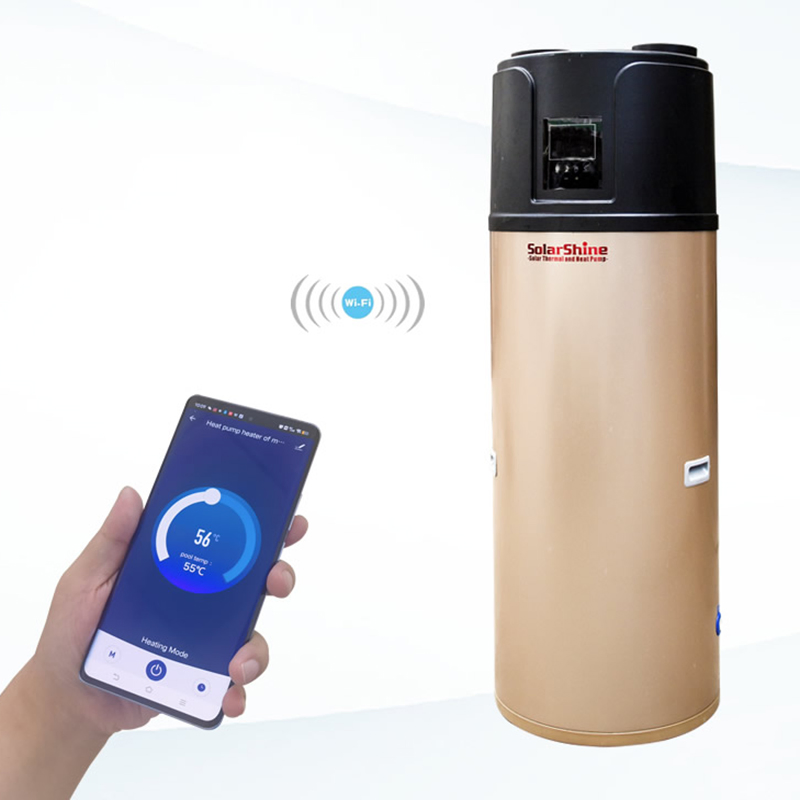

Intelligent Control

Full automatic controller with WiFi mobile phone control support.

Technical Specifications

Model: KFAL-180L

Power Supply: AC220V/50Hz

Tank Capacity: 180 Liters

Rated Heating Capacity: 4.4KW

Input Power: 1.1KW (Max 1.45KW)

Max Water Temperature: 60ºC

Working Ambient Temperature: -3ºC - 40ºC

Noise Level: ≤ 60dB

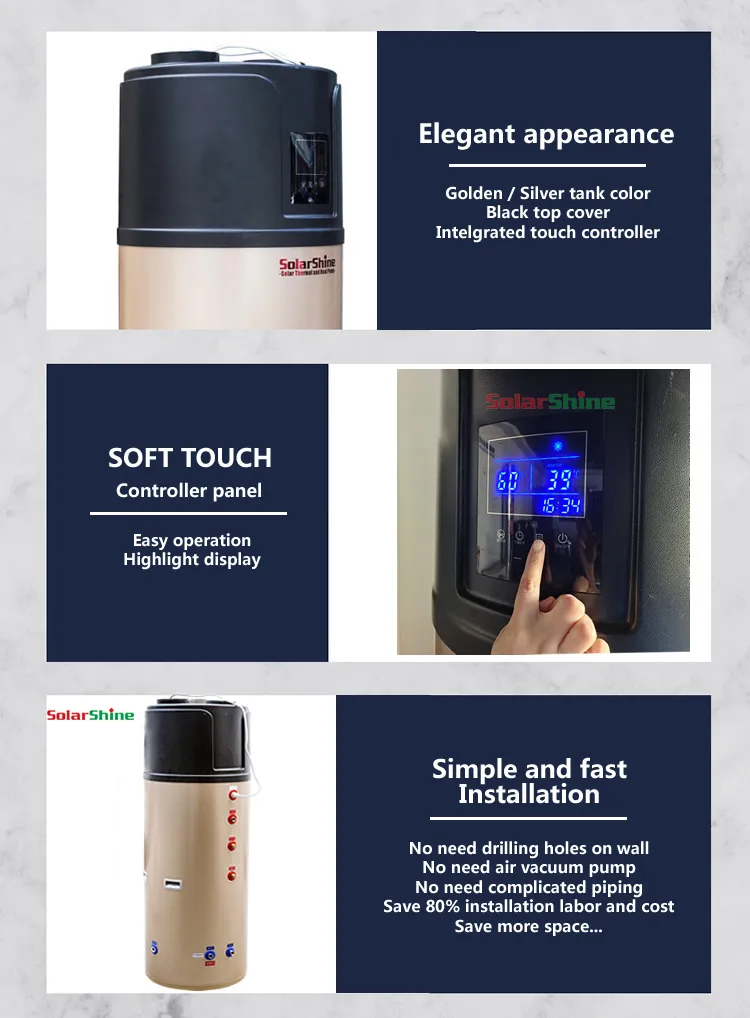

Product Showcase

Frequently Asked Questions

How much energy can I save with this heat pump?

The KFAL series can save approximately 70% of heating costs compared to traditional electric water heaters by utilizing high-efficiency air-source technology.

Is the installation process complicated?

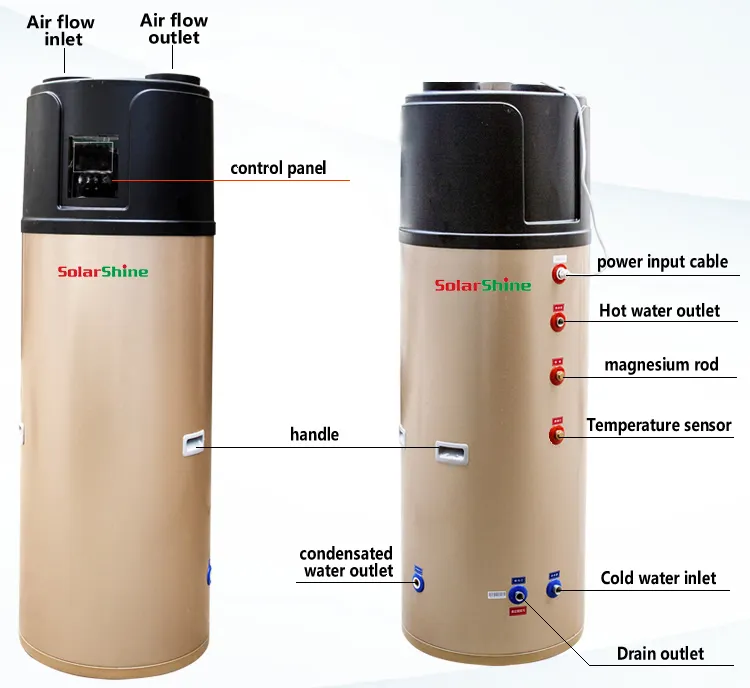

No, it is designed for simple and fast installation. It typically involves three main steps: connecting the cold water inlet, the hot water outlet, and the power supply cable. No wall drilling is required for the all-in-one unit.

What is the maximum water temperature it can reach?

The rated water temperature is 55ºC, and it can reach a maximum temperature of 60ºC, which is ideal for domestic hot water needs.

Does it support remote control?

Yes, the unit features an intelligent controller with WiFi connectivity, allowing you to manage and monitor your water heater via a mobile phone application.

What is the working temperature range?

The unit works efficiently in ambient temperatures ranging from -3ºC to 40ºC, making it suitable for a wide variety of climates.

How noisy is the unit during operation?

The heat pump is designed for quiet operation with a noise level of ≤ 60dB, thanks to its high-efficiency rotary compressor and low-noise fan system.
