Basic Information
Work Environment
Common Heat Pump
Heating Type
Circulating Heat
Application
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments
Certification
CE, ISO9001, CCC, RoHS, SASO
Max Outlet Temp
60 Celsius Degree
Expansion
Electrical Expansion Valve
Rated Capacity
3.5kw to 9kw
■
Product Highlights
- ✔ Panasonic compressor and R410a refrigerant
- ✔ Chinese No.1 brand "ND" shell & tube heat exchanger
- ✔ Water pump built-in
- ✔ Japan "Saginomiya" electronic expansion valve
- ✔ LCD controller
- ✔ Plywood case packing for heat pump
- ✔ Warranty time: 18 months after delivery
- ✔ OEM service available
■

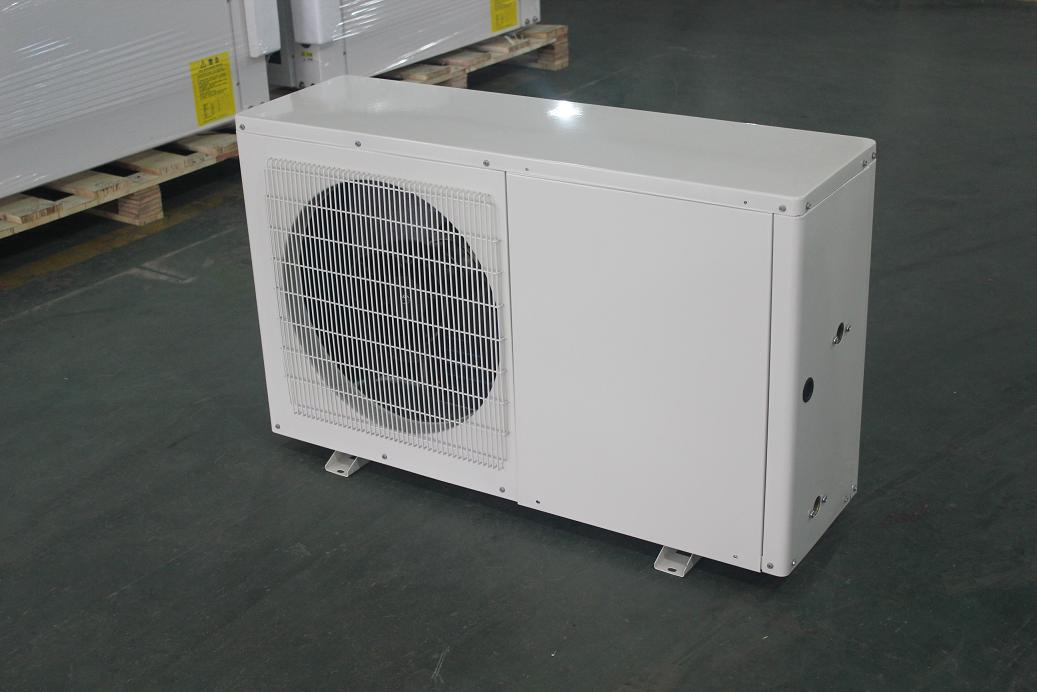

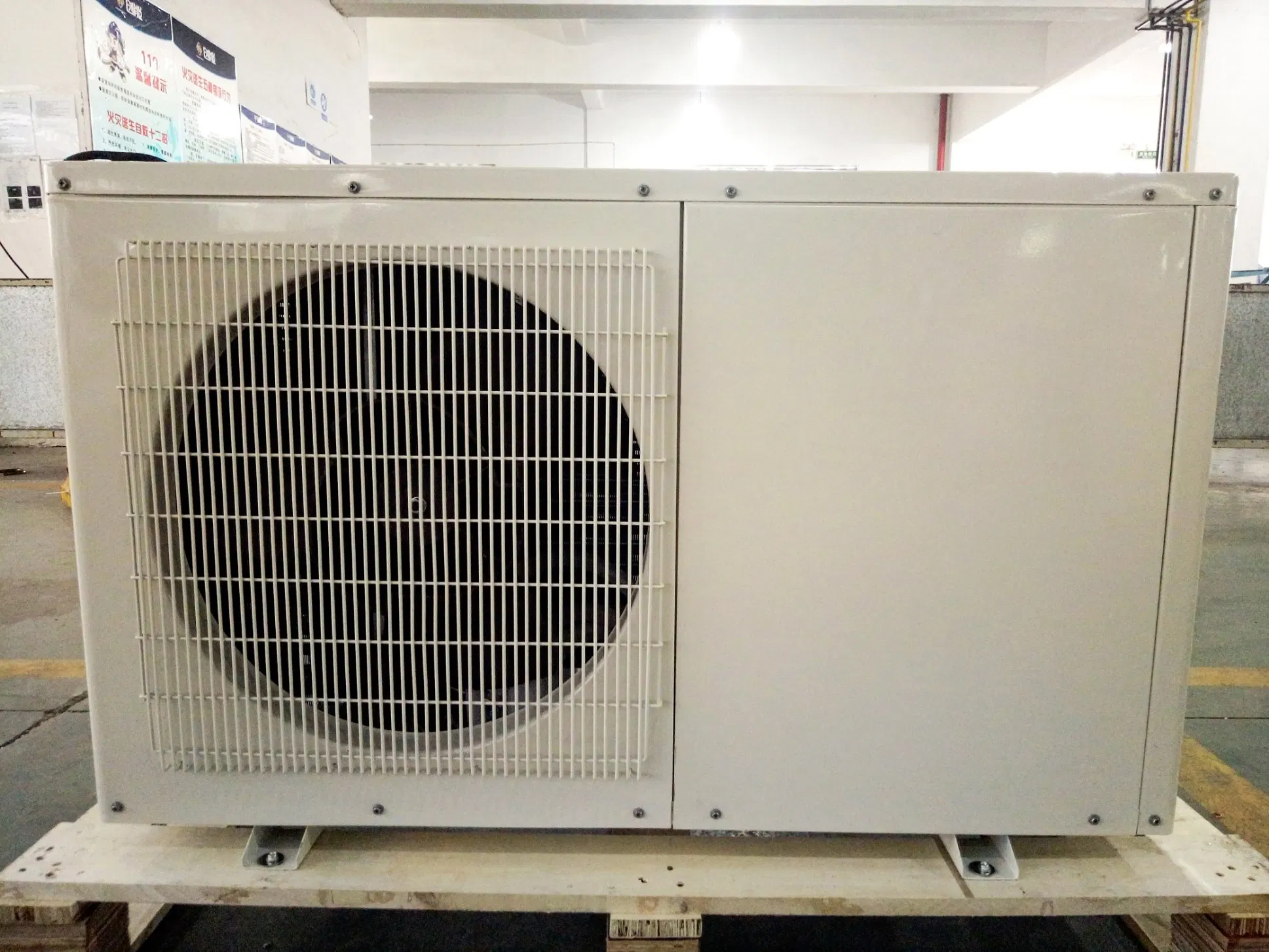

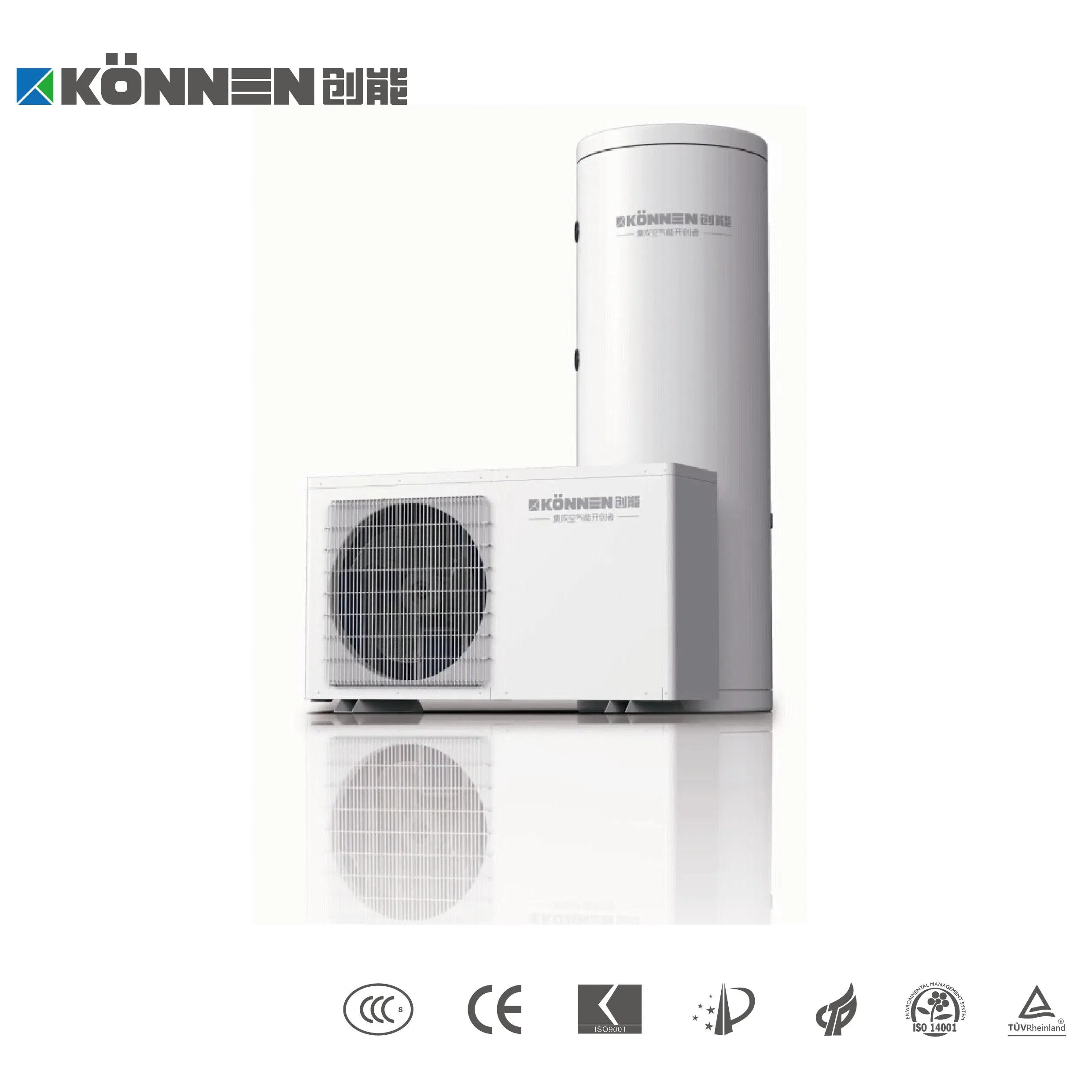

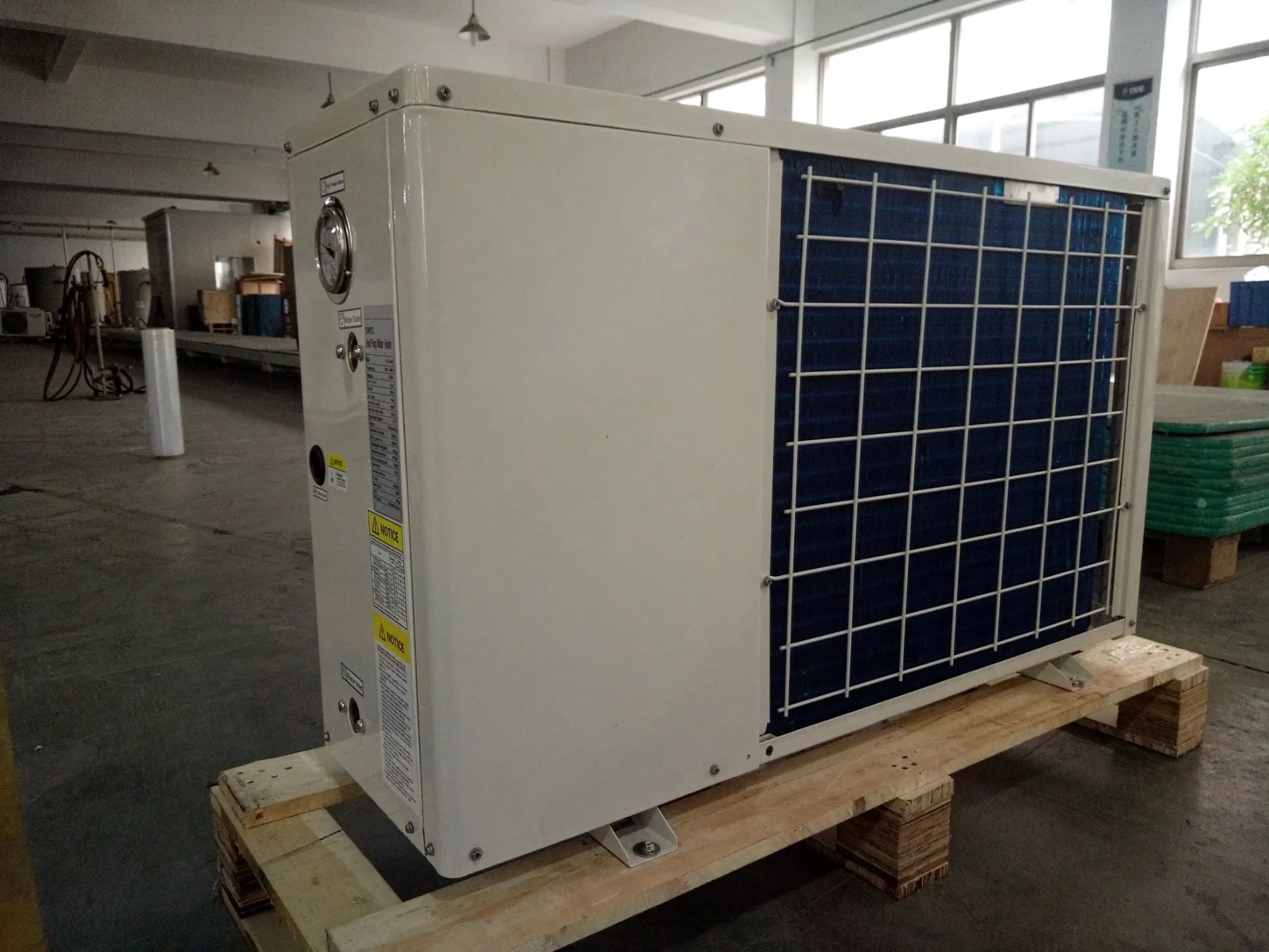

Visual Display
■
Technical Parameters
| Model Parameter |
CKXRS-3.5 IH |
CKXRS-5.0 IH |
CKXRS-7.0 IH |
CKXRS-9.0 IH |
| Rated Heating capacity (KW) |
3.5 |
5 |
7 |
9 |
| Rated outlet hot water (L/H) |
75 |
108 |
150 |
193 |
| Outlet water rated/max temp (ºC) |
55 / 60 |
| Rated power (KW) |
0.9 |
1.24 |
1.71 |
2.26 |
| Rated current (A) |
4.1 |
5.6 |
7.8 |
11.4 |
| Power supply |
220V~/50HZ |
| Refrigerant |
R410a |
| Dimensions (mm) |
930*360*560 |
1000*360*630 |
| Compressor |
Panasonic Rotor type |
| Pressurized Water Tank Specifications |
| Tank Capacity |
150L |
200L |
300L |
500L |
| Concurrent User |
3-4 people |
4-5 people |
6-8 people |
10-13 people |
| Installation |
Floor standing type |
■
Frequently Asked Questions
What is the maximum water temperature this heat pump can provide?
The rated outlet hot water temperature is 55°C, and the maximum outlet temperature can reach 60°C.
Which brand of compressor is used in the unit?
We use high-quality Panasonic Rotor type compressors paired with R410a refrigerant for optimal efficiency.
What is the warranty period for this air source heat pump?
The standard warranty period is 18 months after delivery.
Is the water pump included in the system?
Yes, the water pump is built-in for a more compact and convenient installation.
What kind of expansion valve is used?
The system is equipped with a high-precision Japanese "Saginomiya" electronic expansion valve.
What are the typical applications for this small capacity heat pump?
It is ideal for villa families, saunas, swimming pools, hotels, hospitals, and student apartments.
