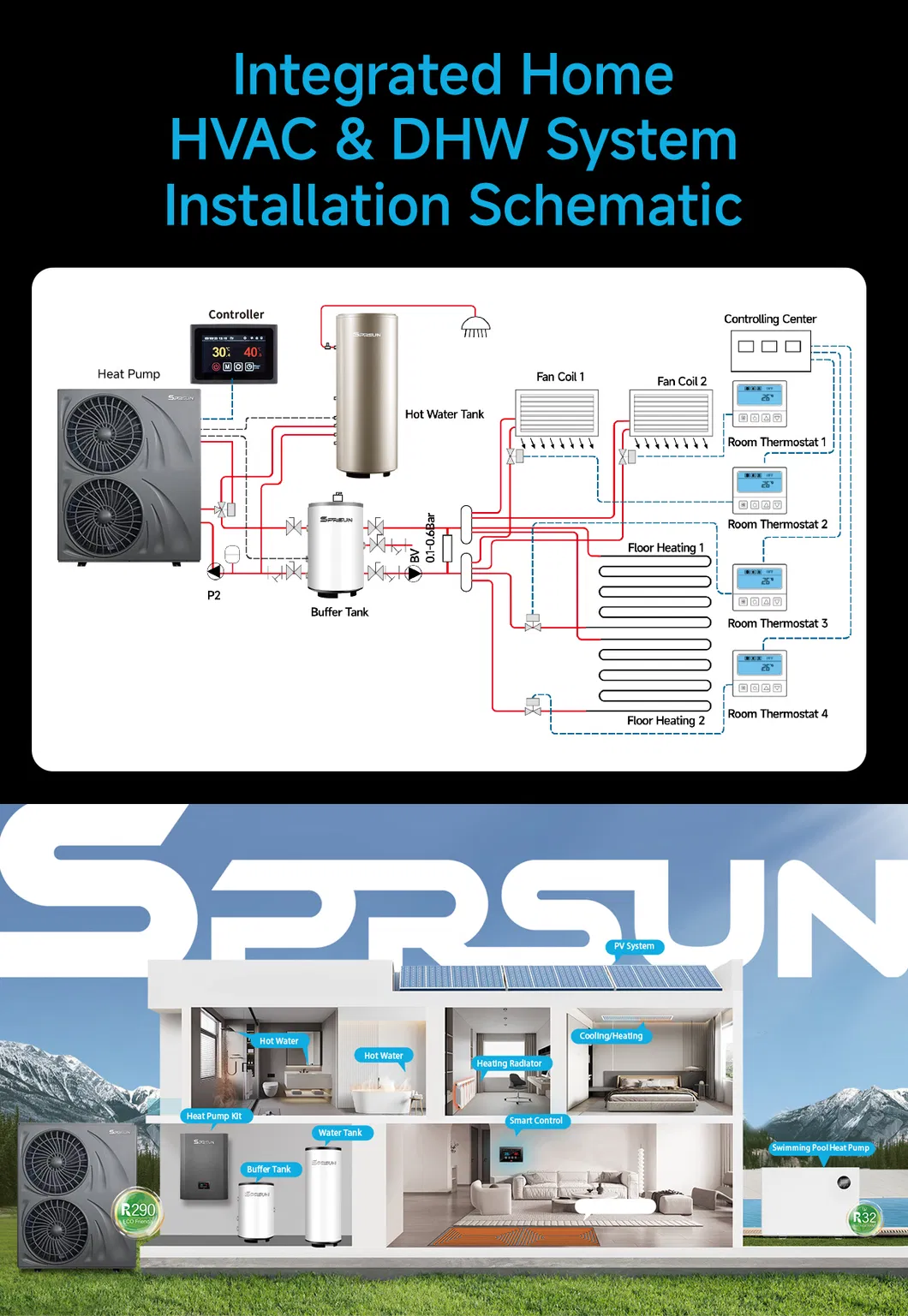

These R32 ERP A+++ DC Inverter Monoblock Heat Pumps feature a compact design for easy installation. Engineered to operate efficiently in temperatures ranging from -30ºC to 45ºC, they are an ideal heating solution for cold-climate regions. With a maximum heating capacity of 9.5KW to 22KW and a COP up to 5.89, this monoblock unit connects directly to the building's heating system and supports remote software control.

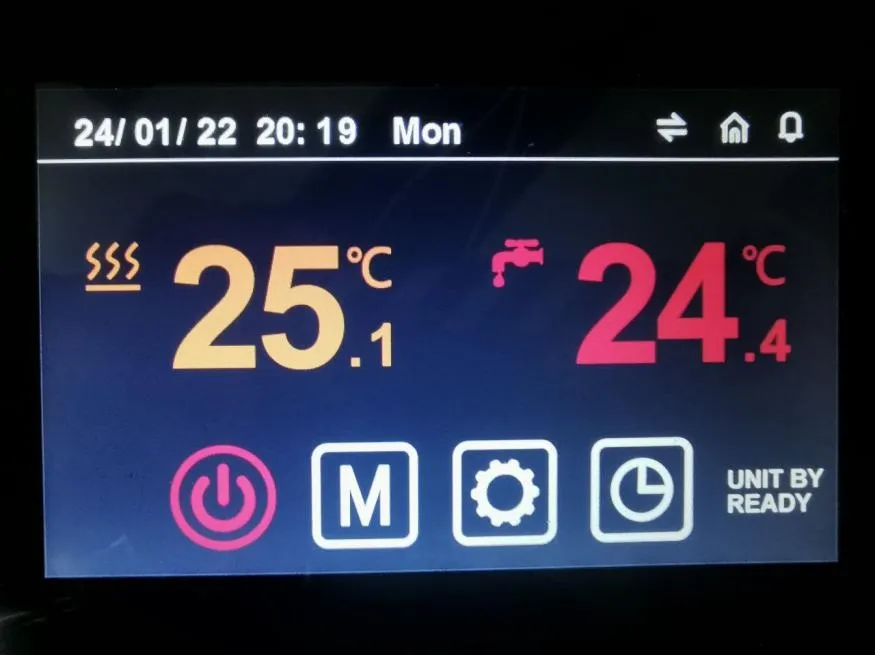

The 5-inch colorful touch screen provides intuitive control over temperature and system modes. The modern interface allows users to check error codes and program room temperatures anytime, anywhere.

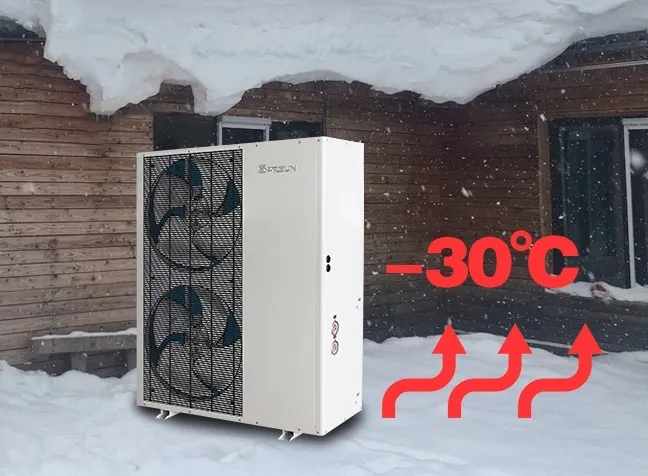

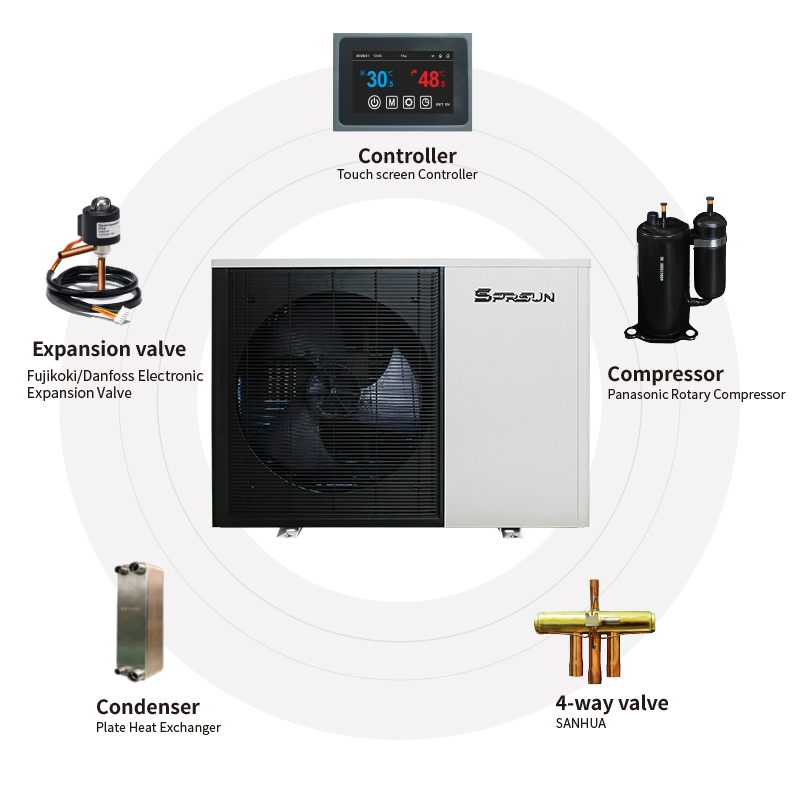

Designed for chilly climates, these EVI DC inverter heat pumps combine eco-friendly R32 refrigerant with EVI technology to produce 60ºC hot water even at -30ºC ambient temperatures. Utilizing Pana-sonic rotary compressors, the units solve the problem of heating efficiency loss in extreme cold.

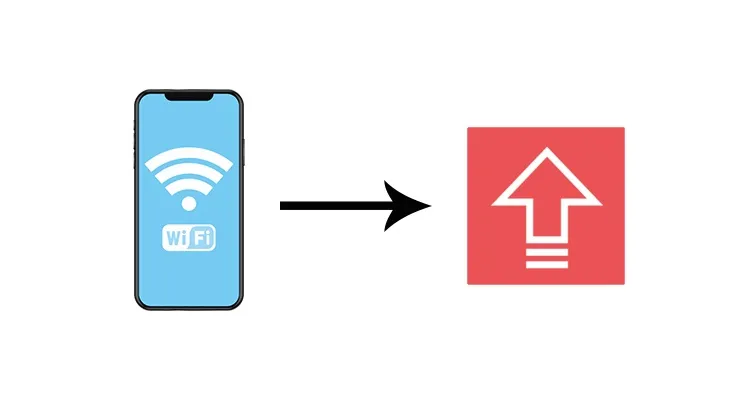

Keep your system optimized with one-click remote software updates. As long as the unit is connected to the internet, you can upgrade the controller software instantly.

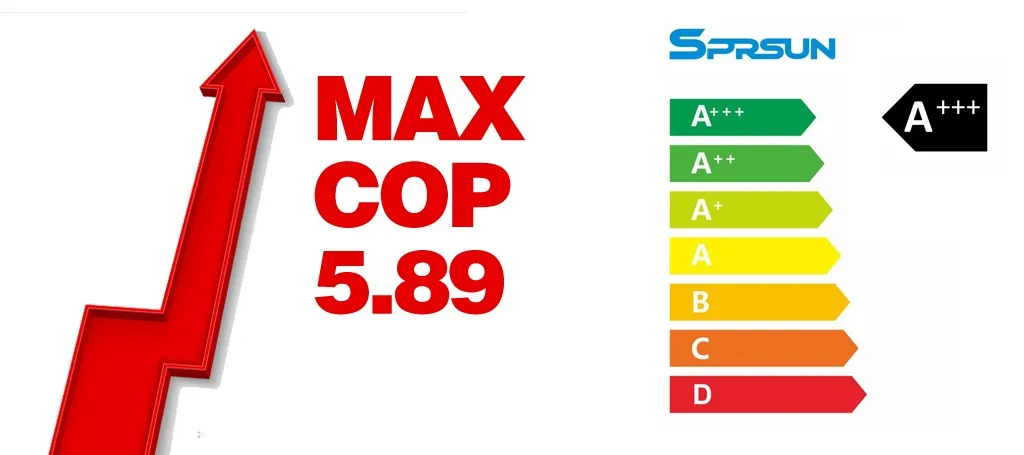

ERP A+++ Performance: Achieve maximum energy efficiency with COP values up to 5.89.

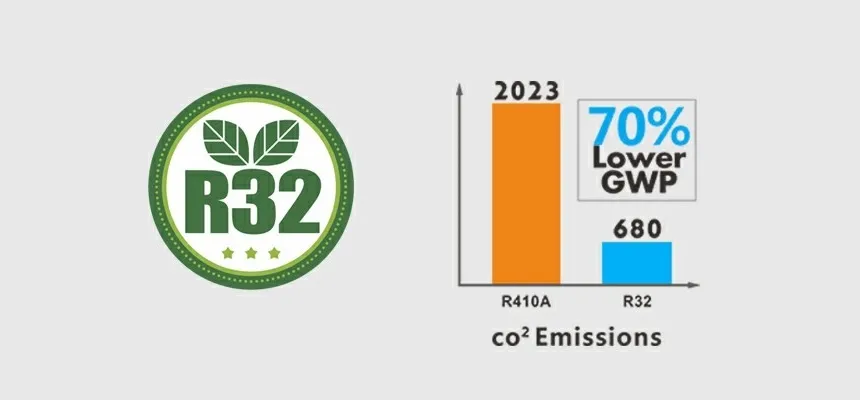

R32 Refrigerant: Environmentally friendly with higher heat transfer efficiency and lower charging volume.

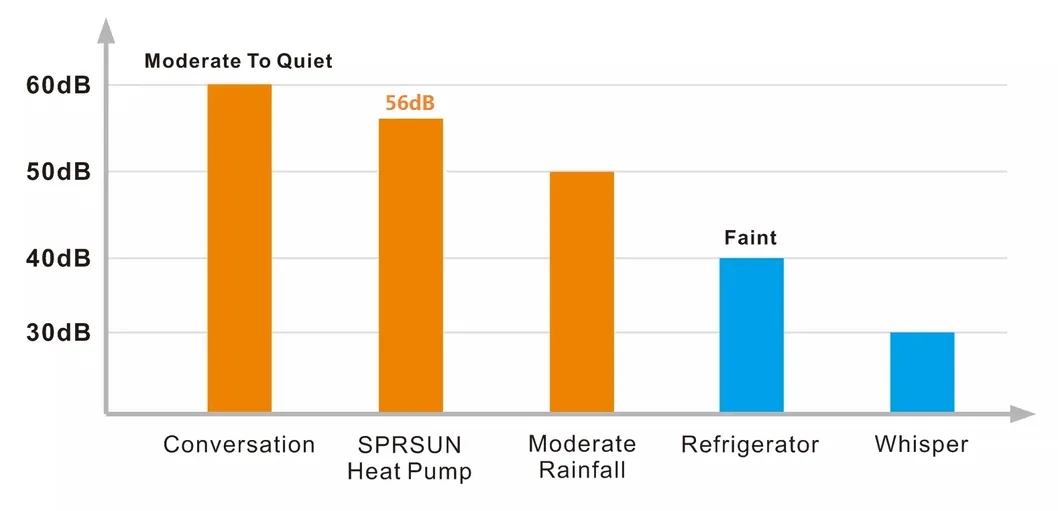

Low Noise: Featuring Pana-sonic compressors and NIDEC DC brushless fans, the units operate as quietly as 56dB(A).

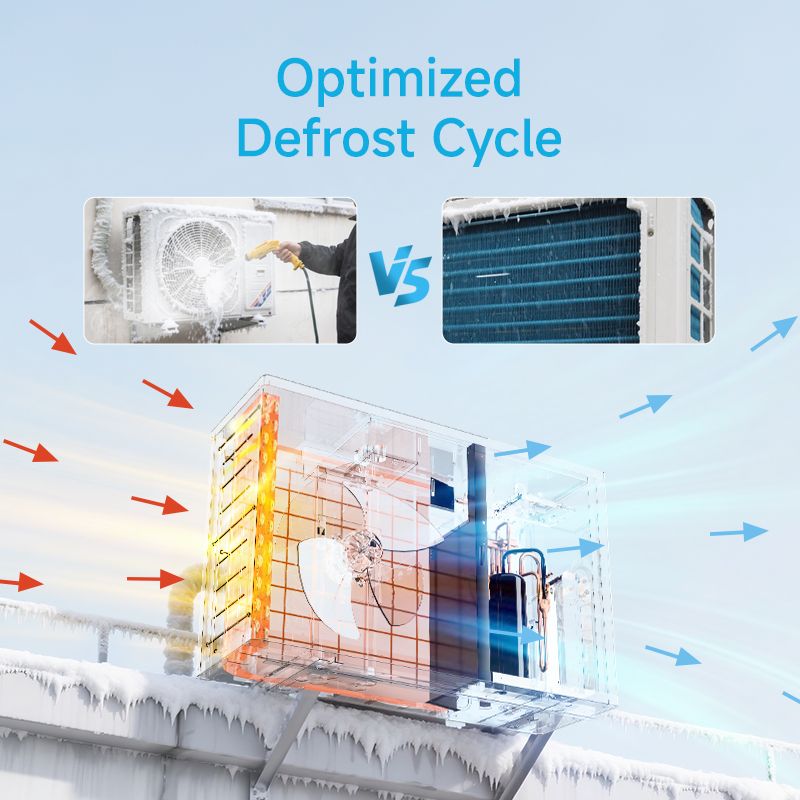

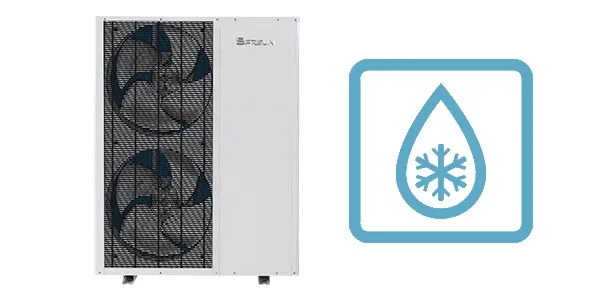

The independently developed PID intelligent defrosting mode automatically activates when conditions are met, preventing confusion and minimizing energy consumption during the cycle.
| Model | Power Supply | Heating Cap (A7/W35) | C.O.P (A7/W35) | Cooling Cap (A35/W18) | Net Weight |
|---|---|---|---|---|---|
| CGK015V3L-B | 220-240V/50Hz/1P | 6 kW | 4.45 | 5.5 kW | 58 kg |
| CGK020V3L-B | 220-240V/50Hz/1P | 8 kW | 4.56 | 7.3 kW | 78 kg |
| CGK025V3L-B | 220-240V/50Hz/1P | 9.4 kW | 4.56 | 8.6 kW | 93 kg |
| CGK030V3L-B | 220-240V/50Hz/1P | 11.6 kW | 4.41 | 10.6 kW | 97 kg |
