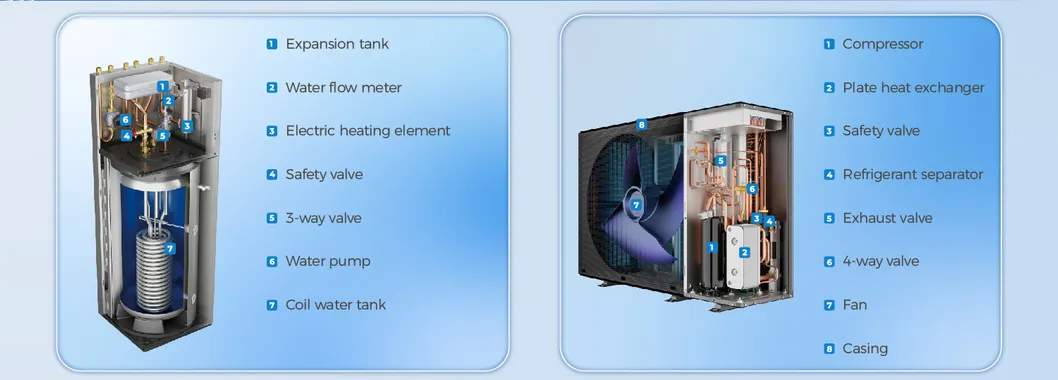

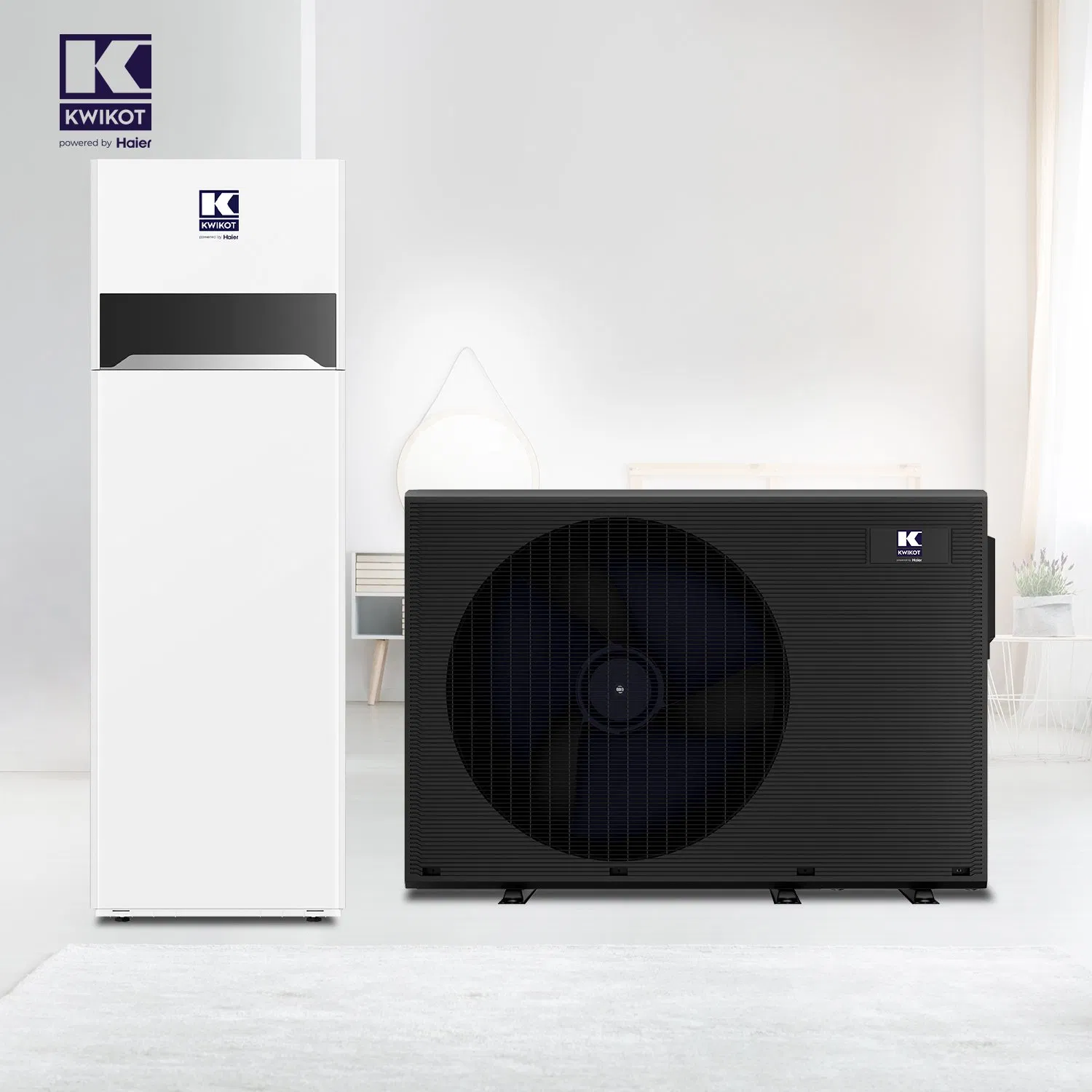

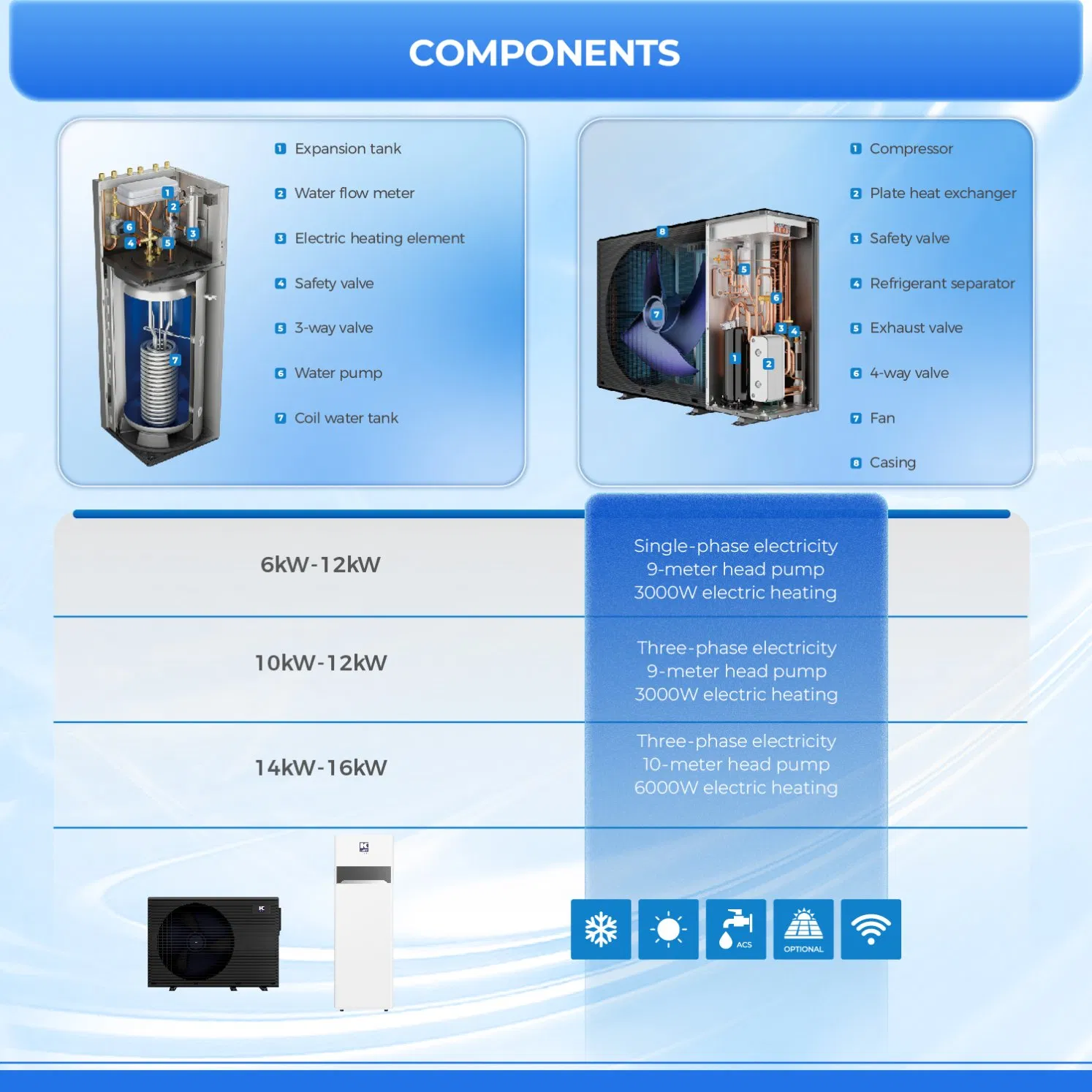

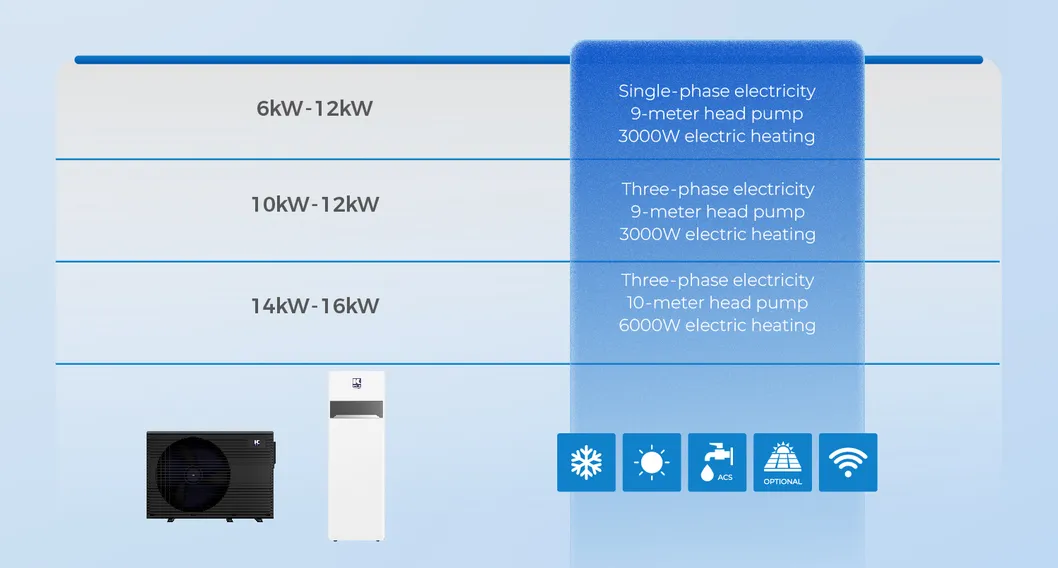

| Indoor Unit With Water Tank Parameters | |||
|---|---|---|---|
| Model | KAWM06(12) | KAWM10(12) | KAWM14(16) |
| Maximum pump head (m) | 9 | 9 | 10 |
| Electric heating power (kW) | 3 | 6 | 6 |
| Expansion tank (L) | 8 | 8 | 8 |
| Tank capacity (L) | 200 | 200 | 200 |
| Water Temp Range (°C) | 25-85 | 25-85 | 25-85 |

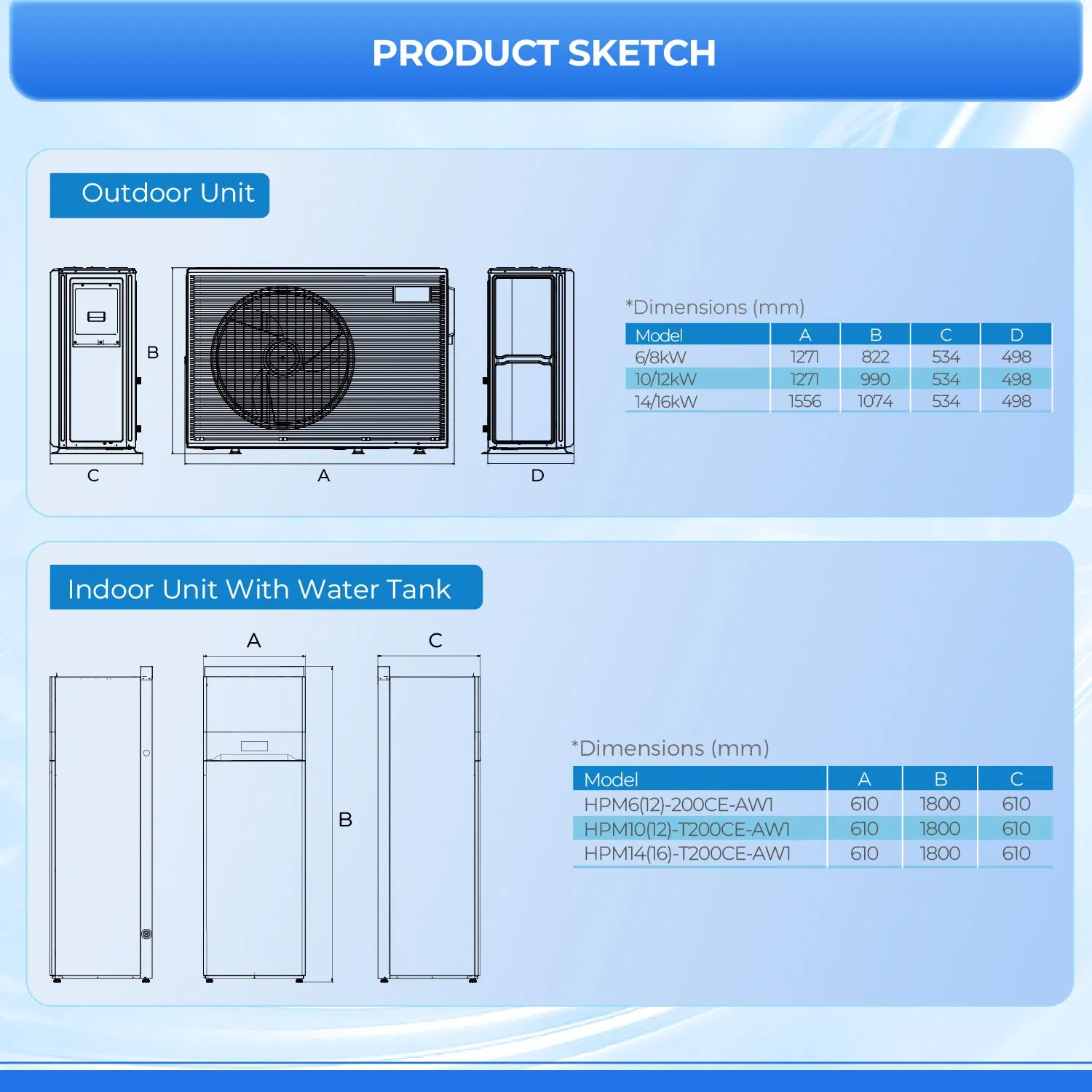

| Dimensions (mm) | 1800×610×610 | 1800×610×610 | 1800×610×610 |
| Outdoor Unit Performance | ||||
|---|---|---|---|---|
| Model Type | 06-ND2 | 08-ND2 | 10-ND2 | 12-ND2 |
| Rated Output (kW) | 6 | 8 | 10 | 12 |
| Energy Class (35°C) | A+++ | |||
| Refrigerant | R290 | |||
| Heating Ambient Temp | -30°C to 35°C | |||
| Compressor Type | DC Inverter | |||
To deal with the R290 refrigerant which is combustible, we have adopted silver brazing welding technology to ensure stronger welding and avoid leakage.

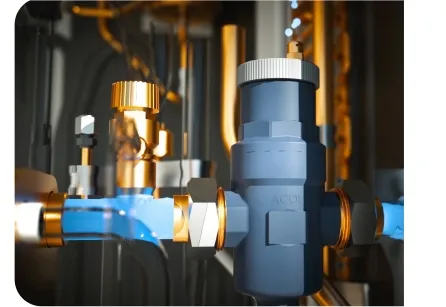

The refrigerant separator can quickly discharge the refrigerant from the water system in case of leakage, preventing it from entering indoor spaces. A fully sealed control cabinet avoids potential fire hazards, providing strong protection for user safety.
