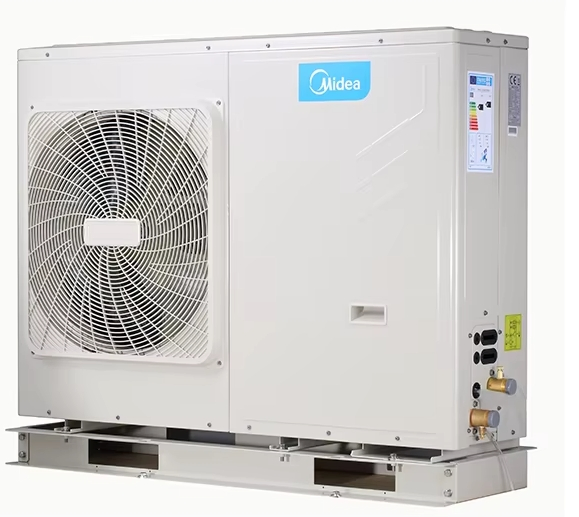

China High Quality a+++ WiFi DC Inverter Split Type Air to Water Heat Pump

Customization:	Available
After-sales Service:	Free
Warranty:	Five Years

📋 Basic Information

Model NO.

MHC- V10W/D2N8-B

Type

Industrial Fan Heater

Operating Voltage

380/400 VAC

Compressor

DC Inverter

Cooling Capacity

4/6/10/14/16/28/30kw

Lifetime

>20 years

Certification

RoHS, UR, CE

Refrigerant

R410A / R32

🚀 Product Description

Integrated High-Efficiency Design

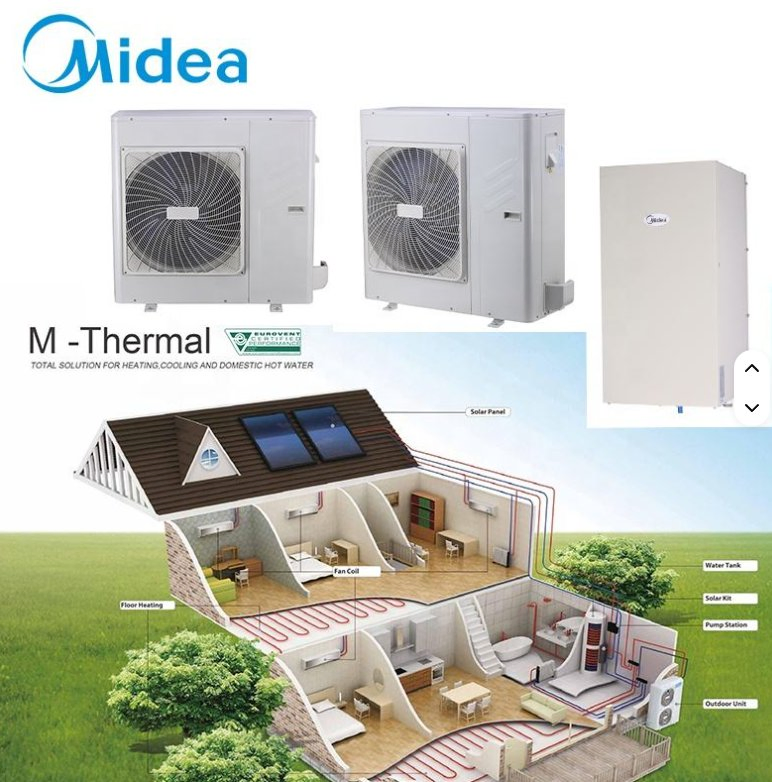

The air-to-water heat pump air conditioner features an integrated design with a built-in hydraulic kit. Only water pipe installation is required on-site. It supplies hot water for fan coils, floor heating systems, and sanitary water tanks, while remaining compatible with solar collectors, gas furnaces, boilers, and other heat sources.

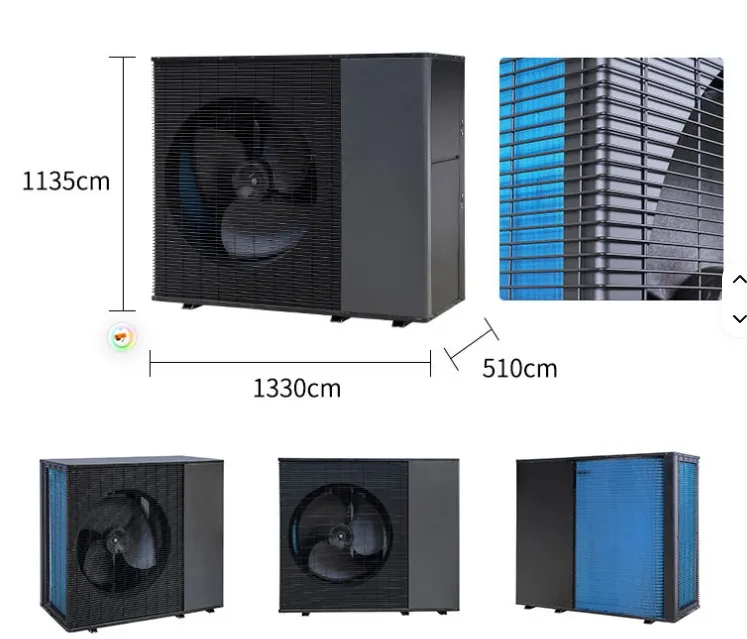

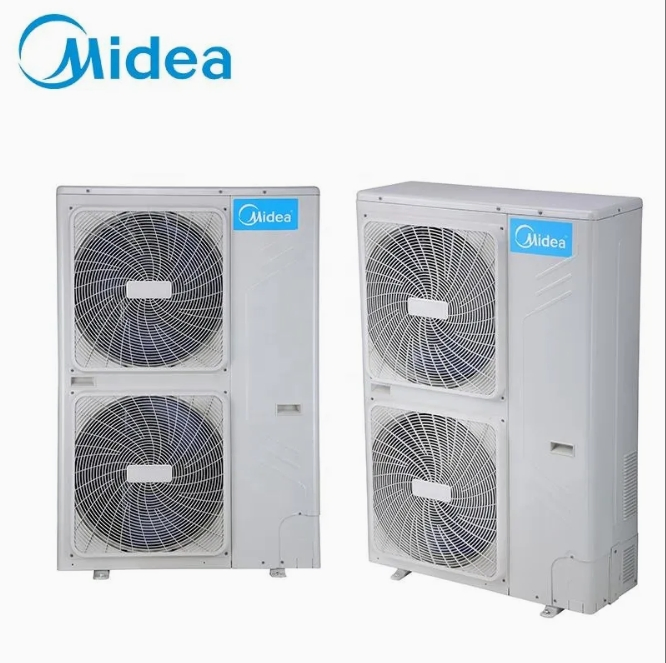

DC Inverter Split Type Air to Water Heat Pump

📊 Technical Specifications

Outdoor Unit Model			MHC-V4W	MHC-V6W	MHC-V8W	MHC-V10W	MHC-V12W	MHC-V14W	MHC-V16W
Power Supply		V/Ph/Hz	220-240/1/50
Heating	Capacity	kW	4.20	6.35	8.40	10.0	12.1	14.5	15.9
	Rated Input	kW	0.82	1.28	1.63	2.02	2.44	3.15	3.53
	COP		5.10	4.95	5.15	4.95	4.95	4.60	4.50
Cooling	Capacity	kW	4.50	6.50	8.30	9.90	12.00	13.50	14.90
	Rated Input	kW	0.82	1.35	1.64	2.18	3.04	3.74	4.38
	EER		5.50	4.80	5.05	4.55	3.95	3.61	3.40
Energy Efficiency Class (35℃)			A+++
Sound Power Level			55 dB	58 dB	59 dB	60 dB	65 dB	65 dB	68 dB

📦 Packing & Delivery

Professional Transportation Services

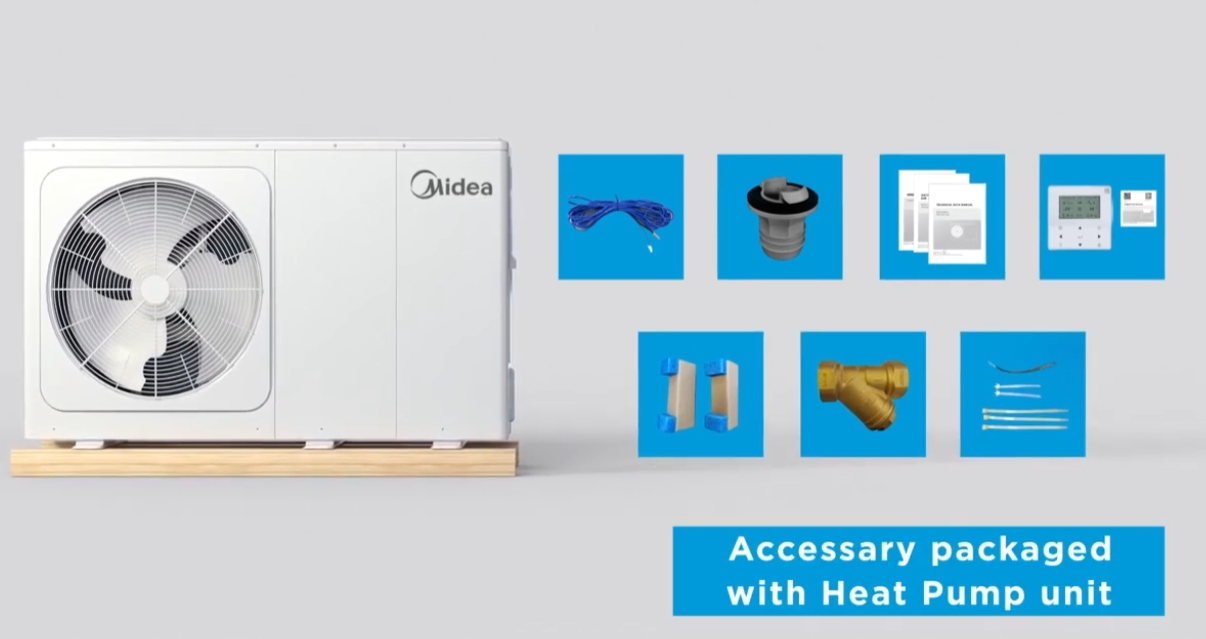

We provide dedicated shipping and professional customs brokerage services to ensure all client requirements are met comprehensively. Our packaging includes pallets, PE bags, cartons, and corner protectors to ensure equipment safety.

Recommended Shipping: LCL, Full Container (20GP, 40GP, 40HQ)

🏢 Company Profile

We are a professional central air conditioning solution provider specialized in the design, sales, and installation of a wide range of HVAC products. Our portfolio includes household air conditioners, split units, and industrial systems such as VRF, air-cooled modular chillers, water-cooled screw chillers, and precision data center units.

With a comprehensive product range, we provide complete air conditioning solutions for various applications, representing top-tier global brands to ensure quality and reliability for every project.

❓ Frequently Asked Questions

Can you provide drawing design services?

Yes, we have a professional HVAC engineering team to design your project and optimize solutions. We can also provide professional HVAC drawings.

Can you provide installation accessories along with the equipment?

Absolutely. We can calculate and quote the necessary VRF installation kits, including copper pipes, insulation, air diffusers, grills, and valves, and ship them together as one package.

What is your typical delivery time?

For standard units, the delivery time is approximately 35-40 days.

What kind of guarantee do you offer?

Our products undergo strict quality control with an expected lifespan of 5-10 years under proper use. We also provide 1% free spare parts for maintenance and after-sales service.

Do you offer technical support for installation?

Yes, our technical team is available 24/7. We can guide installation and commissioning via online video or phone. If required, we can also dispatch a project engineer to your site.

How can I trust your company's credibility?

We have over 10 years of experience as a professional HVAC supplier in China and are authorized agents for several world-renowned brands. We can provide business references in your region as testimonials.
