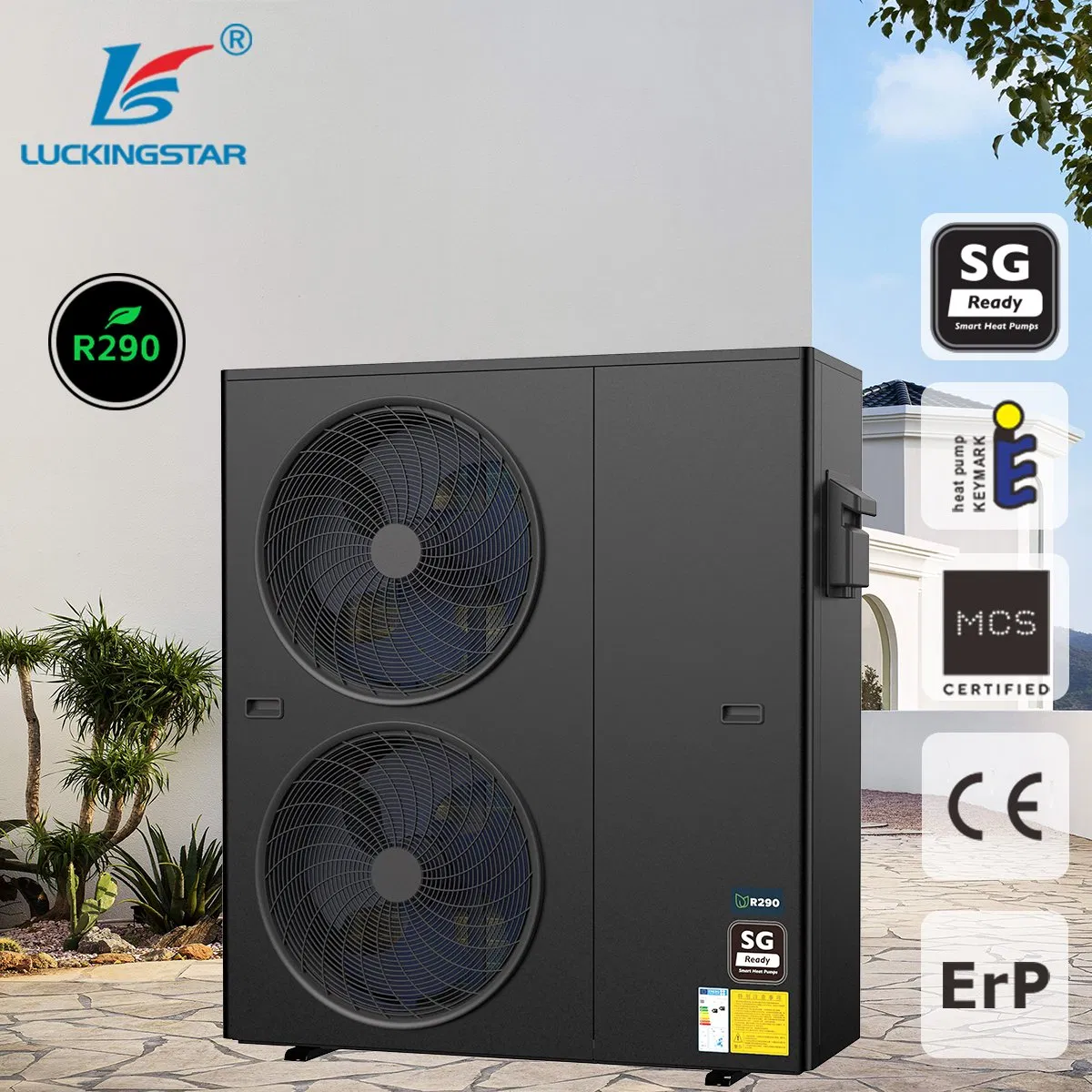

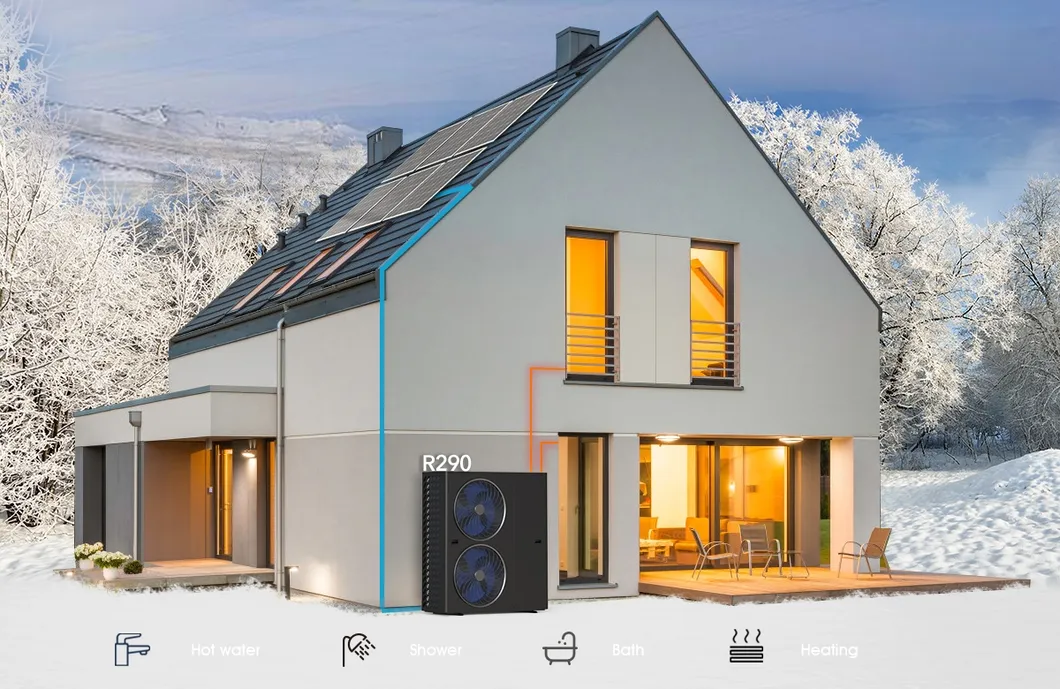

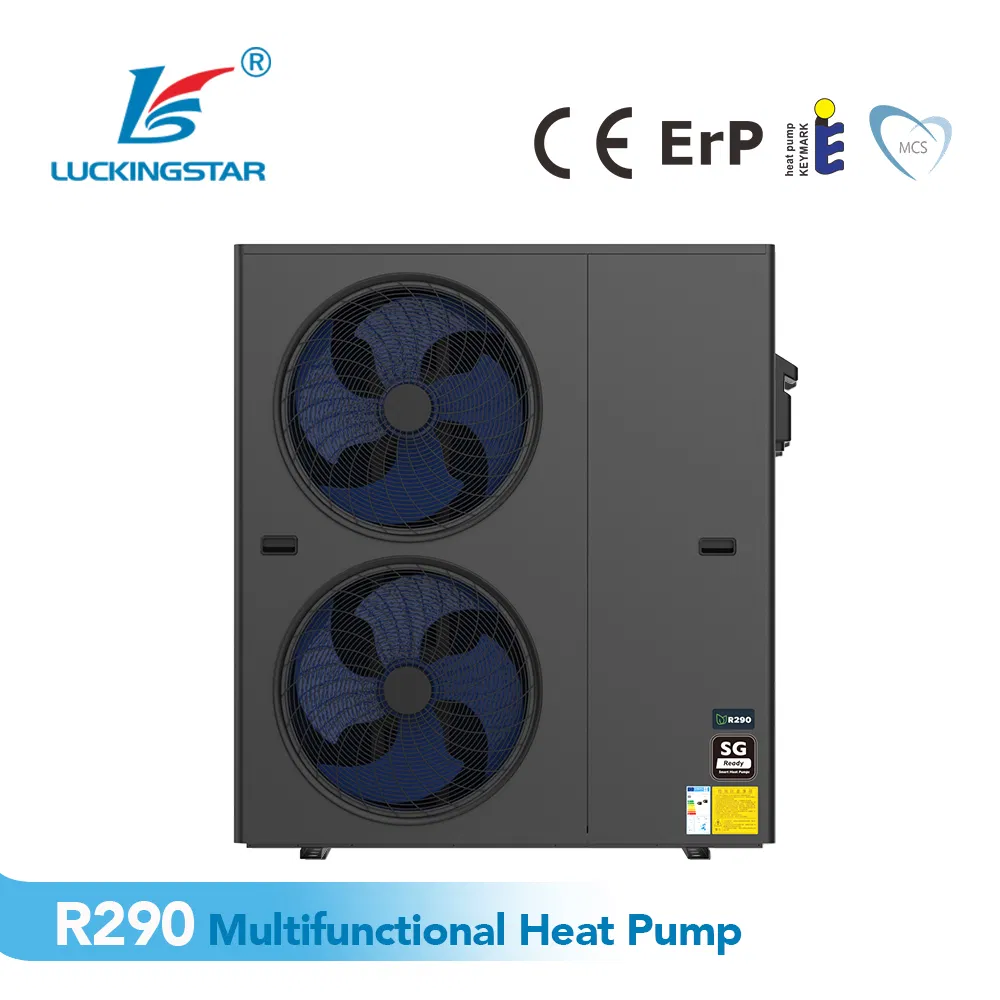

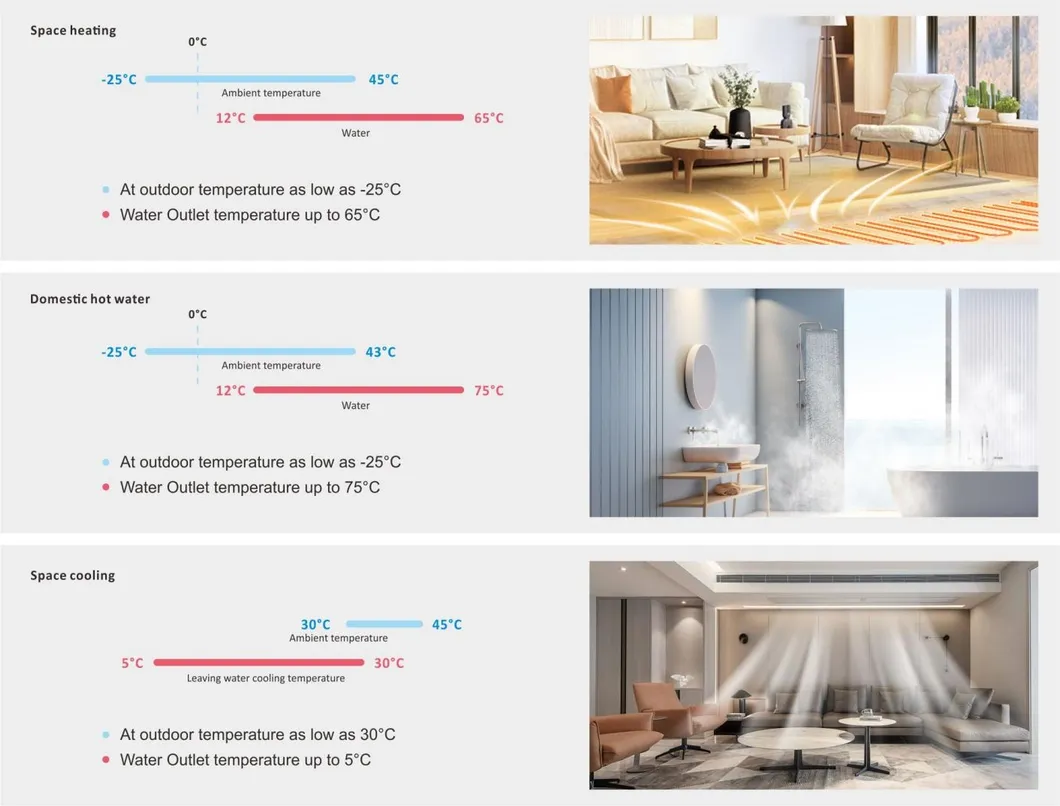

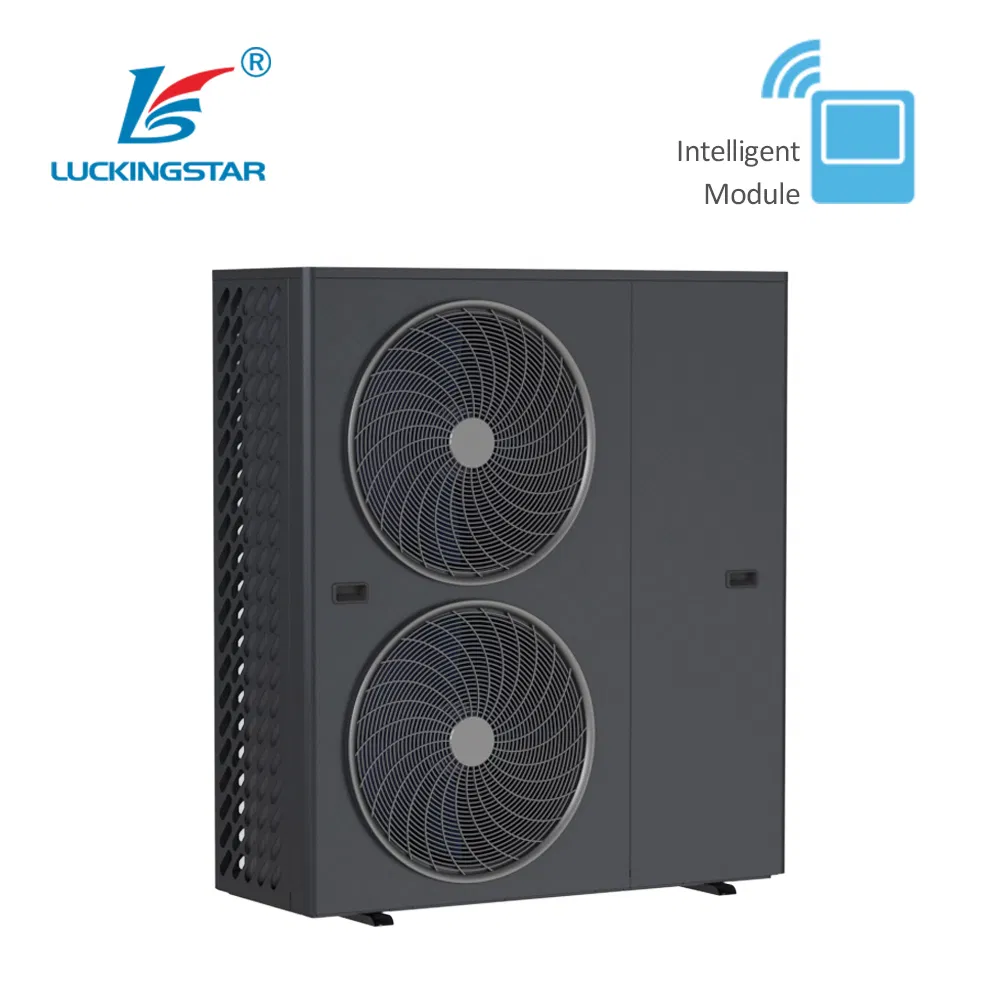

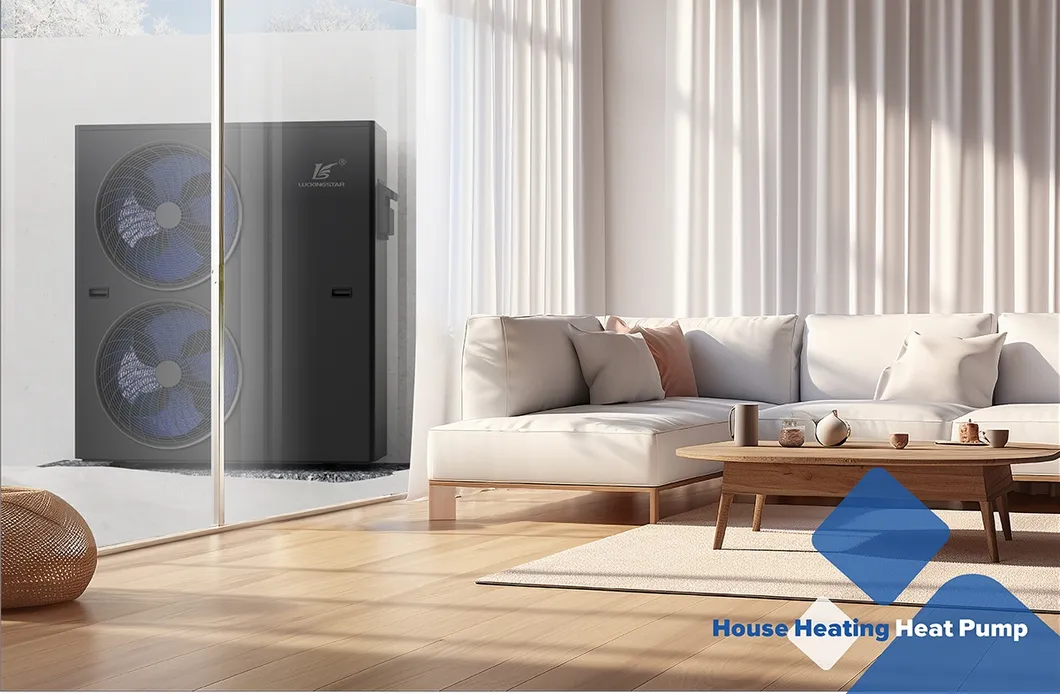

The perfect performance of the R290 Heat Pump can meet users' needs for house heating, cooling, and domestic hot water throughout the year. It provides stable and reliable operation even at -25ºC.

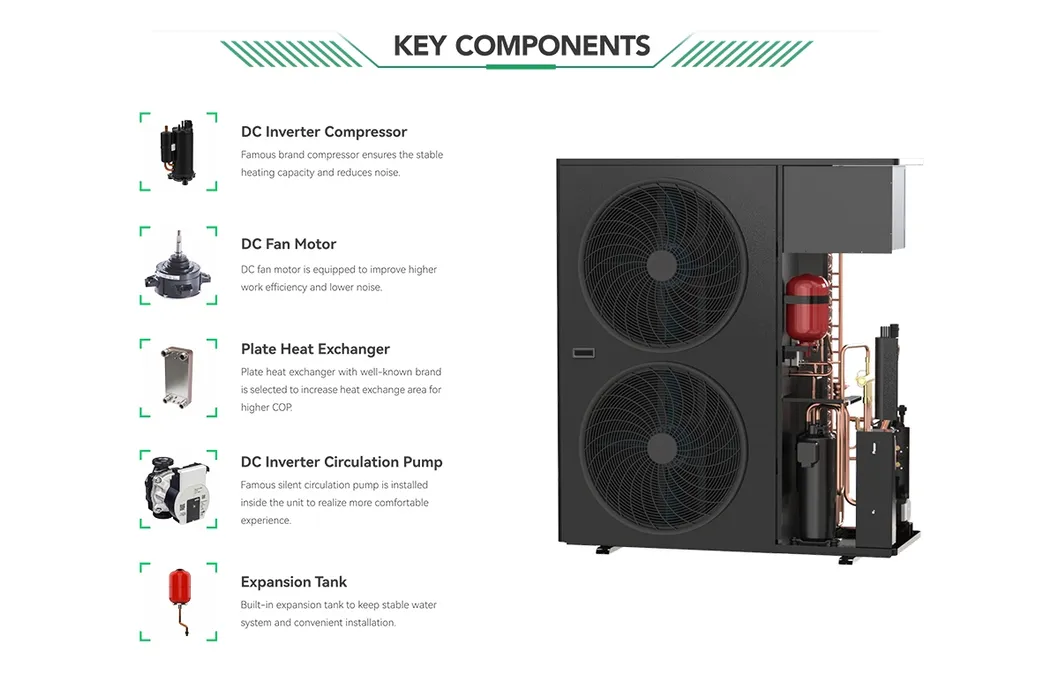

Improves matching of energy input to output, enhancing efficiency and reducing noise and energy consumption.

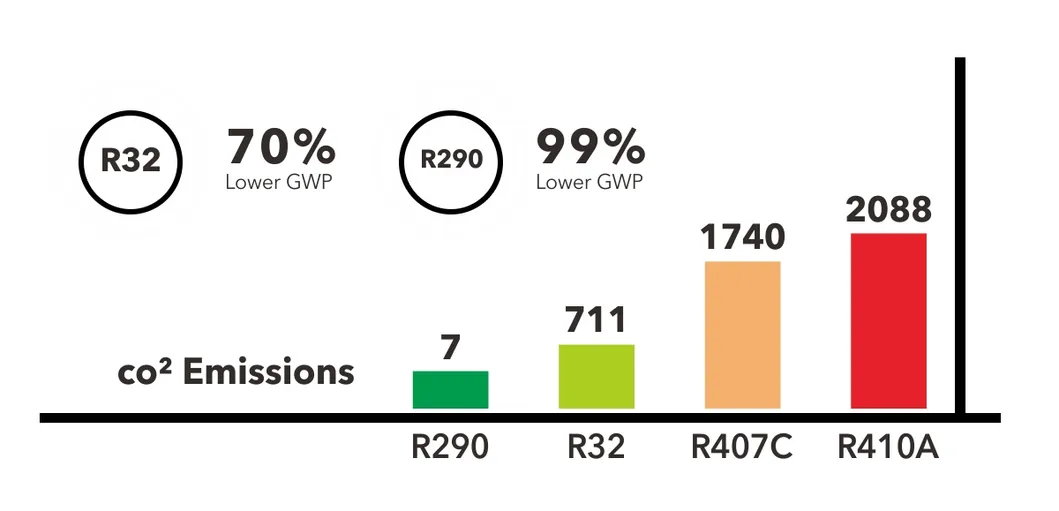

Propane (R290) offers high thermal conductivity and energy savings of about 30% compared to traditional refrigerants.

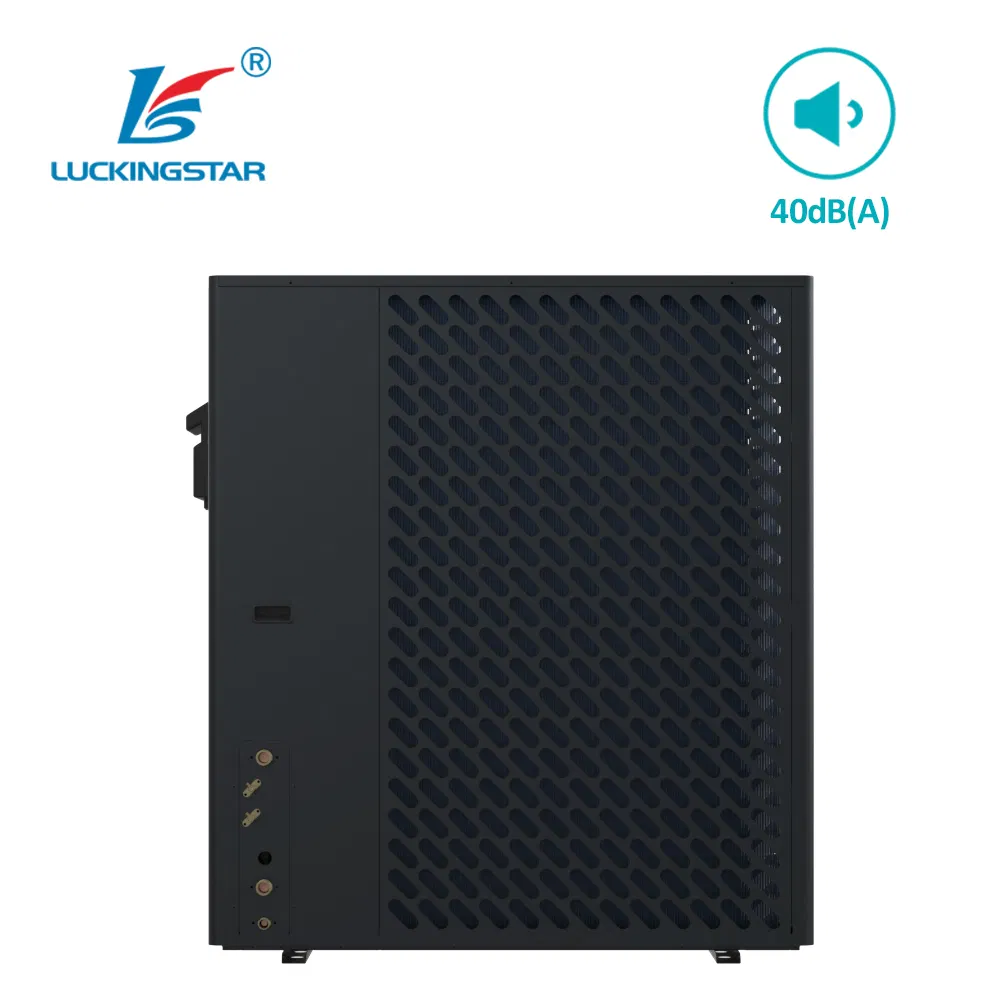

All sides are wrapped with sound-proof sponge material to block compressor operation noise effectively.
Maximum leaving water temperature can reach 75°C by heat pump only, making it an ideal solution for retrofitting projects to replace gas boilers with radiators.
Achieves A+++ energy rating for both 35°C and 55°C water temperature conditions through optimized refrigerant flow and air channel design.

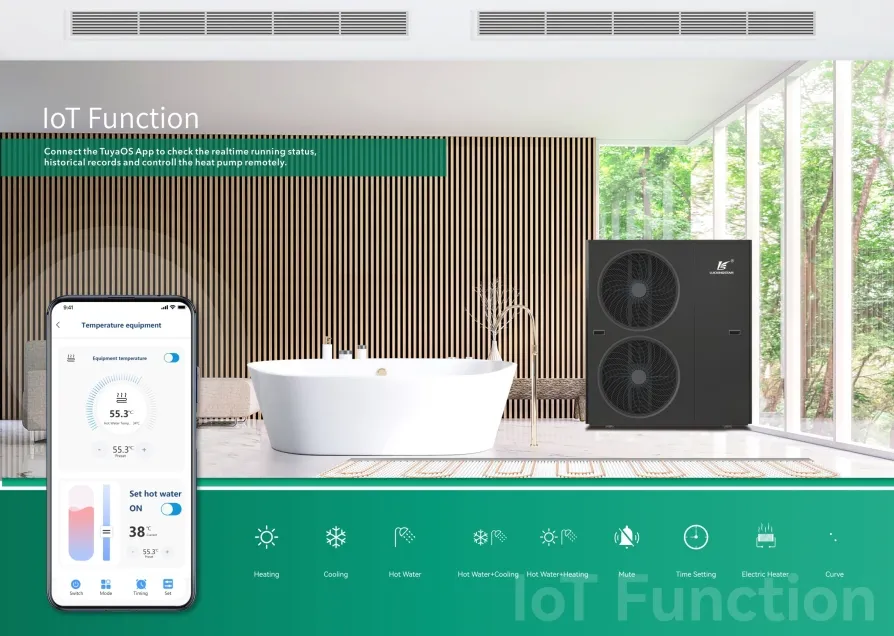

Equipped with an advanced multi-function controller and smart APP remote service platform. Features include daily/monthly/yearly energy reports and visualized display for different zones.
Automatically turns on to store surplus energy from PV systems to utilize cheaper electricity tariffs.
Supports combining up to 16 units in one system to intelligently distribute building load requirements.
| Model LWH- | F8HVLZPN9 | F11HVLZPN9 | F15HVLZPN9 | F11HVZPN9 | F15HVZPN9 | F18HVZPN9 |
|---|---|---|---|---|---|---|
| Power Supply | 220~240V~/50Hz | 380~415V/3N~/50Hz | ||||
| Heating Capacity (kW) | 3.50~8.25 | 4.50~11.35 | 6.00~15.12 | 4.58~11.36 | 6.08~15.10 | 6.79~17.98 |
| Max. COP | 6.00 | 5.76 | 5.77 | 5.79 | 5.79 | 6.06 |
| Max. Outlet Temp (℃) | 75 | |||||
| Operating Range (℃) | -25 ~ 45 | |||||
| Net Weight (kg) | 120 | 136 | 150 | 150 | 160 | 175 |

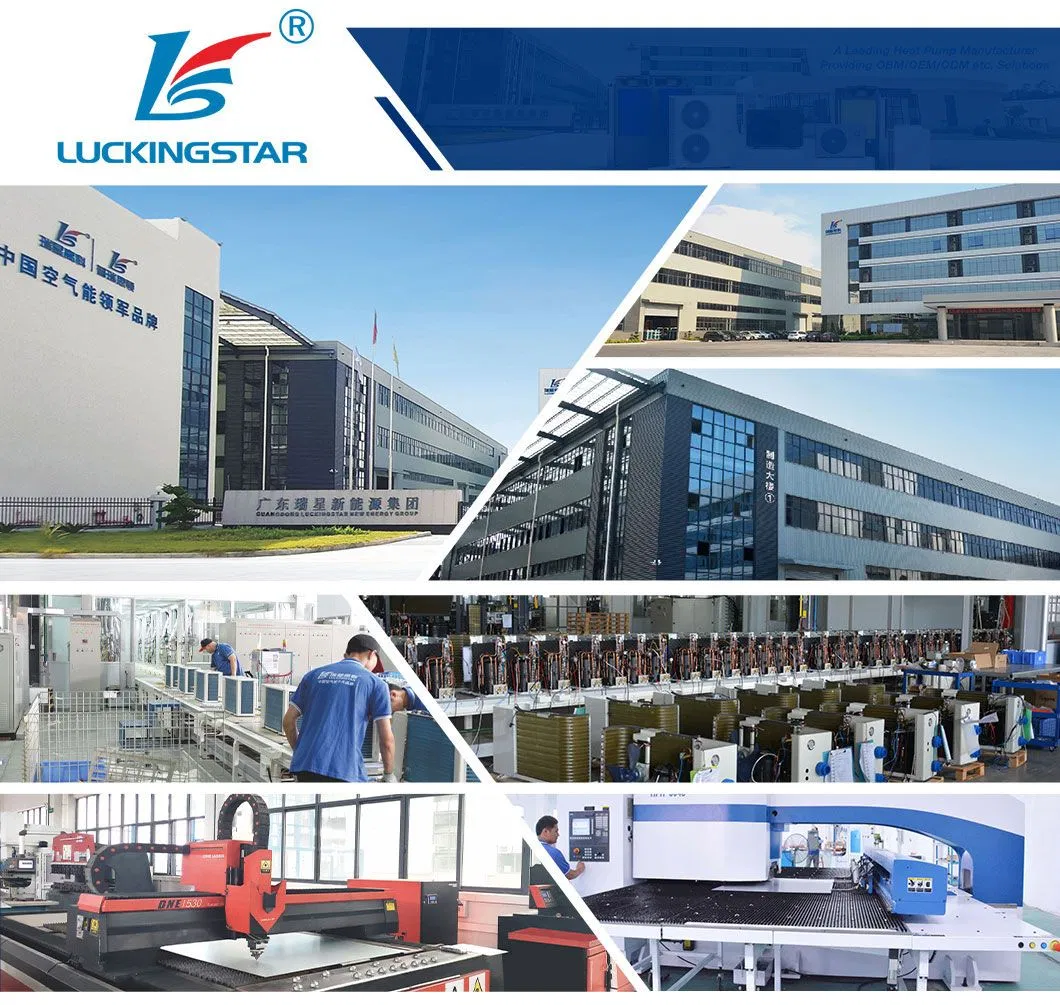

The facility covers 75,000 square meters with 7 automatic production lines, enabling an annual capacity of 500,000 units. Quality is verified in 5 professional performance test labs capable of simulating extreme temperatures down to -41.5°C.
