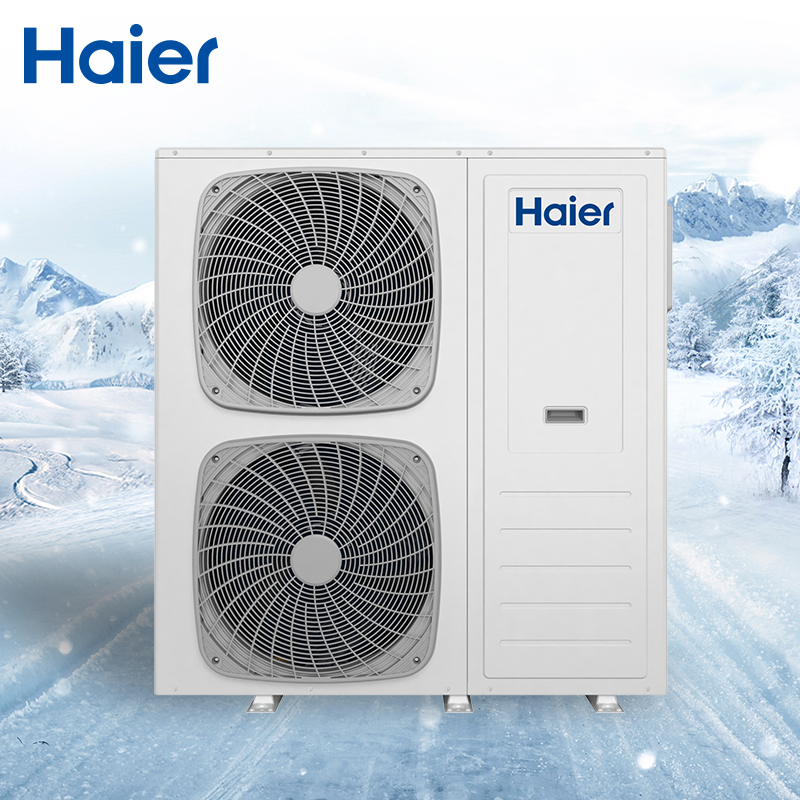

China Domestic High Cop Smart WiFi 8kw-16kw New Energy Air Source to Hot Water R290 Full DC Inverter Evi Monobloc Heat Pump System for Home Heating and Cooling

1 / 5

China Domestic High Cop Smart WiFi 8kw-16kw New Energy Air Source to Hot Water R290 Full DC Inverter Evi Monobloc Heat Pump System for Home Heating and Cooling

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Overview & Basic Info

Model

HPM-Nd2

Heat Source

Air Source Heat Pump

Refrigerant

R290 (Eco-Friendly)

Function

Heating, Cooling, Hot Water

Heating Capacity

8~16kw

Ambient Temp

-30°C to 43°C

Power Supply

220-240V/50Hz/1pH

Water Temp

Up to 75°C

Noise Level

<51dB(a)

COP

2.9 - 3.2

📝 Product Description

Technical Specifications			HPM 08-Nd2	HPM 10-Nd2	HPM 12-Nd2	HPM 14-Nd2	HPM 16-Nd2
Heating (AT7/6, WT30/35)	Capacity	kW	8	10	12	14	16
Heating (AT7/6, WT30/35)	COP	kW/kW	4.95	4.8	4.9	5.11	4.92
Cooling (AT35, WT12/7)	Capacity	kW	8	10	11.4	14	16
Cooling (AT35, WT12/7)	COP	kW/kW	3.2	3.0	2.8	3.1	2.9
Energy Class (35°C / 55°C)		-	A+++ / A+++	A+++ / A+++	A+++ / A+++	A+++ / A+++	A+++ / A+++

💡 Core Features & Technologies

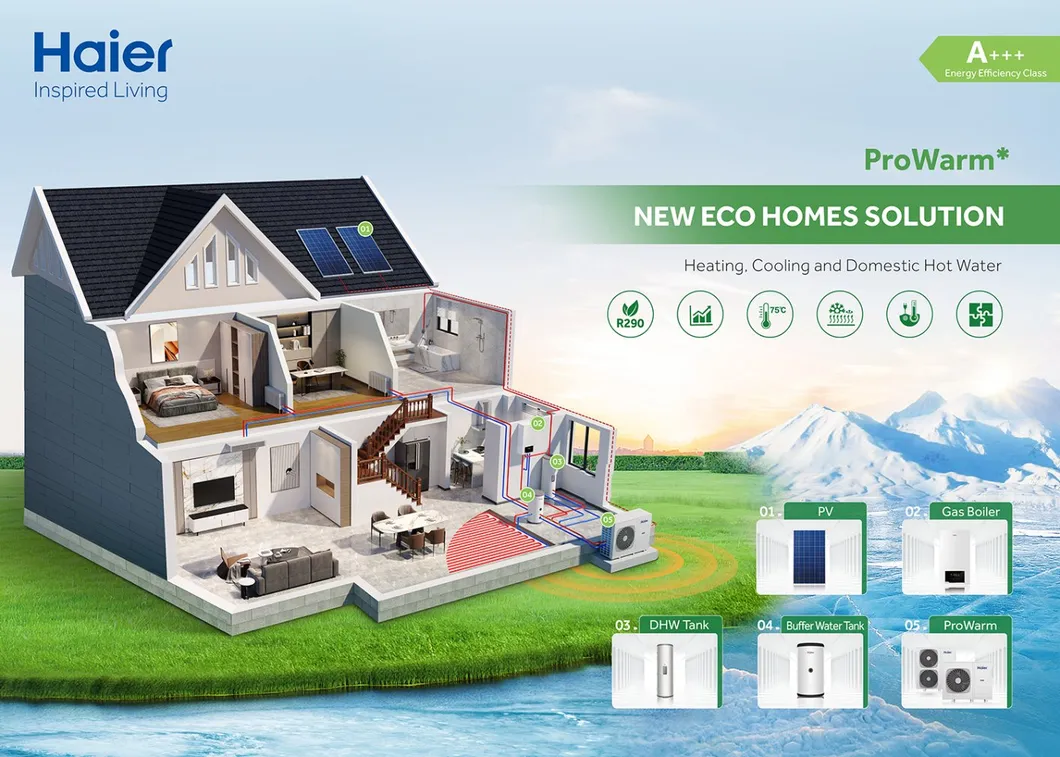

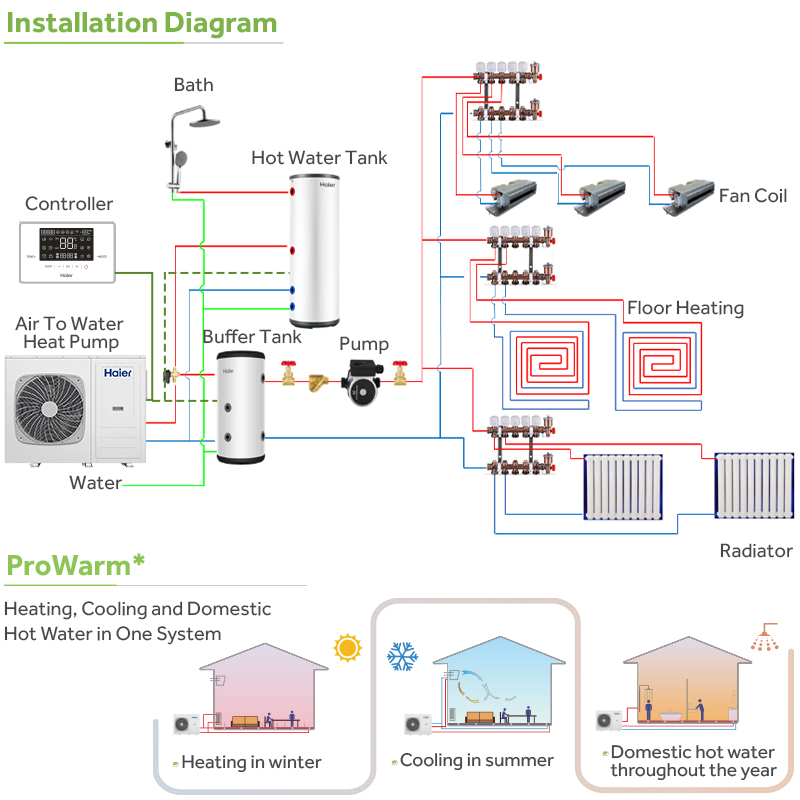

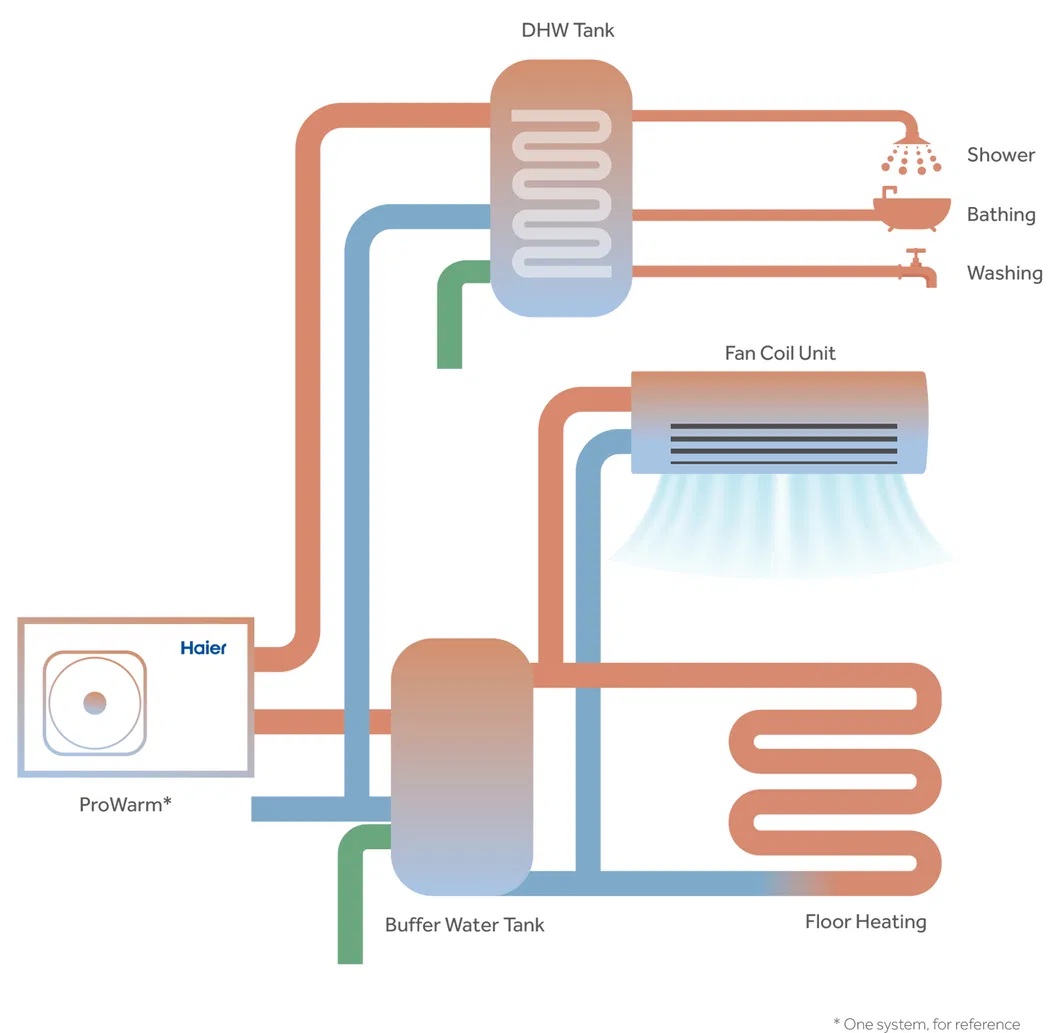

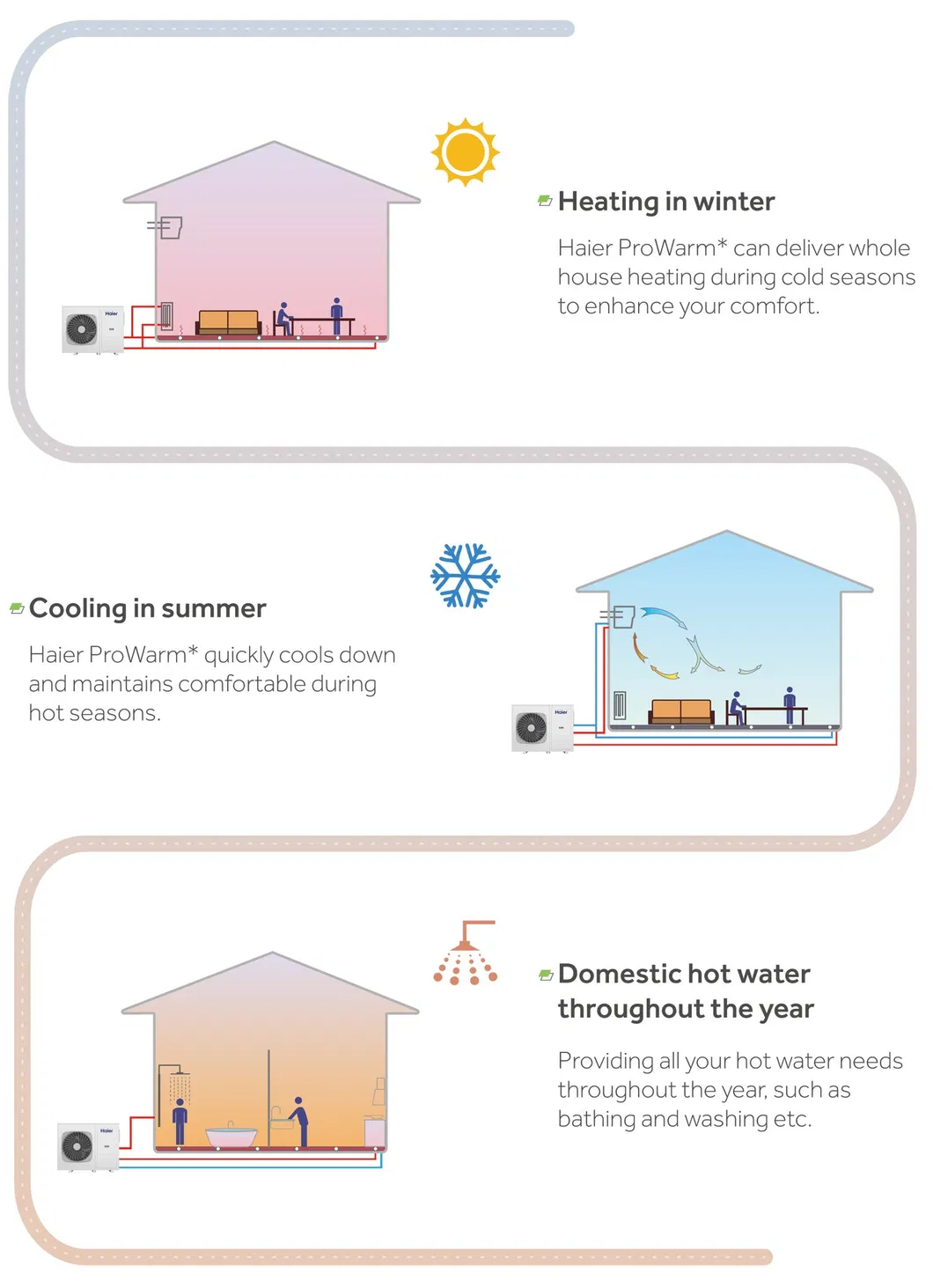

3-in-1 System: This integrated solution provides everything a home needs: efficient heating, stable cooling, and consistent domestic hot water.

Energy-Saving Performance: Utilizing EVI Full DC Inverter technology combined with R290 refrigerant for maximum seasonal efficiency.

🏆 Why Choose Our Technology

❓ Frequently Asked Questions

Q1: What are the main benefits of using R290 refrigerant?

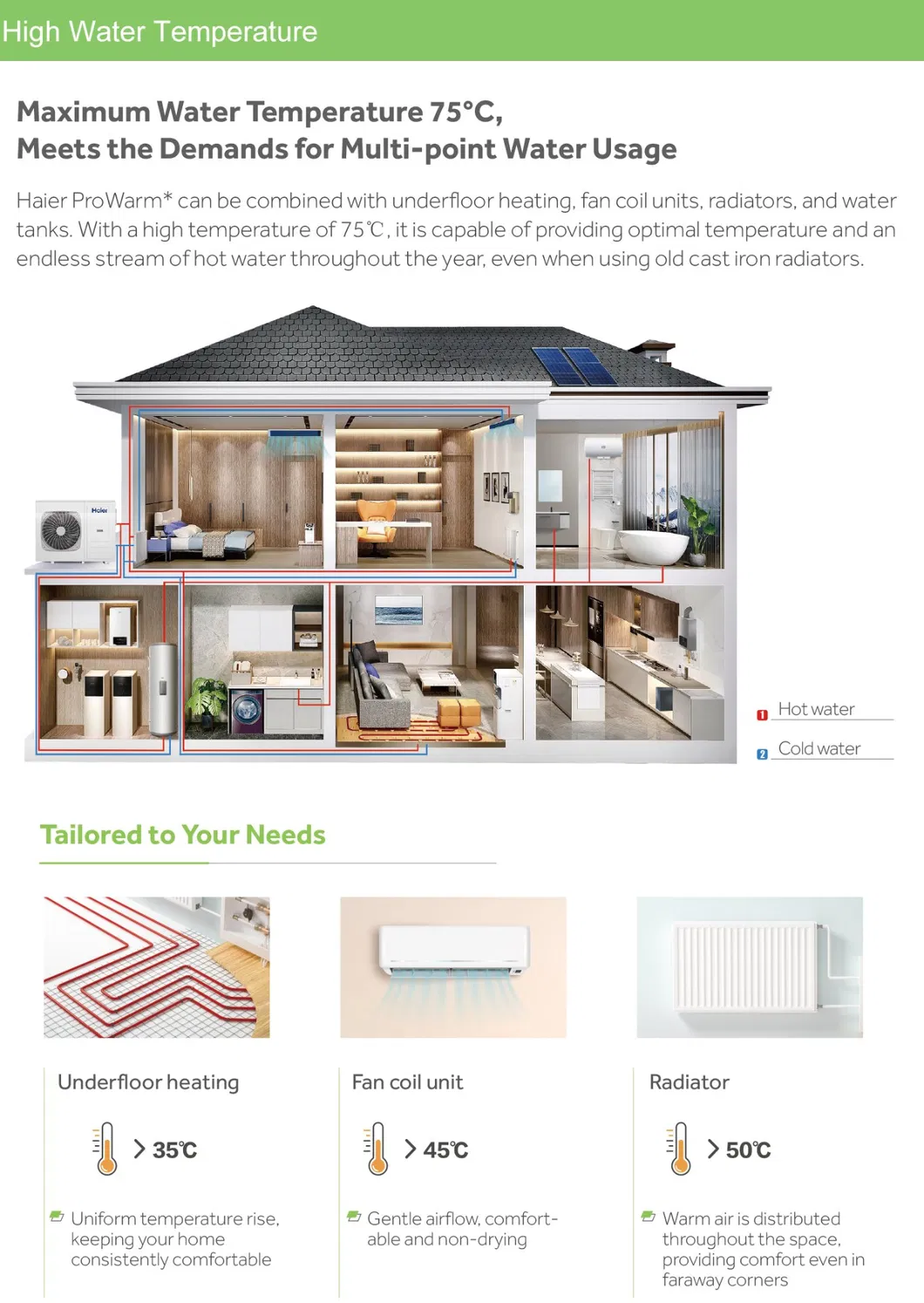

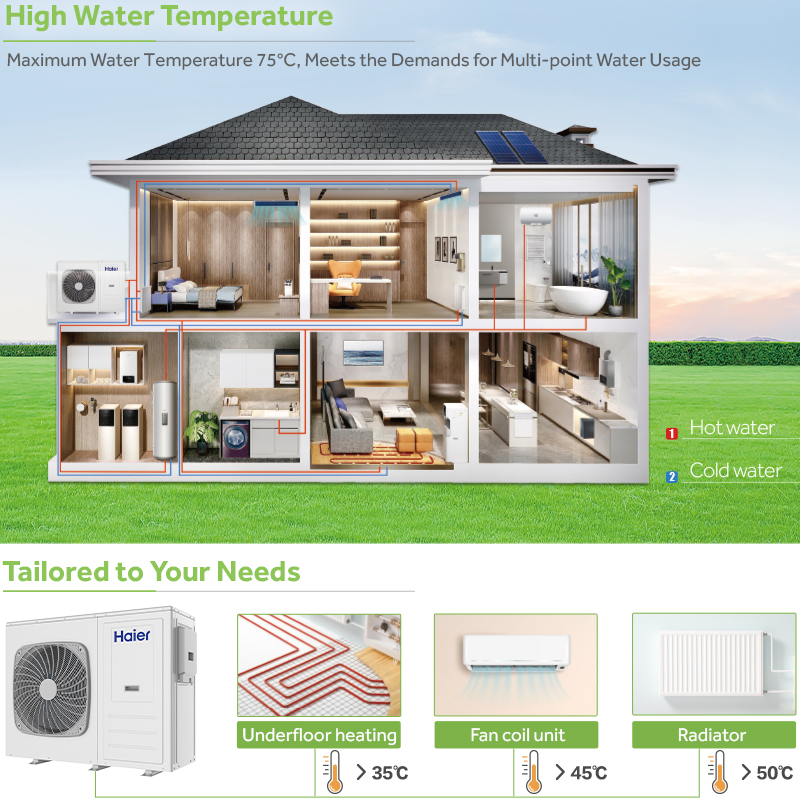

R290 is a natural refrigerant with a very low Global Warming Potential (GWP). It is highly efficient and allows the heat pump to produce higher outlet water temperatures (up to 75°C) even in cold climates.

Q2: Can this heat pump work in extremely cold weather?

Yes, our EVI DC Inverter technology is designed to operate reliably in ambient temperatures as low as -30°C, making it suitable for cold northern regions.

Q3: Does the system support remote control via WiFi?

Yes, the system features smart WiFi connectivity, allowing users to monitor and control heating, cooling, and hot water settings via a smartphone application.

Q4: What is the energy efficiency rating of this series?

The entire 8kw-16kw range achieves an A+++ energy rating for both low-temperature (35°C) and medium-temperature (55°C) applications, ensuring significant energy savings.

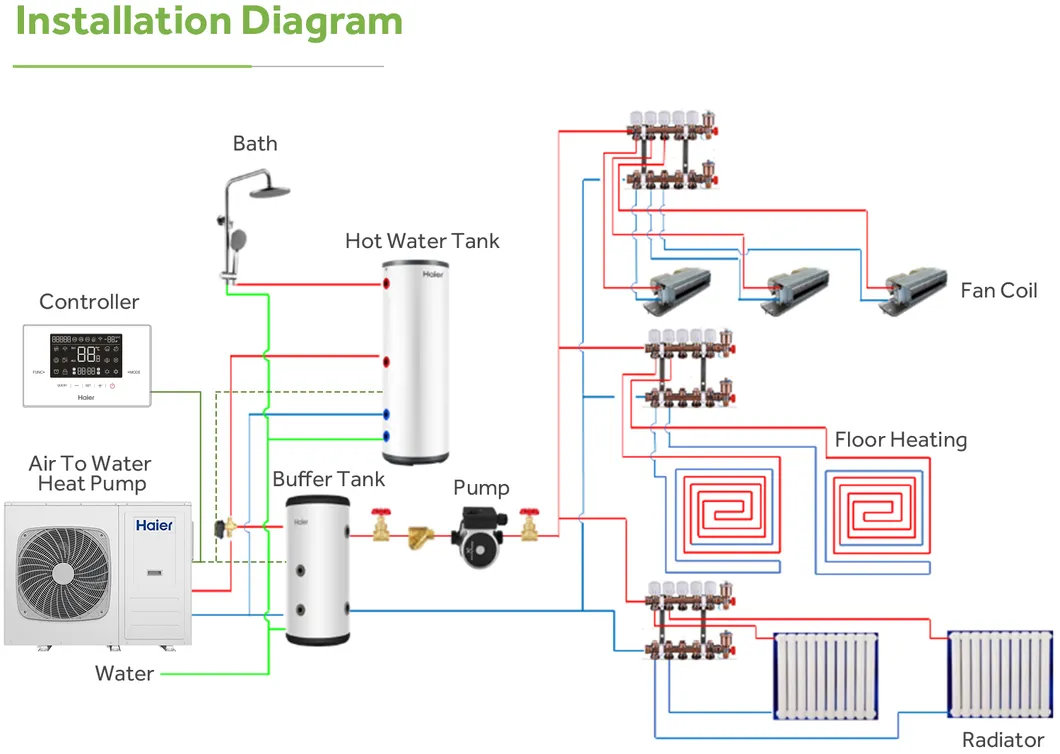

Q5: Is the installation process complicated?

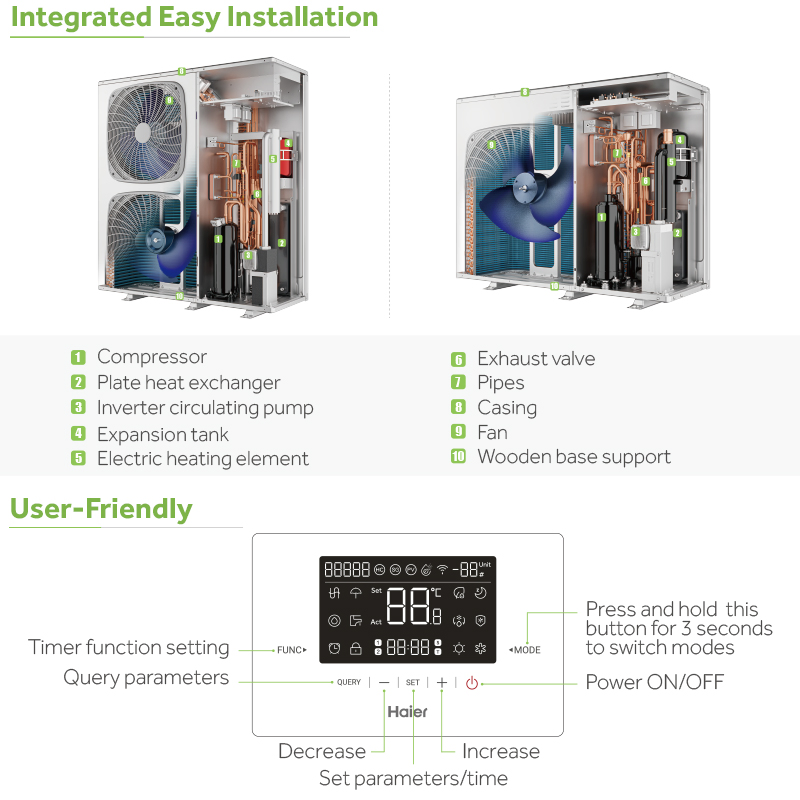

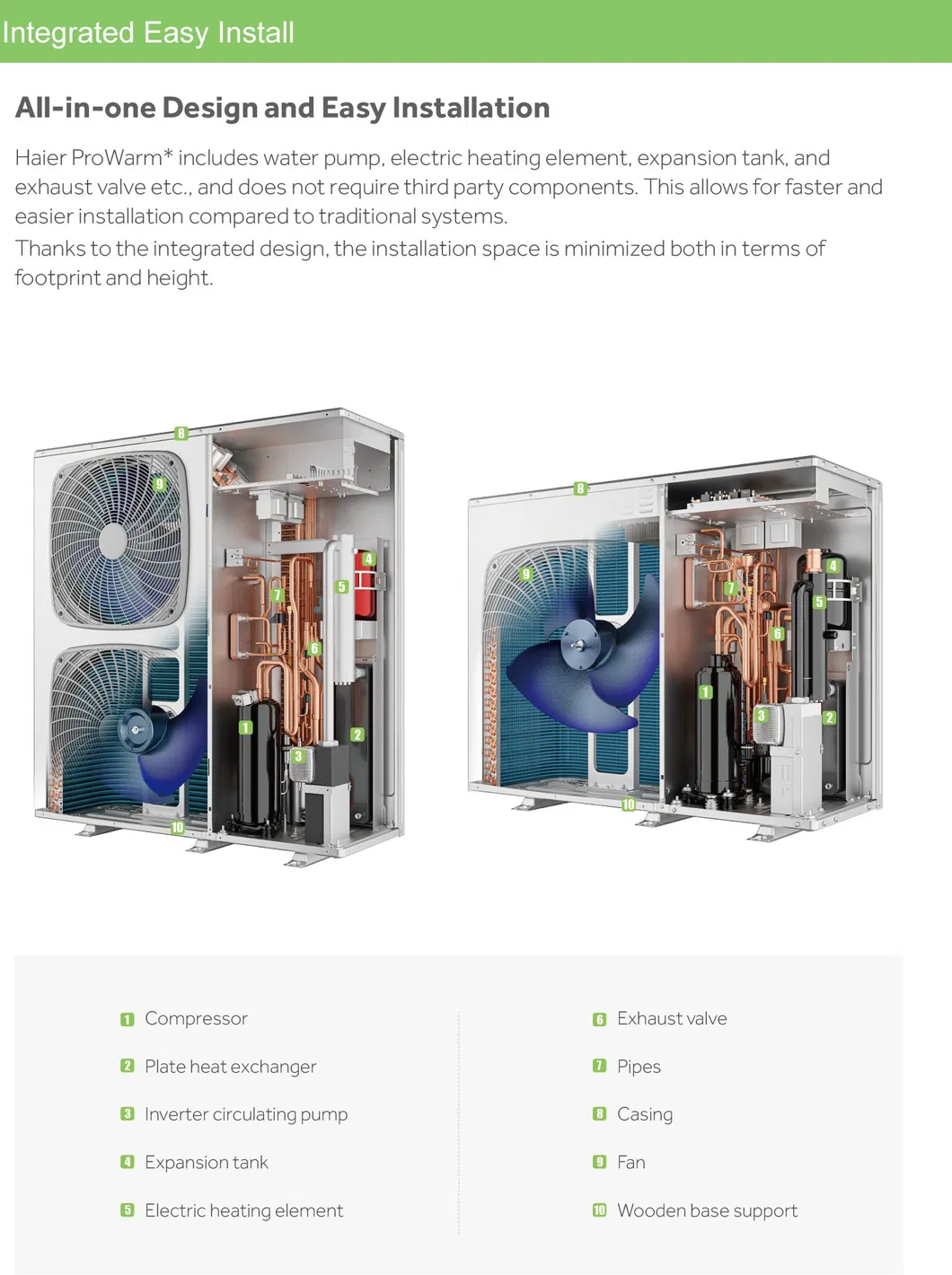

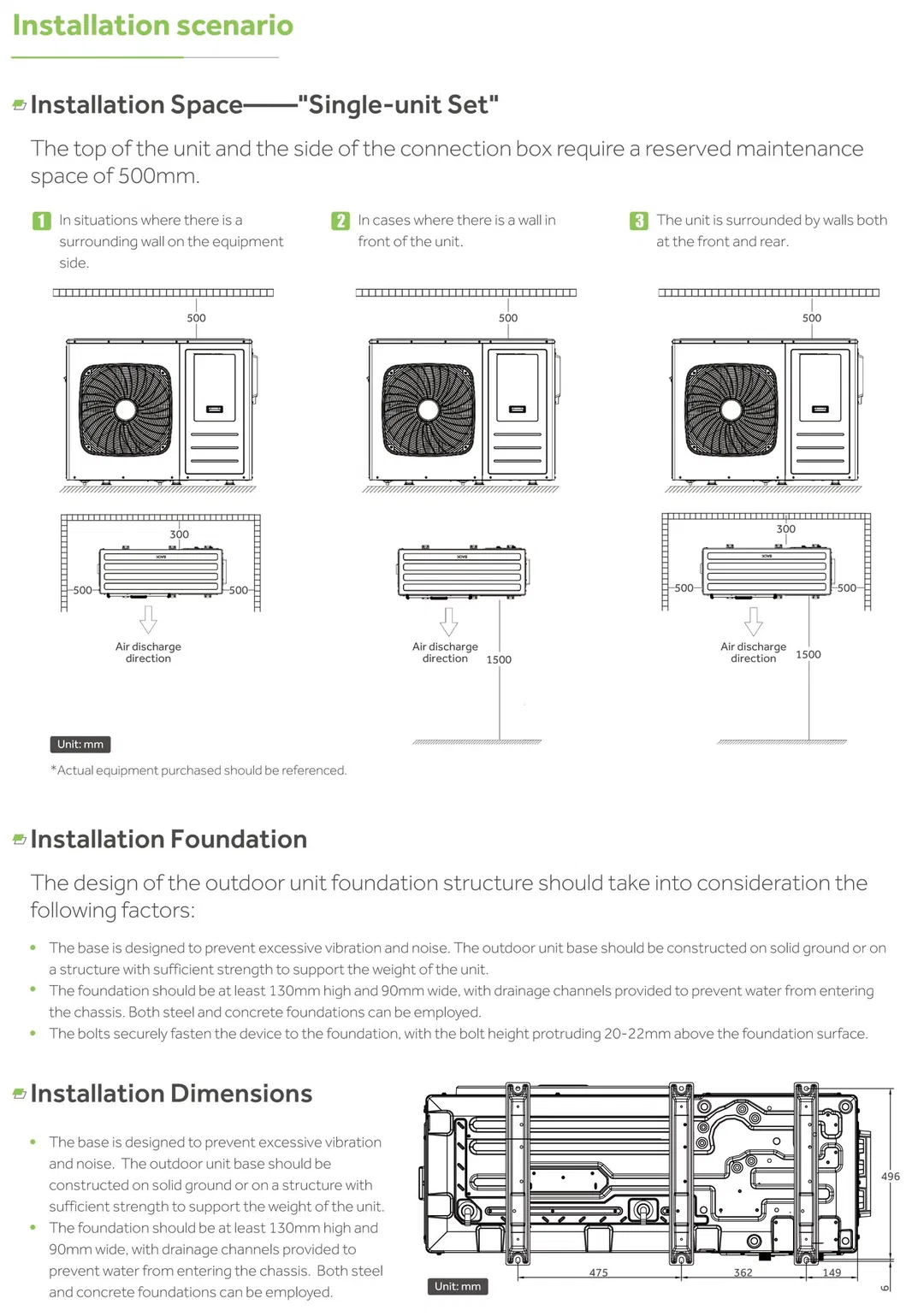

As a Monobloc system, all components are contained within a single outdoor unit. This simplifies the installation as it only requires water pipe connections, eliminating the need for refrigerant piping on-site.

Q6: How quiet is the unit during operation?

The unit is designed with advanced sound insulation and operates at noise levels below 51dB(a), ensuring a quiet environment for your home.
