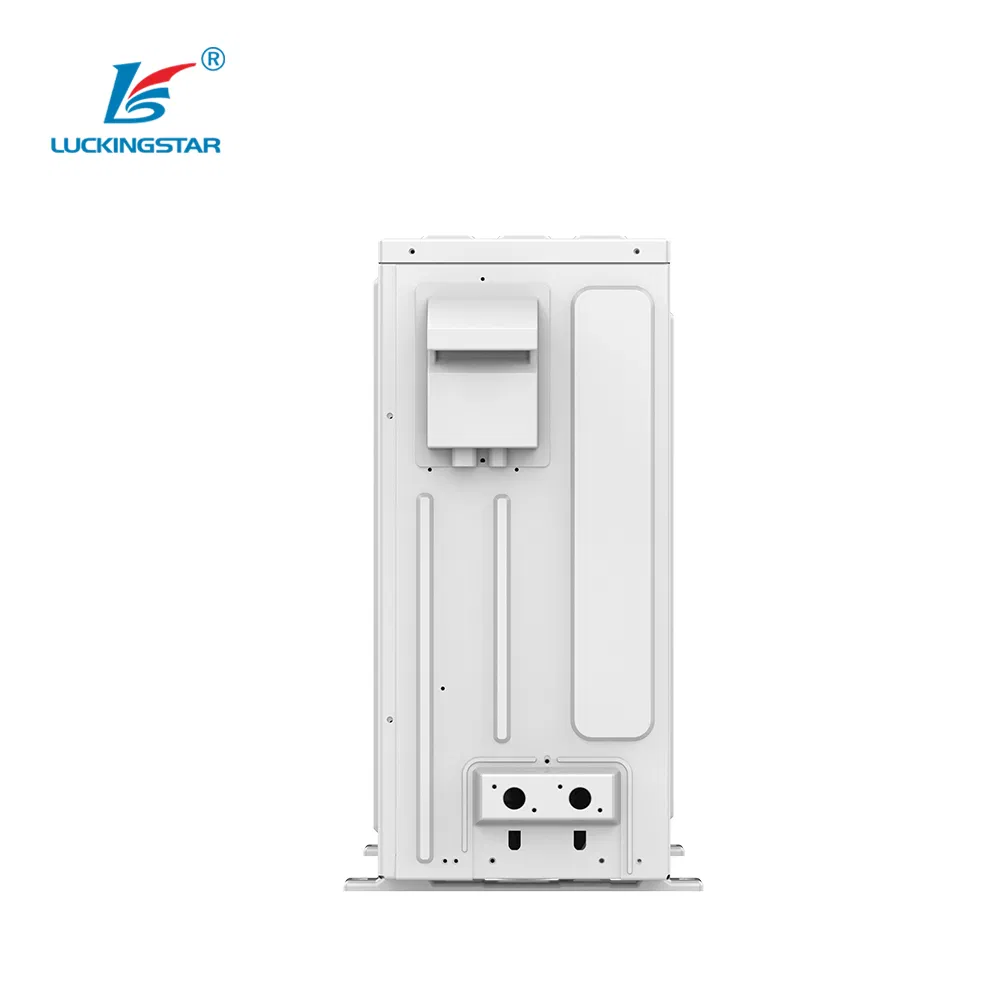

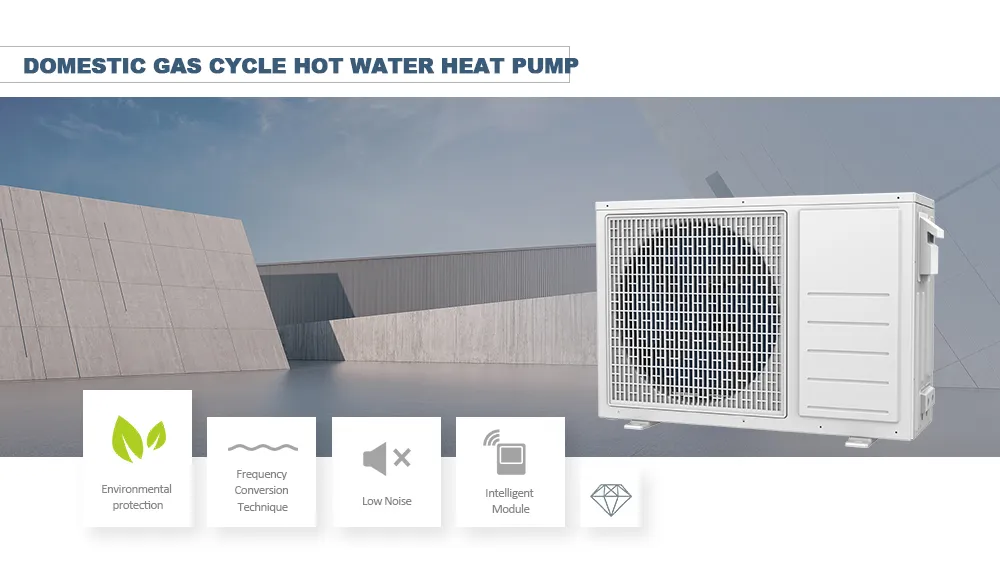

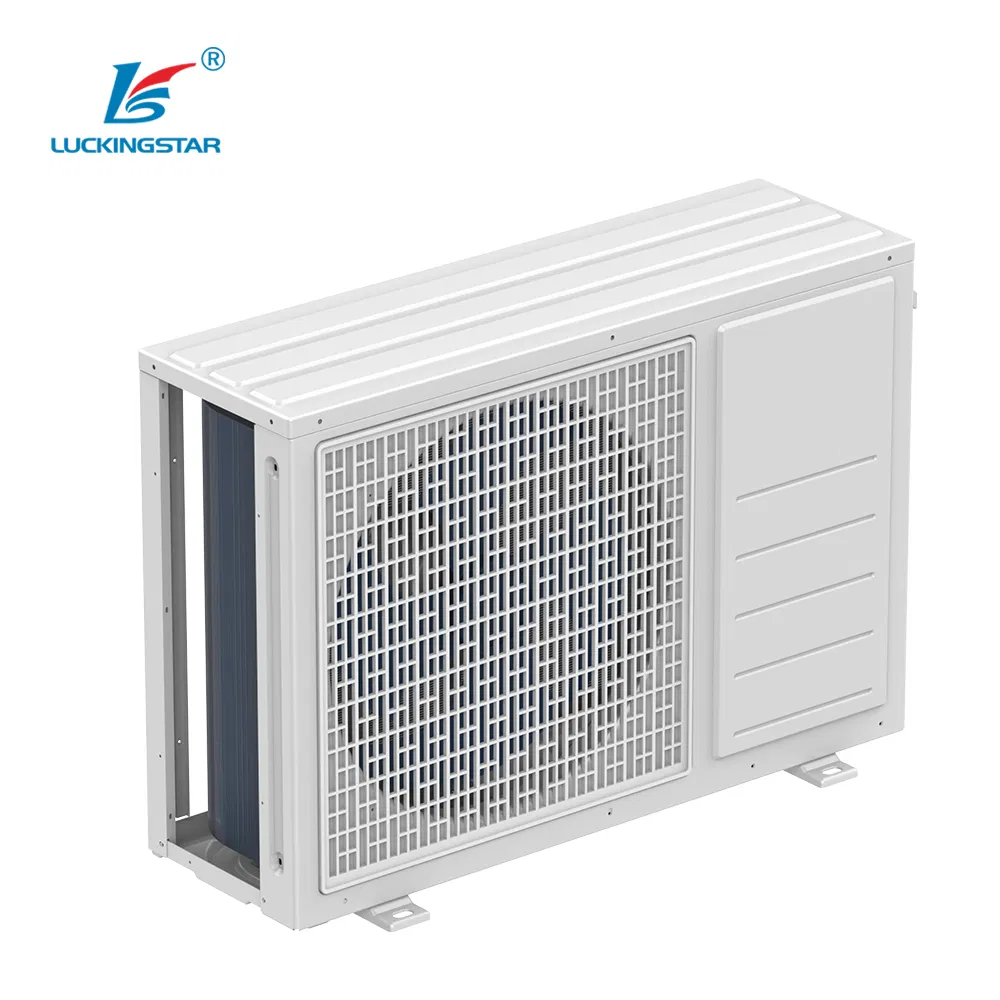

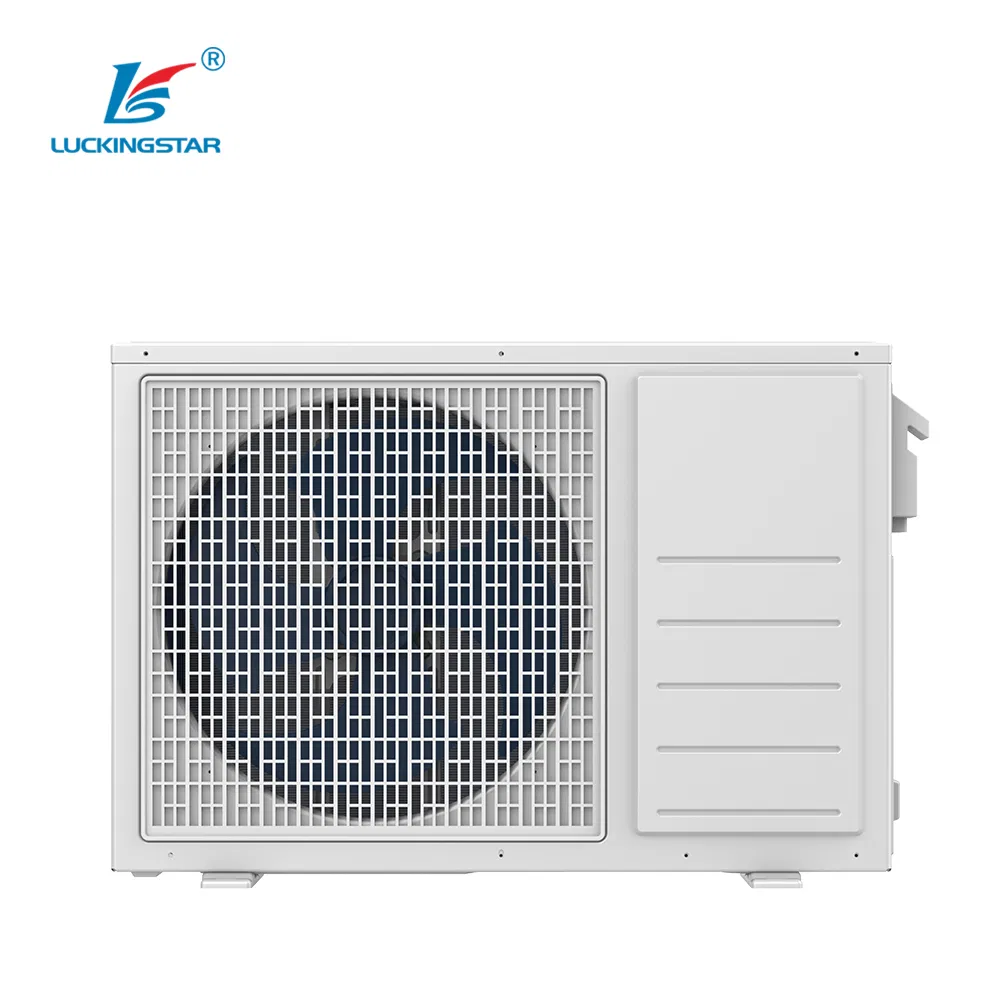

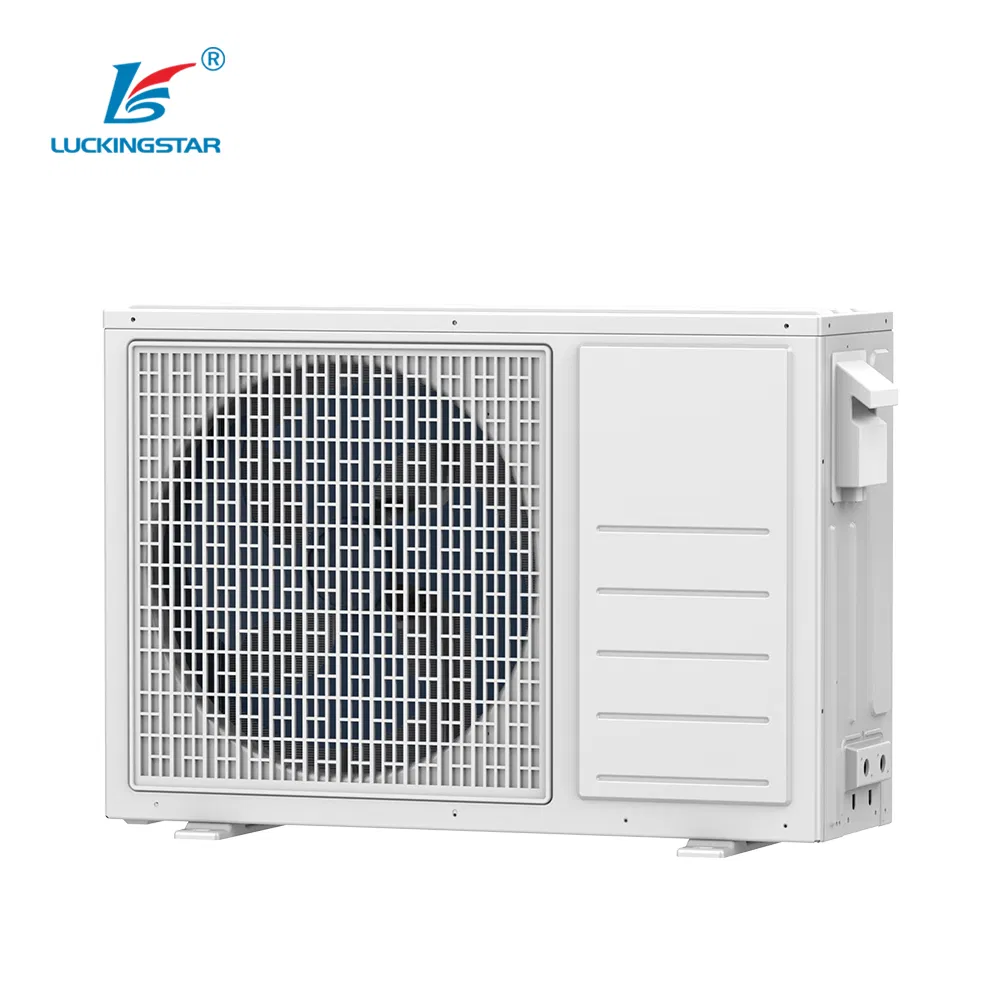

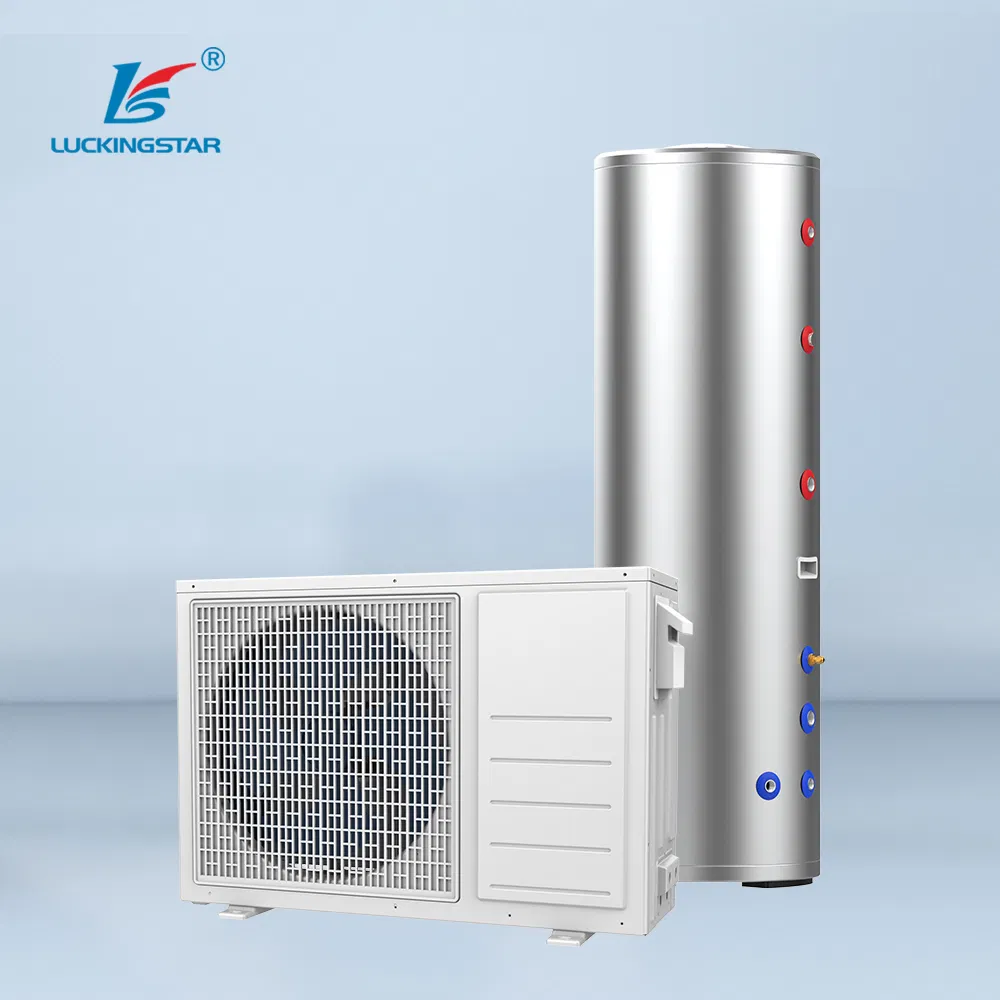

The Split Domestic Hot Water Heat Pump (Gas Circulation) adopts a refrigerant cycle to heat the water tank. Its outdoor and indoor split design ensures no water systems are outside, eliminating risks of freezing or damage. Its compact design is suitable for villas, offices, and hotels, providing 24-hour hot water.
Real-time monitoring via mobile phone or computer. Includes remote power on/off, parameter setting, fault detection, and alarm functions for convenient management.
| Model | Unit | LWH-3.6C | LWH-5.3C | LWH-8.0C | LWH-10.5C | LWH-11.4C |
|---|---|---|---|---|---|---|
| Heating capacity | kW | 3.6 | 5.3 | 8.0 | 10.5 | 11.4 |
| Rated Water Output | L/h | 75 | 115 | 175 | 225 | 245 |
| Rated Outlet Temp. | °C | 55 | ||||
| Max Outlet Temp. | °C | 60 | ||||
| Power Input | kW | 0.9 | 1.3 | 2.0 | 2.5 | 2.7 |
| Compressor Brand | - | GMCC | GMCC | GMCC | GMCC | Copeland |
| Noise Level | dB(A) | ≤54 | ≤56 | |||
| Suggested Tank | L | 100-260 | 260-400 | 400-600 | 600-800 | 600-1000 |
| Unit Size (L*W*H) | mm | 780*260*540 | 845*315*665 | 1010*315*715 | ||
# Testing condition: Ambient temp. 20°C/15°C; Water temp. 15°C/55°C.

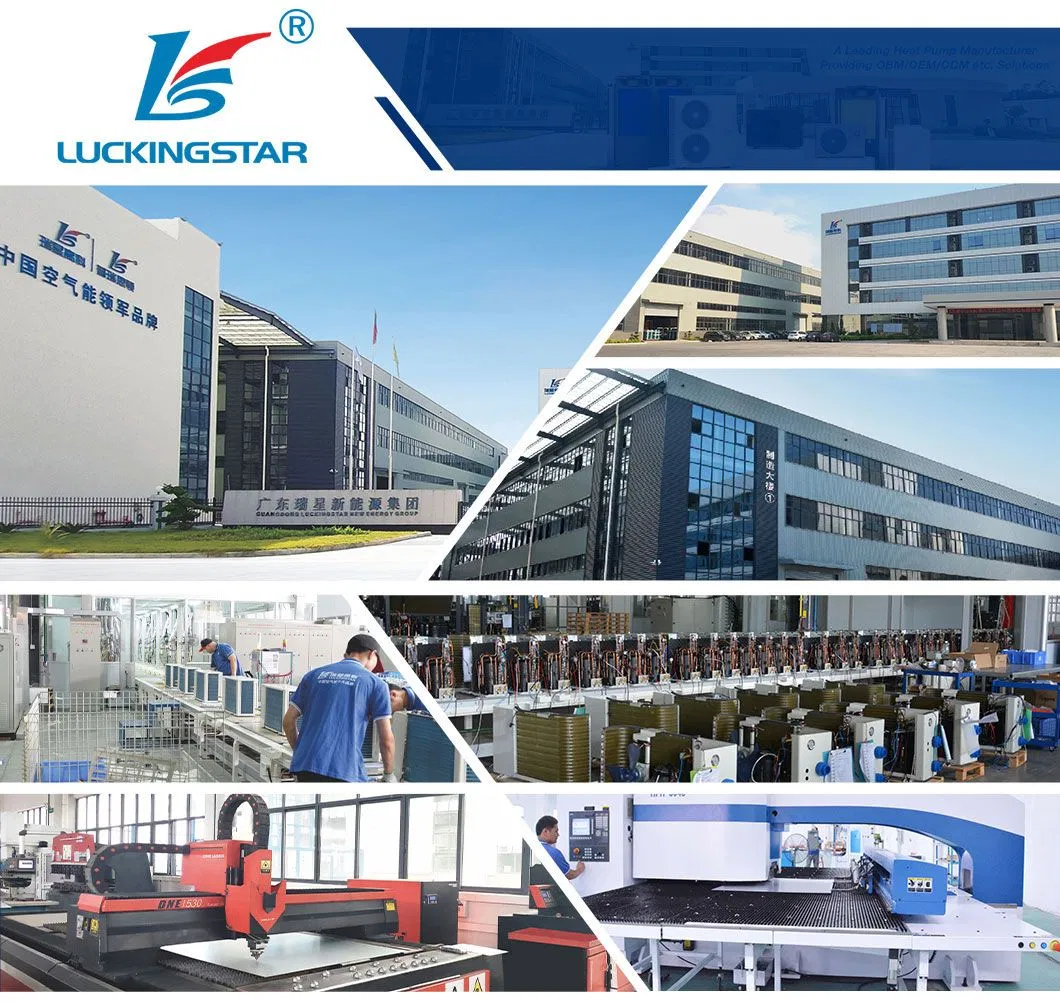

Dedicated to producing high-quality heat pumps since 2006, the facility covers 75,000 square meters and is equipped with 7 automatic production lines. With an annual capacity of 500,000 units, the factory operates 5 professional performance test laboratories capable of testing in extreme temperatures as low as -41.5°C. Products are exported to over 40 countries including Europe, Asia, Africa, and Australia.
