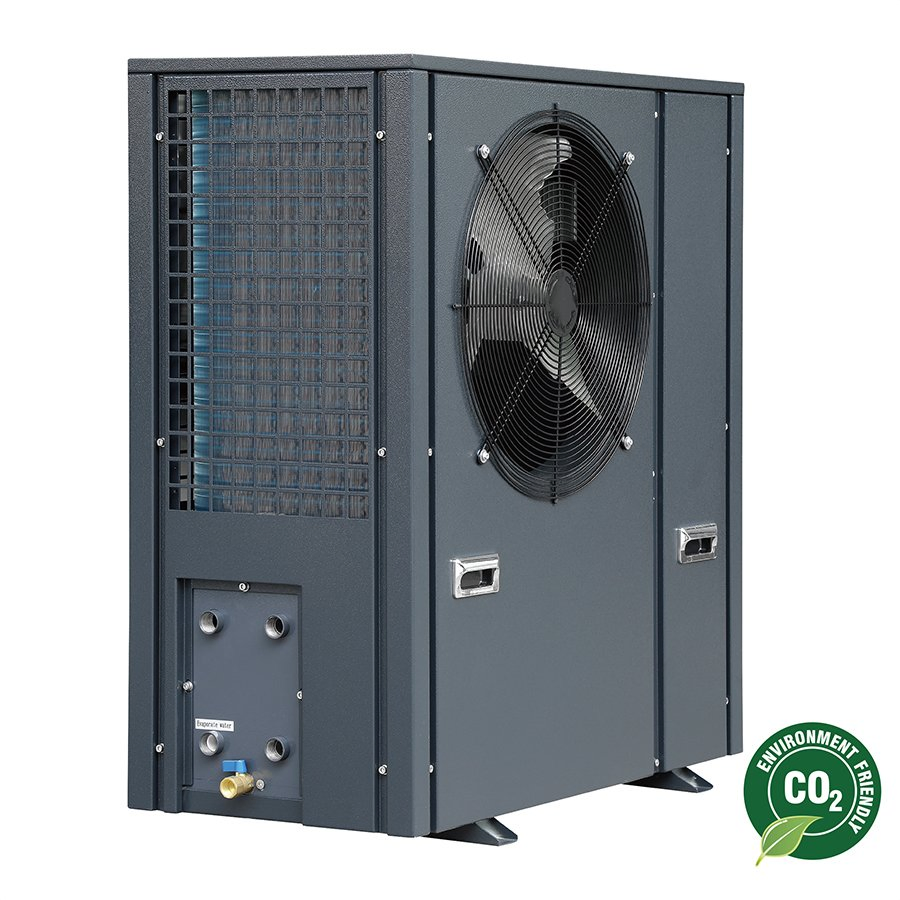

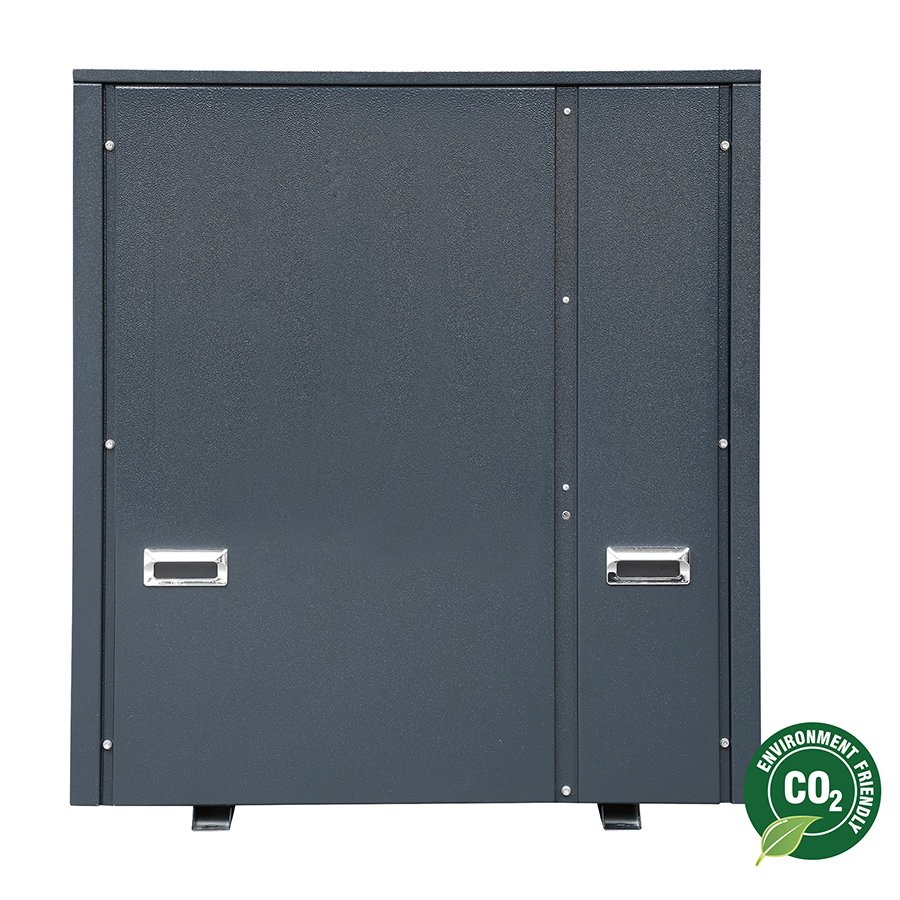

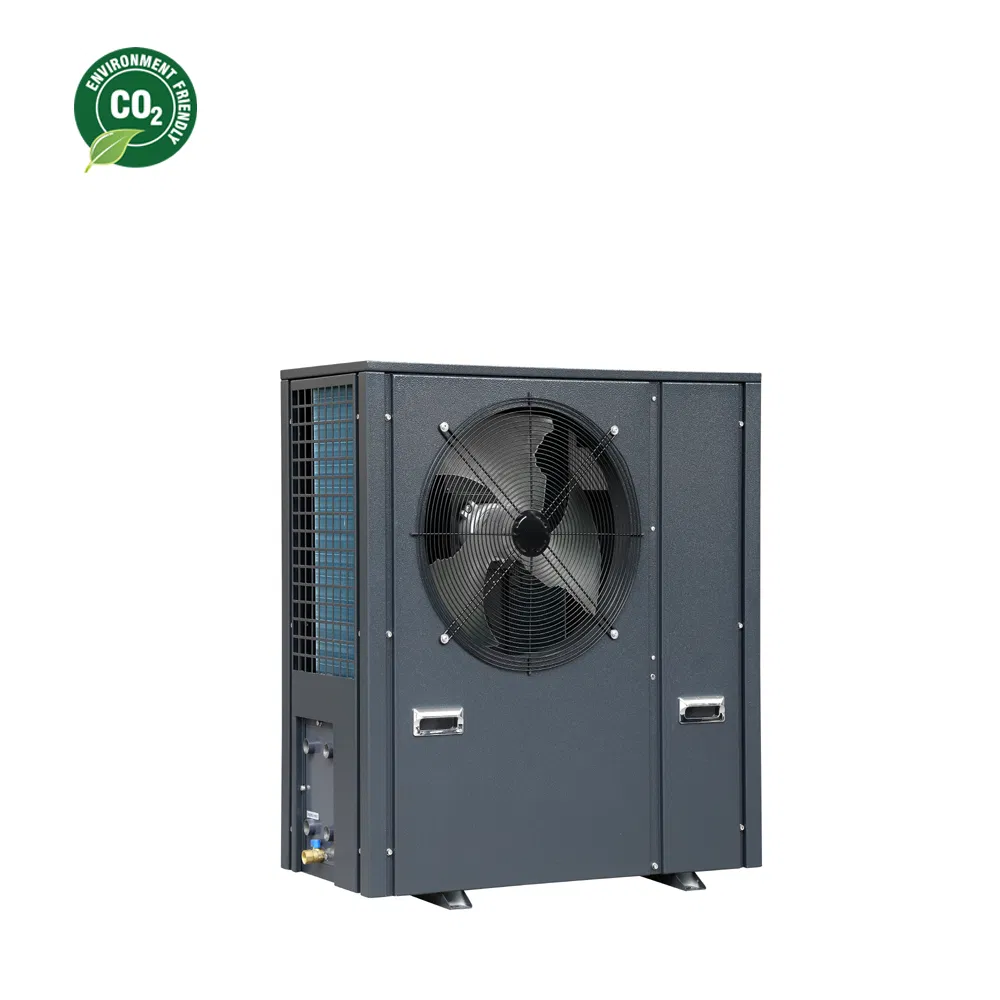

CO2 Heat Pump Water Heater, for Low Ambient with Natural Refrigerant

1 / 5

CO2 Heat Pump Water Heater, for Low Ambient with Natural Refrigerant

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	80-90°C

Send Inquiry

Product Description

Basic Information

Model NO.

LYD-8ZW

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source

Heating Type

Multi-power Heat

Application

Villa, Pool, Hotels, Factory, Hospital, Apartments

Certification

CE, CCC, RoHS

Compressor

Dorin

Control

Carel

Circuit

Inverter

Refrigerant

R744 (CO2)

Specification

8KW

Capacity

2000/Year

★

Features of CO2(R744) Heat Pump

High Temperature: Water can be heated up to 90ºC, suitable for disinfection and cleaning.

Extreme Ambient: Efficiently offers heat even in temperatures as low as -43ºC.

High Efficiency: Max COP is 5.5; multi-function models can reach max COP 7.

Energy Saving: Inverter control adjusts power to real requirements, saving energy.

Modular Design: Reach higher power through combined module installations.

Advanced Protection: Equipped with 6 layers of pressure protection for safety.

Smart Defrosting: Intelligent inverter control saves 50% energy during defrosting.

Smart Controls: Wireless control supported via RS485/Modbus central systems.

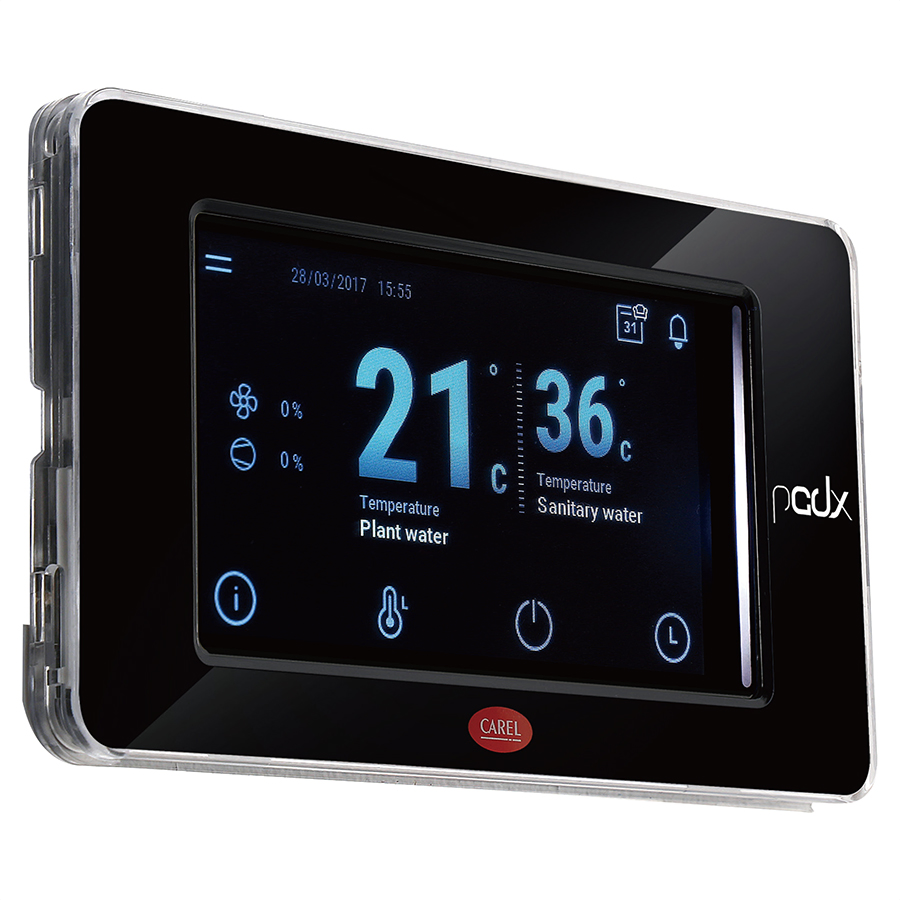

Digital Interface: Features a programmable digital interface with touch keys.

Monobloc Design: Simplified installation with no extra high-pressure connections needed.

📋

Technical Specifications

Model LYD			7ZW	8ZW	14ZW	25ZW	40ZW	50ZW	75ZW	120ZW
Standard Condition	Heating Capacity	kW	6.8	7.8	13.6	24	40	51	75.5	125.4
	Power Input	kW	1.51	1.7	3	5.3	9	11.3	16.7	26.6
	COP	W/W	4.5	4.58	4.6	4.5	4.4	4.5	4.5	4.7
Low Temp Condition	Heating Capacity	kW	5.8	7	12.1	20	35	45.6	64	95
	Power Input	kW	1.47	1.7	3	5	9.4	12	16.8	24.3
	COP	W/W	3.9	4.1	4.1	4	3.7	3.8	3.8	3.9
Max Water Temp		ºC	95
Work Ambient		ºC	-25 to 43
Refrigerant		Type	R744 / CO2

Frequently Asked Questions

What is the maximum water temperature this heat pump can provide?

The CO2 (R744) heat pump can heat water up to 90ºC-95ºC, making it ideal for high-temperature applications like disinfection and industrial cleaning.

Can this unit operate in extremely cold climates?

Yes, it is specifically designed for low-temperature environments and can efficiently provide heat even when the ambient temperature drops to -43ºC.

What are the environmental benefits of using R744 refrigerant?

R744 is natural CO2 refrigerant. It has a Global Warming Potential (GWP) of 1 and zero Ozone Depletion Potential (ODP), making it the most eco-friendly choice compared to synthetic refrigerants.

How does inverter technology improve performance?

The inverter control allows the unit to vary its power output based on real-time heating demand. This prevents frequent on/off cycles, leading to significant energy savings and more stable water temperatures.

What does the "Monobloc design" mean for installation?

The Monobloc design means all components are housed in a single outdoor unit. There is no need for complex refrigerant piping work during installation, as only water connections are required.

What is the energy efficiency (COP) of these units?

Under standard conditions, these units offer a COP of up to 5.5. Specialized multi-function models can reach a COP of 7 by utilizing free cooling while producing heat.
