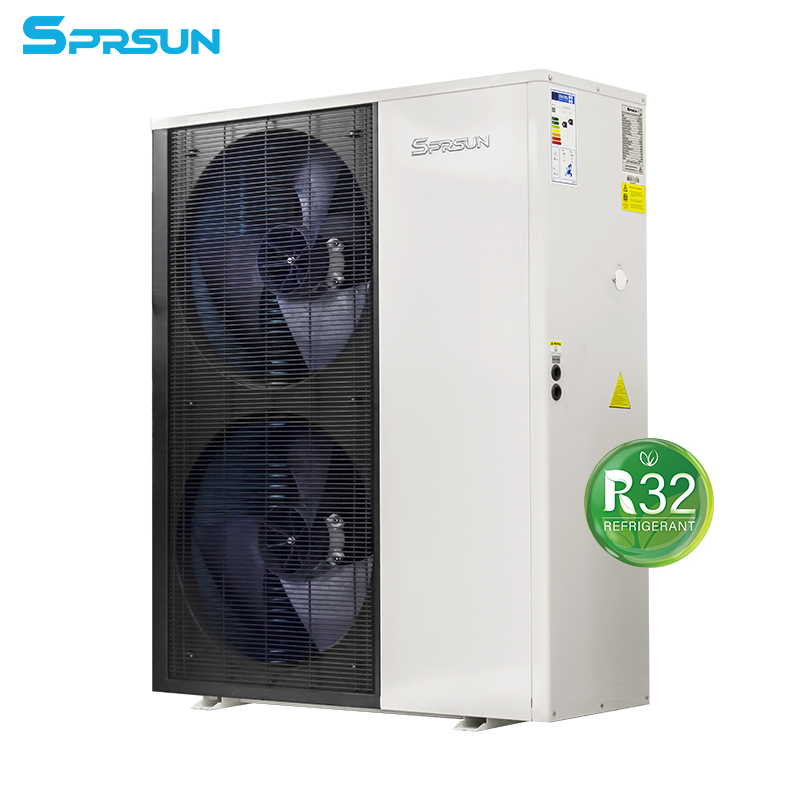

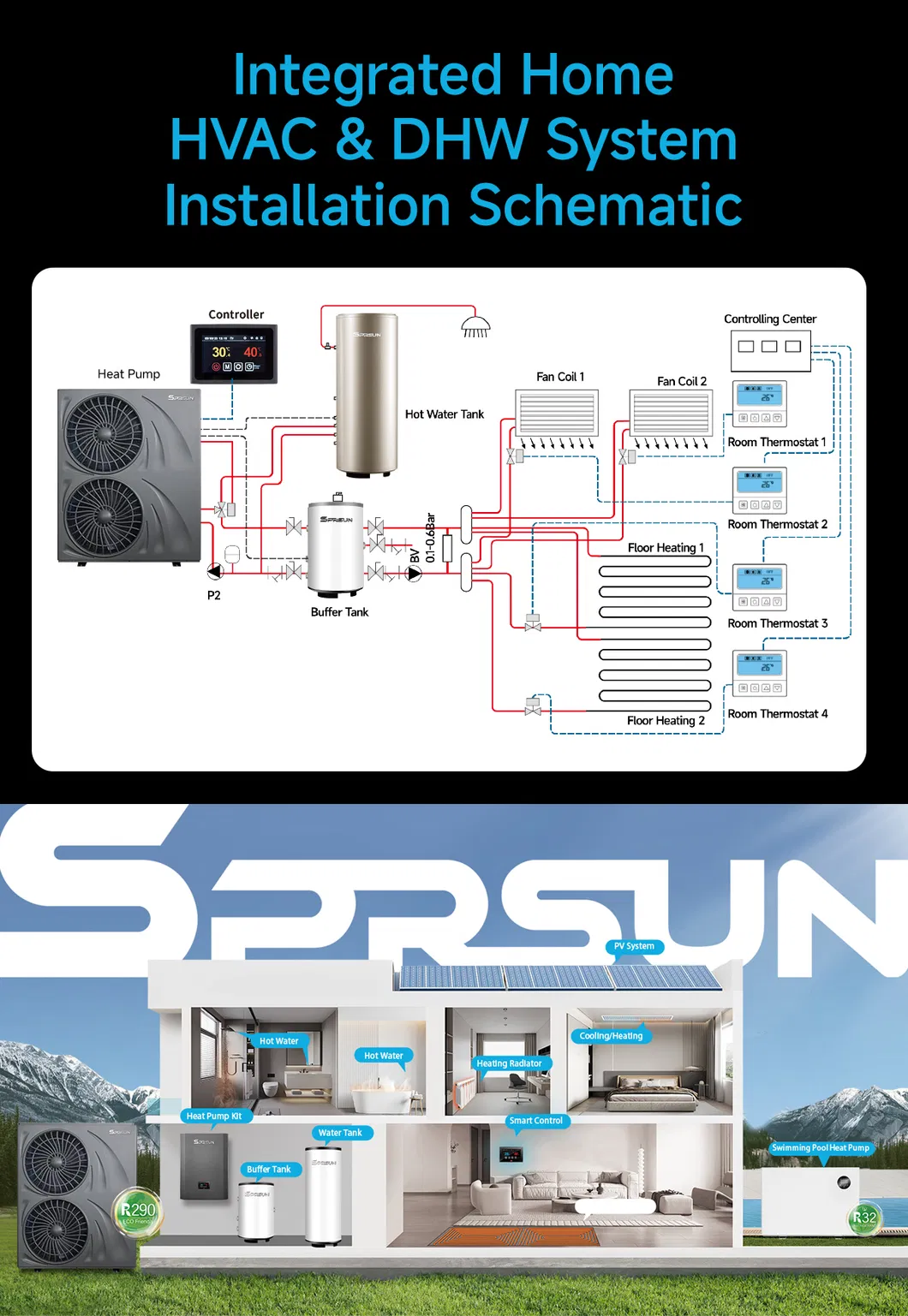

This R32 ERP A+++ DC Inverter Monoblock Heat Pump features a compact design for easy installation. Engineered to perform in extreme climates, it operates efficiently in temperatures ranging from -30ºC to 45ºC, making it the perfect heating solution for cold regions. With a heating capacity from 9.5KW to 22KW and a maximum COP of 5.89, this monoblock system connects directly to the building's heating infrastructure and supports remote software control.

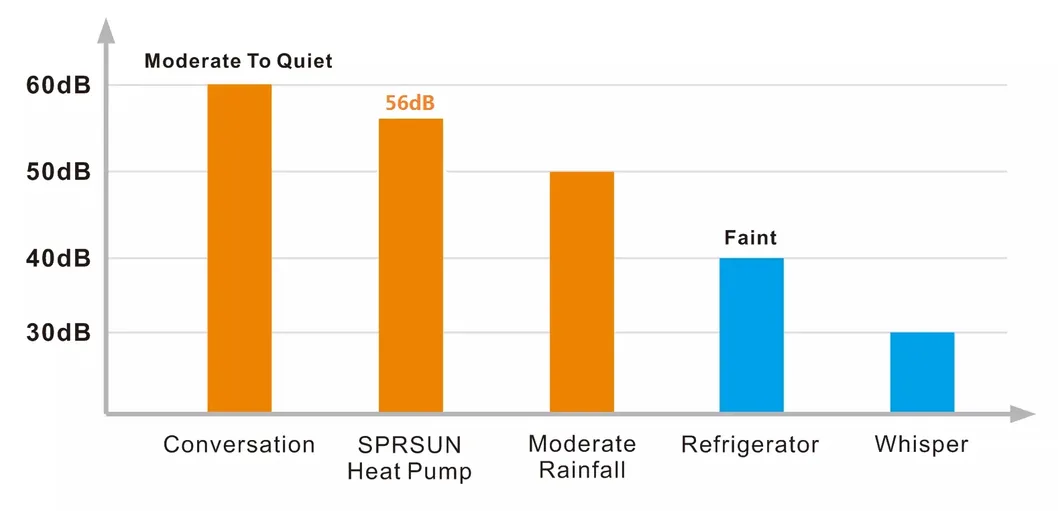

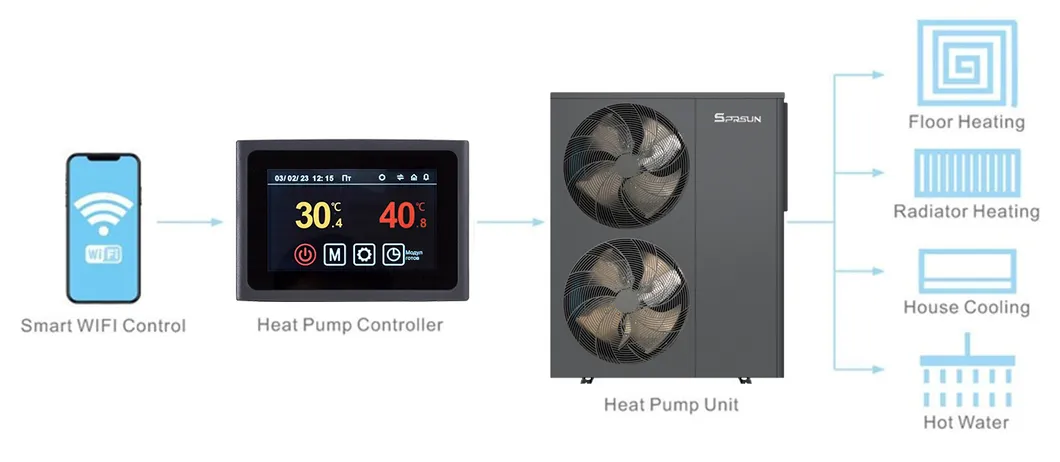

Offers multiple functions including water heating and cooling. It operates with minimal noise, ensuring a quiet environment. As a green energy solution, it is more cost-effective than traditional oil or gas boilers and significantly reduces carbon emissions with minimal maintenance requirements.

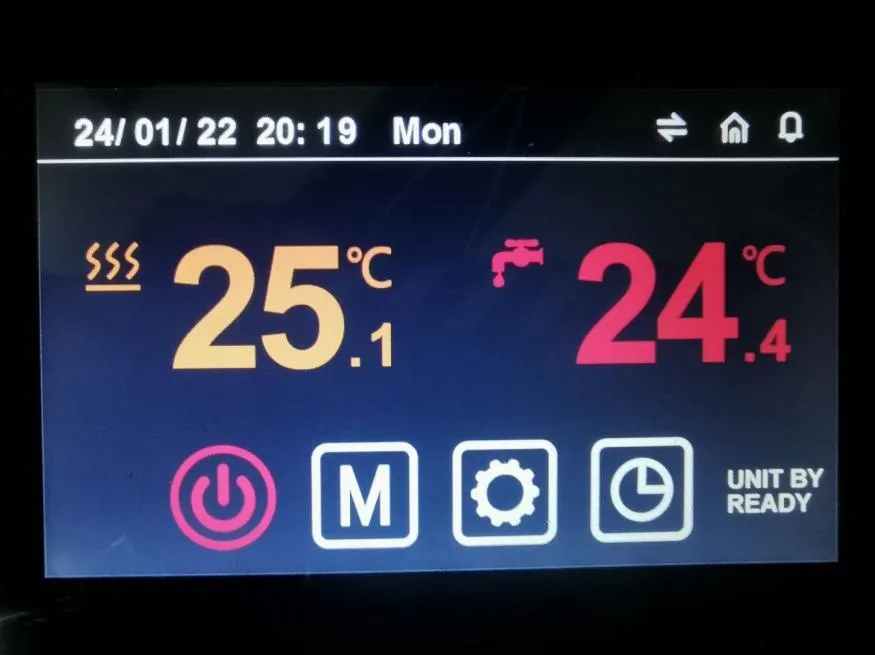

The intuitive 5-inch interface allows for easy temperature control and mode setting. Users can quickly check error codes and program room temperatures anytime, ensuring total climate control.

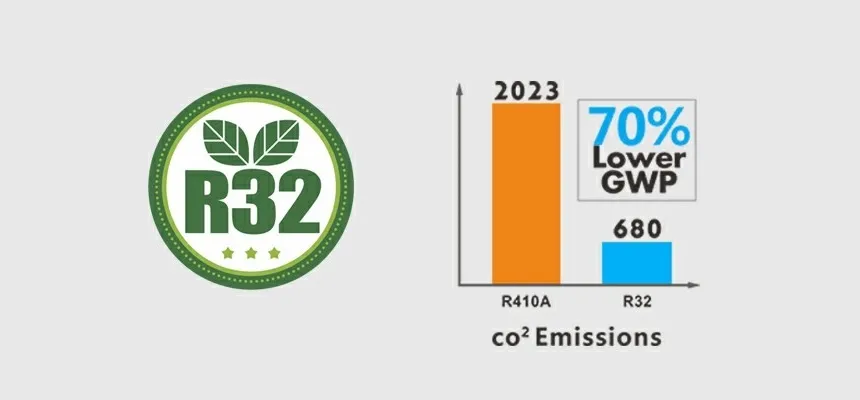

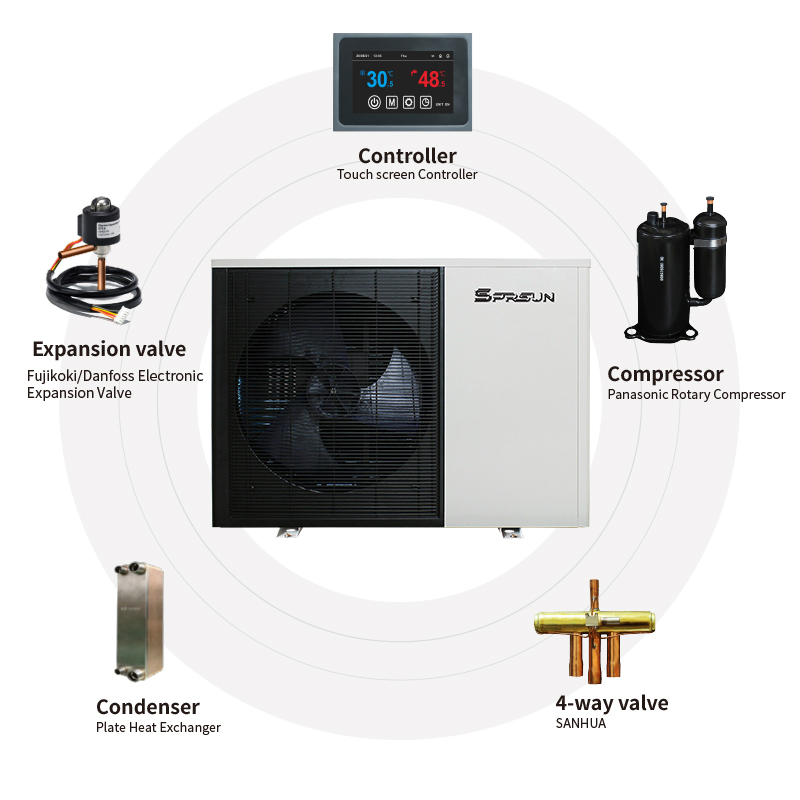

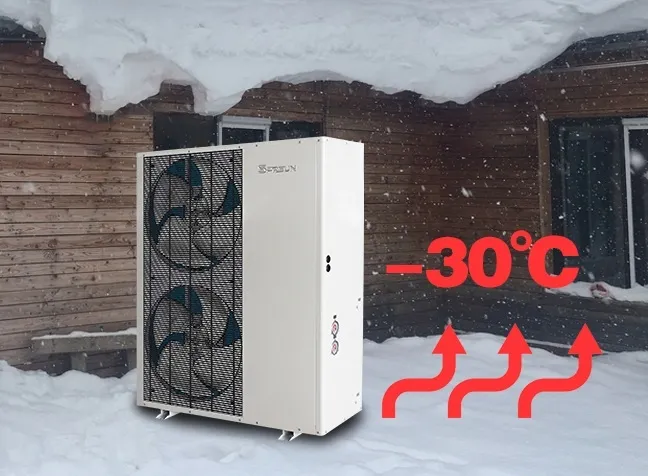

Specifically designed for chilly climates, these units combine eco-friendly R32 refrigerant with EVI technology to produce 60ºC hot water even when outdoor temperatures drop to -30ºC. Utilizing high-quality rotary compressors, the system overcomes traditional heating efficiency issues in extreme cold.

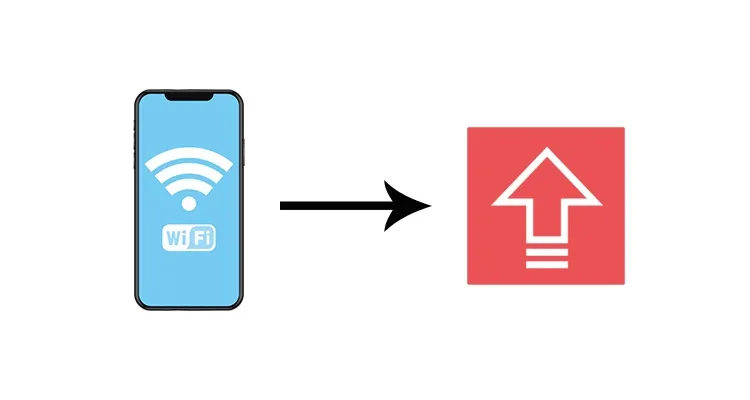

Stay updated with one-click remote software upgrades via the internet. This ensures your system always runs the latest optimized controller software without needing on-site technician visits.
| Model | Unit | CGK-025V3L-B | CGK-030V3L-B | CGK-040V3L-B | CGK-050V3L-B |
|---|---|---|---|---|---|
| Power Supply | V/Hz/Ph | 380-420/50/3 - R32 | |||
| Max Heating Capacity (A7/W35) | kW | 9.4 | 11.6 | 15.8 | 19.8 |
| C.O.P (A7/W35) | W/W | 4.56 | 4.42 | 4.62 | 4.72 |
| Max Cooling Capacity (A35/W18) | kW | 8.6 | 10.6 | 14.4 | 18.1 |
| E.E.R (A35/W18) | W/W | 3.54 | 3.43 | 3.59 | 3.66 |
| Sound Power Level | dB(A) | 62.1 | 64.7 | 64.5 | 68.3 |
| Net Weight | kg | 92 | 97 | 107 | 131 |
| Dimensions (L×D×H) | mm | 1110*475*810 | 1110*475*810 | 1110*475*960 | 1110*475*1355 |
As a professional heat pump manufacturer established in 1999, we produce a wide range of air-to-water heat pumps, DC inverter systems, and pool heaters. All products are manufactured in accordance with the EN14511 standard and hold prestigious certifications including MCS, SAA, ROHS, TÜV, ERP, CE, and CB. By collaborating with global industry leaders for core components, we ensure the highest standards of quality and reliability for our international customers.
