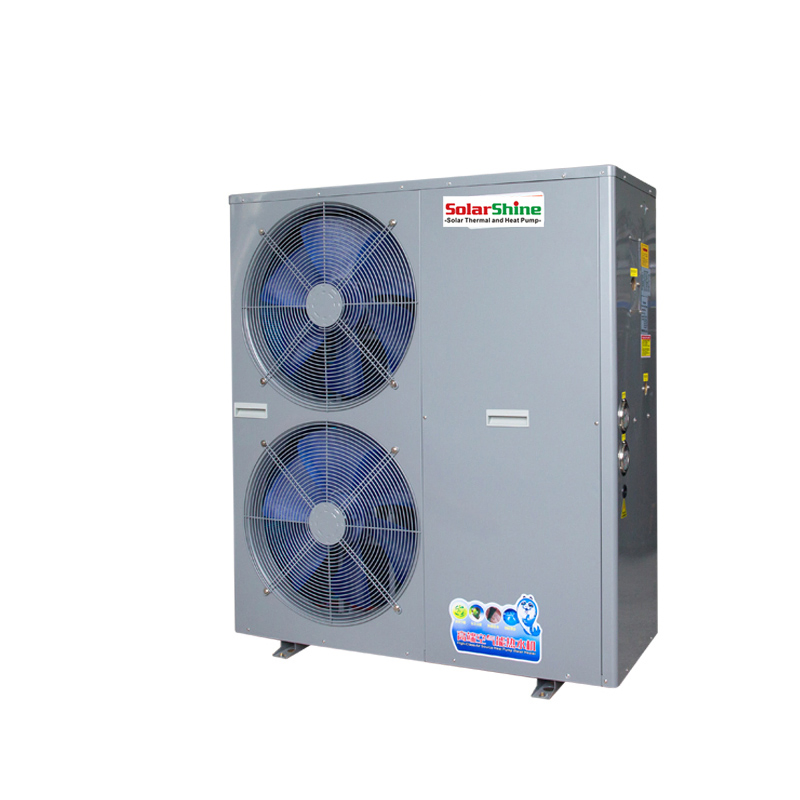

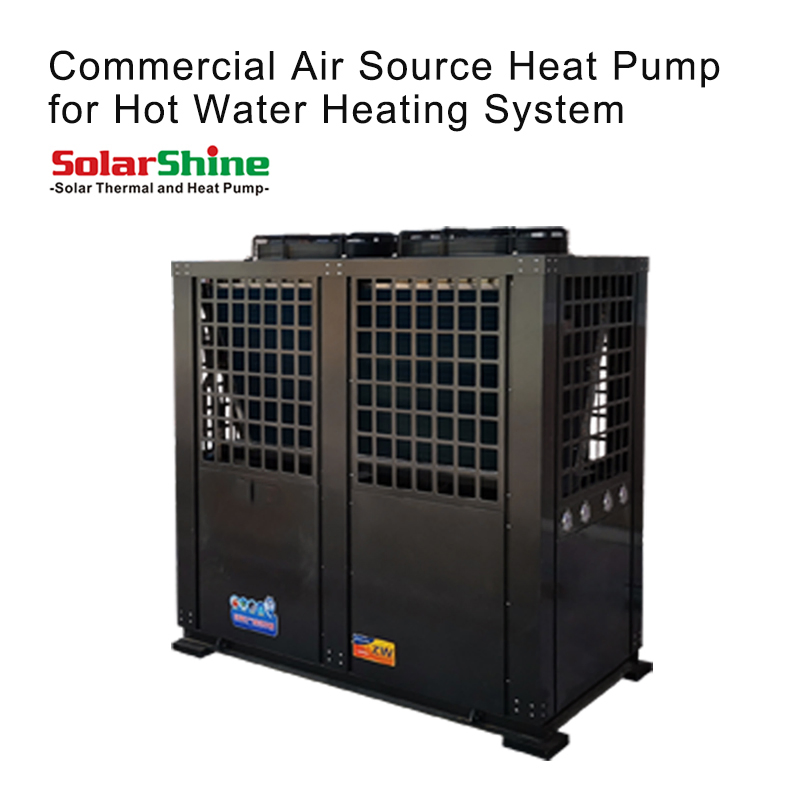

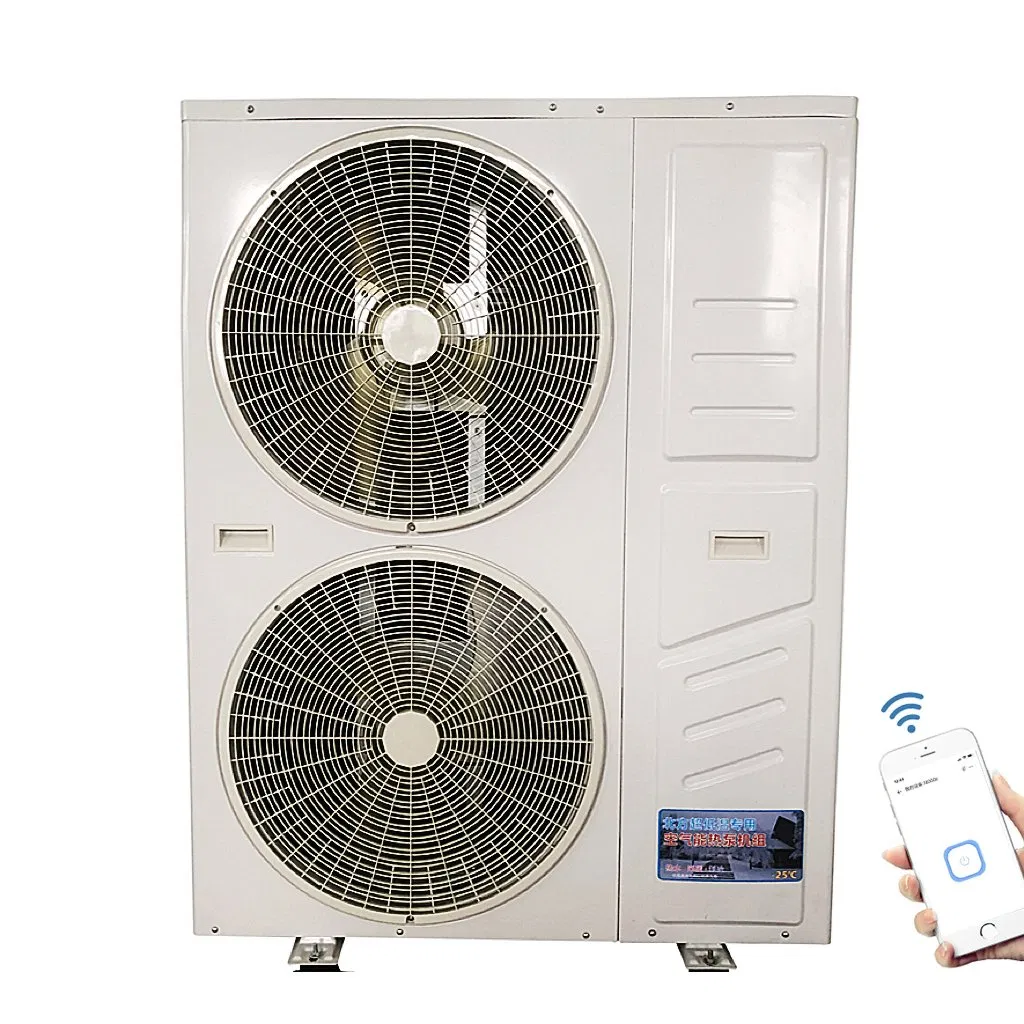

Commercial CO2 Heat Pump R32/R410 Refrigerant Air Source Heat Pump Air to Water Inverter Commercial Heat Pump Water Heater

Basic Specifications

Model NO.

KD

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa, Sauna, Swimming Pool, Hotels, Factory, Hospital, Apartments

Certification

ISO9001, CCC, RoHS

Function

Water Heating

Package

Wood Packing

Origin

China

Product Introduction

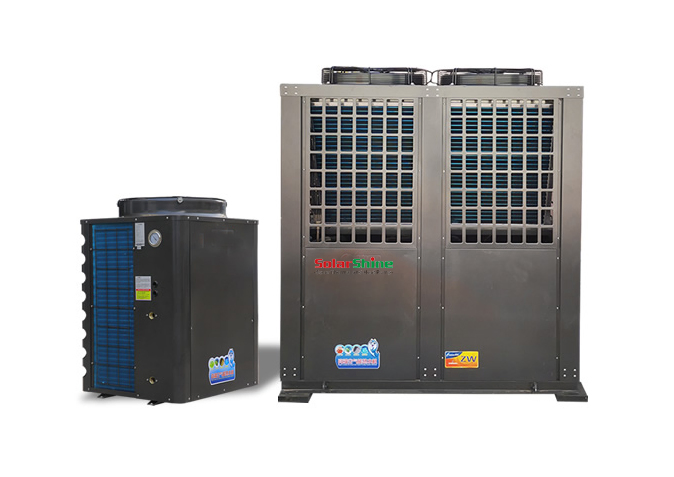

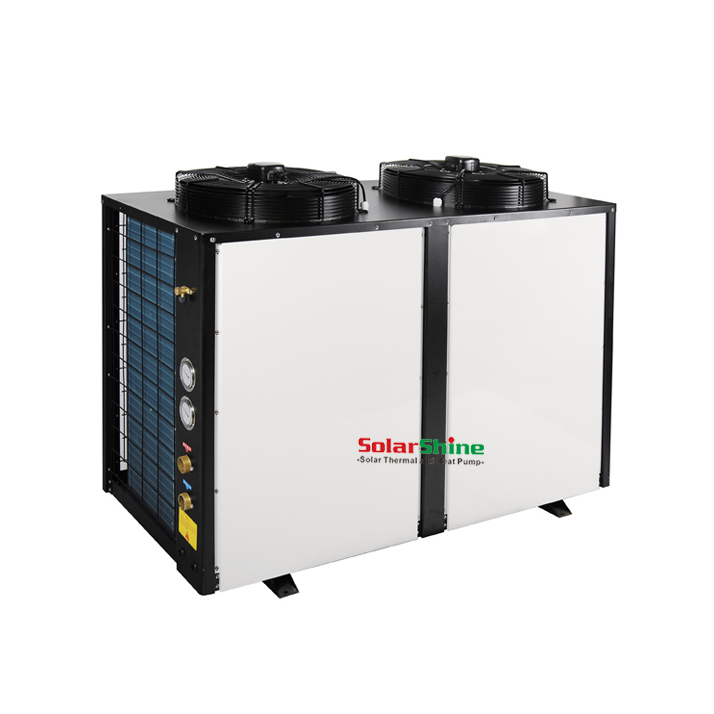

Professional heat pump units are equipped with high-quality components, which assure very high COP output. Commercial heat pump unit power ranges from 3Hp-30Hp, with heating output power from 11-110KW. They are ideal for large-scale central water heating projects such as hotels, school dormitories, factories, and hospitals.

🚀

High Efficiency

Up to 75% energy saving compared to conventional gas/oil boilers or electric heaters.

💰

Economical

Lower running costs, consuming minimal energy primarily for compressor operation.

🌿

Eco-friendly

No exhaust gas or waste water discharge, ensuring zero environmental harm.

🛡️

Durable Design

Powder-coated steel cabinet (stainless steel optional) for long-term protection.

⏲️

Smart Control

24-hour timer clock for automated operation without human attendance.

Technical Specifications

Model	KGS-3	KGS-4	KGS-5-220	KGS-5-380	KGS-6.5	KGS-10	KGS-15	KGS-20	KGS-25
Heating power (KW)	11	13	15.5	18	22	36	52	75	86
Input Power (KW)	2.8	3.2	4.3	4.7	5.5	9.6	12.8	19.5	22
Hot Water (L/H)	245	290	350	400	500	815	995	1700	1950
Power Supply	220/380V	220/380V	220V	380V/3N/50Hz
Max Temp (°C)	60
Compressor (Set)	1	1	1	1	1	2	2	4	4
N.W (KG)	80	85	115	120	130	250	310	430	530

* Testing condition: Ambient DB 20ºC, WB 15ºC, heating water from 15ºC to 55ºC. COP data is dynamic based on climate.

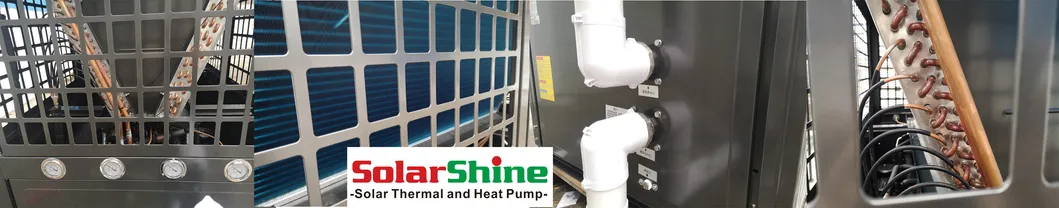

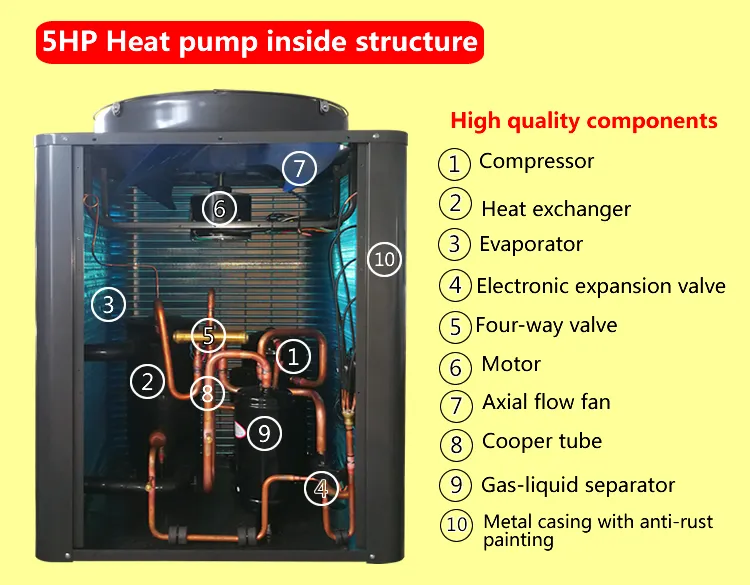

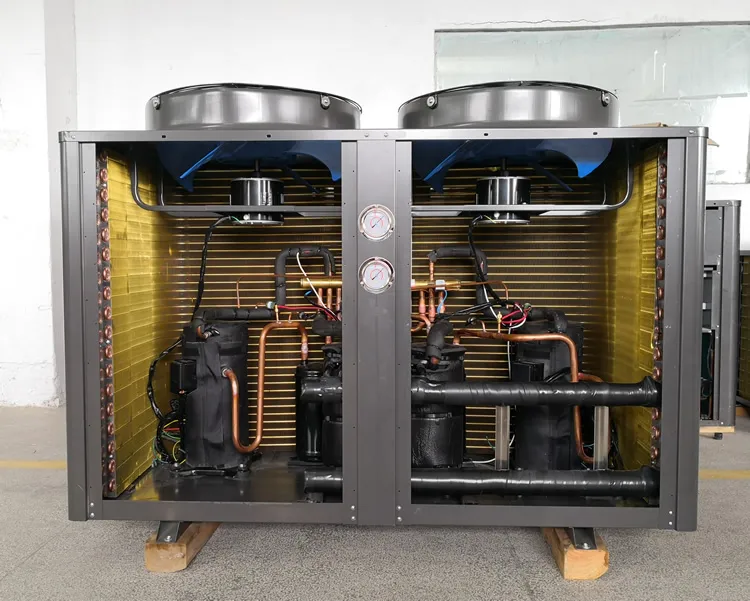

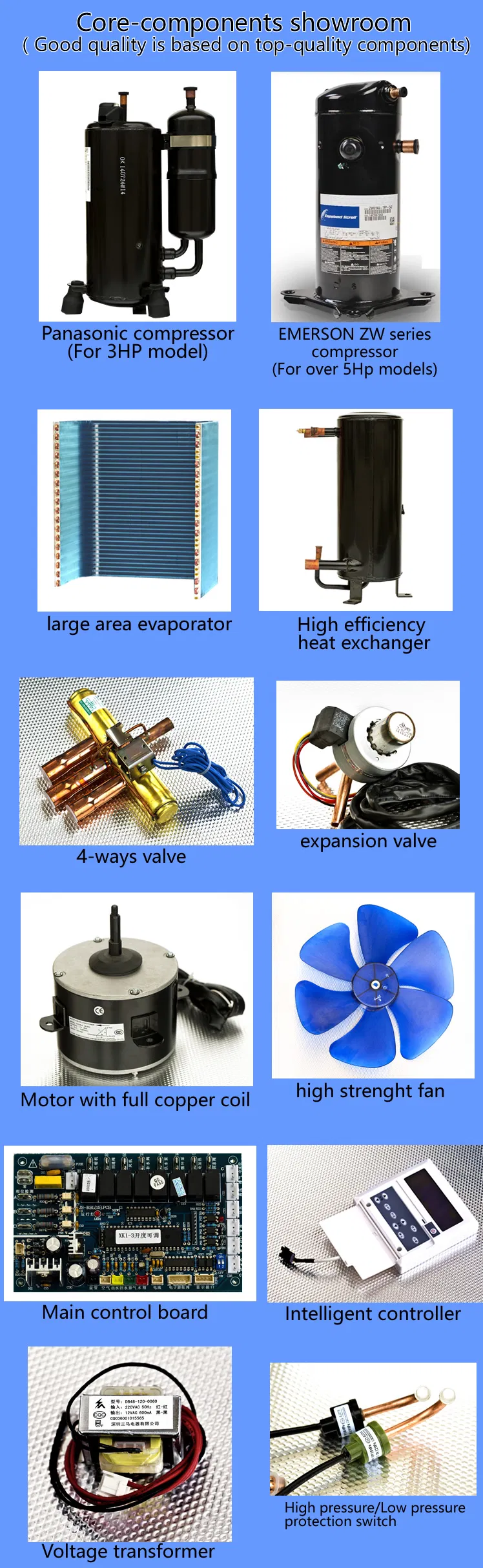

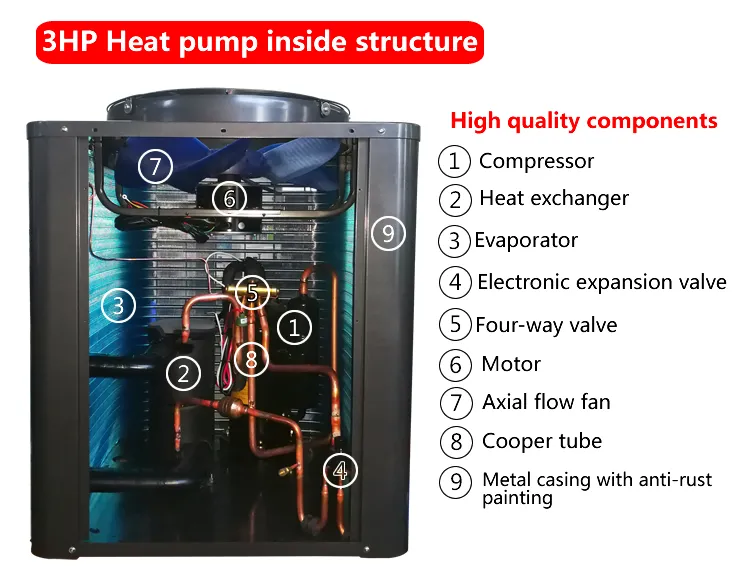

Internal Components & Application Cases

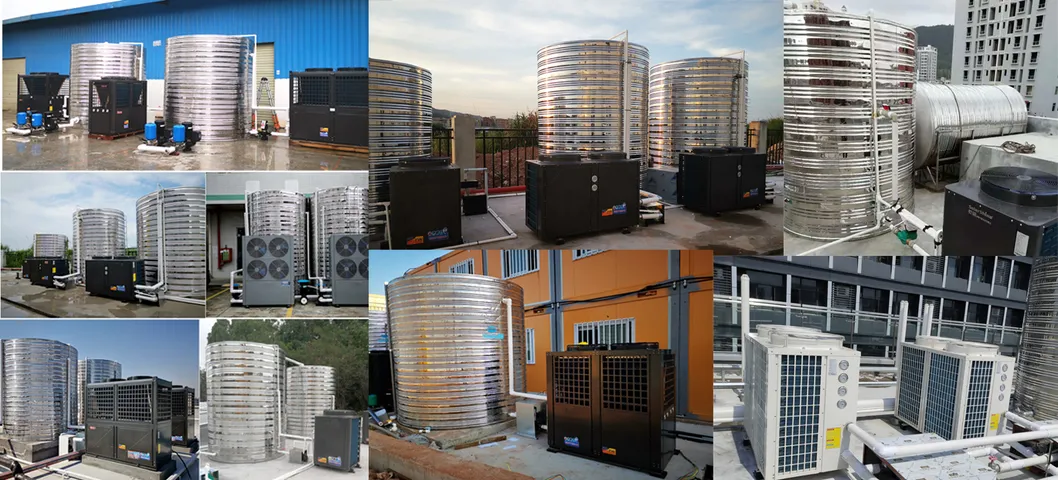

Successful Projects

Frequently Asked Questions

How much energy can I save with this heat pump?

You can save up to 75% in energy costs compared to traditional water heaters like gas/oil boilers or standard electric water heaters.

What is the maximum water temperature the unit can reach?

The rated water temperature is 55°C, with a maximum capability of reaching up to 60°C.

What are the primary applications for these units?

These commercial units are perfect for villas, swimming pools, hotels, school dormitories, hospitals, and industrial factories requiring large-scale water heating.

Does the unit require constant manual monitoring?

No, the unit features a 24-hour timer clock system, allowing for fully automated operation without the need for constant human attendance.

What materials are used for the outer cabinet?

The standard units come with a powder-coated steel plate cabinet, but stainless steel cabinet options are also available for enhanced durability.

Is the heating performance consistent in all climates?

The COP (Coefficient of Performance) is dynamic. While the unit is highly efficient, data may vary according to different climate conditions and local working environments.
