📋 Basic Information
Heat Source Type
Ground Source Heat Pump (GSHP)
Compressor
Mitsubishi/Panasonic Rotary
Throttling Device
Electronic Expansion Valve
Defrosting
Automatic Defrosting
Condensor
High Efficiency Tube in Shell Heat Exchanger
🚀 Product Description

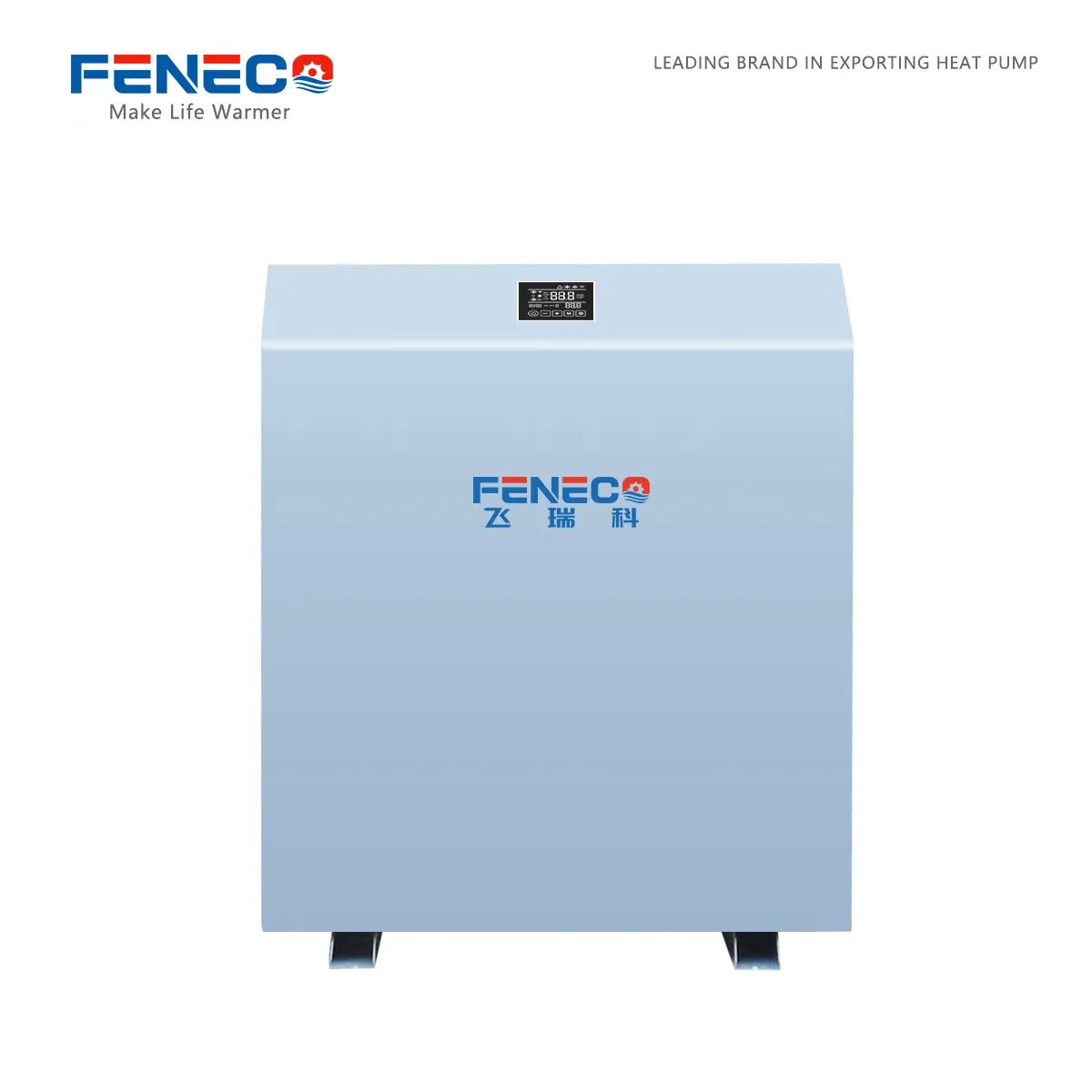

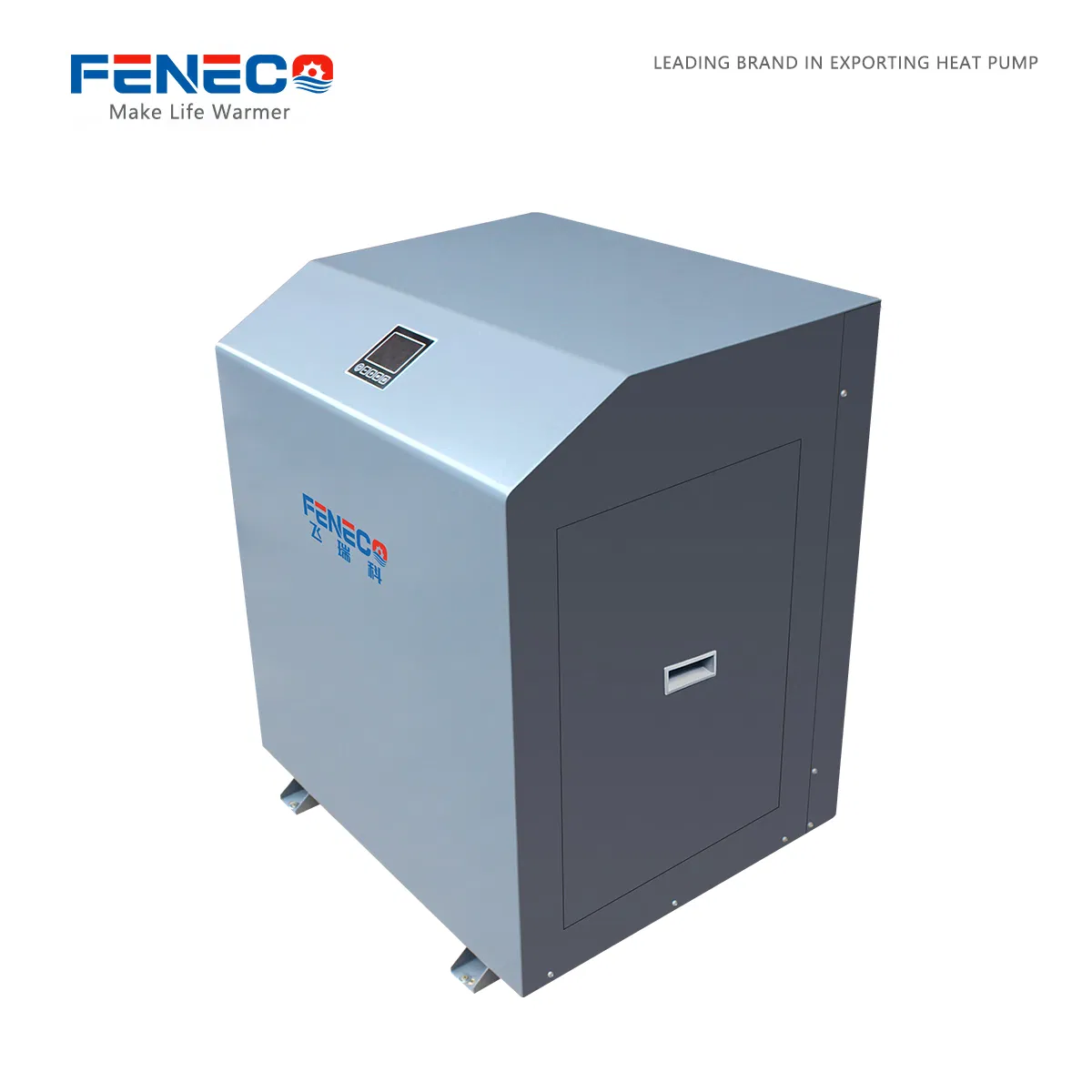

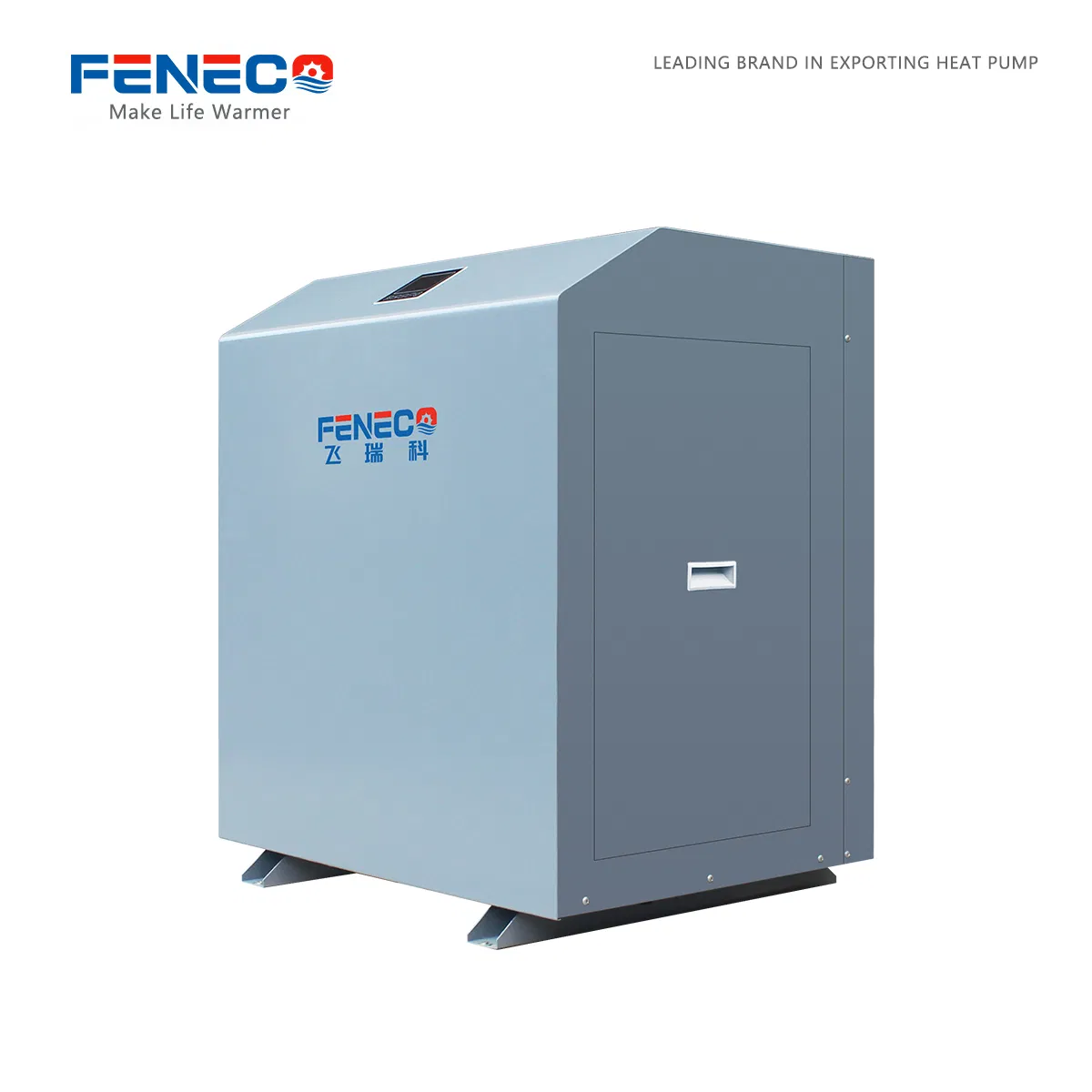

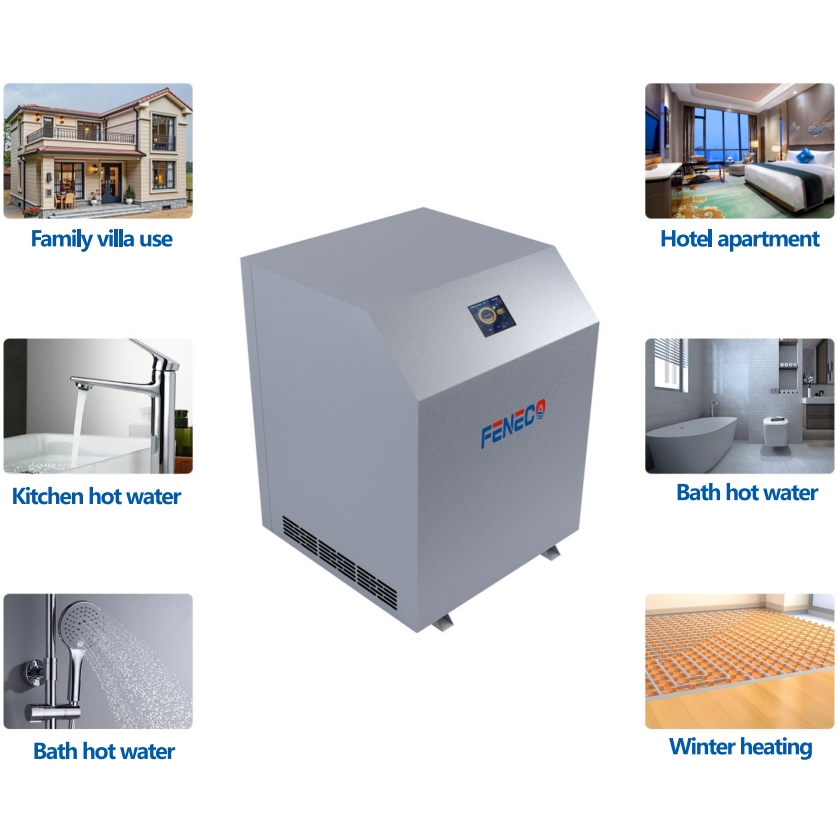

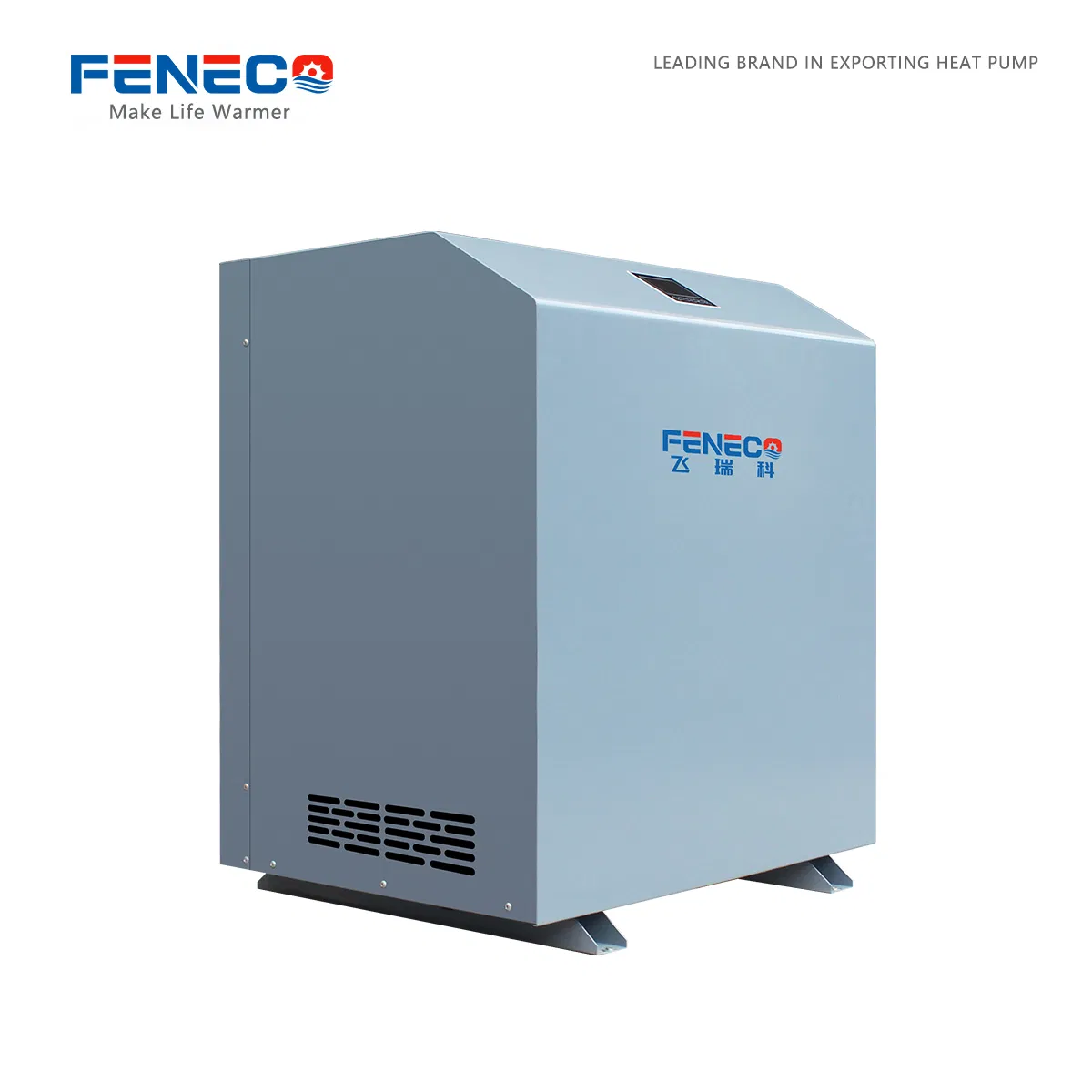

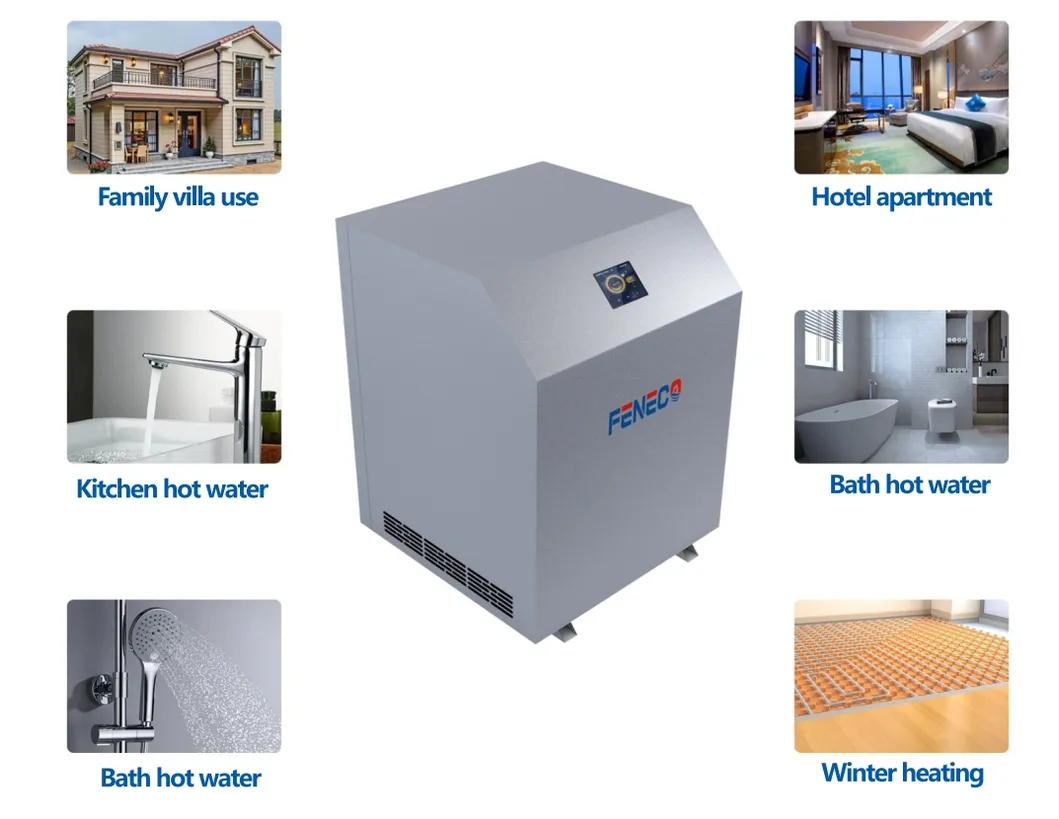

This water to water geothermal heat pump offers high-performance heating with a compact design to achieve floor space saving. Practically all different classes of ground water qualities can be regulated to achieve a heat output up to 200kW. An innovative coil heat exchange made of corrosion-resistant stainless steel with sealed, welded seams ensures that the unit operates reliably. Suitable for villa, school, hotel, family, and office hot water or heating+cooling.
⭐ Key Features
International famous brand hermetic scroll compressors.
Multi-use: with cooling, heating, central hot water.
High efficiency up to 5.0, low maintenance cost.
Convenient for maintenance.
Cooling in summer and heating in winter.
Advanced microcomputer control system.
Thorough security system for year-round operation.
Domestic hot water supplying all year round.
📊 Technical Specifications
| MODEL |
XD-BWHO2BP |
XD-BWHO3BP |
XD-BWHO5BP |
XD-BWHO6BP |
XD-BWHO8BP |
XD-BWH10BP |
XD-BWH15BP |
XD-BWH20BP |
XD-BWH25BP |
XD-BWH30BP |
| Power Supply |
V/Ph/Hz |
220V/1Ph/50Hz |
220V/1P - 380V/3Ph |
380V/3Ph/50Hz |
| Heating Capacity |
kw |
(1.5~7.7)7 |
(2.4~11.2)10 |
(3.5~17)15 |
(4.8~19)17 |
(6~24)23 |
(8.5~34)32 |
(9.8~47)45 |
(15~67)60 |
(16~80)75 |
(18~100)95 |
| Heating COP |
w/w |
4.1~5.65 |
4.12~5.75 |
4.13~5.68 |
4.15~5.71 |
4.11~5.59 |
4.16~5.72 |
4.11~5.62 |
4.10~5.72 |
4.08~5.78 |
4.23~5.75 |
| Noise |
dB(A) |
42 |
44 |
45 |
46 |
48 |
60 |
62 |
65 |
65 |
65 |

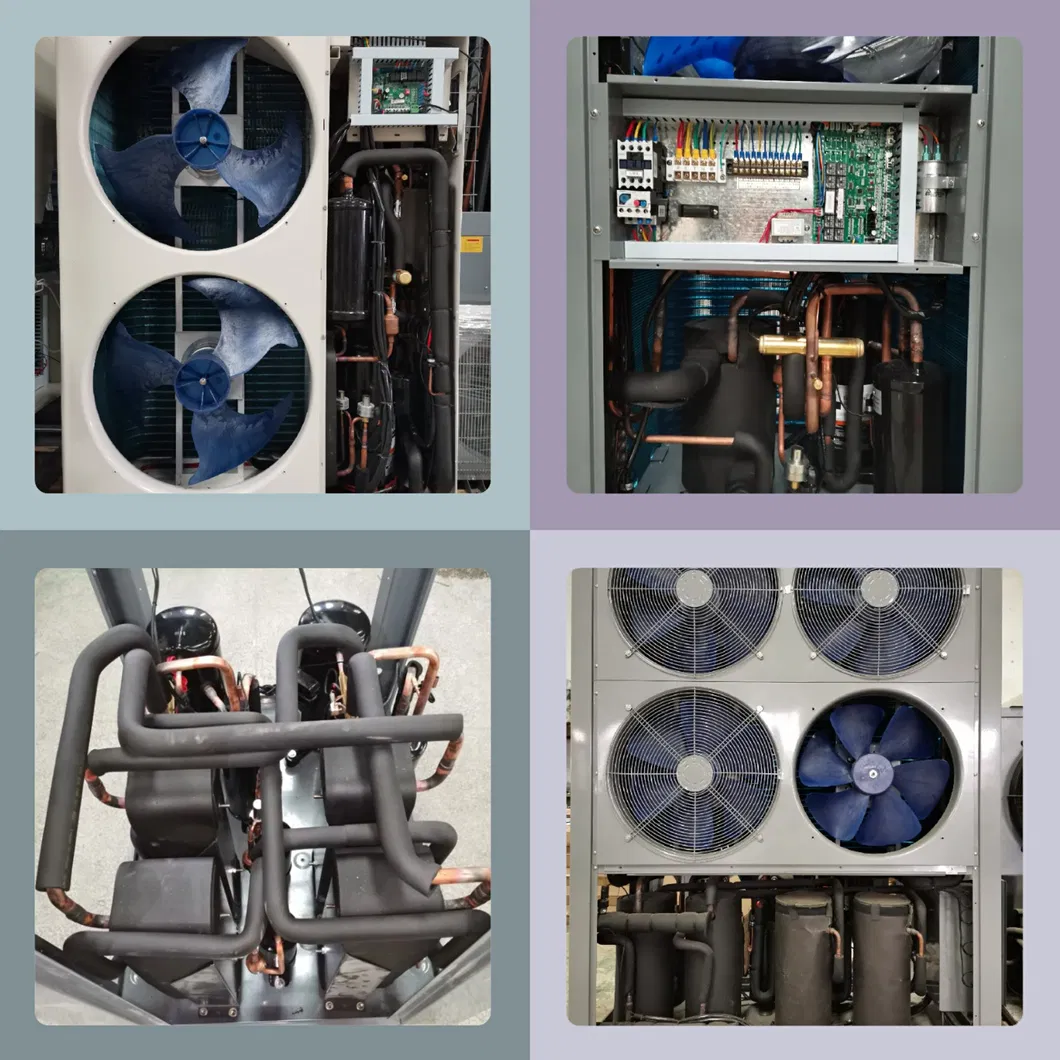

🛠️ Pipeline Design & Layout
Our pipeline design effectively avoids stress vibration points and resonances, ensuring system longevity and reduced noise. The circuit layout is neat, with strong and weak electric lines clearly distinguished for easy installation and maintenance.

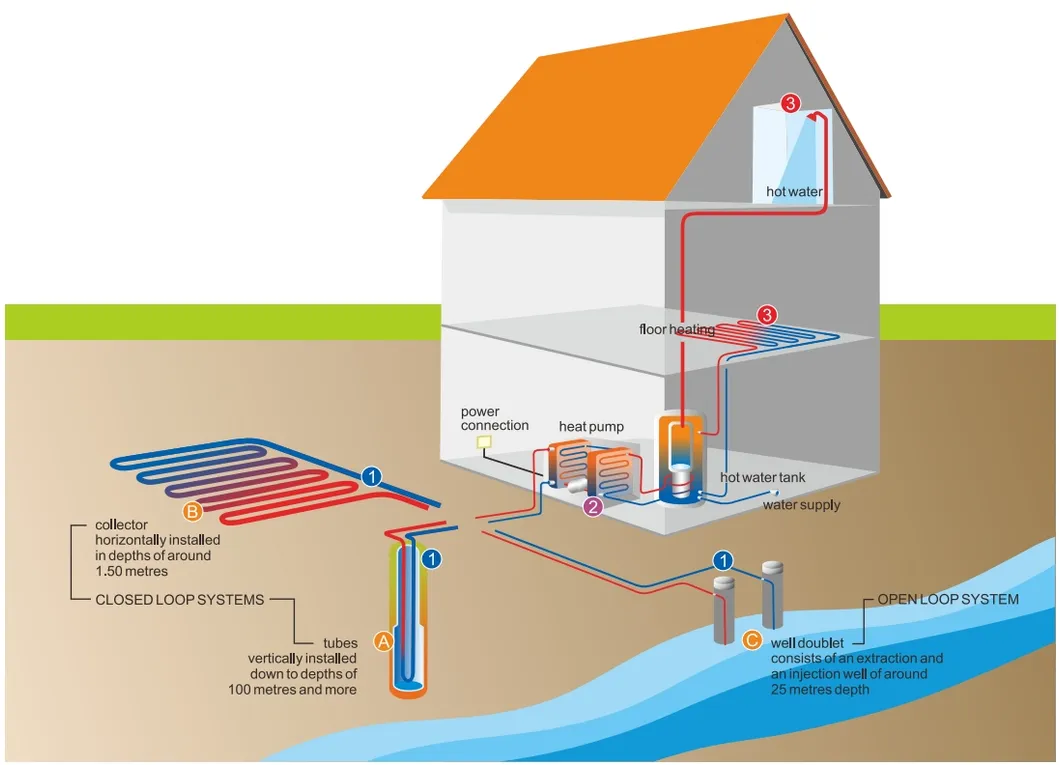

⚙️ Installation Diagram

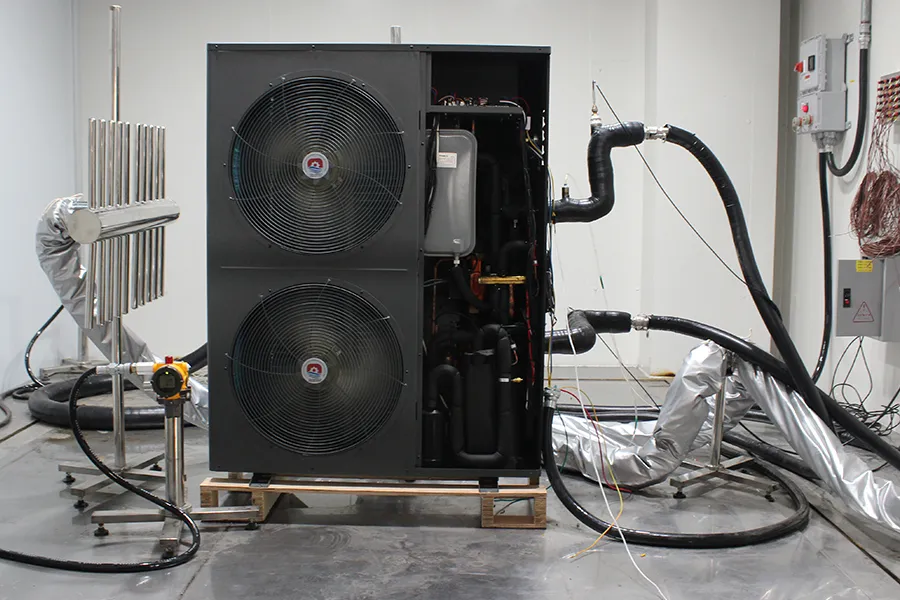

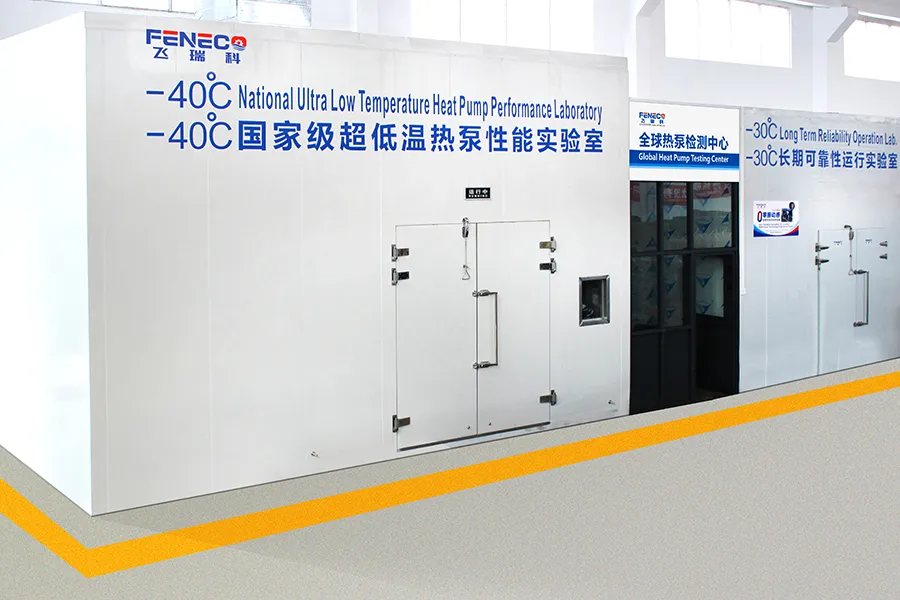

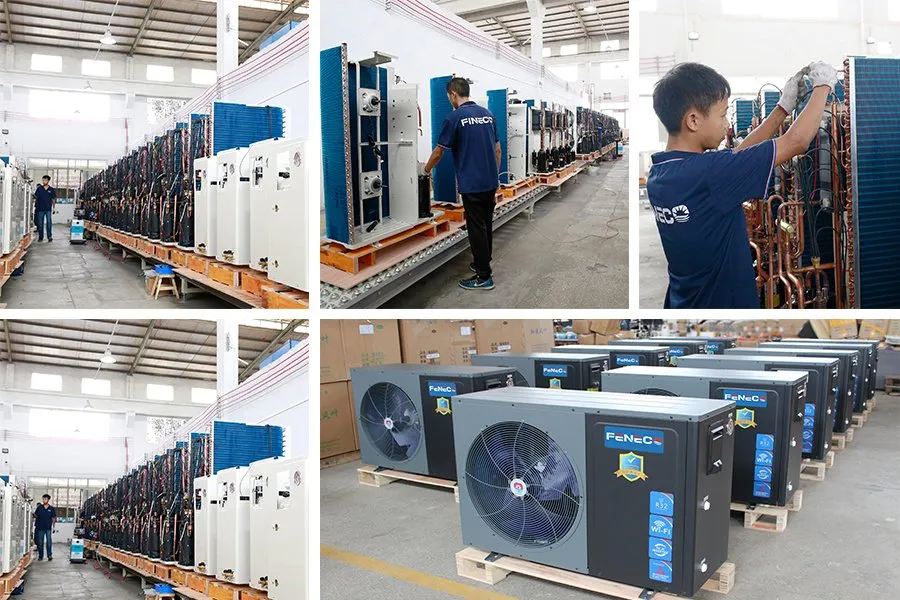

🏭 Production & Quality Control

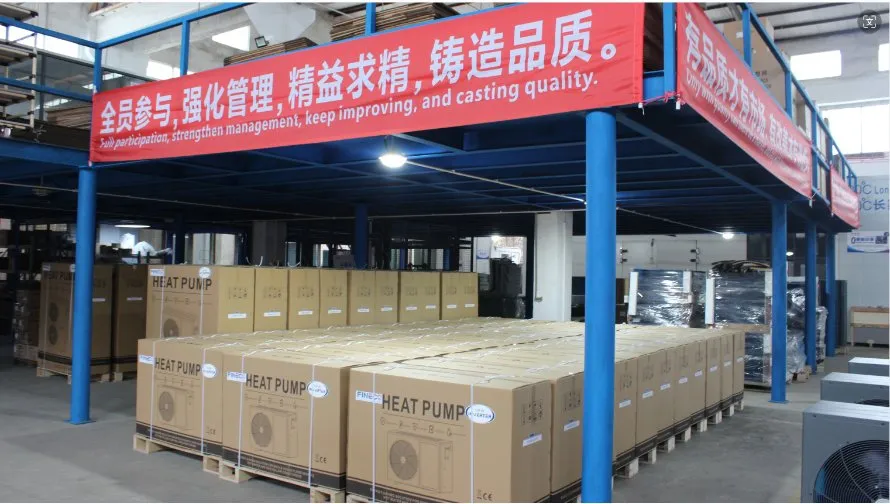

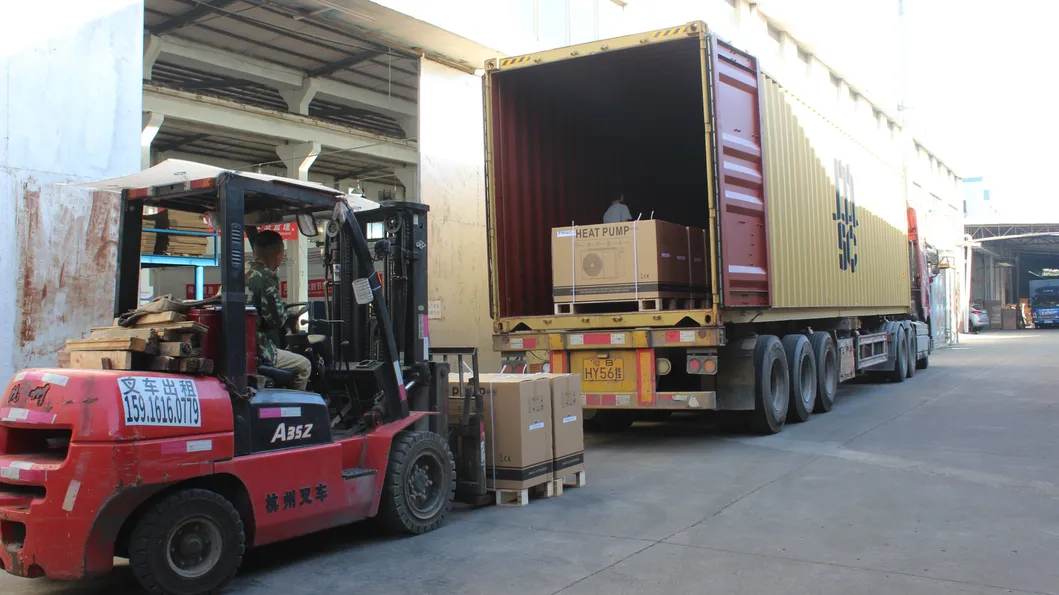

📦 Package & Loading

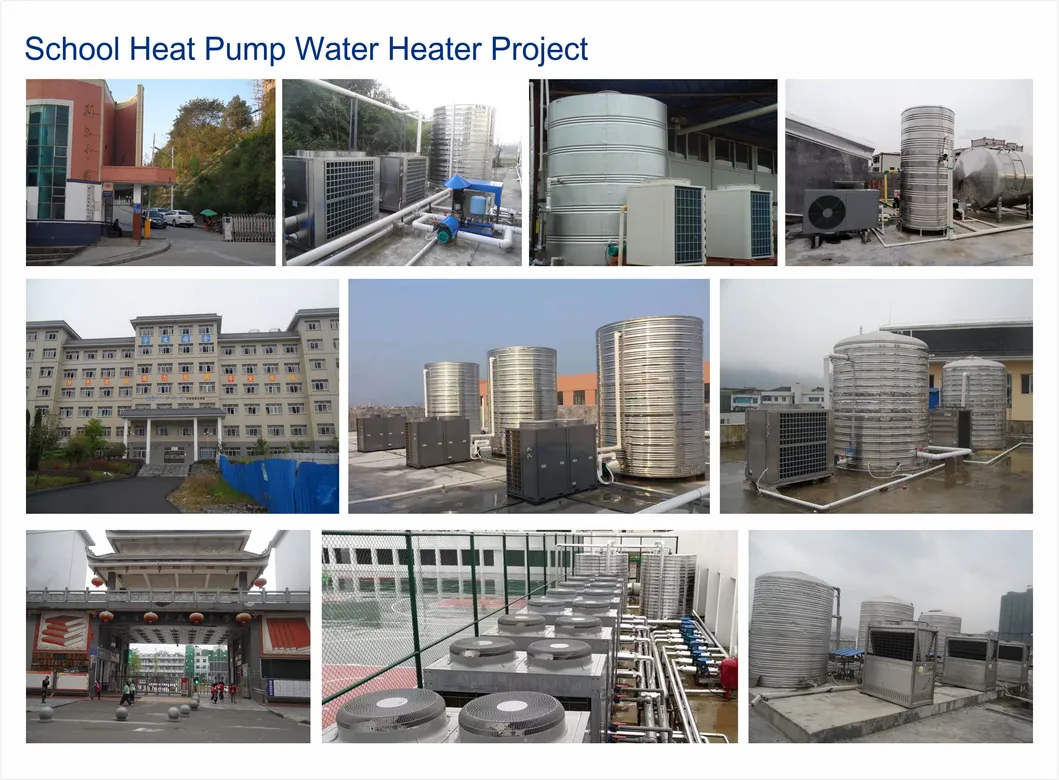

🏘️ Project Cases
❓ Frequently Asked Questions
What types of heat pump products are available?
We offer a full range of products including air to water heat pumps, water to water heat pumps, heat pump driers, industrial water-cooled chillers, and swimming pool heat pumps.
What is the typical delivery time for orders?
Samples typically require 12 days, while mass production for quantities exceeding one container usually takes 2-3 weeks.
Is it possible to purchase a single sample for testing?
Yes, we welcome sample orders for quality testing and verification. Mixed samples are also acceptable with a low MOQ of just 1 piece.

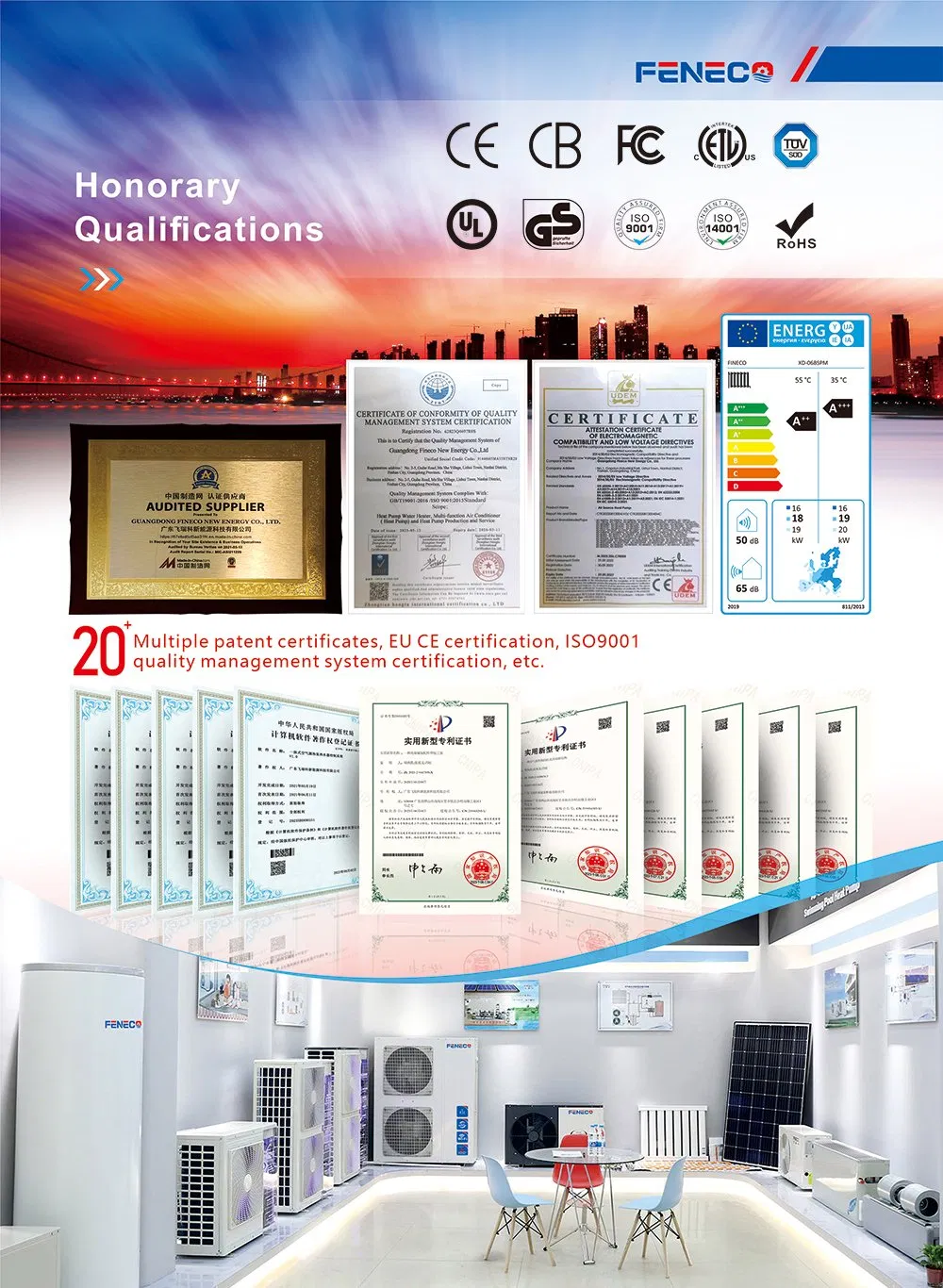

What quality certifications do your products hold?
Our products hold multiple international certifications, including CE, RoHS, SGS, ISO9001, ISO14001, and CB, along with various technology patents.
What kind of warranty and support do you provide?
We provide a 3-year warranty for main components and include 1% free spare parts with mass orders. We also offer 24-hour online technical service and marketing support.
Do you accept OEM orders?
Yes, legal OEM branding is accepted. Please provide your logo and brand authorization prior to the start of production.
