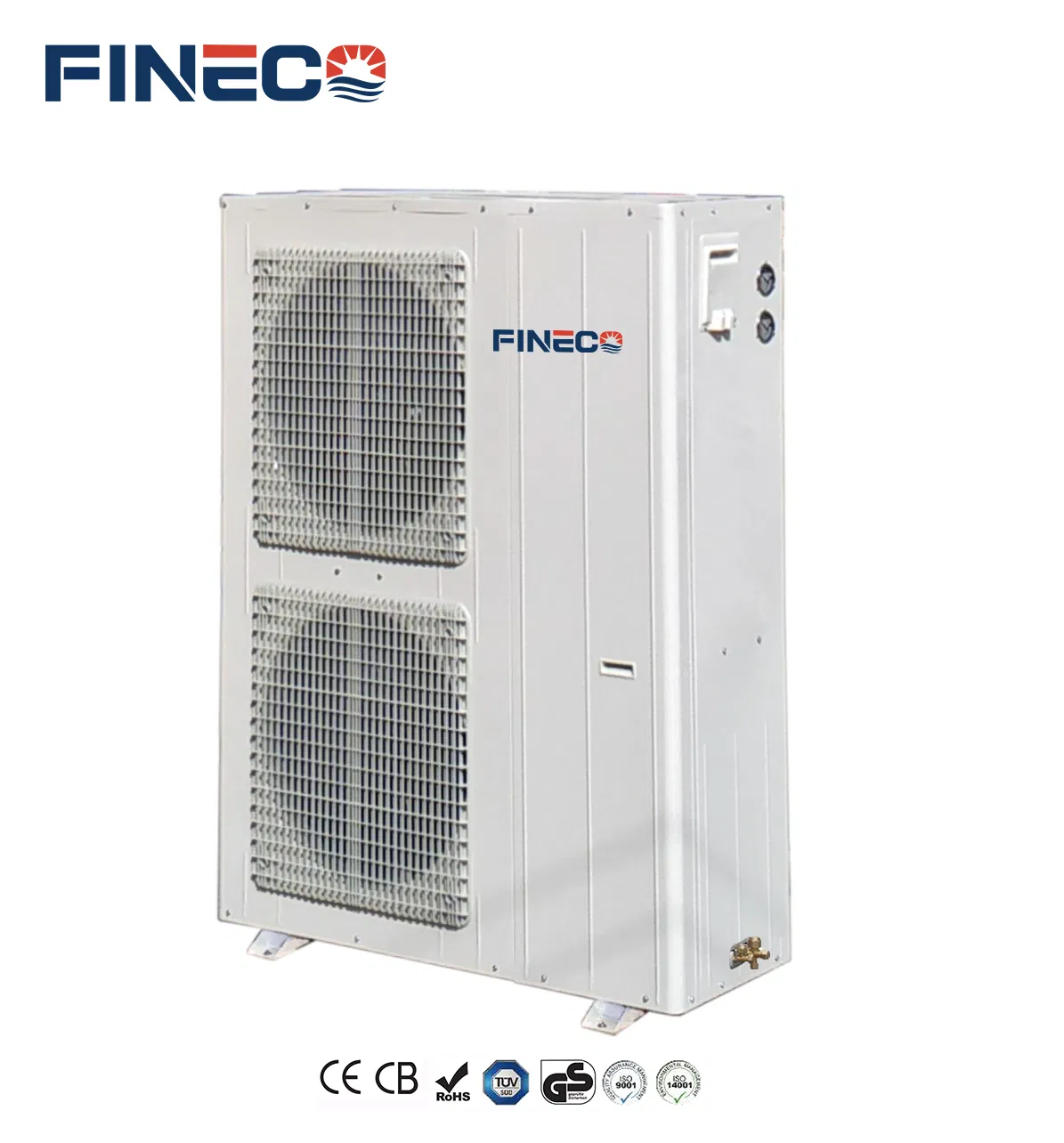

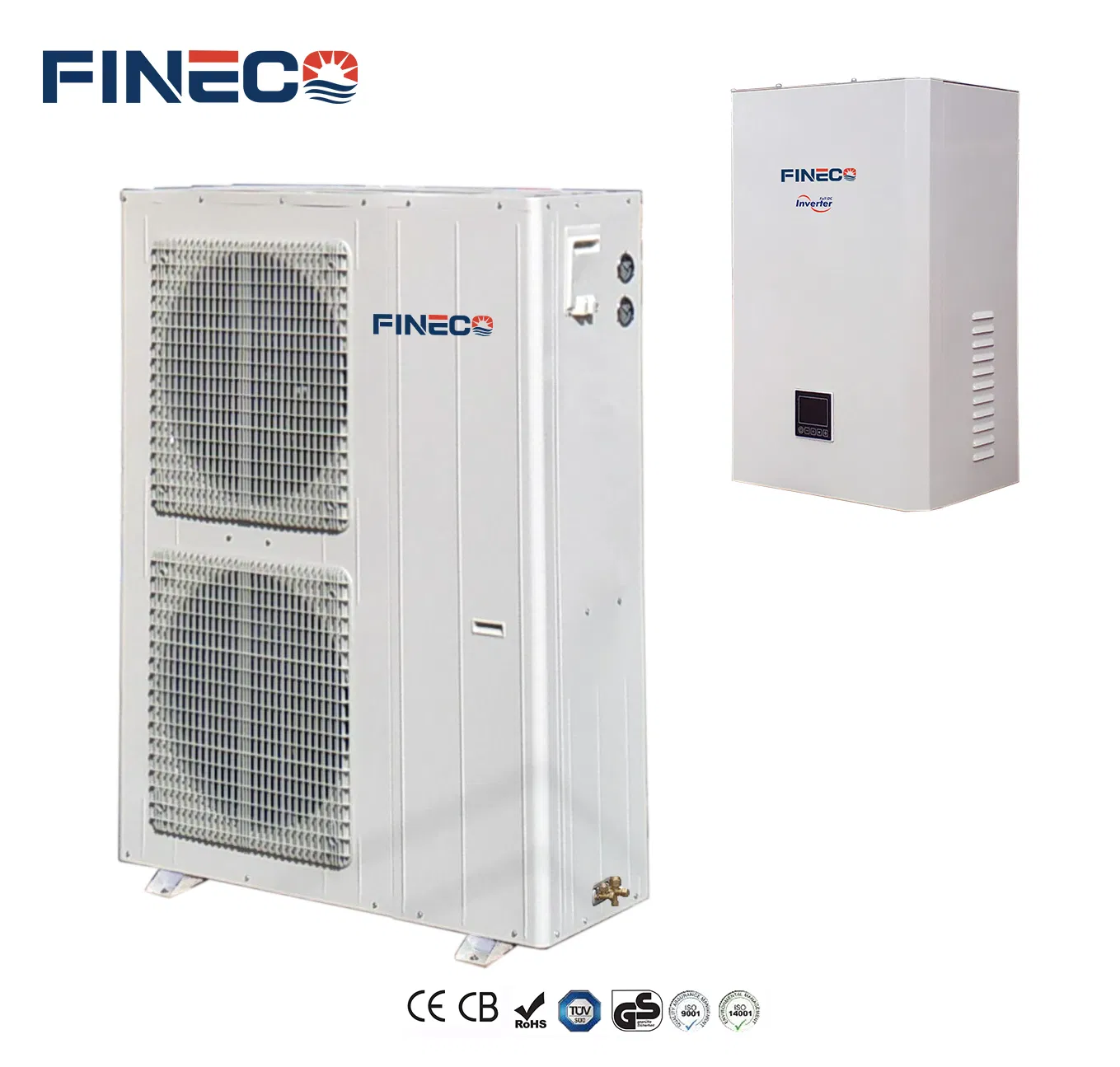

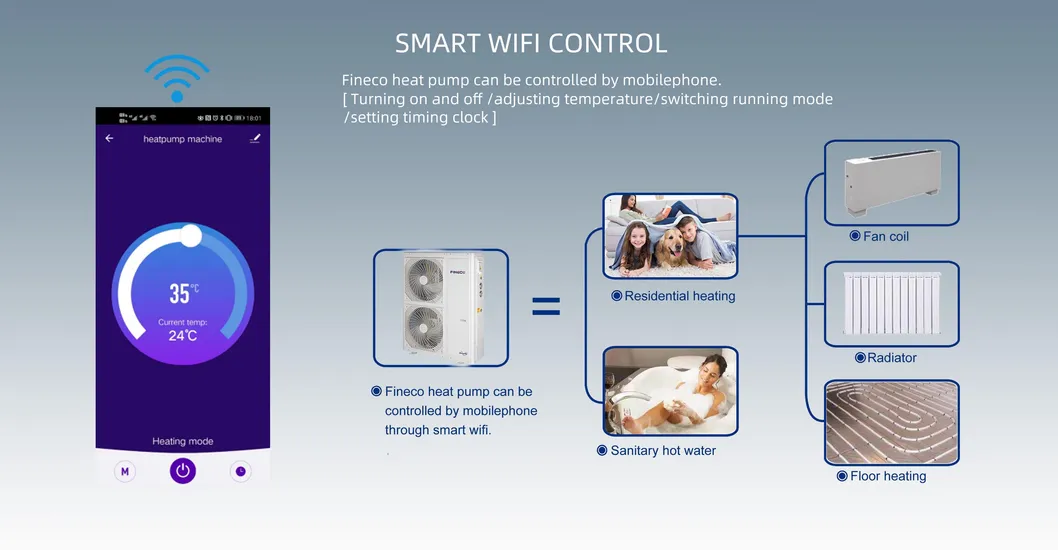

The DC inverter EVI Split Heat pump adopts advanced EVI and DC inverter heat pump technology to achieve high efficiency. It provides you a convenient way to control units by the intelligent WIFI control system. Besides, the heat pump run outside with split design, brings you quiet and comfortable home life. Suitable for villa, school, hotel, family, and office, etc.
| MODEL | XD-03BSPM | XD-05BSPM (220V) | XD-06BSPM (220V) | XD-05BSPM (380V) | XD-06BSPM (380V) | XD-08BSPM | |
| Working Temp Range | -25 ~ 43ºC | ||||||
| Power Supply | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 380-415V/50Hz | 380-415V/50Hz | 380-415V/50Hz | |
| A7W35 | Heating capacity (kW) | 10(3-11) | 15(4-16) | 18(4-20) | 15(4-16) | 18(4-20) | 24(5-27) |
| Input power (kW) | 2.30 | 3.65 | 4.45 | 3.72 | 4.40 | 6.00 | |
| Rated current (A) | 10.50 | 16.50 | 19.00 | 5.70 | 6.70 | 9.10 | |
| COP | 4.00 | 4.11 | 4.04 | 4.03 | 4.10 | 4.00 | |
| Noise (dB(A)) | ≤55 | ≤60 | ≤60 | ≤60 | ≤60 | ≤70 | |

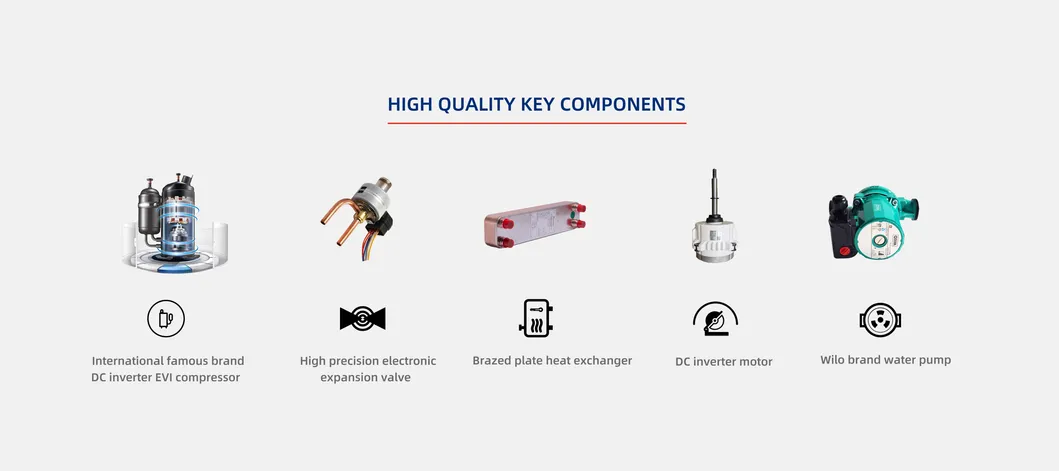

| Compressor | Panasonic Rotary EVI DC inverter / Mitsubishi Inverter | ||||||

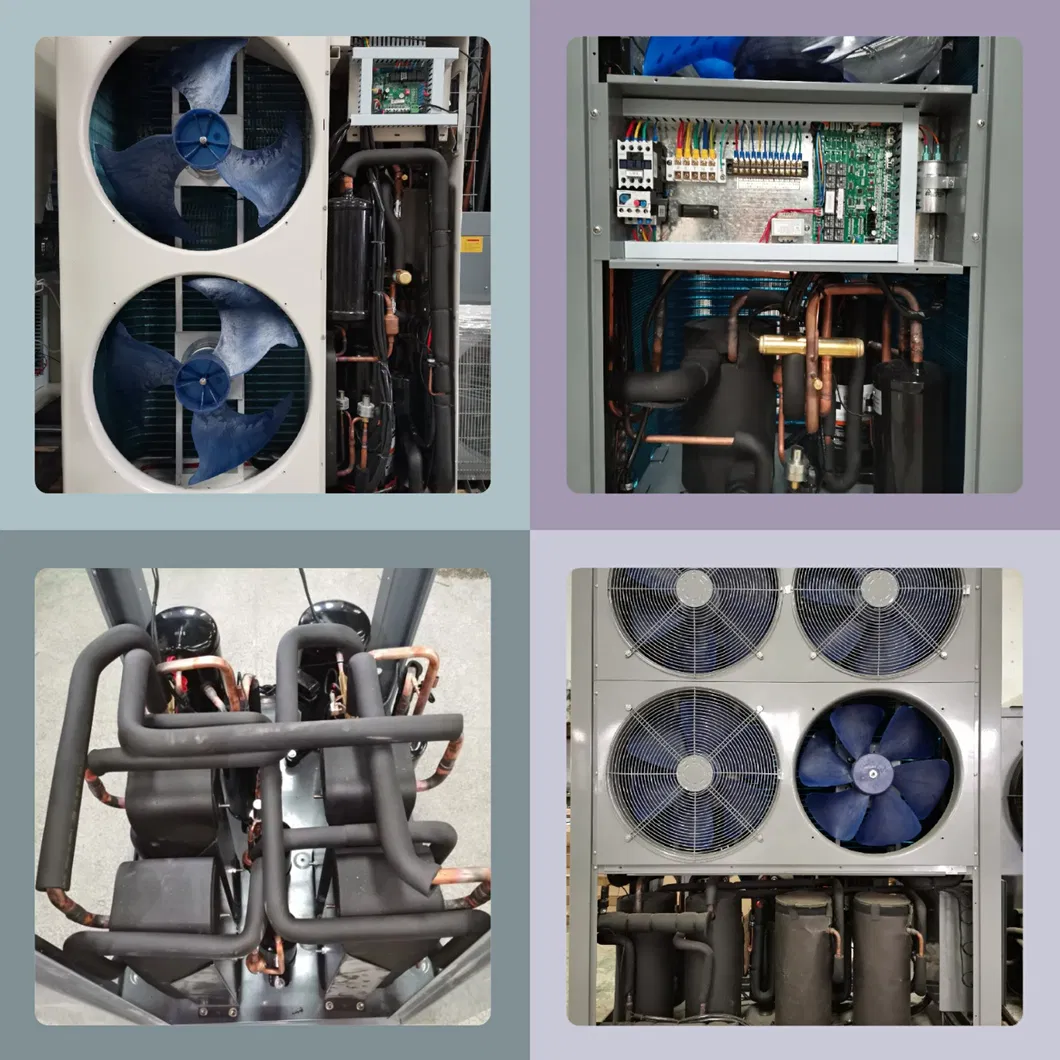

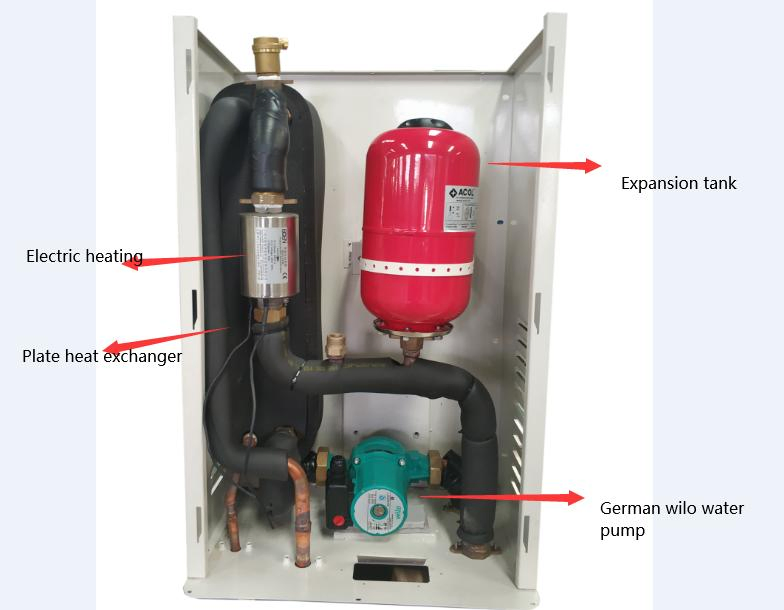

Our pipeline design effectively avoids stress vibration points and pipeline resonance, ensuring long-term system life and reduced operational noise. The circuit layout is neat, with clear distinction between strong and weak electric lines for safe installation. Important heat exchange components are covered with thick insulation cotton to minimize heat loss.
