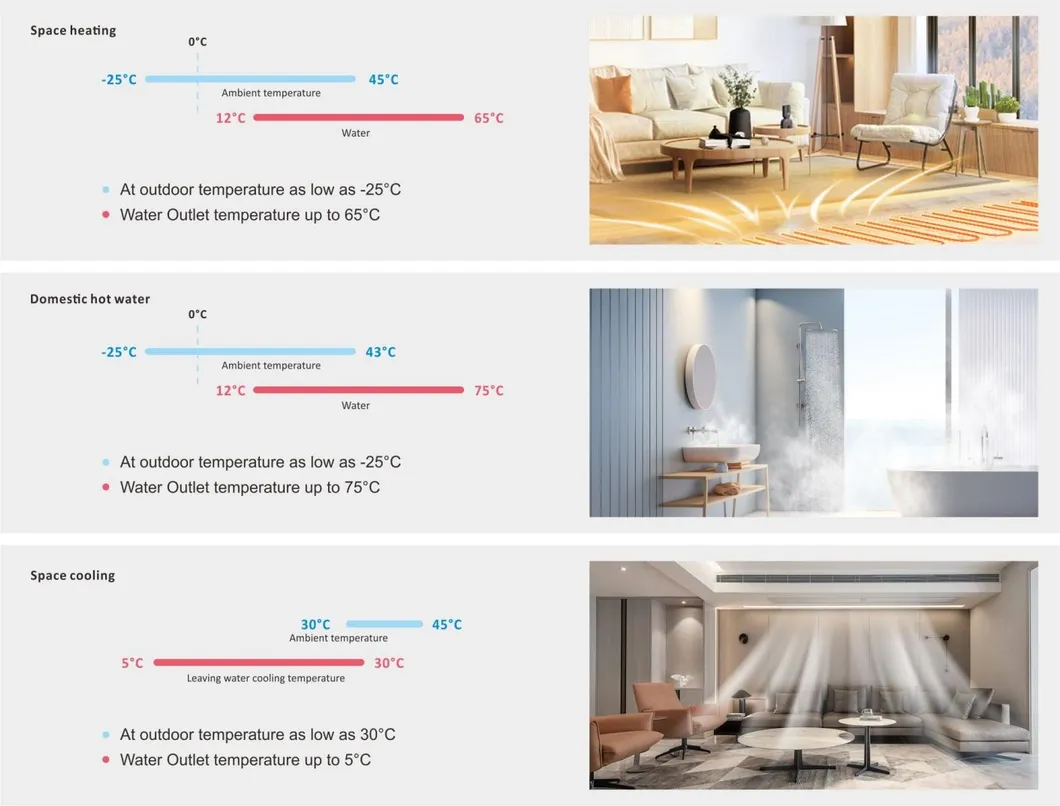

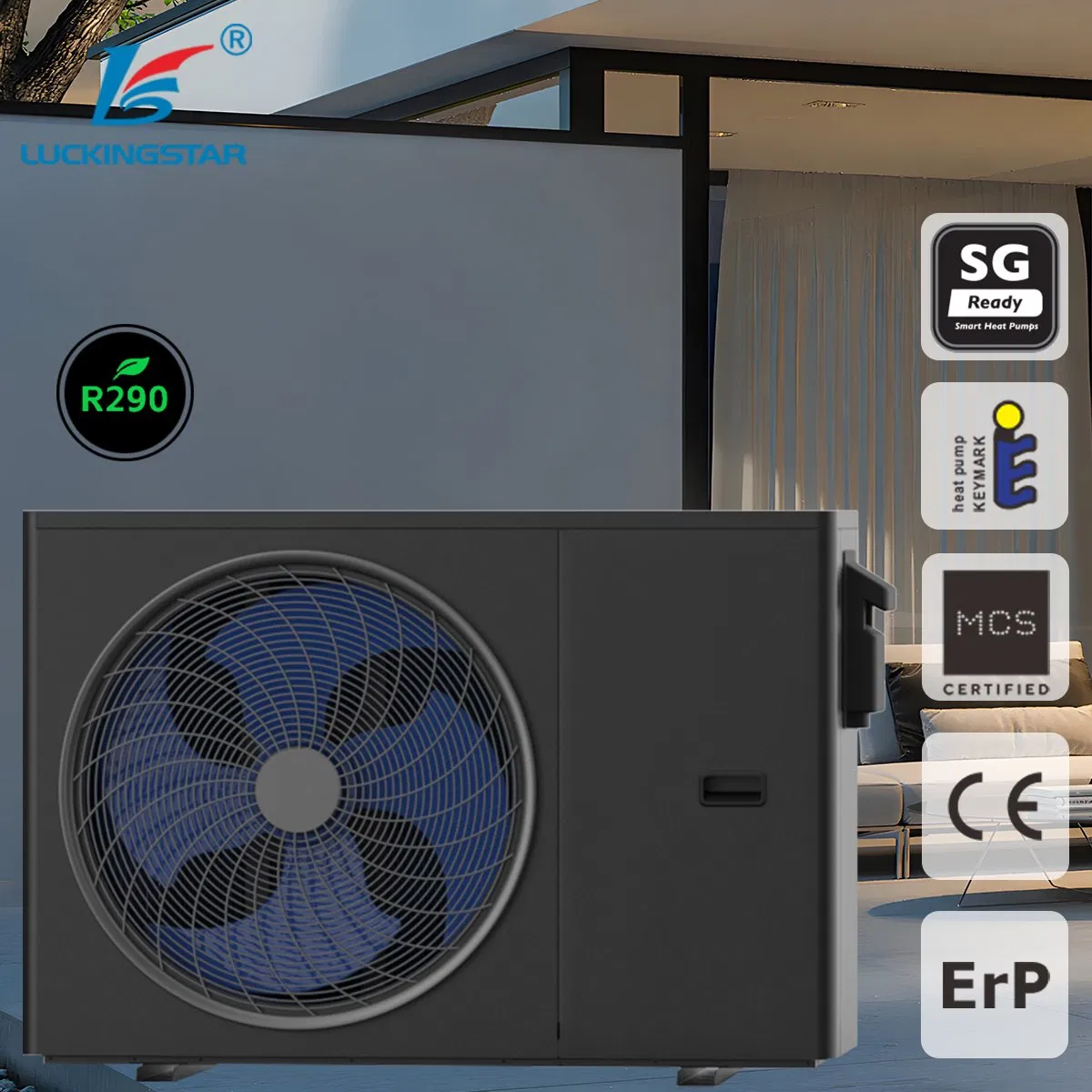

The perfect performance of the R290 Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year (stable and reliable operation at -25ºC):

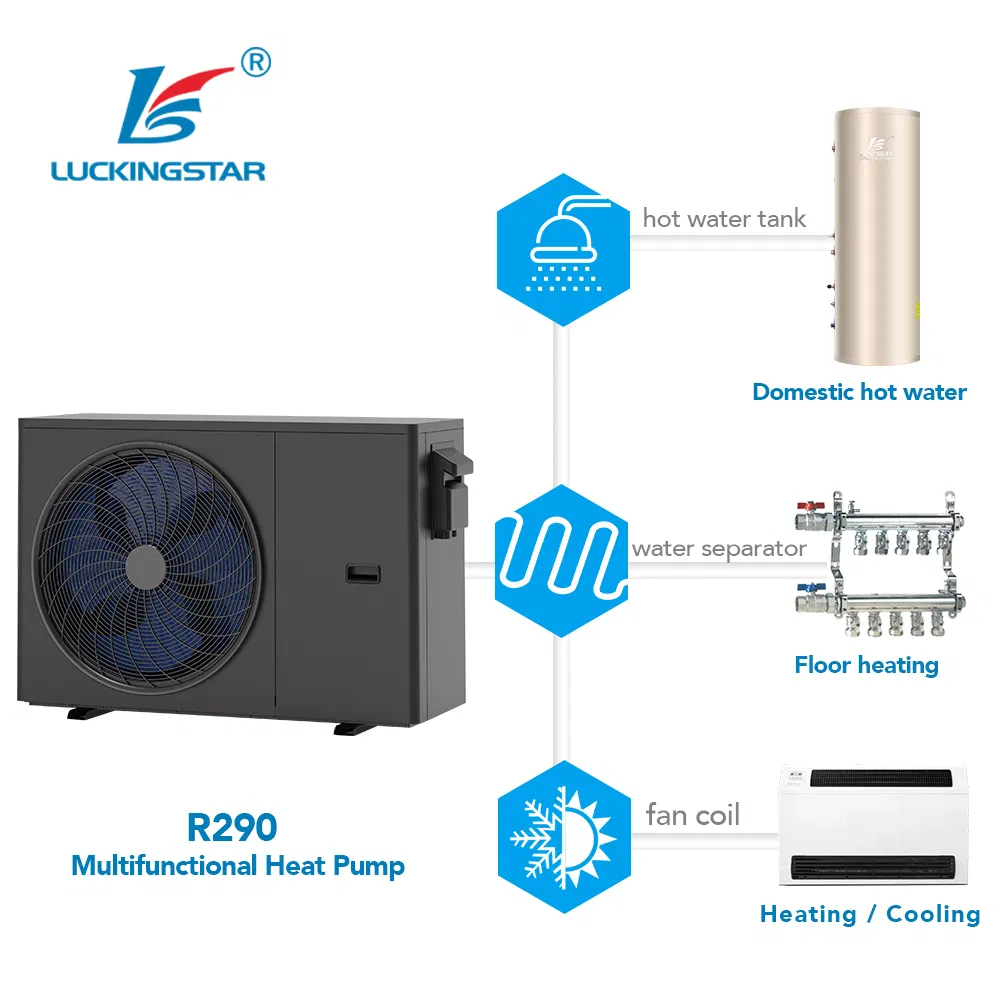

• Domestic Hot Water Only • Cooling Only • Heating Only • Heating+ DHW (Priority) • Cooling+ DHW (Priority)

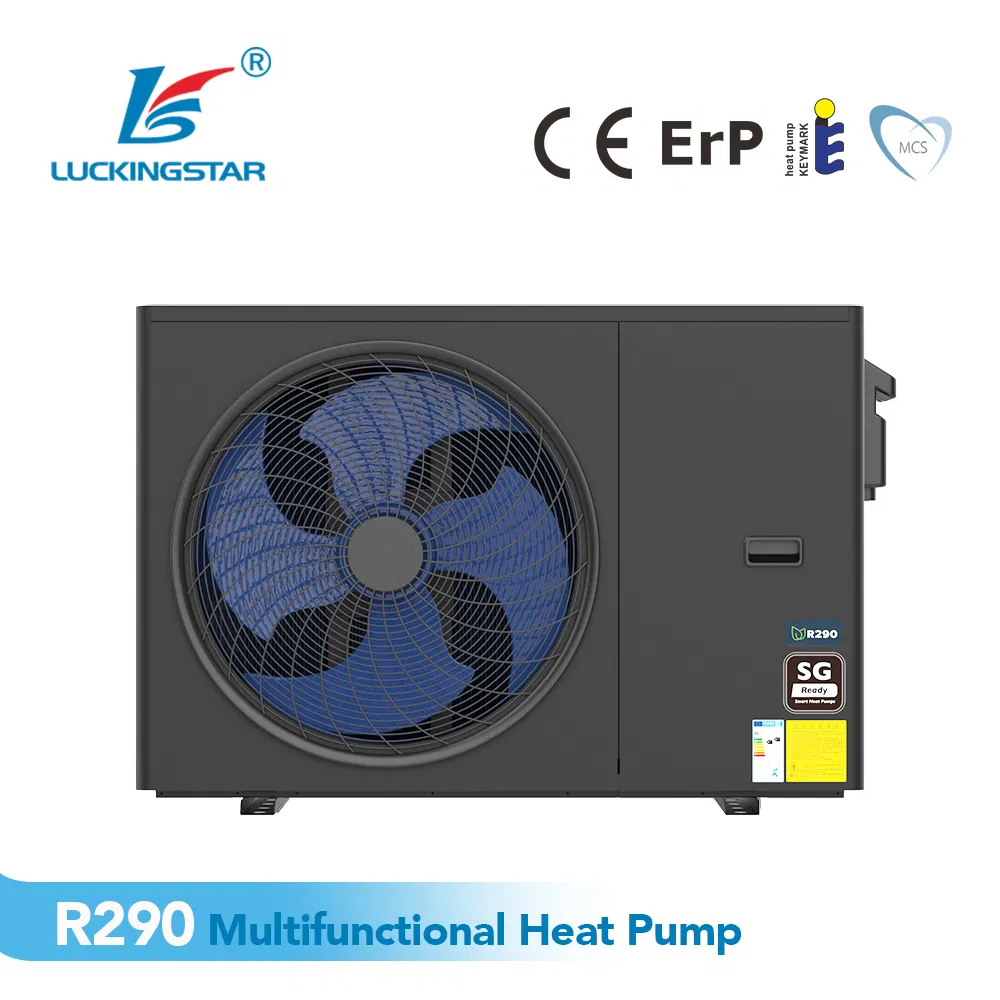

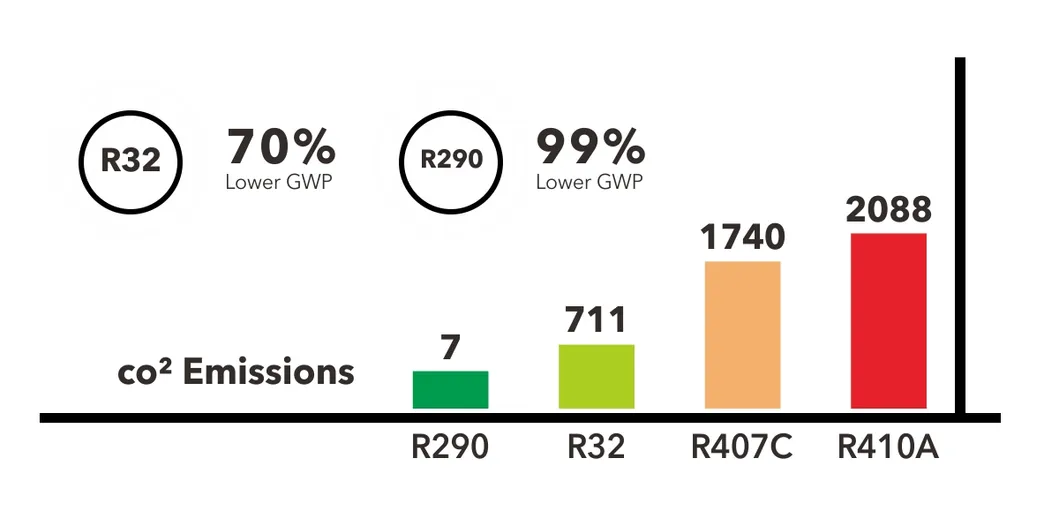

R290 refrigerant, also known as propane, has unique adaptability to hot climates. It features high thermal conductivity, large latent heat of evaporation, and small compressor load, which extends the service life of the compressor and can save energy by about 30%.
Uncompromised Low Ambient Performance: 100% Rated Output at -10°C ambient temperature. Intelligent defrost logic avoids unnecessary defrosting or leaving frost unremoved.
Higher Leaving Water Temperature: Maximum water temperature can reach 75°C, ideal for replacing gas boilers with radiators.

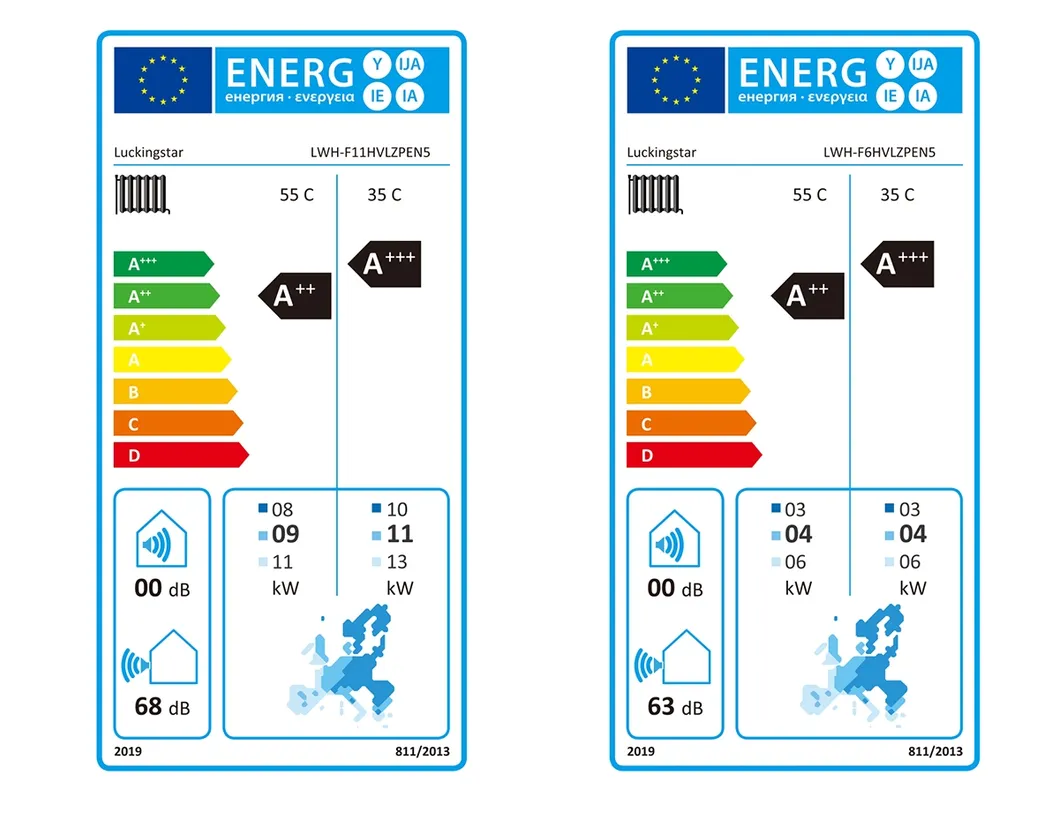

Environment-Friendly Design: Achieves A+++ energy efficiency rating for both 35°C and 55°C water temperature conditions.
Smart Grid Function (SG Ready): Automatically turns on to store surplus energy from photovoltaic (PV) systems.
Anti-freeze Logic: Activates when water falls below 5°C. System maintains water temperature around 15°C with high accuracy.
Cascade & Hybrid Application: Combine up to 16 units in one system. Easily integrated with third-party boilers via Modbus.
Multi-function controller with visualized energy reports. The Smart APP allows for remote temperature adjustment, mode switching, and OTA updates from your smartphone.

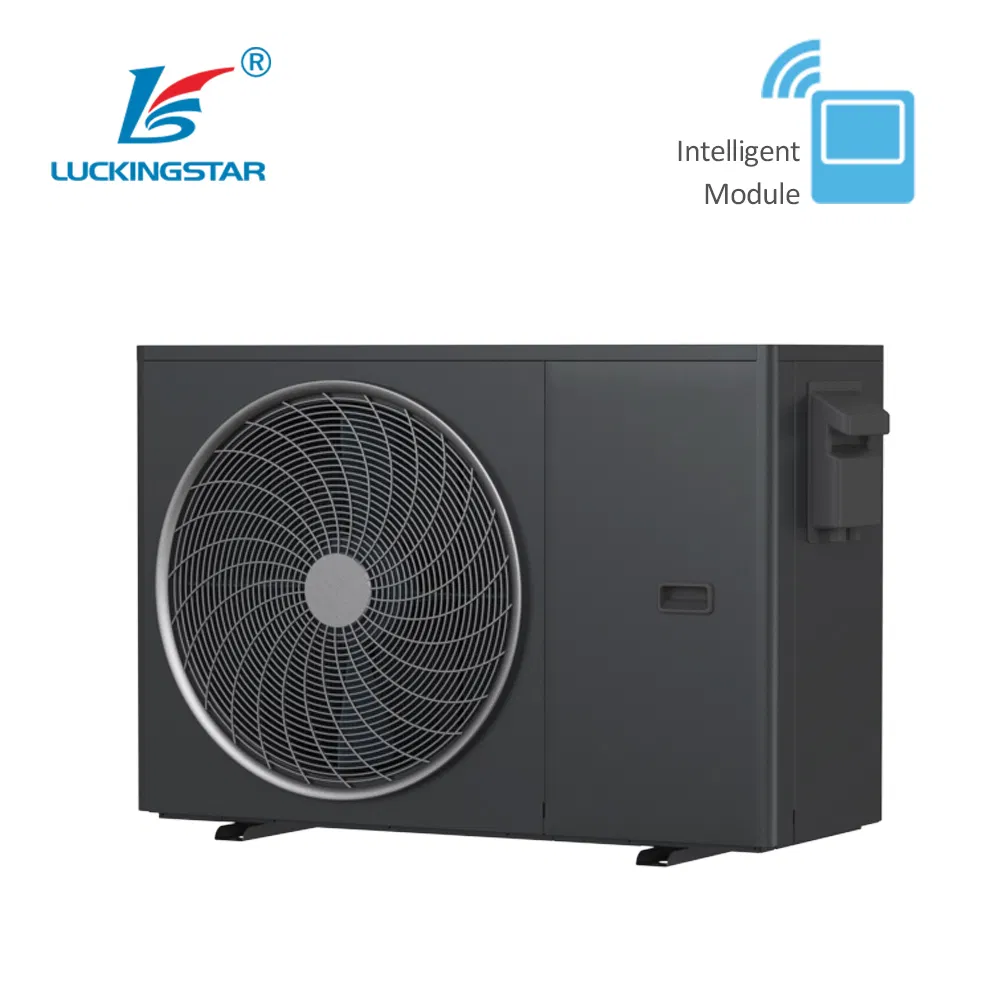

| Model: LWH- | F8HVLZPN9 | F11HVLZPN9 | F15HVLZPN9 | F11HVZPN9 | F15HVZPN9 | F18HVZPN9 |
|---|---|---|---|---|---|---|
| Power Supply | 220~240V~/50Hz | 380~415V/3N~/50Hz | ||||
| Heating Capacity (kW) (30/35°C) | 3.50~8.25 | 4.50~11.35 | 6.00~15.12 | 4.58~11.36 | 6.08~15.10 | 6.79~17.98 |
| COP (30/35°C) | 6.00~4.53 | 5.76~4.52 | 5.77~4.52 | 5.79~4.52 | 5.79~4.52 | 6.06~4.50 |
| Heating Capacity (kW) (50/55°C) | 3.15~7.98 | 3.90~11.25 | 5.40~15.01 | 3.86~11.20 | 5.49~14.98 | 6.80~17.95 |
| Max. Outlet Water Temp. (°C) | 75 | |||||
| Operation Range (°C) | -25~45 | |||||
| Refrigerant Weight (KG) | 1.05 | 1.2 | 1.5 | 1.2 | 1.5 | 1.6 |
| Net weight (kg) | 120 | 136 | 150 | 150 | 160 | 175 |

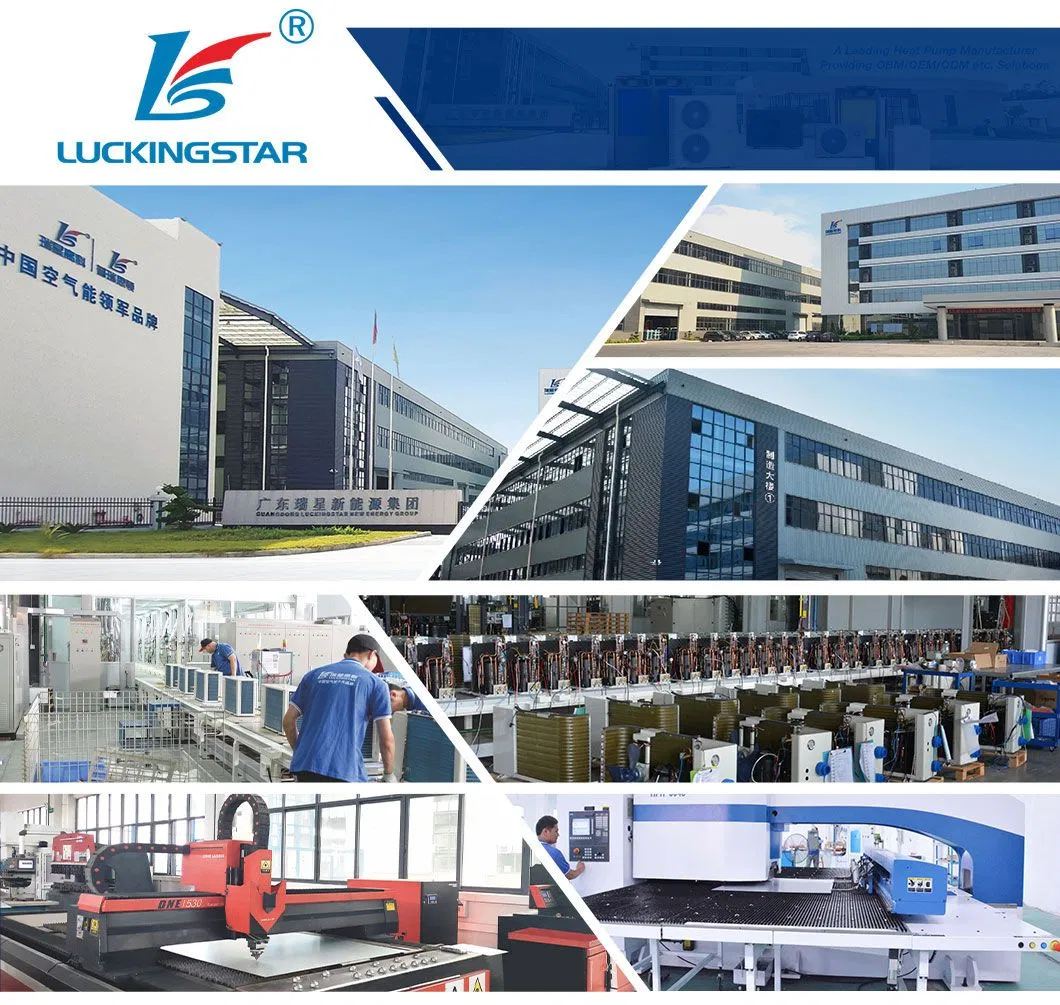

A: We are a professional heat pump manufacturer with extensive R&D. If you are looking for a leading heat pump supplier, please contact us immediately!
A: Yes, we can handle OEM, ODM, and OBM based on your requirements. We are familiar with all types of global cooperation models.
A: For official orders, our MOQ is a full container load of a 40-foot container.
A: For samples, it is typically 10-20 days. For mass orders, it is 30-35 days, subject to discussion.
A: Typically by T/T. Sample/LCL orders: 100% paid before production. Mass orders: 30% down payment, balance paid before shipment.
A: 24 months for complete units, 36 months for main components like compressors and heat exchangers. Extended 3-5 year warranties are available at additional cost.
