Duplex Inner Tank All in One Heat Pump Water Heater System

1 / 1

Duplex Inner Tank All in One Heat Pump Water Heater System

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	50-70°C

Send Inquiry

Product Description

📋 Basic Specifications

Model NO.

KH80-A/200L

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, CB, RoHS

Heating Capacity

2.8kw

COP

3.5

Power Supply

220~240V/50Hz

Compressor Type

Rotary

Fan Discharging

Top with 5m Exhaust Pipe

Tank Material

Duplex/SS304

🚀 Product Description

Duplex inner tank all in one heat pump water heater system

The all-in-one heat pump is specifically designed for domestic sanitary hot water. As an aesthetically pleasing piece of equipment, it can be conveniently installed indoors. It operates with 3 times higher efficiency compared to gas boilers or electrical heaters and can also be integrated with solar heating systems, significantly reducing energy costs for users.

📊 Technical Parameters (Duplex/SS304)

Model	Unit	KH80-A/150L	KH80-A/200L	KH80-A/300L	KH80-A/300L
Heating capacity	Kw	2.8	2.8	2.8	2.8
COP	-	3.5	3.5	3.5	3.5
Water tank volume	L	150	200	300	300
Rated output	L/h	60	60	60	60
Rated outlet temp	ºC	55
Max outlet temp	ºC	60
Rated power input	w	800	800	800	800
Electric heater	w	2000
Tank material	-	Duplex/SS304
Noise level	dB(A)	≤43

⚙️ Key Features

High Efficiency: R410A/R134A rotary compressor for optimal performance.

Premium Tank: Built with high-grade Duplex/SS 304 stainless steel.

Advanced Cooling: Exhaust aluminium coil and axial fan motor.

Safety First: IP*4 security protection and TP valve for safety guarantee.

Protection: Equipped with magnesium anode to prevent corrosion.

Smart Logic: Intelligent defrosting and easy-to-use operation interface.

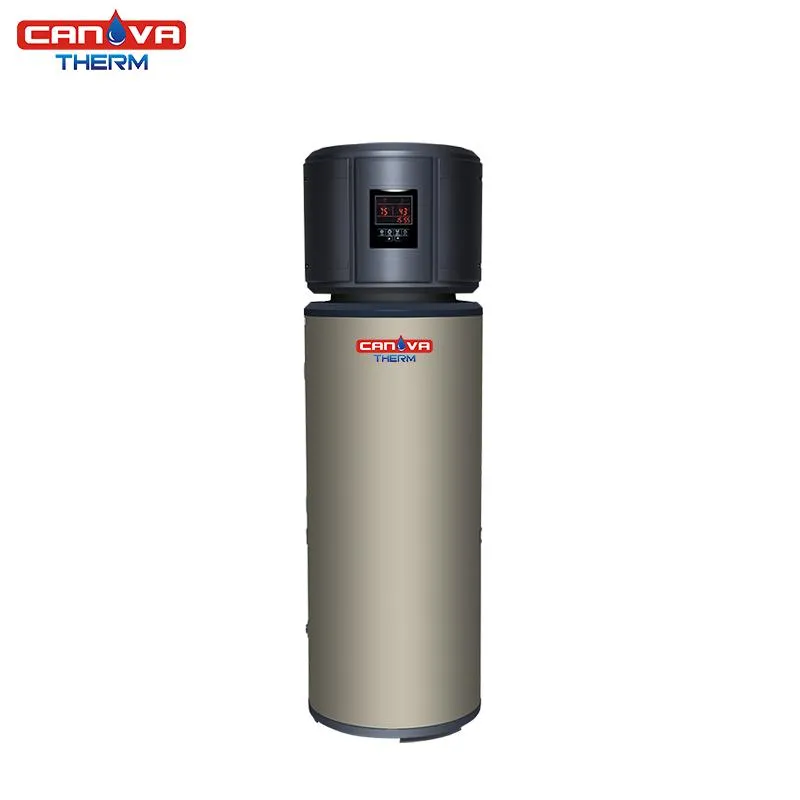

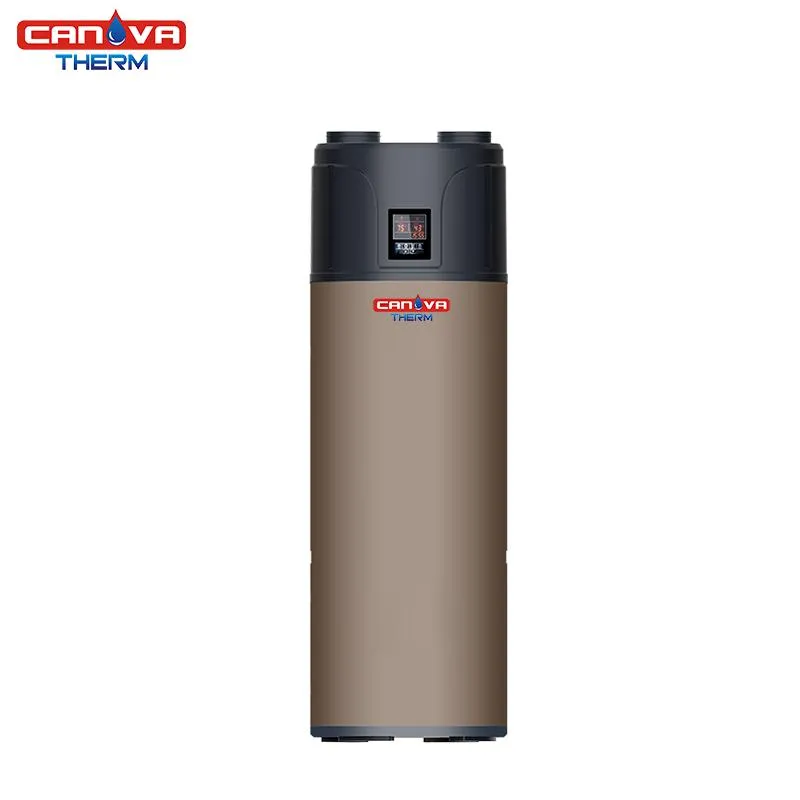

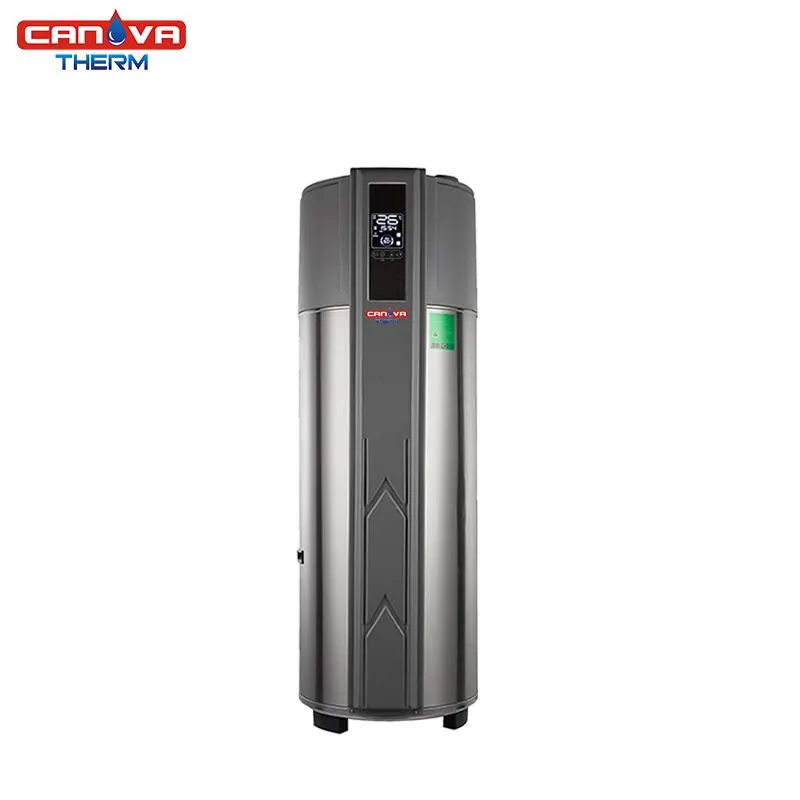

🖼️ Product Visuals

Frequently Asked Questions

1. What are the advantages of an all-in-one heat pump compared to electric heaters? The all-in-one heat pump is approximately 3 times more efficient than traditional electric heaters, significantly lowering electricity consumption by extracting heat from the air.

2. Can this system be used with solar energy? Yes, this system is designed to be compatible with solar heating systems, allowing for even greater energy savings and sustainable hot water production.

3. What is the significance of the Duplex/SS304 inner tank? Duplex and SS304 stainless steel provide superior corrosion resistance and durability compared to standard tanks, ensuring a longer lifespan for the water heater.

4. Is the installation process complicated? No, the "all-in-one" design means most components are integrated into a single unit, making it much easier to install indoors compared to split systems.

5. What is the maximum water temperature this heat pump can reach? The rated outlet water temperature is 55ºC, and the system can reach a maximum temperature of 60ºC to meet various domestic needs.

6. How does the system handle cold weather? The unit features an intelligent defrosting system and a high-efficiency rotary compressor that allows it to operate effectively in ambient temperatures ranging from 0 to 43ºC.
