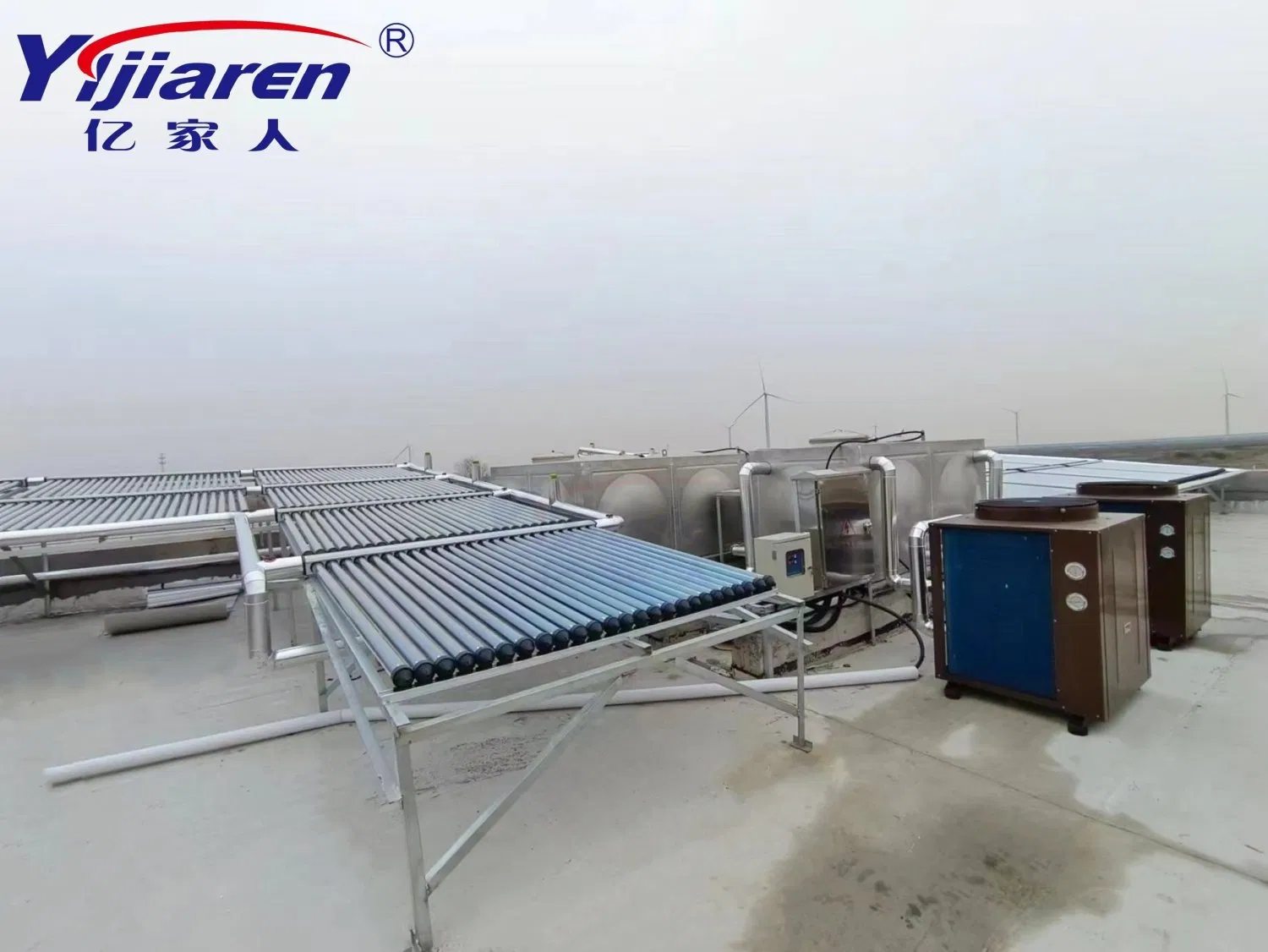

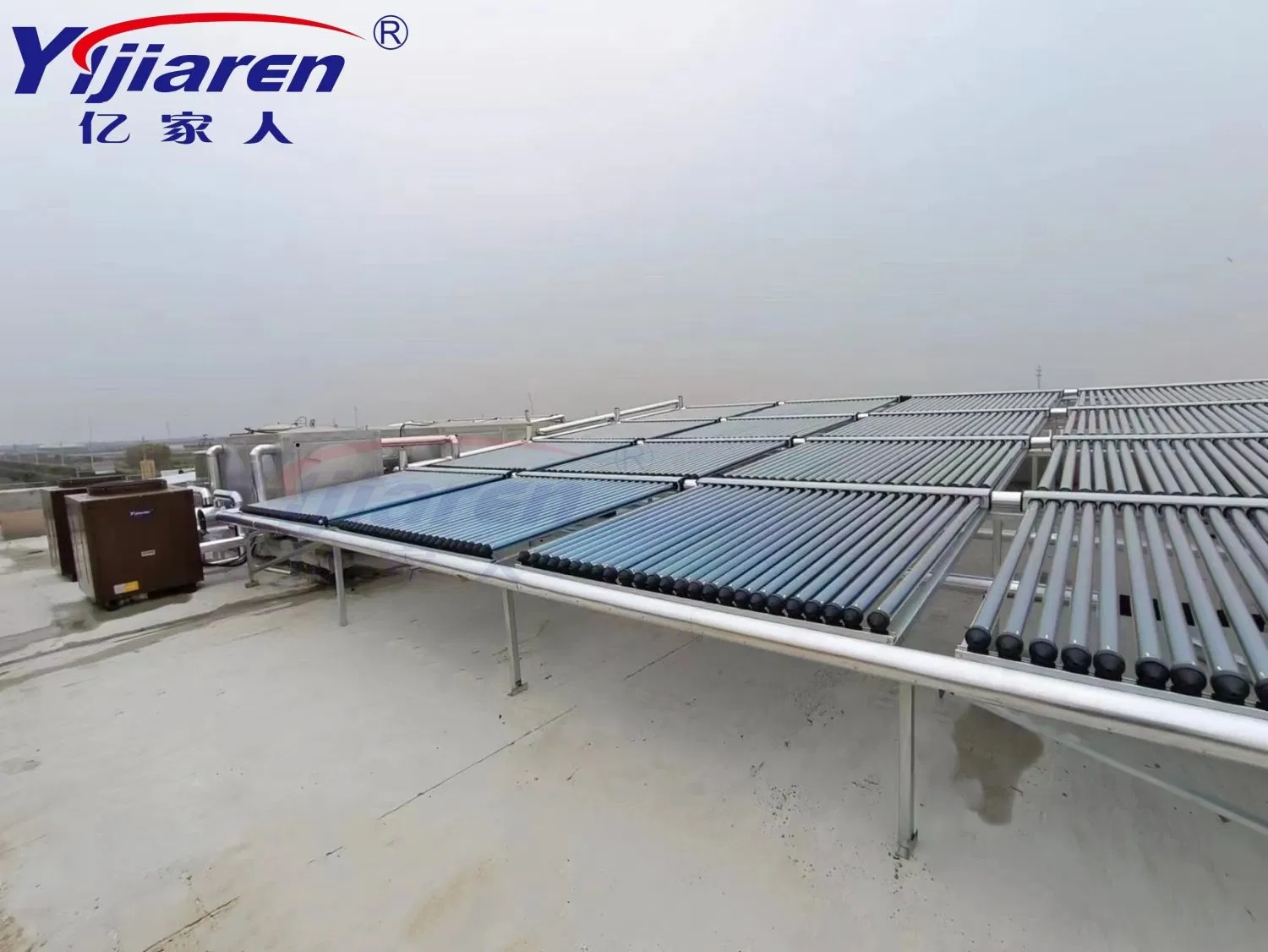

Eco-Friendly Heat Pipe Solar Collector Air to Water Heat Pump for Hotels Hot Water Solution

1 / 5

Eco-Friendly Heat Pipe Solar Collector Air to Water Heat Pump for Hotels Hot Water Solution

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	50-70°C

Send Inquiry

Product Description

📋

Basic Information

Model NO.

YJR-ZKGRB

Work Environment

Common Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Certification

ISO9001, CCC

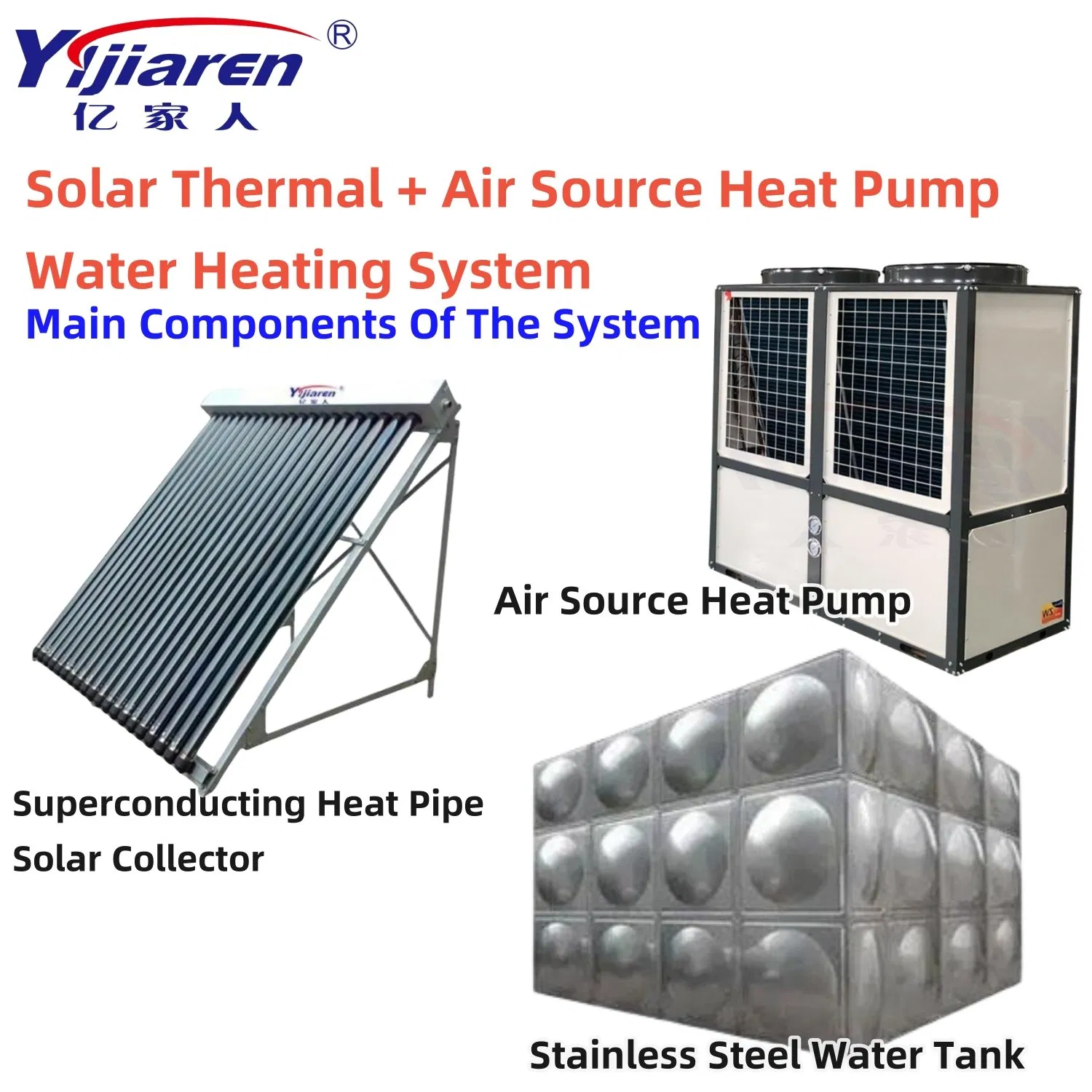

Solar Collector

Superconducting Heat Pipe

Package Size

200.00cm * 200.00cm * 160.00cm

Gross Weight

400.000kg

⚙️

Product Description

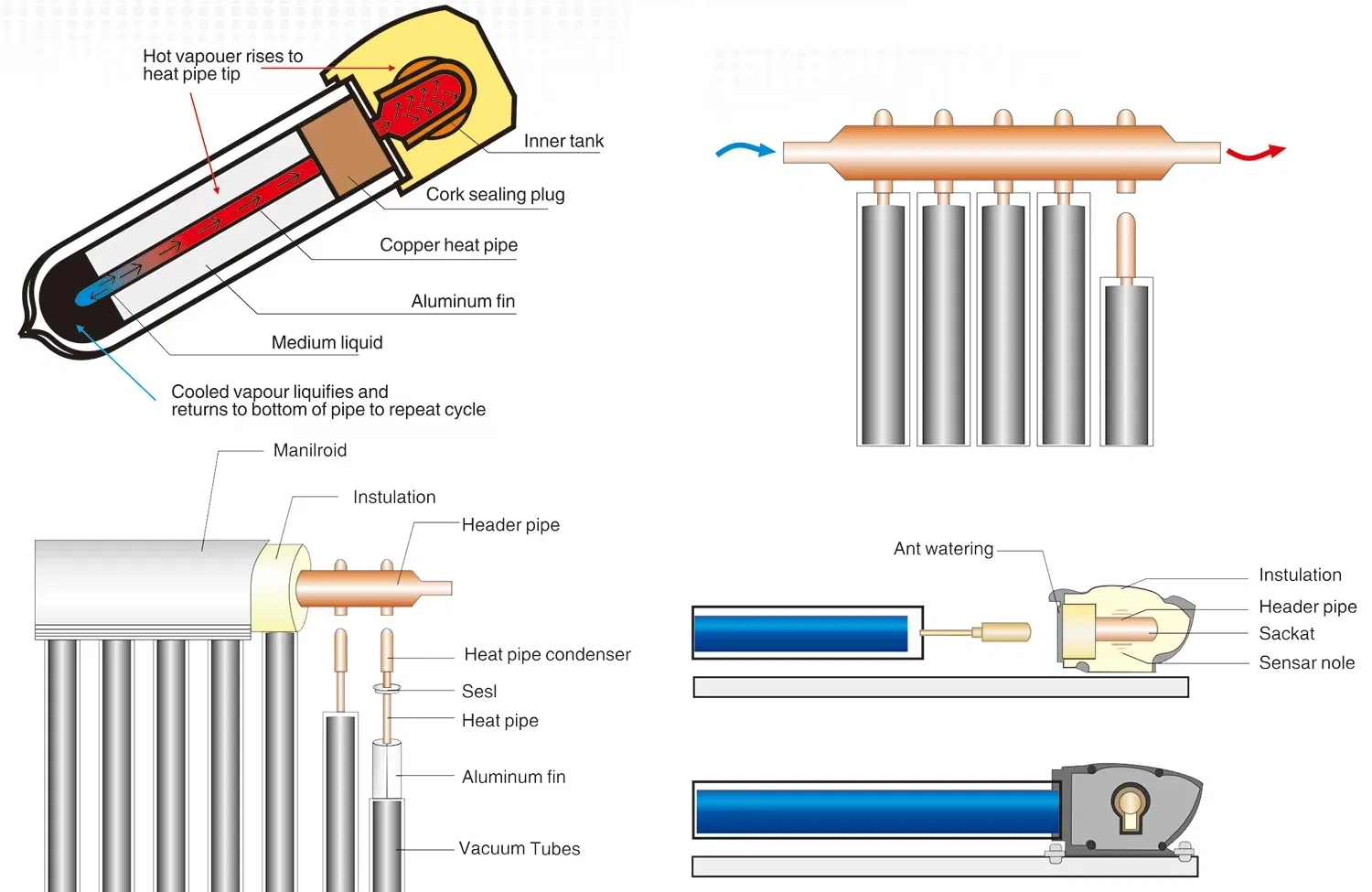

Working Principle

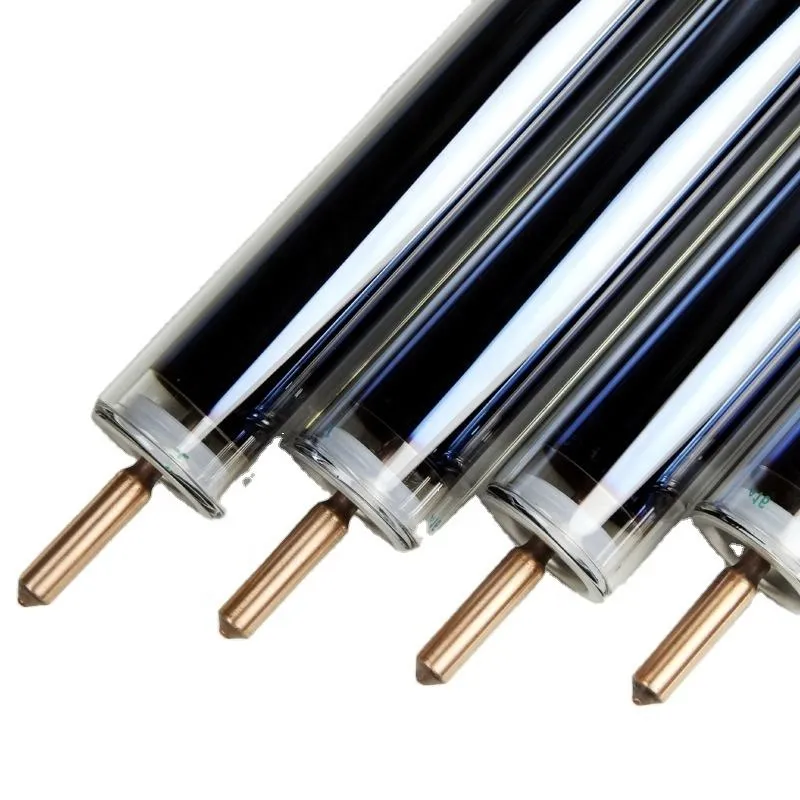

The heat pipe collector uses advanced heat pipe technology for heating. The selective absorber coating on the inner vacuum tubes absorbs solar energy and converts it into thermal energy, transferring it to the heat pipe via aluminum fins. The liquid inside the heat pipe vaporizes, rises to the top condenser, and transfers heat through a heat exchanger before returning as liquid to the base.

Model	Light Area (m²)	Vacuum Tube			Capacity (L)	20GP/40HQ Loading
Model	Light Area (m²)	Ø (mm)	L (mm)	NO.	Capacity (L)	20GP/40HQ Loading
YJR-HPSS 581810	1.68	58	1800	10	85-100	174/423
YJR-HPSS 581815	2.65	58	1800	15	125-150	128/311
YJR-HPSS 581820	3.44	58	1800	20	170-200	95/230
YJR-HPSS 581825	4.24	58	1800	25	210-250	79/192
YJR-HPSS 581830	4.89	58	1800	30	250-300	67/163

🌟

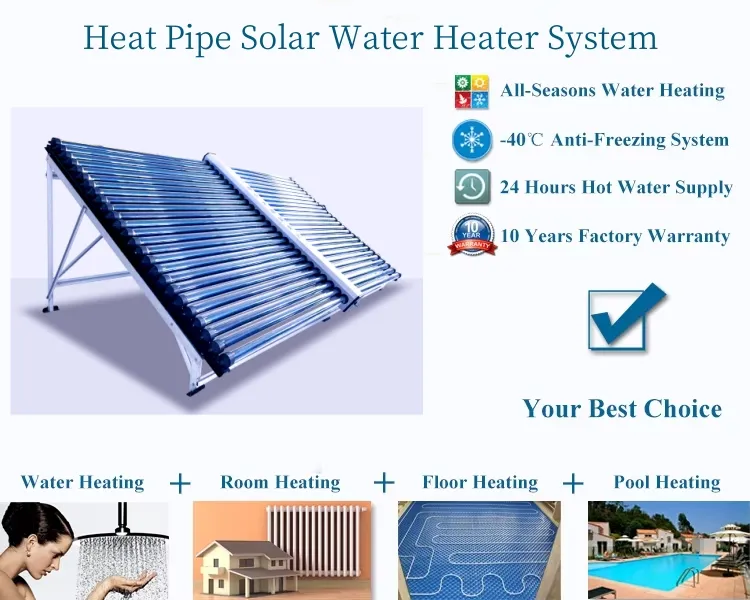

Key Features

Separated collector and water tank to meet various installation requirements.
Strong pressure resistance and high heat absorptivity for quick starting.
Excellent anti-freezing and hail resistance; suitable for very cold weather.
No water inside tubes: system continues to work even if a tube is broken.
Intelligent control system configuration with long-range control capabilities.

🛠️

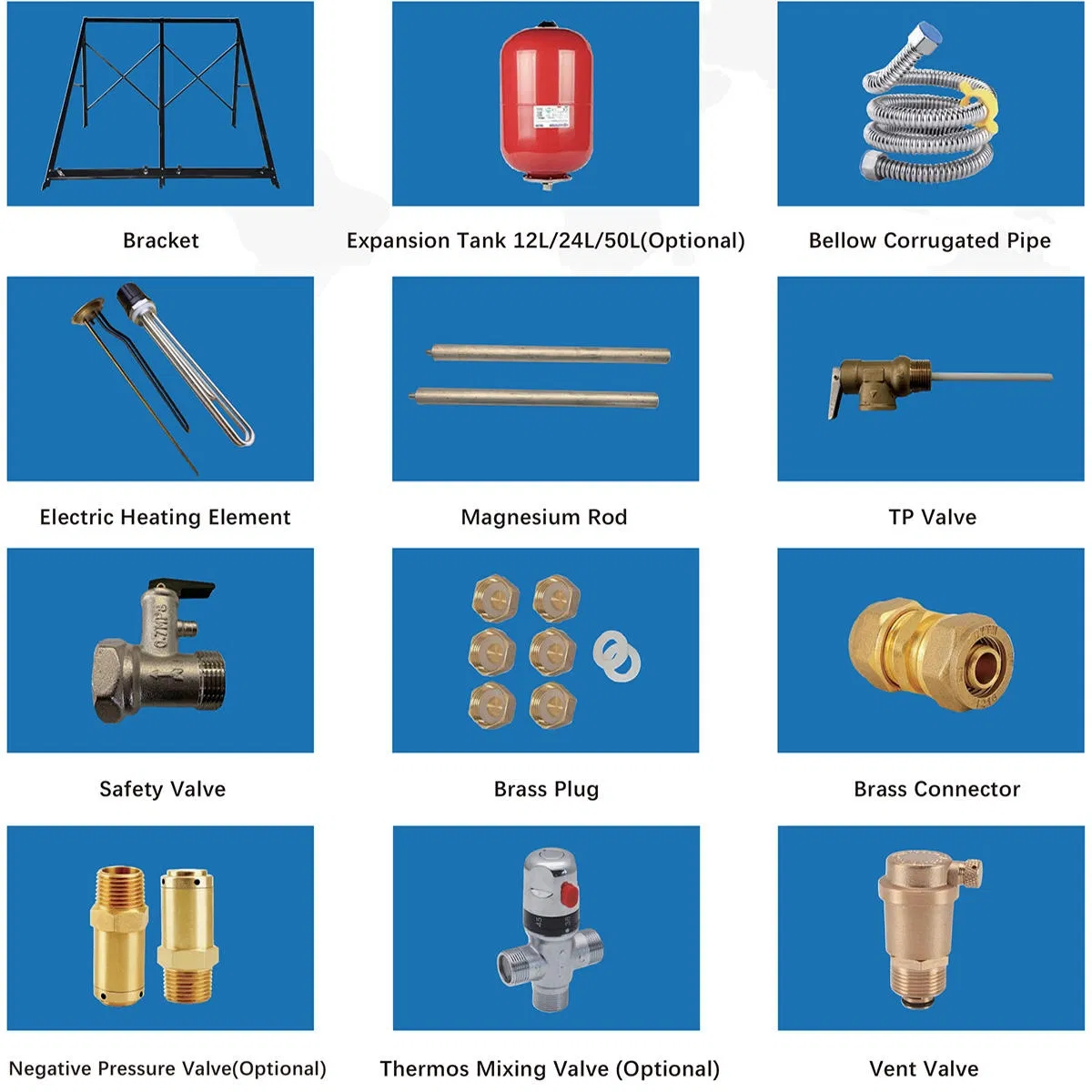

Accessories

🏢

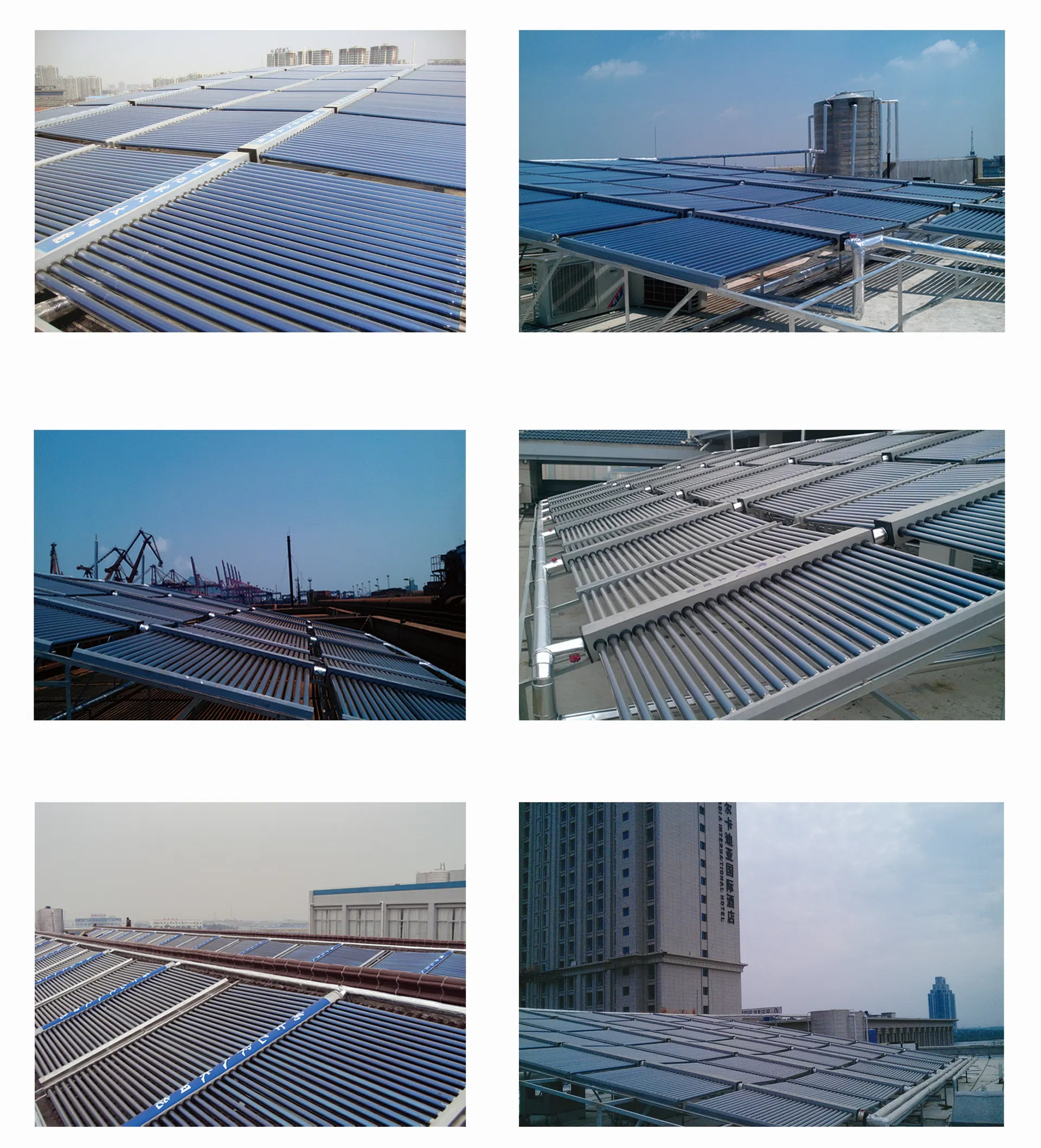

Application

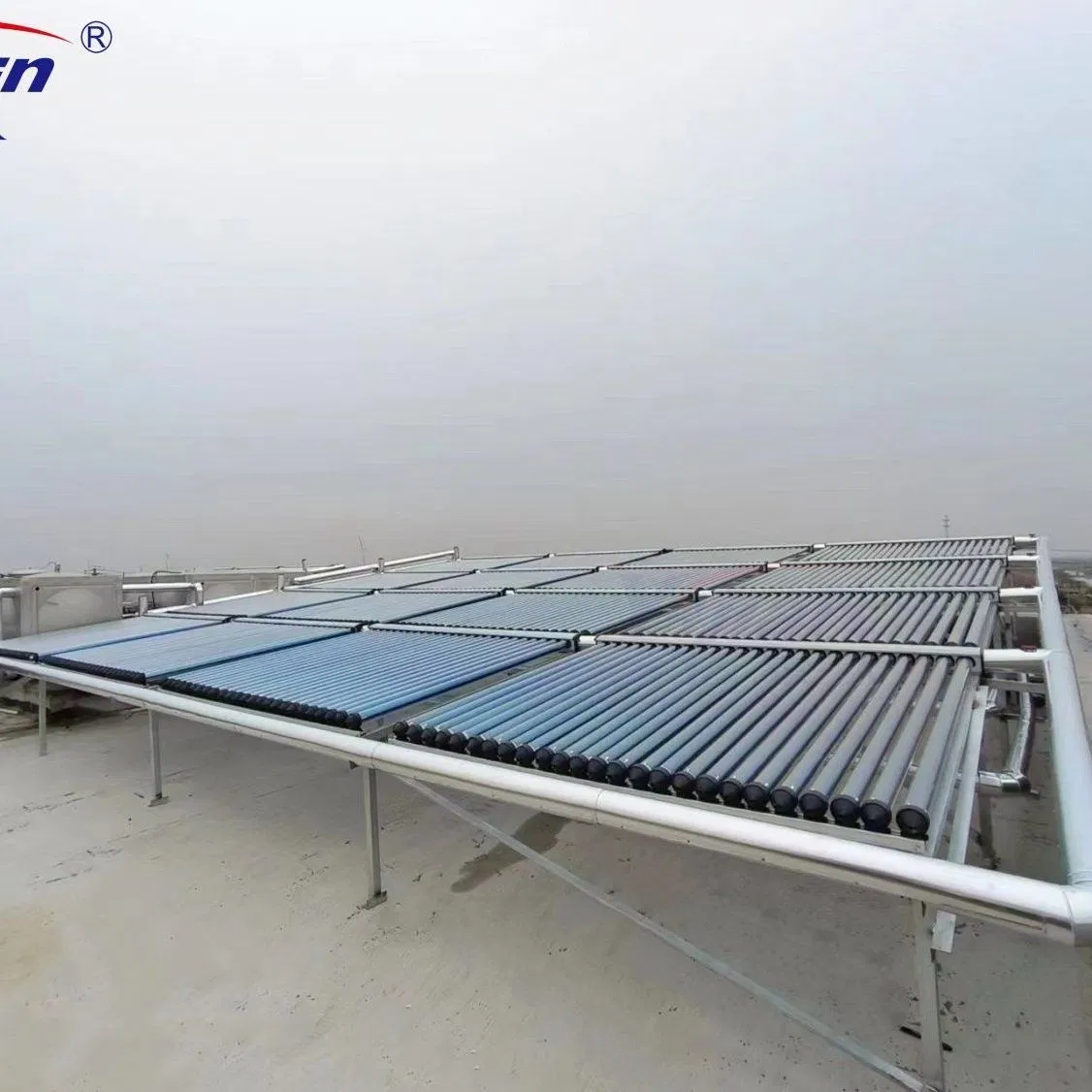

Widely used in villa families, saunas, swimming pools, hotels, factory hospitals, student apartments, and beauty salons.

🏭

Production & Factory

ℹ️

About Our Solutions

Operating under the brand "YIJIAREN", we provide energy-saving intelligent manufacturing and integrated smart control solutions based on "Solar+" and "Air Energy+" multi-energy hybrid systems. Our products have been successfully exported to more than 50 countries including Europe, the USA, Germany, Italy, and Southeast Asia.

We offer customized production based on technical drawings, providing complimentary tailored solutions backed by 20 years of engineering experience and 8,000+ successful customer cases.

📜

Certificates

🚢

Packaging & Shipping

Frequently Asked Questions

Q1: What are your primary product series?

We specialize in manufacturing and R&D for solar water heater systems, air source heat pumps, and related components and accessories.

Q2: Do you provide OEM and ODM services?

Yes, we provide professional OEM and ODM services. While we have our own brand "YIJIAREN", we can customize products and logos based on your requirements.

Q3: What quality certifications do your products hold?

Our manufacturing processes and products are certified under ISO9001, ISO14001, and CCC standards, ensuring consistent high quality.

Q4: What is the typical lead time for production?

For items in stock, lead time is 3-7 working days. For non-stock items, it generally takes 15-25 working days depending on the order quantity.

Q5: What after-sales warranty do you offer?

We provide a 12-24 month warranty service: 12 months for electrical appliances and accessories, and 24 months for solar water heater systems.

Q6: Why should we choose your engineering solutions?

With over 15 years of expertise and 8,000+ successful cases, we offer customized technical consulting and system design tailored specifically to commercial and industrial heating/cooling needs.
