| Model | ASH-08CHW-RM | ASH-15CHW-RMM | ASH-15CHW-RMS | ASH-18CHW-RMS | ASH-22CHW-RMS | ||
|---|---|---|---|---|---|---|---|
| Power Supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 | |
| ErP Level (35°C) | - | A+++ | A+++ | A+++ | A+++ | A+++ | |
| Max. Heating Cap. | kW | 8.67 | 15.4 | 15.6 | 19.1 | 22.1 | |
| COP Range | w/w | 4.28~5.45 | 4.21~5.28 | 4.26~5.32 | 4.22~5.30 | 4.32~5.22 | |
| Max Outlet Water | ℃ | 75℃ | 75℃ | 75℃ | 75℃ | 75℃ | |
| Ambient Temp | ℃ | -30℃~50℃ | -30℃~50℃ | -30℃~50℃ | -30℃~50℃ | -30℃~50℃ | |
| Sound Pressure | dB(A) | 45 | 46 | 46 | 47 | 48 | |

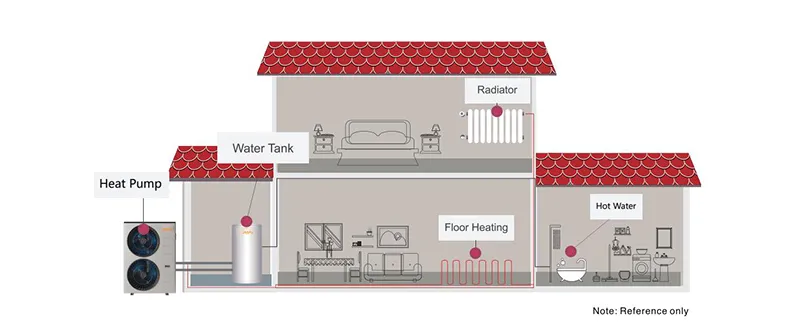

Ideal for homes, apartments, and villas for efficient heating, cooling, and domestic hot water supply throughout the year.
Perfect for small to medium-sized commercial spaces such as offices, hotels, shops, and cafes where energy efficiency is critical.
Specifically engineered for colder regions, maintaining high efficiency even at extremely low outdoor temperatures.
