| Model NO. | R290 Monobloc | Heat Source Type | Air Source Heat Pump |
| Customizable | Yes | Warranty | 2 Years |
| Support | Global Technical Support | Delivery Time | 20-35 Days |
| Transport Package | Carton Packaging | Specification | 1000x390x860mm |
| Origin | China | Package Size | 103.00cm * 42.00cm * 89.00cm |
| Model | ASH-08CHW-RM | ASH-15CHW-RMM | ASH-15CHW-RMS | ASH-18CHW-RMS | ASH-22CHW-RMS |
|---|---|---|---|---|---|
| Power Supply (V/Ph/Hz) | 220-240/1/50 | 220-240/1/50 | 380-415/3/50 | 380-415/3/50 | 380-415/3/50 |
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ | A+++ |
| Heating Capacity (kW) | 8 | 15 | 15 | 18 | 22 |
| COP Range | 4.28~5.45 | 4.21~5.28 | 4.26~5.32 | 4.22~5.30 | 4.32~5.22 |
| Max. Outlet Temp | 75℃ | 75℃ | 75℃ | 75℃ | 75℃ |
| Refrigerant / Charge | R290 / 0.8kg | R290 / 1.3kg | R290 / 1.3kg | R290 / 1.8kg | R290 / 2.0kg |
| Sound Pressure (1m) | 45 dB(A) | 46 dB(A) | 46 dB(A) | 47 dB(A) | 48 dB(A) |
*Data tested according to EN14511, EN14825, EN12102 standards in approved laboratory conditions.

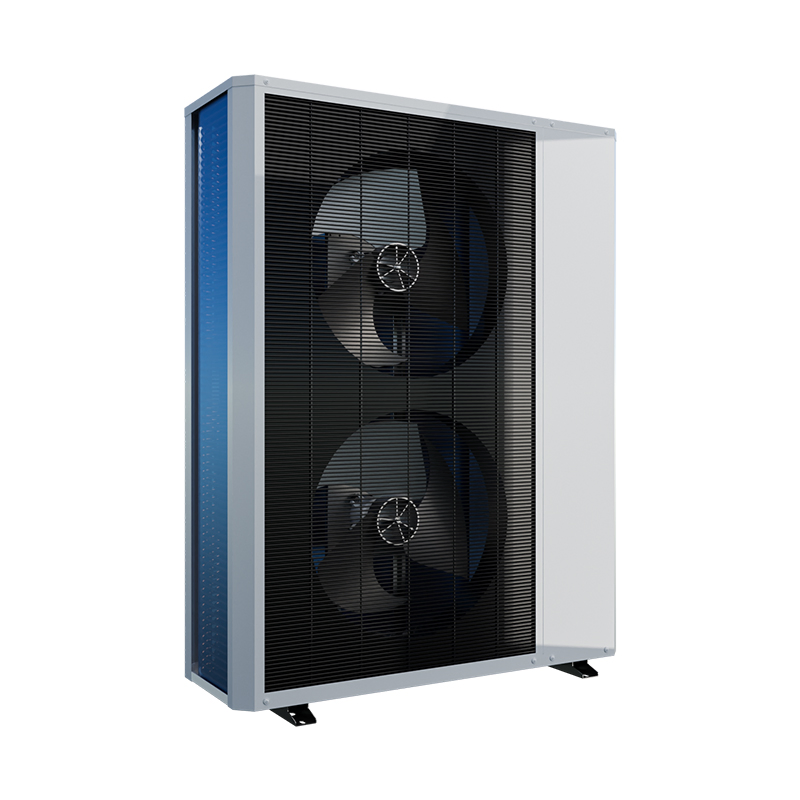

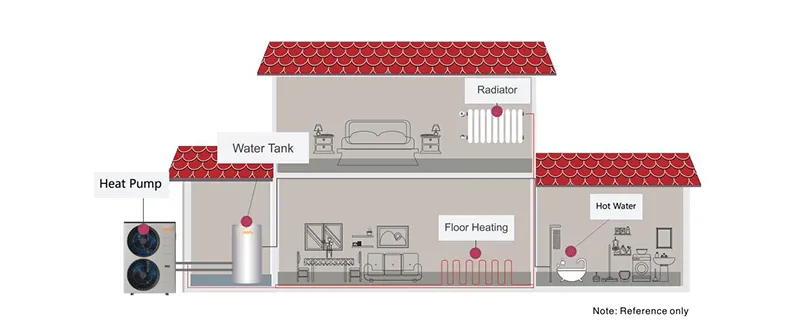

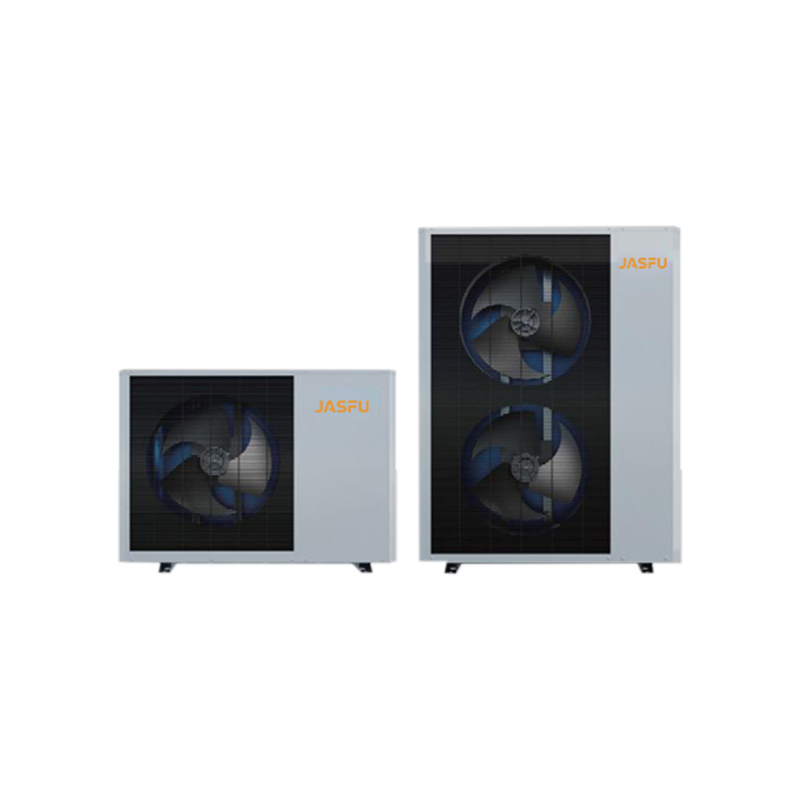

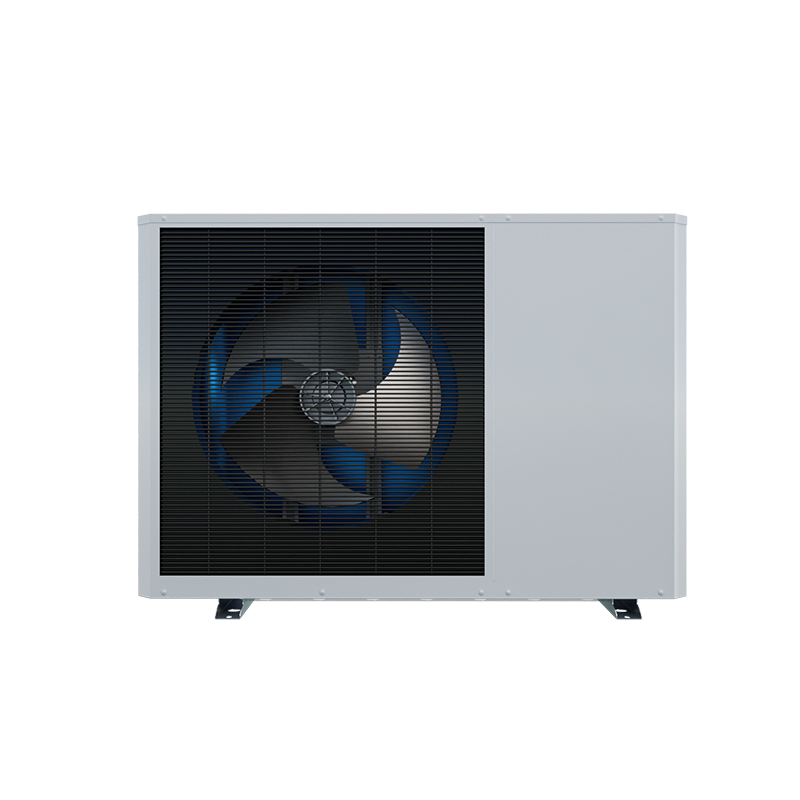

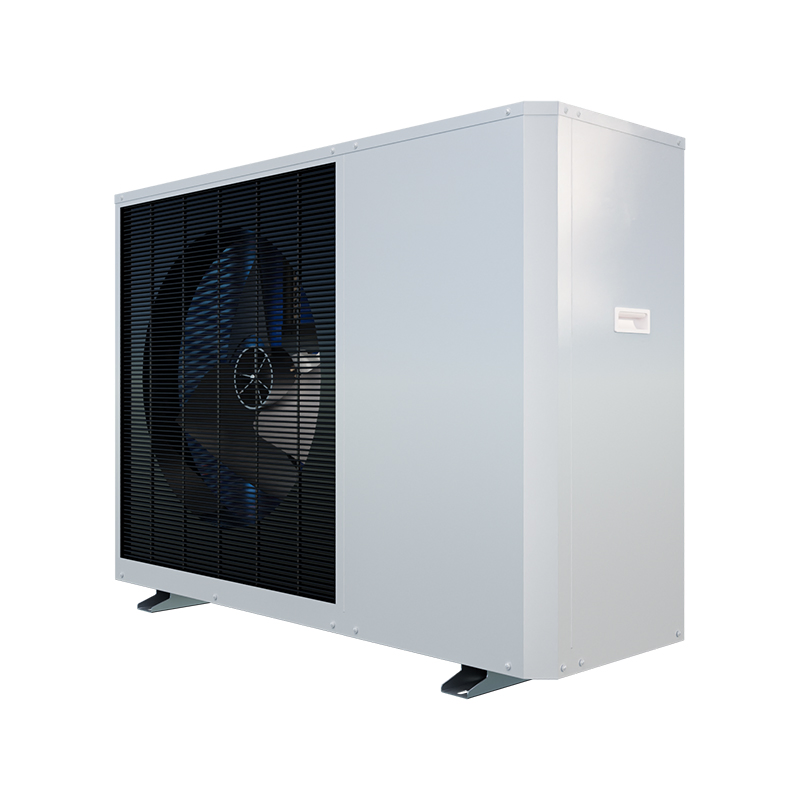

The R290 Monobloc Air to Water Heat Pump is a high-performance and environmentally friendly solution designed for residential and light commercial heating, cooling, and domestic hot water applications.

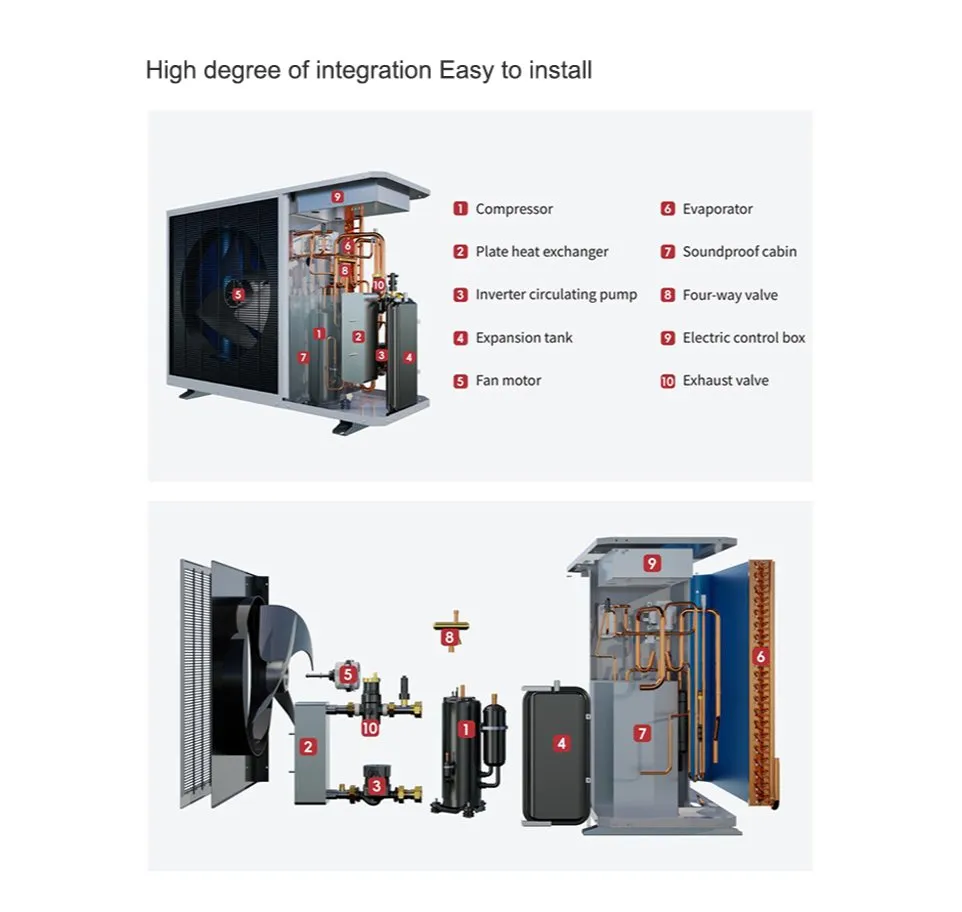

Using R290 natural refrigerant (propane), this unit delivers ultra-high efficiency (A+++), low global warming potential (GWP), and full compliance with the latest EU EcoDesign ErP standards. The monobloc design ensures zero refrigerant leakage risk indoors and simplified installation.
