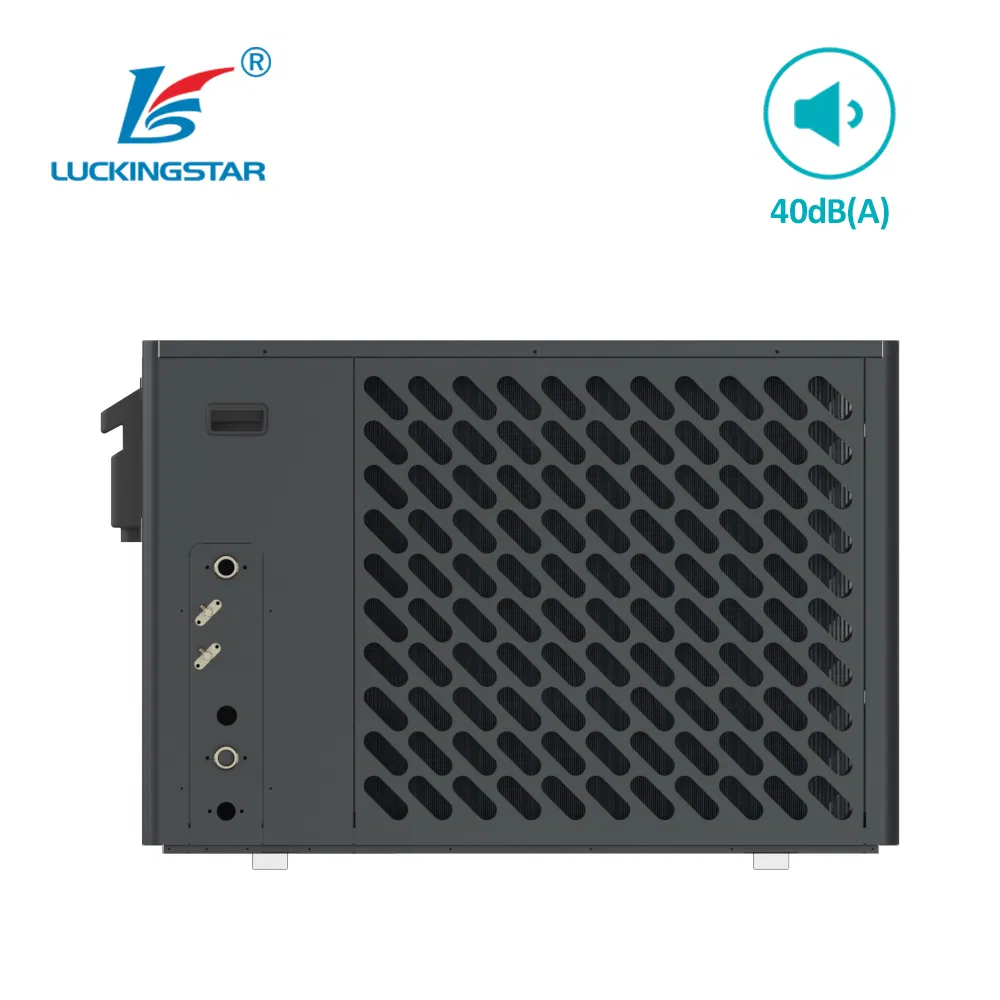

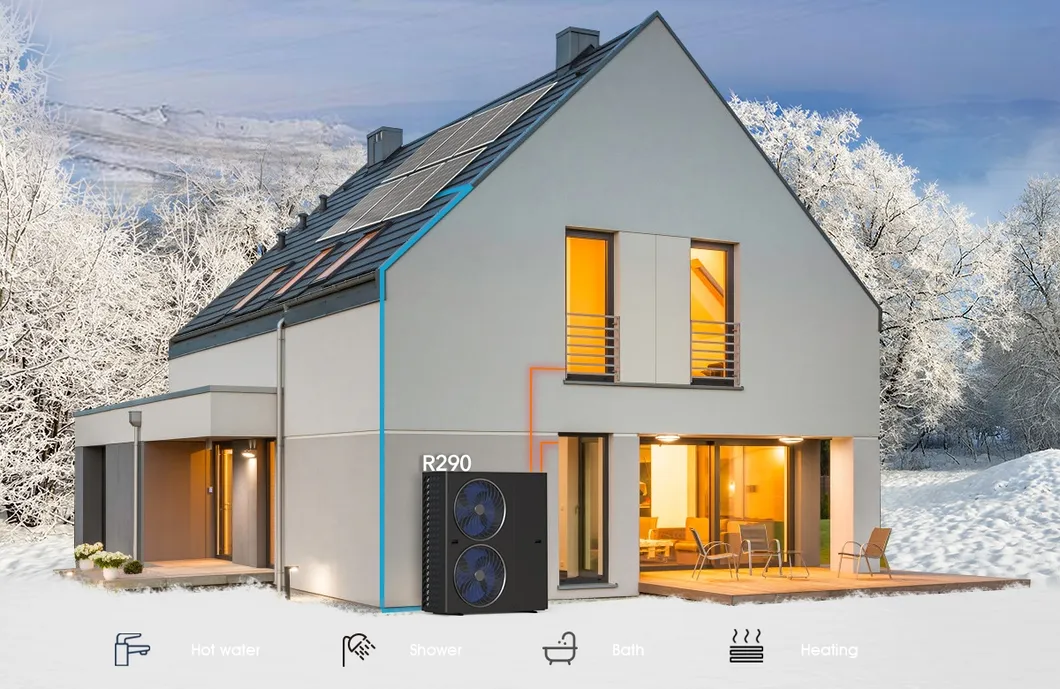

The perfect performance of the R290 Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year (stable and reliable operate at -25ºC):

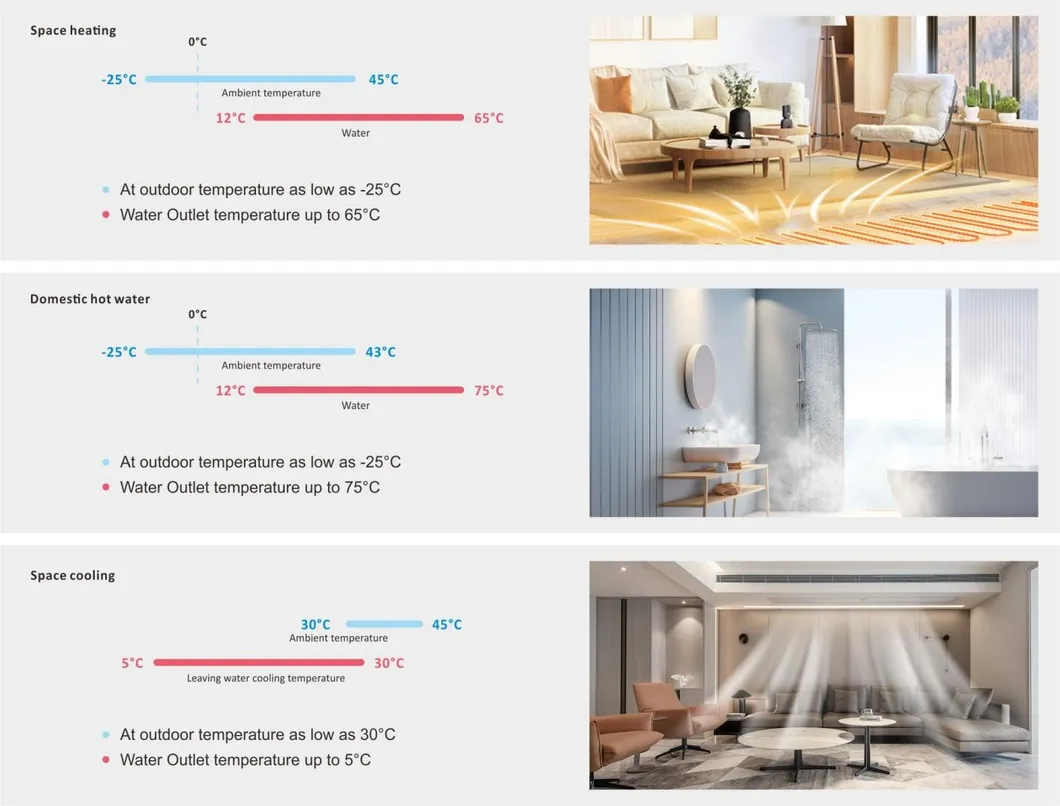

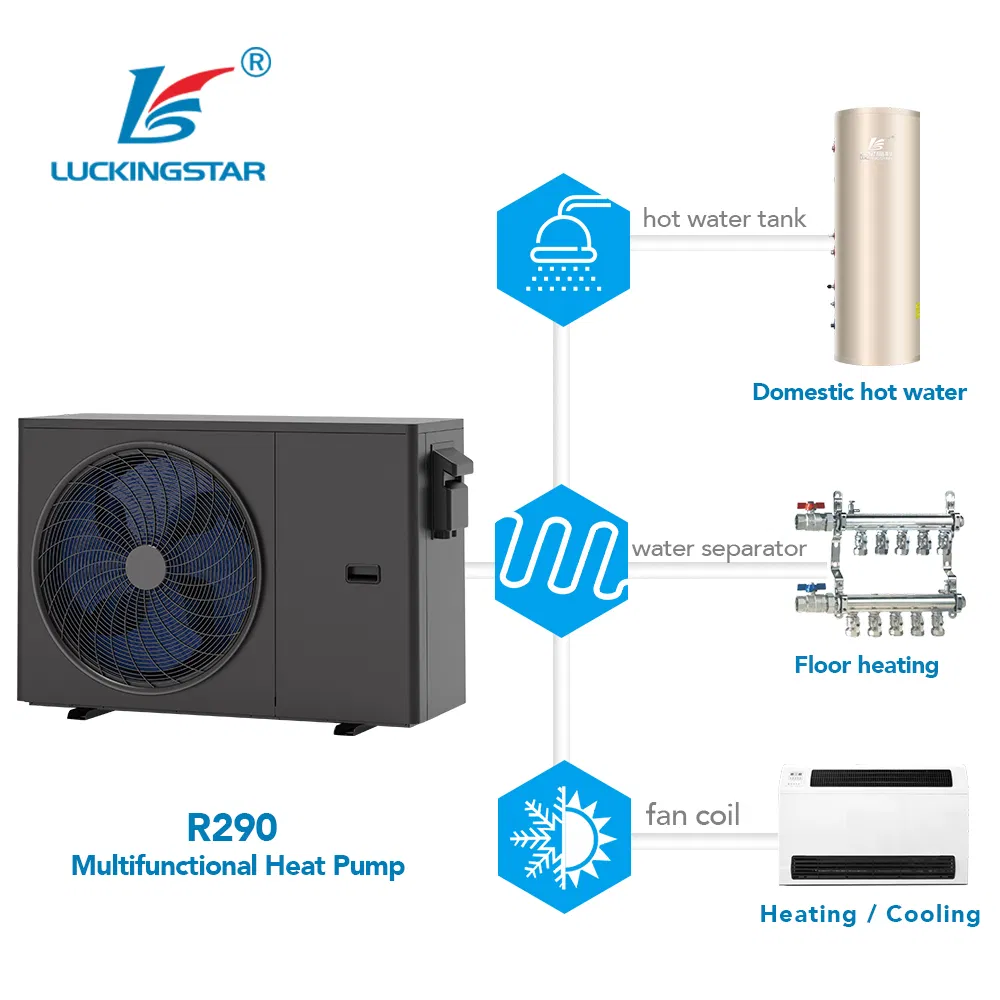

Modes: Domestic Hot Water Only | Cooling Only | Heating Only | Heating + DHW (Priority) | Cooling + DHW (Priority)

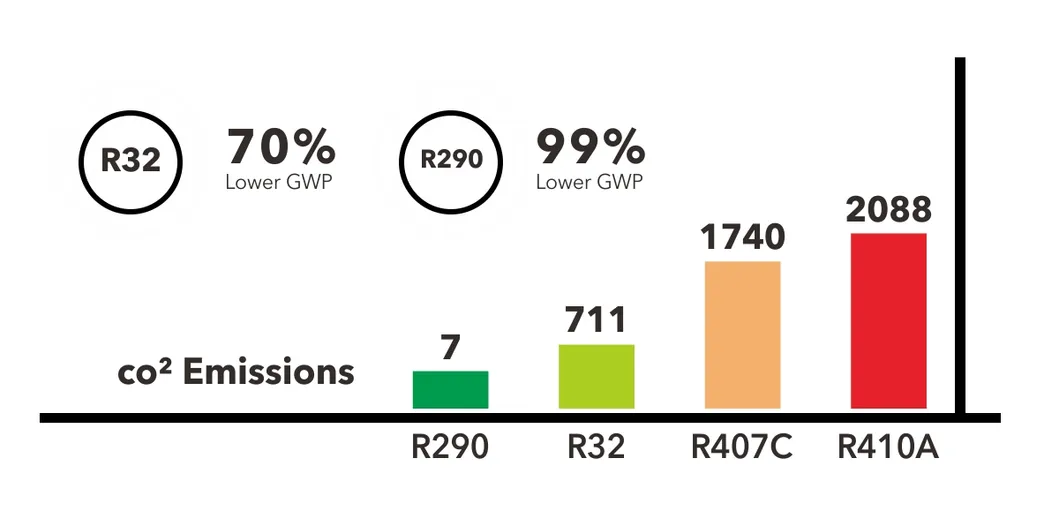

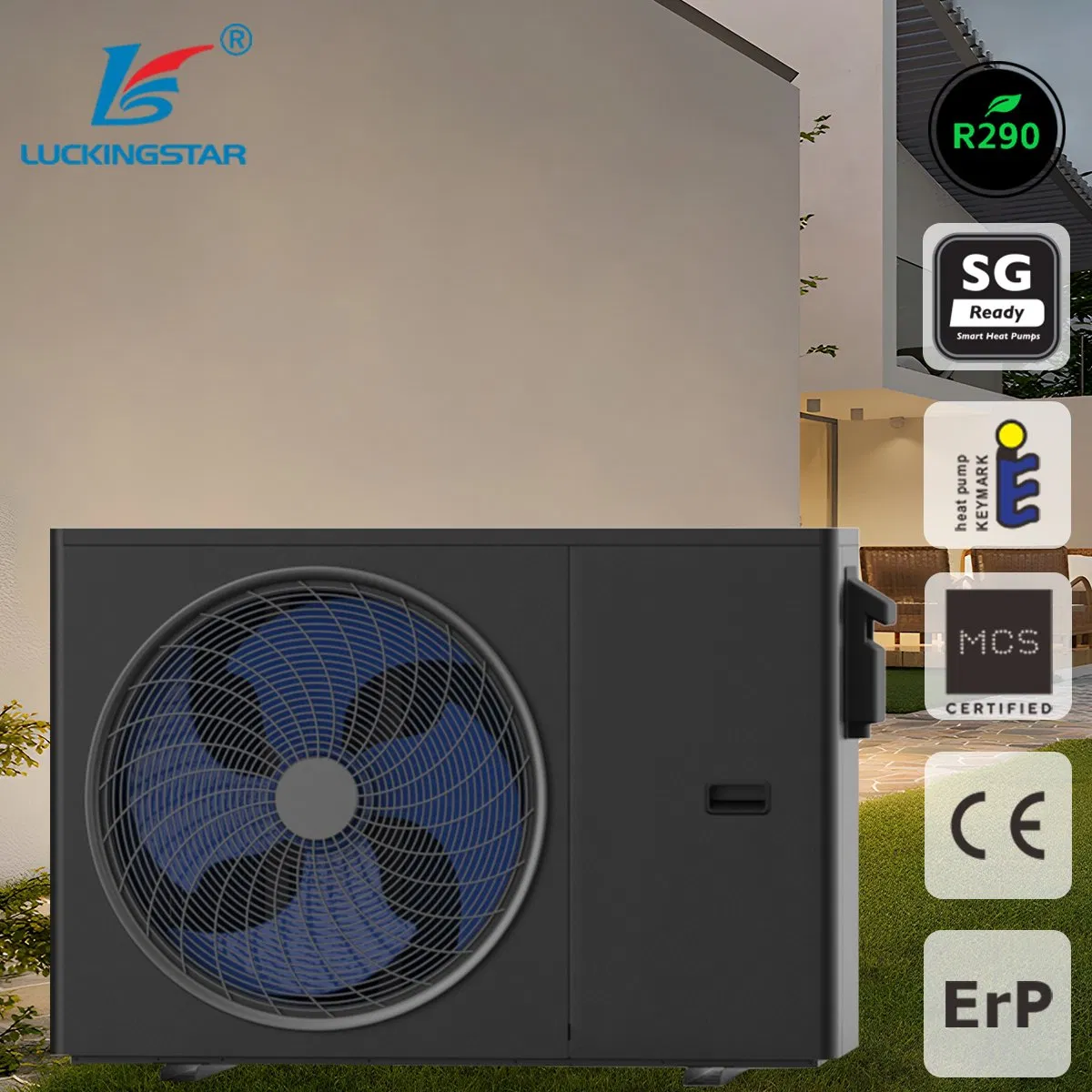

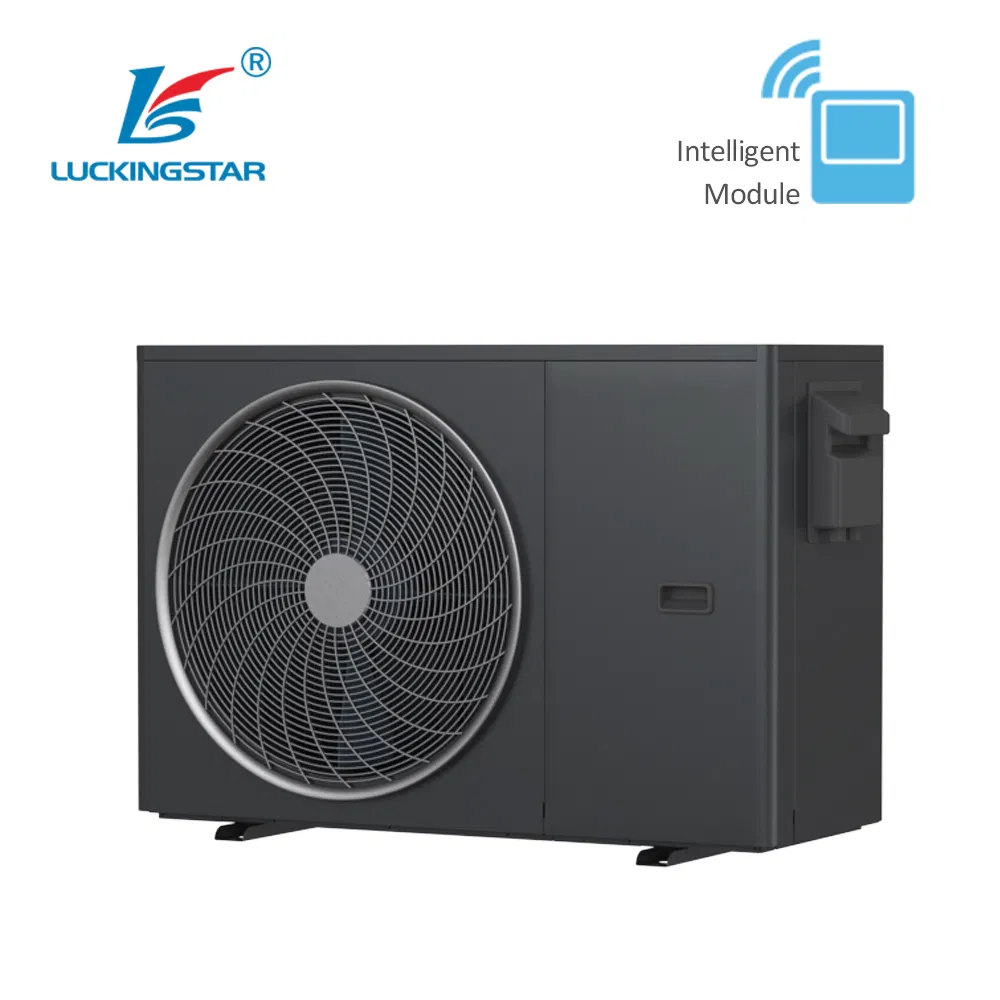

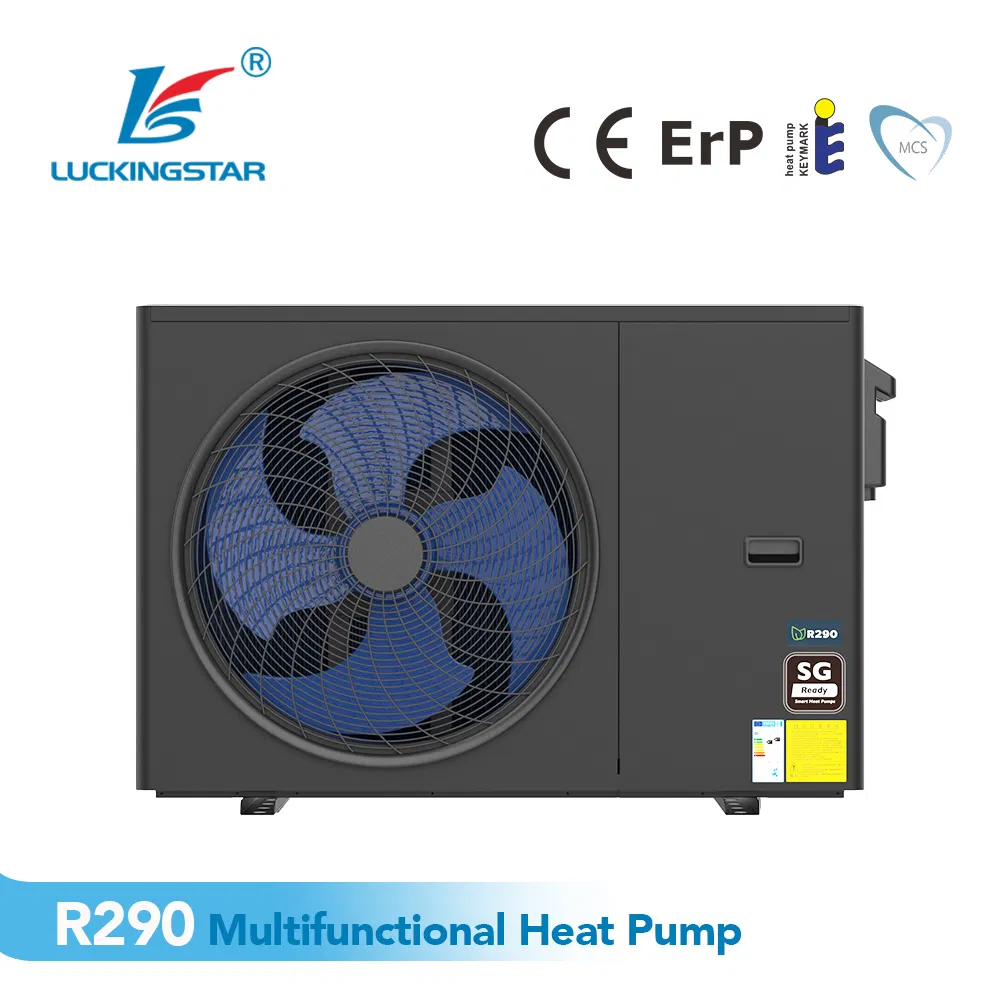

R290 heat pump, often called a propane heat pump, offers unique adaptability to various climates. It features high thermal conductivity and small compressor load, extending service life. The use of R290 refrigerant can save energy by approximately 30%.

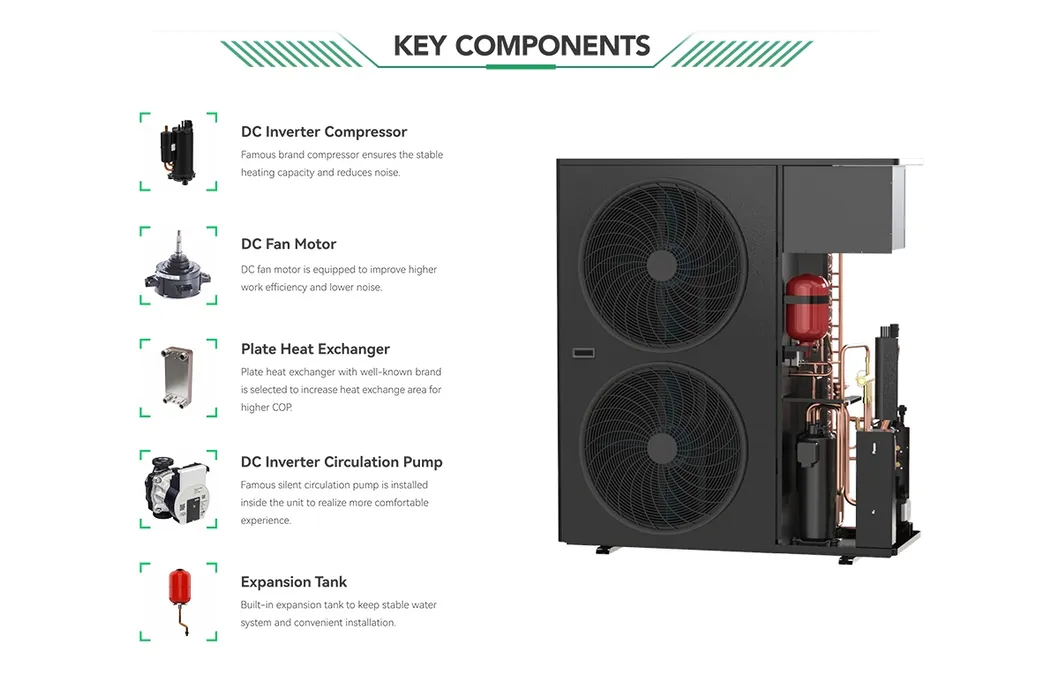

DC Inverter Compressor: Improves matching of energy input to required output, reducing noise and energy consumption.
DC Inverter Fan Motor: Better dynamic balance and reduction in turbulence-related noise.
Sound Proof Isolation: Fully wrapped with soundproof sponge material to block compressor noise.
Electronic Expansion Valve: Instantly adjusts refrigerant flow for system stability and efficiency.
Higher Leaving Water Temperature: Reaches up to 75°C, ideal for retrofitting projects to replace gas boilers.
Anti-freeze Logic: Activates when water temperature falls below 5°C to prevent freezing damage.

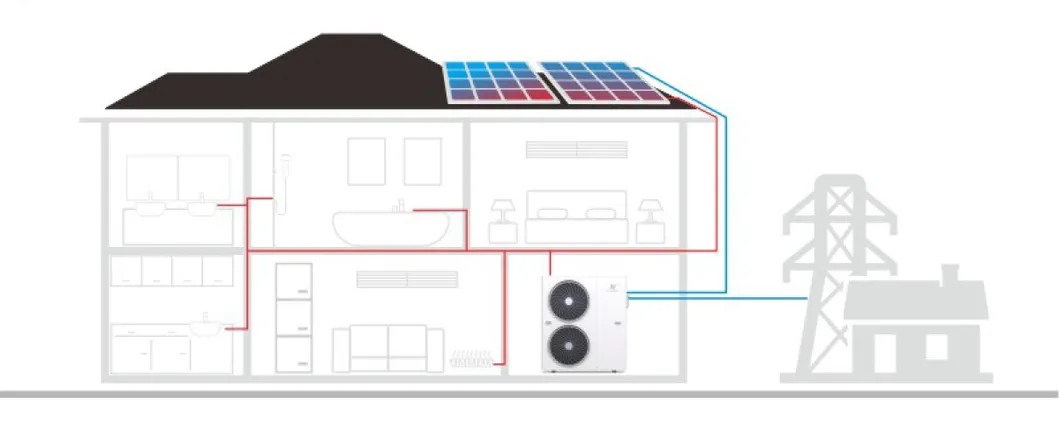

Smart Grid Ready (SG Ready): Automatically adjusts capacity based on electrical signals to utilize cheaper tariffs or surplus PV energy.
Cascade Application: Supports combining up to 16 units in one system for large-scale requirements.
| Model (LWH-) | F8HVLZPN9 | F11HVLZPN9 | F15HVLZPN9 | F11HVZPN9 | F15HVZPN9 | F18HVZPN9 |
|---|---|---|---|---|---|---|
| Power Supply | 220~240V~/50Hz | 380~415V/3N~/50Hz | ||||
| Refrigerant Type | R290 | |||||
| Heating Cap. (kW) (35°C) | 3.50~8.25 | 4.50~11.35 | 6.00~15.12 | 4.58~11.36 | 6.08~15.10 | 6.79~17.98 |
| COP (35°C) | 6.00~4.53 | 5.76~4.52 | 5.77~4.52 | 5.79~4.52 | 5.79~4.52 | 6.06~4.50 |
| Max Outlet Water Temp | 75°C | |||||
| Operation Range | -25°C ~ 45°C | |||||
| Net Weight (kg) | 120 | 136 | 150 | 150 | 160 | 175 |
