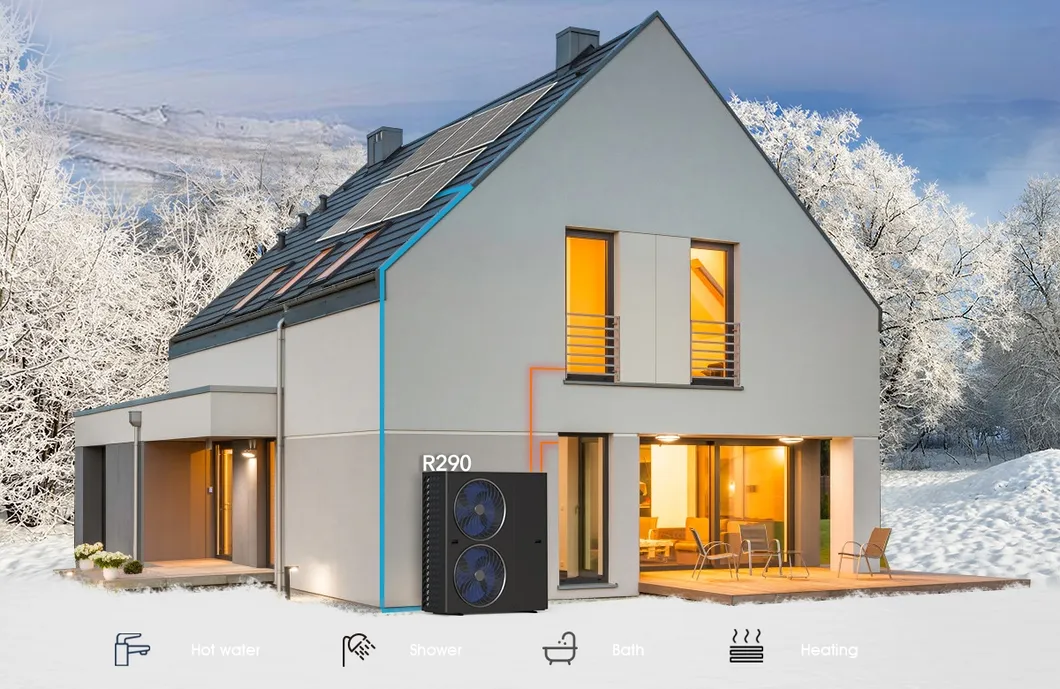

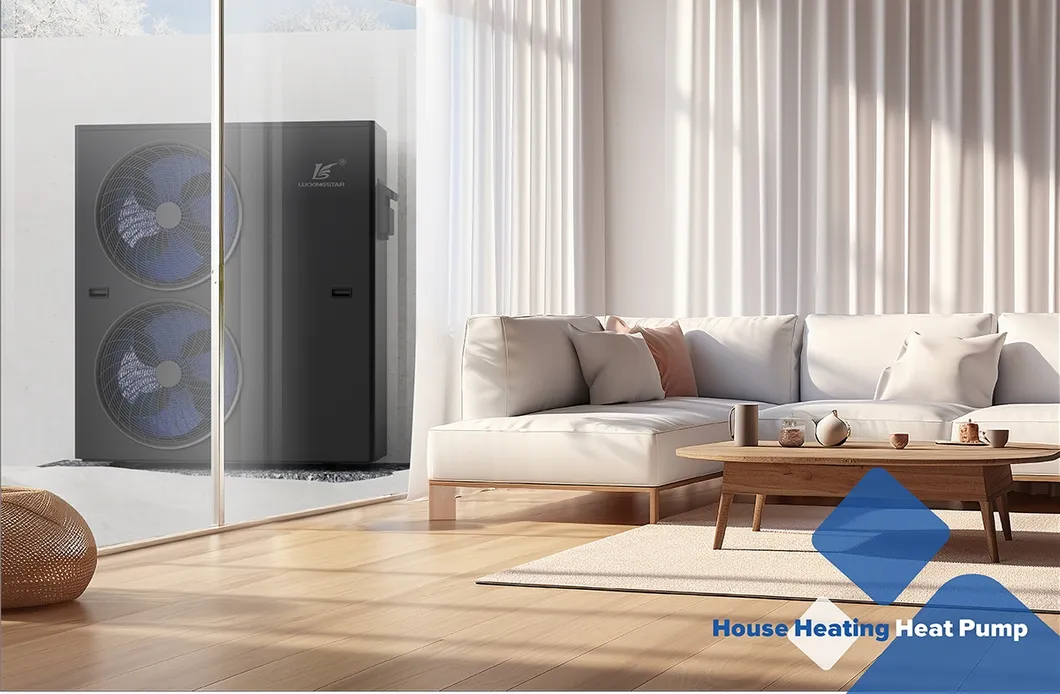

The perfect performance of the R290 Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year (stable and reliable operate at -25ºC):

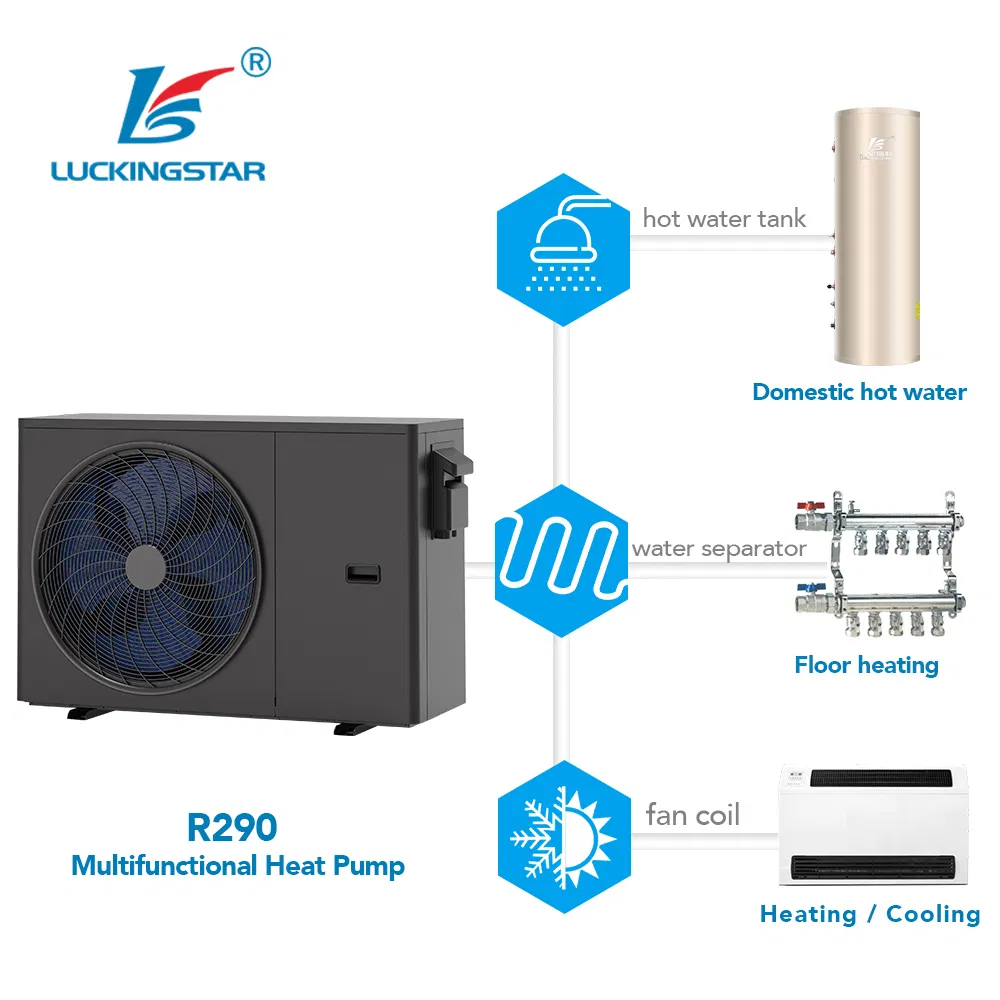

Modes: Domestic Hot Water Only | Cooling Only | Heating Only | Heating + DHW (Priority) | Cooling + DHW (Priority)

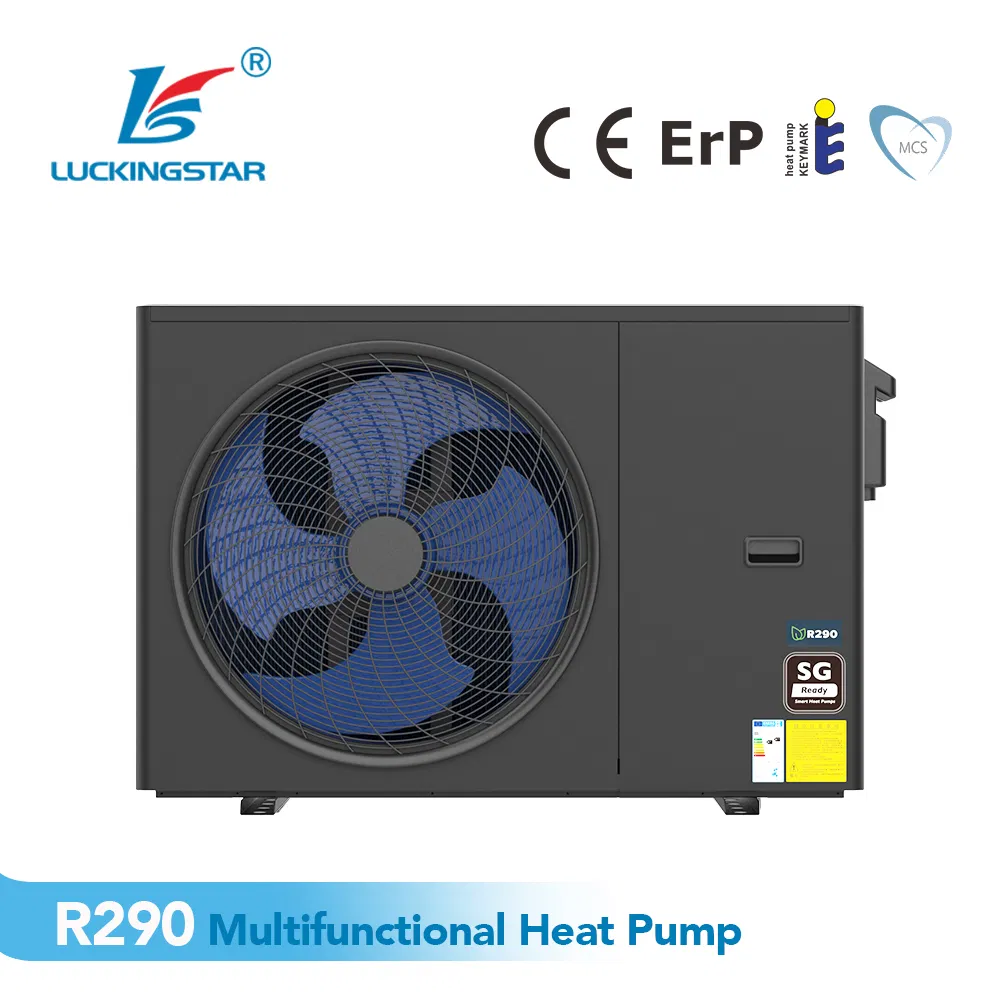

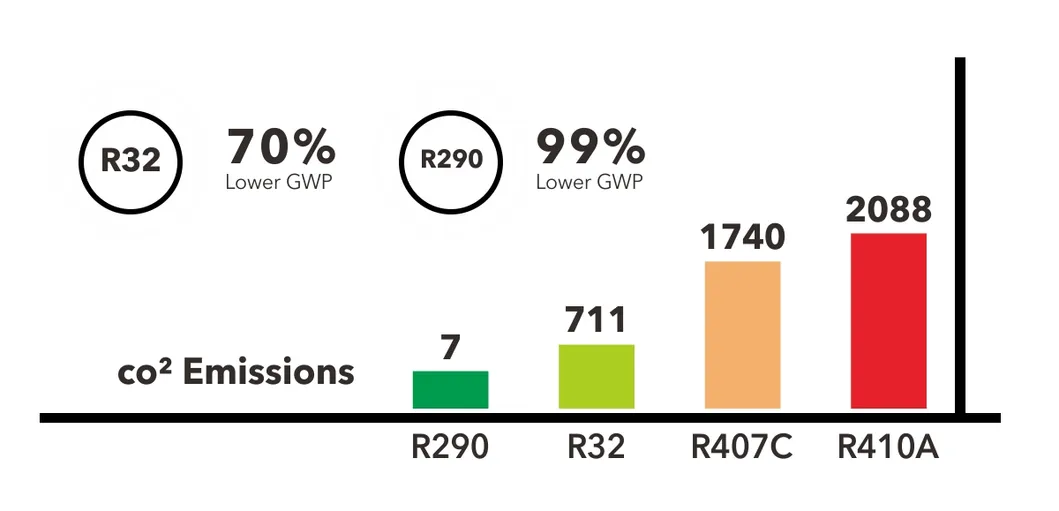

R290 heat pump is often called propane heat pump. Thanks to the use of R290 refrigerant, it has a unique adaptability to hot climates compared to traditional refrigerants like R22 and R410A.
R290 refrigerant features high thermal conductivity, large latent heat of evaporation, and small compressor load, which can extend the service life of the compressor. The use of R290 refrigerant can save energy by about 30%.
Uncompromised Low Ambient Performance: 4kw unit ensures 100% Rated Output at -10°C ambient temperature. Intelligent defrost logic avoids unnecessary drainage.
Higher Leaving Water Temperature: Maximum leaving water temperature can reach 75°C, ideal for retrofitting projects to replace gas boilers.
Environment-Friendly Design: Achieves A+++ energy efficiency rating for both 35/55°C water temperature conditions.
| Model (LWH-) | F8HVLZPN9 | F11HVLZPN9 | F15HVLZPN9 | F11HVZPN9 | F15HVZPN9 | F18HVZPN9 |
|---|---|---|---|---|---|---|
| Power Supply | 220~240V~/50Hz | 380~415V/3N~/50Hz | ||||
| Heating Capacity (kW) | 3.50~8.25 | 4.50~11.35 | 6.00~15.12 | 4.58~11.36 | 6.08~15.10 | 6.79~17.98 |
| COP (30°C/35°C) | 6.00~4.53 | 5.76~4.52 | 5.77~4.52 | 5.79~4.52 | 5.79~4.52 | 6.06~4.50 |
| Max. Outlet Water Temp. | 75°C | |||||

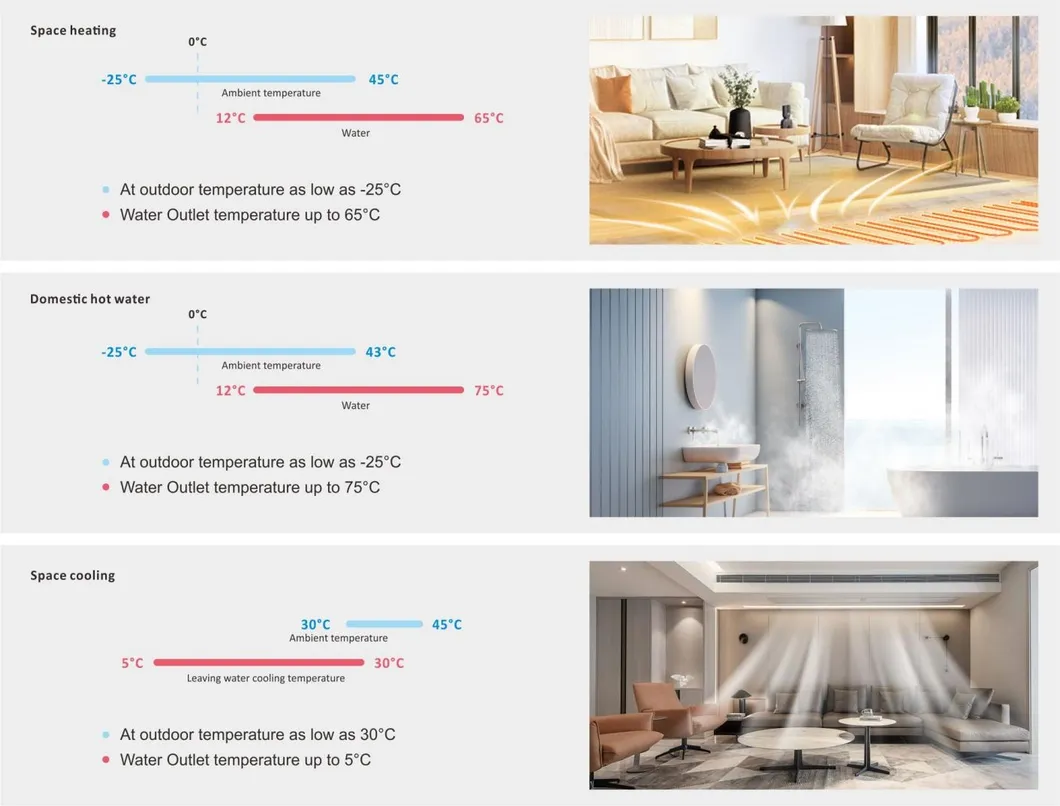

| Operation Range | -25~45°C | |||||
| Net Weight (kg) | 120 | 136 | 150 | 150 | 160 | 175 |
