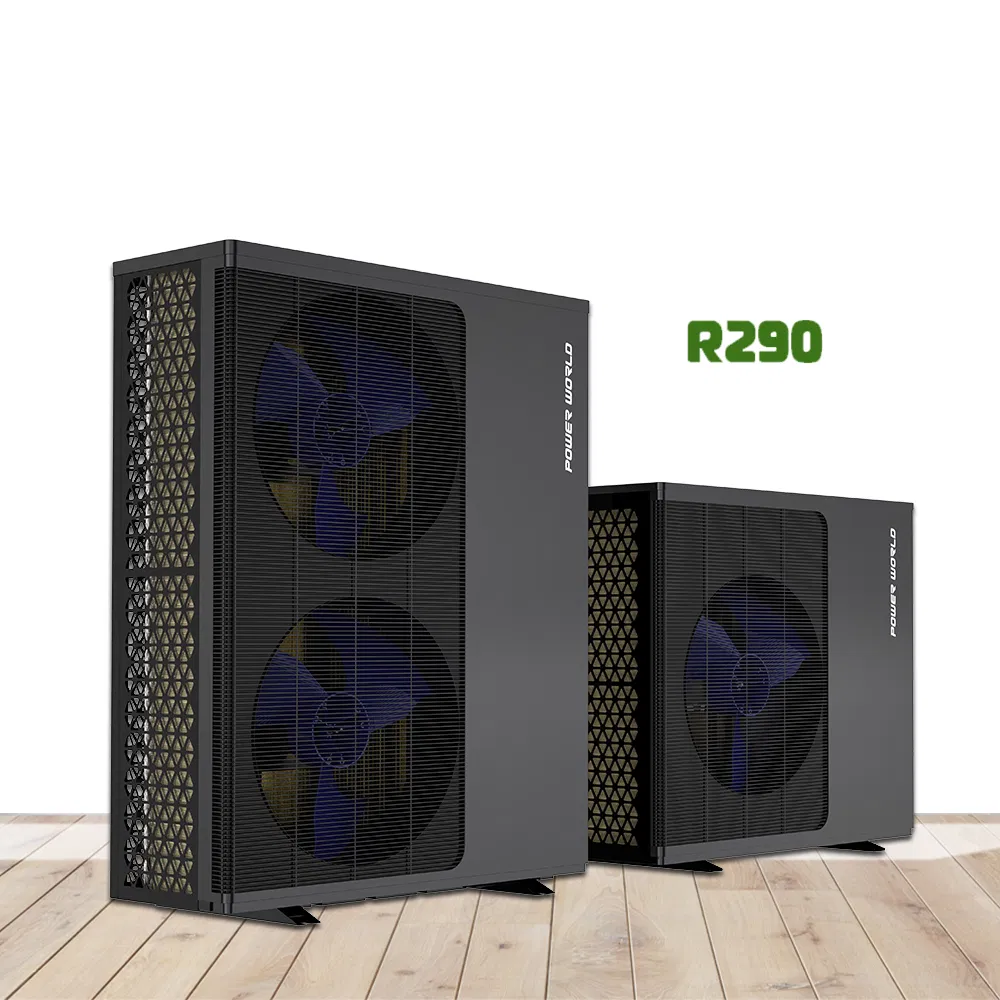

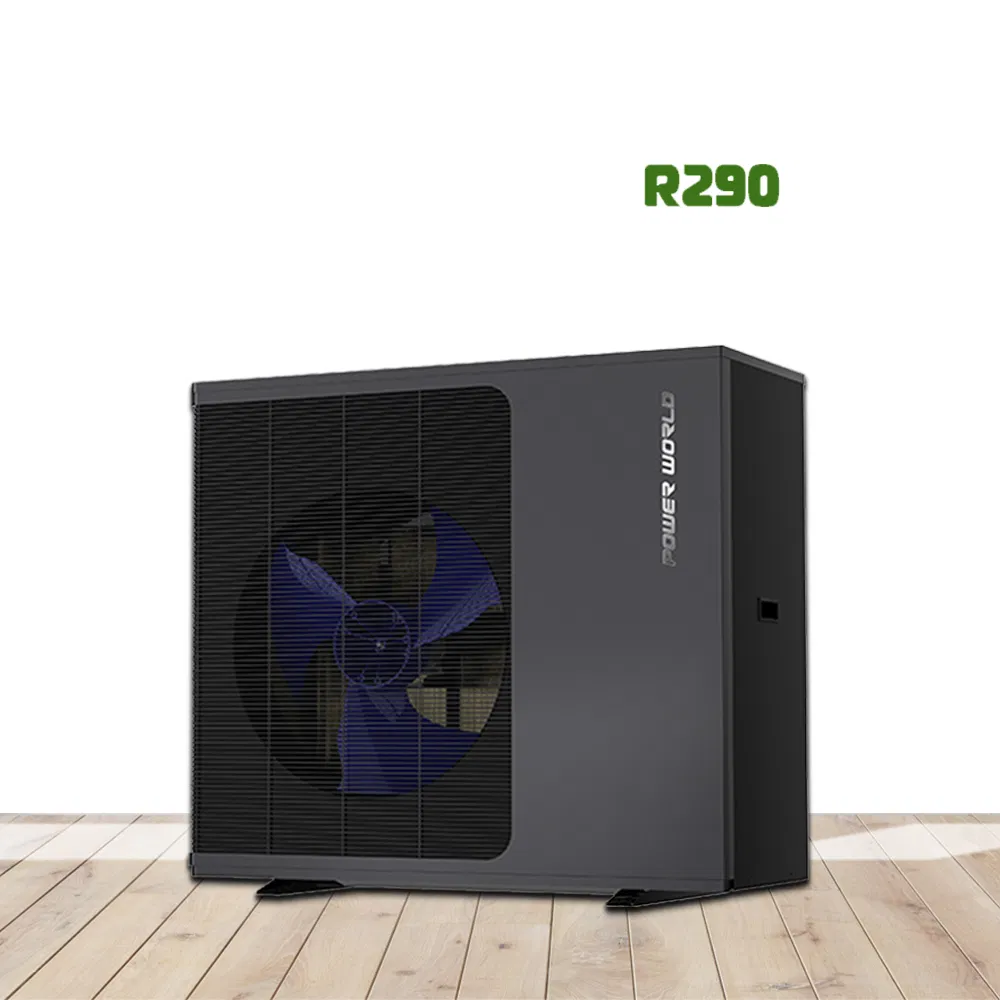

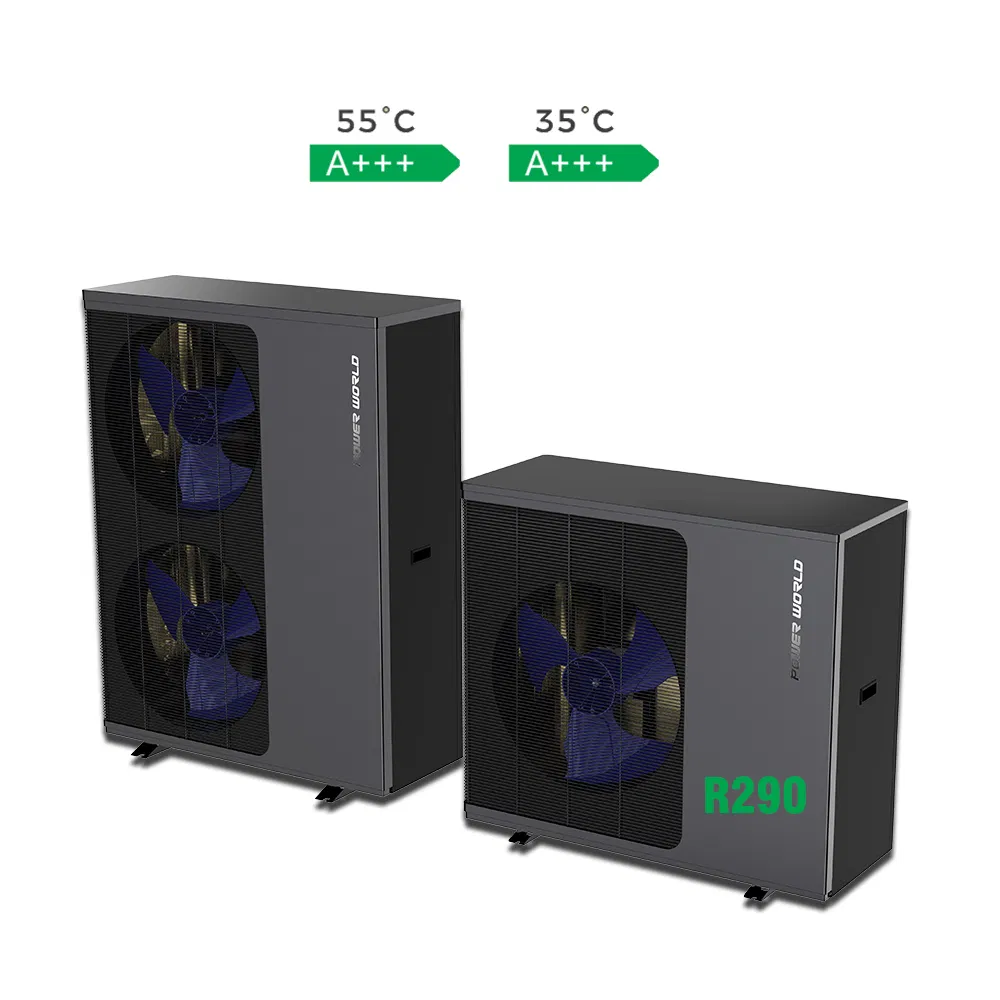

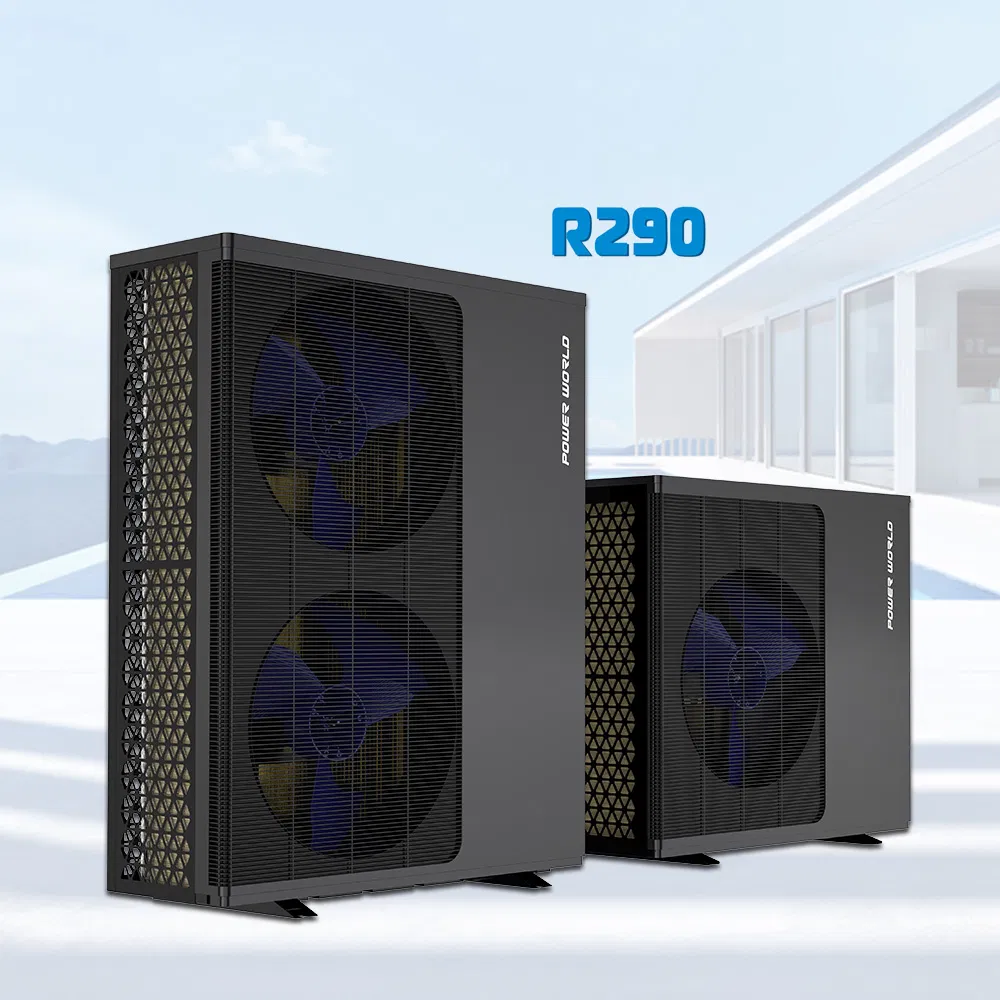

To reduce carbon emissions to the environment and curb global warming, an R290 Full DC Inverter Heat Pump has been developed. Compared to R410A (GWP 2100) and R32 (GWP 675), R290 has a GWP of less than 20 and is recognized as the most eco-friendly refrigerant.

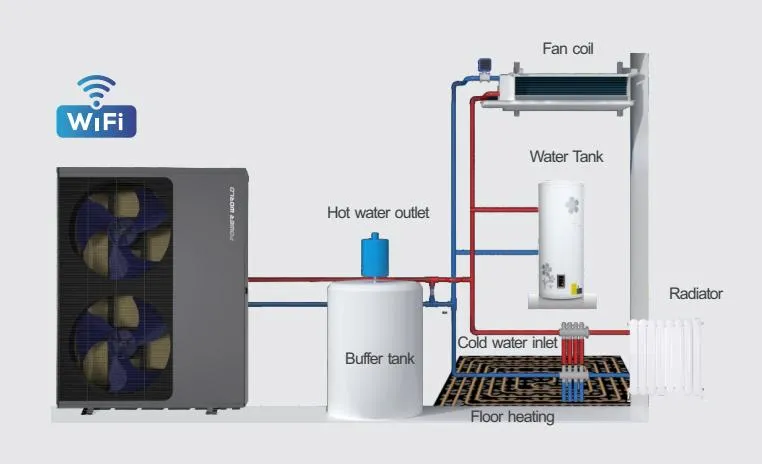

The perfect performance of the R290 FULL DC INVERTER Heat Pump meets house heating, cooling, and domestic hot water needs throughout the year:
This unit can operate stably and efficiently in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water to ensure home comfort.
The unit intelligently adjusts operating frequency and water temperature for constant indoor comfort. It saves up to 50% energy compared to ON-OFF units and up to 75% compared to traditional electric boilers.

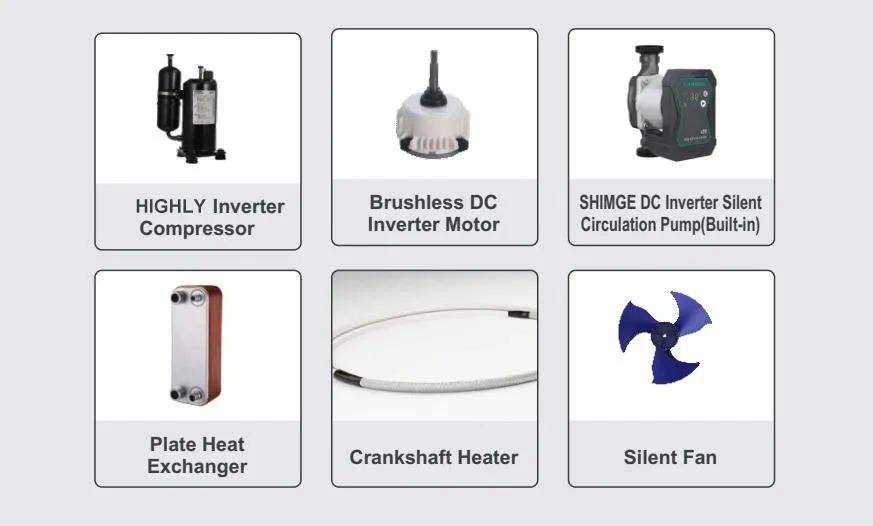

Key Components: DC Inverter Panasonic Compressor, Stepless DC Inverter Fan Motor, DC Inverter Water Circulation Pump.

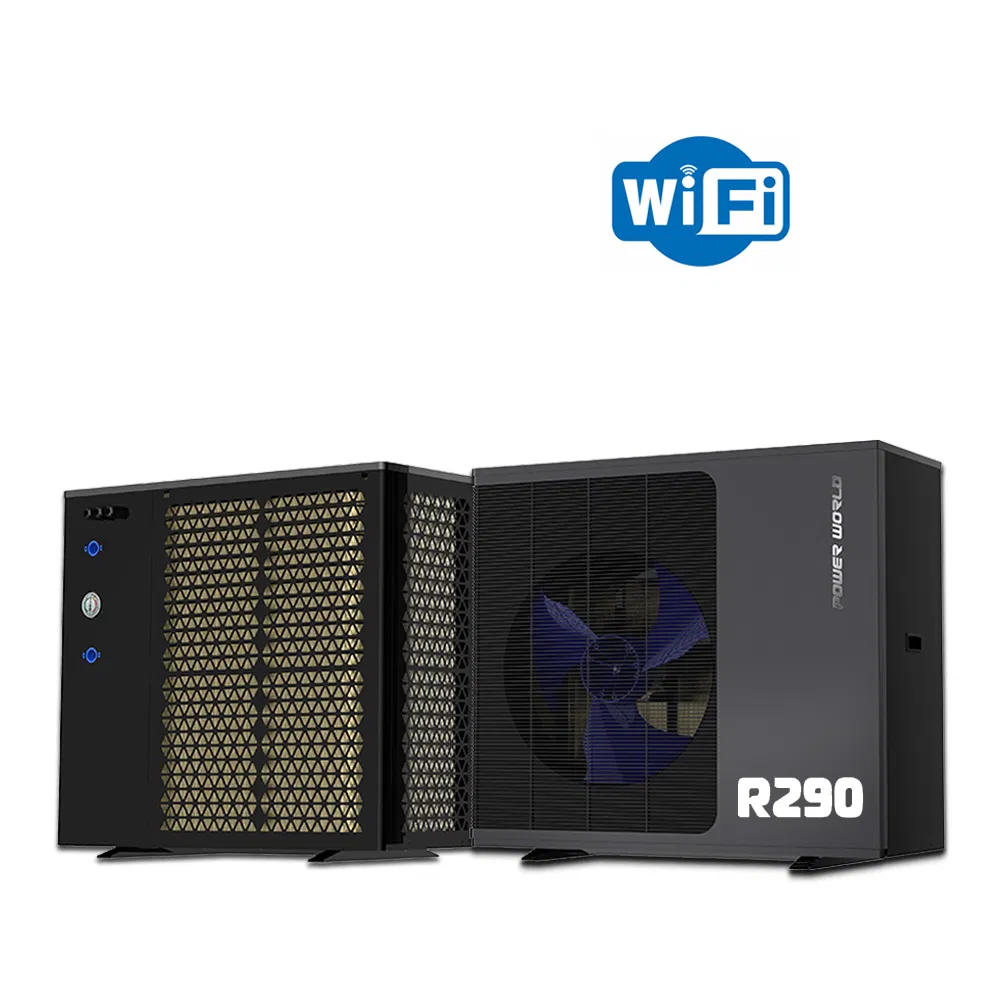

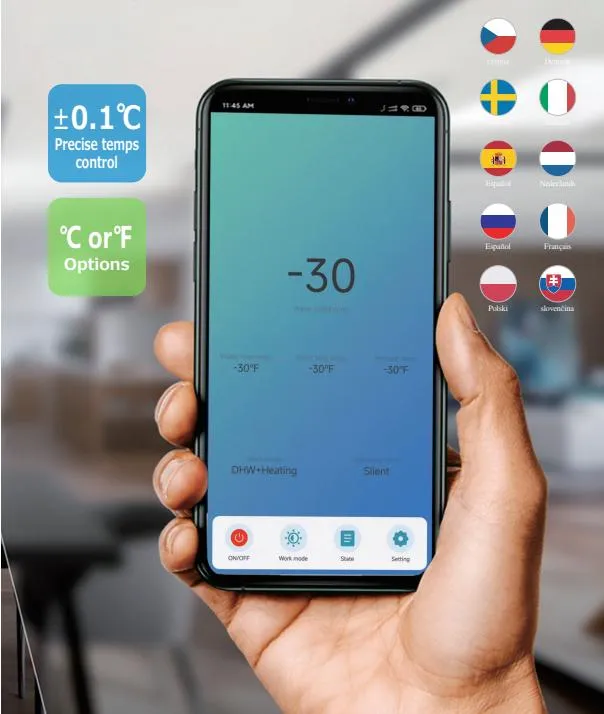

5-Inches large LCD touch screen and "Smart Life" Wi-Fi App support local languages plus English. User-friendly design reduces foreign language barriers and facilitates local market expansion.

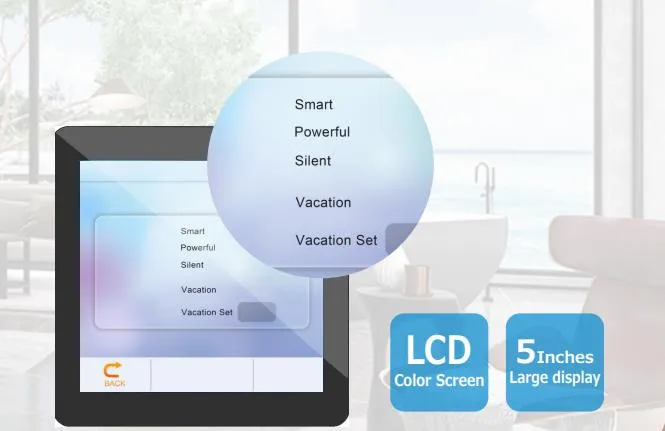

Features Powerful, Smart, Silent, and Vacation modes. Users can choose modes according to actual needs to significantly save on electricity bills.

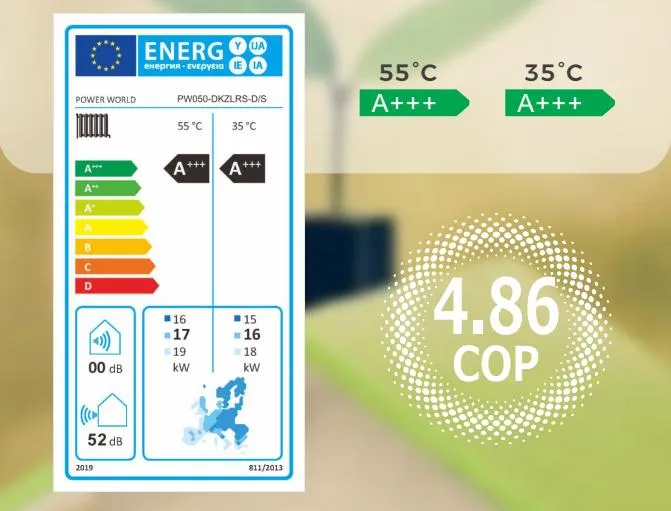

Passed ERP A+++ energy class tests. Energy efficiency grade reaches A+++ at both 35°C and 55°C water temperatures, with SCOP as high as 4.86.
Uses special three-layer sound insulation cotton combined with multiple noise reduction technologies for smooth and quiet mechanical operation.

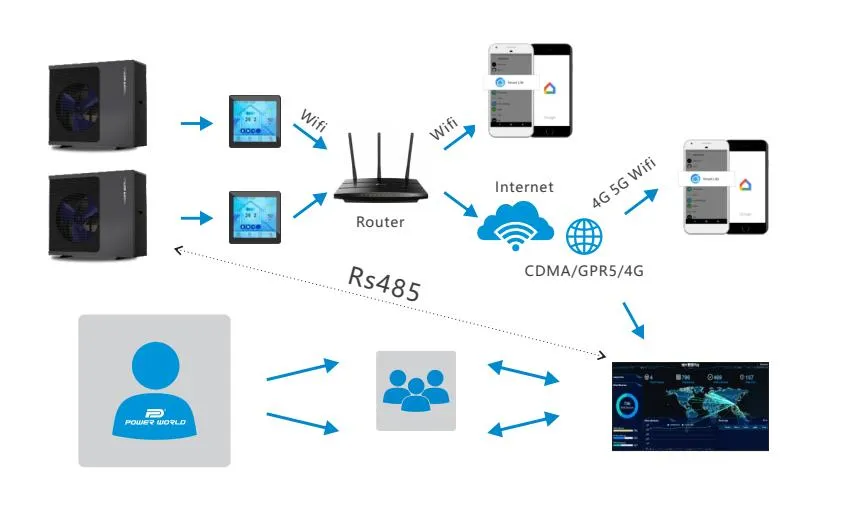

IoT cloud management platform realizes remote data monitoring via Wi-Fi or DUT. Error reports synchronize with service providers for quick solutions, saving time and communication costs.
| Model | PW030-DKZLRS-D/S | PW040-DKZLRS-D/S | PW050-DKZLRS-D/S | PW040-DKZLRS-D | PW060-DKZLRS-D |
|---|---|---|---|---|---|
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 4.2~11.8 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.17~4.75 | 4.21~4.86 |
| Refrigerant | R290 | ||||
| ErP Level (35°C) | A+++ | ||||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤50 | ≤53 |
| Net Dimension (mm) | 970×475×820 | 1080×475×970 | 1050×480×1380 | 1080×475×970 | 1050×480×1380 |

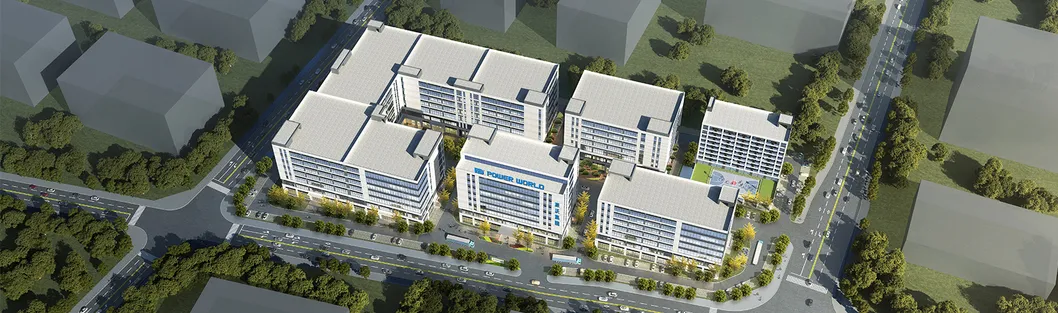

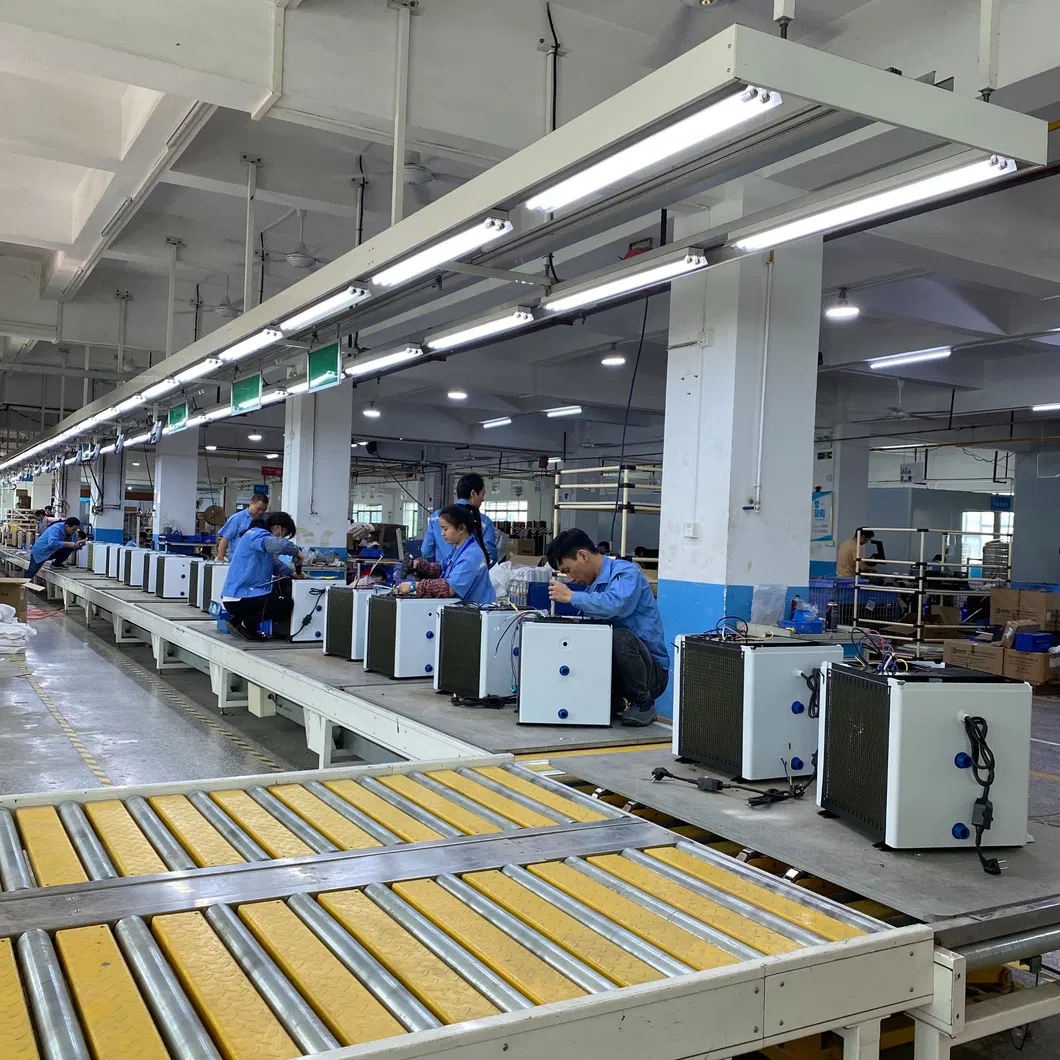

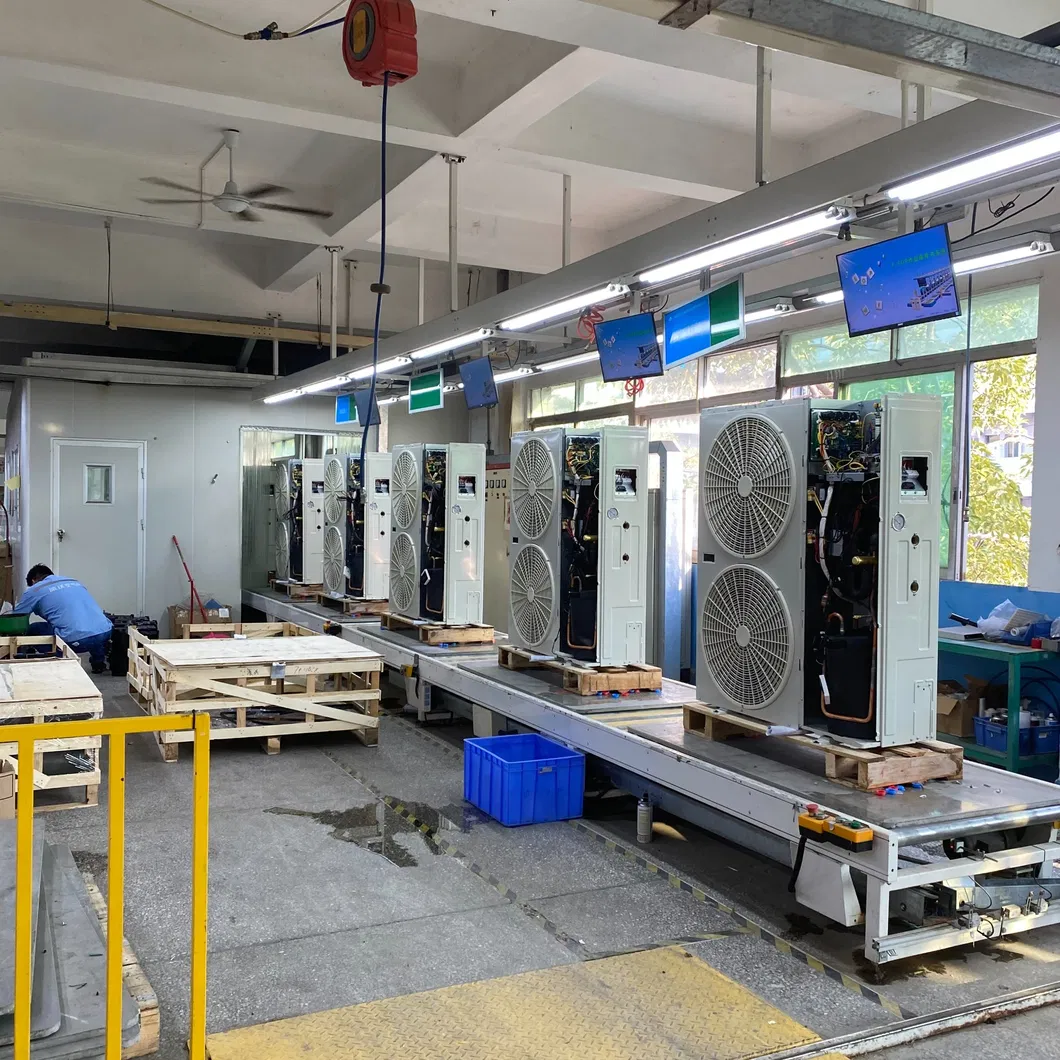

Established in 2004, this high-tech enterprise focuses on air source heat pump research, development, and production. With a complete industry chain, products include residential heating/cooling, swimming pool pumps, and domestic hot water solutions. EVI inverter heat pump exports have consistently ranked among the top in the industry for many years.
The company maintains a strong technical backbone with senior engineers and over 500 experienced personnel. Committed to R&D, they hold over 80 product patents and certifications including ISO 9001, ISO 14001, CE, CCC, and ERP. The focus remains on providing the best quality and service to customers globally.
