A heat pump is a device that utilizes low-grade thermal energy from external heat sources or the ground and elevates it to a higher temperature using compression cycle technology to provide heating, cooling, and hot water supply. Heat pump technology enables efficient use of energy and is environmentally friendly, widely applied in residential, commercial, and industrial sectors.

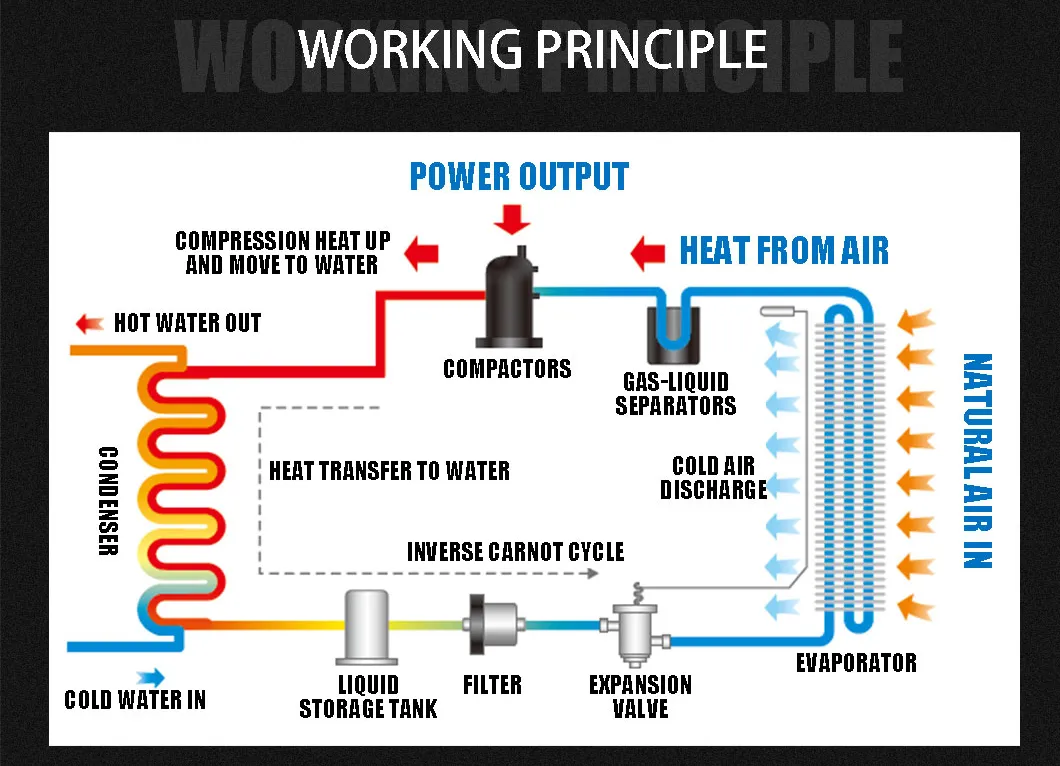

The system operates through a cycle involving four primary steps: Evaporator (absorbing heat), Compressor (increasing pressure/temp), Condenser (releasing heat), and Expansion Valve (regulating refrigerant flow).
| Parameter | Unit | DMC-LSQWRF85R2(D) | DMC-RSOWRF85/R2(D) | DMC-RSQWRF150/R2(D) |
|---|---|---|---|---|
| Nominal Heating Capacity | KW | 24 | 58 | 90 |
| Nominal Heating Power | KW | 9.5 | 24 | 41 |
| Water Flow | m³/h | 5.5 | 15 | 22.5 |
| COP | KW/KW | 2.53 | 2.42 | 2.2 |
| Cooling Capacity | KW | 32 | 85 | 130 |
| Cooling Power | KW | 10.5 | 27 | 45 |
| Refrigerant Type | - | R410A | R410A | R410A |
| Unit Weight (Net) | Kg | 350 | 980 | 1280 |

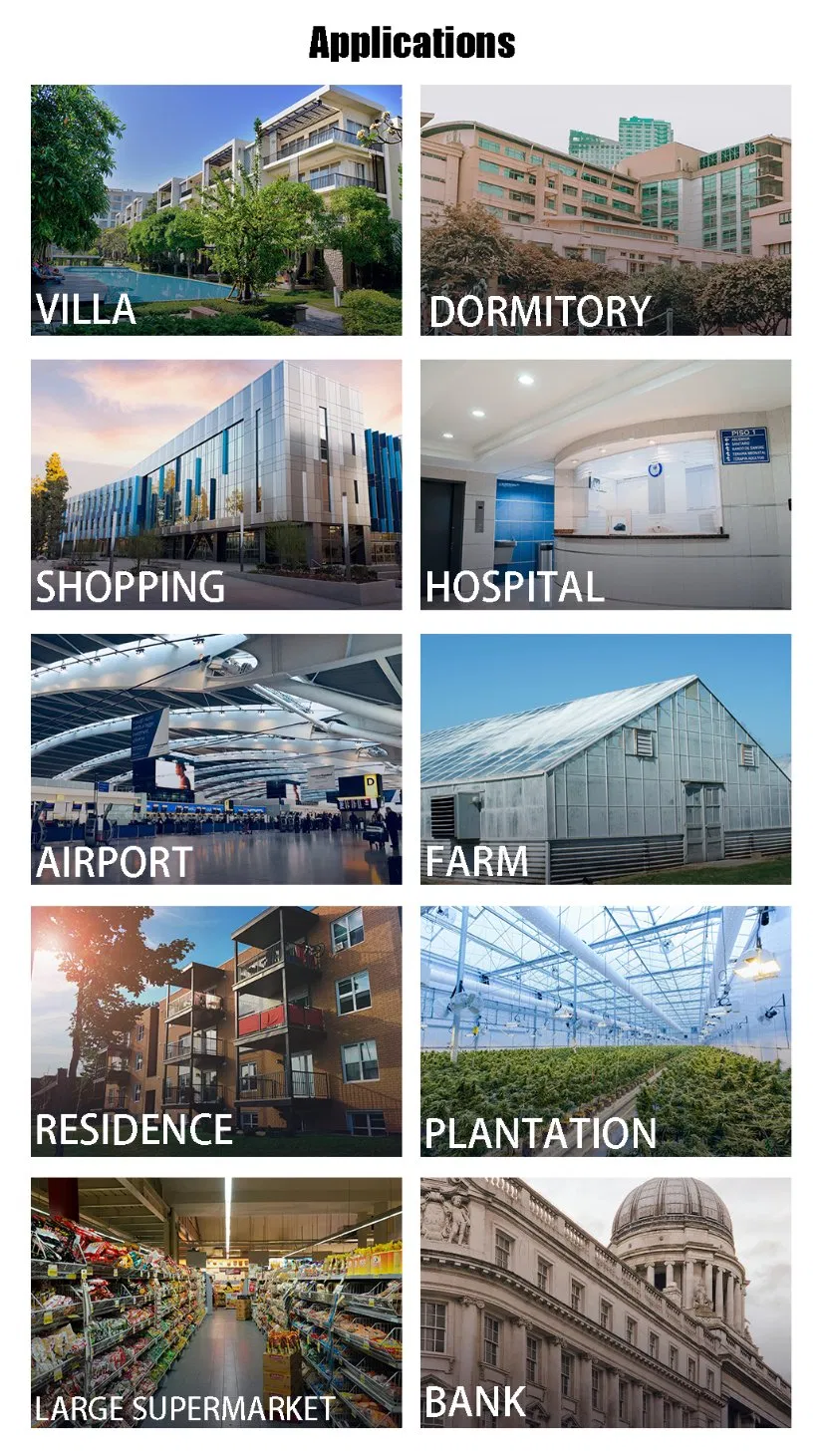

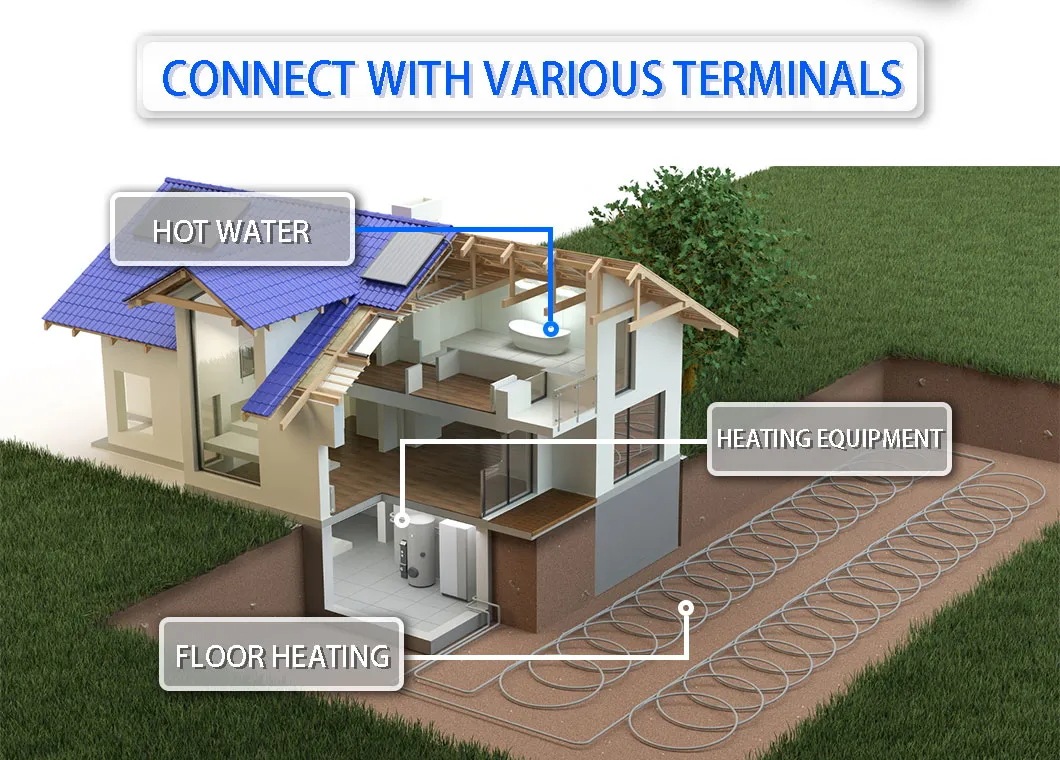

Air source heat pumps are suitable for various types of buildings, including residential, commercial, and industrial settings. They are particularly effective for small to medium-sized spaces where other heat pump types might not be feasible due to land or geological constraints.
Dedicated to building an integrated platform for overseas buyers, we provide affordable HVAC/R solutions with a comprehensive knowledge of the supply chain. We offer a wide range of residential and commercial high-efficiency systems, parts, and tools, including OEM and ODM services to meet specific project requirements.
