A Higher Level of Comfort
Delivering year-round comfort with exceptional efficiency. Whether removing heat and humidity to keep you cool, or drawing heat indoors to keep you warm.

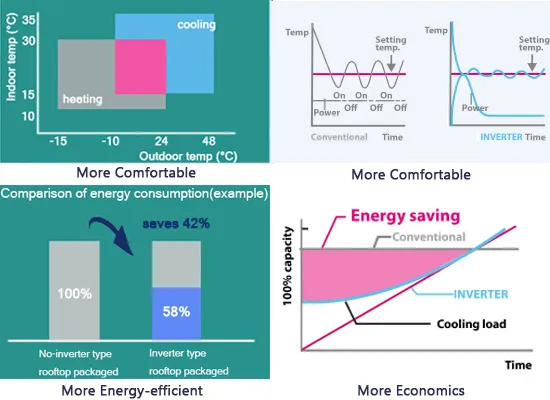

DC Inverter technology allows the compressor to vary its speed to maintain a consistent temperature, unlike fixed-speed compressors that stop and start frequently. This results in better accuracy, constant temperature, and significantly less energy wastage.

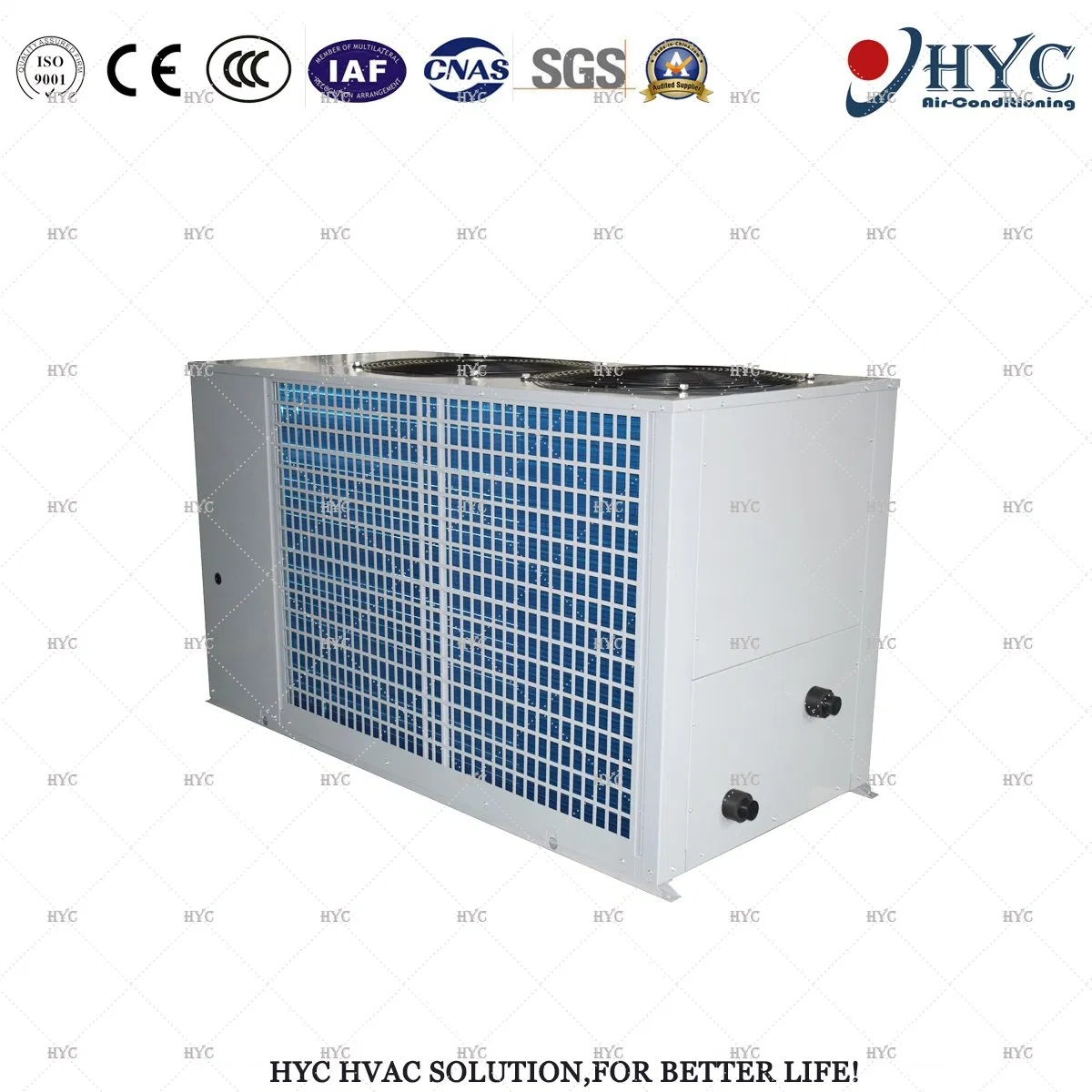

Supplied as a complete package ready for operation. Single power point entry with simple connections.
High efficiency, oil return lubrication, and rubber vibration dampers with integrated security protection.
External rotor type with low noise 8 poles, IP54 protection, and protective outlet grille.
Built with high efficiency plate type heat exchanger, factory insulated with flexible close cell material.
Seamless internal screw thread copper tubes with blue wave hydrophilic aluminum fins.

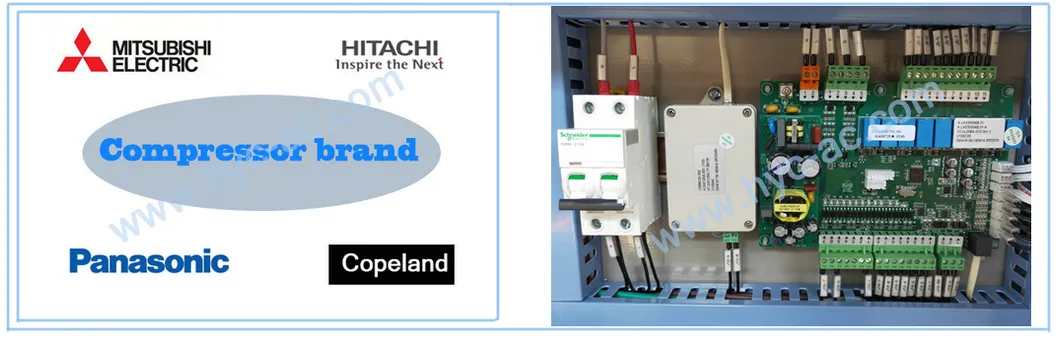

Includes compressor contactor, phase sequence relay, and microprocessor with function display.
| Model | 8 | 10 | 12 | 14 | 20 | 25 | 30 | 35 | 40 | 50 |
|---|---|---|---|---|---|---|---|---|---|---|
| Cooling Cap (kW) | 8 | 10 | 12 | 14 | 20 | 25 | 28 | 35 | 40 | 50 |
| Heating Cap (kW) | 10 | 12.5 | 14.7 | 16 | 22 | 27.2 | 30 | 38 | 44 | 55 |
| Net Weight (kg) | 150 | 155 | 150 | 180 | 282 | 310 | 339 | 310 | 470 | 520 |
| Noise dB(A) | 58 | 58 | 60 | 64 | 64 | 66 | 68 | 70 | 70 | 70 |
| Large Model | 20 | 30 | 40 |
|---|---|---|---|
| Cooling Capacity (kW) | 65 | 97.5 | 130 |
| Heating Capacity (kW) | 68 | 103 | 141 |
| Water Flow (m3/h) | 11.2 | 16.8 | 22.4 |
| Dimension (mm) | 2020*1000*1920 | 2020*1000*1920 | 2020*1000*1920 |
