PeakWay Pump
1 / 5
| Model NO. | PW040-DKZLRS-D/S |
| Work Environment | Low-temperature Heat Pump |
| Heat Source | Air-source |
| Heating Type | Multi-power Heat |
| Application | Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons |
| Certification | CE, ISO9001, CB, RoHS |

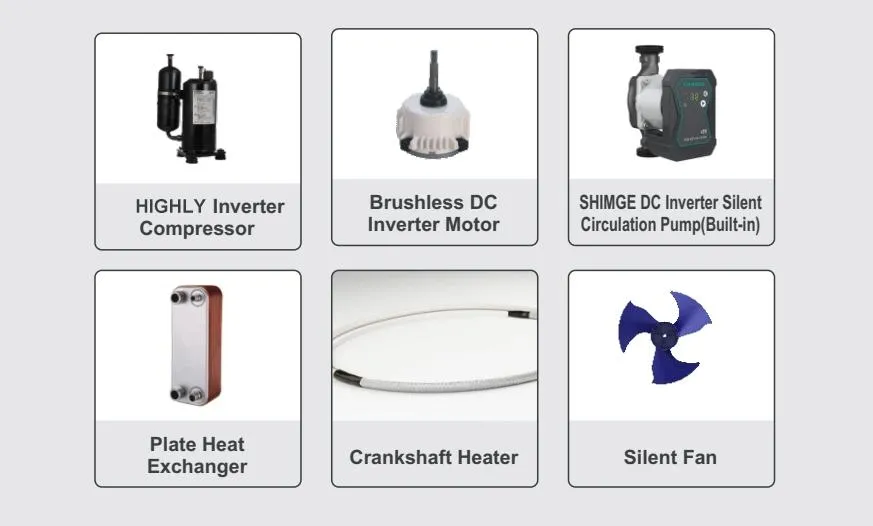

| Compressor | Pana-Sonic Full DC Inverter |
| Ambient Temp | -30 Degree ~ 45 Degree |

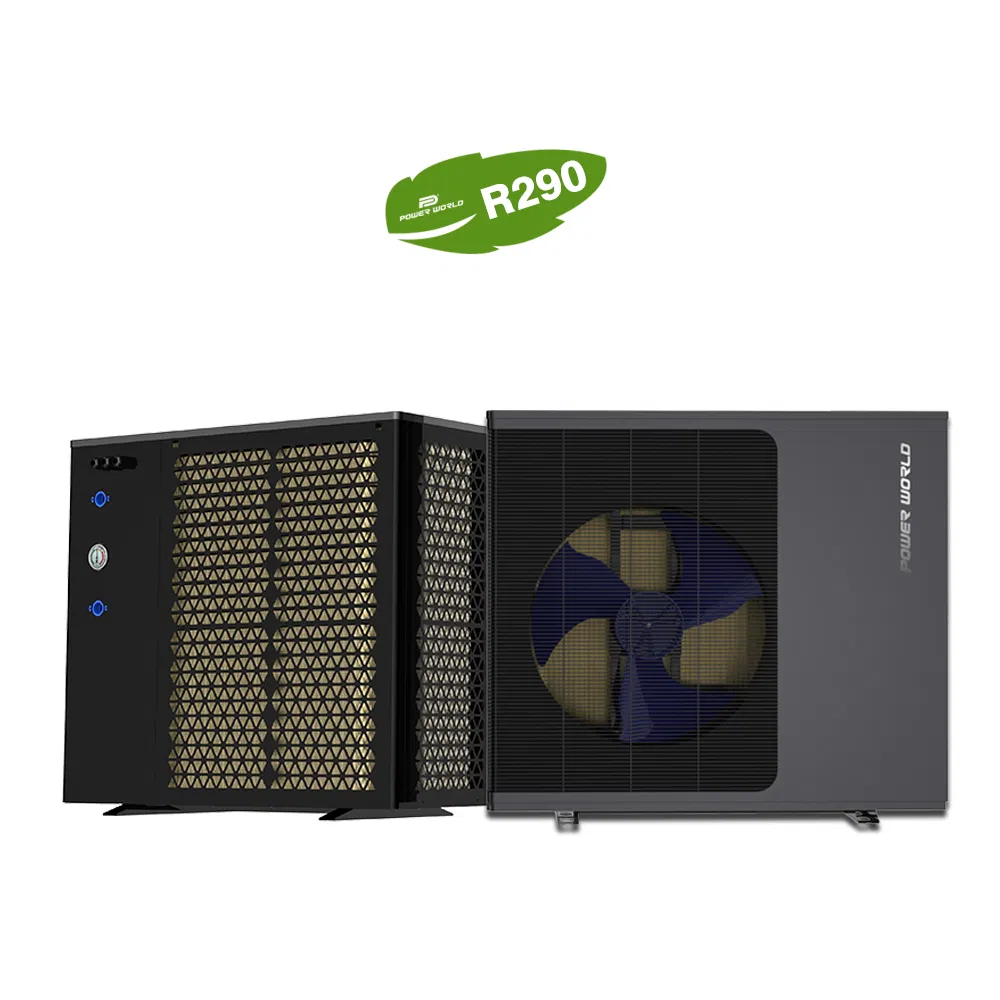

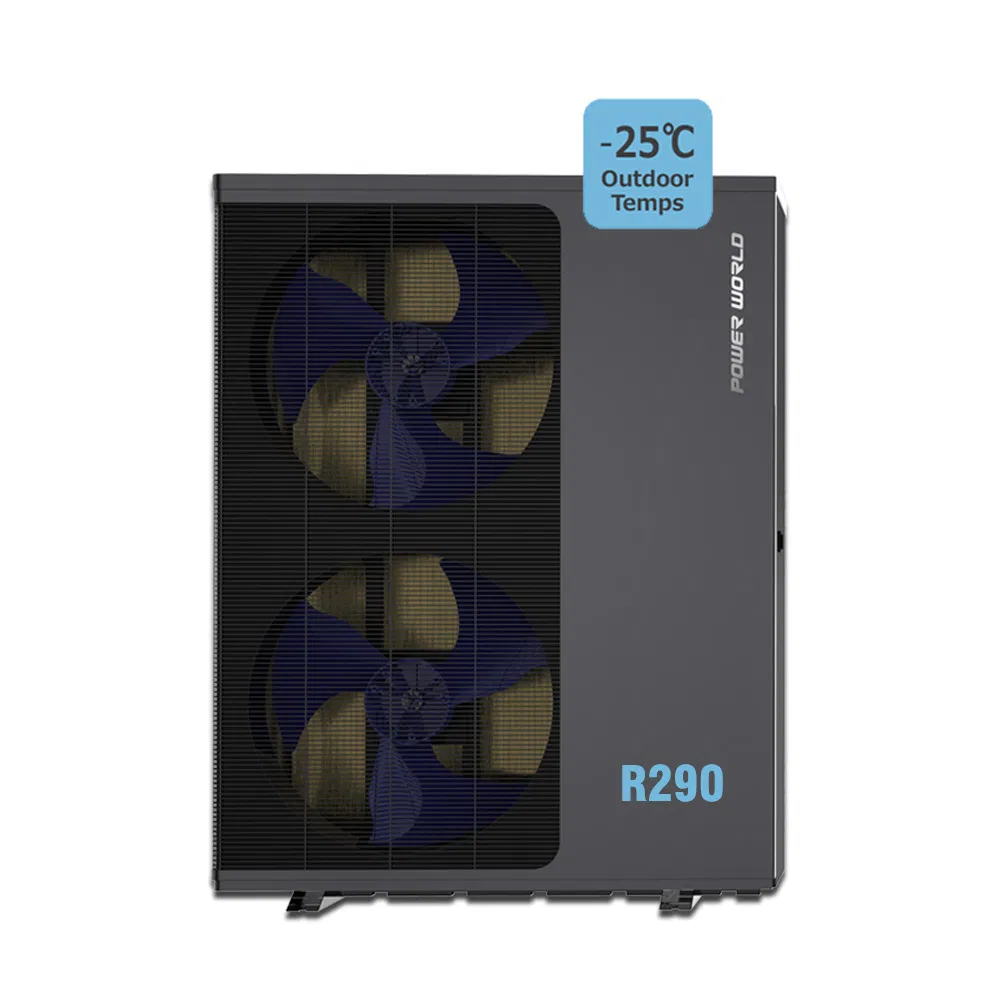

| Type | Monoblock Heat Pump |
| Heating Capacity | 9kw, 11.8kw, 16kw, 22kw |
| Power Supply | 220V/50Hz, 380V/50Hz |
| Refrigerant | R290 |
| Origin | China |
To reduce carbon emissions to the environment and curb global warming, an R290 Full DC Inverter Heat Pump has been developed. R290 has a GWP of less than 20 and is recognized as the most eco-friendly refrigerant.

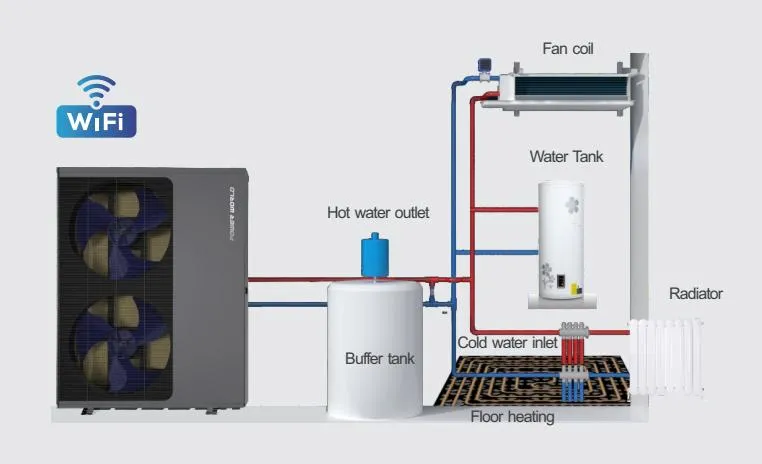

Meets year-round needs via 3-way valve: Domestic Hot Water, Cooling Only, Heating Only, Heating + DHW, Cooling + DHW.

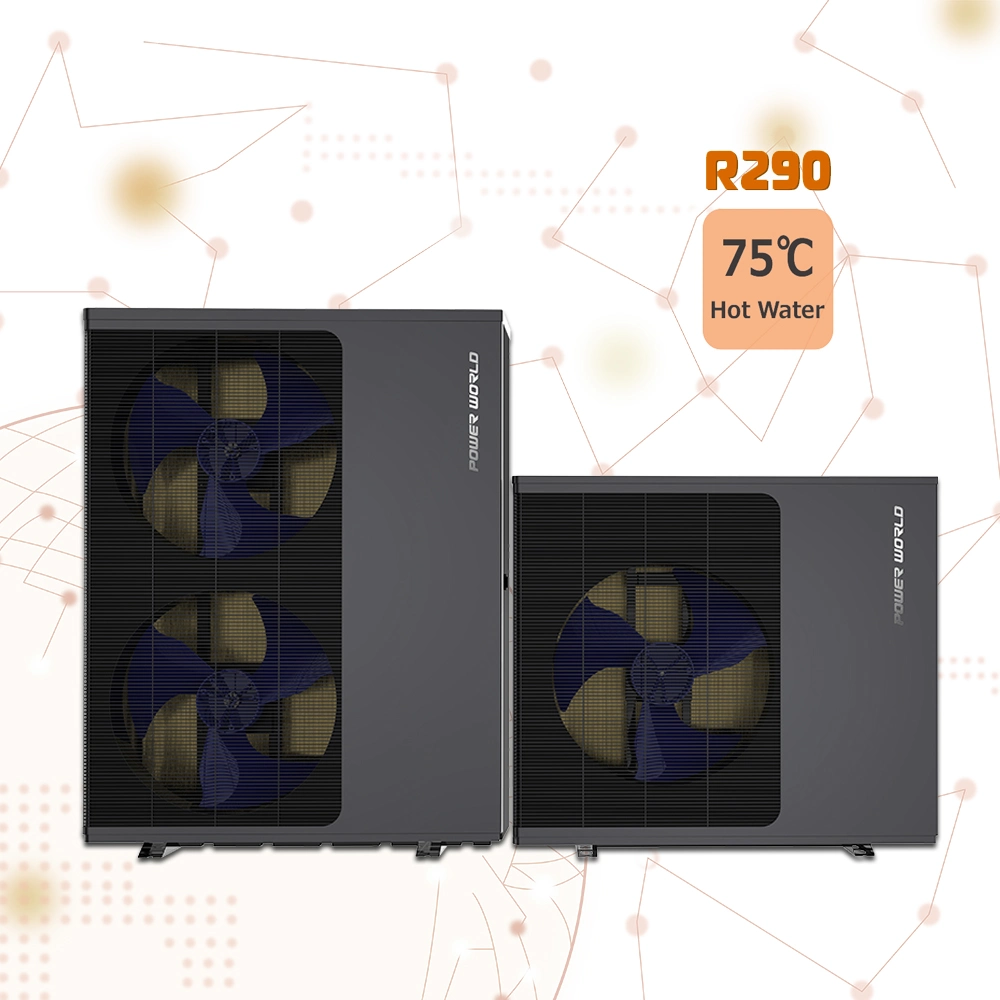

This heat pump can operate stably and efficiently in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water.
Intelligently adjusts operating frequency to keep rooms at constant temperatures. Saves up to 50% energy compared to ON-OFF units and up to 75% compared to traditional boilers.

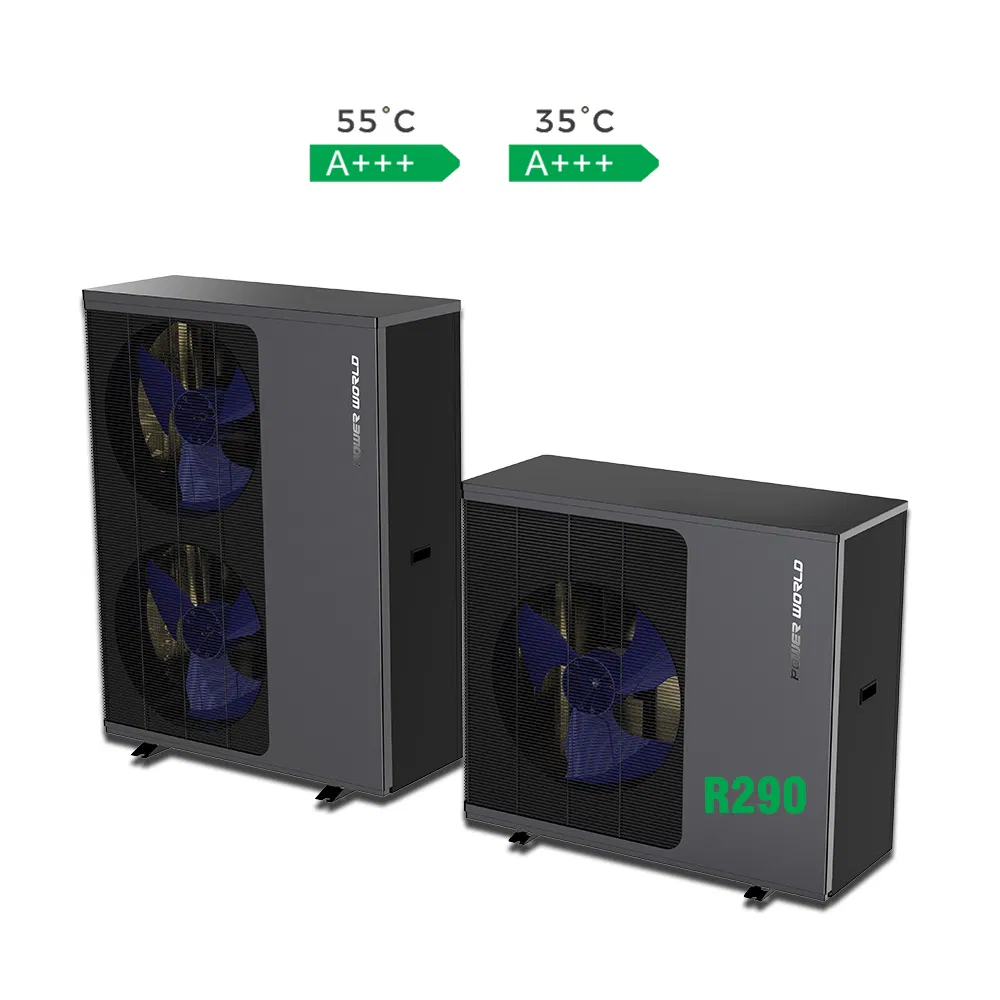

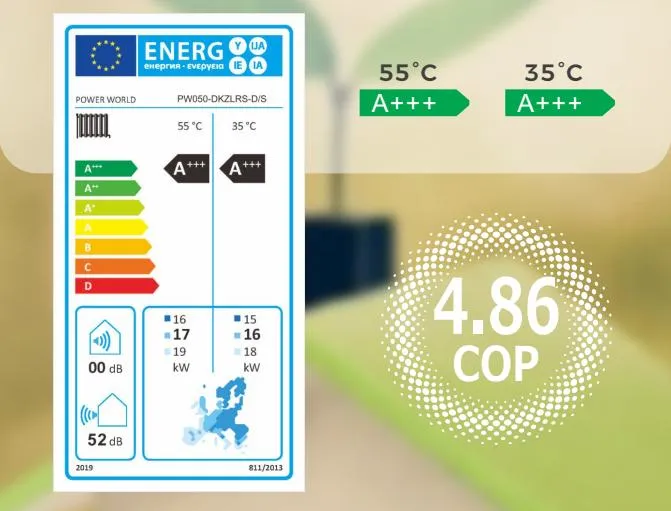

Energy efficiency grade reaches A+++ at both 35°C and 55°C. SCOP as high as 4.86 ensures perfect performance.

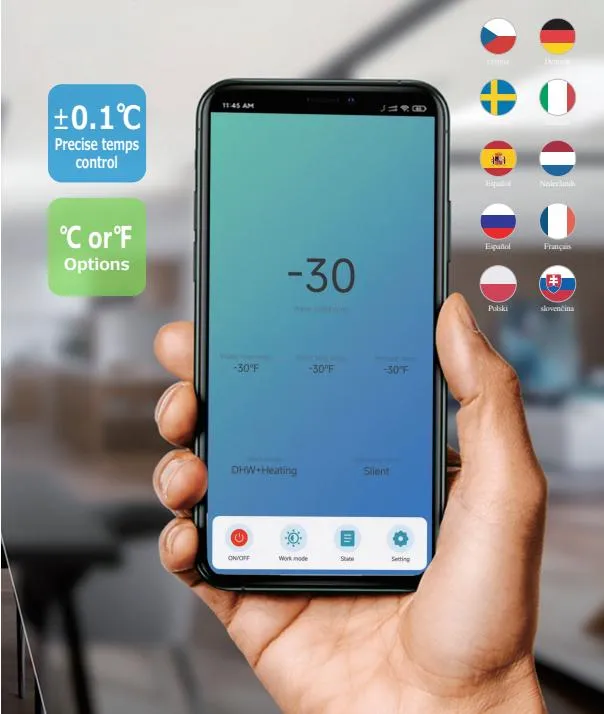

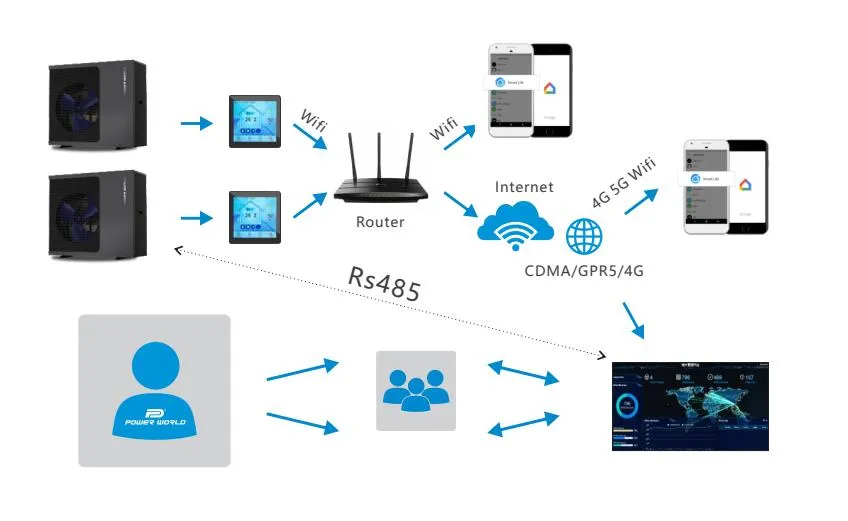

Connected via Wi-Fi or DUT for remote data monitoring. Records all operating parameters. Synchronizes error reports to service providers for rapid solutions.

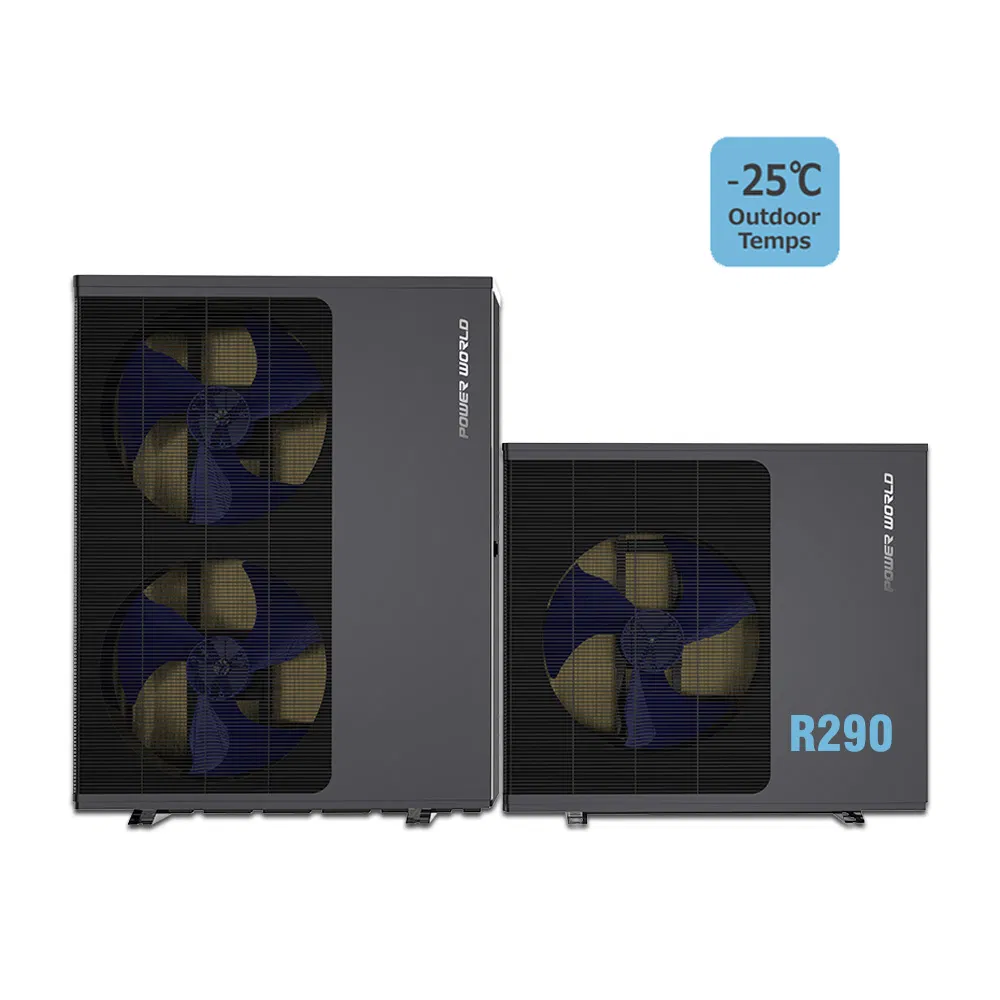

| Model | PW030-DKZLRS | PW040-DKZLRS | PW050-DKZLRS | PW060-DKZLRS |
|---|---|---|---|---|
| Heating Capacity Range (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| Heating Power Input (kW) | 0.68~2.18 | 0.88~2.83 | 1.16~3.80 | 1.58~5.23 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤53 |

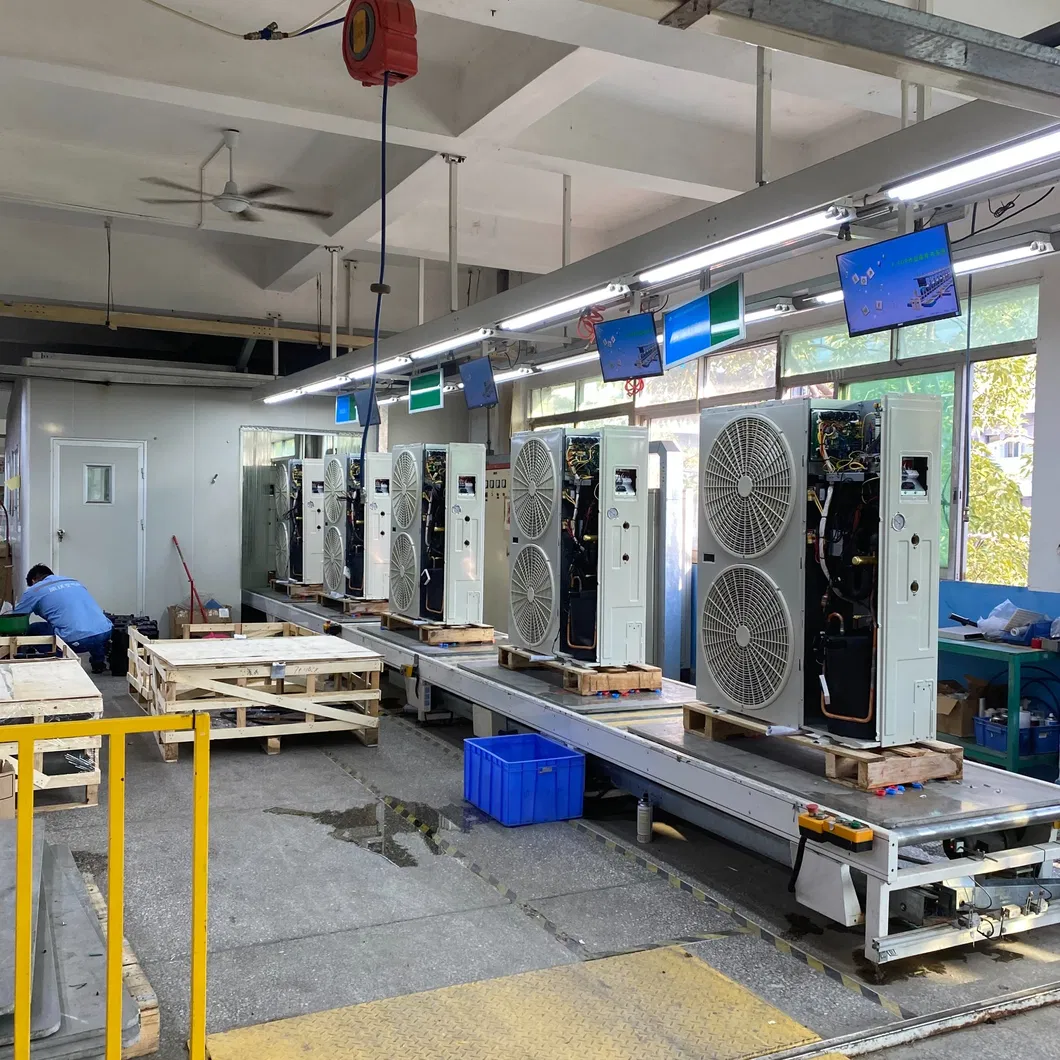

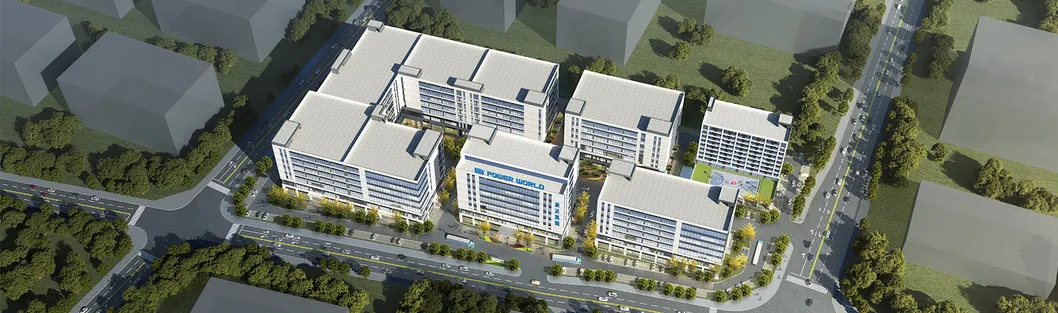

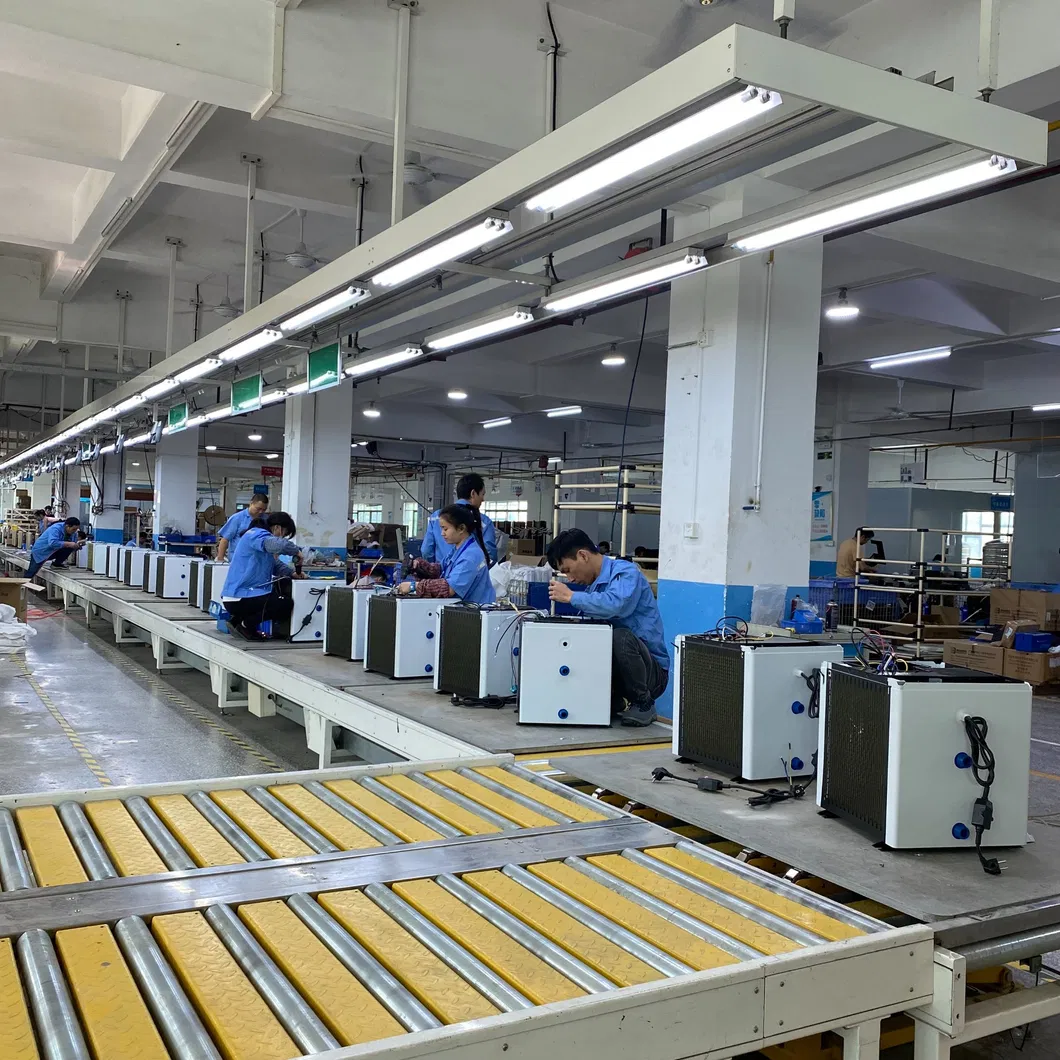

Established in 2004, this high-tech enterprise focuses on the R&D, production, and sales of air source heat pump products. With a complete industry chain, the factory is located in a prosperous manufacturing hub and has strong technology and R&D strength. Products include swimming pool heat pumps, residential heating/cooling pumps, and industrial drying solutions.

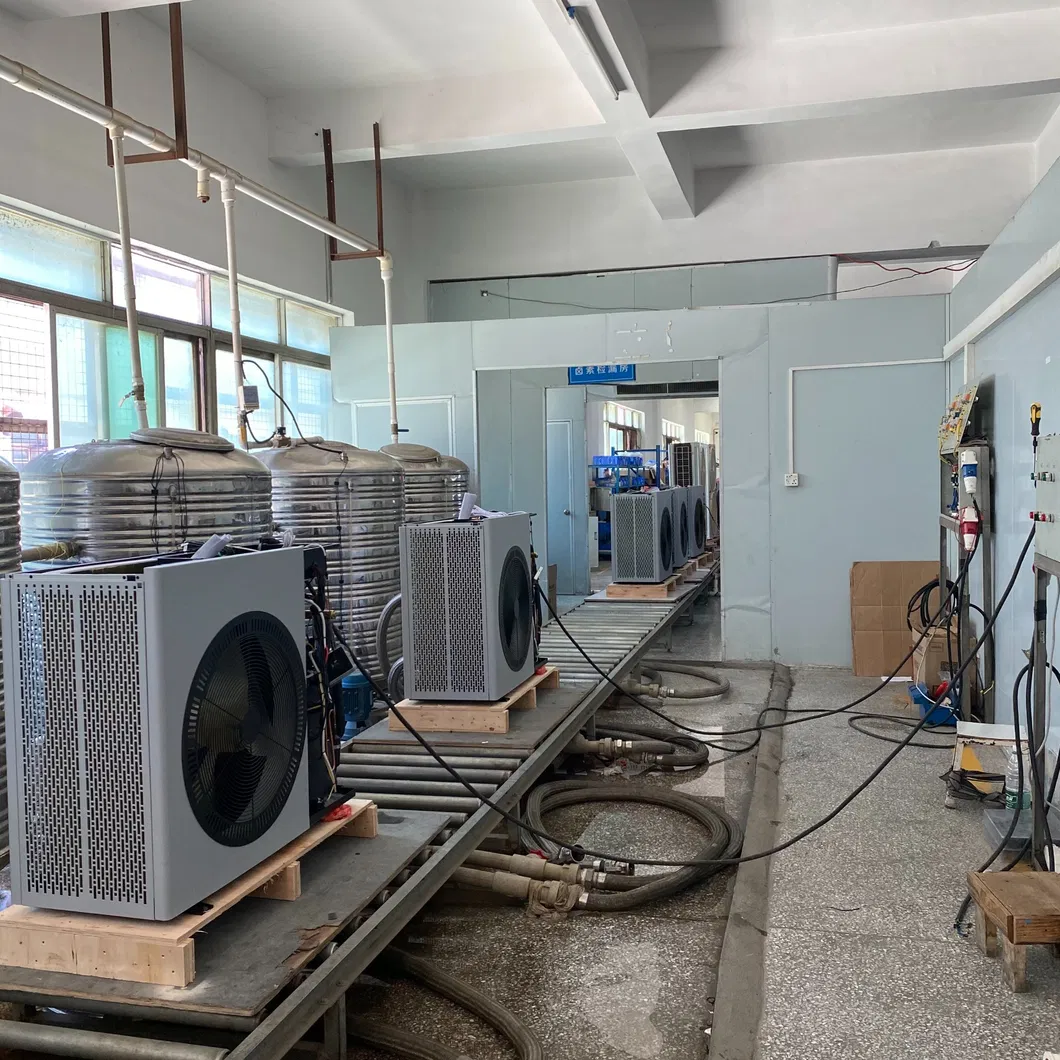

The company maintains a talent structure with senior engineers and over 500 production personnel. It holds more than 80 product patents and is ISO 9001/14001, CE, CCC, and ERP certified.
