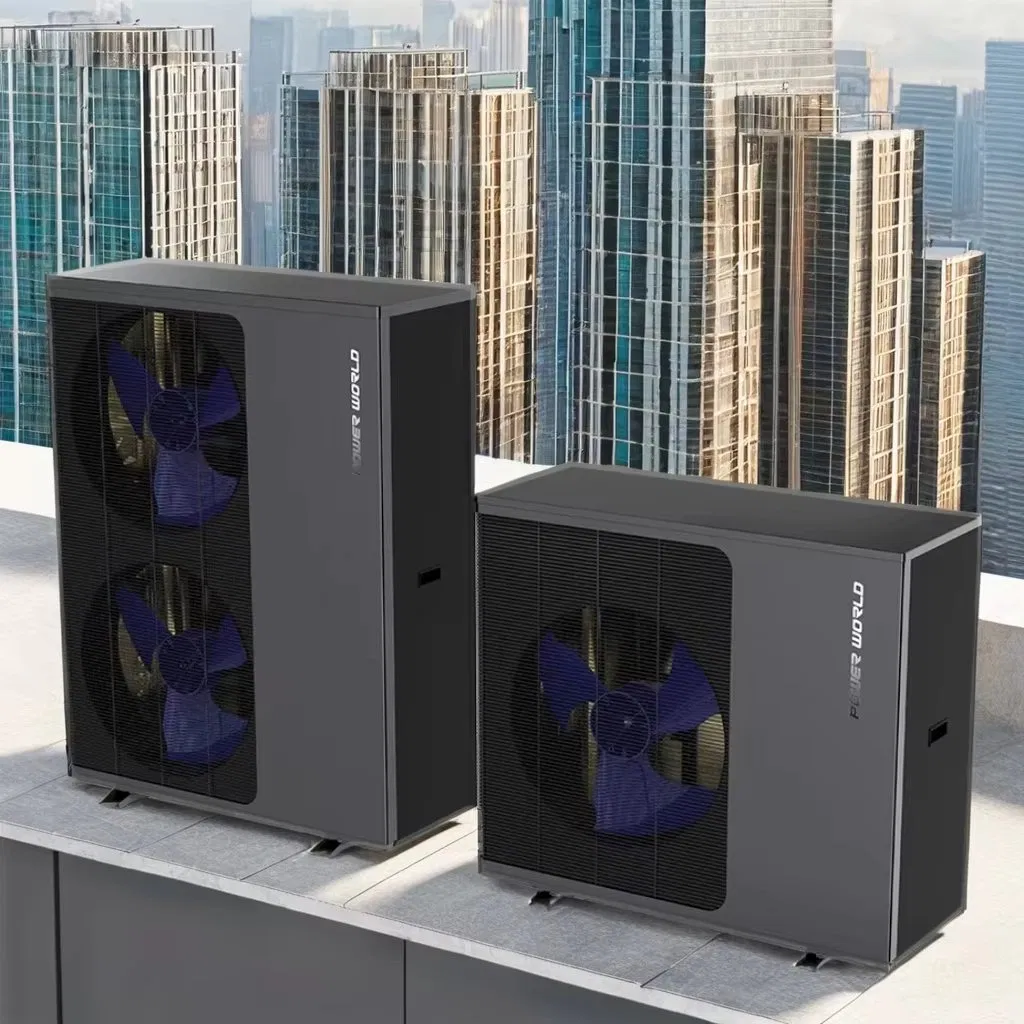

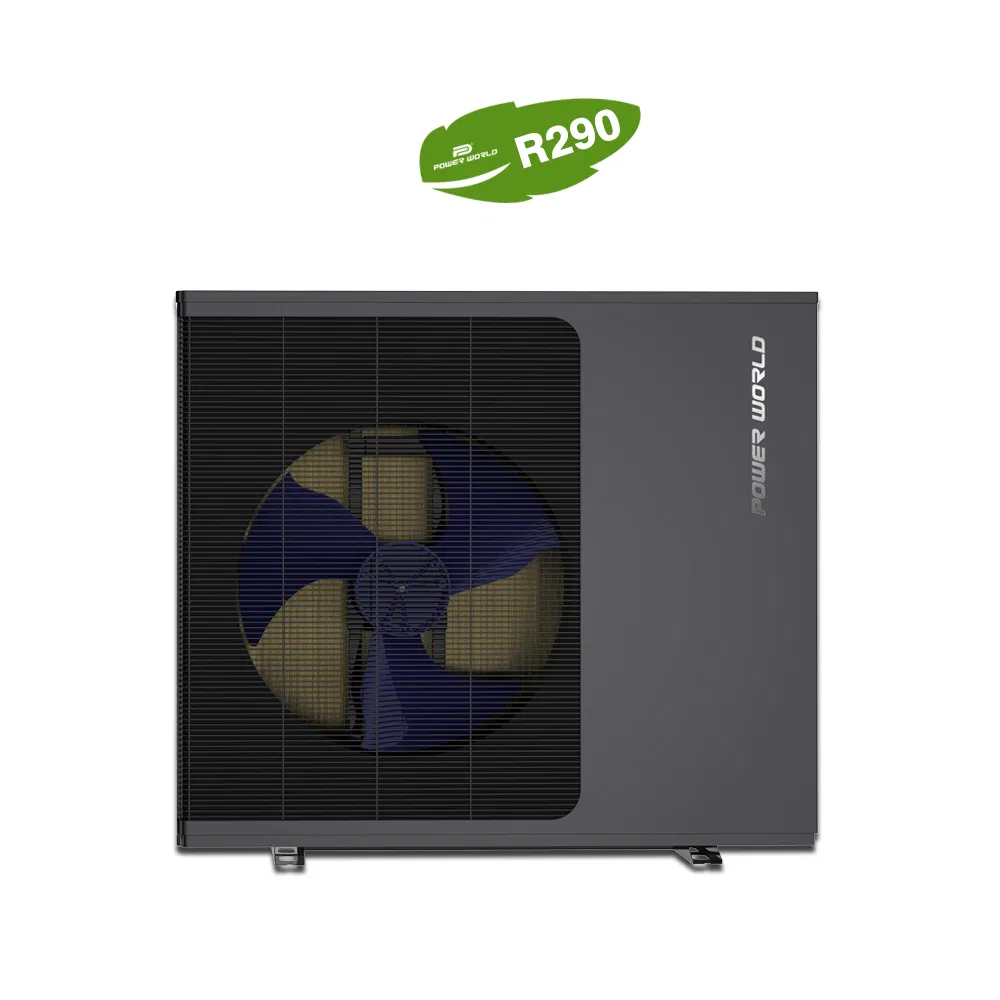

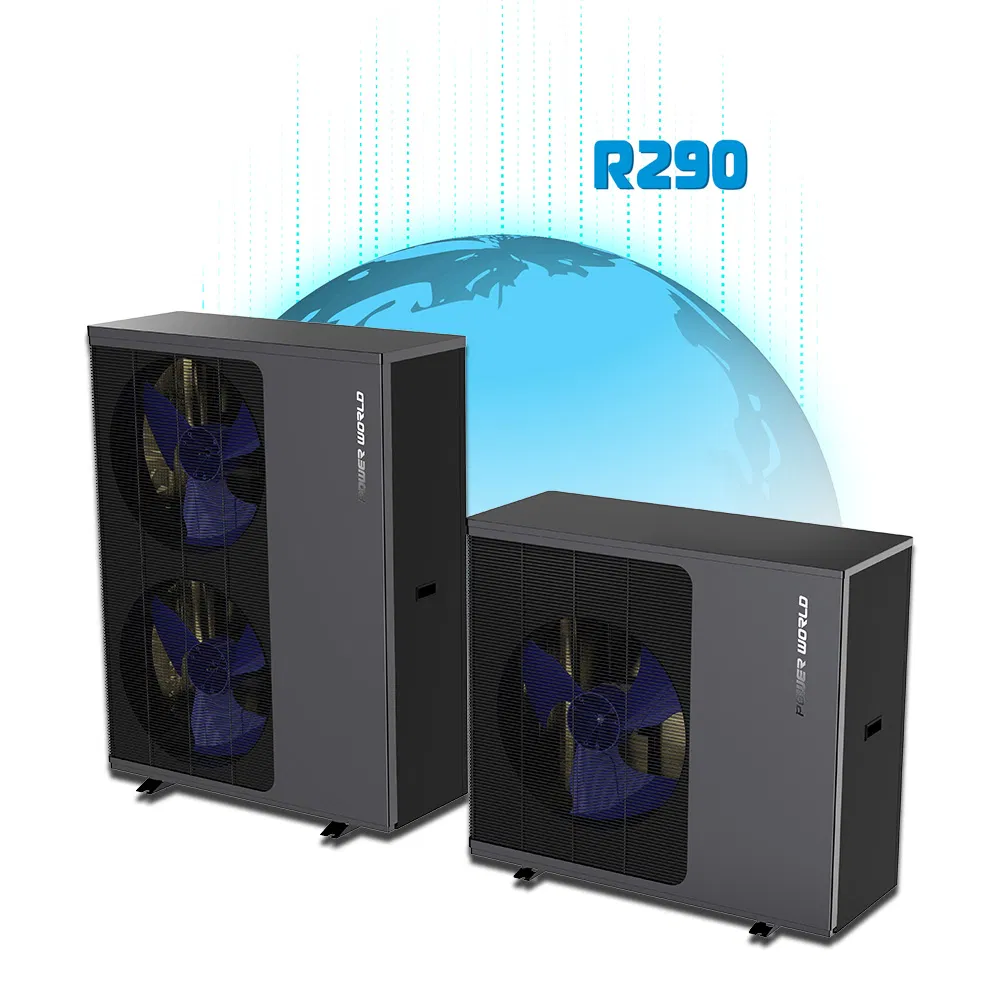

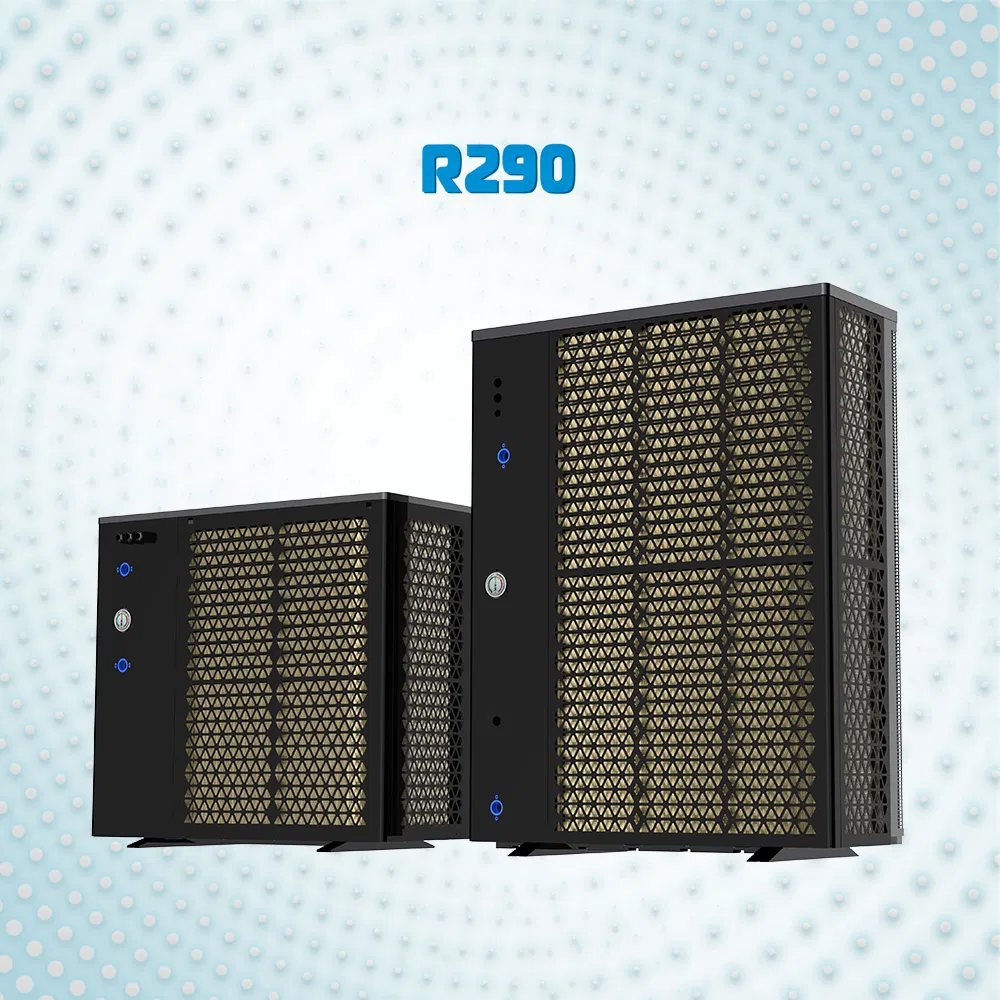

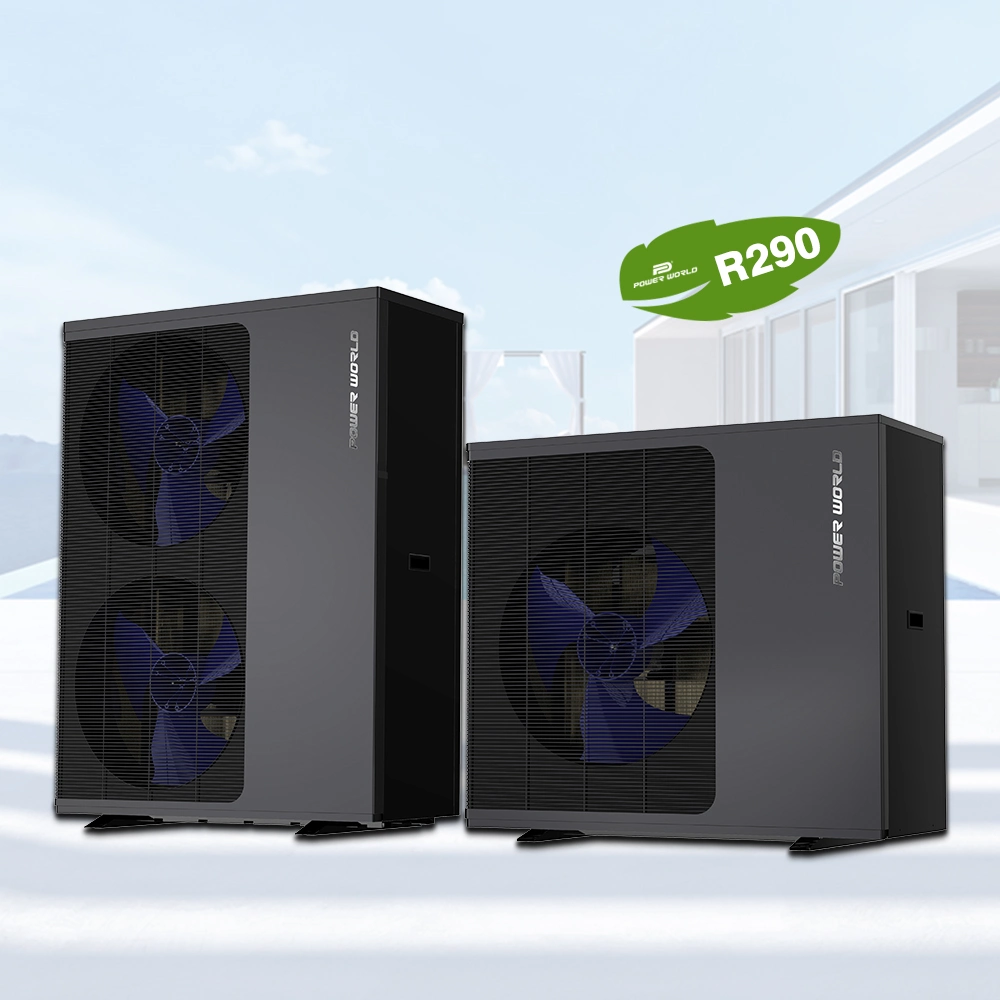

To reduce carbon emissions to the environment and curb global warming, an R290 Full DC Inverter Heat Pump has been developed. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most development potential and eco-friendly refrigerant.

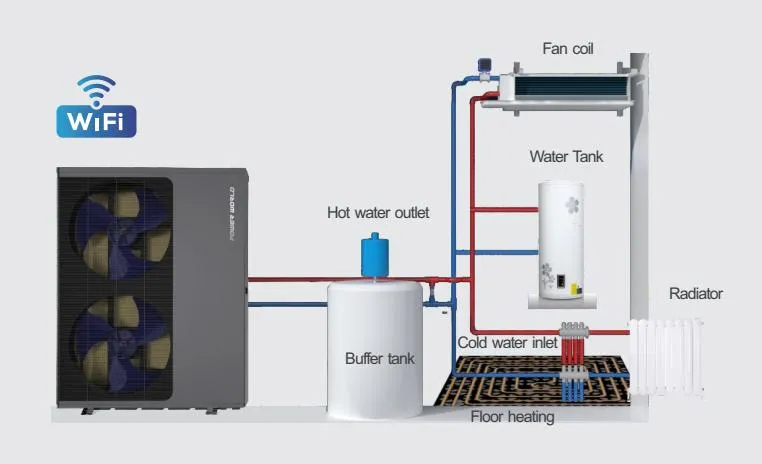

The perfect performance of the R290 FULL DC INVERTER Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year (by 3-way valve):
Domestic Hot Water Only Cooling Only Heating Only Heating + DHW Cooling + DHW
Under low ambient temperature, the performance and operational stability of normal heat pumps will be limited. This R290 FULL DC INVERTER heat pump can operate stably and efficiently in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water to ensure house heating needs.
The Full DC inverter technology allows the unit to intelligently adjust the operating frequency and control the water temperature to keep the room at a constant temperature. It can save up to 50% energy compared to ON-OFF units and up to 75% energy compared to traditional boiler electric heat pumps.
The unit has passed the ERP A+++ energy class test. Its energy efficiency grade reaches A+++ at both 35°C and 55°C. The SCOP can be as high as 4.86, ensuring ultra-high energy efficiency.

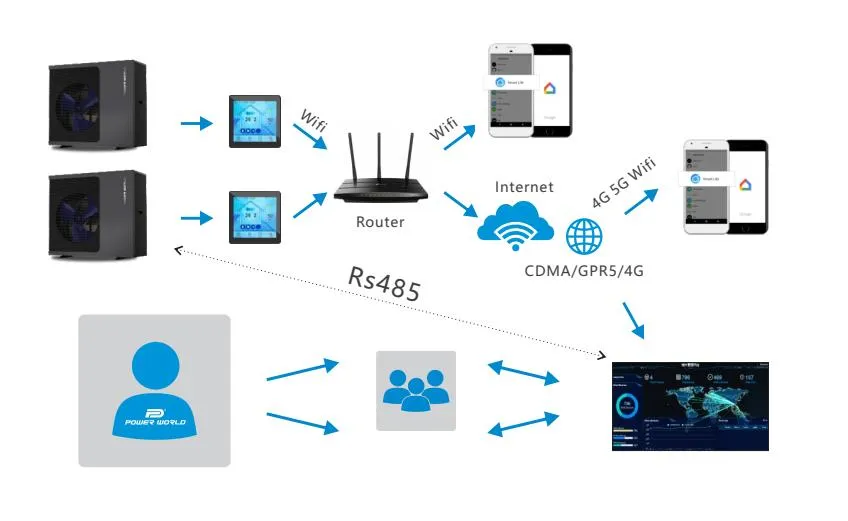

The IoT cloud management platform can be connected via Wi-Fi or DUT for remote monitoring. If an error occurs, the report is synchronized to the service provider background, allowing for quick solutions and saving communication costs.
| Model | PW030-DKZLRS-E/S | PW040-DKZLRS-E/S | PW050-DKZLRS-E/S | PW060-DKZLRS-E |
|---|---|---|---|---|
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| ErP Level (35°C) | A+++ | A+++ | A+++ | A+++ |
| Refrigerant | R290 | |||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤53 |
| Net Weight (kg) | 105 | 115 | 160 | 165 |
| Ambient Temp (ºC) | -25 ~ 43 ºC | |||

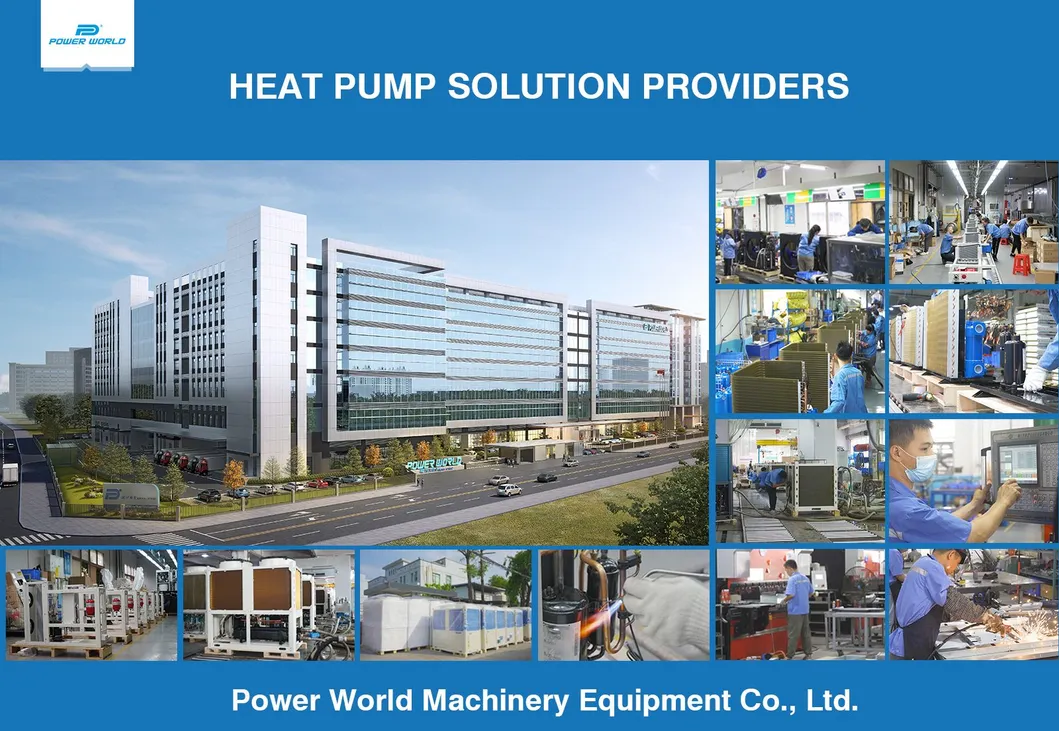

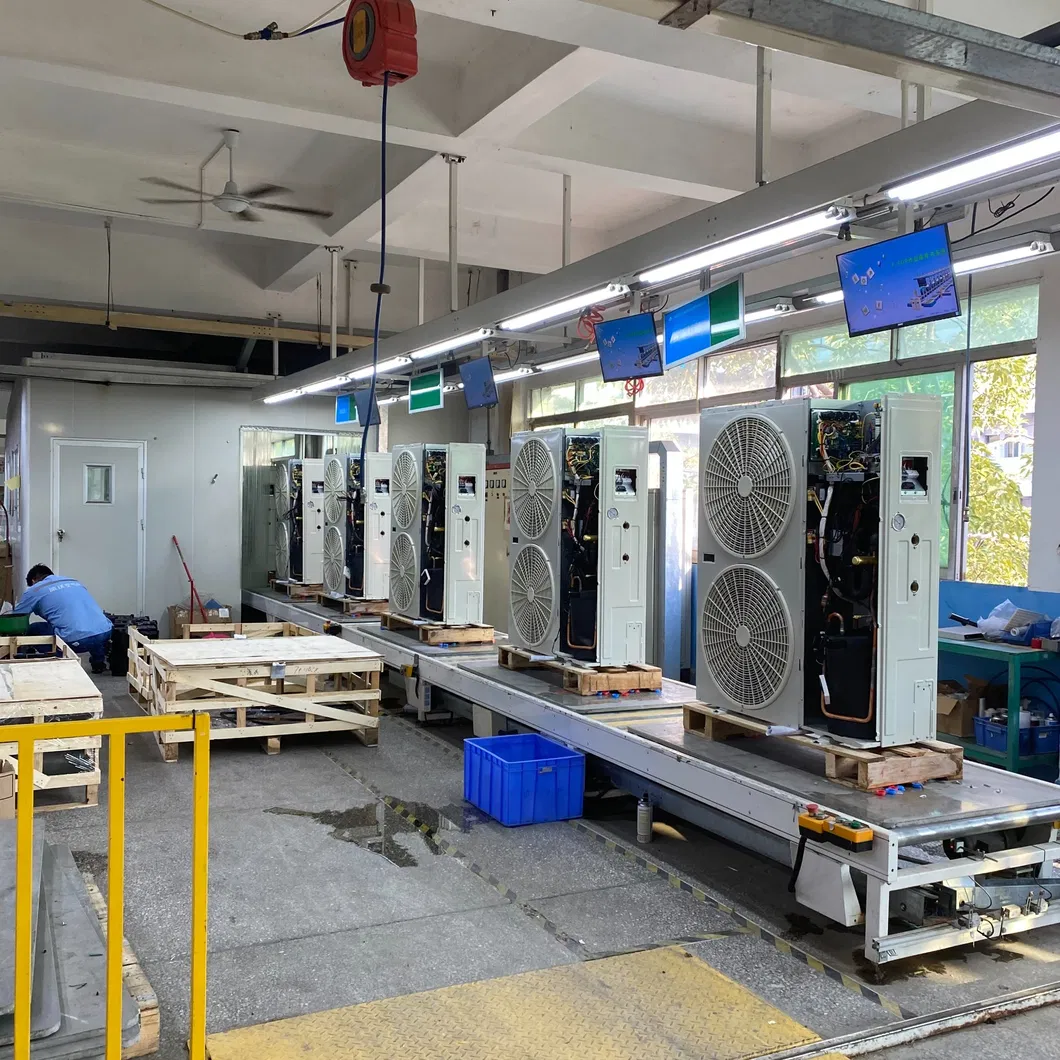

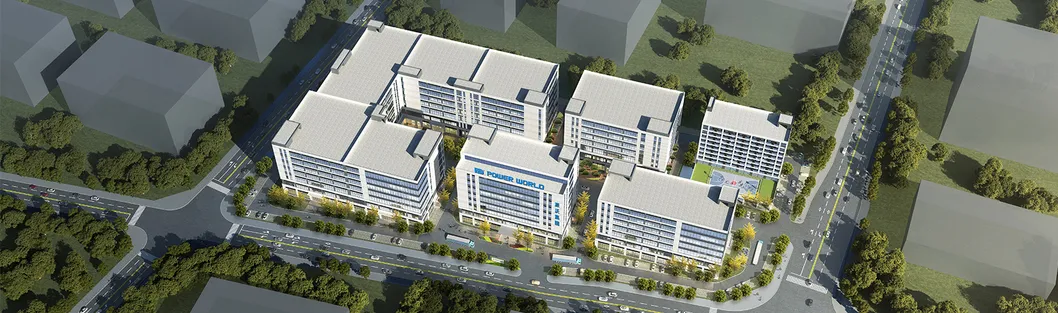

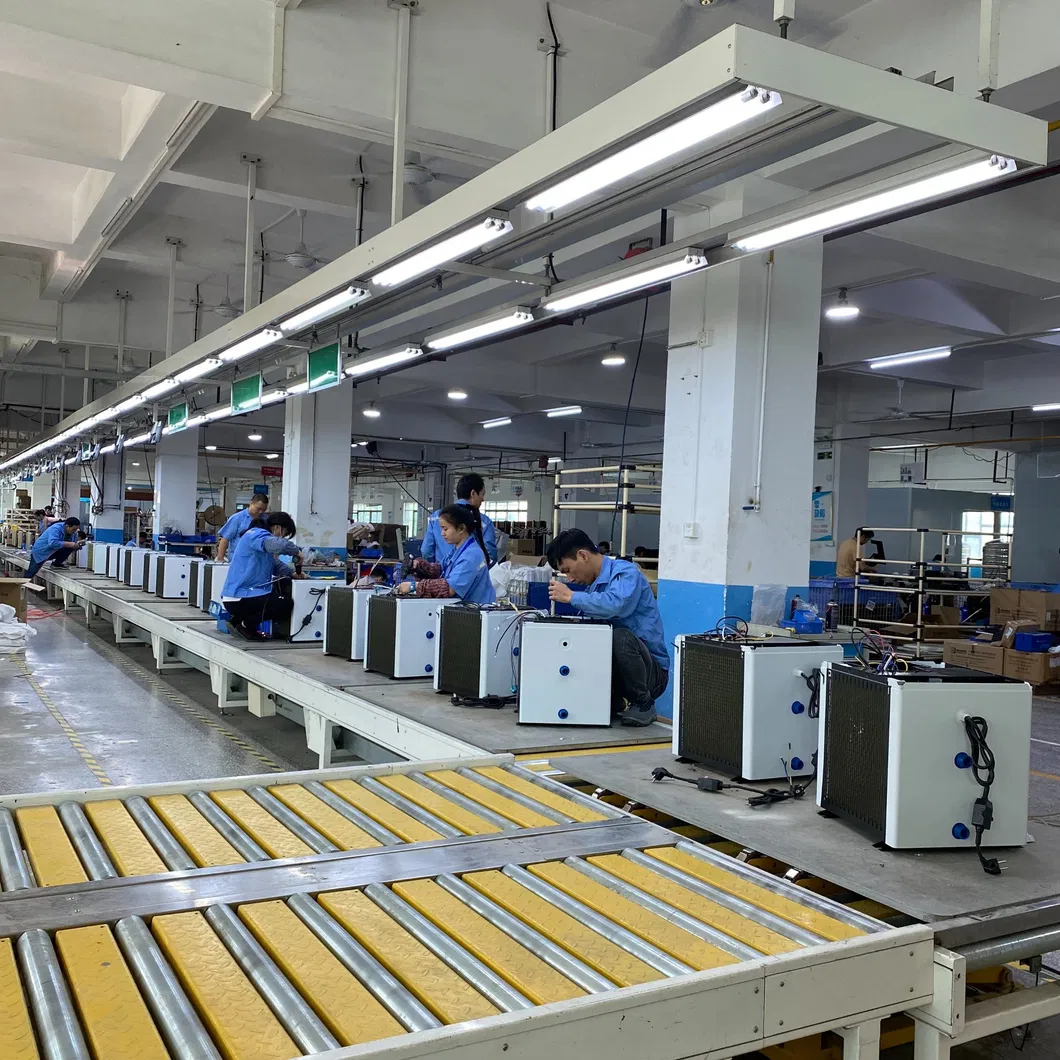

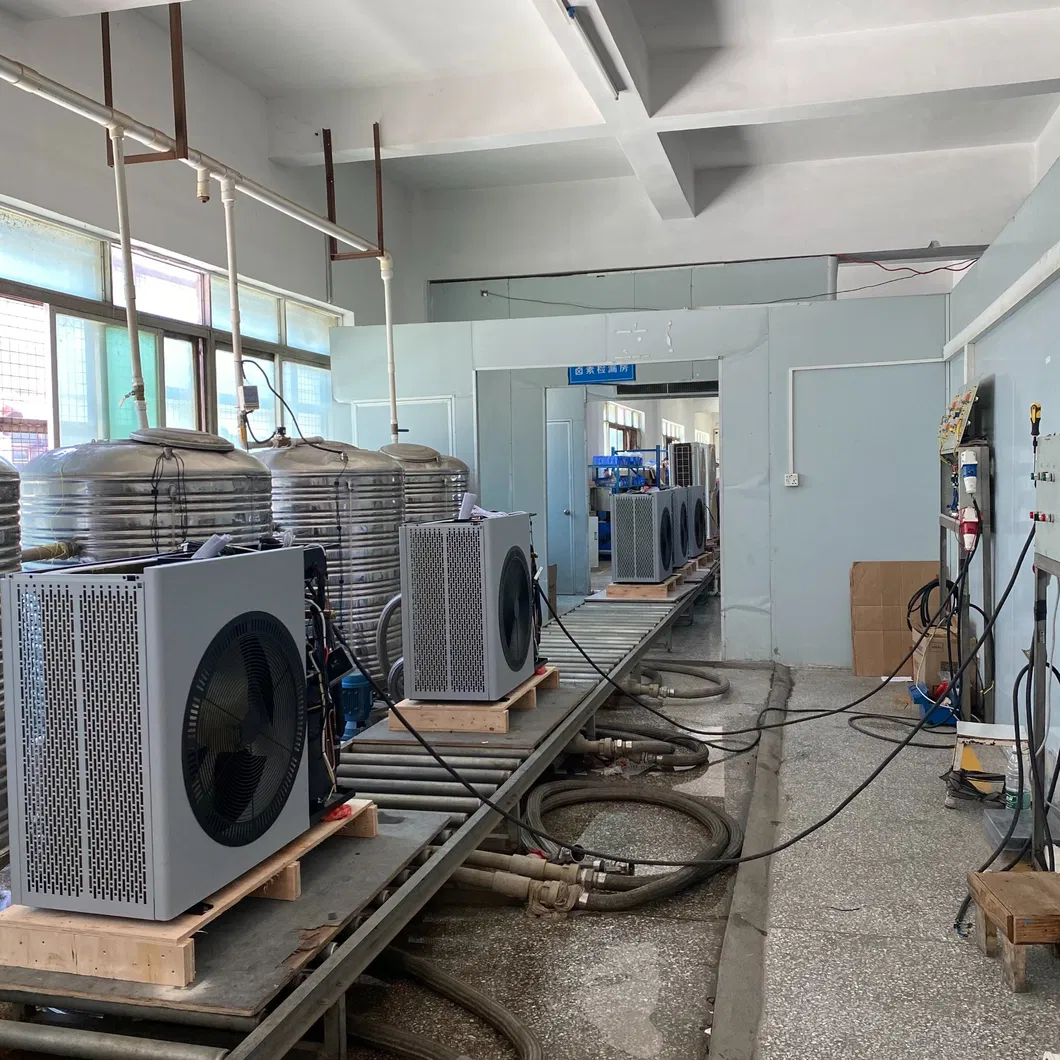

Established in 2004, the company is a high-tech enterprise focusing on the research, development, production and sales of air source heat pump products. With a complete heat pump industry chain, the products involve swimming pool heat pumps, residential heating and cooling, domestic hot water, and industrial drying solutions. The export volume of inverter heat pumps has consistently ranked among the top in the industry for many years, serving more than 60 countries including Germany, France, and Sweden.
