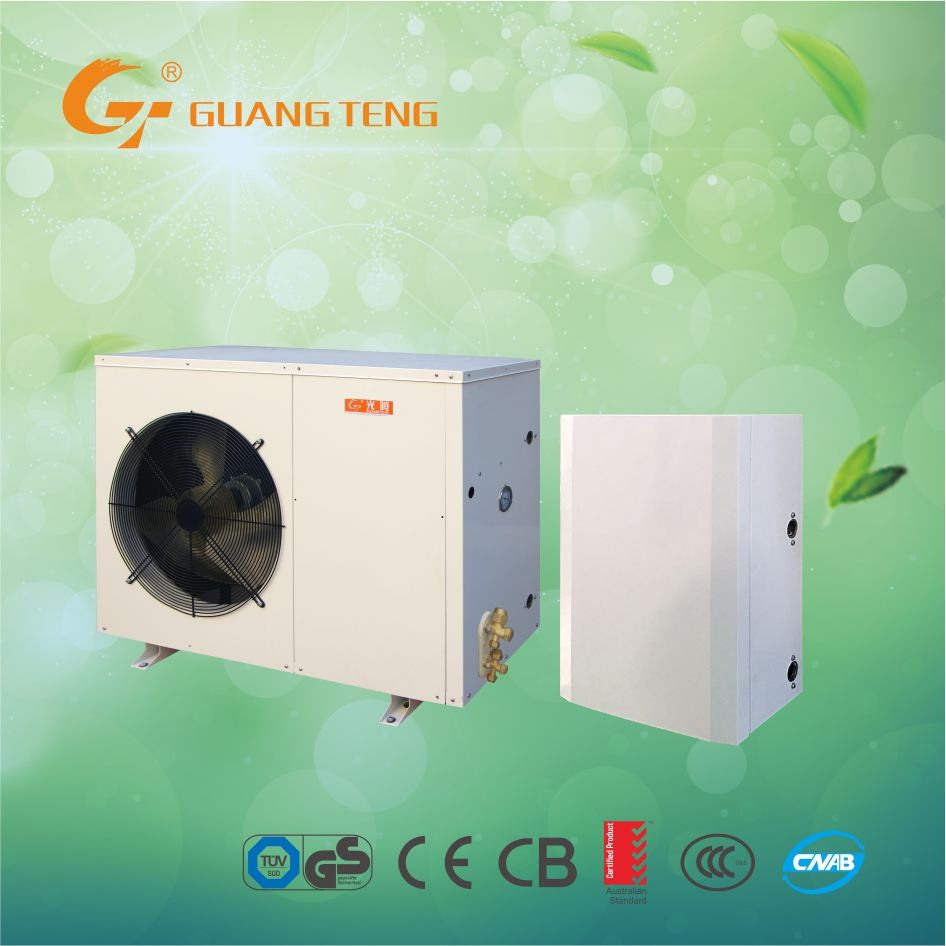

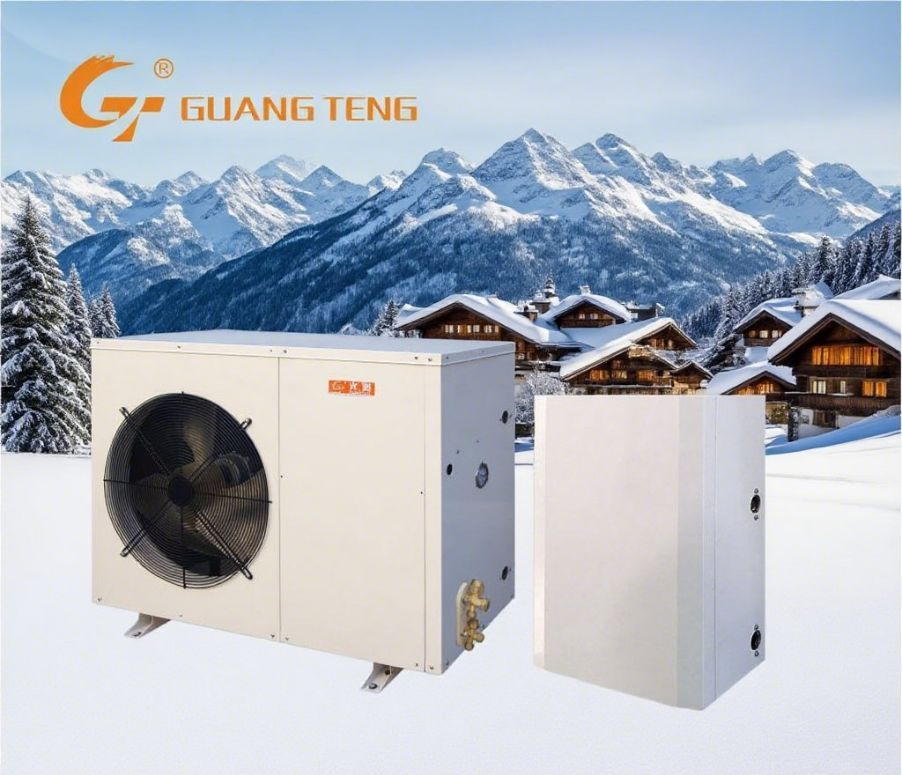

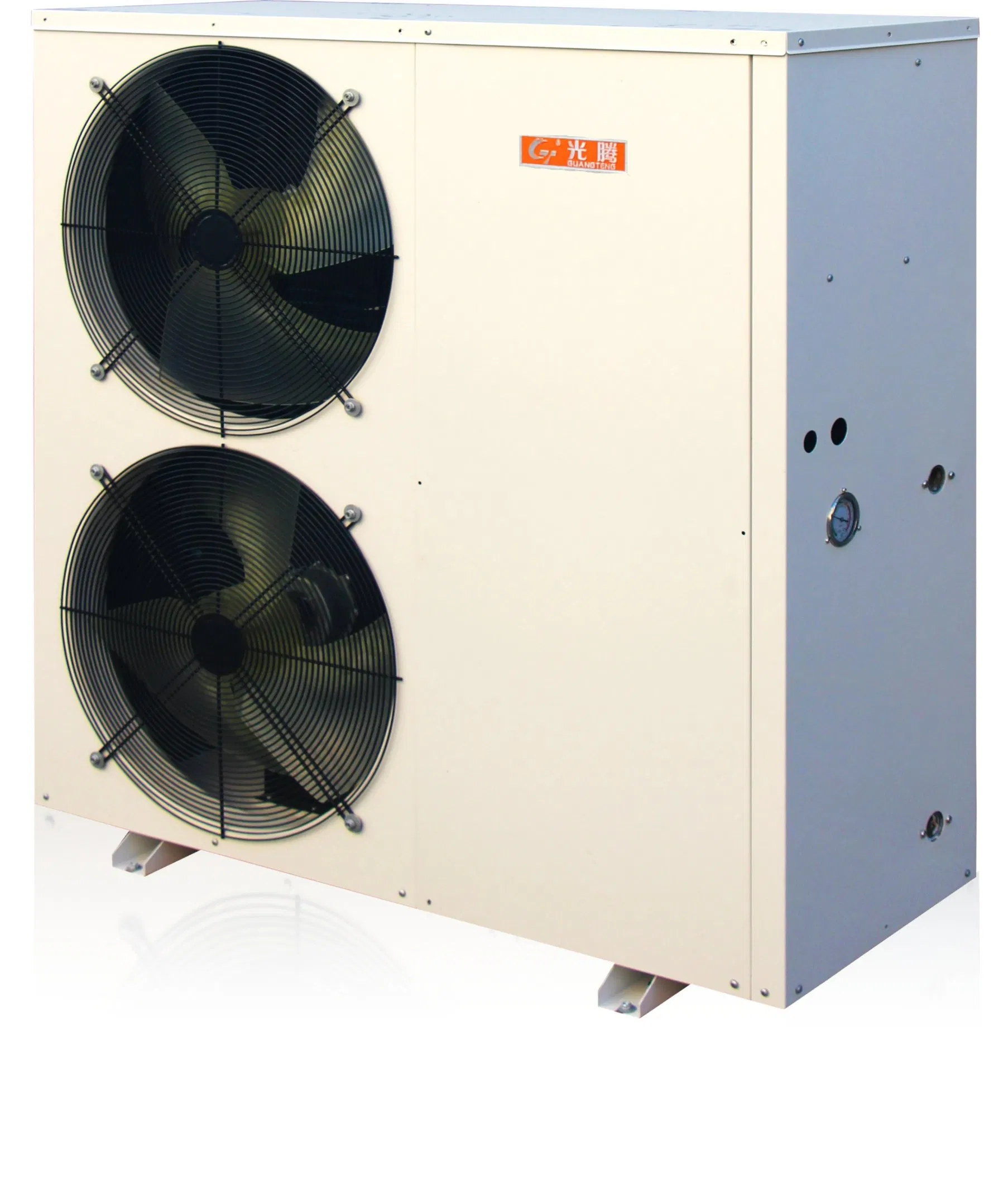

a++ Full Inverter Heat Pump Air to Water Split Type Heat Pump

1 / 5

a++ Full Inverter Heat Pump Air to Water Split Type Heat Pump

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GT-SKR015KBDC-S10

Work Environment

Low-temperature Heat Pump

Heat Source

Air-source

Heating Type

Circulating Heat

Application

Villa Family, Hotels, Factory Hospital, Student Apartments, Beauty Salons

Certification

CE, ISO9001, CCC, CB

Power Supply

220-240V/1pH/50Hz

Housing Material

Galvanized Steel

Max Heating Water Temp.

60℃

Sound Level

52 dB(a)

Product Description

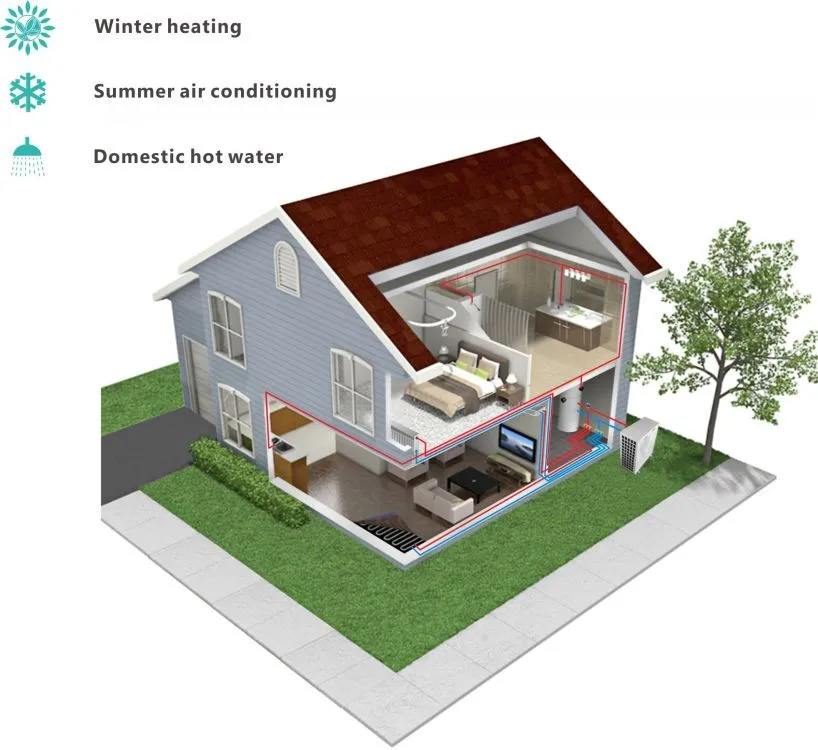

SMART-M series DC Inverter heat pump absorb natural heat energy from the ambient air and increases it for room heating. Not only does it satisfy room heating requirements, it also supplies domestic hot water. Besides, SMART-M can provide you a cooler environment in a hot summer. If you choose SMART-M, you will enjoy a comfortable life at your home all year round with one device.

M series air to water heat pump adopt EVI technology, it can operate in minimum outdoor air temperature of -25ºC. The system is readily capable of reaching an outlet water temperature of 60ºC.

EVI DC Inverter compressor & R410A Refrigerant
Evaporator: Blue hydrophilic aluminum fins
Brazed plate heat exchanger
Saginomiya electronic expansion valve & 4-way valve
Optional water pump
LCD intelligent controller
Outer Casing: galvanized steel with polyester powder painting
Warranty: 36 months after delivery

Technical Specifications

Model Number	GT-SKR015KBDC-S10	GT-SKR020KBDC-S10	GT-SKR030KBDC-S10	GT-SKR040KBDC-S10	GT-SKR050KBDC-S10
Energy label (EN14825)	A++	A++	A++	A++	A++
Heating at A7/W35
Capacity (kW)	6.00 (3.00~7.00)	10.20 (5.00~11.20)	13.00 (6.40~15.00)	15.20 (7.10~16.50)	18.30 (8.70~20.30)
Power Input (kW)	1.45 (0.80~1.90)	2.45 (1.20~2.90)	3.17 (1.62~3.90)	3.75 (2.08~4.85)	4.45 (2.20~5.30)
COP (W/W)	4.14	4.16	4.10	4.10	4.11
Compressor Type	EVI DC Inverter
Outdoor Operating Temp	-25~43 ºC
Max Water Temp	60 ºC

Our Advantages

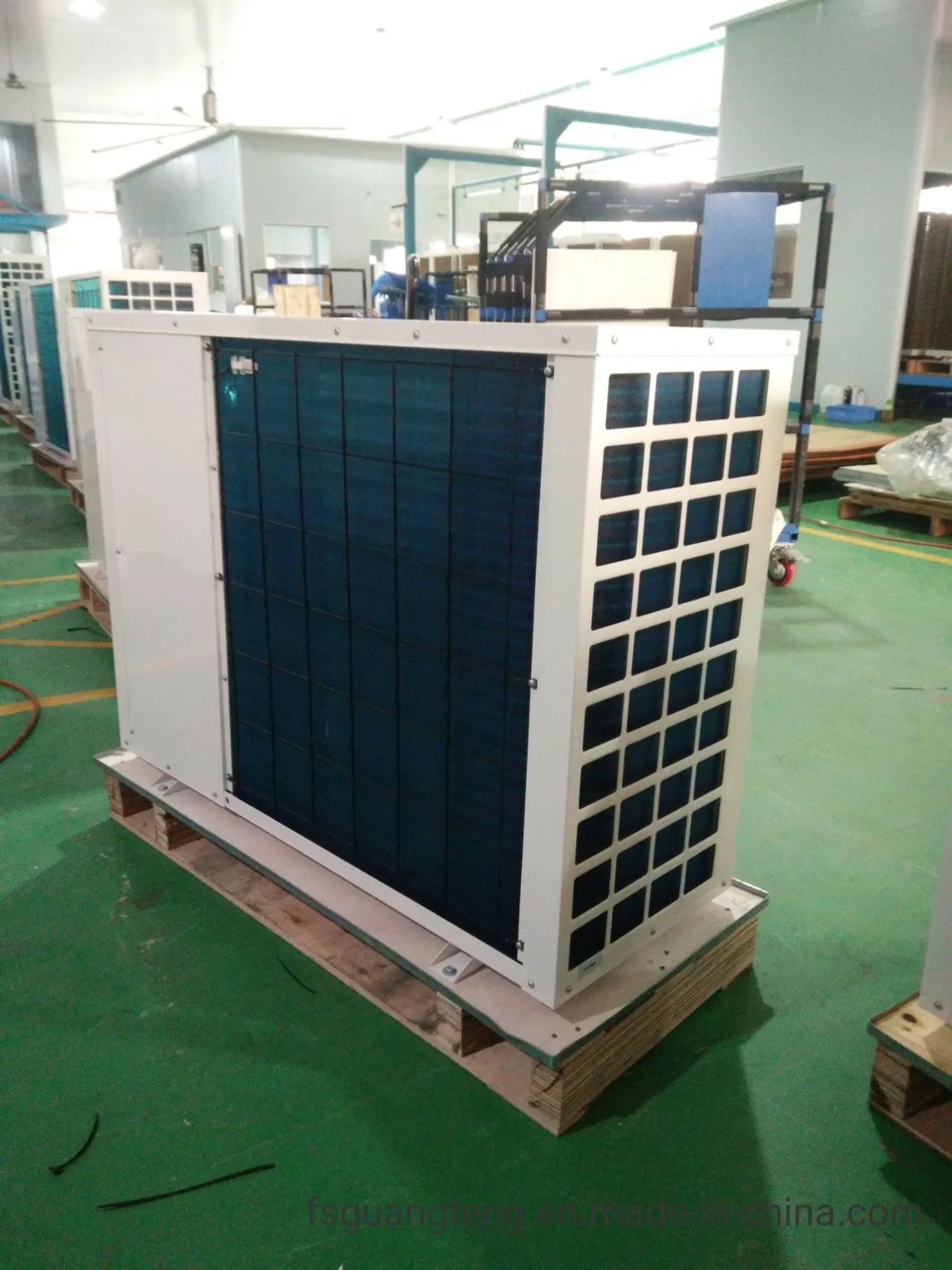

Manufacturing Excellence

Frequently Asked Questions

How about your delivery time?

Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

What are your terms of delivery?

We support various terms including EXW, FOB, and LC to accommodate different international shipping needs.

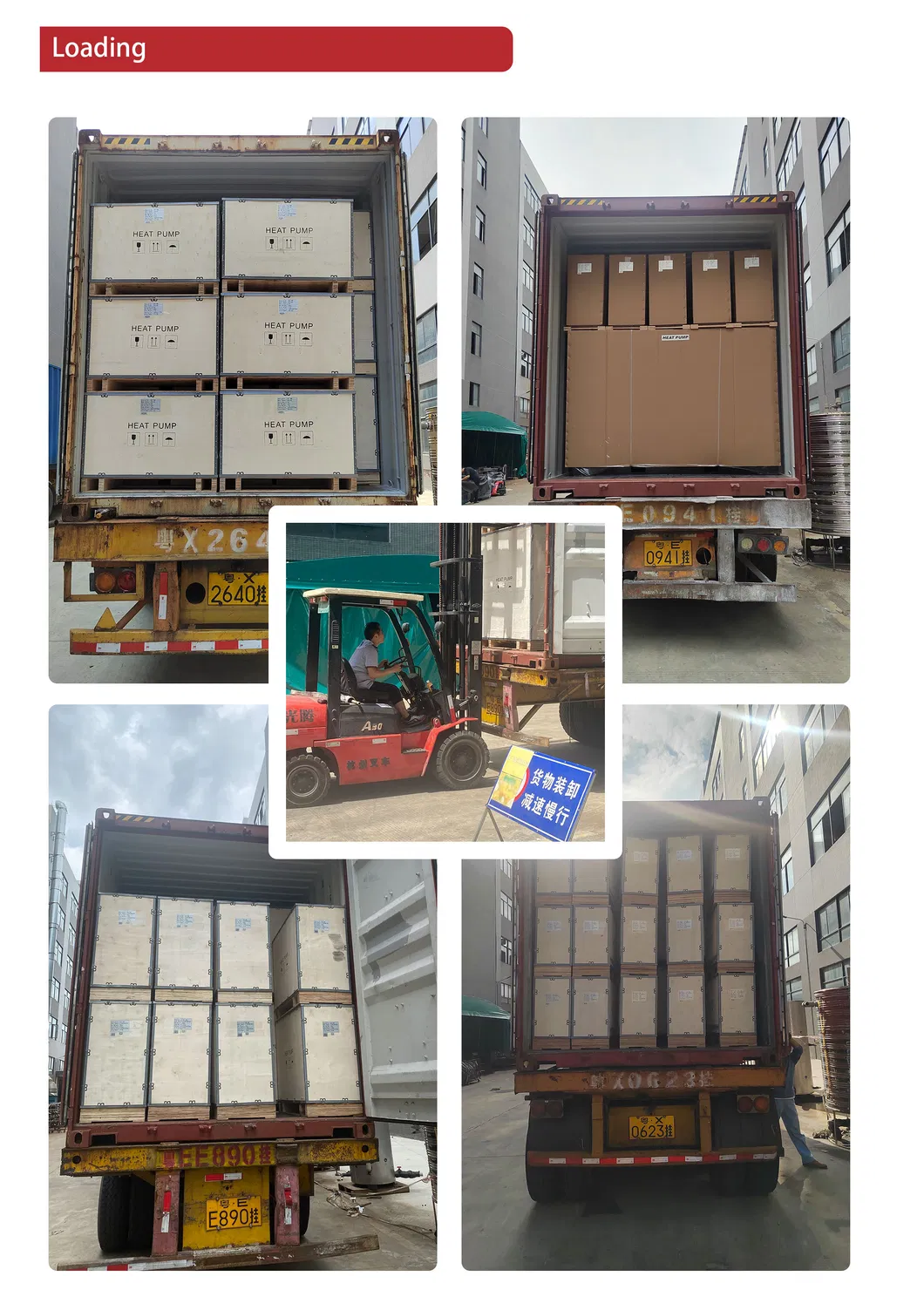

What is your terms of packing?

Generally, we pack the heat pump in brown cartons or plywood. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization.

What is your sample policy?

We accept sample orders, allowing customers to test our quality first. However, customers are required to pay the sample cost and the courier cost.

Do you test all your goods before delivery?

Yes, we perform 100% testing on all units before they are packed and cleared for delivery to ensure maximum reliability.

How long is the guarantee period?

We provide a 3-year warranty on the whole unit. We also provide 1.5% free spare parts for maintenance according to the order cost during the warranty period.
