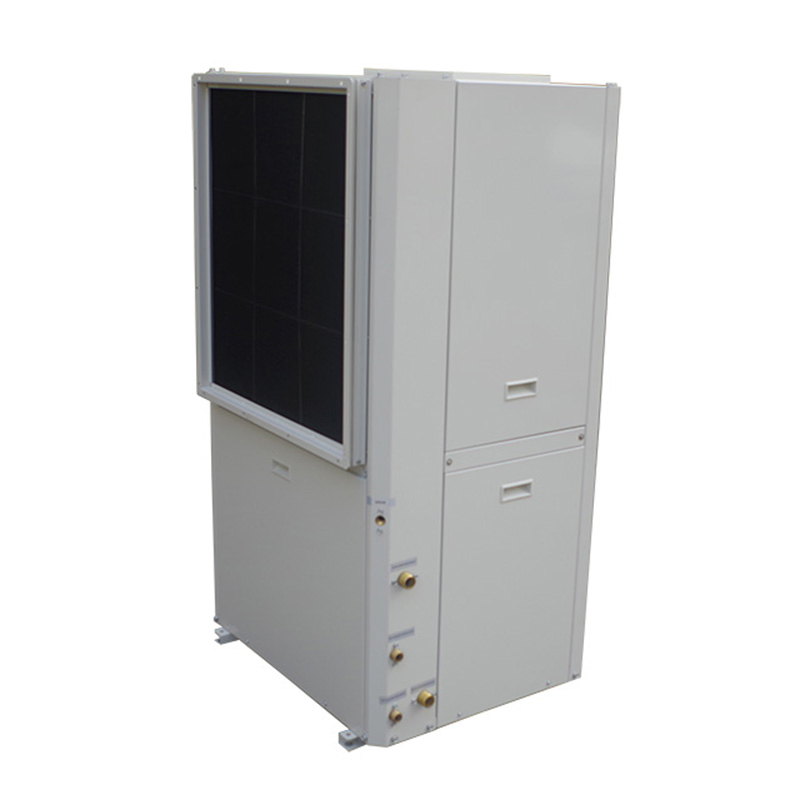

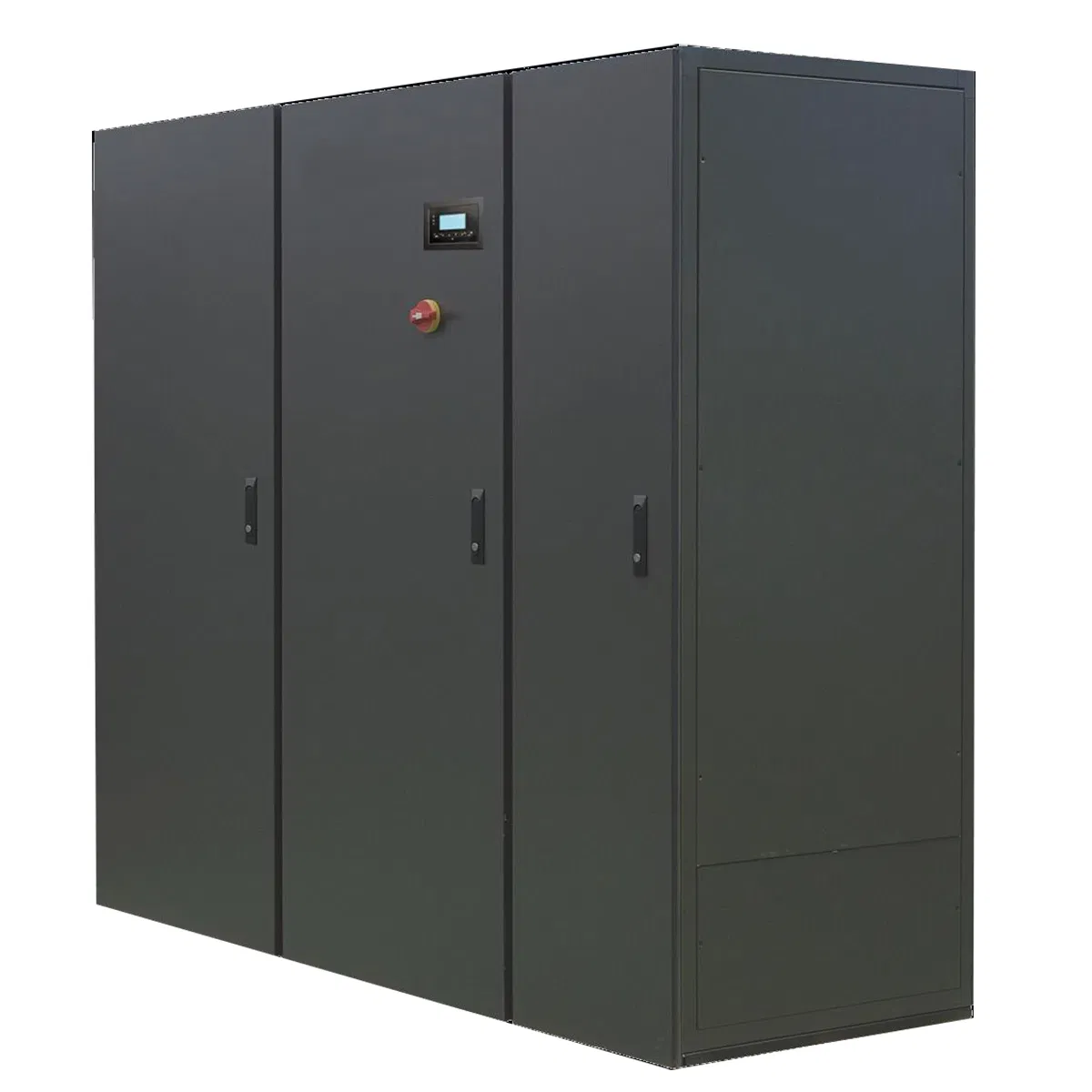

Various Speeds Blower 72000BTU Geothermal Brine to Air Heat Pump for Cooling and Heating

1 / 5

Various Speeds Blower 72000BTU Geothermal Brine to Air Heat Pump for Cooling and Heating

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

GHP-006V

Installation

Floor Standing, Ceiling Mounted

Water Heat Exchanger

Anti-Corrosion Is Optional

Thermal Energy Source

Ground Storage

Blower Motor

Optional BLDC, Ec

Origin

China

Product Description

Ground source water(brine) to air heat pump, water source heat pump, water cooled air conditioner.

Cooling & heating, indoor installation. Available with cooling capacity from 7kw to 36kw, custom capacity is welcome. OEM, ODM is welcome.

Key Features

Variable speed blower motor

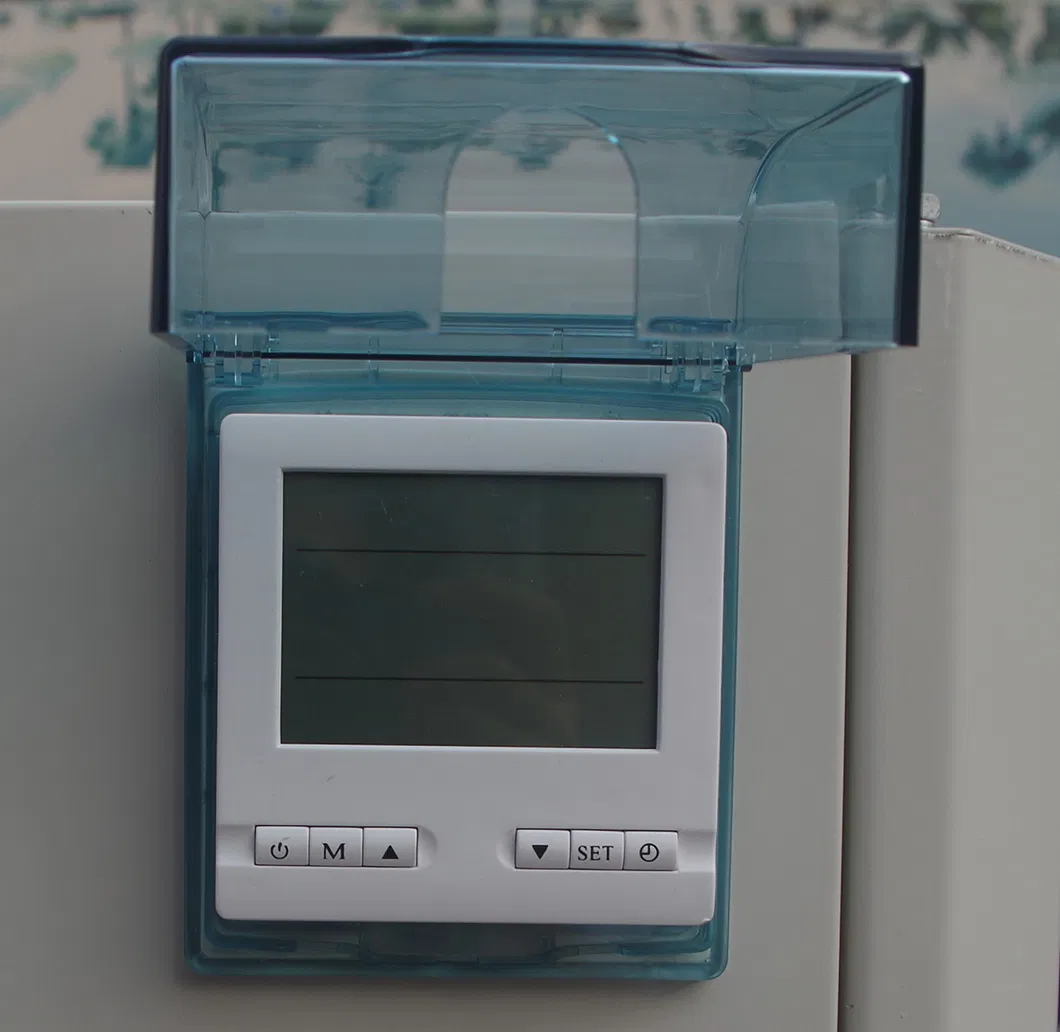

Microprocessor control
Fully insulated cabinet with closed cell foam
Compressor blanket for noise reduction
Optional Cupronickel tube-in-tube anti-corrosion heat exchanger
Thermal expansion valve for best performance

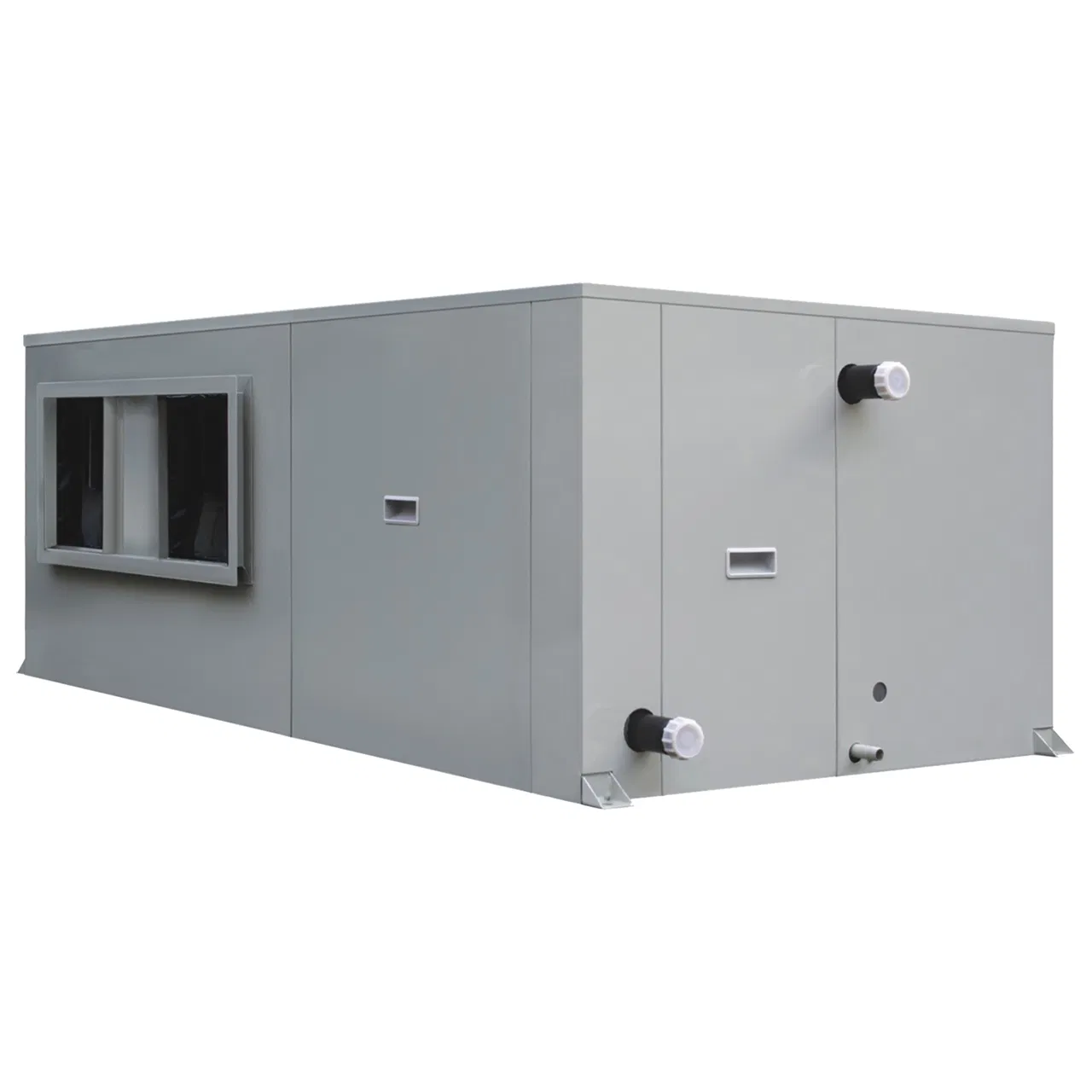

Vertical up-flow, down-flow and horizontal options
Optional Inverter type (compressor, pump, motor)
Anti-freezing measurement & Flow switch

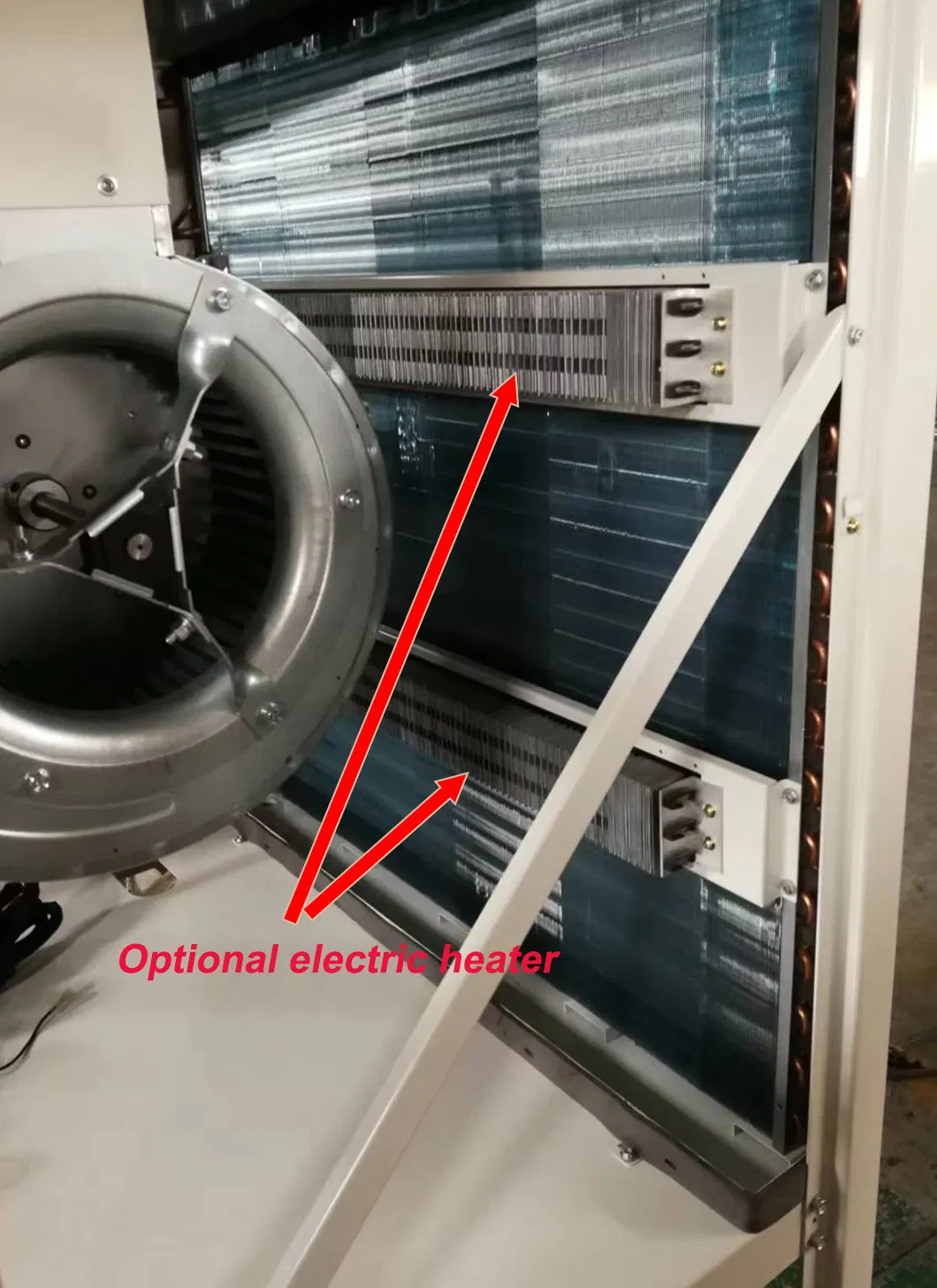

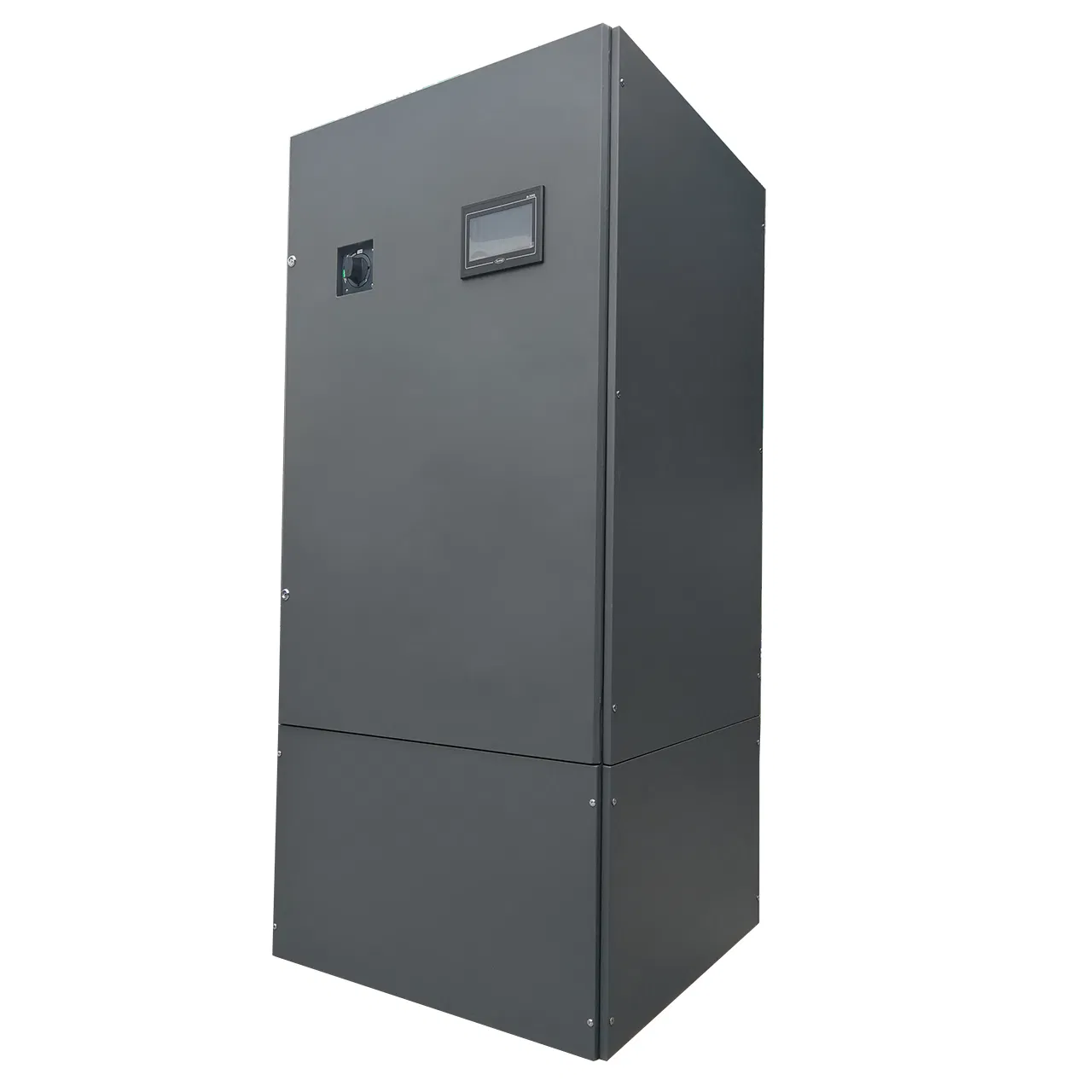

Optional Touch screen HMI & Electric heater

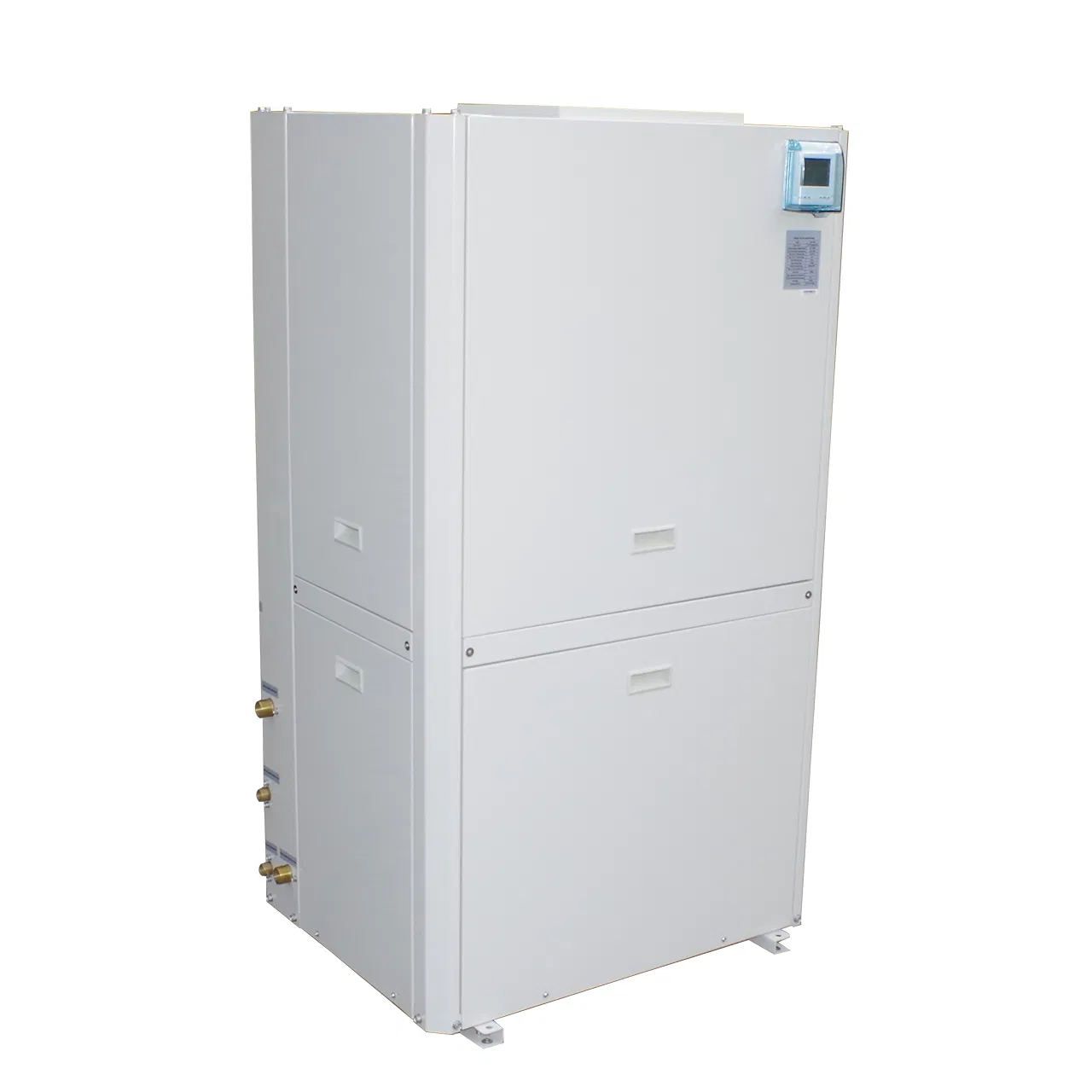

Detailed Photos

The water source heat pump and air conditioner are manufactured according to CE standards.

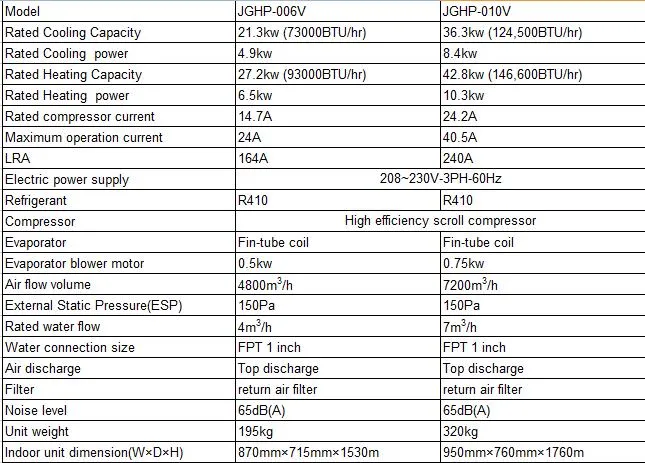

Product Parameters

Cooling and heating capacity measured at indoor temperature DB 20ºC, water temperature 16ºC.

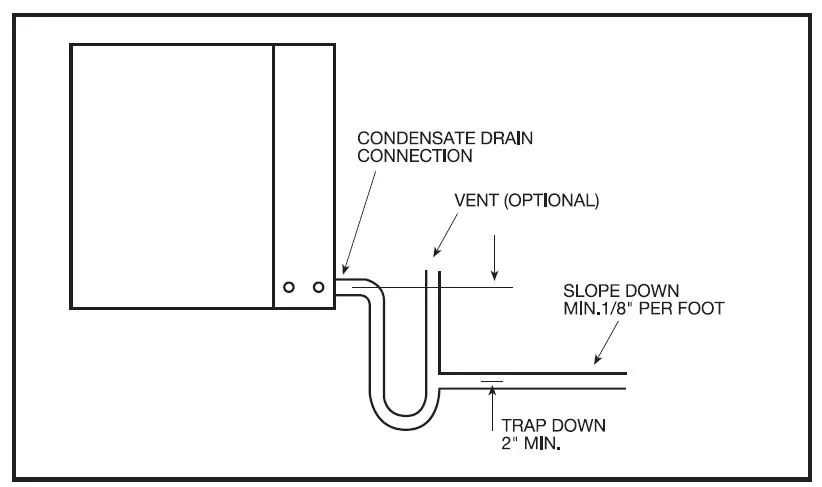

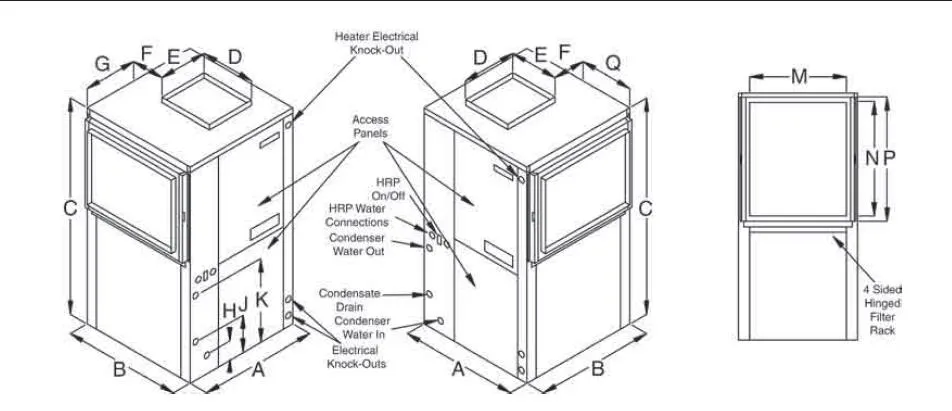

Installation Instructions

Professional RHVAC engineers provide technical support for installation, commissioning, and maintenance.

Our Advantages

Professional RHVAC product manufacturer with over 20 years of experience. Specialized in providing custom products tailored to specific requirements.

Frequently Asked Questions

What is the cooling capacity range for these heat pumps?

Our units are available with cooling capacities ranging from 7kw to 36kw. Custom capacity requirements are also welcome.

Can the unit be installed in different orientations?

Yes, the units are available in vertical up-flow, down-flow, and horizontal configurations to suit various installation spaces.

Are these units suitable for corrosive environments?

We offer an optional Cupronickel tube-in-tube heat exchanger (water coil) specifically designed for anti-corrosion performance.

Do you support OEM or ODM services?

Yes, we are a professional manufacturer and welcome both OEM and ODM requests to meet your specific branding and technical needs.

What kind of blower motors are used in the units?

The units feature variable speed blower motors, with options for BLDC or EC motors for enhanced energy efficiency.

Is technical support available for international customers?

Absolutely. We have international service engineers who provide professional technical support for installation, machine commissioning, and maintenance.
