Geothermal Water Heat Pump CO2 Refrigerant a+++ Energy Saving with CE

Customization:	Available
Energy Efficiency Grade:	One
Heat Temperature:	80-90°C

Send Inquiry

Product Description

Basic Information

Model NO.

S120ZW

Environment

Low-temperature Heat Pump

Heat Source

Ground-source

Heating Type

Multi-power Heat

Certification

CE, CCC, RoHS

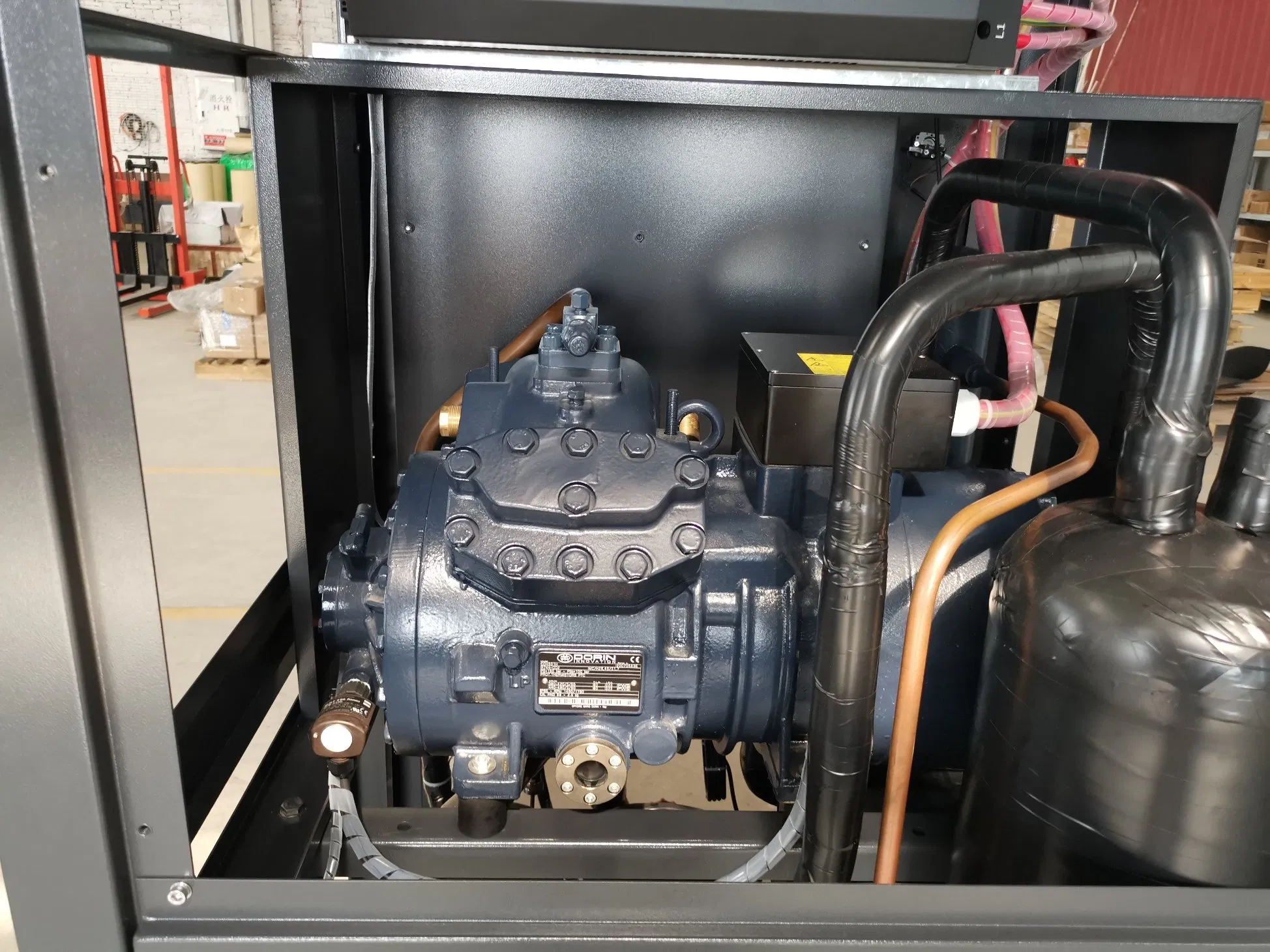

Compressor

Dorin

Control

Carel

Refrigerant

R744 (CO2)

Specification

160KW

Origin

China

Product Description & Features

Our CO2 (R744) Heat Pump system is engineered for high-efficiency heating even in extreme climates. Utilizing the natural refrigerant R744, it provides a sustainable and powerful solution for diverse commercial and residential needs.

Water heating up to 90°C, ideal for disinfection and cleaning.
Operates efficiently in extreme low ambient temperatures down to -43°C.
High efficiency with Max COP of 5.5 (Multi-function model up to 7.0).
Inverter control for precise power adjustment and energy savings.
Modular design allows for combined installation to reach higher power outputs.
Enhanced safety with 6 layers of pressure protection.
Intelligent inverter control saves 50% energy during defrosting cycles.
Smart wireless control with RS485/Modbus central integration.

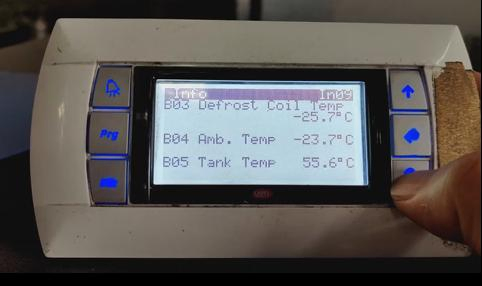

User-friendly programmable digital interface with touch keys.
Monobloc design eliminates extra high-pressure refrigerant connection work.

Technical Specifications

Model			LYDS-40ZW	LYDS-75ZW	LYDS-120ZW	LYDS-160ZW
Hot Water Side	Heating Capacity	kW	39.3	76.3	118	156
	Hot Water Capacity	L/H	750	1450	2256	2980
	Heating Power Input	kW	8.1	16.5	25	37.1
	COP	W/W	4.8	4.6	4.7	4.2
Cool Water Side	Cooling Capacity	kW	31	59.8	86.2	118.9
	Cool Water Capacity	L/H	6000	10000	14500	20400
	COP	W/W	3.82	3.63	3.45	3.2
Power Supply		V/Ph/Hz	380~440V/3PH/50~60Hz
Output Water Temp		ºC	45~90
Compressor Type		-	Dorin (Italy)
Dimensions	Length	mm	1500	1740	2470	900
	Width	mm	900	995	1340	900
	Height	mm	1290	1540	1500	1910
Net Weight		kg	450	890	1050	900

Note: Standard conditions: Hot water inlet 15ºC/outlet 55ºC; Water source inlet 12ºC/outlet 7ºC.

Frequently Asked Questions

What is the maximum water temperature this heat pump can produce?

The CO2 (R744) heat pump can heat water up to 90°C, making it suitable for high-temperature applications such as industrial cleaning and disinfection.

Can this system work in extremely cold climates?

Yes, it is specifically designed for low-ambient conditions and can operate efficiently even in temperatures as low as -43°C.

What are the advantages of using R744 (CO2) refrigerant?

R744 is a natural refrigerant with a Global Warming Potential (GWP) of 1, making it an environmentally friendly choice compared to synthetic refrigerants. It also allows for much higher outlet temperatures.

Is the system energy efficient?

Absolutely. The unit features intelligent inverter control that saves up to 50% energy during defrosting and can reach a maximum COP of 5.5 to 7.0 depending on the model.

What applications is this heat pump suitable for?

It is ideal for a wide range of applications including luxury villas, saunas, swimming pools, hotels, factories, hospitals, student apartments, and beauty salons.

How is the system controlled?

The system uses high-quality Carel controllers with a programmable digital touch interface and supports RS485/Modbus for central management.
