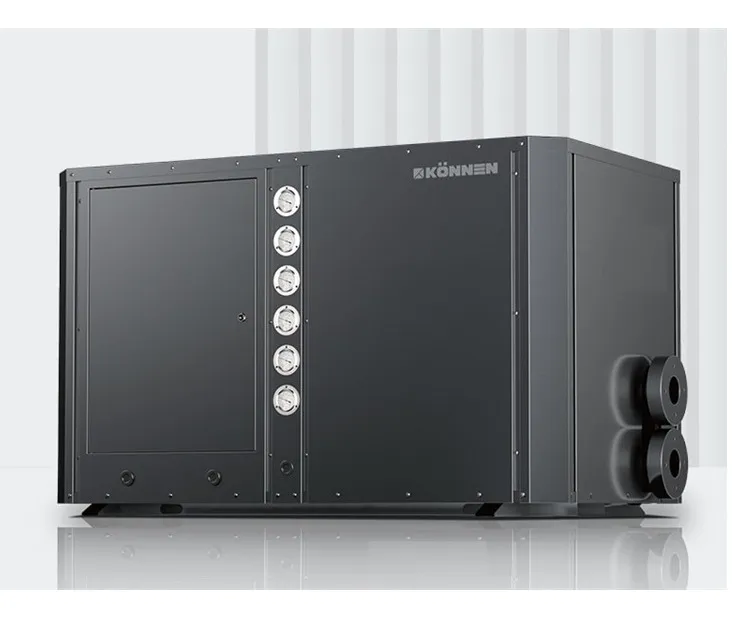

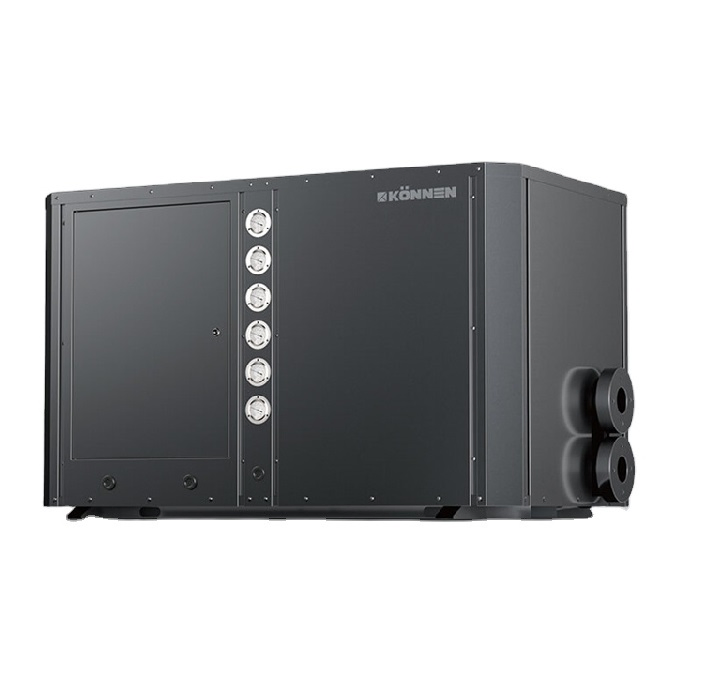

Product Description
WATER SOURCE HEAT PUMP, WATER TO WATER HEAT PUMP, BRINE TO WATER HEAT PUMP, WITH COMPRESSOR AND R410A REFRIGERANT:

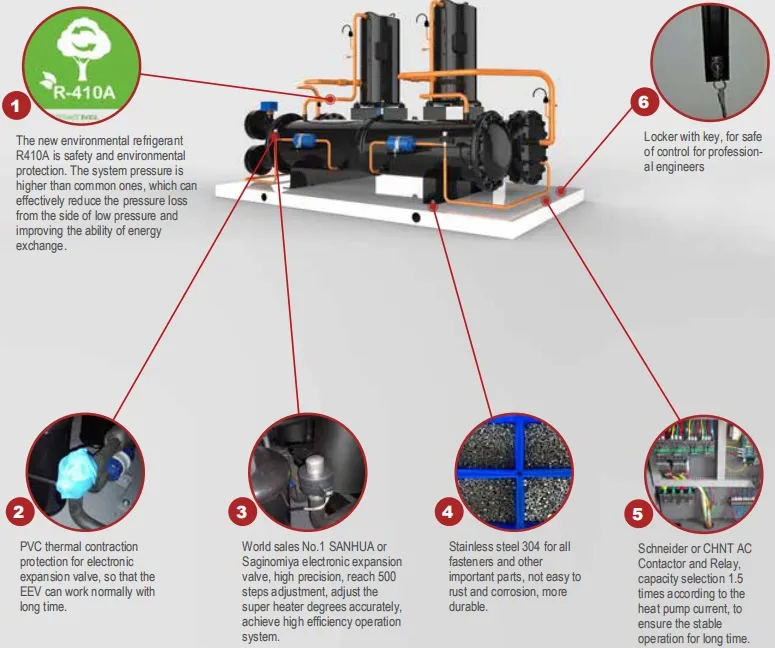

- Panasonic compressor & R410a refrigerant or Copeland compressor & R410a refrigerant;
- Preservative oil for copper tubes and all important part of cabinet;
- Chinese No.1 brand "ND" shell & tube heat exchanger;
- Japan "Saginomiya" or "Sanhua" electronic expansion valve;
- LCD controller;
- Delivery time: 20~25 days;
- Warranty time: 24 months after delivery.
WE SUPPLY OEM SERVICE!
Parameters Table
| Model |
CSFXRS-8I |
CSFXRS-12I |
CSFXRS-20I |
CSFXRS-12II |
CSFXRS-20II |
CSFXRS-28II |
CSFXRS-40II |
CSFXRS-55II |
CSFXRS-80II |
| Rated heating capacity |
KW |
8 |
12 |
20 |
12 |
20 |
28 |
40 |
55 |
80 |
| Rated power |
KW |
1.64 |
2.41 |
4.02 |
2.41 |
3.91 |
5.58 |
7.98 |
11.07 |
16.26 |
| COP |
- |
4.89 |
4.98 |
4.98 |
4.97 |
5.12 |
5.02 |
5.01 |
4.97 |
4.92 |
| Water Yields |
L/H |
172 |
258 |
430 |
258 |
430 |
602 |
860 |
1182 |
1720 |
| Refrigerant |
Type |
R410A |
| Noise |
DB(A) |
≤52 |
≤53 |
≤55 |
≤55 |
≤55 |
≤58 |
≤58 |
≤62 |
≤65 |
Frequently Asked Questions
What is the main heat source for this heat pump?
This is a ground-source (geothermal) heat pump that utilizes the stable temperature of the earth or water as its primary heat source.
What type of compressors are used in your products?
We use high-quality hermetic scroll or rotor compressors from world-famous brands like Panasonic and Copeland to ensure high efficiency and durability.
What is the standard warranty period?
We provide a 24-month warranty period starting from the date of delivery for all our heat pump units.
Can the water temperature be adjusted?
Yes, the default setting is 50ºC, but it is fully adjustable within the range of 28ºC to 60ºC to suit different application needs.
What certifications do your heat pumps have?

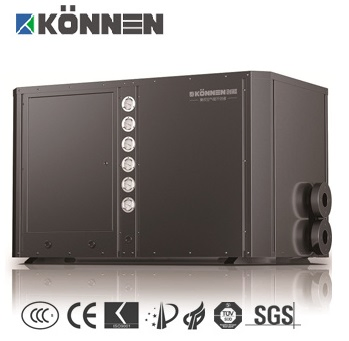

Our products are fully certified with CE, ISO9001, and CCC standards, ensuring they meet international quality and safety requirements.
What safety protections are built into the system?
The units include high/low pressure protection, anti-freeze protection, high temperature protection, overload protection, and phase protection (reverse/lack of phase).
