PeakWay Pump
1 / 5

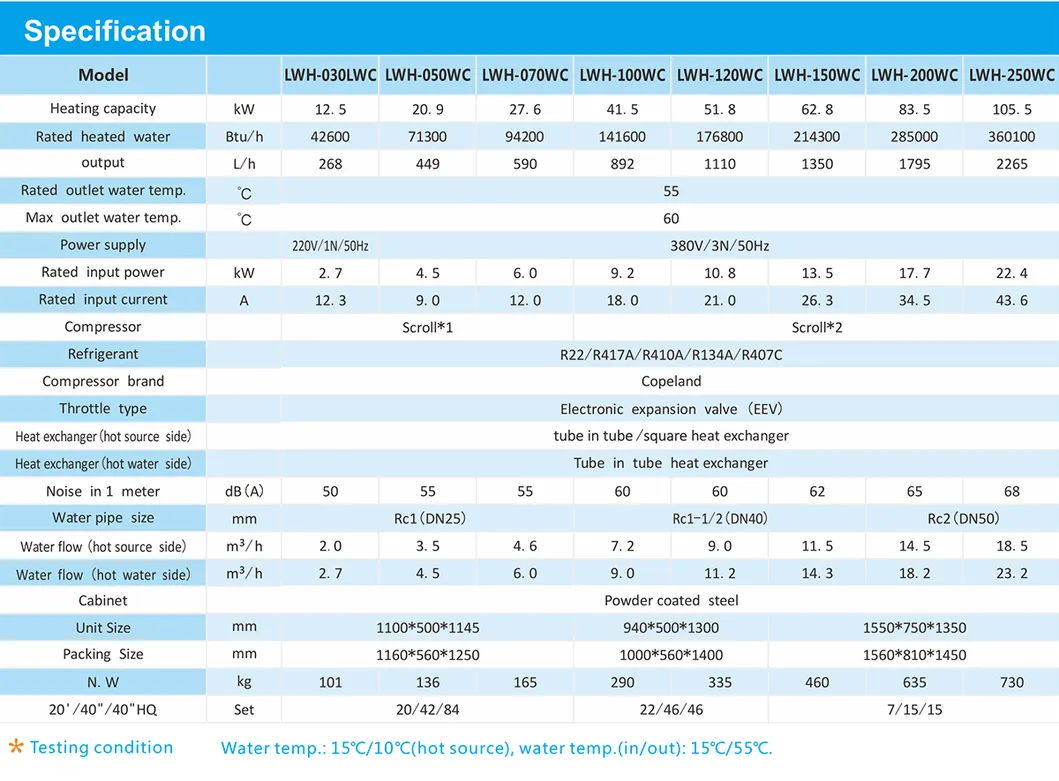

| Function | Space Heating + Space Cooling + Domestic Hot Water |
| Power Supply | 380-415V / 3Ph / 50Hz |
| Heating Capacity | 20kw - 100kw |
| Rated Outlet Water Temperature | 55℃ |
| Origin | China |
| Production Capacity | 5000 Sets Per Month |
| Package Size | 116.00cm * 56.00cm * 125.00cm |
| Package Gross Weight | 165.000kg |

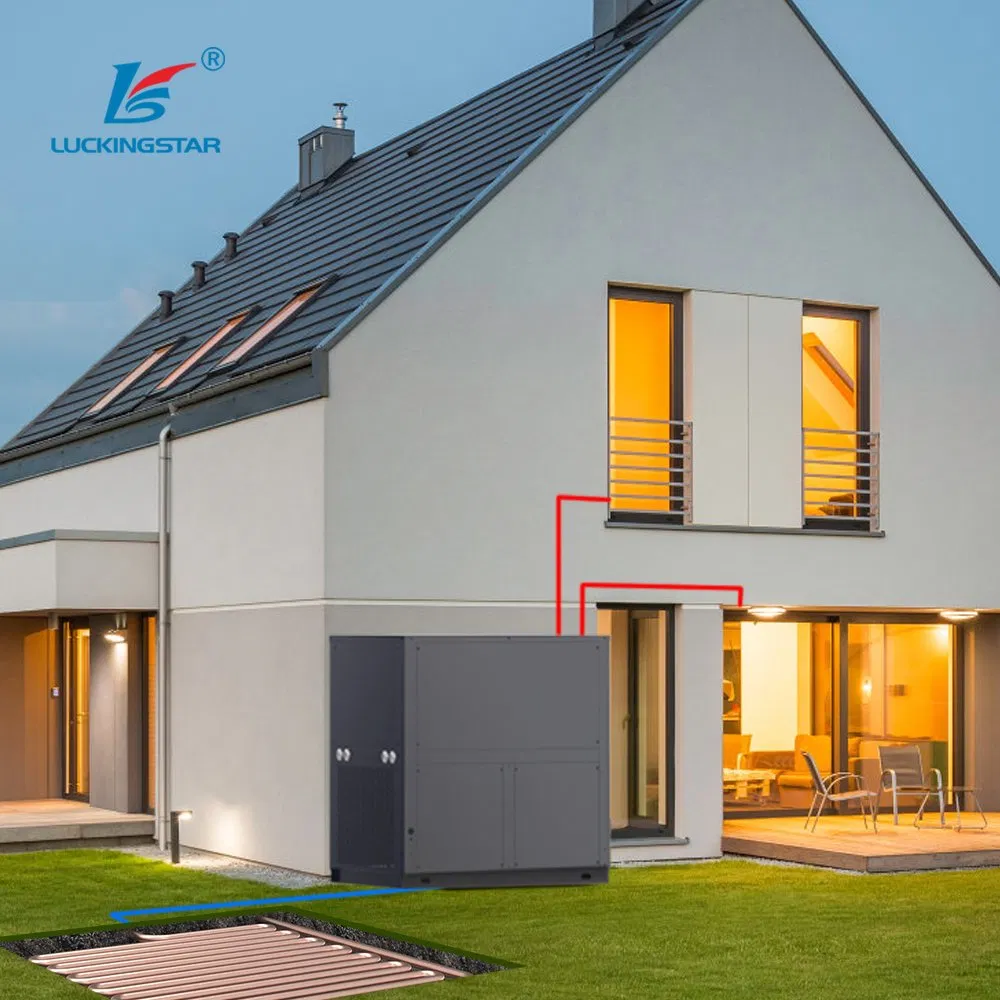

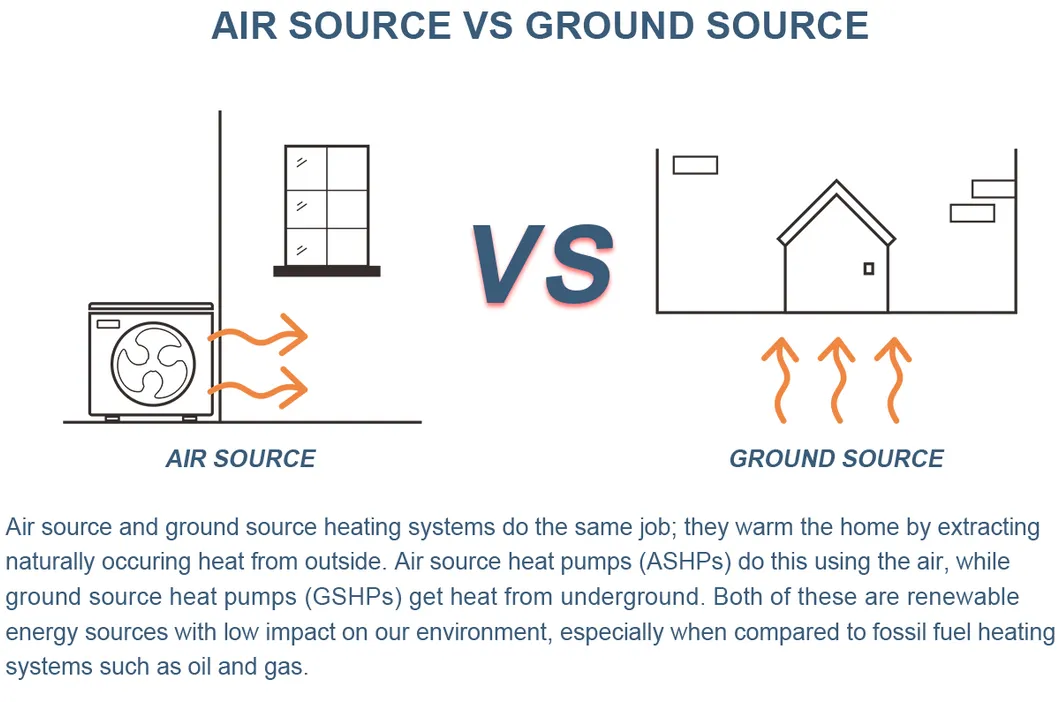

The ground source heating and cooling heat pump operates by absorbing heat from the ground (shallow water or rock/soil) in winter to heat buildings. In summer, the unit absorbs indoor heat and transfers it back to the ground for cooling. These systems are classified into groundwater, surface water, and buried pipe types depending on the heat exchange method.

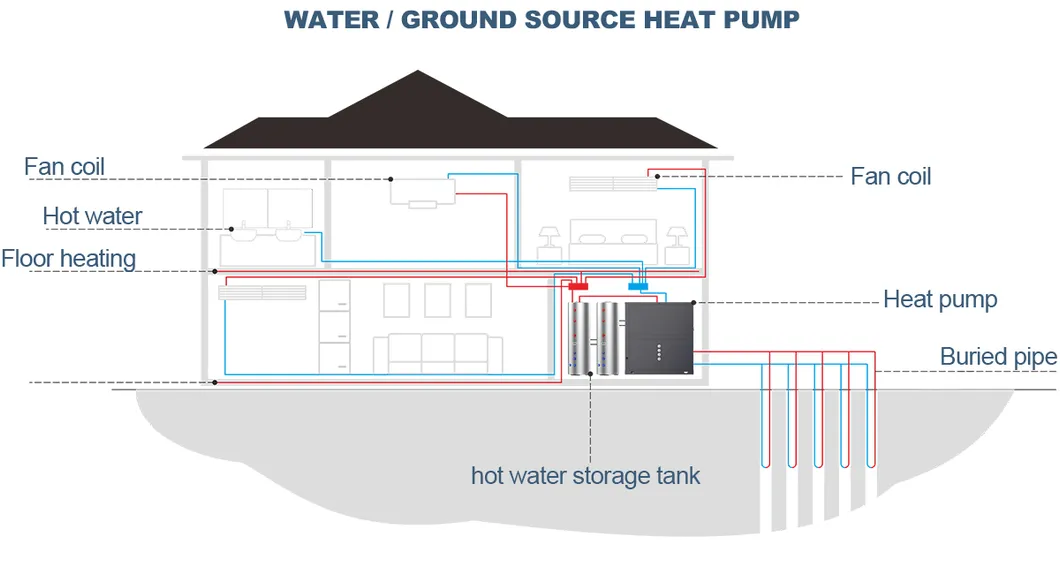

The system comprises three main parts: the outdoor ground energy exchange system, the heat pump unit, and the indoor terminal system. Heat transfer is facilitated by water or air, ensuring a stable and efficient energy cycle.

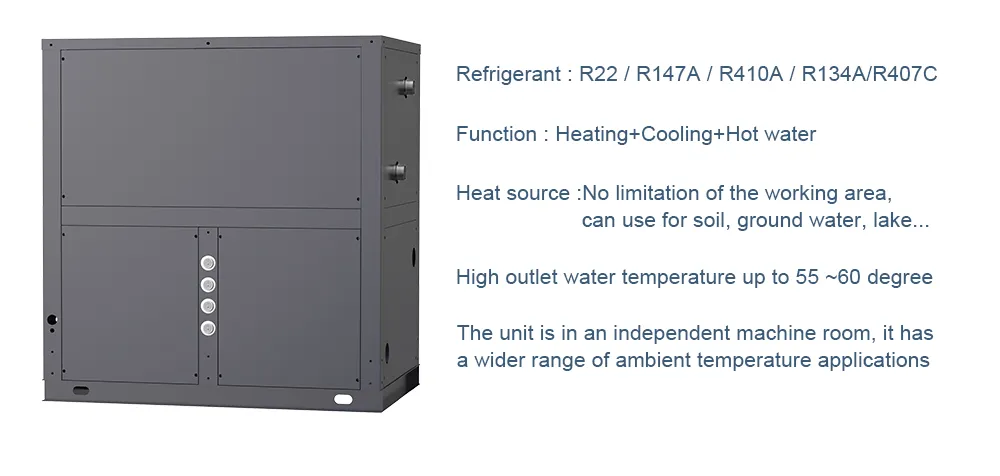

Supports eco-friendly refrigerant options such as R410A, R134A, R407C, and R417A, significantly reducing carbon footprints.
Utilizes shallow geothermal resources. The Earth's surface acts as a massive solar collector, providing a near-infinite source of clean energy.
Operating costs are approximately 30-40% lower than traditional air conditioning due to stable underground temperatures.
Pollutant emissions are 40% lower than air source heat pumps and 70% lower than electric heating systems.

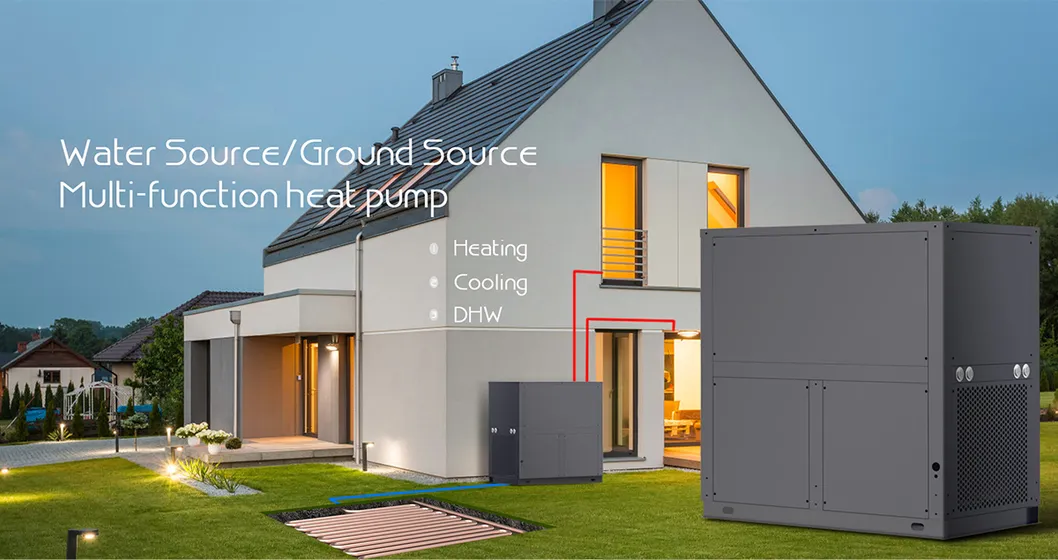

Provides heating, cooling, and domestic hot water from a single unit. Ideal for hotels, schools, and residential villas.

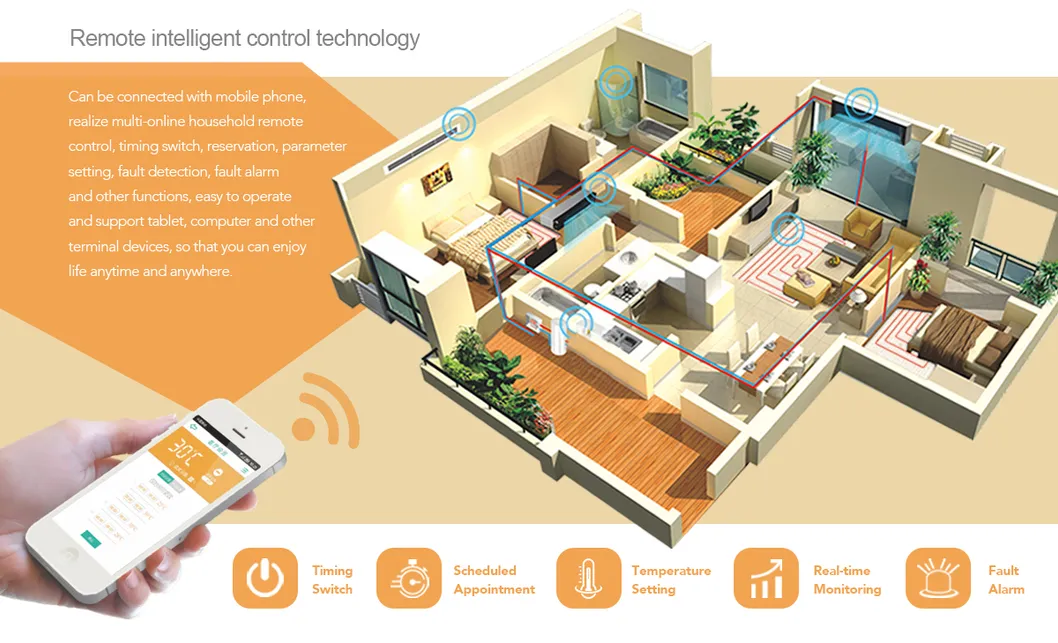

Features highly automated controls and a service life exceeding 15 years with minimal maintenance requirements.
Because ground temperatures are constant, the unit operates reliably year-round. The simple design involves fewer moving components, leading to lower repair costs and increased stability.
