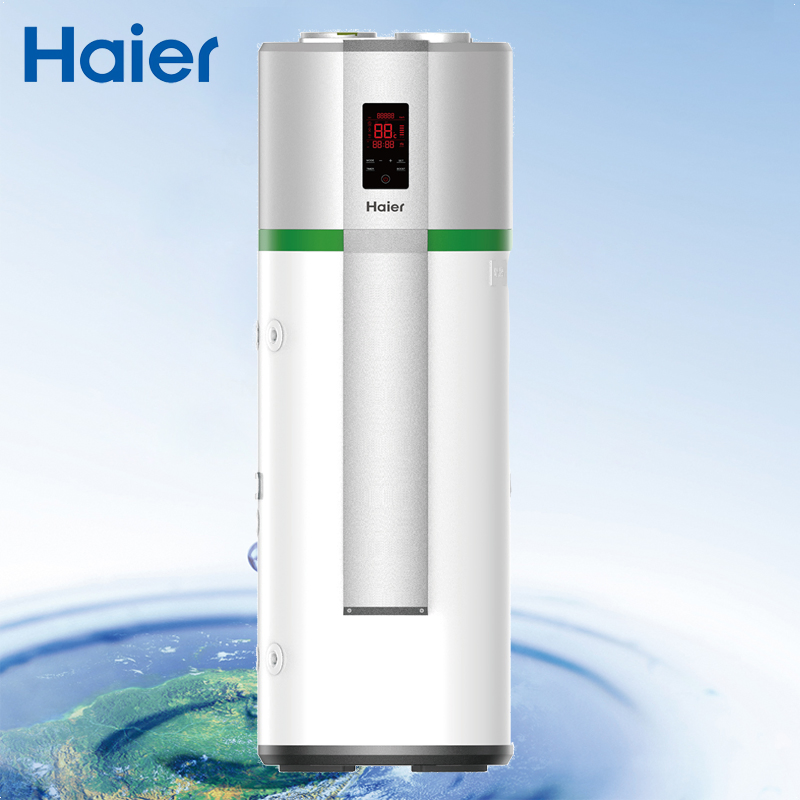

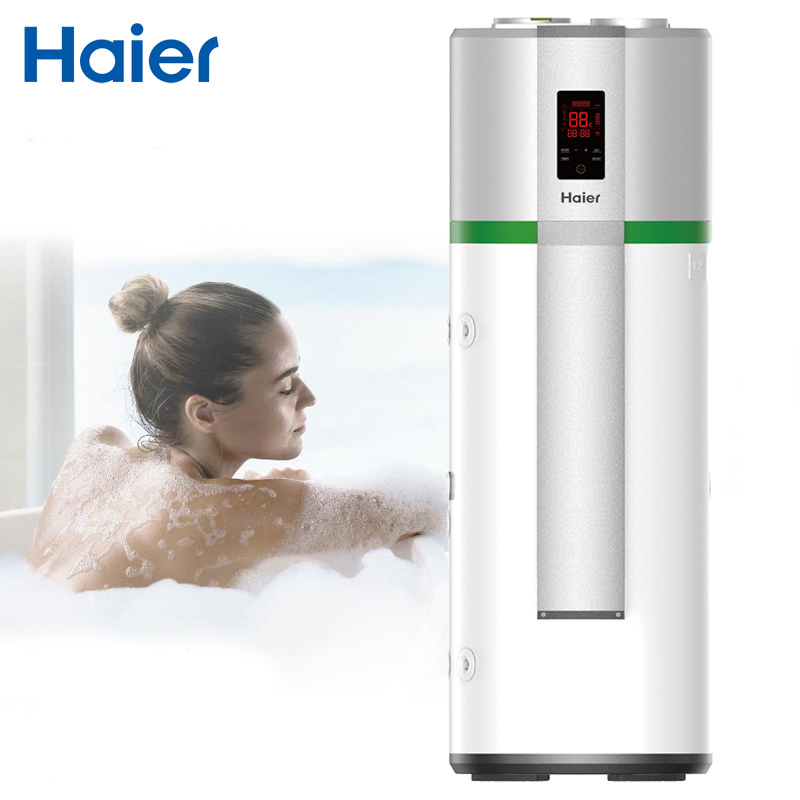

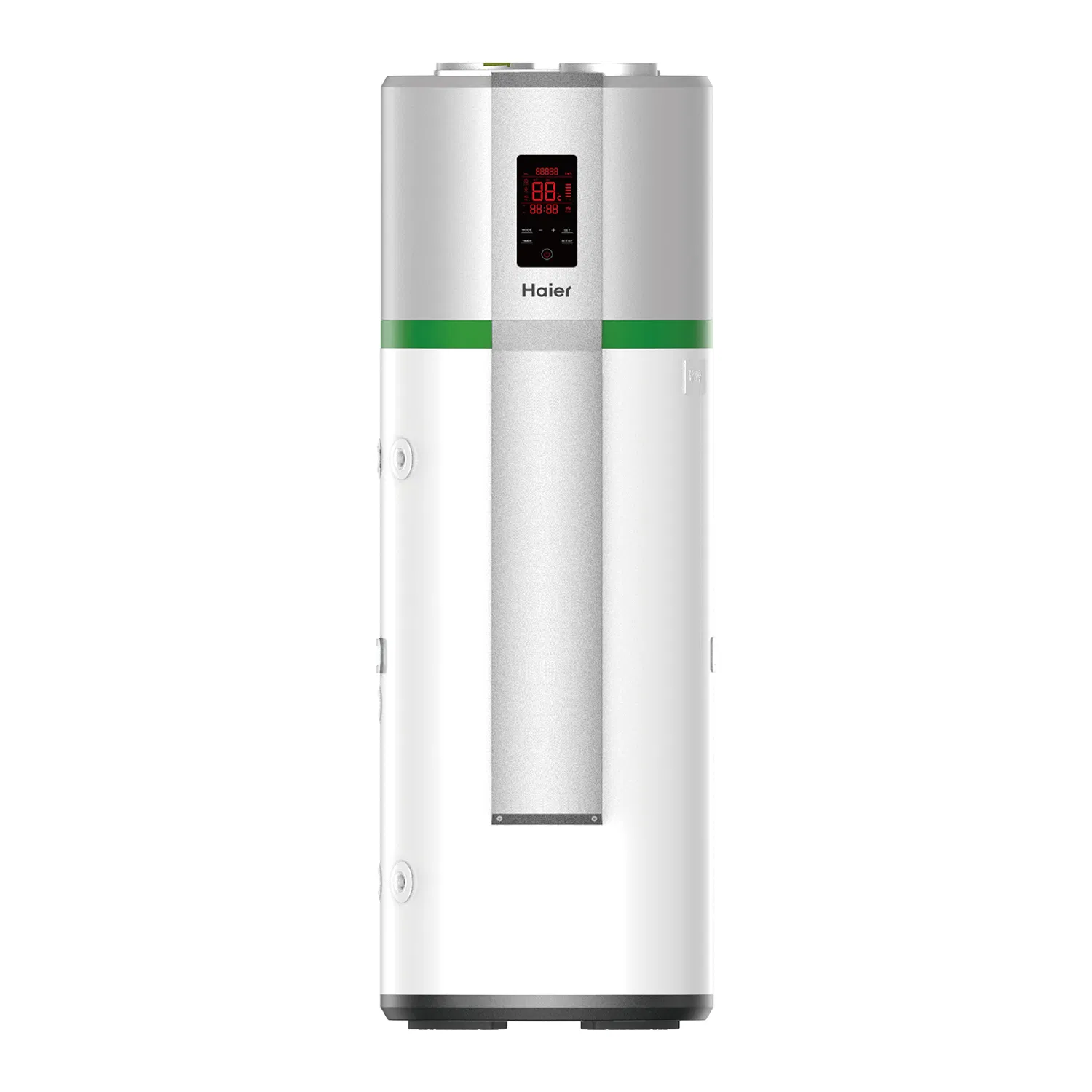

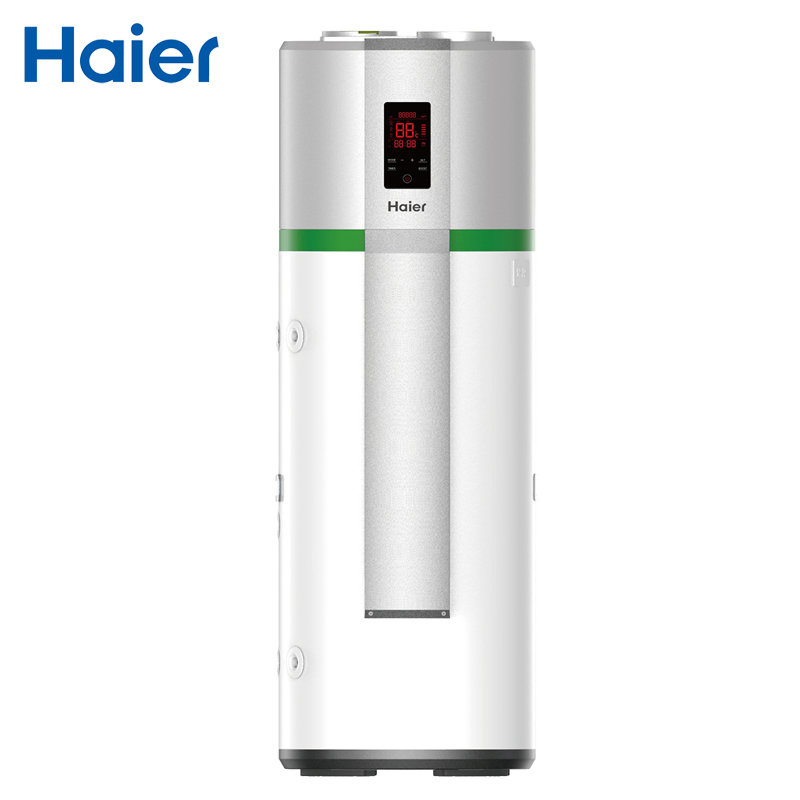

Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
1 / 5
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater
Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater

Haier R134A Domestic/Residential Air to Water Electric Full Inverter All in One Monoblock DC Air to Source Air to Hot Heat Pump Water Heater

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
HPWH-M3
Work Environment
Common Heat Pump
Heat Source
Air-source
Heating Type
Multi-power Heat
Application
Villa Family, Hotels, Factory Hospital, Beauty Salons
Certification
CE, ISO9001, CCC, CB, RoHS
Function
House Heating Cooling Hot Water
Refrigerant
R134A
Compressor
DC Inverter Compressor
Power Supply
230V/50Hz
Max Temperature
75°C
Noise Level
37~54dB(a)
Product Description
All in One Heat Pump

R134A Commercial/Domestic/Residential Heating System Electric Full Inverter All in One Monoblock EVI DC Air to Source Air to Hot Water Heater Heat Pump

Technical Parameters
Model HP200M3 HP250M3 HP250M3C
Tank Details
Tank volume(L)195246240
Rated voltage(V/Hz)230V/50Hz230V/50Hz230V/50Hz
Rated pressure(bar)777
Performance
COP@7°C3.043.023.10
COP@15°C3.393.413.56
Backup Power (W)150015001500
Max Temp Range (°C)35-7535-7535-75
Noise power dB(A)575859

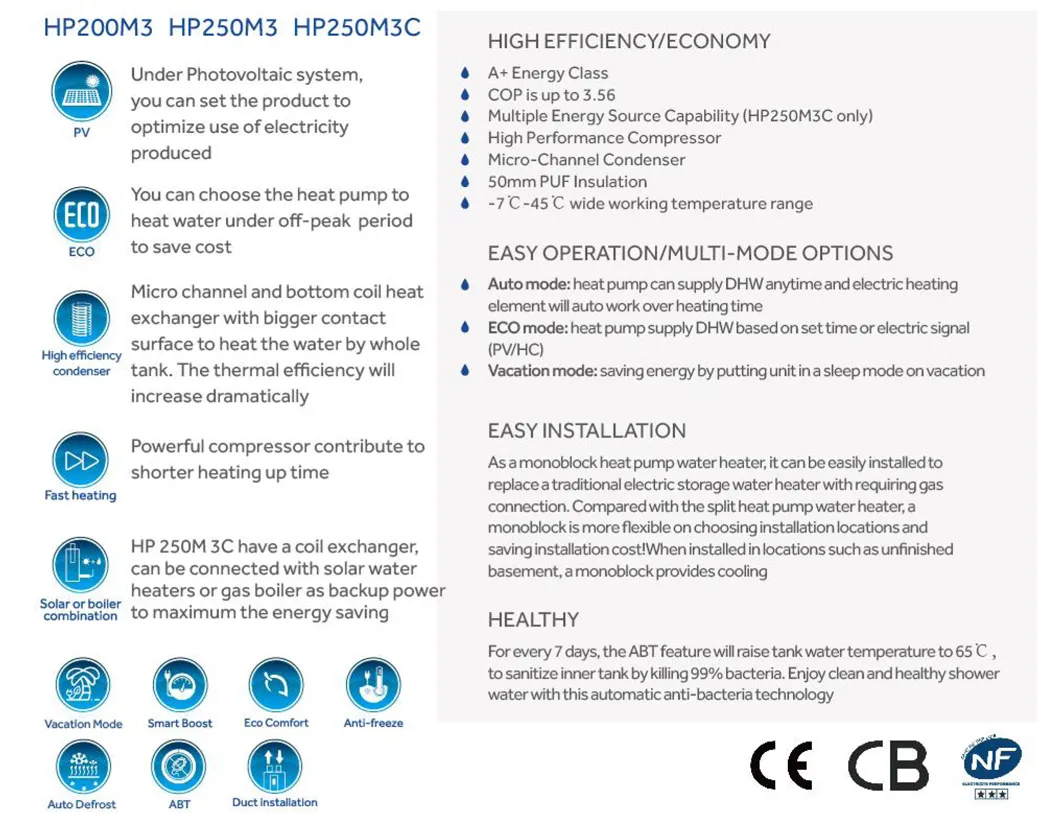

Heat Pump Detail 1
Heat Pump Detail 2
Heat Pump Detail 3
Core Advantages
Wide Range

01. Wide Operating Range

Output temperature from 35°C to 65°C, with working ambient temperatures from -7°C to 45°C. Reliable hot water supply for 365 days a year.

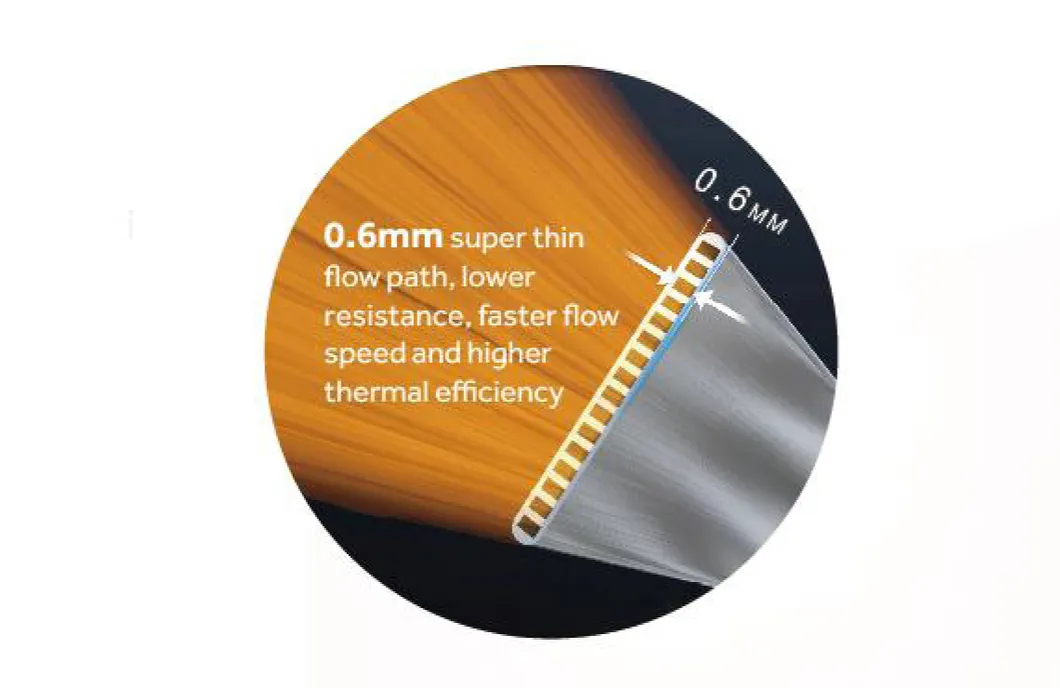

02. High Efficiency Condenser

Full-divisional super conductive condenser with multiflow circuit. Reduces flowing resistance and lowers compressor energy consumption for higher thermal efficiency.

Efficiency

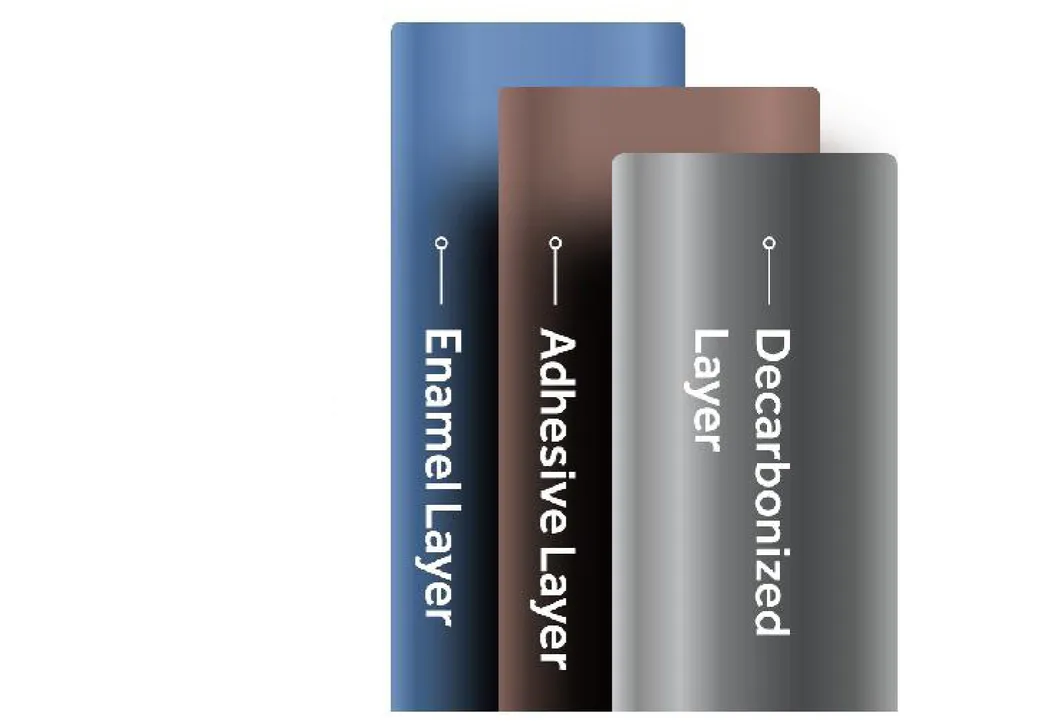

UMC Tank

03. Professional UMC Inner Tank

  • Upgraded Enamel Technology: High density enamel resistant to corrosion and acid.
  • Advanced Formula: High quality enamel powder eliminates pinholes.
  • Long Service Life: Melting at super high temperatures to prohibit rust and scale.

04. Smart Operation & Low Noise

Vacation mode for cost saving and automatic sterilization. Patented ventilation structure ensures a quiet environment for the user.

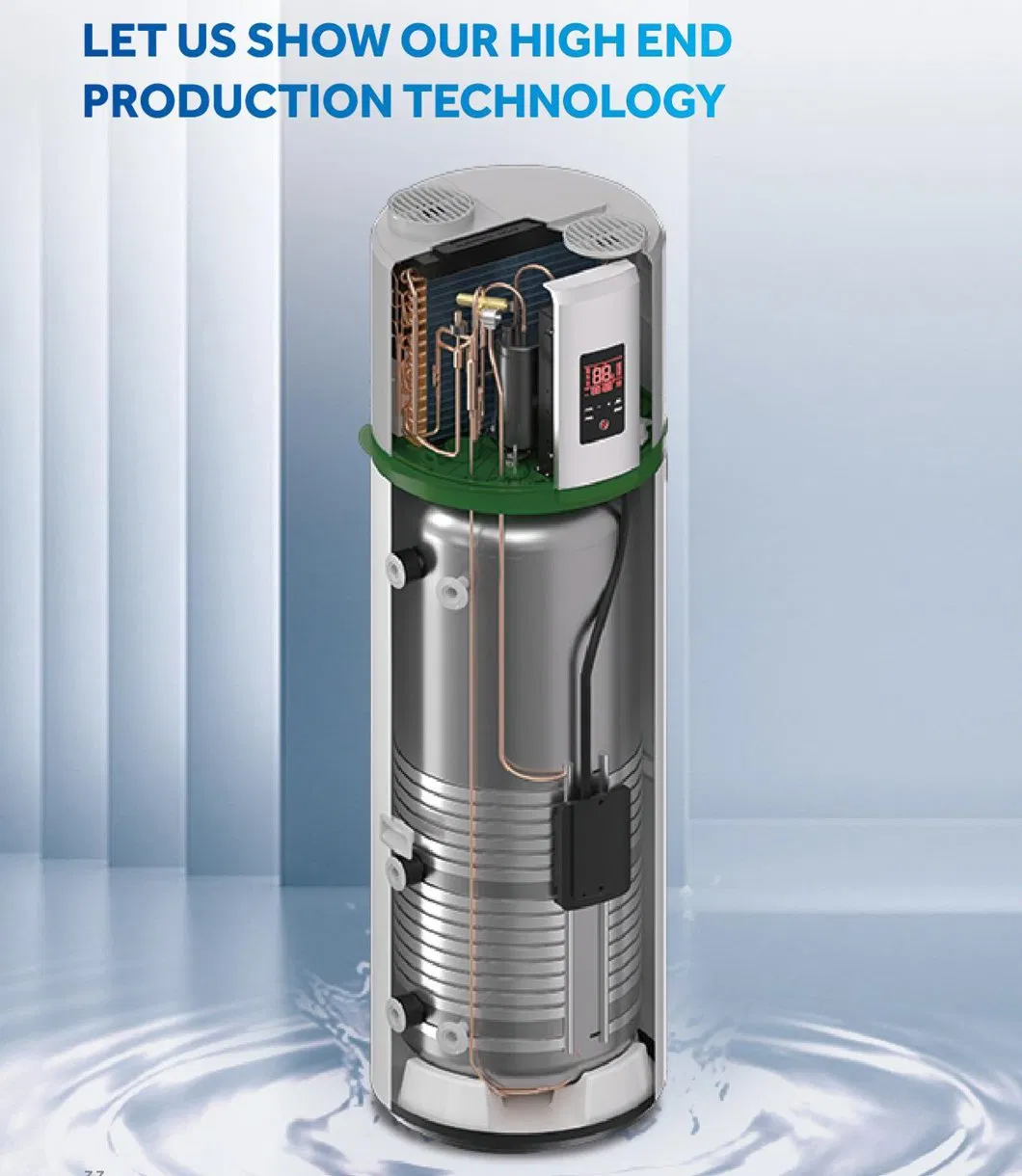

Smart Control
Global Certifications
Cert 1
Cert 2
Cert 3
Frequently Asked Questions
What is the main advantage of an all-in-one heat pump?
It integrates the heat pump and water tank into a single unit, saving space and simplifying installation while providing high-efficiency hot water.
How do you ensure the quality of the products?
We maintain strict quality control with pre-production samples before mass production and a final inspection before every shipment.
What is the working temperature range for this system?
The system operates efficiently in ambient temperatures ranging from -7°C to 45°C, making it suitable for various climates.
Is the inner tank resistant to corrosion?
Yes, we use a commercial-level UMC tank with advanced enamel technology that is highly resistant to corrosion, acid, and alkali.
What kind of maintenance does the heat pump require?
The system is designed for low maintenance. The smart defrost and automatic sterilization functions help keep the system running smoothly with minimal user intervention.
What payment and delivery terms are accepted?
We accept various terms including FOB, CFR, CIF, and EXW. Payments can be made via T/T, L/C, and major credit cards in multiple currencies like USD and EUR.
