High Capacity All-in-One Heat Pump Water Heater for Smart Homes

Still deciding? Get samples of $ !
Order Sample

Product Description

Product Overview
Heat Source
Air-source
Heating Type
Multi-power Heat
Certification
CE, ISO9001, CCC, CB, RoHS, SASO
Efficiency Rating
Class A++
Housing Material
Metal
Refrigerant
R134A
Max Temperature
75 Degree
Power Supply
220V/1pH/50Hz/60Hz

Recovering wasted energy from ventilated air and transferring it to water, heat recovery models can be installed in various locations like laundry rooms, basements, attics, garages, or boiler rooms where waste air is generated. The unit features dual duct connections to recover energy efficiently for domestic hot water production.

Air Source Heat Pump Working Principle
All-in-One Heat Pump Features
Top Air Microchannel All-in-One Heat Pump (200L/300L)

This smart design provides domestic hot water with an integrated water tank, ensuring easy installation and maximum convenience for residential users.

Higher water temperature output up to 75°C
Built-in sterilization function
Enamel water tank with long lifespan
High density foam for superior insulation
Full automatically operation
Reverse cycle defrost with 4-way valve
Top air in/out with ducting options
100% factory tested reliability

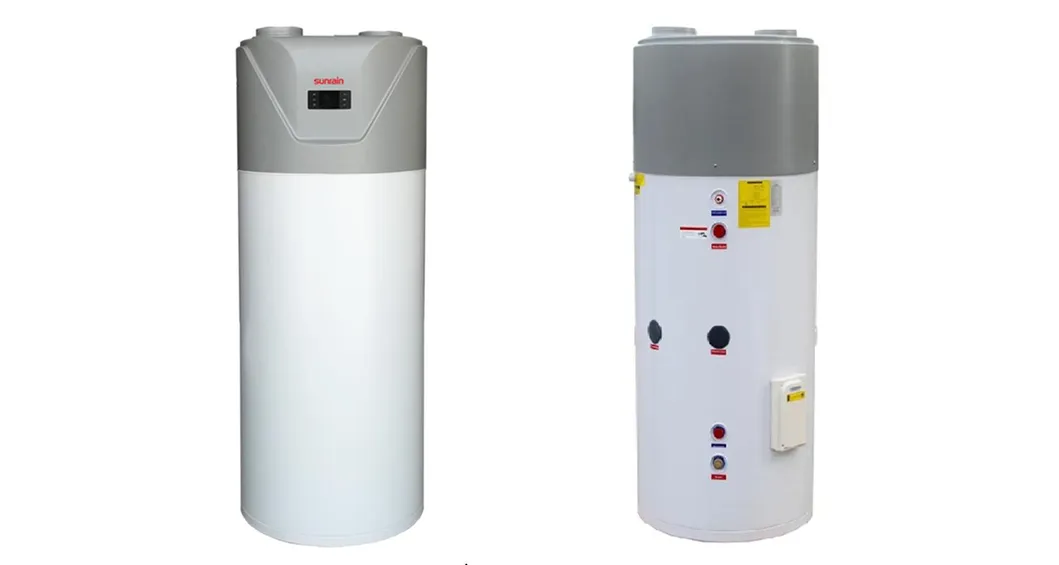

Heat Pump Unit View 1

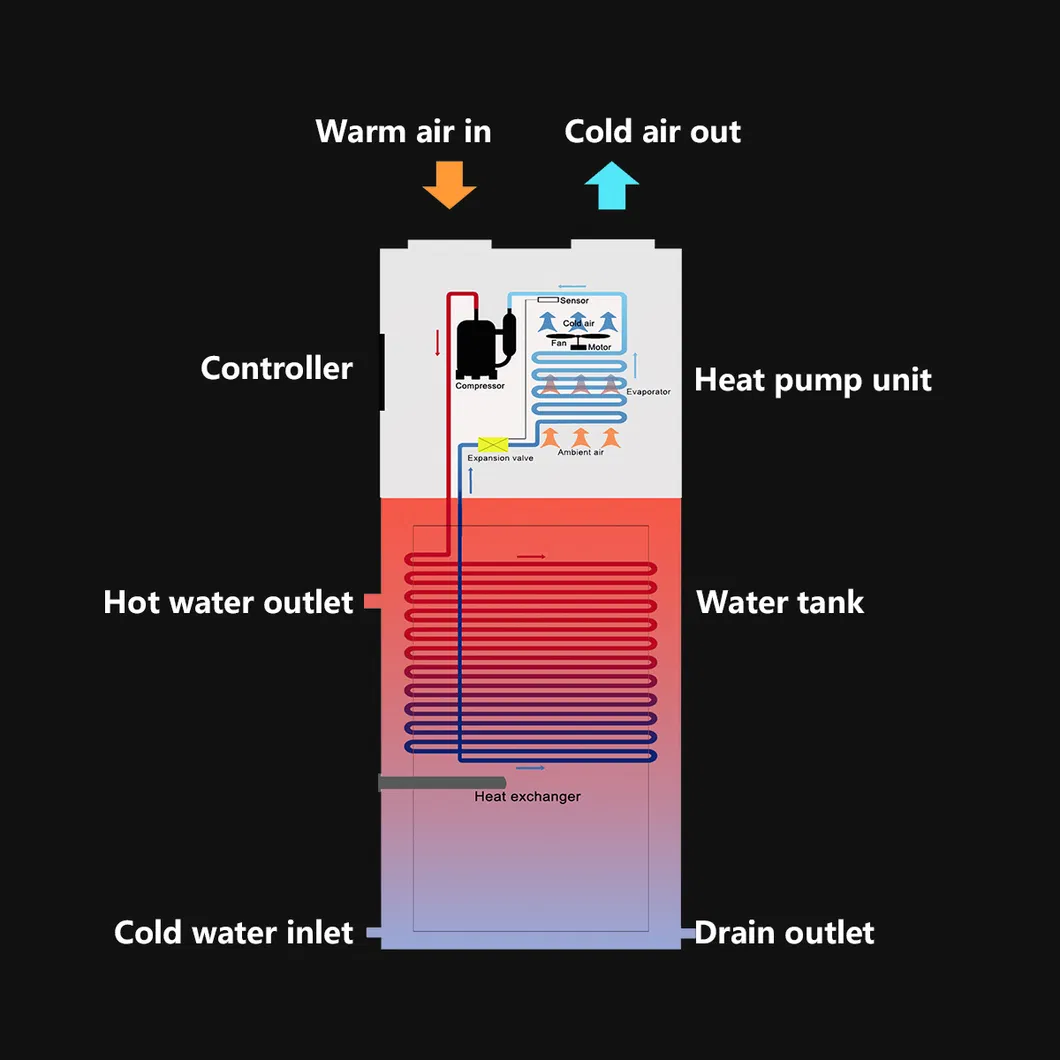

Heat Pump Unit View 2

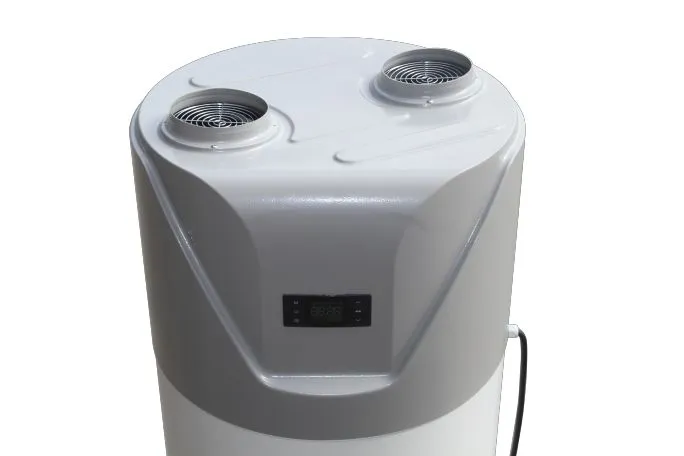

Installation Detail 1

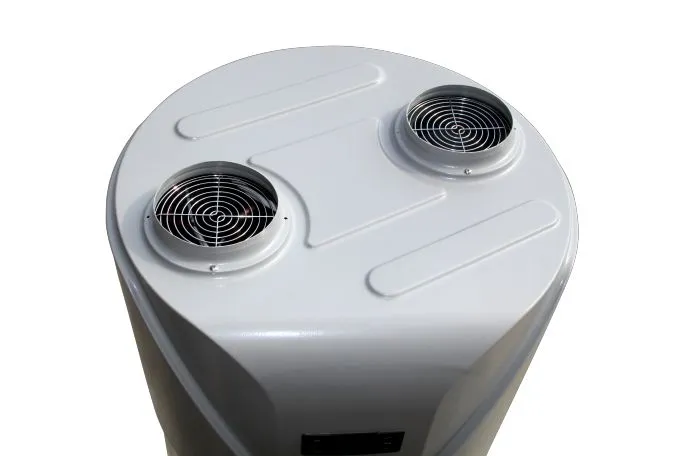

Installation Detail 2

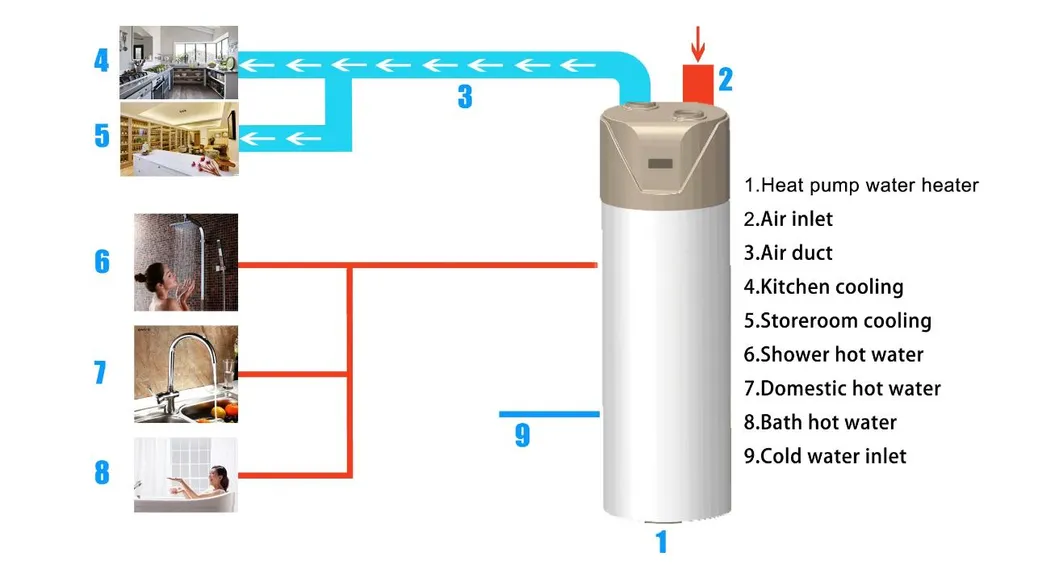

Installation Detail 3
Detailed Product Photos

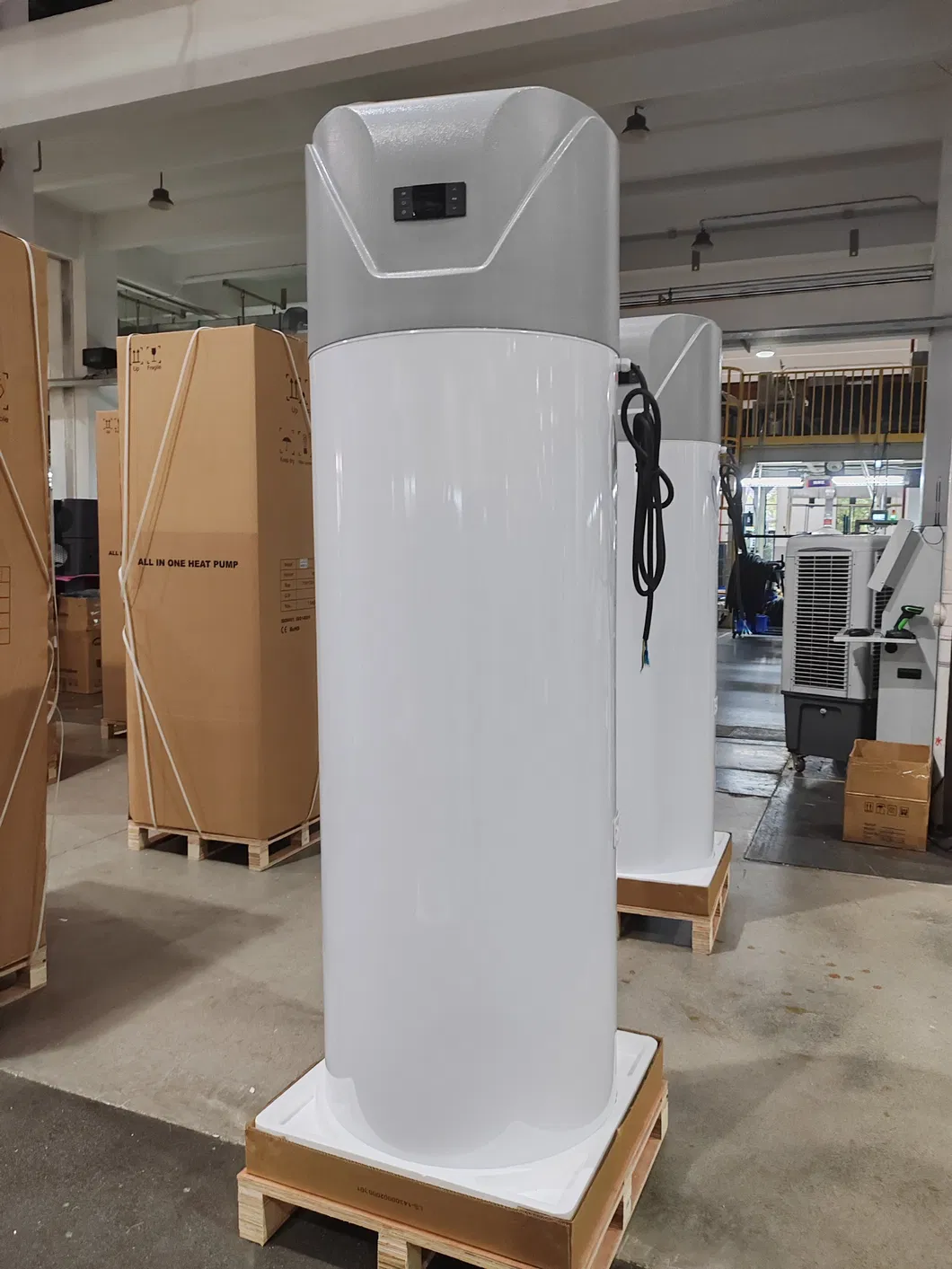

Product Detail 1

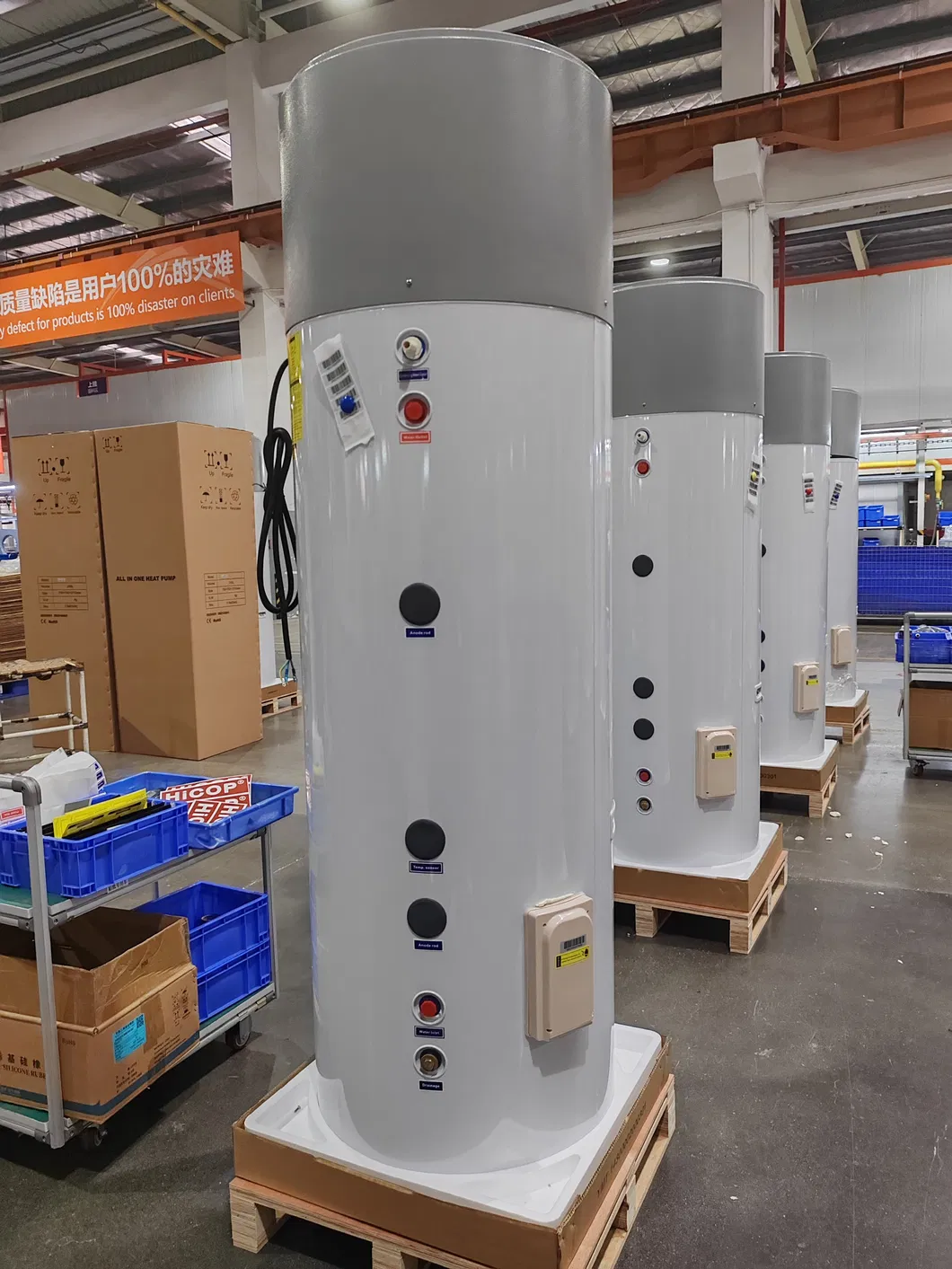

Product Detail 2

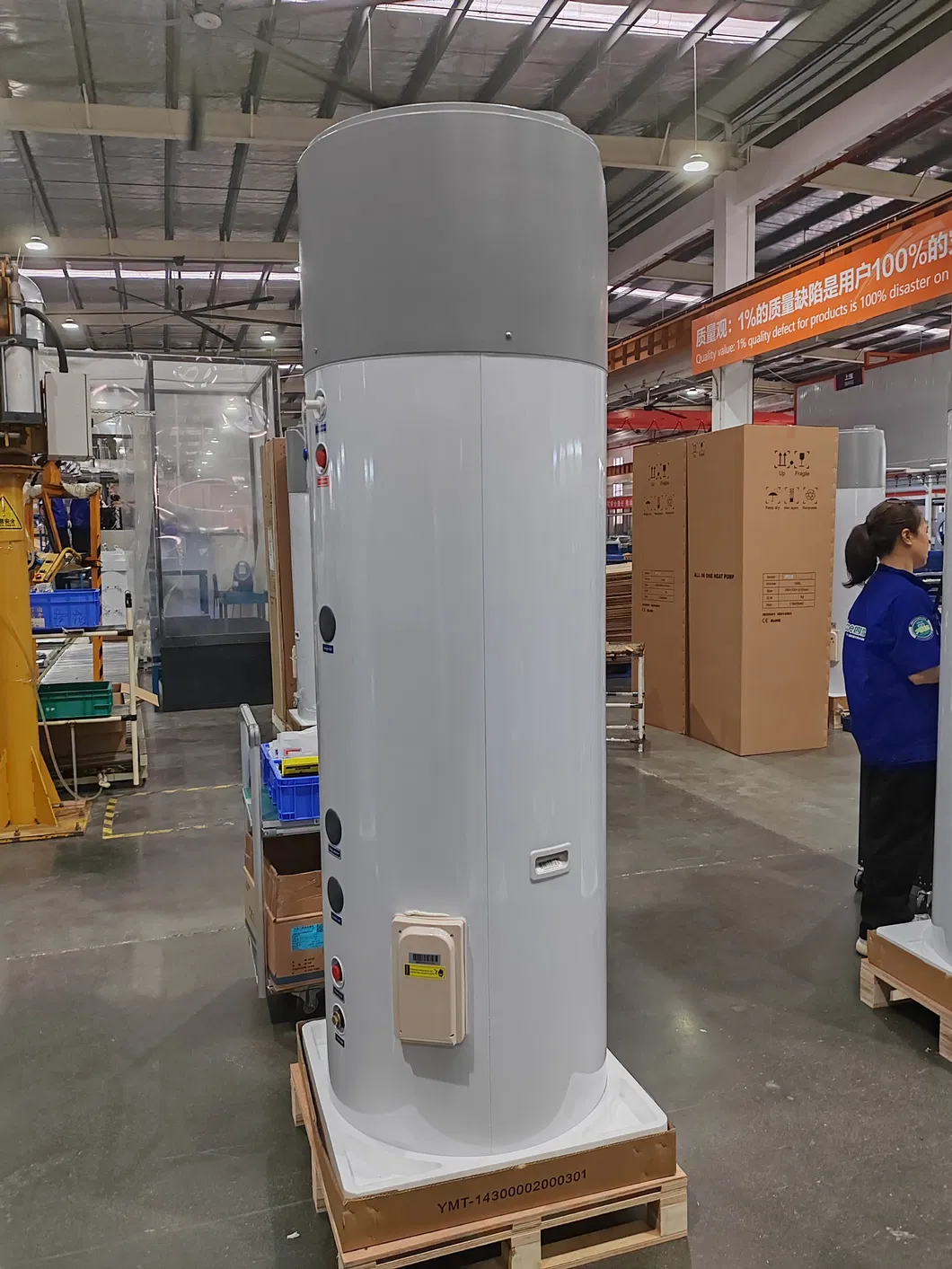

Product Detail 3

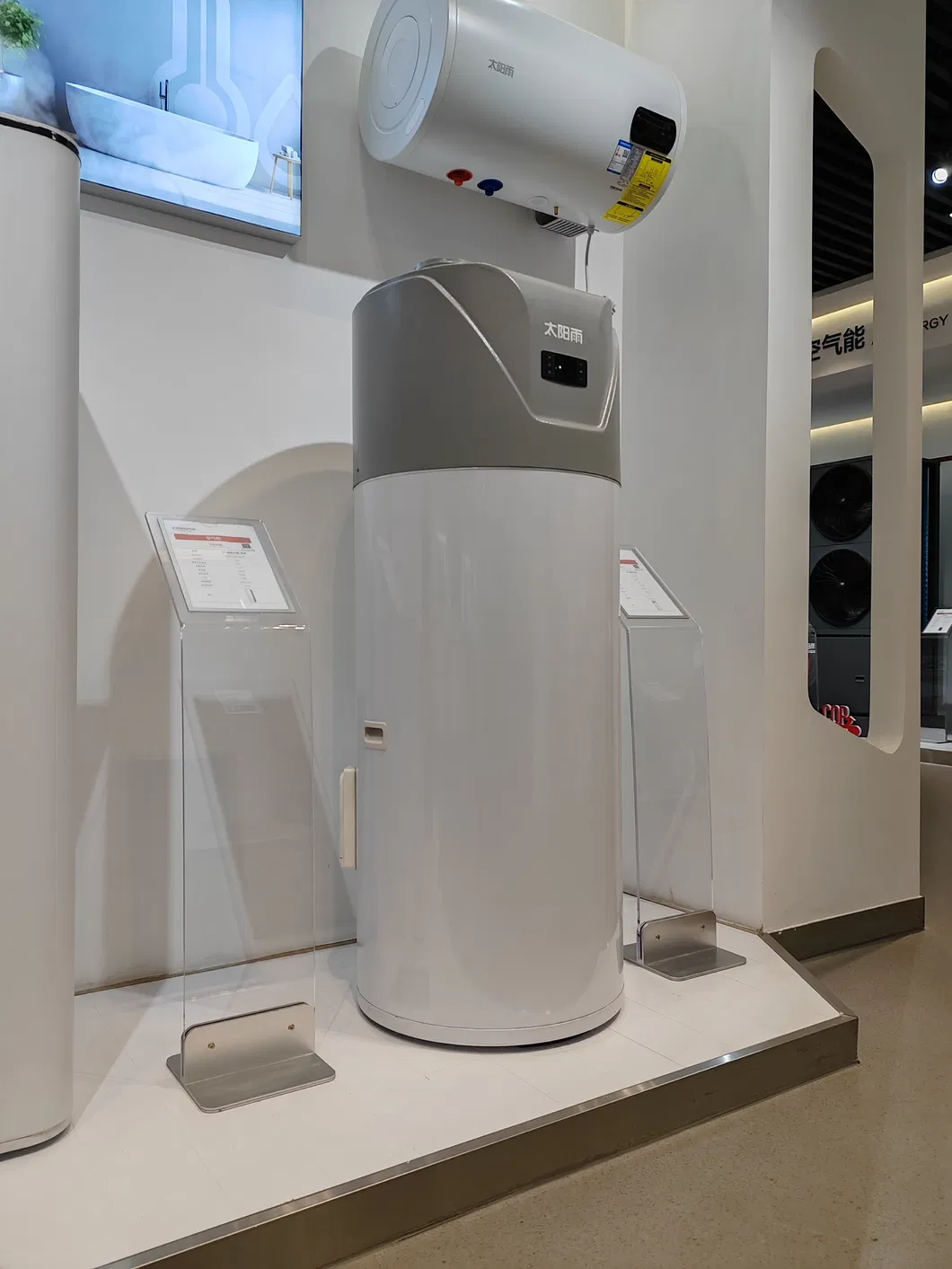

Product Detail 4
Technical Parameters
Model No. YT-200TB1 YT-250TB1 YT-300TB1
Rated Heating Capacity2.4KW2.4KW2.4KW
Rated Input Power0.64KW0.64KW0.64KW
Water Tank Capacity200L250L300L
COP (China Standard)3.913.913.91
CompressorHigh Efficiency GMCC
Max Water Temp75°C
Net Weight88kg95kg102kg
Dimension (Φ×H)620×1750mm620×1850mm620×1950mm
Packaging & Delivery
Package Size
70.00cm * 70.00cm * 190.00cm
Gross Weight
60.000kg - 120.000kg
Packaging Detail
Production Capability

Operating with a strong R&D team and more than 100 professional engineers, our production base maintains an annual output of over one million units. We are committed to Industry 4.0 standards with smart factories and advanced logistics.

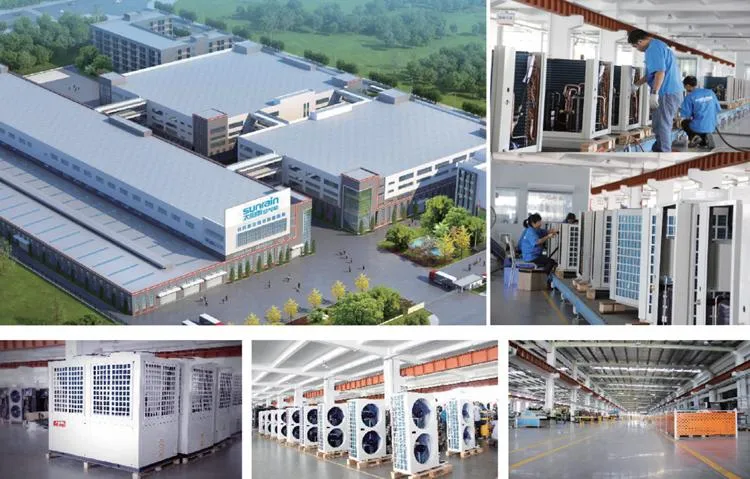

Factory Laboratory

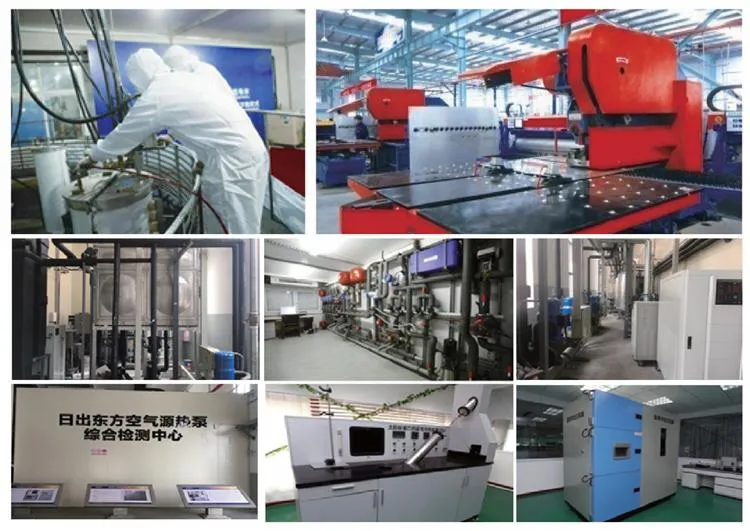

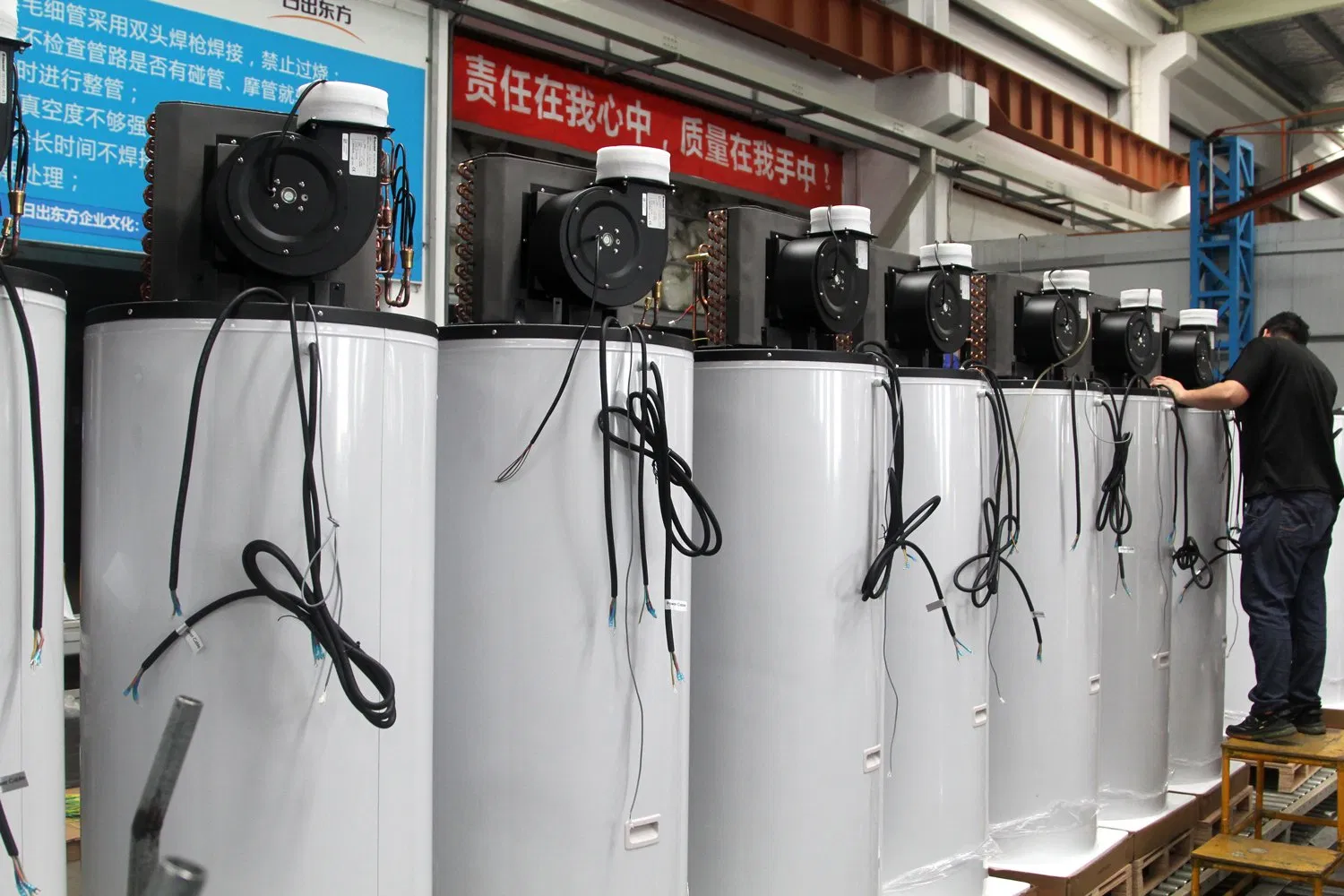

Production Line
Certification 1
Certification 2
Frequently Asked Questions
Are you a professional manufacturer?
Yes, we are a professional heat pump manufacturer with extensive experience in R&D, production, sales, and comprehensive service supply.
What are your main product lines?
Our core products include domestic heat pump water heaters, commercial heat pump dryers, swimming pool heat pumps, and EVI heat pumps for various applications.
What payment terms do you accept?
For LCL orders, we require 100% TT. For container orders, we accept 30% TT deposit and 70% balance before loading. L/C and OA terms are also available.
What is the typical delivery timeframe?
Sample and LCL orders usually take about 20 days, while full container orders are typically delivered within 35 days.
How long is the product warranty?
We provide a two-year warranty along with long-term technical support to ensure the best performance of our units.
How are the products packed for international shipping?
LCL and sample orders are packed in secure plywood cases. Full container orders use high-quality export-standard cartons for safe transit.
