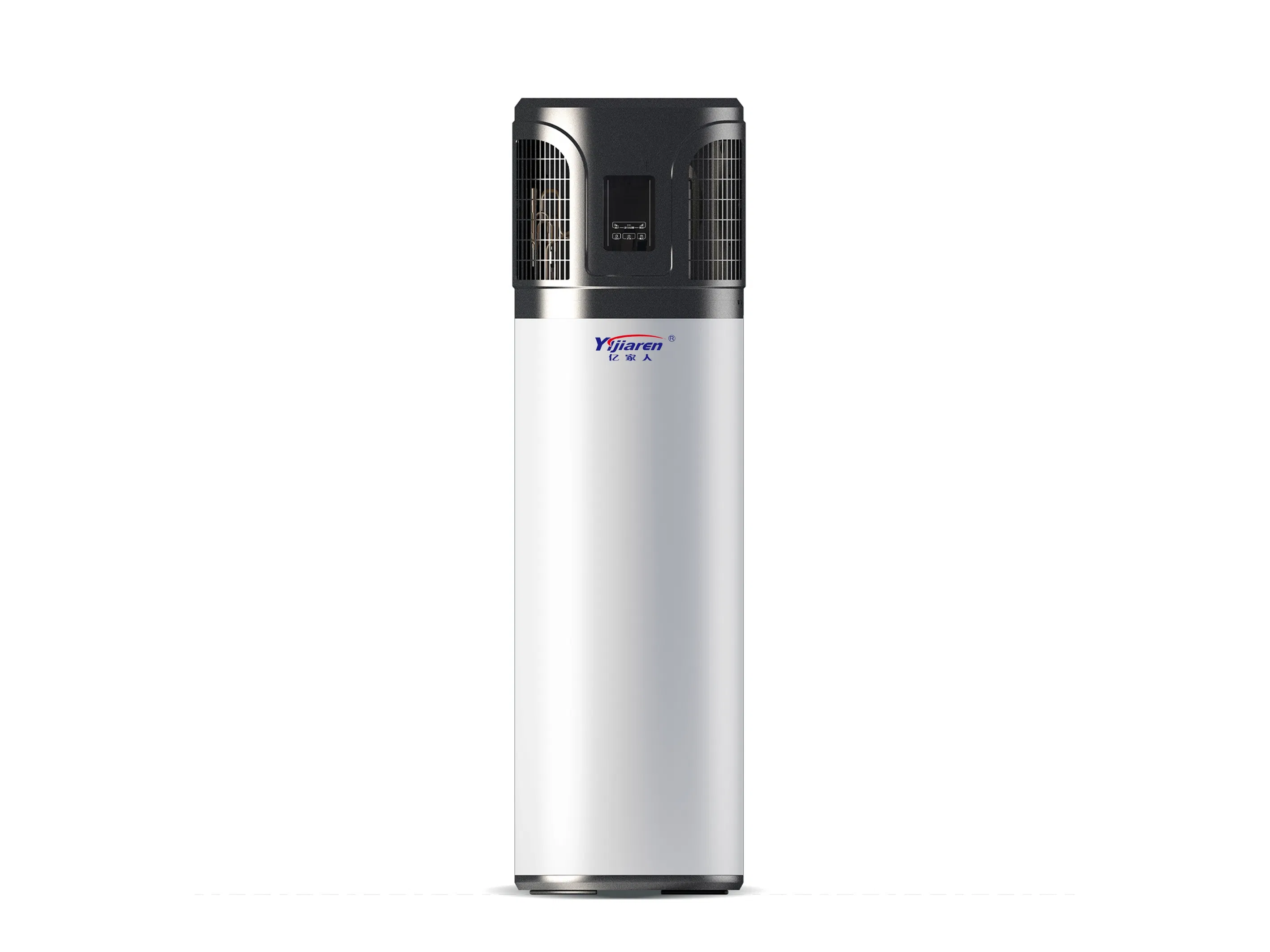

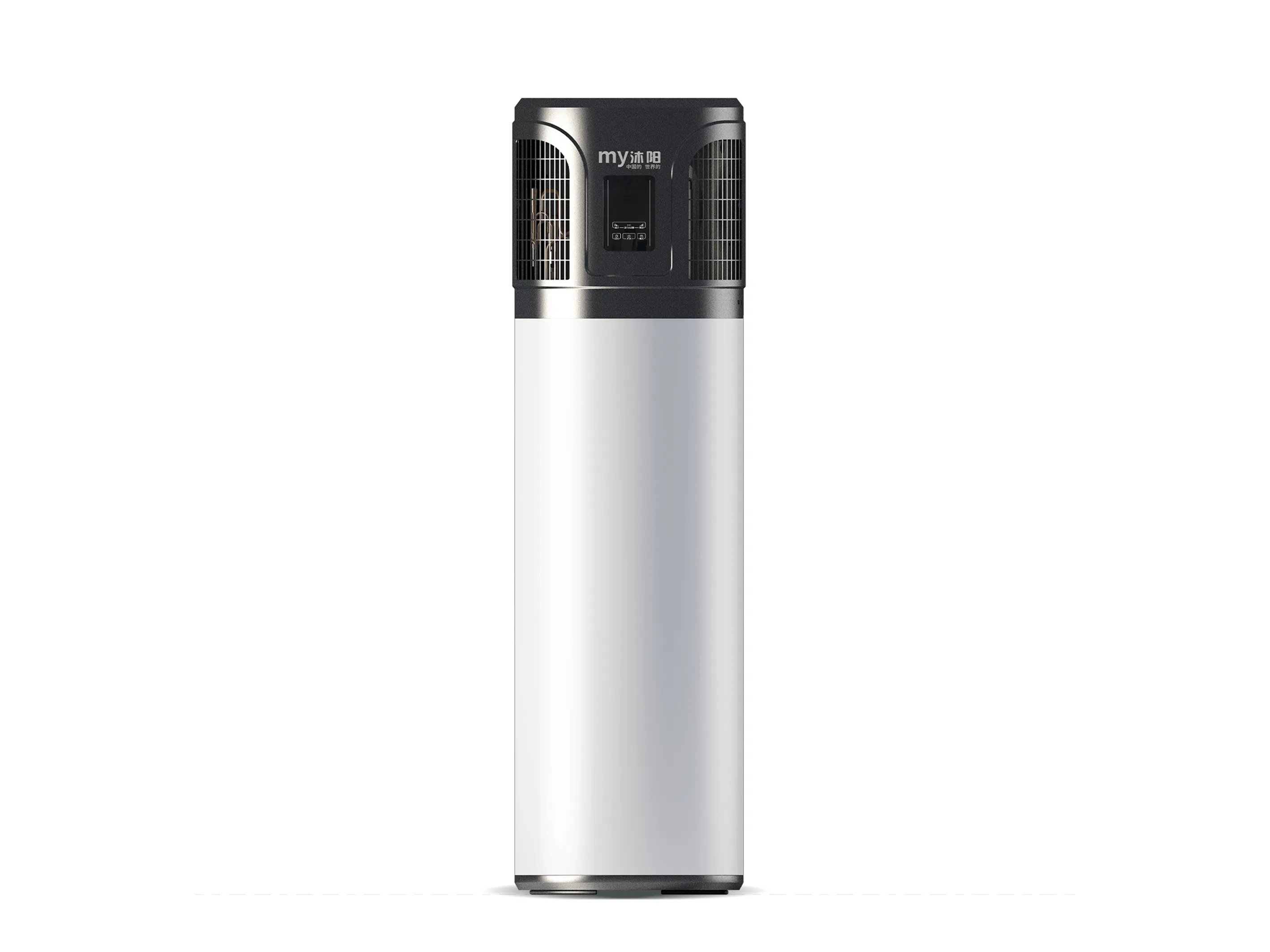

High Efficiency Air to Water Air Source Heat Pump Household All in One Heat Pump Water Heaters

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Customized Design
Available
WiFi
Available
Transport Package
Safety Standard Export Packaging
Specification
270L, 300L, 320L
HS Code
8419901000
Production Capacity
50000 Sets/Year

Product Overview

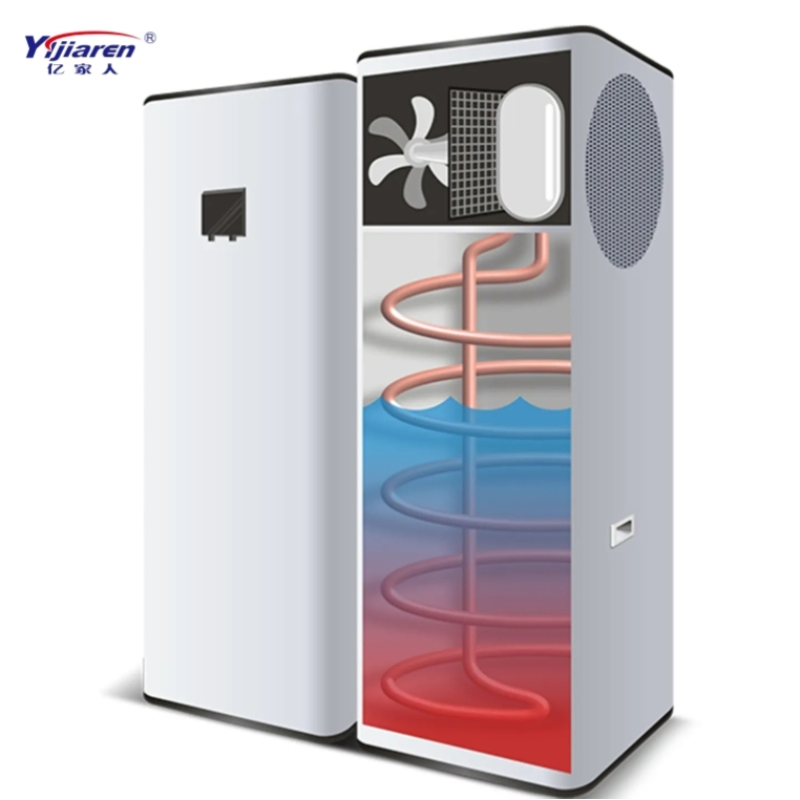

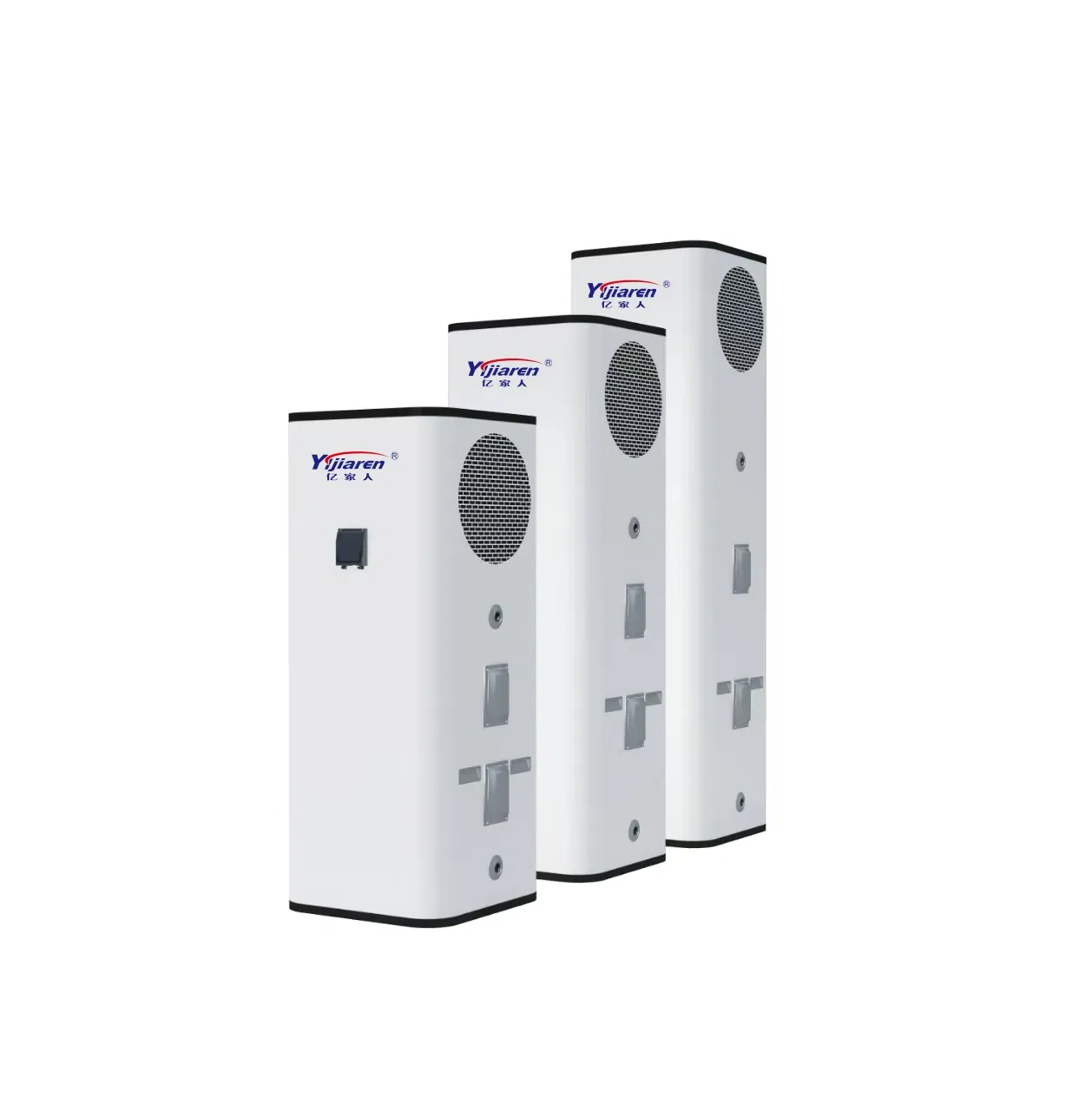

High Efficiency Air to Water Air Source Heat Pump Household All in One Heat Pump Water Heaters. This system features a square and uniform design, which not only enhances its aesthetic appeal but also allows for space-efficient installation. The compact and symmetrical shape enables it to fit seamlessly into different environments.

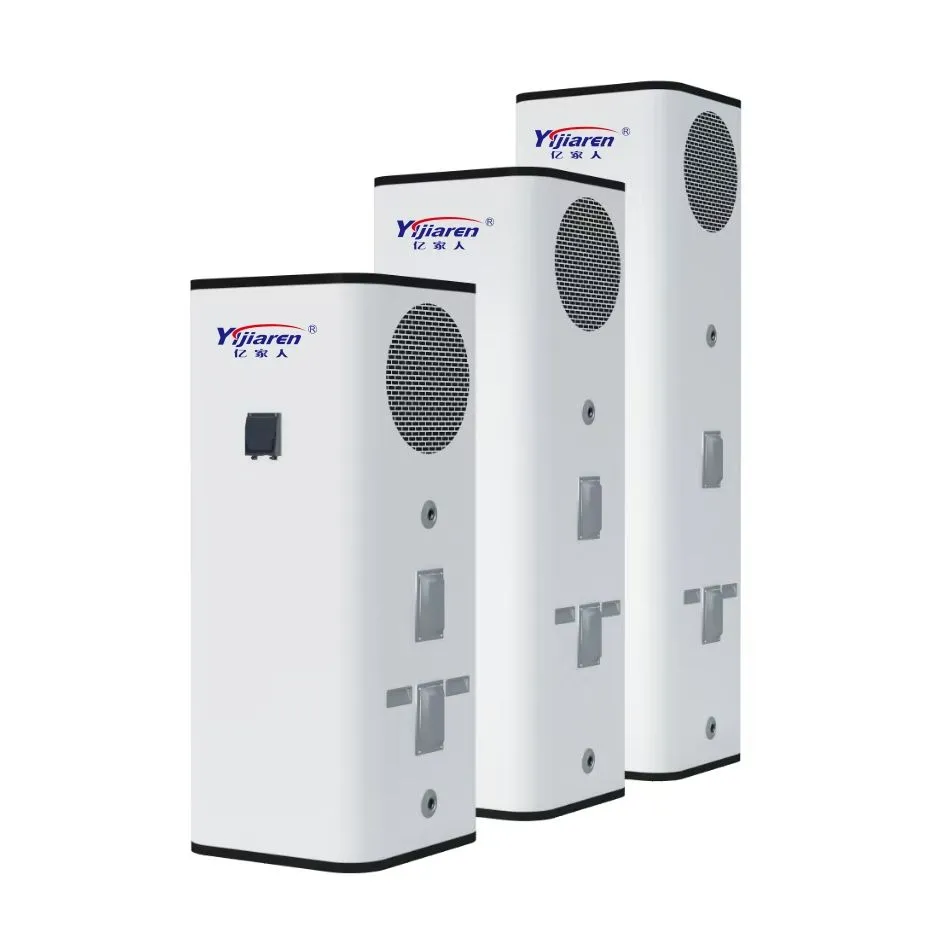

Heat Pump Water Heater

Schematic Diagram

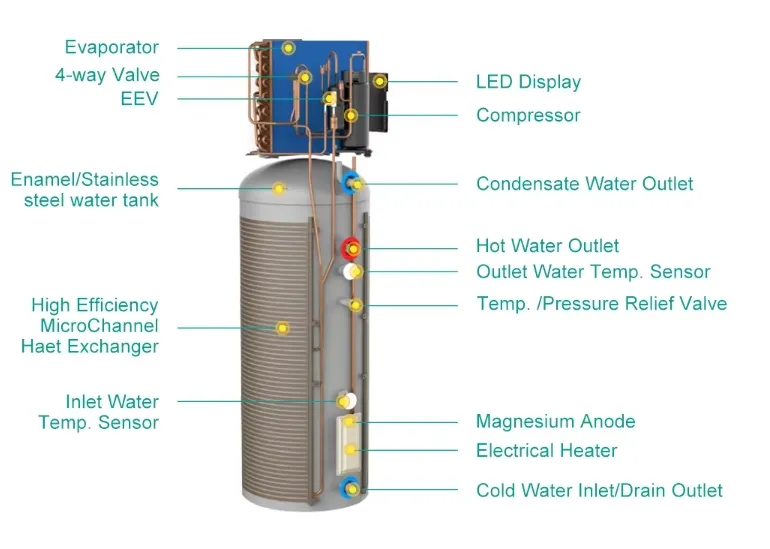

Diagram 1

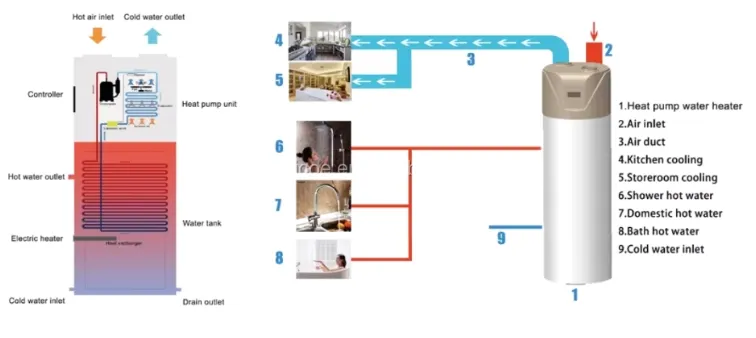

Diagram 2

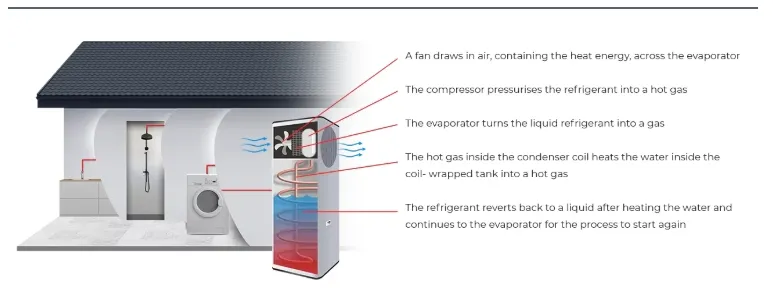

Diagram 3

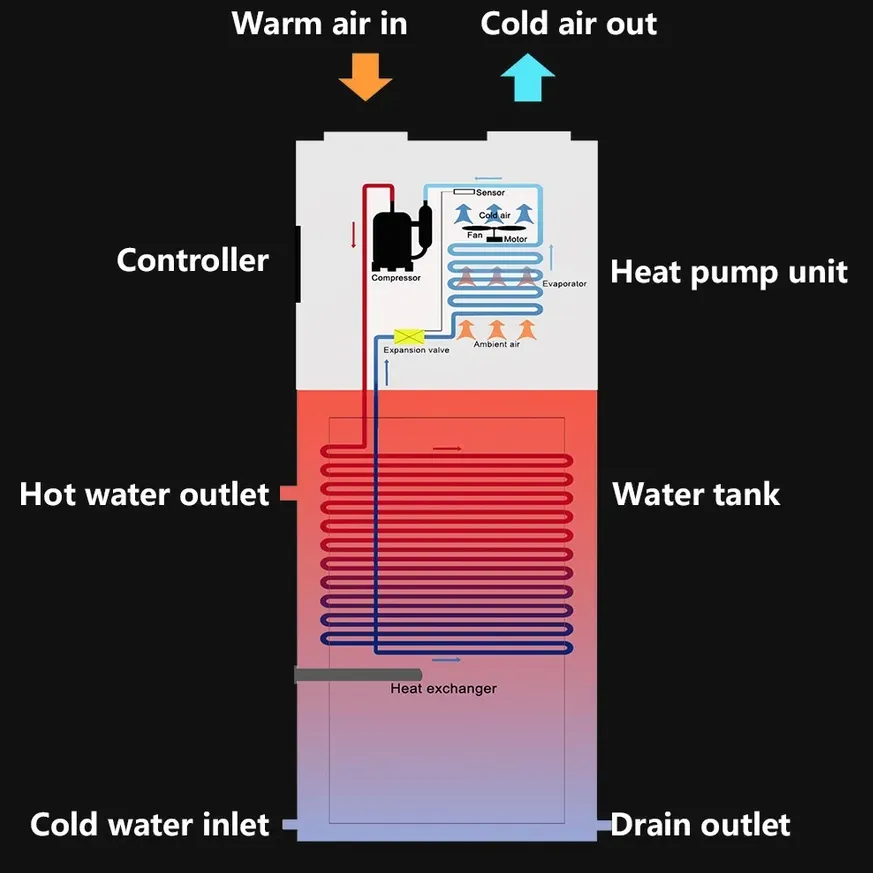

Diagram 4

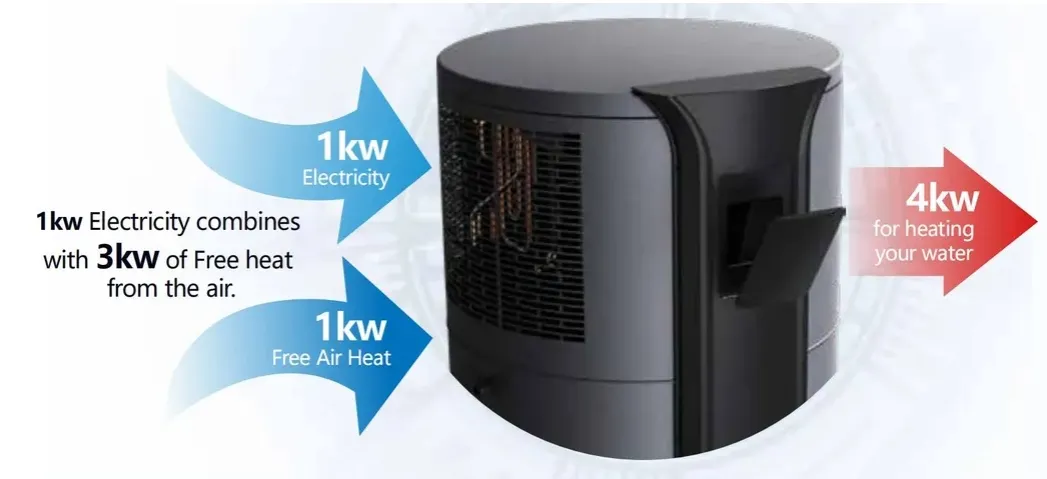

Diagram 5

Technical Specifications

Item Round Type Square Type
Power1P1P
Heating Capacity2750W2100W
Rated Power720W545W
Rated Current4.0A3.1A
Electric Heating Power2000W2000W
COP3.823.85
Water Tank Capacity150L150L
Hot Water Supply59.1L/H49L/H
Temperature Range28-60ºC28-75ºC
RefrigerantR22/900gR134A/800g
DimensionØ500*1740mm500*500x1670mm
Noise≤50dB(A)45dB(A)

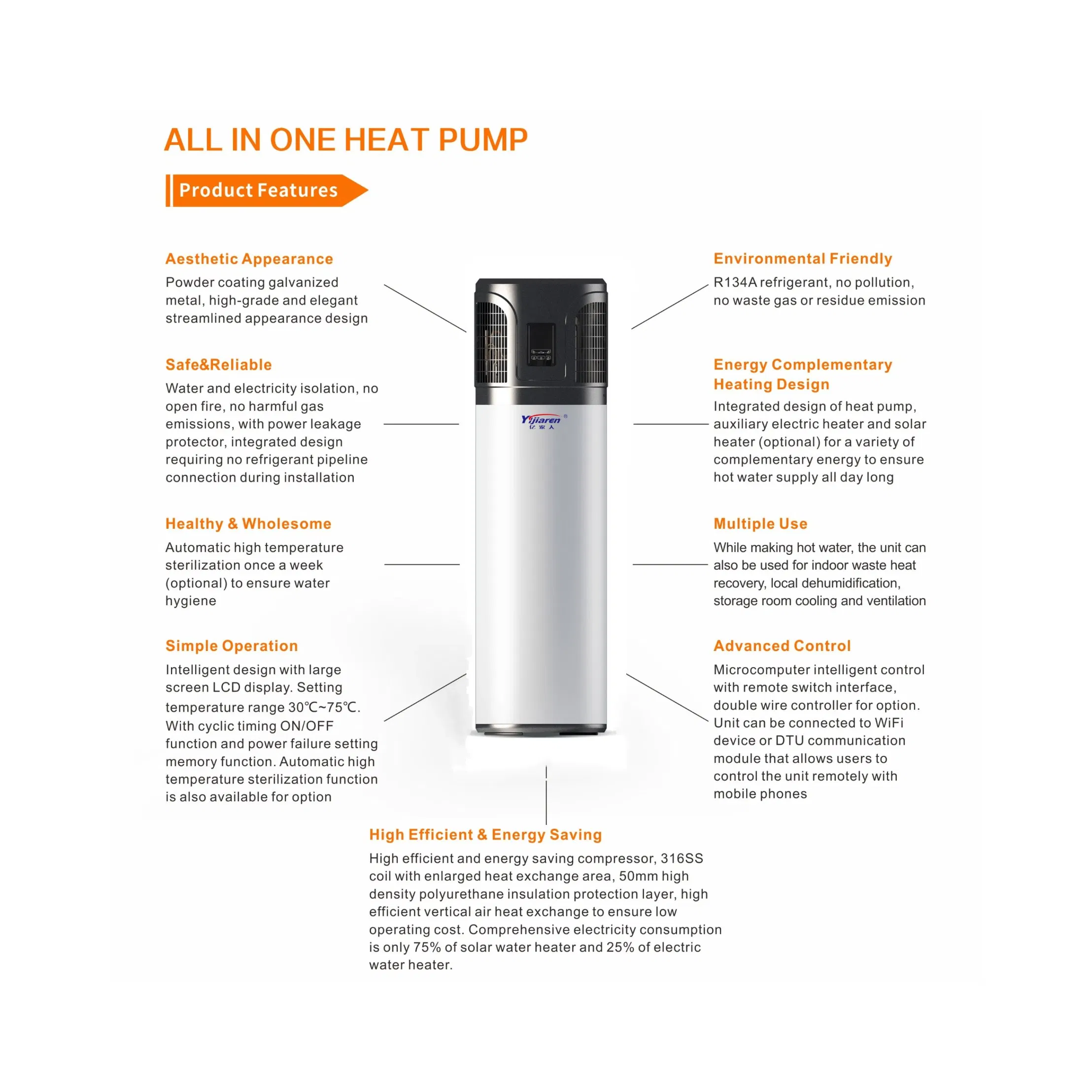

Key Features

Square and uniform design
IPX4 class, ideal for outdoor application
Axial ventilation design for higher efficiency
Microchannel heat exchanger
R134a Eco-friendly refrigerant
WIFI smart control capability
Smart Control

Manufacturing & Service

We are an environmentally friendly industrialized enterprise engaged in the research, production, and sales of new energy products. Our focus is on integrating hot water, floor heating, air conditioning, and fresh air systems. We have obtained ISO9001 and ISO14001 certifications, ensuring high-quality standards across our product range.

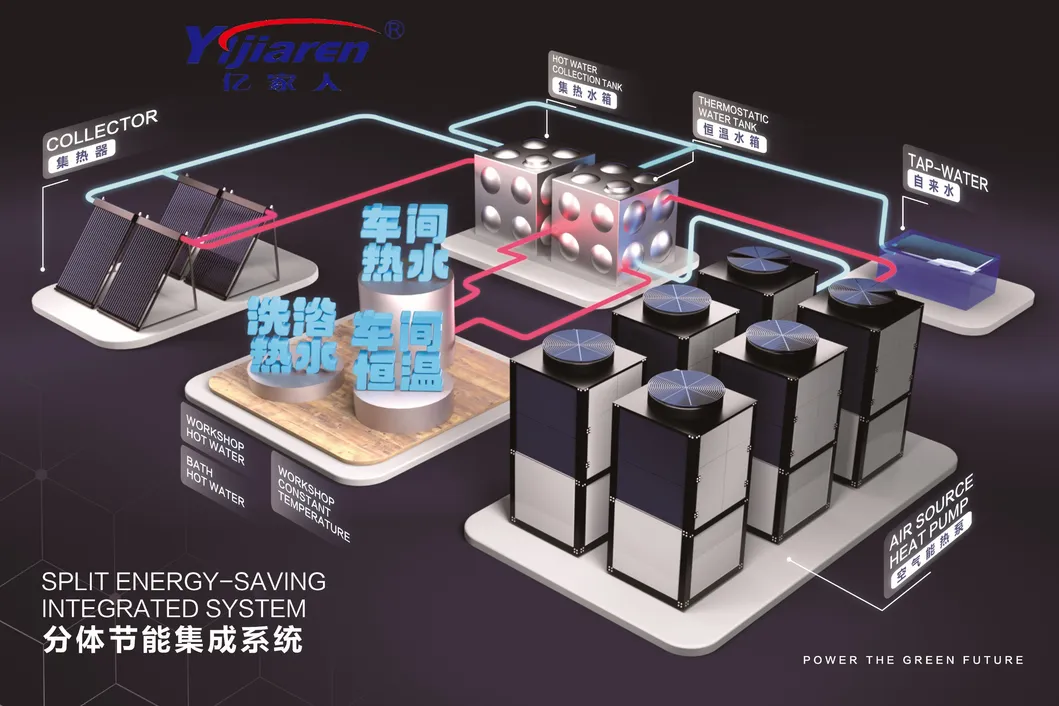

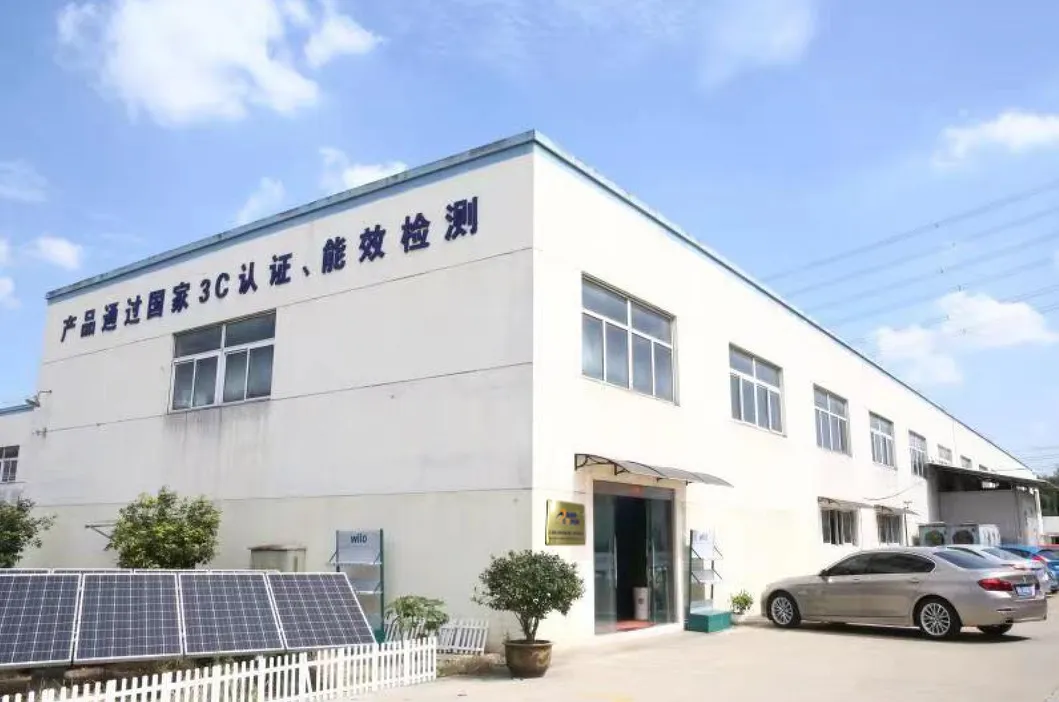

Factory View
Cooperation
Production Line

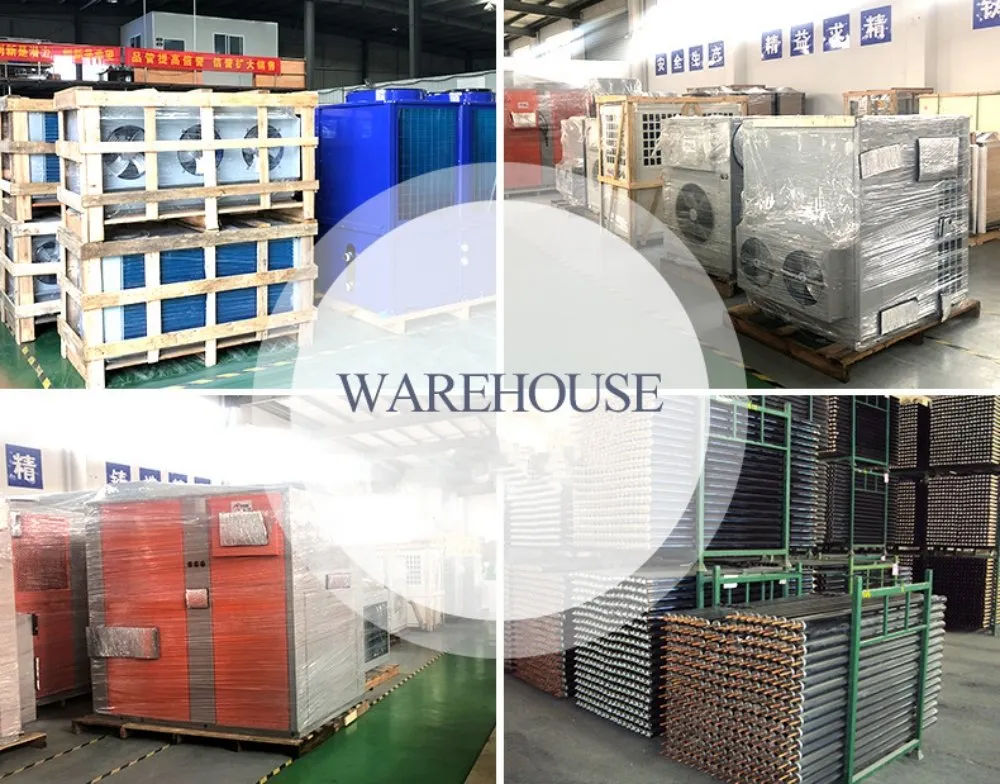

Workshop

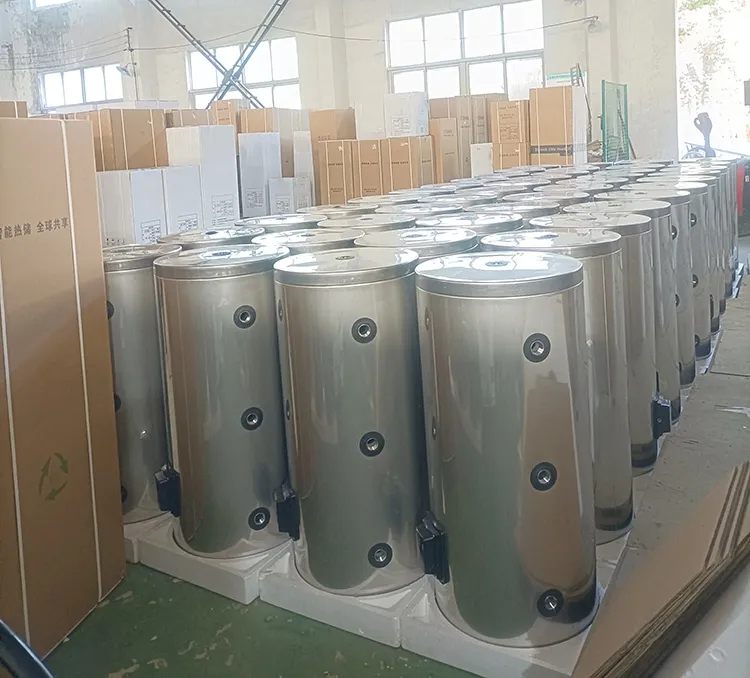

Equipment
Certificates

Frequently Asked Questions

What products does your company specialize in?
We are engaged in manufacturing, R&D, quality control, and maintenance for solar water heater systems, air source heat pumps, and related components.
Do you provide OEM or ODM services?
Yes, we provide comprehensive OEM and ODM services, including customized logo printing and design tailored to your requirements.
What quality certifications do you hold?
Our company has obtained ISO9001: Quality Management System Certification and ISO14001: Environmental Management System Certification.
What is the standard warranty period?
We provide a 24-month warranty service in accordance with our standard warranty policy to ensure long-term reliability.
What is the typical production lead time?
Generally, it is 3-7 working days if goods are in stock, or 15-25 working days if the goods are not in stock, depending on the order quantity.
Why should we choose your heat pump solutions?
With over 15 years of expertise, we offer customized technical consulting, system design, and high-quality products that guarantee sustainable and energy-efficient performance.
