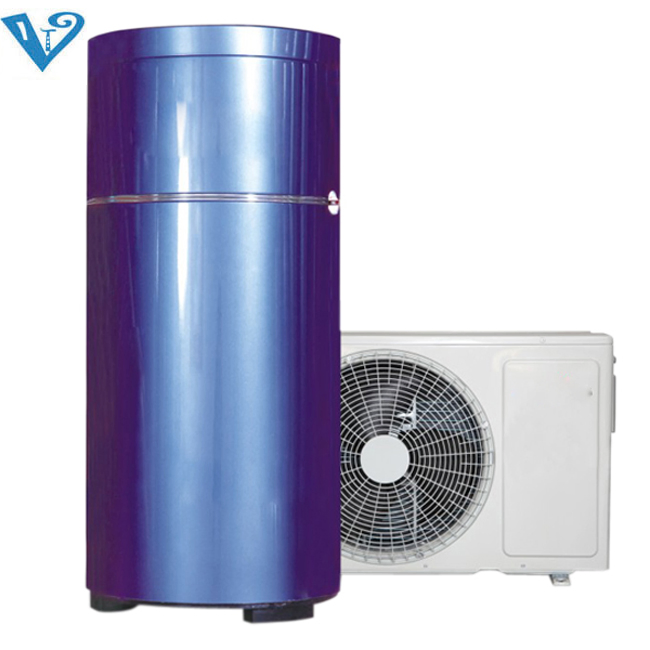

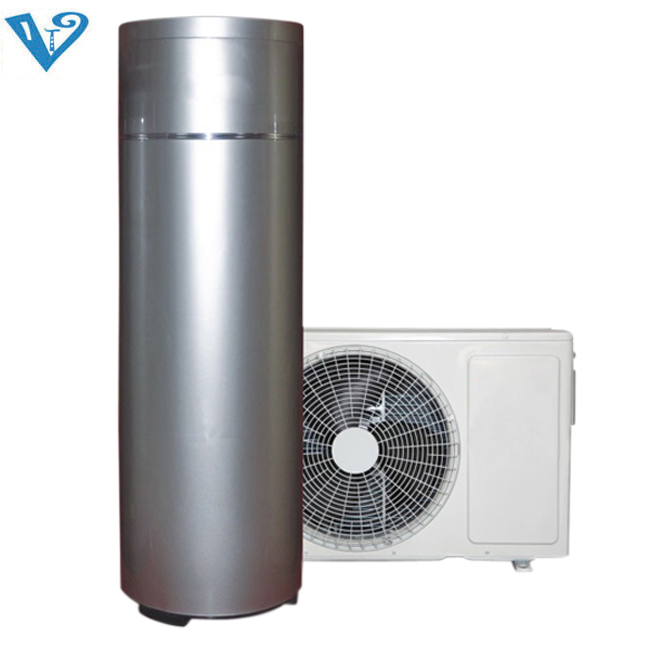

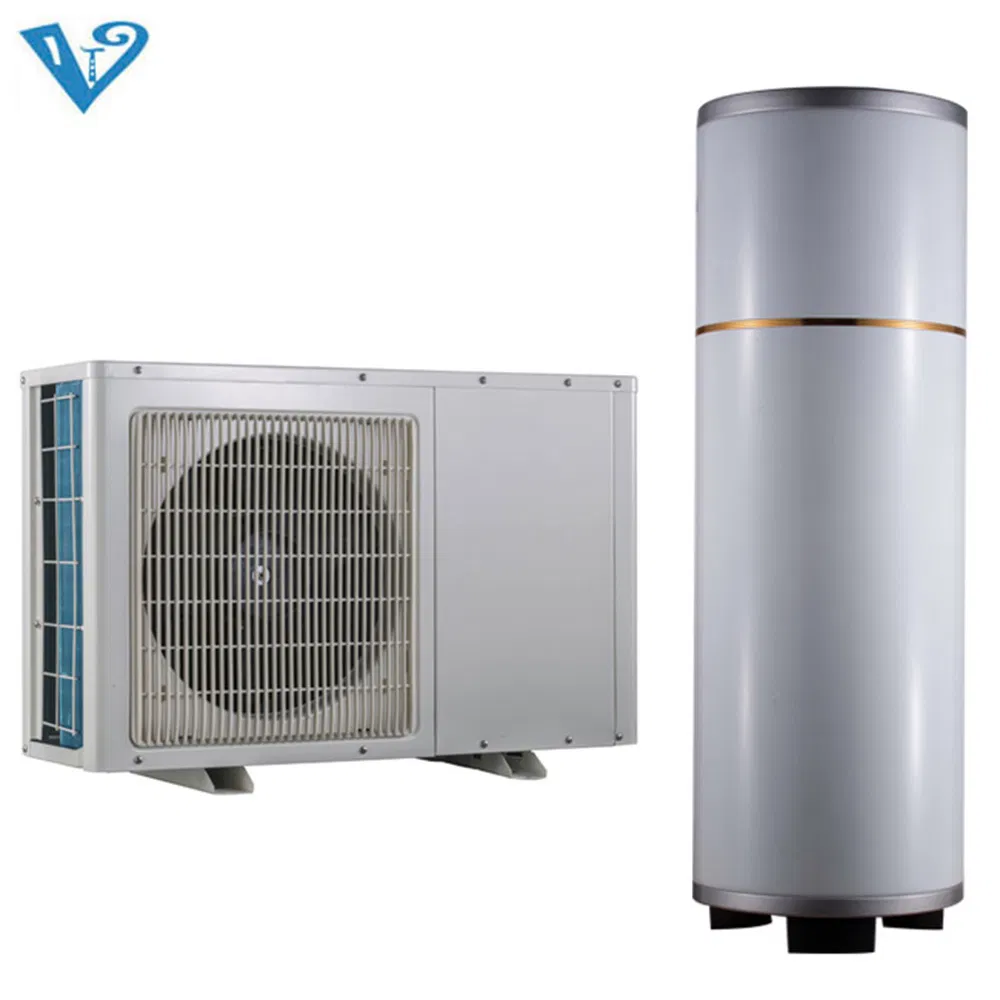

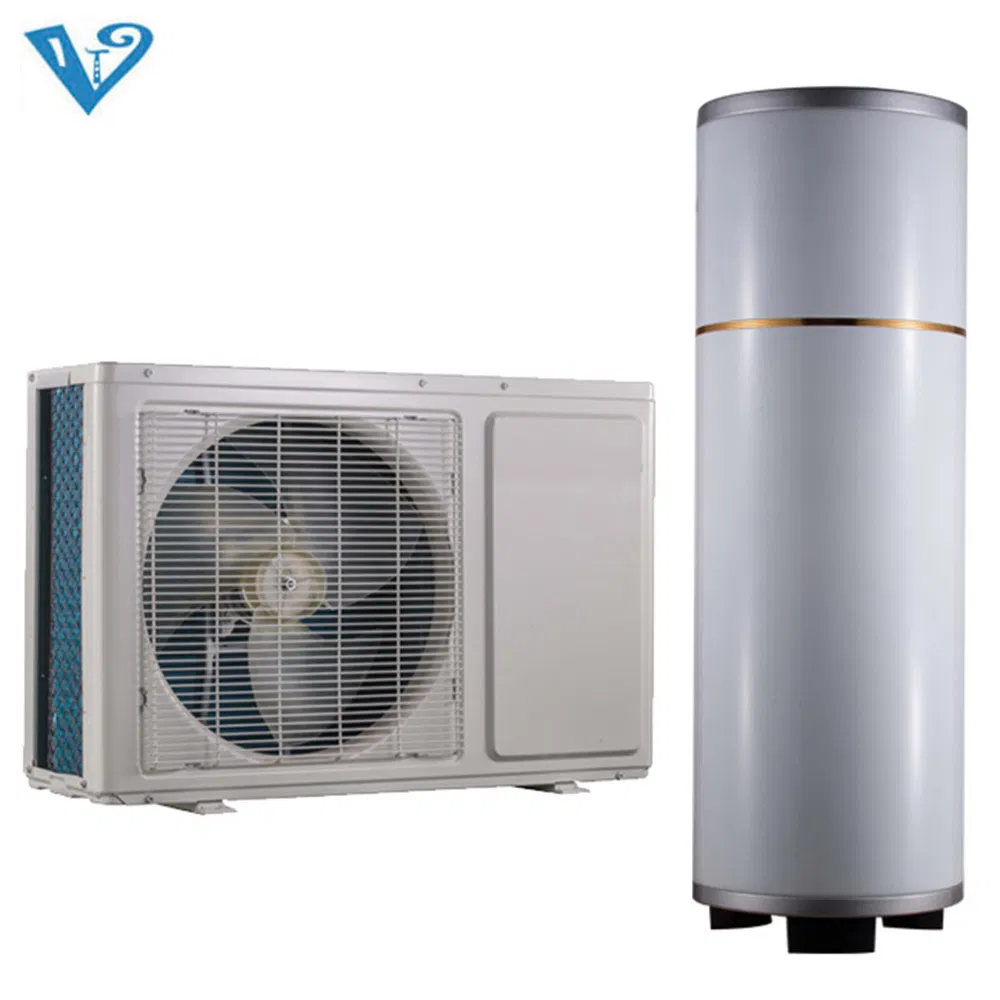

Industrial Air Conditioner Split Type Remote Control Heat Pump

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
SFXKR-032II
Heat Source Type
Air Source Heat Pump
Type
Air Source, Water Source, Ground Source
Function
Heating Water
Ambient Temp. Range
-15°C to +43°C
Compressor
Scroll Type
Transport Package
Wooden Box
HS Code
8418612090
Production Capacity
50,000 PCS/Year
🔍 Product Details & Images

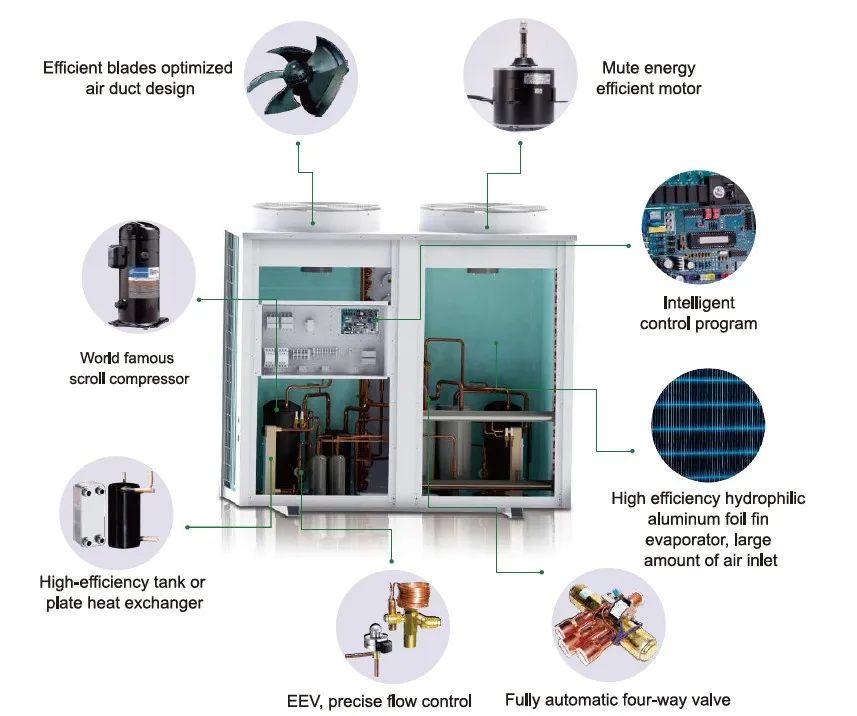

Heat pump Details Image 1

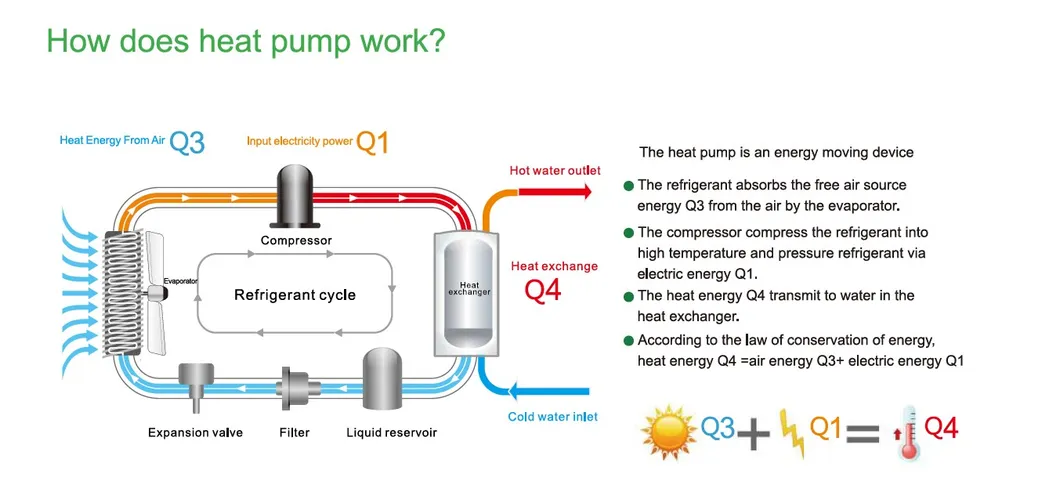

Heat pump Details Image 2

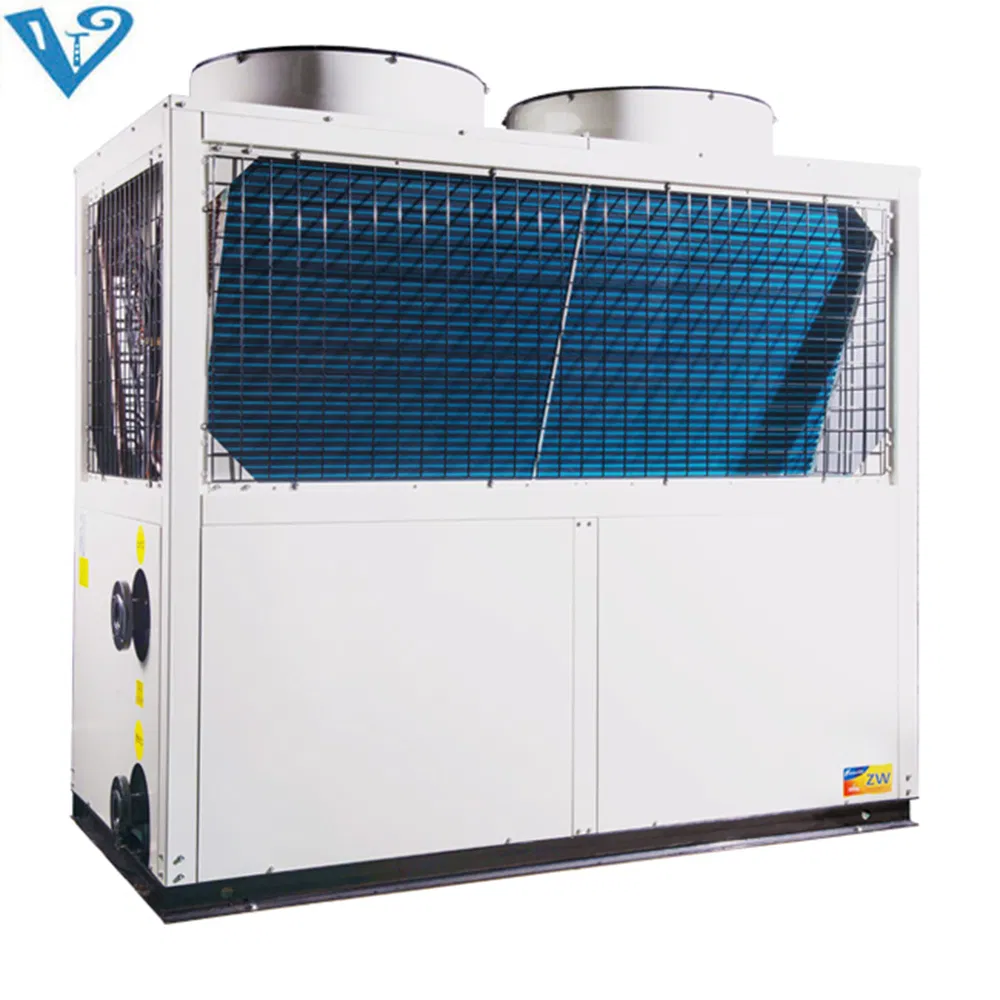

Heat pump Details Image 3
Commercial Water Heater Heat Pump Series
MODEL KFXR-010UI KFXR-018UII KFXR-023UII KFXR-036UII KFXR-045UII KFXR-070UII KFXR-090UII
Heating mode / Circulating
Ambient temp. range ºC -15~+43ºC
Rated heating capacity KW 10 18 23 36 45 70 90
COP W/W 4.17 4.3 4 4.2 4.2 4.1 4.1
Rated power input KW 2.4 4.2 5.75 8.57 10.7 17 21.9
Max. running current A 17 14 16 24.8 30 45 58
Power supply / 220V 1N~50Hz 380v 3N~50Hz
Safety function / High and low pressure protection, Overload protection, Temperature protection Power phase sequence protection, etc.
Compressor type / Scroll
Max. temp. outlet water ºC 60
Machine dimension (W×D×H) mm 750×690×870 750×690×1070 830×793×1084 1500×690×1070 1500×690×1270 2100×1100×2000 2100×1100×2000
Remarks:
1. Test conditions: (DB/WB) 20°C/15°C, inlet water temperature 15°C, outlet water temperature 55°C.
2. Due to product improvement, above datas are subject to change without prior notice, please take the rating plate as standard.
💧 Geothermal Water to Water Heat Pump Series

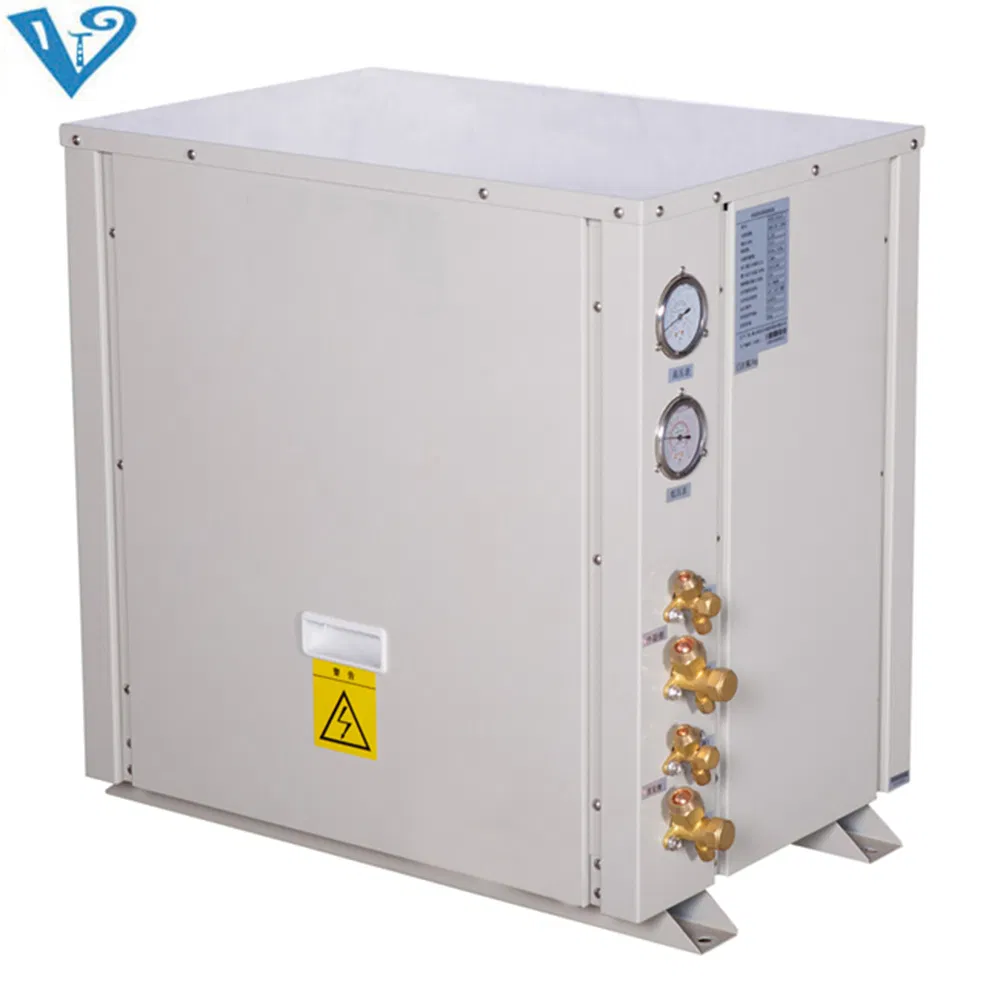

Geothermal heat pump
Model SFXKR-017II SFXKR-032II SFXK-015II SFXK-040II
Ambient temp. range ºC -5~+25 -5~+25 -5~+25 -5~+25
Floor heating capacity/COP KW/- 17/4.8 32/4.8 15/4.8 40/4.8
Rated heating capacity/COP KW/- 16/4.1 31/4.1 13.7/4.1 36.5/4.1
Refrigerant/weight -/kg R410a/2.5 R410a/2.5×2 R410a/2.5 R410a/4.0×2
Dimension (W×D×H) mm 745×650×960 1400×750×960 745×650×960 1400×750×960
a: Floor heating condition: Heat source side inlet temperature 0 ºC and use side inlet water temperature 30 ºC;
b: Rated heating condition: Heat source side inlet temperature 0 ºC and use side inlet water temperature 30ºC;
c: Rated cooling condition: Heat source side inlet water temperature is 25ºC and outlet water temperature is 30ºC.
🛠️ Product Testing & Quality Control

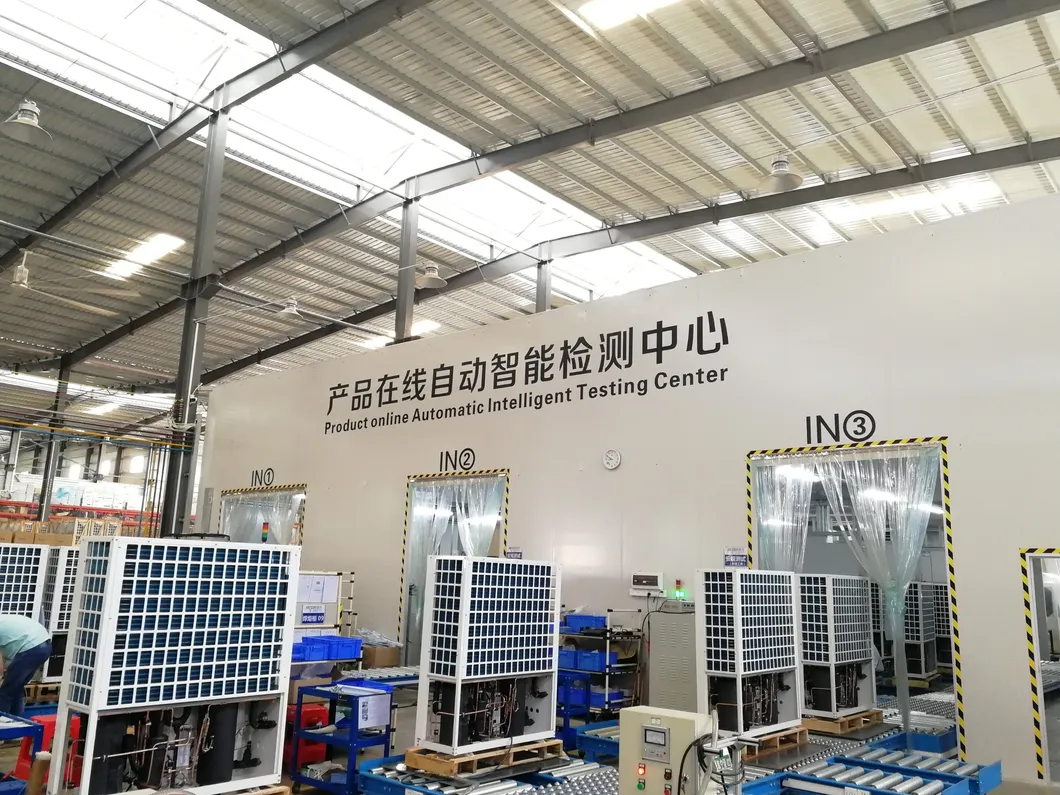

Product Testing 1
Product Testing 2
Product Testing 3
Frequently Asked Questions
What is the operating ambient temperature range for these heat pumps?
The units are designed to operate efficiently within an ambient temperature range of -15°C to +43°C, making them suitable for various climates.
What type of compressor is used in the SFXKR series?
The systems utilize high-efficiency Scroll type compressors, known for their reliability, low noise levels, and long service life.
What safety protections are built into the system?
Our heat pumps include comprehensive safety features such as high and low pressure protection, overload protection, temperature protection, and power phase sequence protection.
Can the outlet water temperature reach 60°C?
Yes, the maximum outlet water temperature for the commercial water heater series is 60°C, suitable for domestic and industrial hot water needs.
What refrigerants are used in these models?
Depending on the specific model, we use R407c or R410a refrigerants, which are selected for optimal thermal performance and environmental considerations.
Are the units suitable for both heating and cooling?
Yes, the geothermal water-to-water series is designed to handle floor heating, rated heating, and rated cooling conditions efficiently.
