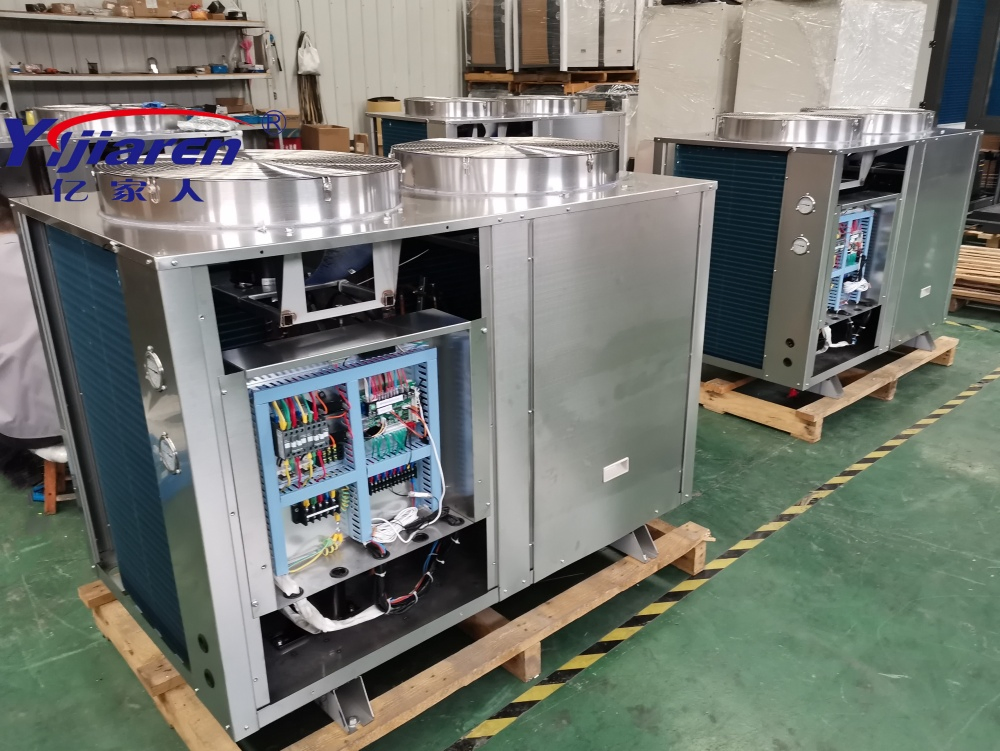

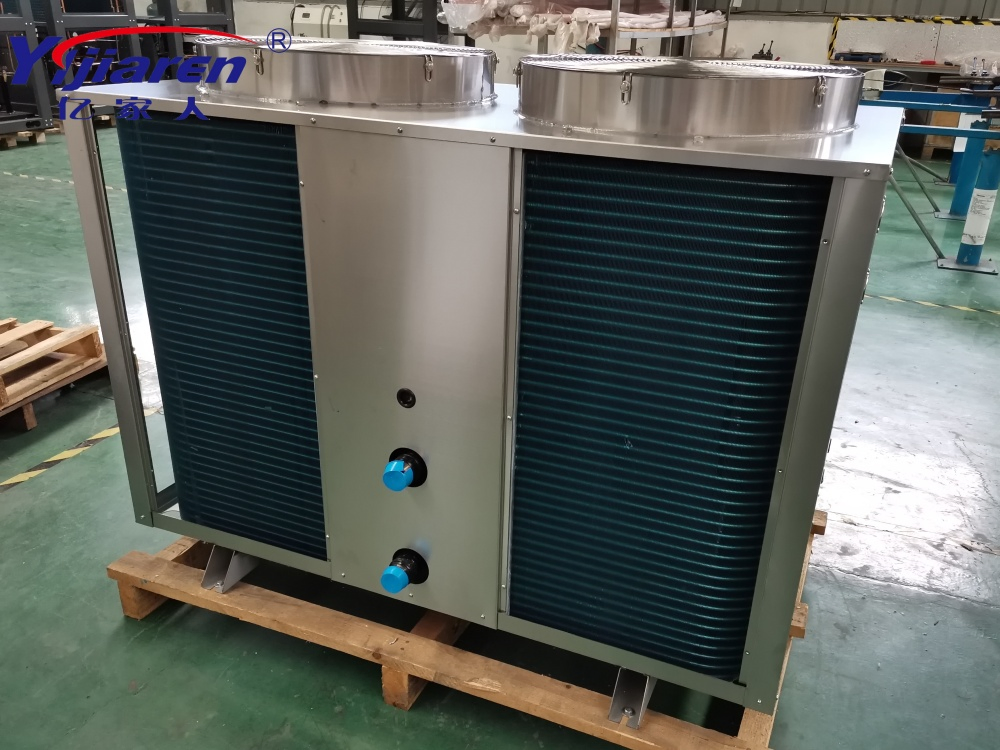

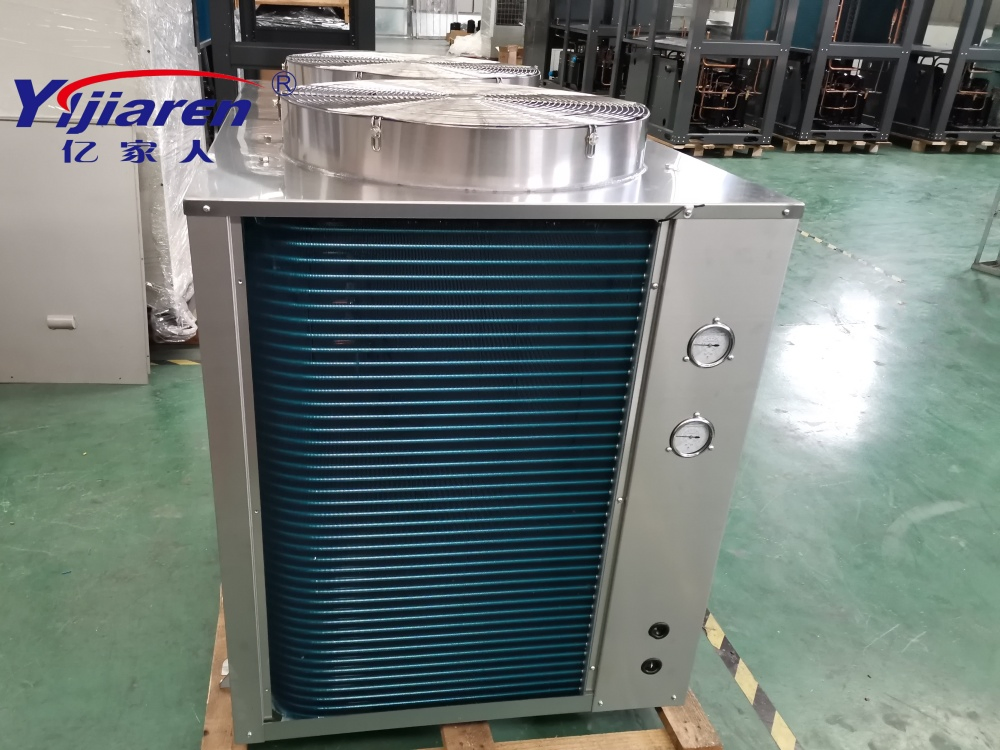

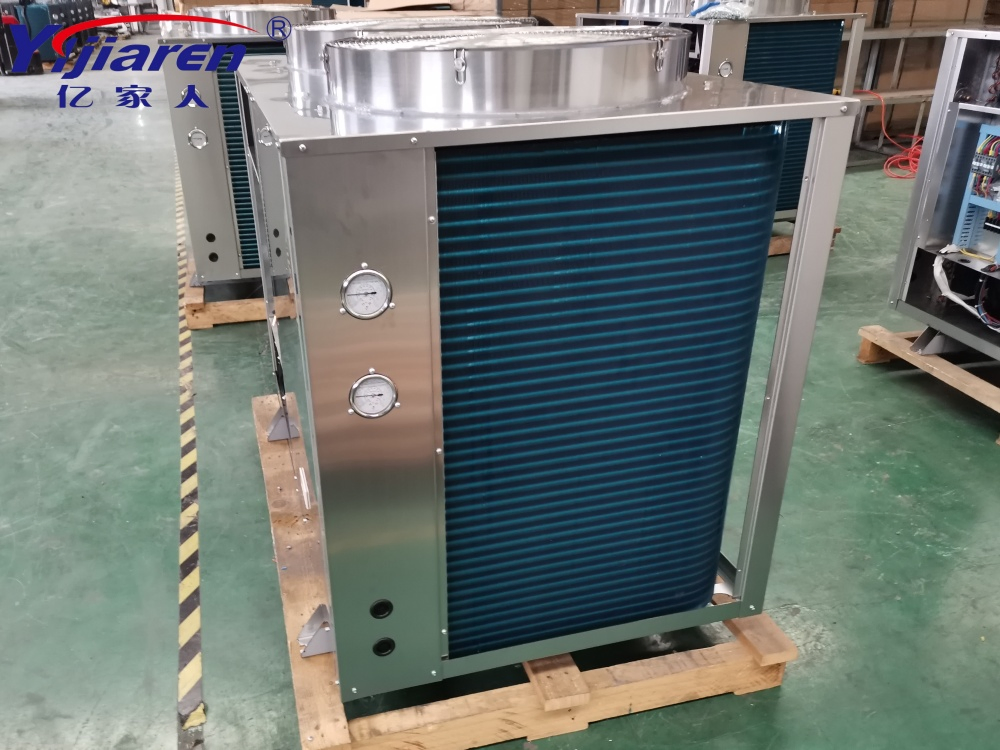

Advanced LCD Display Control Panel Monoblock Heat Pump designed for industrial applications requiring high-temperature water solutions.
| Model Parameter | Unit | YJR-G/Z-10P | YJR-G/Z-15P | YJR-G/Z-20P |
|---|---|---|---|---|
| Rated Heating Capacity | kw | 21.2 | 30.9 | 41.3 |
| Rated Input Power | kw | 8.4 | 11.8 | 16.1 |
| COP | - | 2.52 | 2.62 | 2.57 |
| Rated Current | A | 15.8 | 22.2 | 30.3 |
| Max Water Temp | °C | 99 | 99 | 99 |
| Noise Level | dB(A) | ≤60 | ≤60 | ≤62 |
| Device Weight | kg | 350 | 410 | 510 |

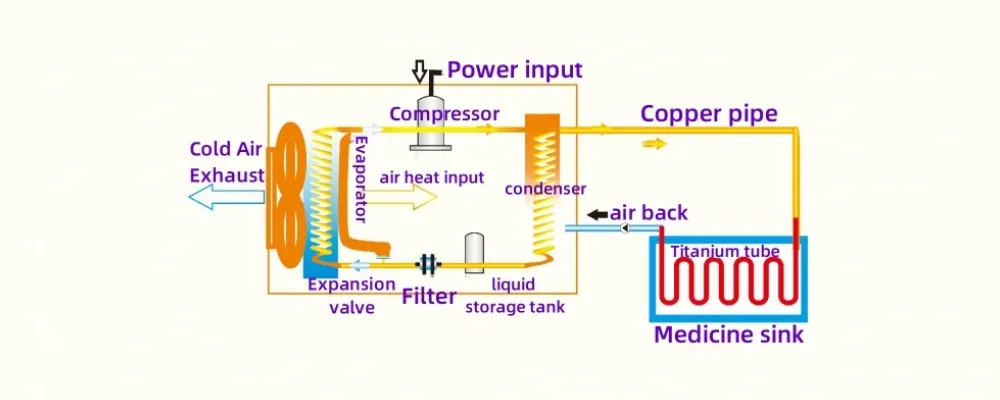

The system utilizes the Carnot cycle principle, using electrical energy to drive a compressor. It acts as a heat absorber, extracting thermal energy from the ambient air to produce high-temperature hot water through repeated phase changes (gas-liquid-gas).

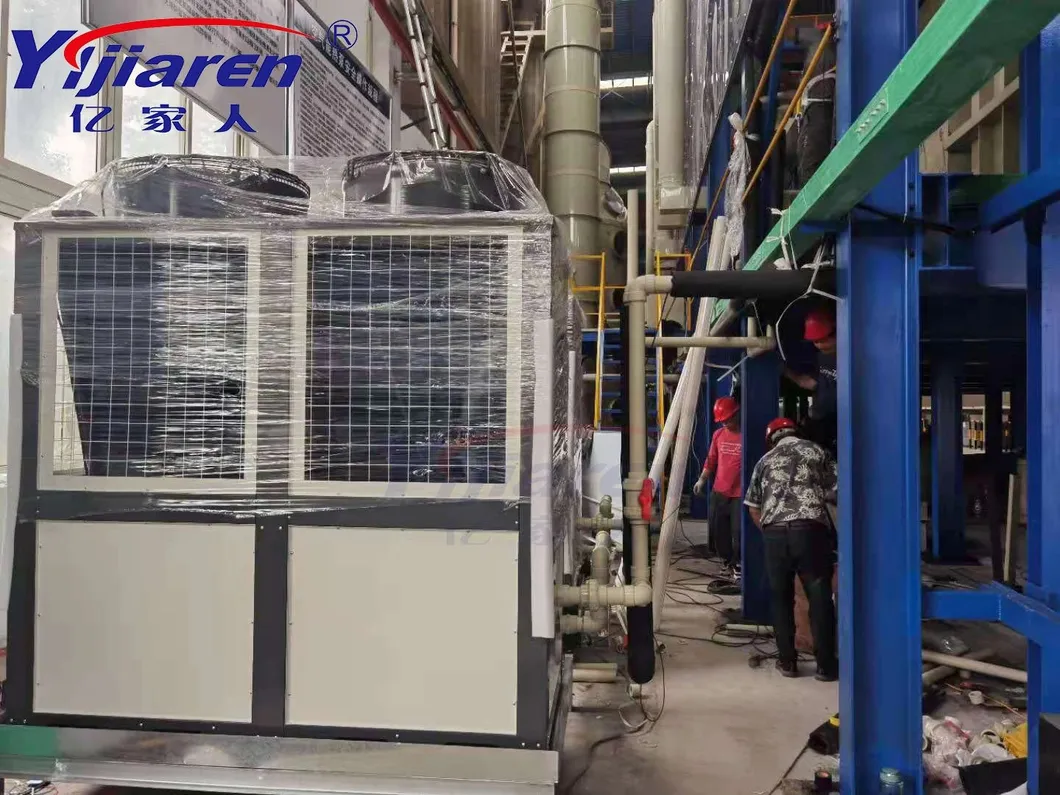

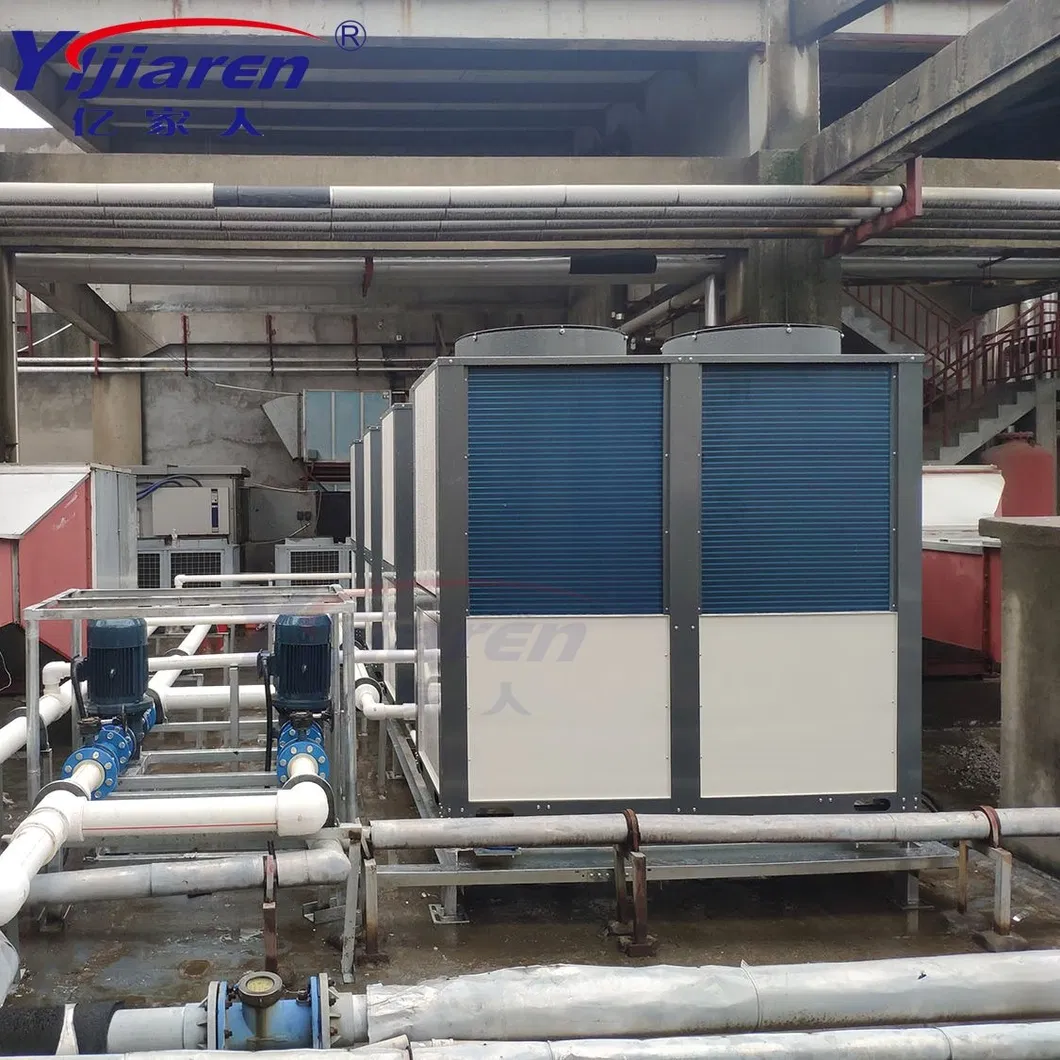

Ideal for hot water washing, oxidation, coloring, acid etching tanks, and alkali etching processes in electroplating and circuit board factories.
Equipped with fifth-generation double helix shell and tube heat exchangers. The system ensures complete separation of water and electricity for maximum safety.
