Basic Information
Model NO.HAHRU-50M
TypeHeat Recovery Air Conditioning
MaterialGalvanized Sheet
Voltage380/400 VAC
ApplicationLaundry Room
MountingFloor Standing
Lifetime>20 years
RefrigerantR22, R407c, R410A, R134A
Capacity25kw-164kw (Cooling) / 29kw-190kw (Heating)
CertificationRoHS, ISO, CE, CCC, UL
Product Description

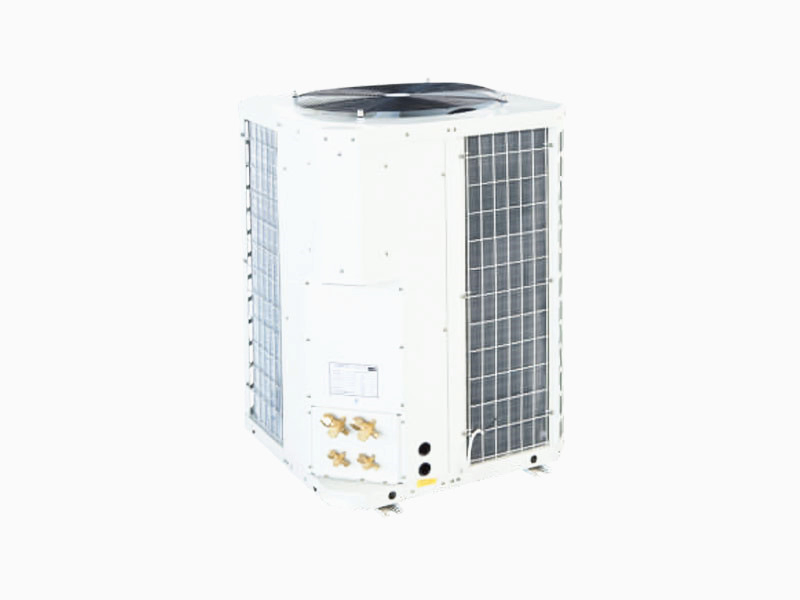

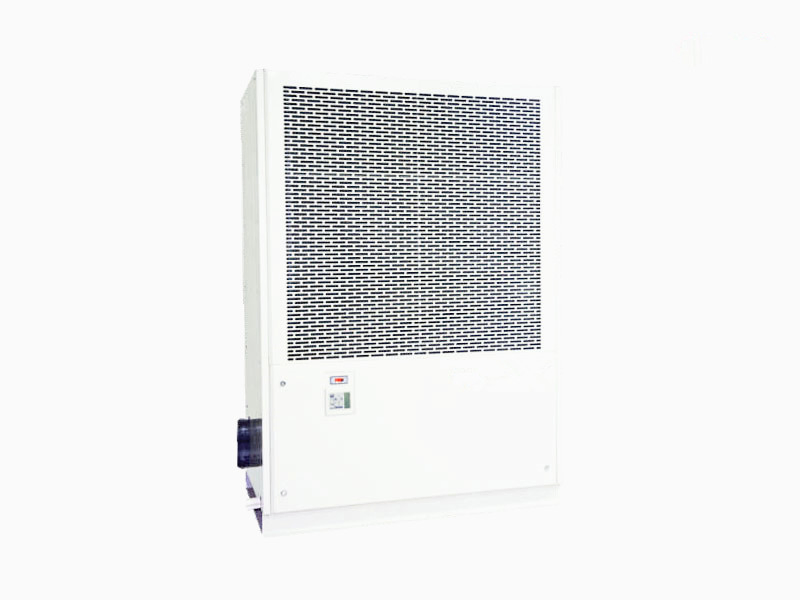

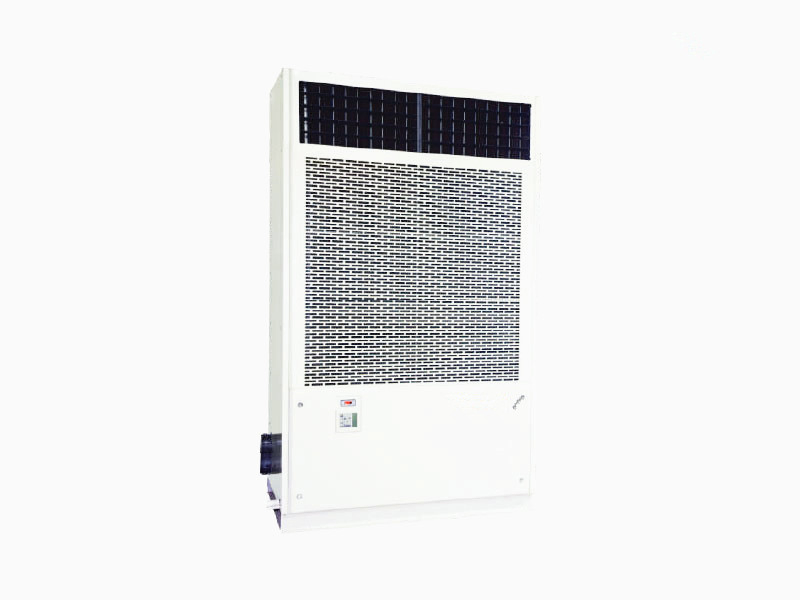

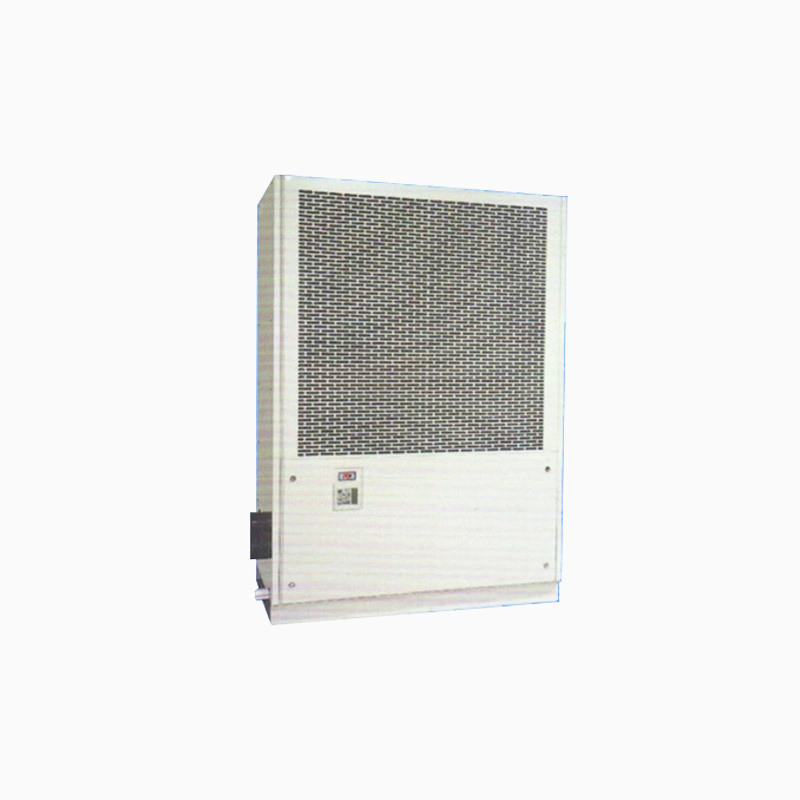

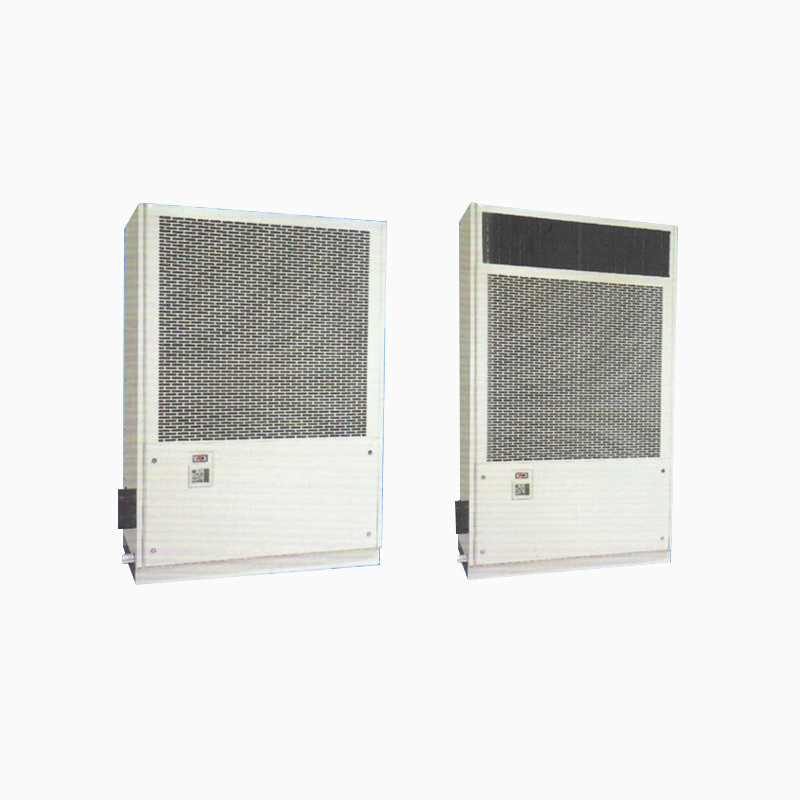

Laundry Room Waste Damp Recovery Chiller Heat Pump for Heating Recovery Features:
◈
Refrigerating capacity: 24.5 kW to 195 kW, heating: 29 kW to 255 kW. Multi-seasonal operation modes (spring, summer, autumn, winter) for efficient energy saving.
◈
Working Principle: Evaporates heat loss from pool water surfaces and transfers it to the water and air, achieving air conditioning and dehumidification simultaneously.
◈
Step 1: Warm humid air flows through the evaporator, temperature drops, water vapor condenses, drying the air. Latent and sensible heat is absorbed by the refrigerant.
◈
Step 2: Absorbed heat energy first heats pool water via heat exchanger; waste heat then warms cooled indoor air via the air condenser.
The unit adopts anodized profiles with anti-oxidation structure and heat-insulating rubber strips to prevent condensation. The cabinet features double-layer foam panels (spray-coated cold-rolled steel outer, high-quality galvanized inner) with polyurethane insulation. All cabinet screws are hidden for a smooth, beautiful aesthetic and low air leakage rate.
Core Components
- ✔
Heat Exchanger: Titanium alloy for pool water side (counterflow design); aluminum fins and copper pipes for air side for high corrosion resistance.
- ✔
Intelligent Control: Advanced microcomputer system with LCD backlight display, multi-level password protection, and fault diagnosis.
- ✔
Compressor: Efficient scroll compressor mounted on rubber shock mounts to minimize noise and vibration.
- ✔
Centrifugal Fan: Forward curved multi-wing double-suction impeller ensuring low noise and high air supply efficiency.
- ✔
Sensors: High-quality polymer humidity sensors and platinum thermal resistance for precise measurement and fast response.
Company Profile

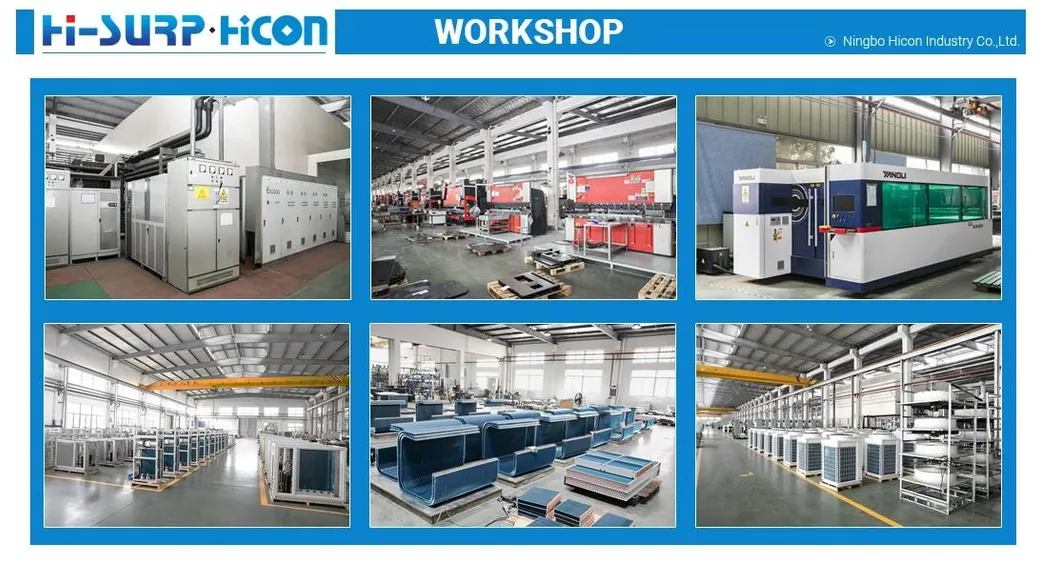

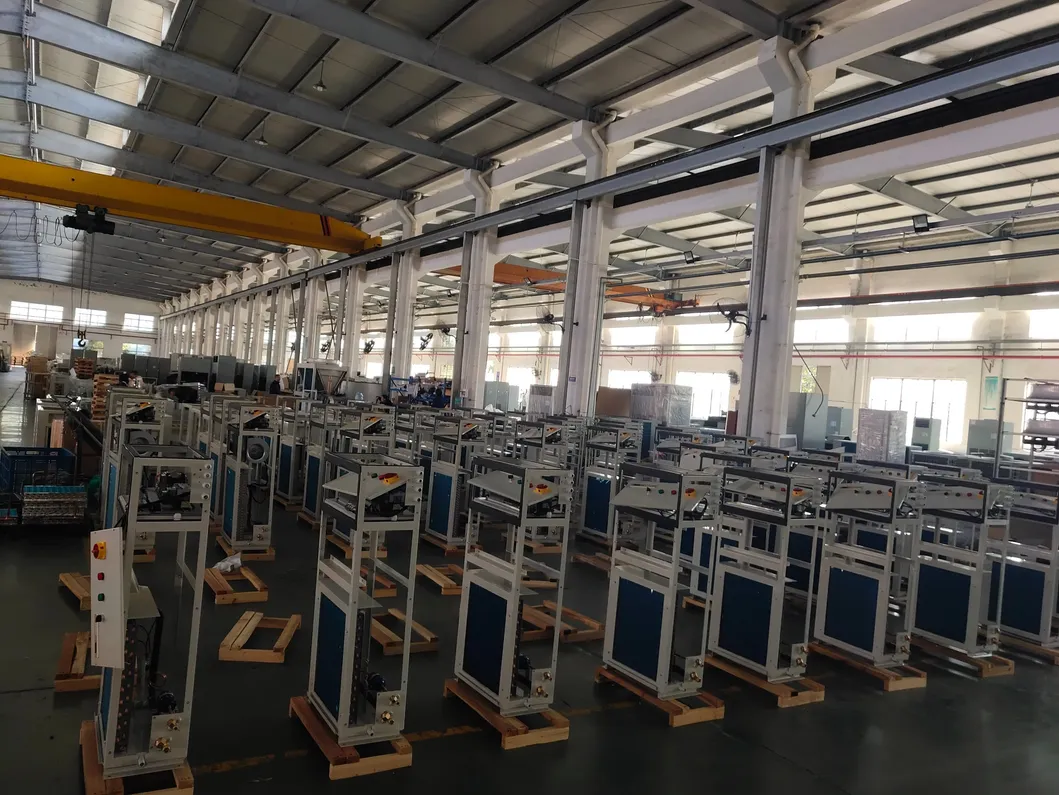

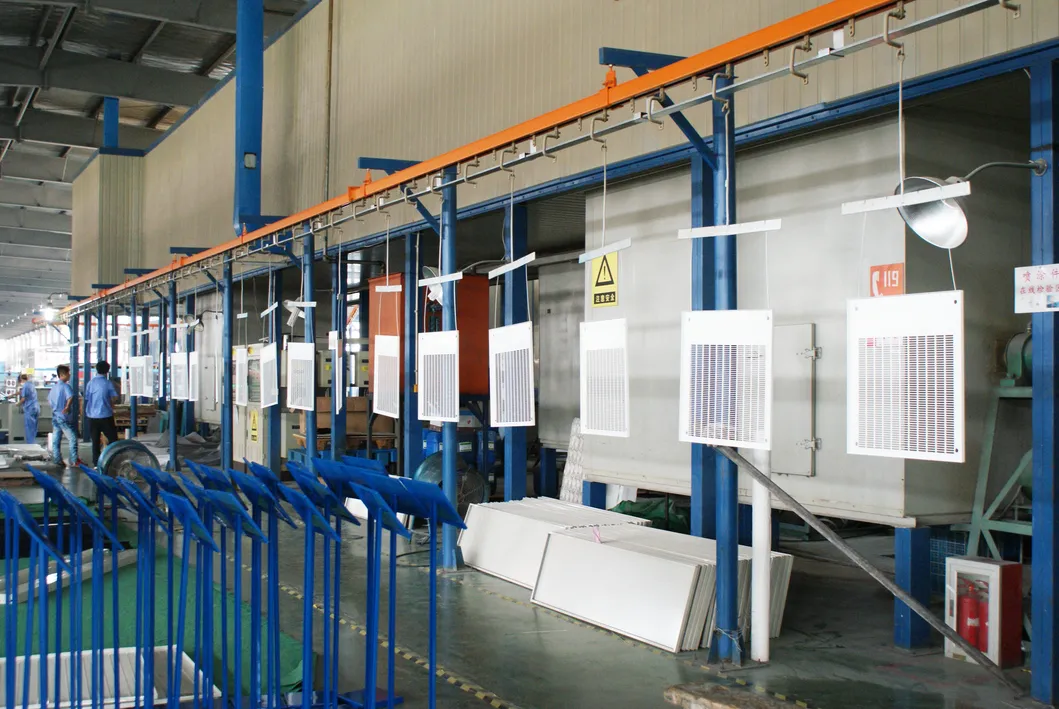

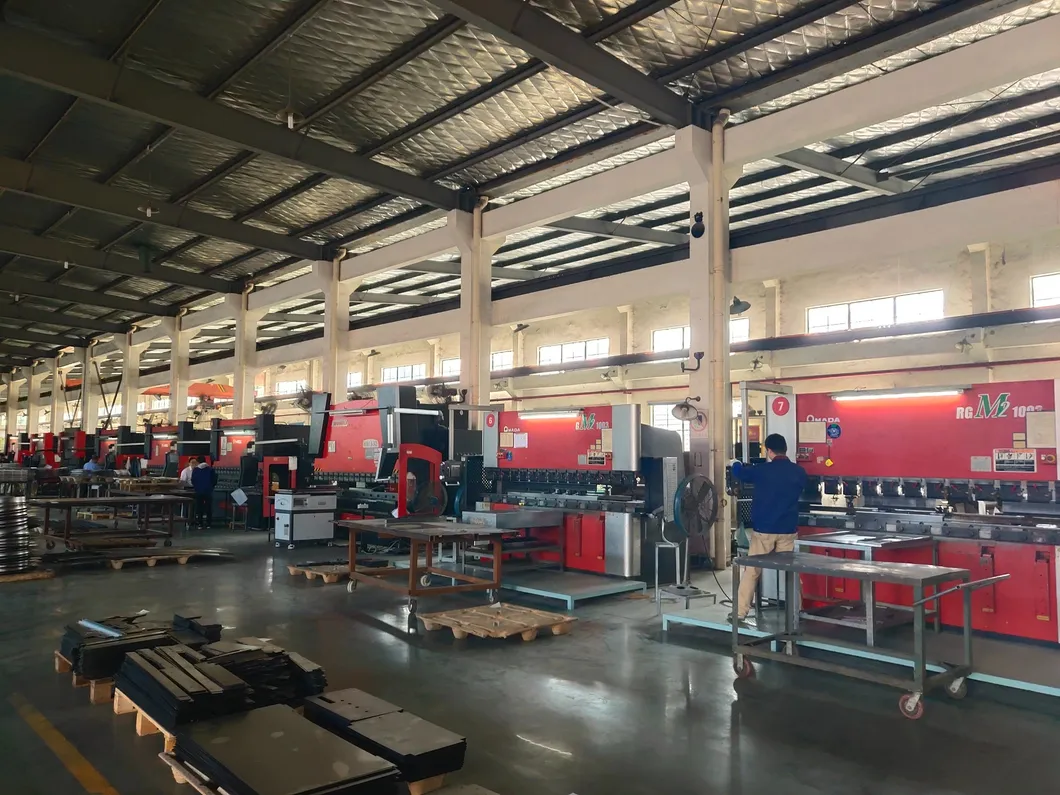

Founded in 2003, our enterprise is a large-scale manufacturing leader specializing in industrial precision air conditioners and eco-friendly commercial units. Integrating R&D, design, production, and sales, we operate from a 150,000m² headquarters with over 400 dedicated employees, including a strong 10% research and development team.
As a benchmark in the industry, we hold over 100 patents and collaborate with top-tier research institutes. Our technology center is recognized provincially, and our laboratories are CNAS accredited. We provide high-temperature solutions working up to 80 degrees for smelting, petrochemical, and 5G base station applications.
Frequently Asked Questions
Q1: What is the primary function of this heat recovery chiller?
It is designed to recover heat from laundry room waste damp air or pool surfaces, providing simultaneous dehumidification, air conditioning, and water heating.
Q2: Can the unit be customized for specific industrial requirements?
Yes, the unit supports non-standard customization according to specific cooling/heating capacities and environmental conditions.
Q3: What makes the heat exchanger corrosion-resistant?
We use titanium alloy for pool water side exchangers and high-corrosion resistant aluminum fins with copper pipes for the air side.
Q4: How does the system achieve energy savings?
By reusing the latent and sensible heat absorbed during the dehumidification process to heat water and air, it significantly reduces external energy demand.
Q5: Is it suitable for high-humidity environments?
Absolutely. It is specifically designed for high-humidity areas like laundry rooms and swimming pools, using advanced polymer humidity sensors for accurate control.
Q6: What certifications do your products hold?
Our products are certified by CCC, ISO9001, ISO14001, ISO45001, EU CE, and American UL standards.
