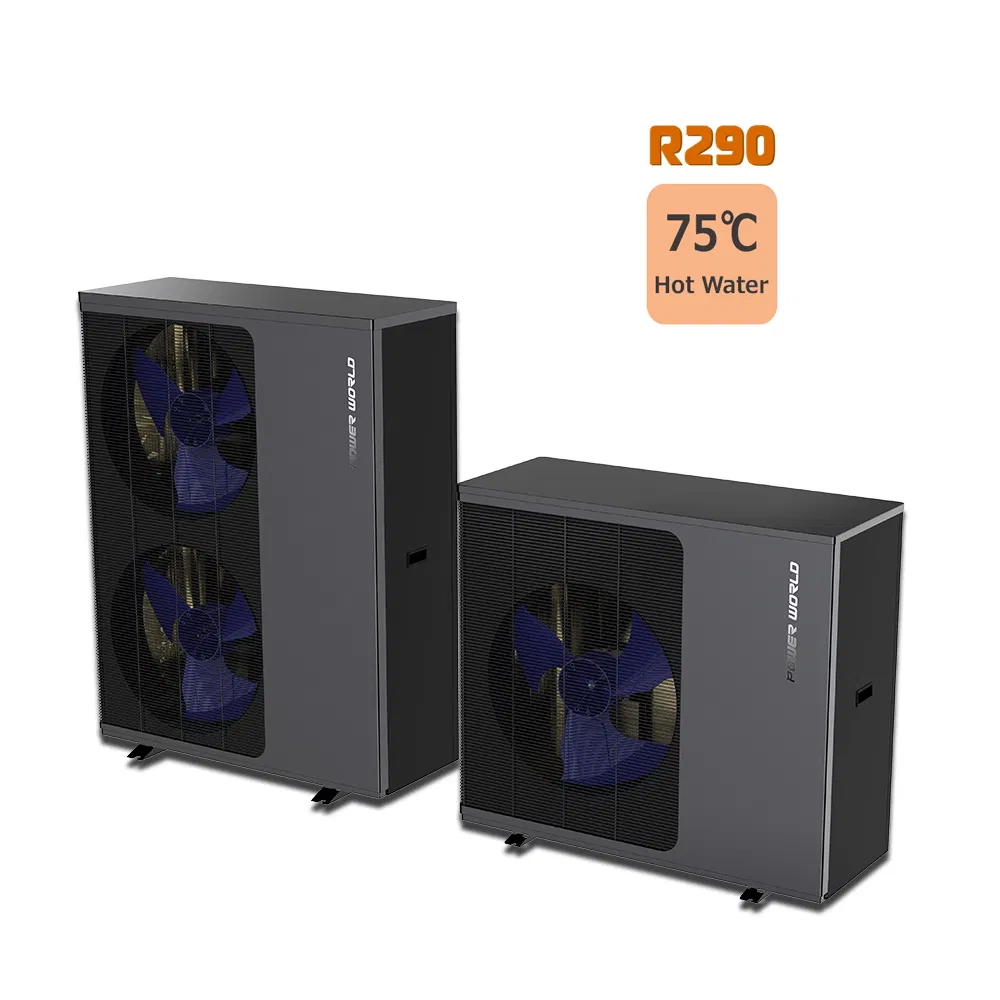

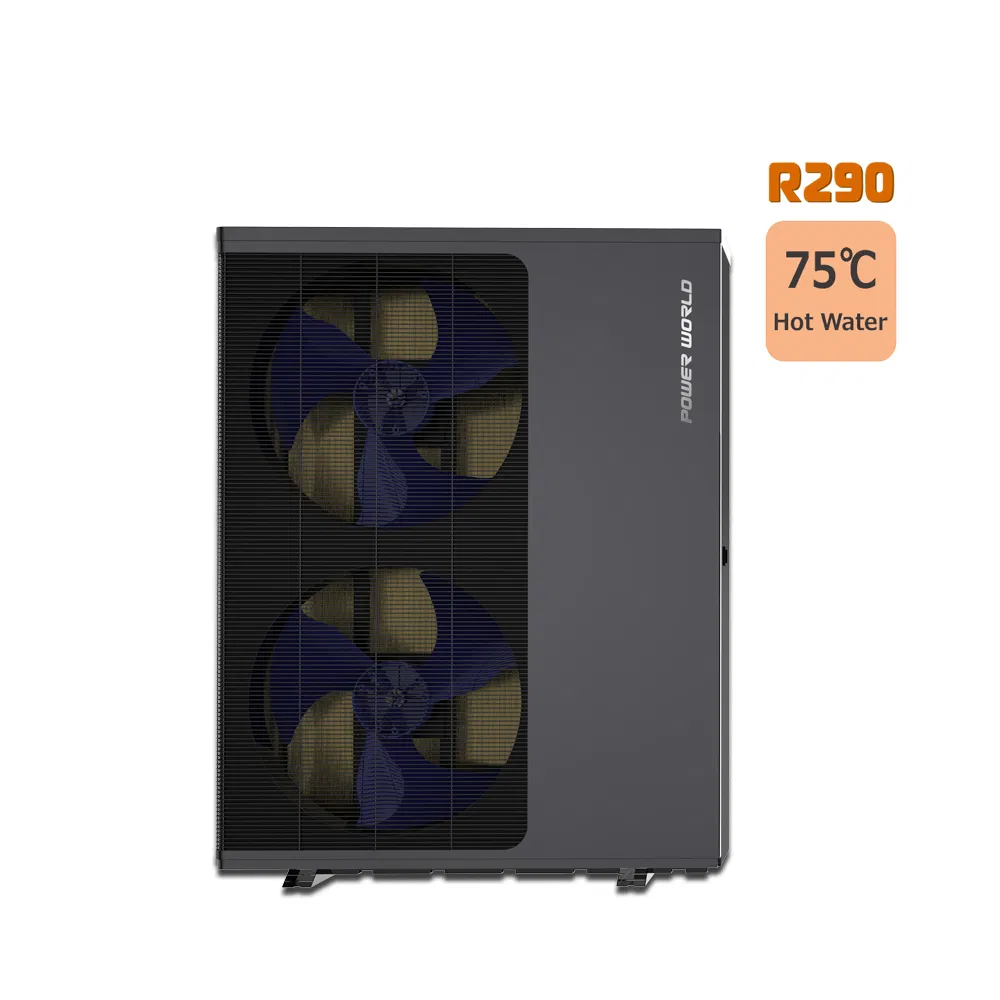

To reduce carbon emissions to the environment and curb global warming, the R290 Full DC Inverter Heat Pump has been developed. Compared to R410A refrigerant with a GWP of 2100 and R32 with a GWP of 675, R290 has a GWP of less than 20 and is recognized by the industry as the most development potential and eco-friendly refrigerant.

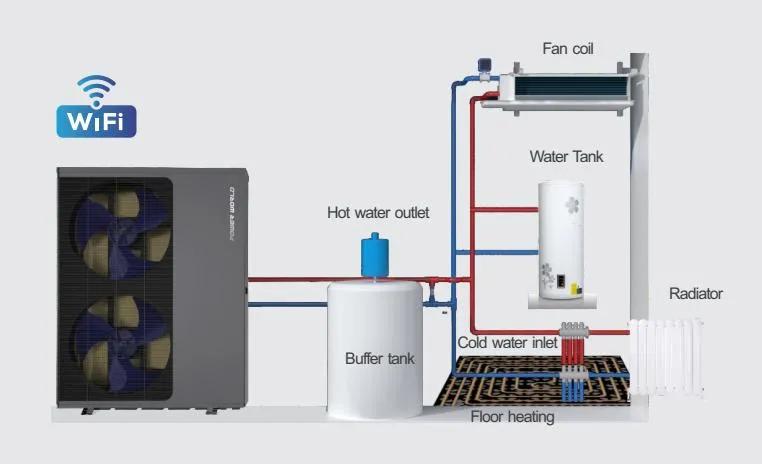

The perfect performance of the R290 FULL DC INVERTER Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year (by 3-way valve):

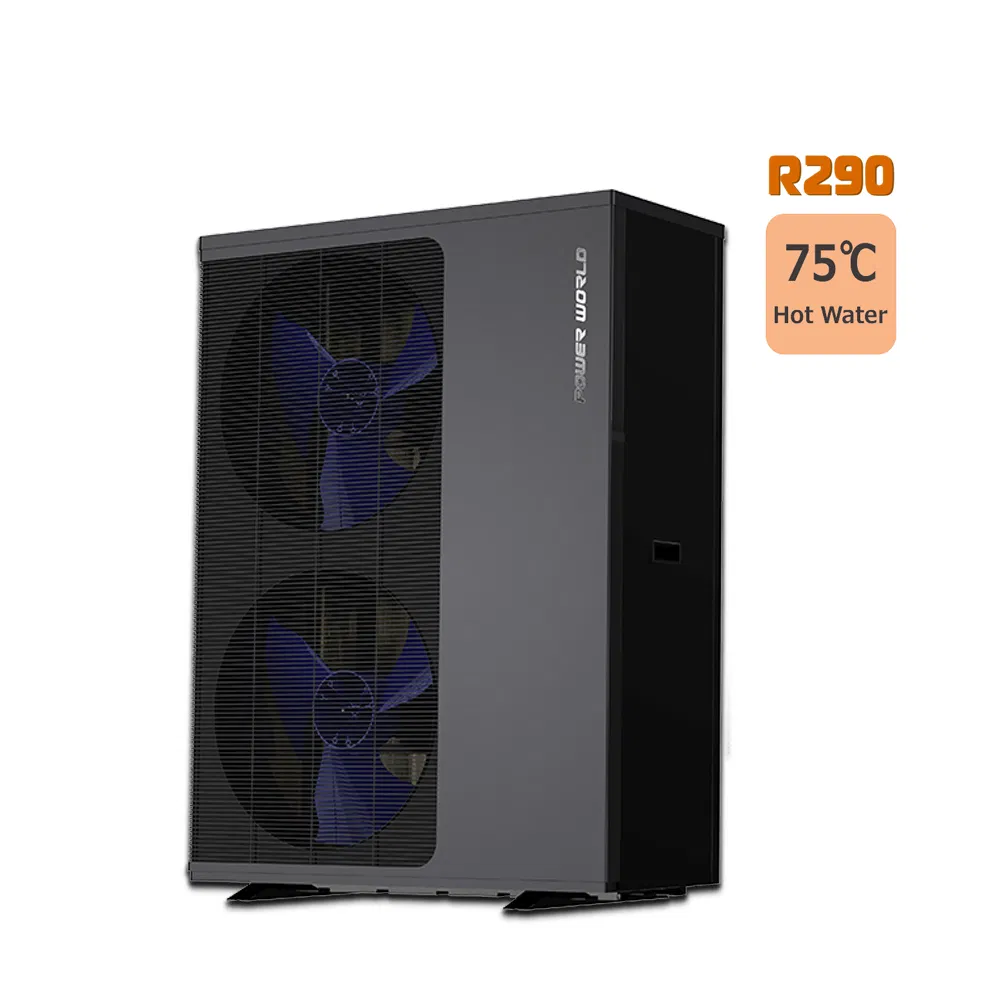

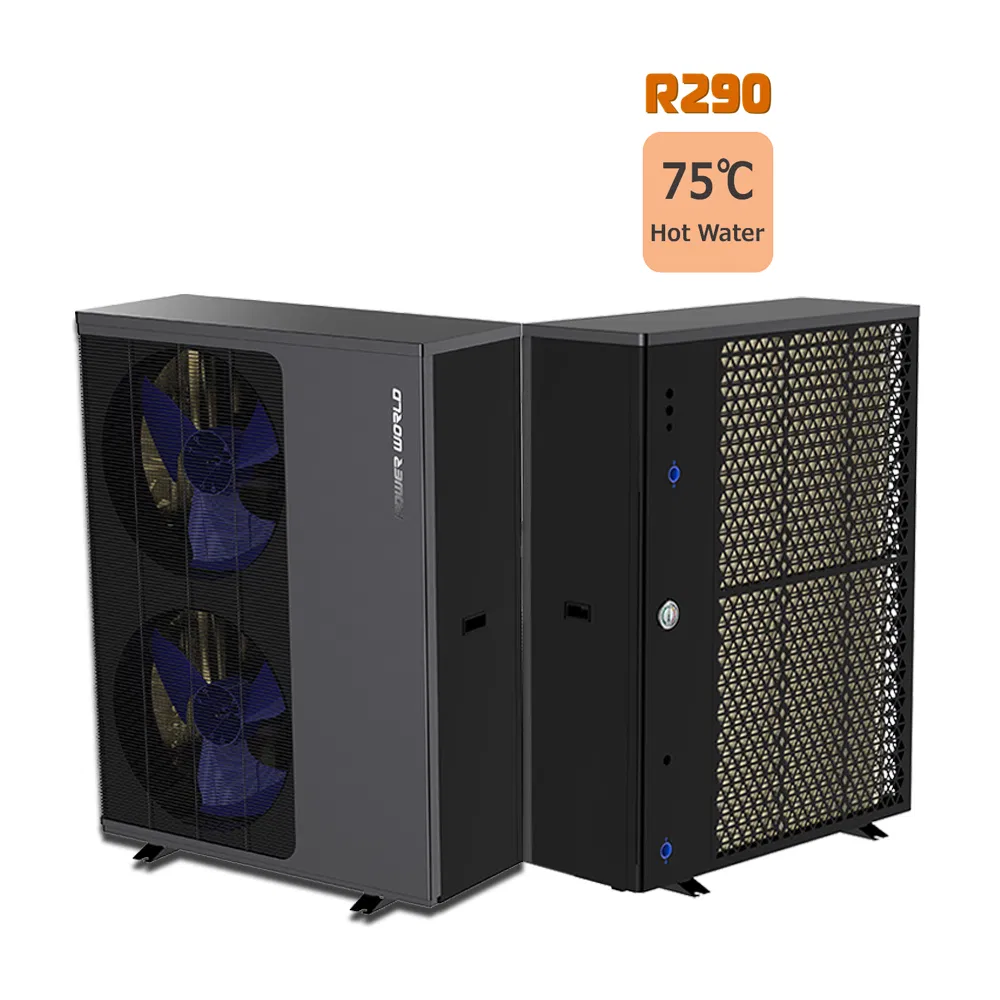

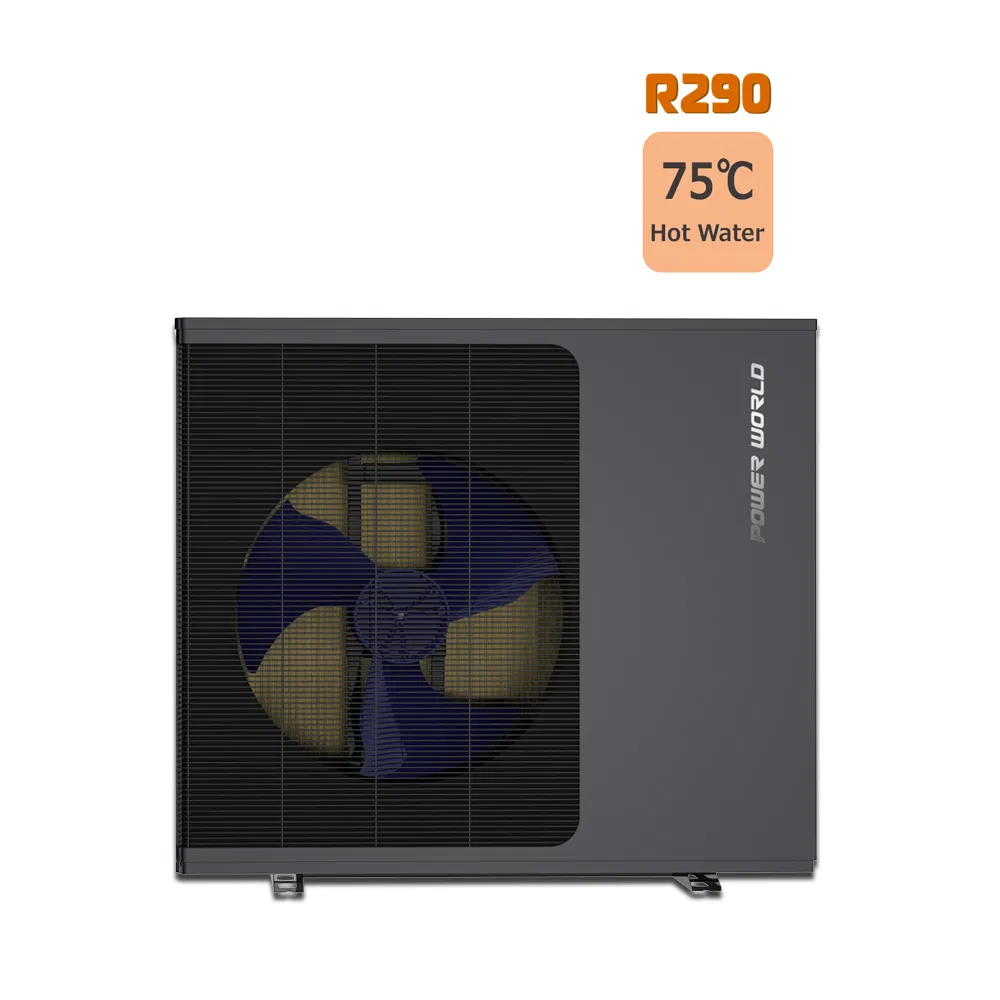

Under low ambient temperature, the performance and heating ability of normal heat pumps will be limited. This R290 FULL DC INVERTER heat pump can operate stably and efficiently in extremely cold regions of -25ºC without EVI technology, maintaining a high COP and outputting 75ºC hot water.
The Full DC inverter technology makes the unit intelligently adjust the operating frequency and control the water temperature to keep the room at constant temperatures. It can save up to 50% energy electricity compared to ON-OFF units and up to 75% energy compared to traditional boiler electric heat pumps.
R290 FULL DC INVERTER Heat Pump has passed the ERP A+++ energy class test. Its energy efficiency grade can reach A+++ at both 35°C and 55°C. The SCOP can be as high as 4.86, ensuring perfect performance and ultra-high energy efficiency.

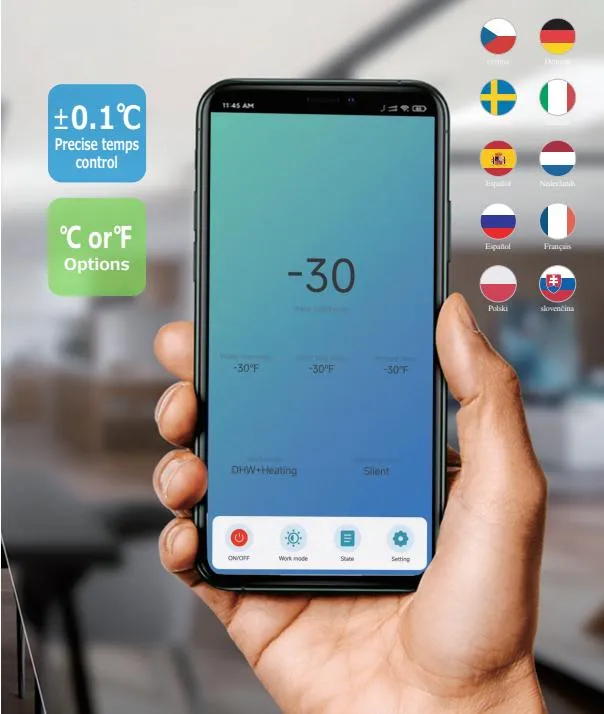

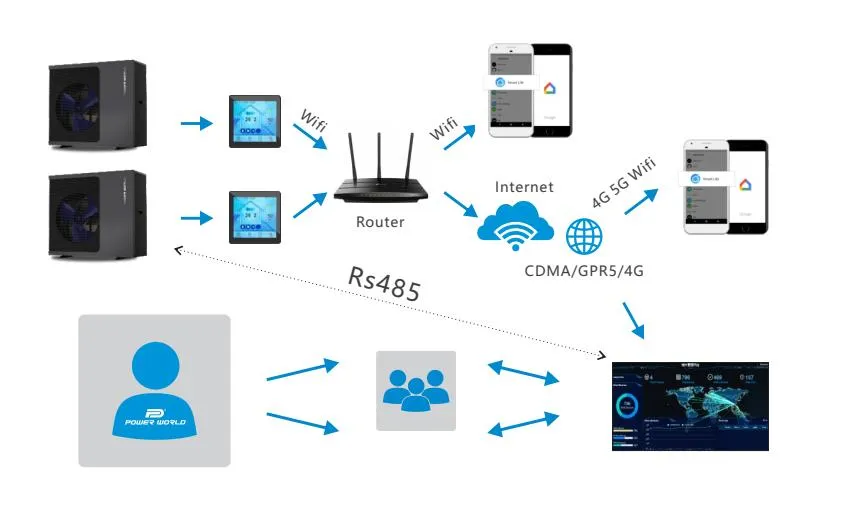

The unit uses special three-layer sound insulation cotton combined with noise reduction technology for quiet operation. The IoT cloud management platform allows remote monitoring via Wi-Fi or DUT, recording all operating parameters and providing quick error solutions.
| Model | PW030-DKZLRS | PW040-DKZLRS | PW050-DKZLRS | PW060-DKZLRS |
| Heating Capacity (kW) | 3.2~9.0 | 4.2~11.8 | 5.6~16.0 | 7.7~22.0 |
| COP Range | 4.13~4.71 | 4.17~4.75 | 4.21~4.83 | 4.21~4.86 |
| Refrigerant | R290 | |||
| ErP Level (35°C) | A+++ | |||
| Noise dB(A) | ≤47 | ≤50 | ≤52 | ≤53 |
| Ambient Temp (ºC) | -25 ~ 43 ºC | |||
Established in 2004, the company is a high-tech enterprise focusing on the research, development, production and sales of air source heat pump products. With a complete heat pump industry chain, the products involve swimming pool heat pumps, residential heating and cooling, and industrial solutions. The export volume of inverter heat pumps has consistently ranked among the best in the industry, serving more than 60 countries including Germany, France, and Sweden.

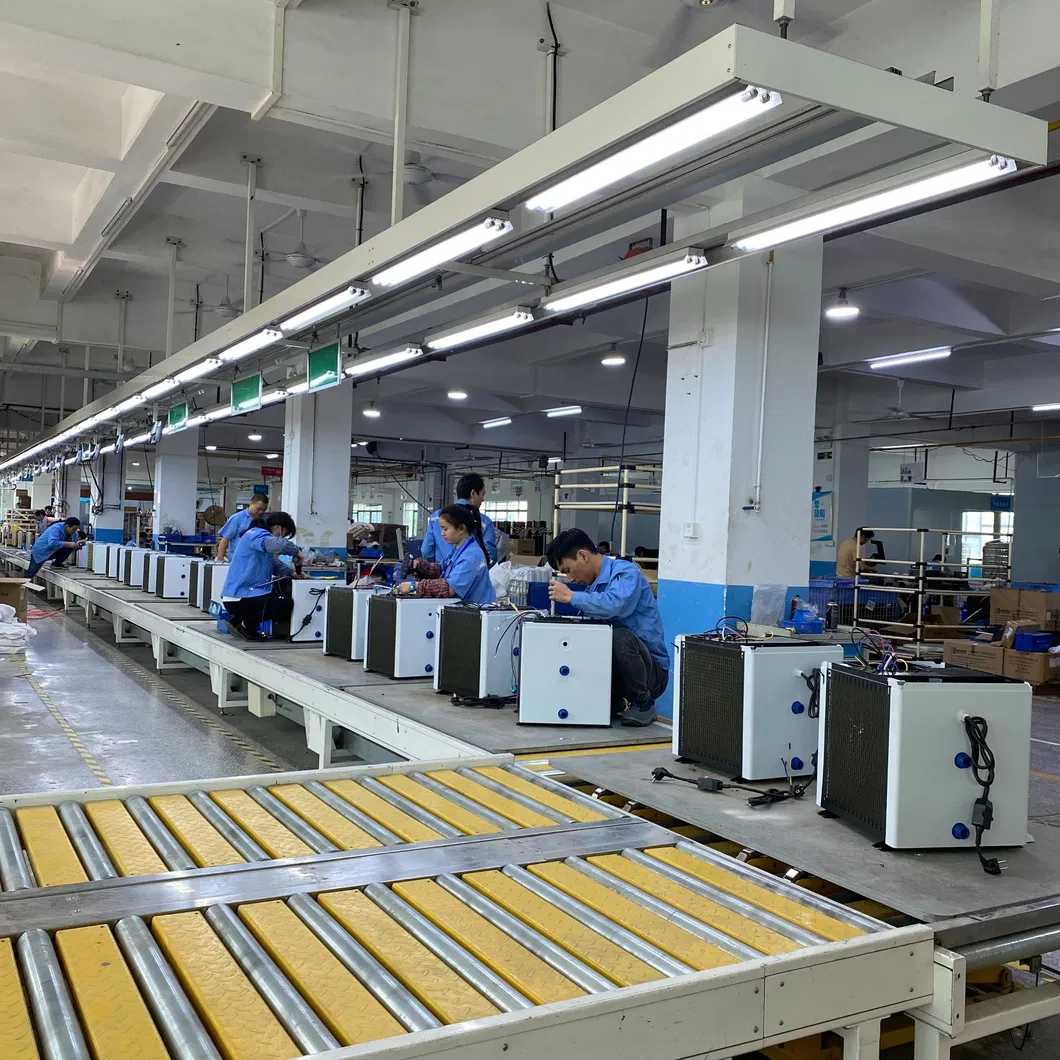

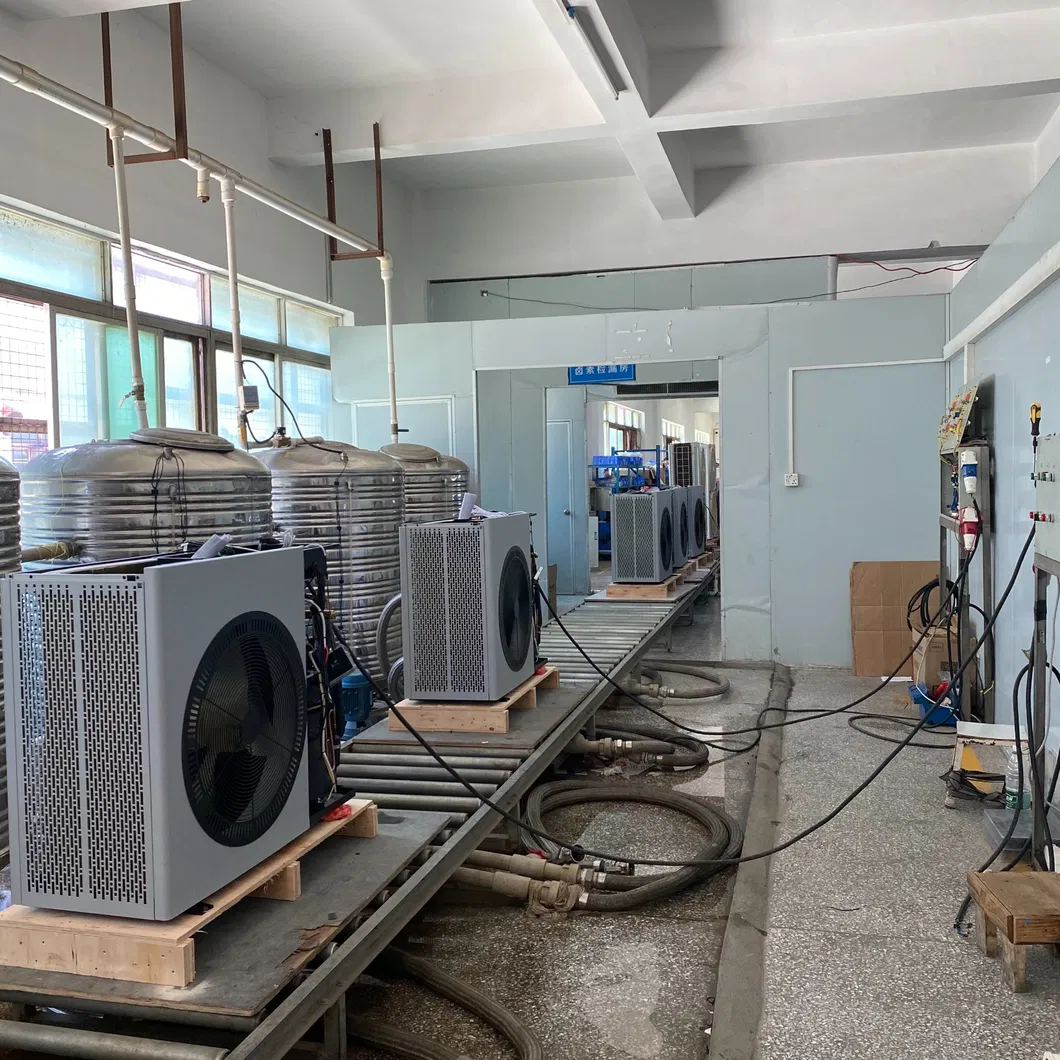

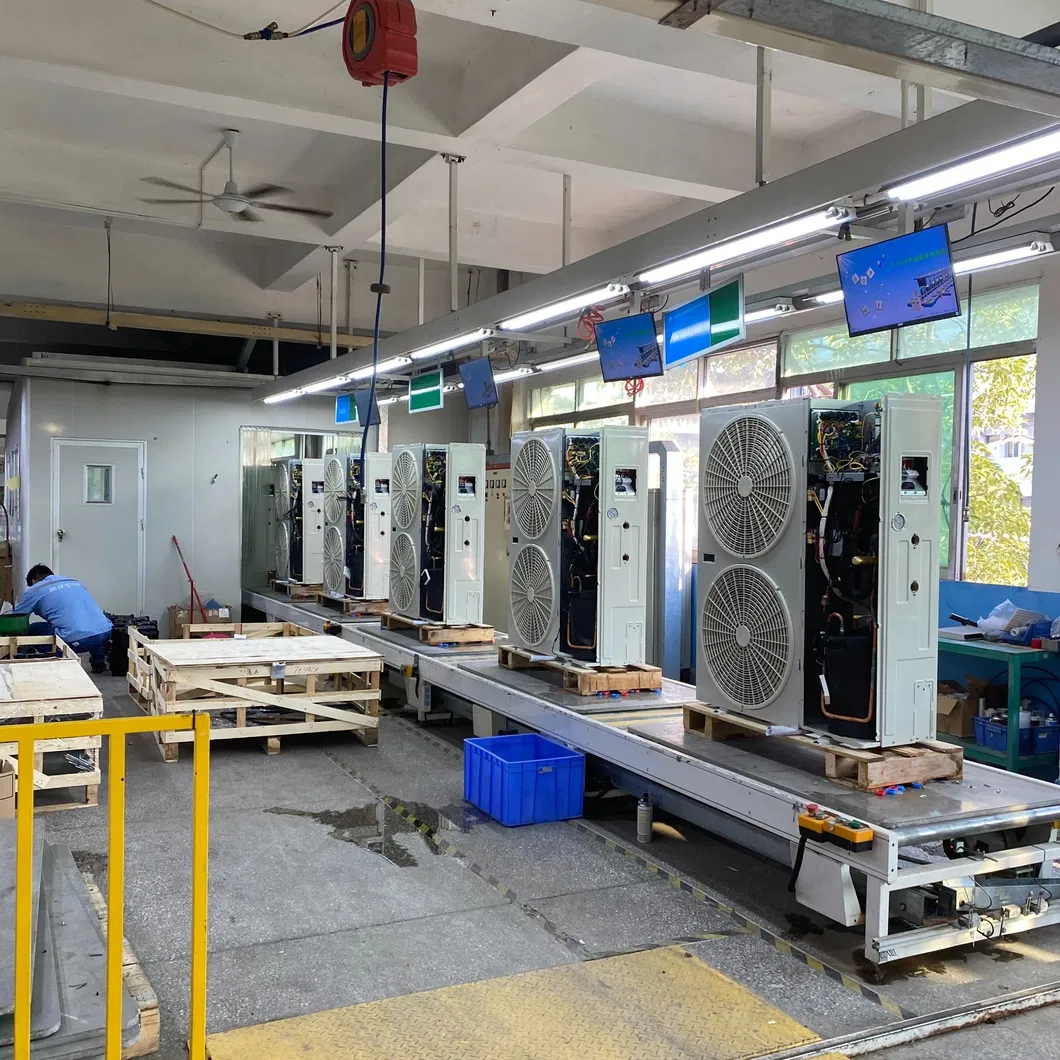

The company maintains a strong technical backbone with senior engineers and over 500 experienced production personnel. Committed to innovation, the company has obtained more than 80 product patents and holds ISO 9001/14001, CE, and ERP certifications.
