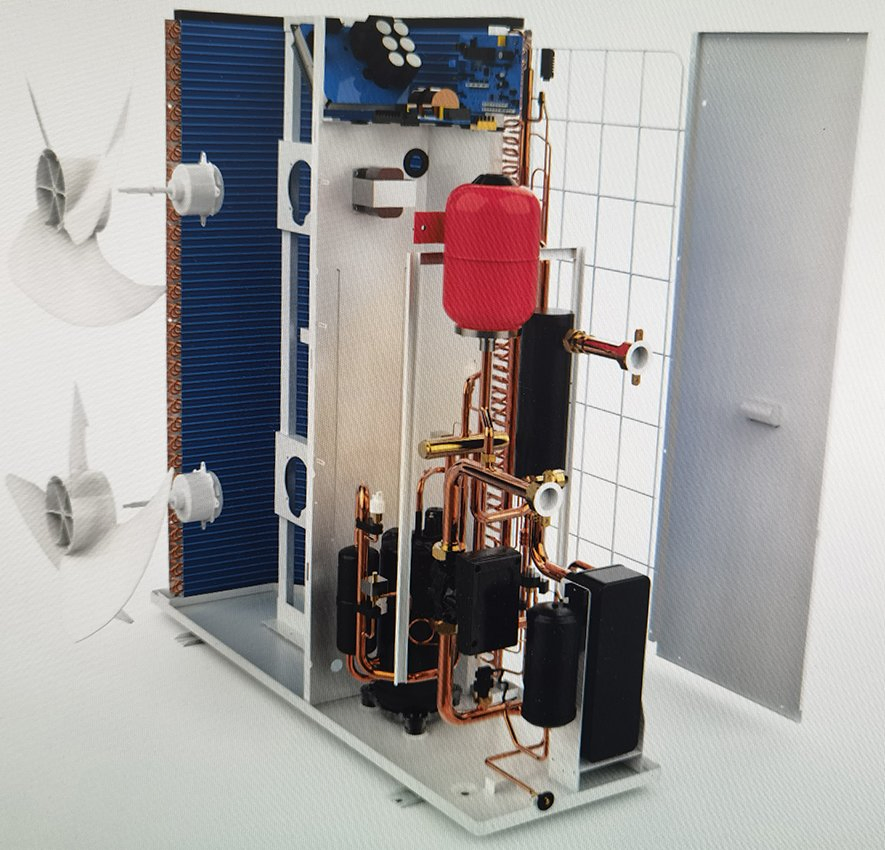

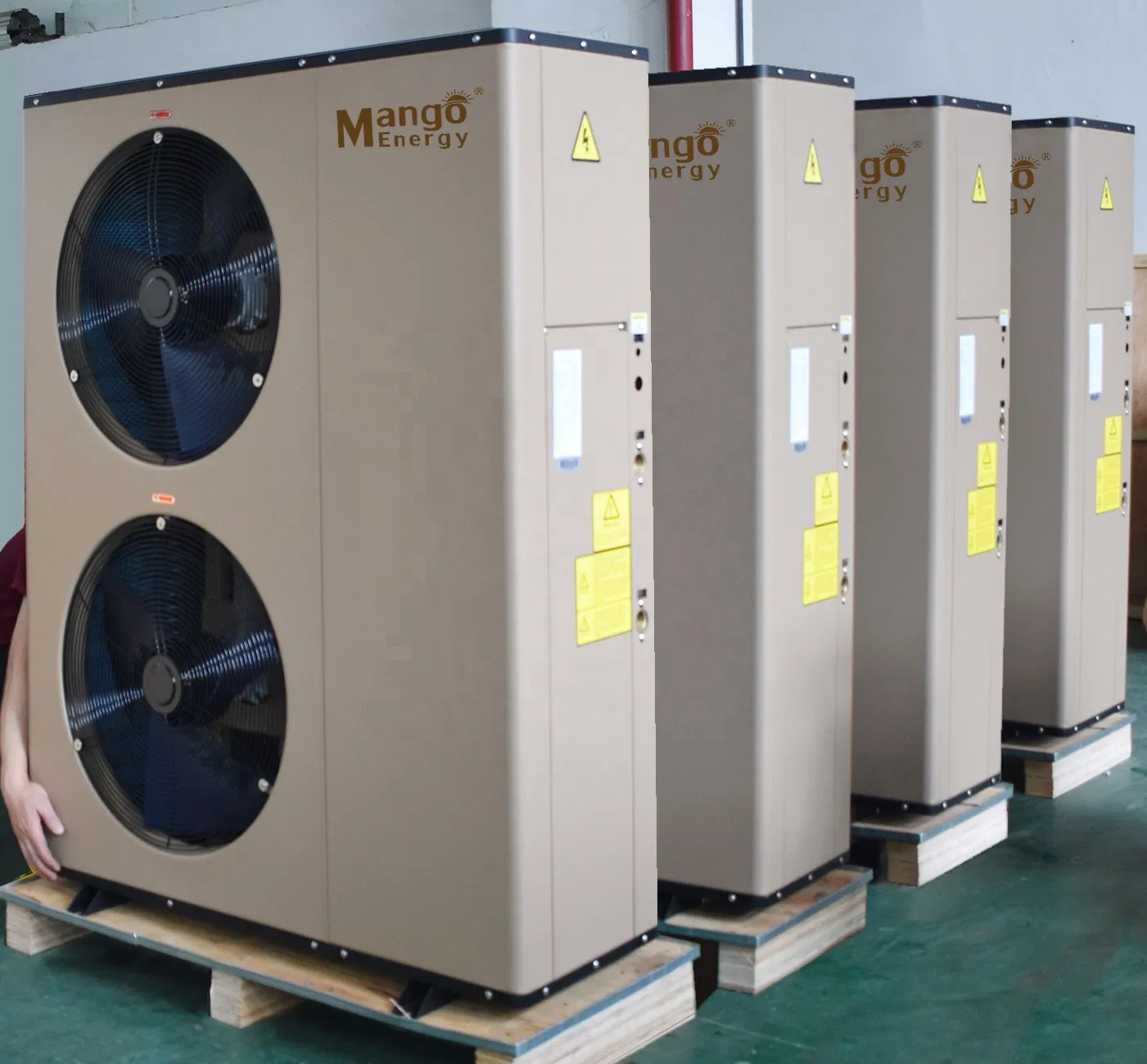

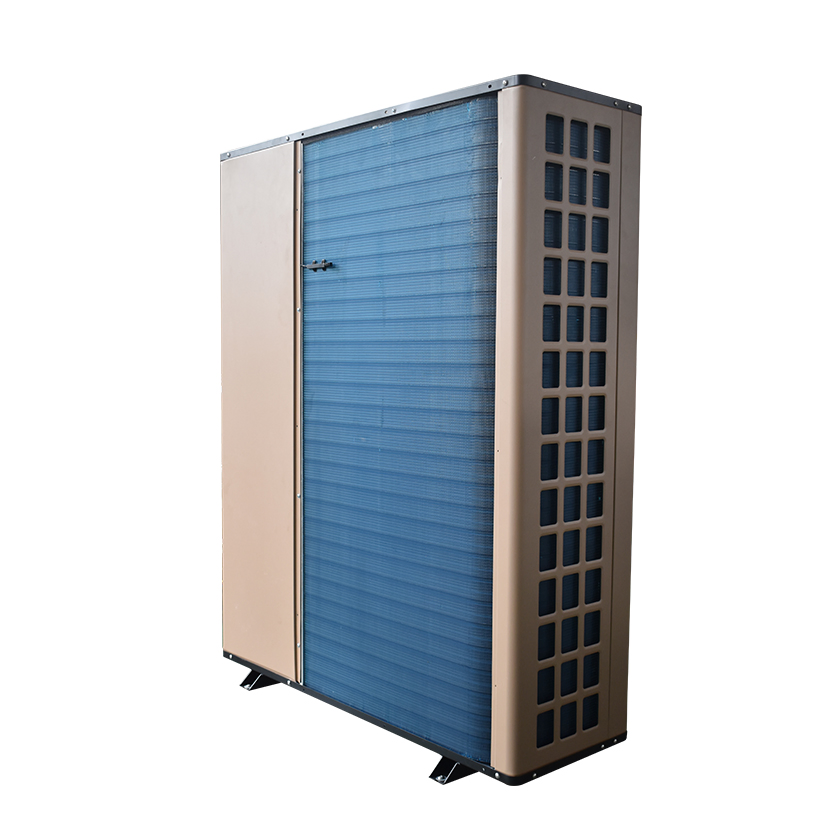

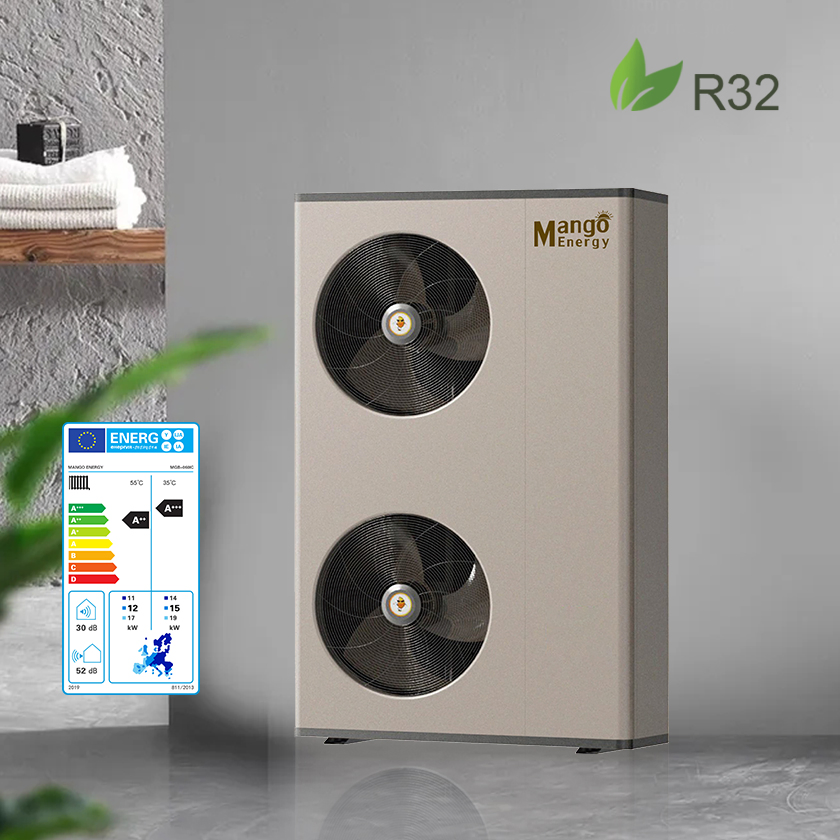

Space Cooling Heating DHW Monoblock Multifunction EVI Air to Water Heat Pump

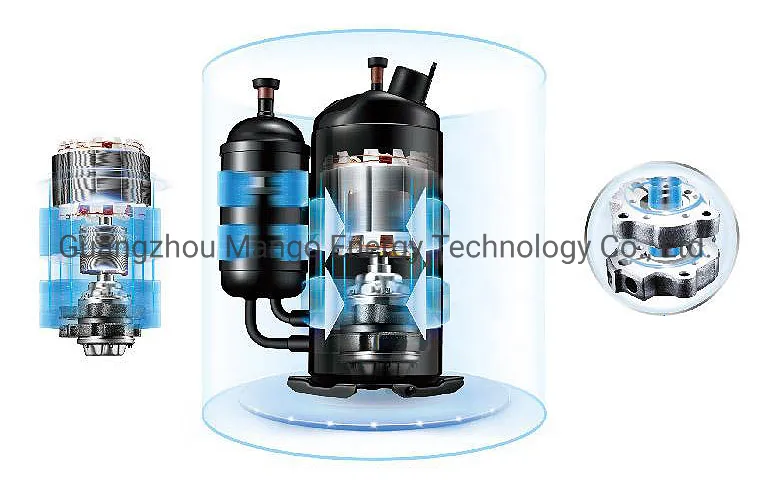

A. Top SCOP: Panasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity.
B. Ultra frequency conversion technology: Adopts AC-DC-AC power conversion, integrating V/F, vector control (VC) and direct torque control (DTC).
C. Advanced Carel Operate System: Superior heat dissipation circuit board design for longer service life.
D. Multi-speed mute fan motor: ROHS fan blades, ultra-low noise, durable and reliable.
E. Soft-start and soft-shutdown: Protecting electrical systems and key parts like EEV and 4-way valves.
F. High-tech shock-absorption: All copper construction piping with automatic silver welding.
G. High-density protective jacket: Aviation class insulation foam for sound absorption and minimum heat loss.
| Model | MGSDC-060IIC |
| Power supply (V/Ph/Hz) | 220V/1ph/50HZ / 380V/3ph/50HZ |
| Rate heating capacity (kW) (A7/W45) | 18.3 |
| Current (A) | 26.3 |
| Rate heating capacity (kW) (A-12/W40) | 11.2 |
| Cooling capacity (KW) (A35/W7) | 16.4 |
| EER | 3.04 |
| Refrigerant | R32/R410A |
| Water pressure drop (kPa) | ≤35 |
| Noise dB(A) | ≤63 |
| Water flow (m³/h) | 2.3 |

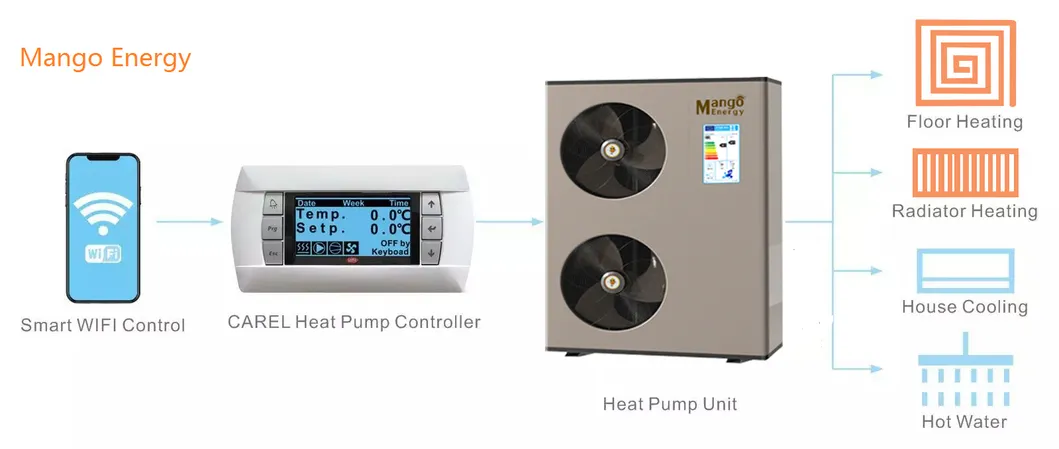

Carel Smart Controller Features:
Our quality management system is certified in conformity with ISO9001 Standard. Heat pumps are CE, TUV, and ErP certificated, ensuring reliable performance globally.
