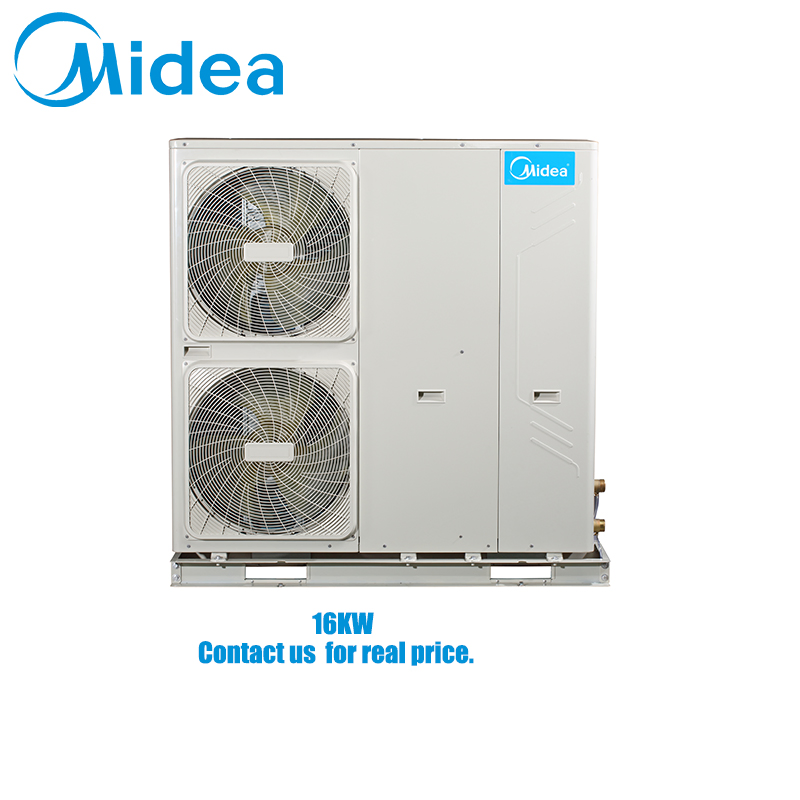

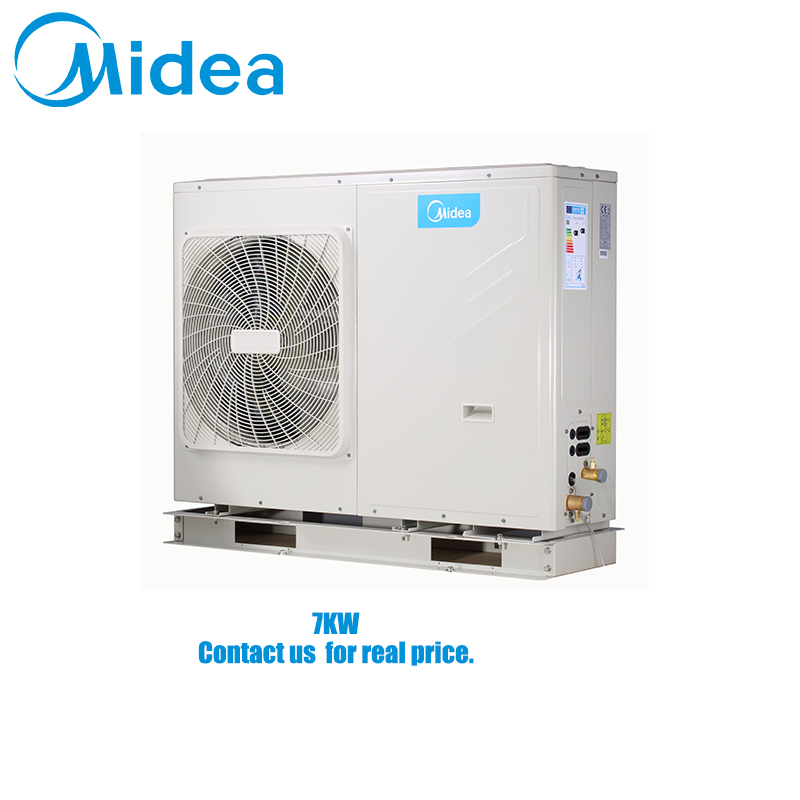

Midea 2020 New Air Source All in One Heat Pump Water Heater with APP Control

1 / 5

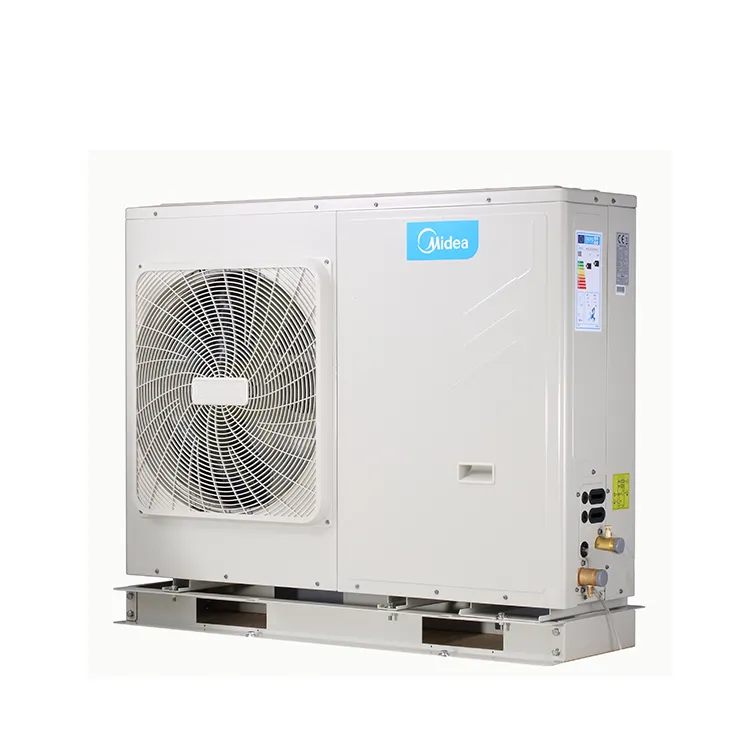

Midea 2020 New Air Source All in One Heat Pump Water Heater with APP Control

Customization:	Available
Work Environment:	Low-temperature Heat Pump
Heat Source:	Air-source

Send Inquiry

Product Description

Basic Specifications

Model NO.

V14W/ D2N8-BBJ1

Heating Type

Circulating Heat

Certification

CE, ISO9001, CCC, CB, RoHS, SASO

Power Supply

220-240V/1pH/50Hz

Heating Capacity

4.0-30.1kw

Cooling Capacity

4.0-31.0kw

Refrigerant Type

R32

Technology

DC Inverter Technology

Product Description

Commercial Split Air Source House Heat Pump DC Inverter Water Heater

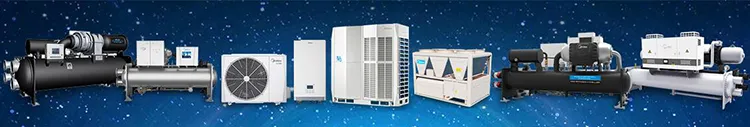

Product Portfolio

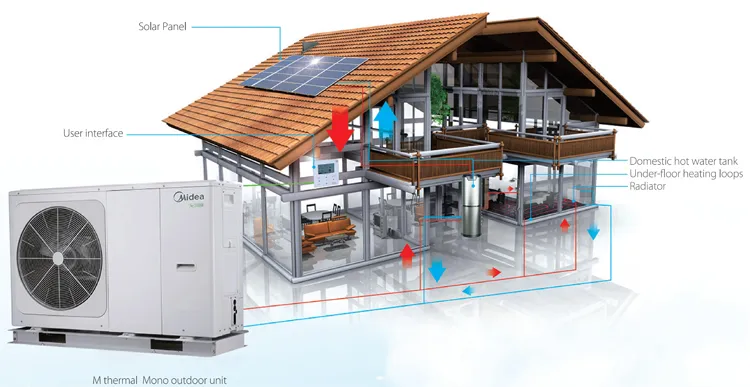

Applications & Structure

Application	Heating + Cooling + Domestic hot water (Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons)
Structure Type	Integrated (Heat pump and hydronic box are in the same casing)
Installation	Only need to install water piping; compact structure for easy transportation.
Compatible Parts	Under-floor heating coils, Fan coil units, Low temperature radiators, Domestic hot water tank, Auxiliary heat sources.

Technical Advantages

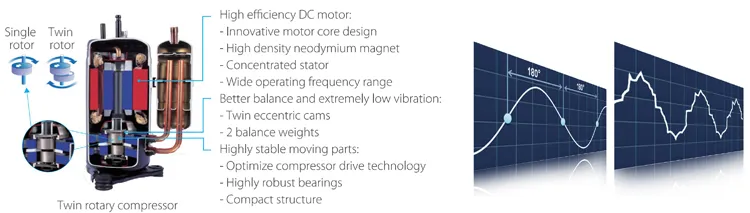

Twin Rotary DC Inverter Compressor: Uses 30% less power than traditional scroll compressors. Offers a wider operating frequency range for precise control and lower noise levels.

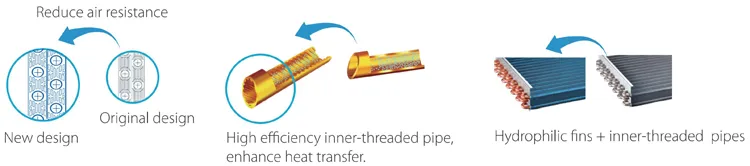

Finned Tube Heat Exchanger: Features window fins to enlarge heat-exchanging area and decrease air resistance. Hydrophilic blue fins protect against corrosion and ensure a longer service life.

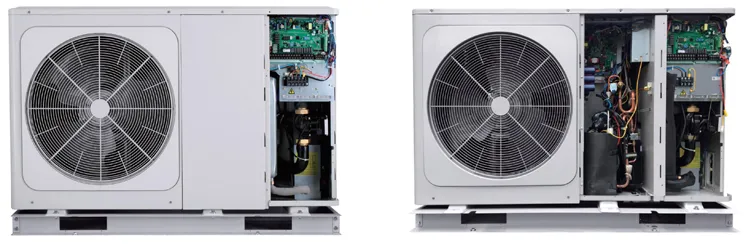

Maintenance & Installation: All hydronic components are built within the outdoor unit. The two-door design allows for easy access to internal parts.

Projects & Quality Assurance

Frequently Asked Questions

What are the main applications for this heat pump?

This system is ideal for villas, hotels, hospitals, student apartments, and beauty salons. It supports floor heating, fan coil cooling, and domestic hot water production.

How does the DC Inverter technology benefit the user?

The DC Inverter technology allows the compressor to adjust its speed based on actual demand, resulting in up to 30% energy savings, more precise temperature control, and significantly reduced noise.

What type of refrigerant is used in the V14W series?

The system utilizes R32 refrigerant, which is highly efficient and has a lower global warming potential (GWP) compared to traditional refrigerants.

Is the installation process complicated?

No, the Mono type features an integrated design where the hydraulic kit is built into the outdoor unit. Only water pipe installation is required at the site, making it compact and easy to install.

What is the operating temperature range?

The unit is designed to operate efficiently in cooling mode from -5℃ up to 46℃, ensuring stable performance across various climates.

How is the heat exchanger protected from corrosion?

The finned tube heat exchanger uses specially coated blue hydrophilic fins. This coating enhances durability and protects the unit from corrosion caused by air, water, and other corrosive agents.
