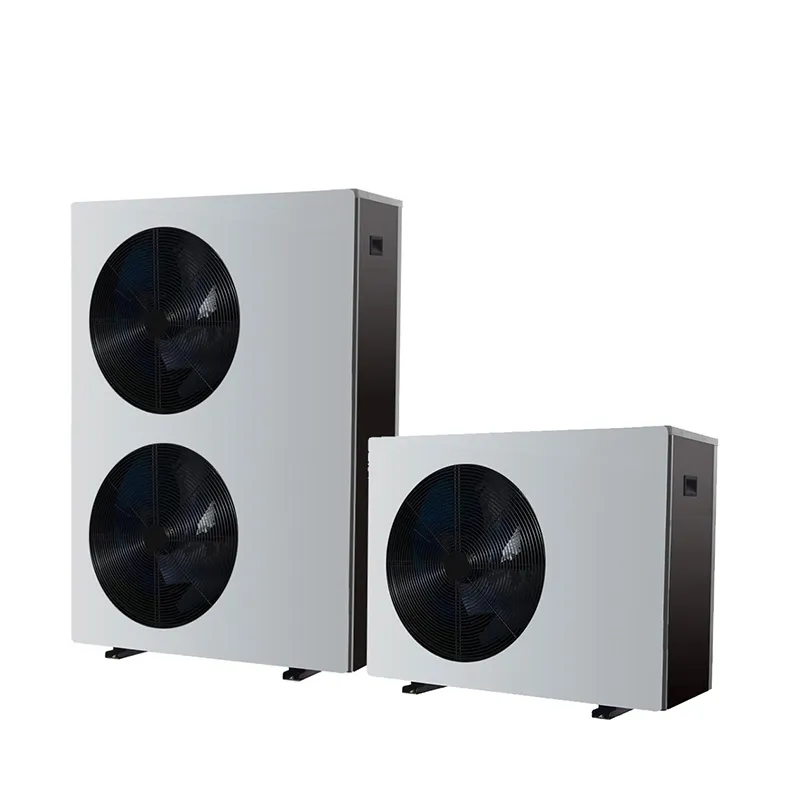

Mini Split Heat Pump Geothermal Heating Heat Pump Boiler

1 / 5

Mini Split Heat Pump Geothermal Heating Heat Pump Boiler

Customization:	Available
Condition:	New
Certification:	ISO9001, ISO, CE, ISO9001, TUV, ISO, CE

Send Inquiry

Product Description

Basic Specifications

Model NO.MMHP-008B1

ApplicationAdult, Child

StyleMultifunctional, Luxury

Power SourceElectricity

Power Voltage220~240V

Rated Input Power2.71kw

Refrigerant TypeR32 / 1.25kg

IP ClassIPX4

Max. Outlet Water60 Degree

Water ConnectionsG1 Inch

Noise Level50dB(a)

Net Weight102kg

CertificatesCE, ISO13485, ISO9001, FDA

HS Code8419601900

Product Description

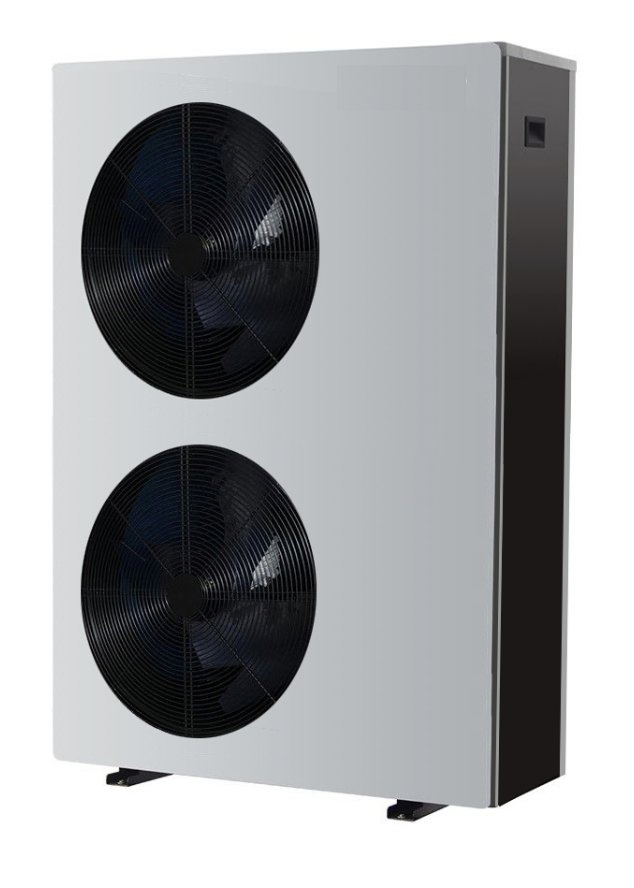

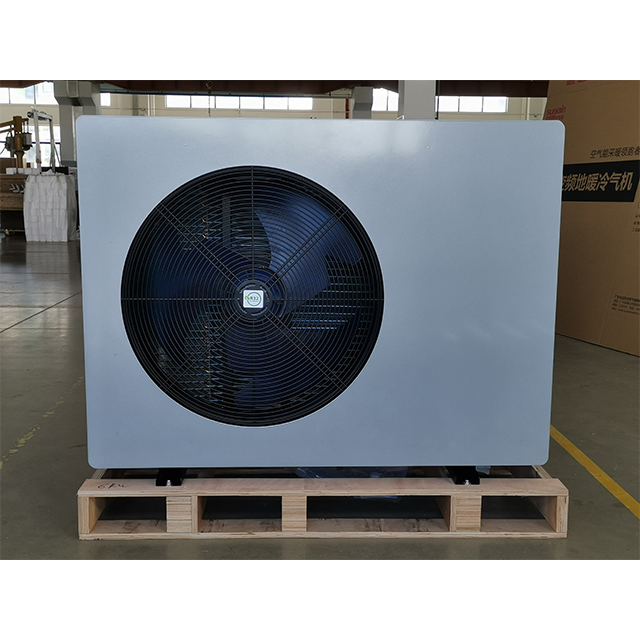

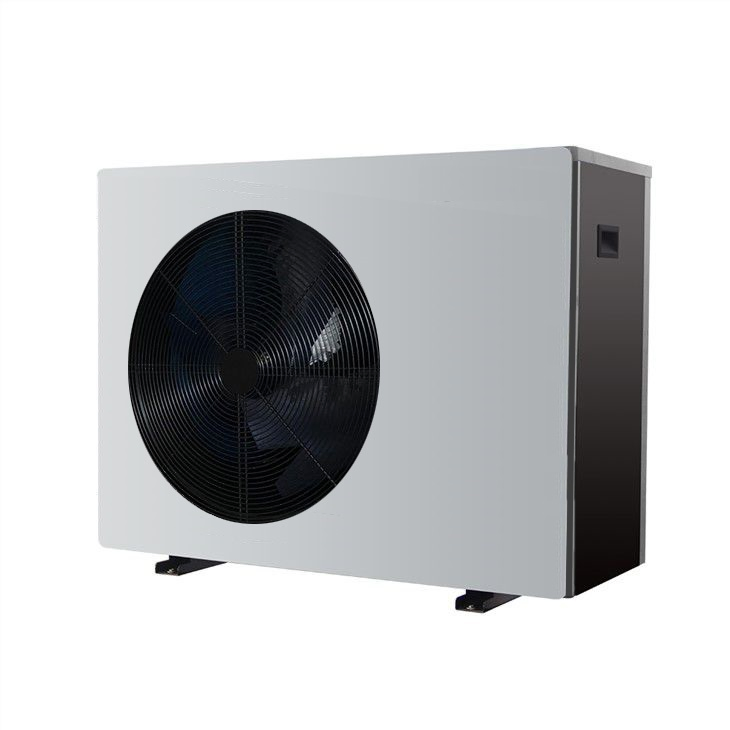

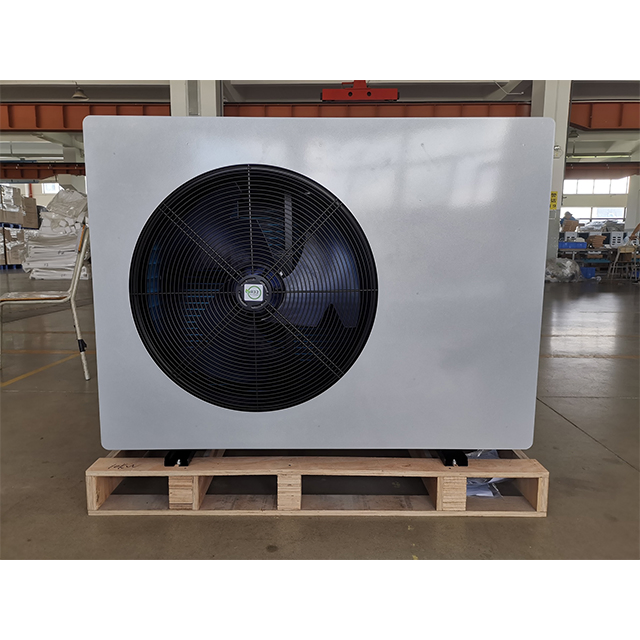

Mini Split Heat Pump Geothermal Heating Heat Pump Boiler
Model: MMHP-008B1

The MMHP-008B1 heat pump has been designed for heating down to -25°C, cooling up to 45°C ambient temperature, and hot water all year round. It has been optimized and pre-set to achieve the best seasonal COP, especially with strong heating output to reduce electric back up heating in colder days and save more cost. The intelligent controller offers all the basic functions and smart phone control gives users more convenience.

Technical Parameters

Model	MMHP-008B1	MMHP-012B1	MMHP-012B2	MMHP-016B1	MMHP-016B2	MMHP-018B1	MMHP-018B2
Power Supply	230V/50Hz	230V/50Hz	400V/3/50HZ	230V/50Hz	400V/3/50HZ	230V/50Hz	400V/3/50HZ
Heating Capacity (kW)	2.50-8.30	4.20-12.20	4.20-12.20	5.30-16.50	5.30-16.50	6.20-19.80	6.20-19.80
SCOP (35ºC)	5.14	4.55	4.55	4.58	4.58	4.61	4.64
SCOP (55ºC)	3.37	3.41	3.41	3.39	3.39	3.41	3.42
Refrigerant/Charge	R32/1.25kg	R32/1.8kg	R32/1.8kg	R32/2.8kg	R32/2.8kg	R32/3.5kg	R32/3.5kg
Max. Outlet Water (ºC)	60	60	60	60	60	60	60
Noise Level dB(A)	50	51	51	55	55	56	56
Net Weight (kg)	102	107	107	124	124	151	151

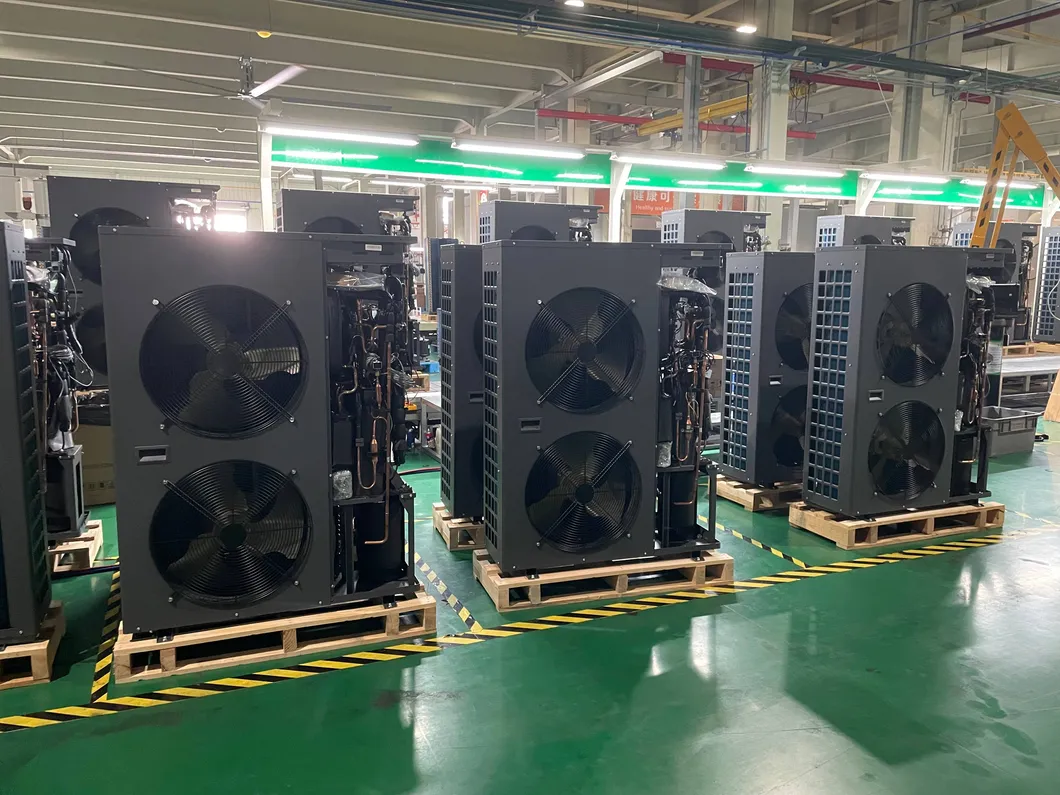

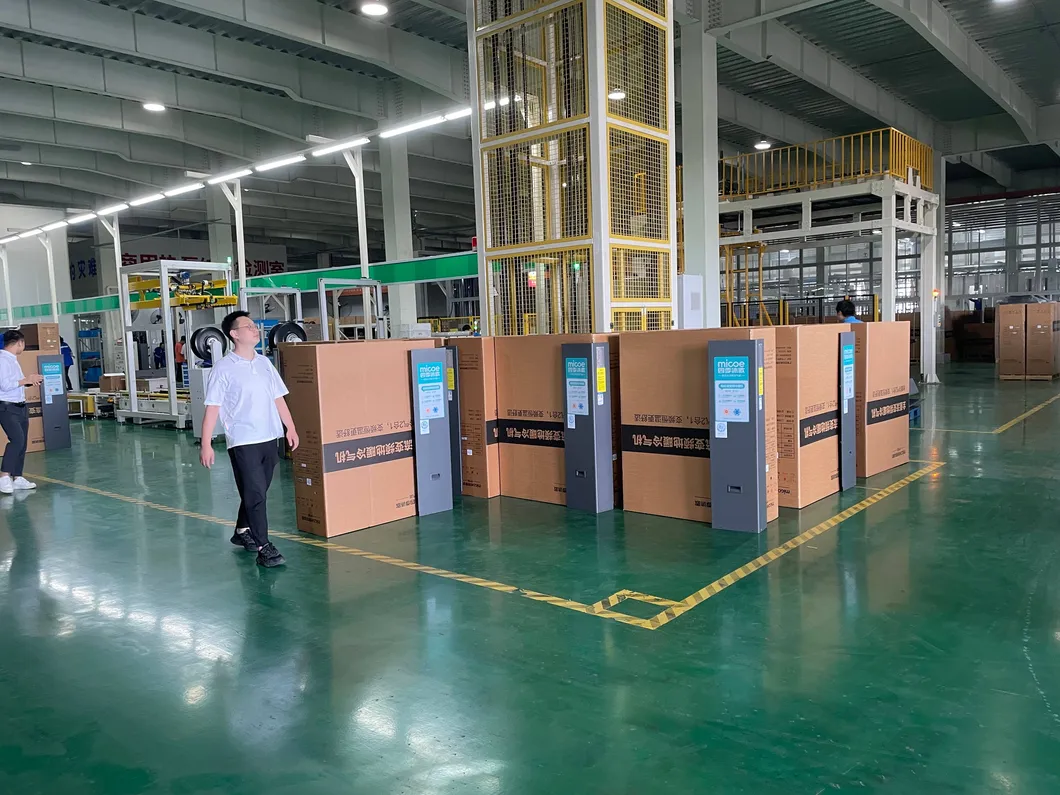

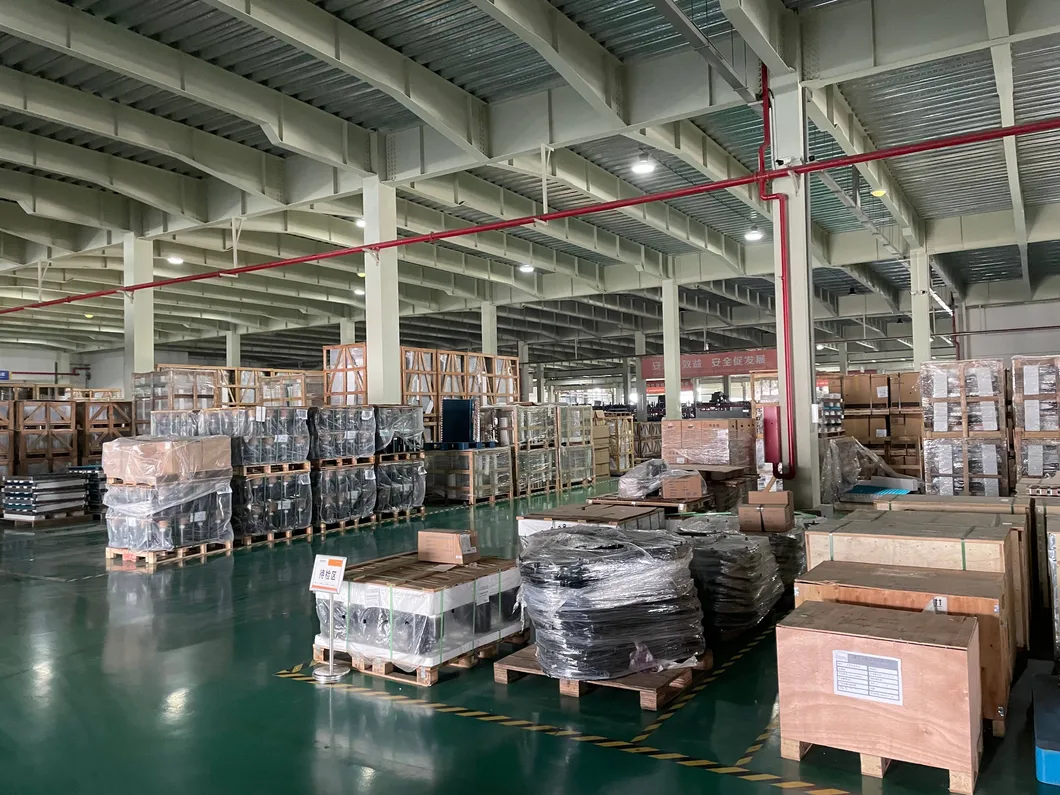

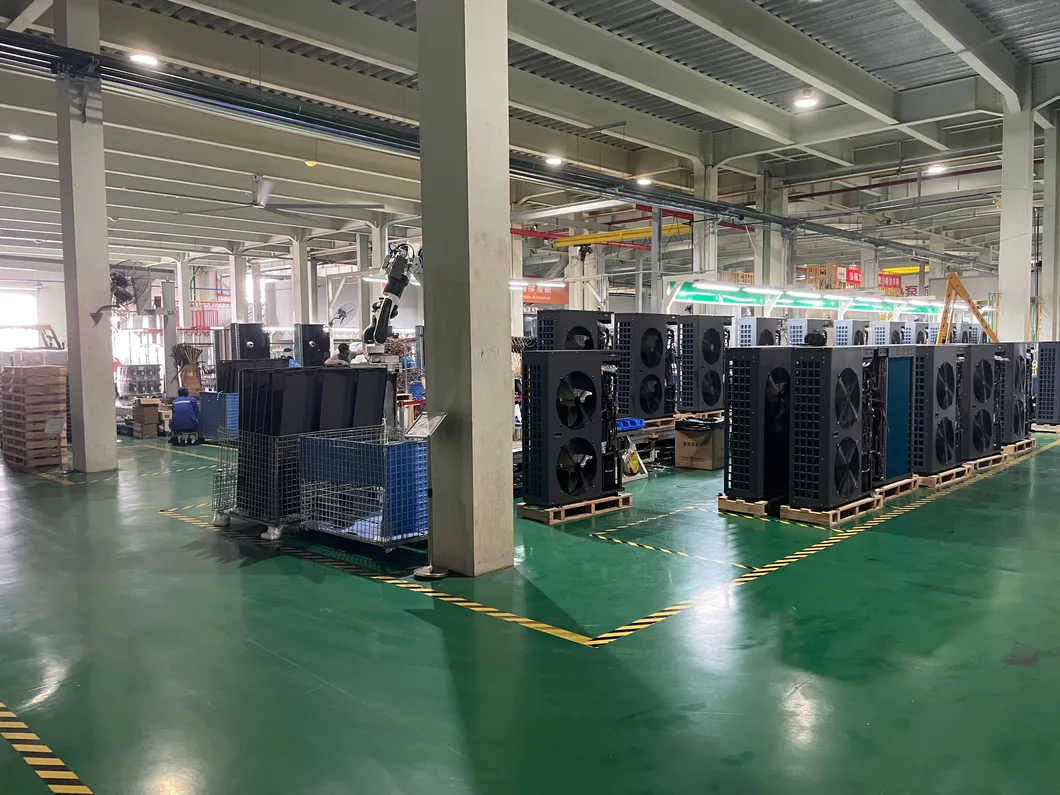

Factory & Quality Control

Our Services

Your inquiry will be replied within 12 hours.
Competitive prices, high quality, and excellent after-sales services.
All units are inspected strictly before leaving the factory with rigorous quality control systems.
Full support and protection for agents, including sales area and private information security.

Frequently Asked Questions

1. What is the lowest operating temperature for this heat pump? The system is designed to operate efficiently in temperatures as low as -25°C, making it suitable for cold climates.

2. What type of refrigerant is used in the MMHP-008B1 model? This model uses R32 refrigerant, which is known for its high efficiency and lower global warming potential (GWP).

3. Can this unit provide both heating and cooling? Yes, it is a multifunctional unit capable of heating down to -25°C and cooling up to 45°C ambient temperature, plus hot water supply.

4. What certifications does the product hold? The product is fully certified with CE, ISO13485, ISO9001, and FDA standards.

5. What is the maximum water temperature the heat pump can produce? The maximum outlet water temperature is 60°C, ideal for domestic hot water and heating systems.

6. Is smart phone control available for this system? Yes, the intelligent controller supports smart phone control for enhanced user convenience and remote management.
