Product Description

📋 Basic Info & Specifications

Model NO.

MGSDC-030IIC

Heat Source Type

Air Source Heat Pump

Eev

Dunan

Fan Motor

Nidec DC Brushless Motor

Refrigerant

R32

COP

Package

Polywood Case

Specification

1050*400*1350

Origin

China

HS Code

8418612090

🌟 Product Description

Monoblock Erp A+++ heating cooling and hot water Heat Pump with WiFi. Designed for high efficiency and smart control in residential and commercial environments.

Model				MGSDC-030IIC	MGSDC-050IIC	MGSDC-060IIC	MGSDC-080IIC	MGSDC-100IIC
HP				3HP	5HP	6HP	8HP	10HP
Ambient	Outlet	Power Supply		220-240V / 50-60Hz / 1ph or 380-415V / 50-60Hz / 3ph				380-415V / 50-60Hz / 3ph
+7°C	45°C	Heating Capacity	kW	9.65	16.45	19.90	24.90	30.90
		Power Input	kW	2.65	4.53	5.50	6.98	8.67
		COP		3.64	3.63	3.62	3.57	3.56
Compressor			-	Panasonic DC Inverter Compressor with EVI System

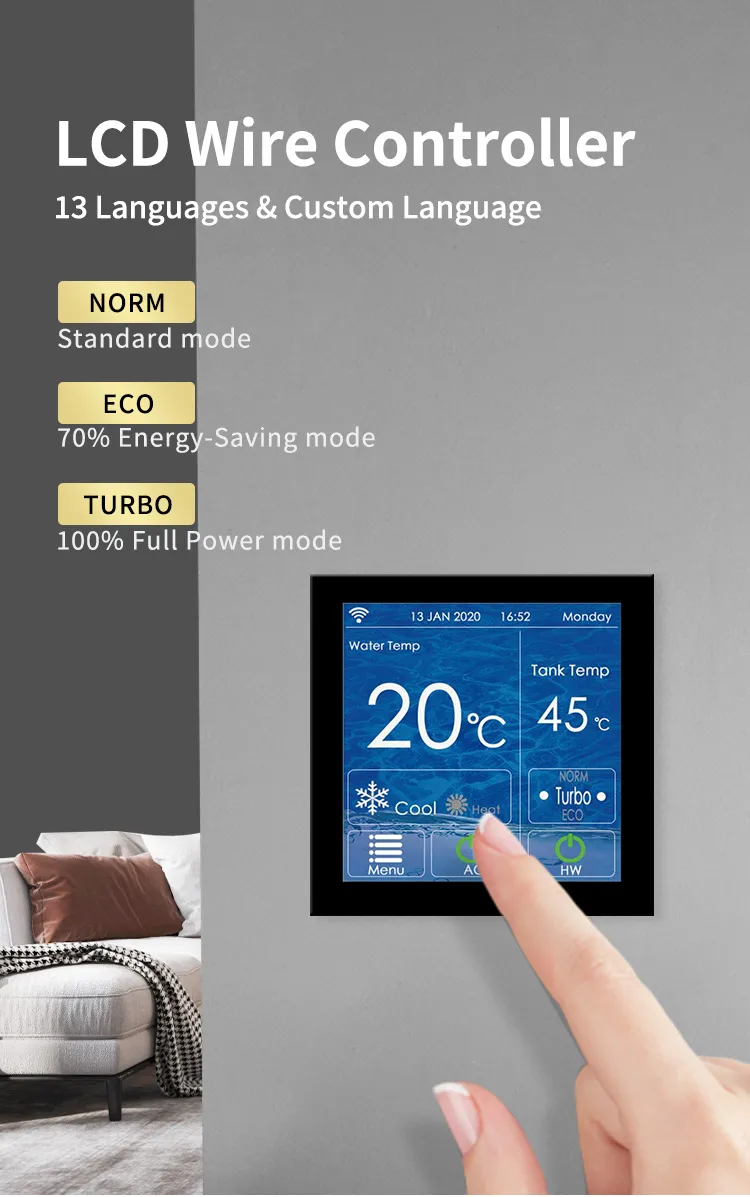

Controller			-	Touchscreen LCD Controller with WIFI and 13 Languages
Heat Exchanger			-	Cooper Brazed Plate Heat Exchanger
Unit size			mm	925375770	10504001350		11754001482

🖼️ Visual Display

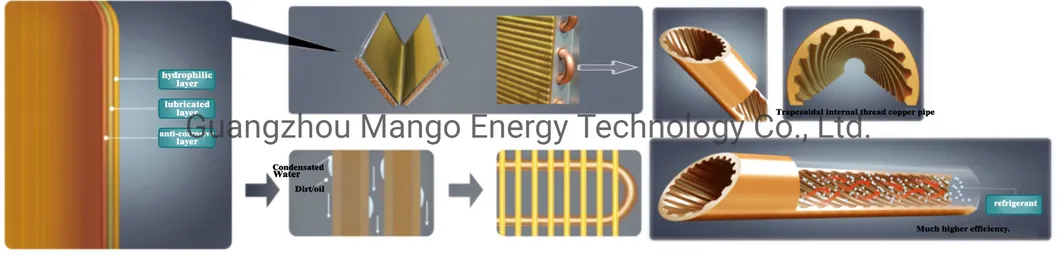

Key parts of all in one heat pump water heater DC inverter heat pump

Hydrophilic plus-size-area fins, ripple copper pipe...

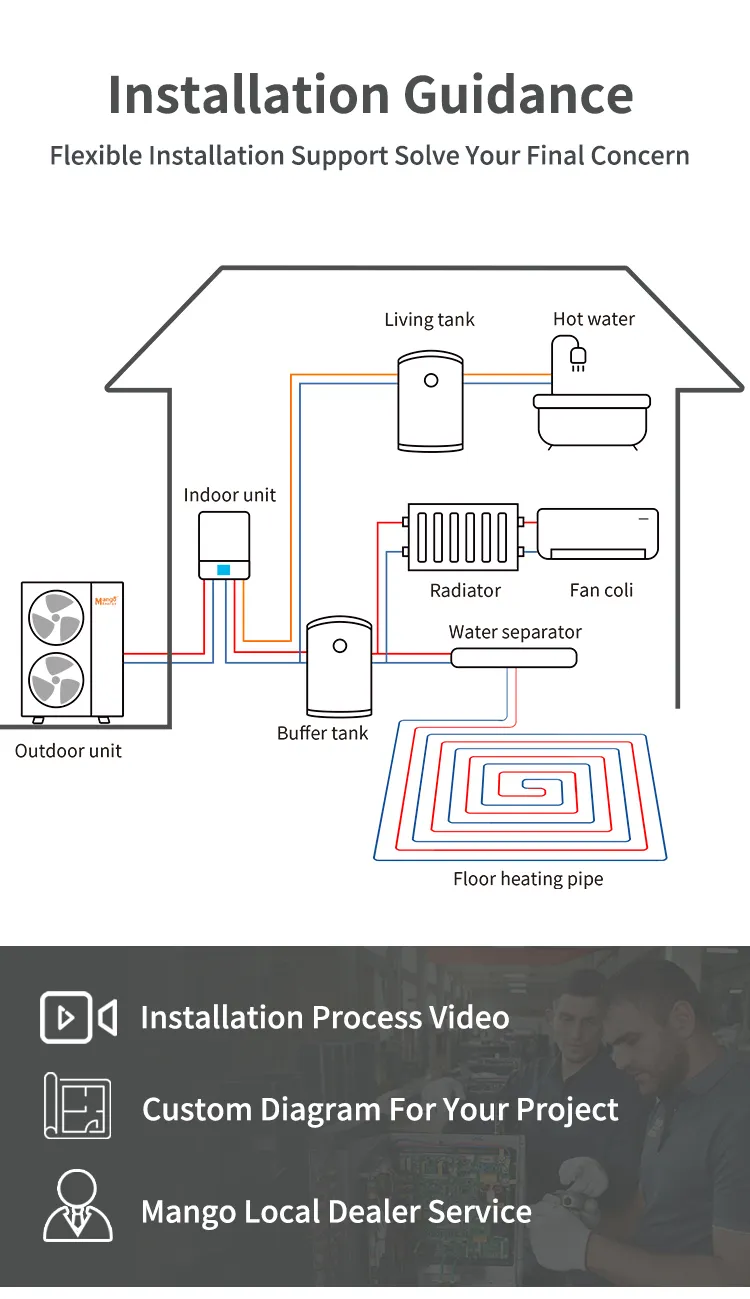

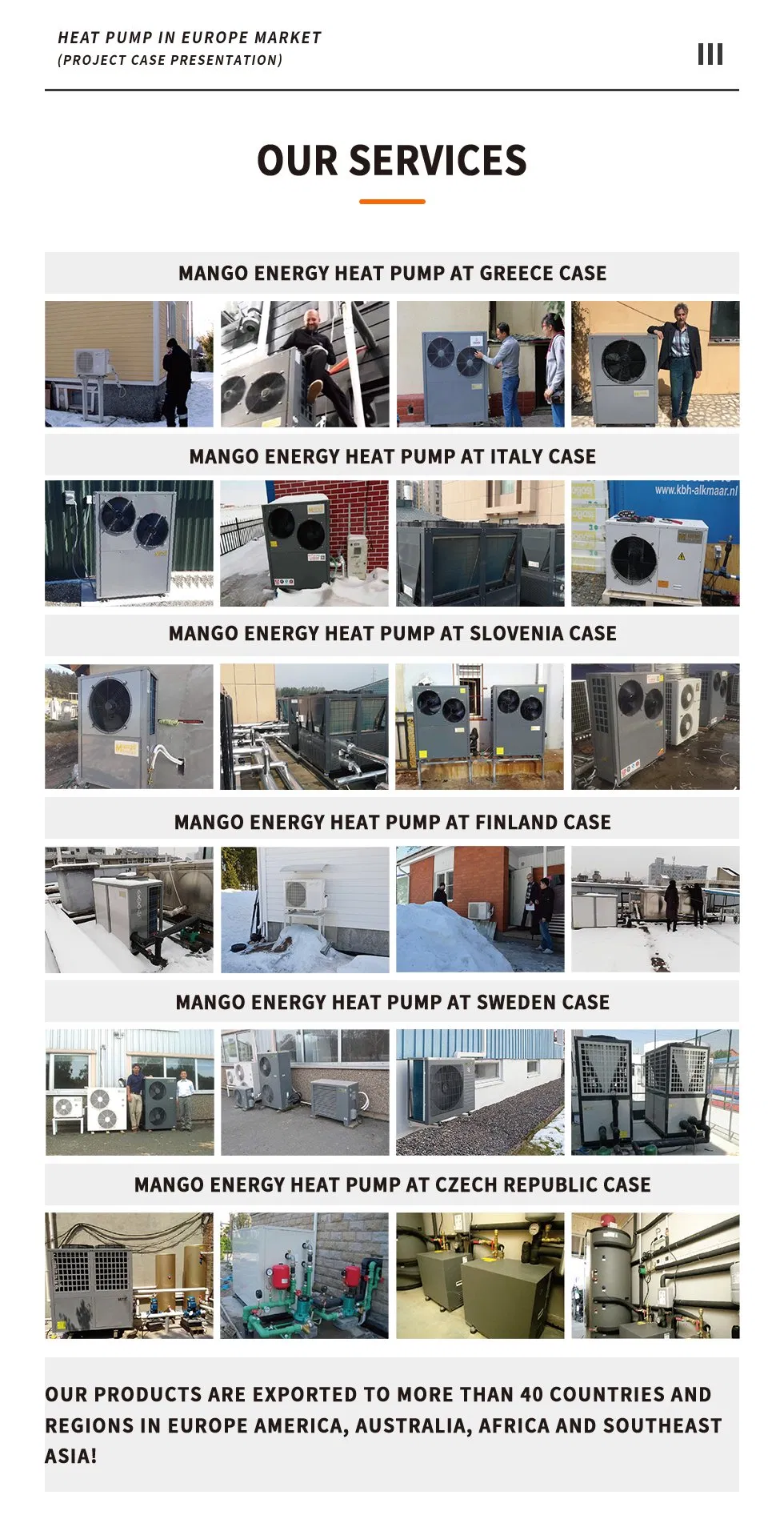

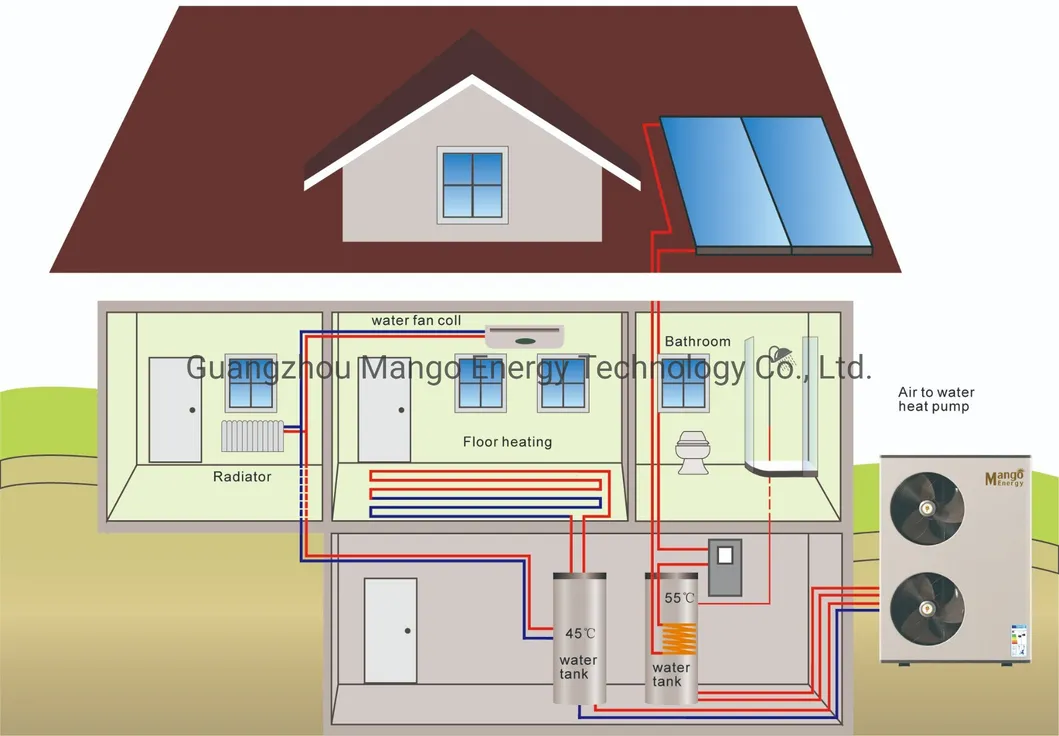

Application Scenarios

Customer Feedback

❓ Frequently Asked Questions

Q1: What types of heat pumps are manufactured?

We are a professional manufacturer of ON/OFF heat pumps, DC inverter heat pumps, air source heat pumps, water to water heat pumps, swimming pool heat pumps, and high-temperature heat pumps.

Q2: What certifications do the heat pumps hold?

The products have CE, CB, and EN14511 certificates from TUV Lab. The facility is ISO9001, ISO18001, ISO14001, and CCC certified. Units reach Class A+ and A according to ErP EN14825 test reports.

Q3: Which markets are the products exported to?

Currently, the products are exported to Western Europe, Northern Europe, South Africa, the Middle East, South America, and the Australian market.

Q4: What support is provided to business partners?

We offer sales training, product training for heat pumps and solar air conditioners, maintenance training, project design case training, and 24-hour online service.

Q5: How can technical training be obtained?

Training can be conducted through factory visits, on-site engineer team invitations, or through comprehensive online video training sessions.

Q6: Where are these air source heat pumps typically used?

Due to energy savings of around 70%, they are widely used in home heating, hotels, restaurants, hospitals, schools, bath centers, and residential central heating and hot water plants.

Send your inquiry right away for more details!
