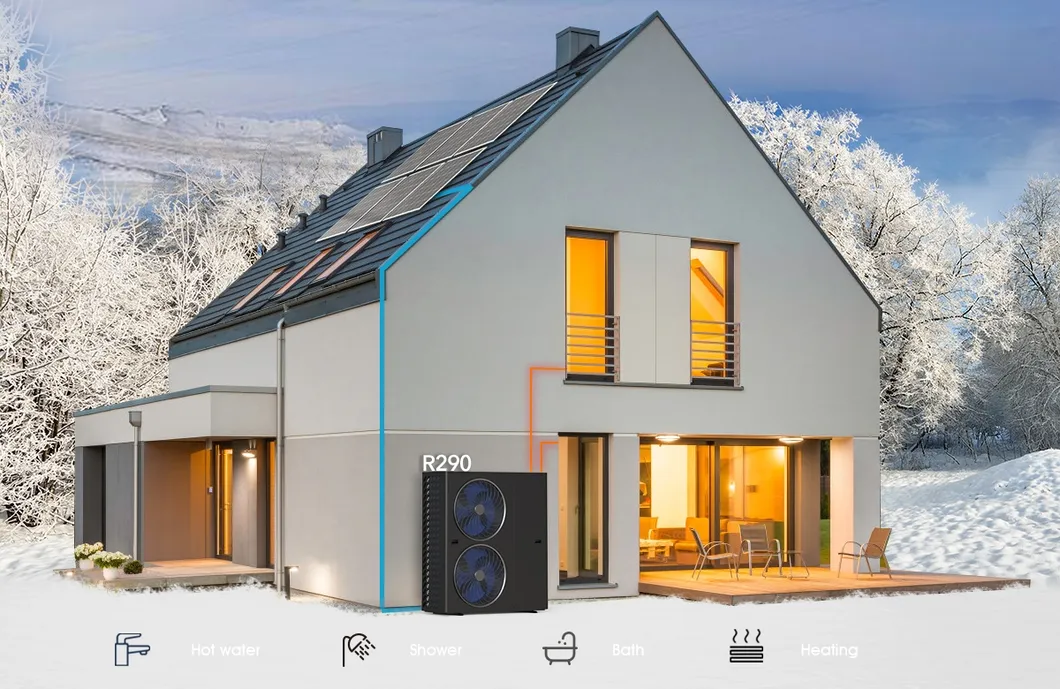

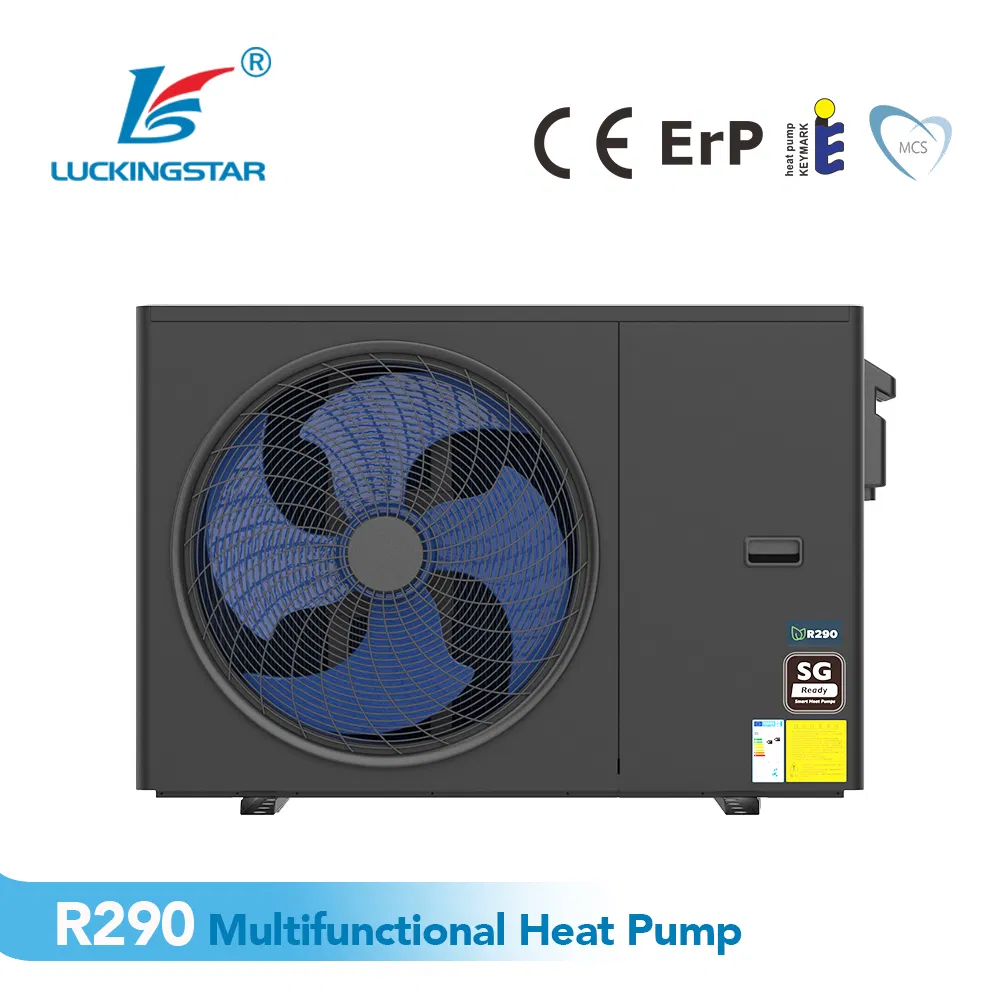

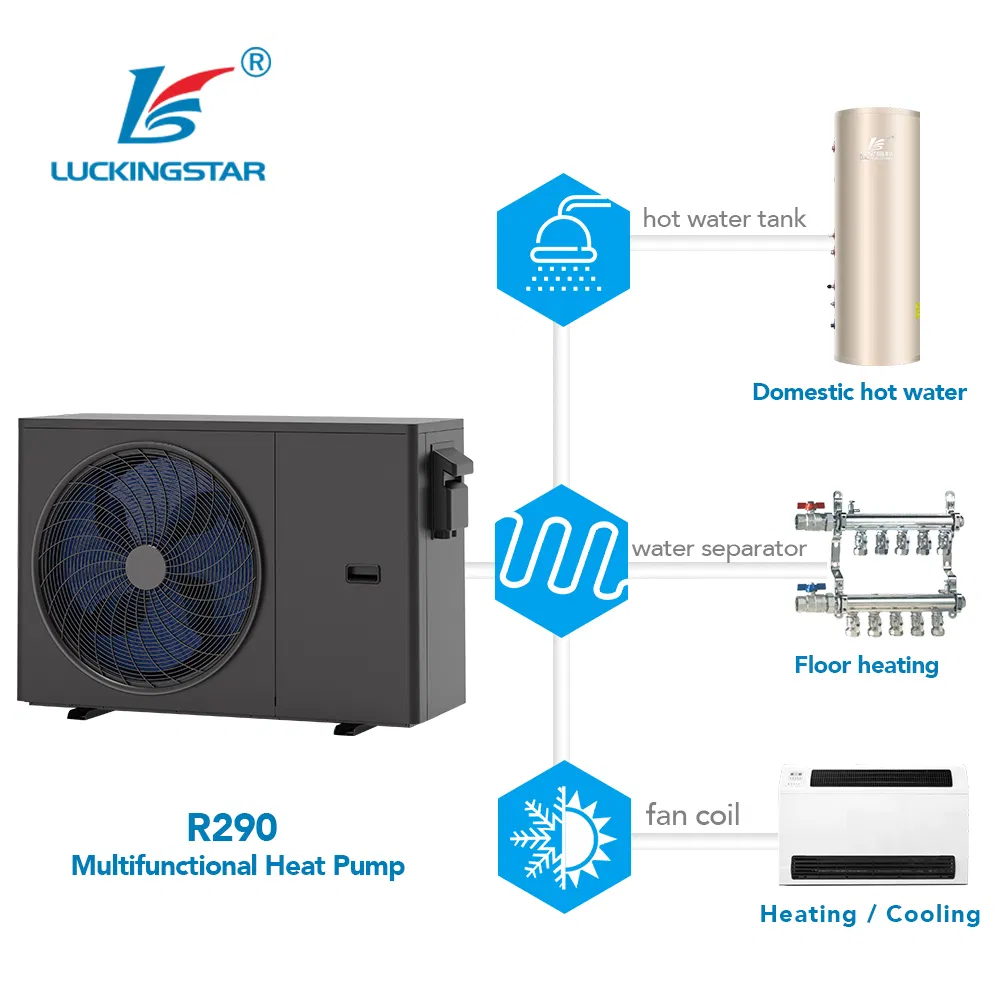

The perfect performance of the R290 Heat Pump can meet the user's needs of house heating, cooling and domestic hot water throughout the year. It provides stable and reliable operation even at extreme temperatures as low as -25ºC.

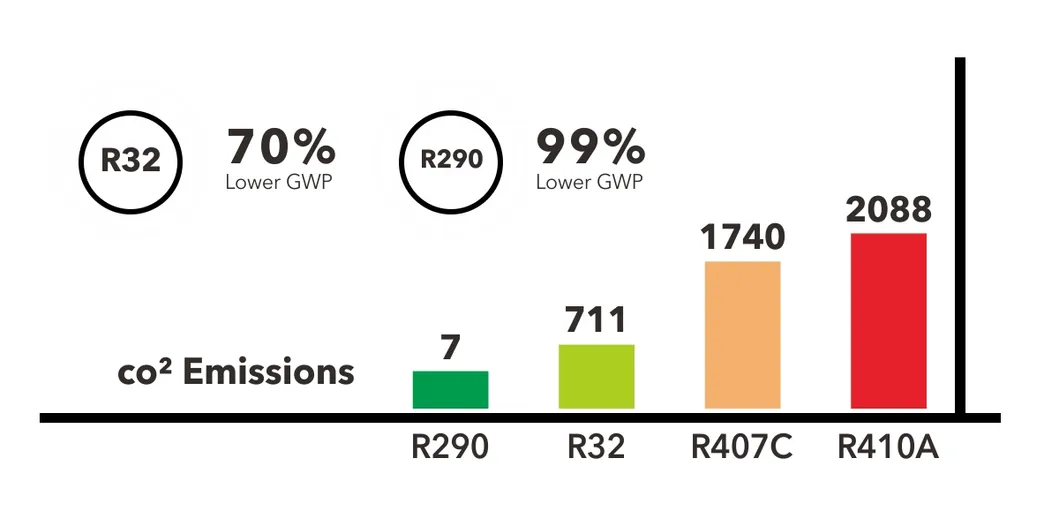

R290 (Propane) is a natural refrigerant with high thermal conductivity and excellent thermodynamics. It allows for an energy saving of approximately 30% compared to traditional refrigerants and has unique adaptability to various climates.
Matches energy input to required output precisely, reducing noise and power consumption.
Instantly adjusts refrigerant flow to ensure system stability and high operating efficiency.

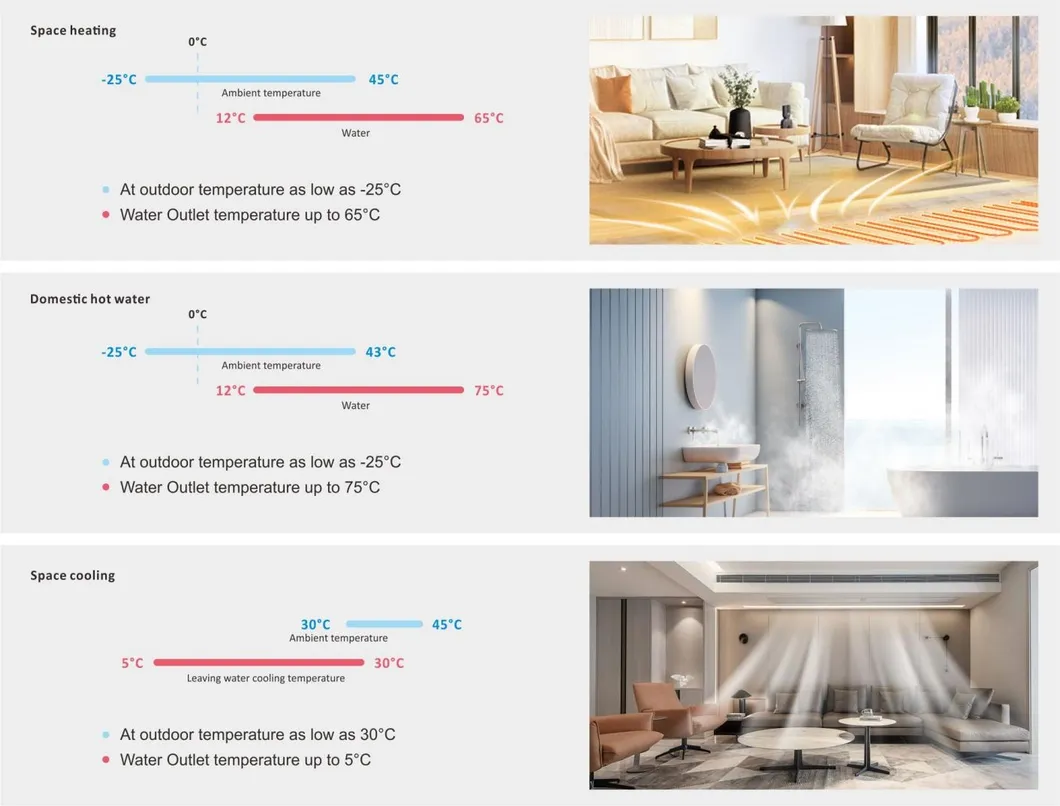

Achieve 100% rated output at -10°C ambient temperature. The system features intelligent defrost logic based on actual frost conditions to avoid unnecessary energy loss.
Maximum leaving water temperature can reach 75°C, making it an ideal solution for retrofitting projects and replacing traditional gas boilers with radiators.

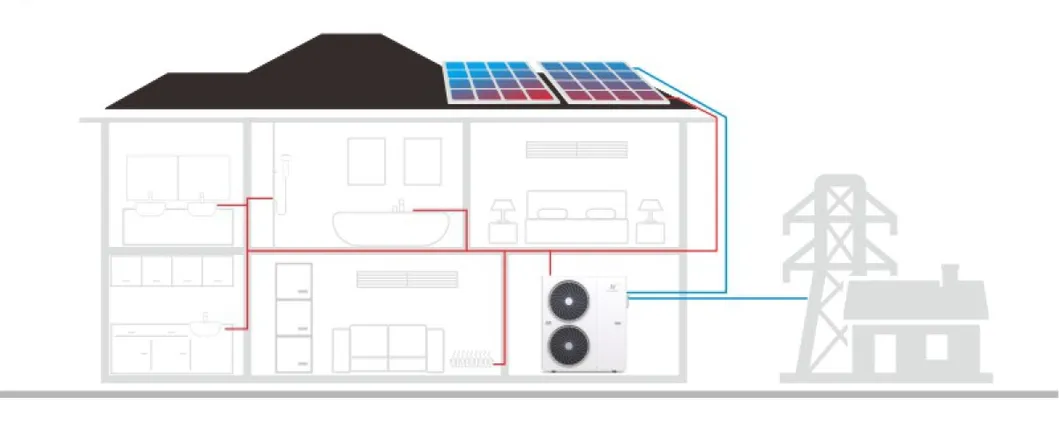

The system integrates seamlessly with "Smart Grids" and photovoltaic (PV) systems to store surplus energy. It supports cascade applications of up to 16 units for large building requirements.

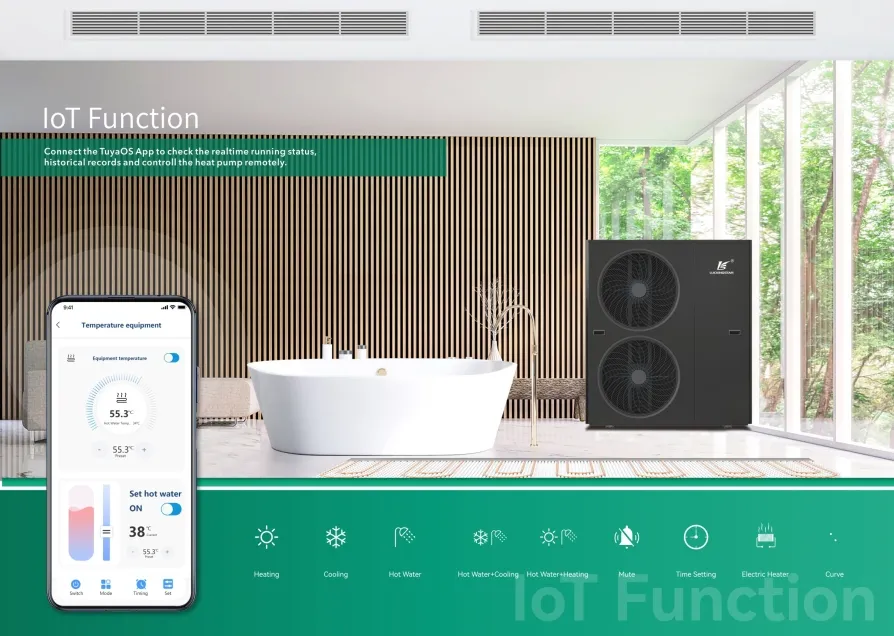

Monitor daily, monthly, and yearly energy usage via the dedicated App. Features include temperature adjustment, mode switching, timer settings, and remote OTA updates.
| Model (LWH-) | F8HVLZPN9 | F11HVLZPN9 | F15HVLZPN9 | F11HVZPN9 | F15HVZPN9 | F18HVZPN9 |
| Power Supply | 220-240V~/50Hz | 380-415V/3N~/50Hz | ||||
| Heating Capacity (kW) | 3.50~8.25 | 4.50~11.35 | 6.00~15.12 | 4.58~11.36 | 6.08~15.10 | 6.79~17.98 |
| COP (Range) | 6.00~4.53 | 5.76~4.52 | 5.77~4.52 | 5.79~4.52 | 5.79~4.52 | 6.06~4.50 |
| Max Water Temp | 75°C | |||||
| Refrigerant | R290 | |||||
| Sound Power dB(A) | 51~67 | 52~68 | 53~68 | 52~68 | 53~68 | 53~68 |
